​FS-1048E Fortinet Fortiswitch 48 Port Ethernet Switch

Comprehensive Product Details

Device Configuration and Management

• 48 managed, stackable ports designed for seamless connectivity.

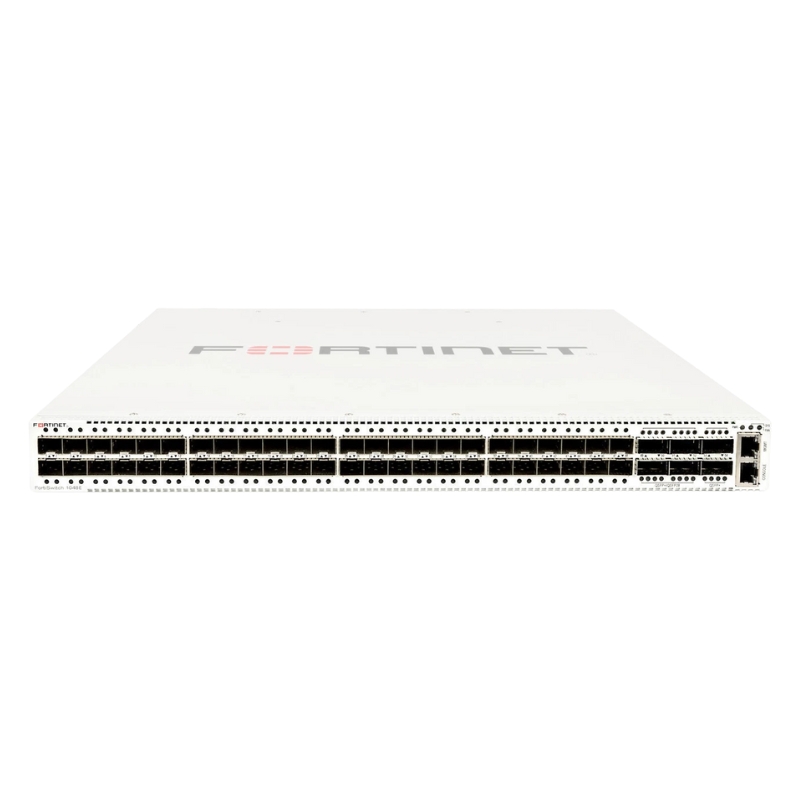

• 1U rack-mountable enclosure for efficient space utilization.
• Supports advanced 100 Gigabit Ethernet for high-speed data transfer.

Port Specifications and Capacity

• Port Configuration:
  • 48 x 1 Gigabit / 10 Gigabit SFP+
  • 6 x 40 Gigabit QSFP+
  • 4 x 100 Gigabit QSFP28
• Switching capacity of up to 1760 Gbps and 1310 Mpps packet processing speed.
• Ultra-low latency of less than 800 nanoseconds for time-sensitive applications.

Advanced Networking Features

Optimized Performance Capabilities

• Jumbo frame support for improved throughput and reduced overhead.
• ACL entries: 8,000; Routing entries: 16,000; Host entries: 32,000.
• Supports up to 144,000 MAC addresses, 4,000 VLANs, and 48 aggregation groups.
• 8 queues per port for enhanced traffic prioritization.

Protocol and Management Options

• Protocols supported: SNMP (v1/v2c/v3), HTTP/HTTPS, SSH, Telnet, and CLI.
• Features include DHCP, VLAN, port mirroring, and storm control capabilities.
• Integration with IPv4, IPv6, and STP, RSTP, and MSTP for superior compatibility.
• Link Aggregation Control Protocol (LACP) for simplified network management.

Hardware and Memory Specifications

Storage and Memory

• 8 GB RAM and 128 GB flash memory for robust operational stability.
• 12MB packet buffer to handle extensive traffic loads efficiently.

Power and Energy Efficiency

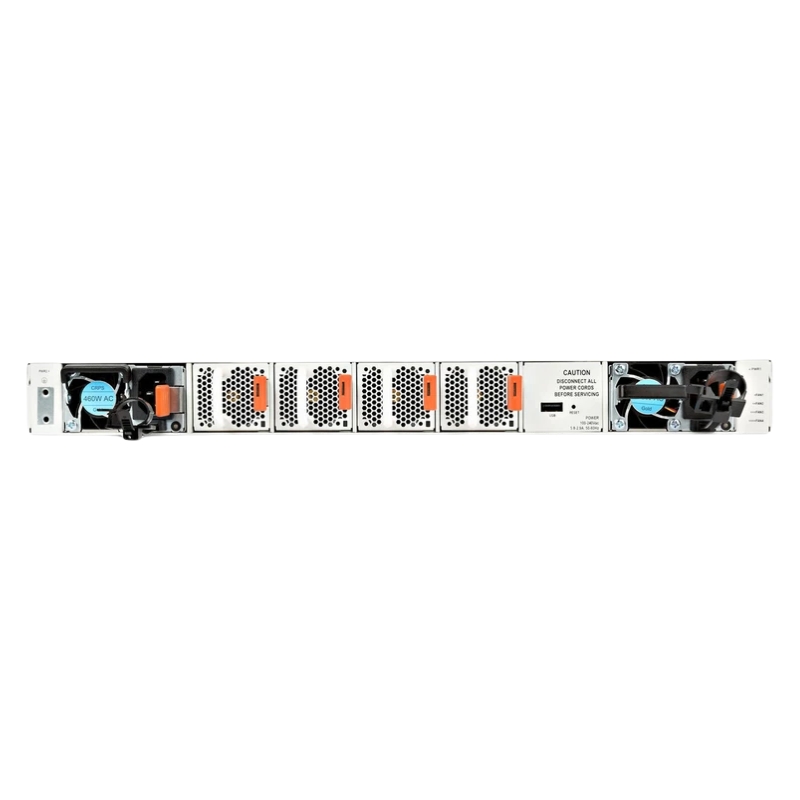

• Internal, hot-pluggable power supply for uninterrupted operations.
• Power consumption of 181.7W ensures energy efficiency without compromising performance.
• Compatible with AC 120/230 V at 50/60 Hz for diverse environments.

Connectivity and Expansion

Interface Options

• 48 x 1/10Gbit LAN SFP+ ports for flexible uplink connectivity.
• 6 x 40Gbit LAN QSFP+ and 4 x 100Gbit LAN QSFP28 ports for high-speed network aggregation.
• Dedicated management interfaces:
  • 1 x 1000Base-T RJ-45 management port
  • 1 x console RJ-45 management port

FS-1048E Fortinet 48 Port FortiSwitch Ethernet Switch Overview

The FS-1048E Fortinet 48 Port FortiSwitch Ethernet Switch stands as a robust, high-performance solution tailored for enterprise-level network environments. Designed to seamlessly integrate with Fortinet Security Fabric, this switch provides unparalleled efficiency, security, and scalability. Its 48 Ethernet ports offer abundant connectivity options, enabling organizations to support diverse network requirements while ensuring optimal data transfer speeds.

As a cornerstone of advanced networking, the FS-1048E facilitates efficient traffic management, superior security protocols, and seamless connectivity for businesses of all sizes. The switch combines flexibility, reliability, and cutting-edge technology, making it an ideal choice for enterprises seeking to optimize network performance and security.

Key Features of the FS-1048E FortiSwitch Ethernet Switch

High-Port Density for Expansive Connectivity

With its 48 Ethernet ports, the FS-1048E offers extensive connectivity, supporting multiple devices such as computers, servers, and access points. This high port density makes it an excellent choice for expanding networks in businesses with growing demands.

Advanced Security Integration

The FS-1048E integrates seamlessly with Fortinet’s Security Fabric, offering real-time threat intelligence and automated security enforcement. This feature ensures that all devices connected to the network maintain compliance with security policies, mitigating risks effectively.

Gigabit Ethernet Speeds

Featuring gigabit Ethernet capabilities, the FS-1048E supports high-speed data transfers, reducing latency and enhancing the performance of bandwidth-intensive applications. This makes it ideal for environments requiring fast, reliable connectivity, such as video conferencing, data backups, and multimedia streaming.

Energy-Efficient Design

The FS-1048E is designed with energy efficiency in mind, incorporating low-power components and intelligent energy-saving features. These capabilities not only reduce operational costs but also contribute to a more sustainable IT infrastructure.

Scalability and Flexibility

This switch provides a scalable networking solution, accommodating future growth without significant infrastructure overhauls. Its flexibility allows administrators to customize configurations based on specific organizational needs.

Technical Specifications of the FS-1048E FortiSwitch Ethernet Switch

Port Configuration

The FS-1048E is equipped with 48 Ethernet ports, including a mix of standard RJ45 ports and SFP/SFP+ uplink options. This configuration provides versatility for connecting a range of devices and supporting both copper and fiber-optic cabling.

Performance Metrics

The switch supports non-blocking architecture, ensuring consistent performance even under heavy traffic loads. With a switching capacity of up to several hundred Gbps, the FS-1048E ensures fast and efficient data transfer across all connected devices.

Power Over Ethernet (PoE) Support

Some models of the FS-1048E offer PoE+ support, enabling power delivery to devices like IP cameras, VoIP phones, and wireless access points directly through the Ethernet cables. This eliminates the need for separate power supplies and simplifies installation.

Network Management and Monitoring

Equipped with advanced network management tools, the FS-1048E provides intuitive monitoring and configuration options through the FortiCloud management portal or a web-based interface. These tools enhance network visibility, simplify troubleshooting, and streamline administrative tasks.

FS-1048E FortiSwitch Applications and Use Cases

Enterprise Networks

The FS-1048E is an ideal solution for large enterprises requiring robust and secure connectivity. Its high port count and advanced features make it suitable for supporting diverse business-critical applications, ensuring reliable network performance.

Data Centers

With its high throughput and scalability, the FS-1048E is a perfect fit for data center environments. It facilitates efficient server-to-server communication, minimizes bottlenecks, and supports seamless integration with storage area networks (SANs).

Education and Campus Networks

Schools, universities, and other educational institutions benefit from the FS-1048E’s ability to handle high-density device connections while maintaining robust security measures. This ensures uninterrupted access to digital learning resources and online collaboration tools.

Retail and Hospitality

Retail chains and hospitality businesses can leverage the FS-1048E for reliable point-of-sale (POS) connectivity, guest Wi-Fi, and inventory management systems. Its security integration protects sensitive customer data from potential breaches.

Healthcare Facilities

In healthcare settings, the FS-1048E supports secure and reliable connectivity for medical devices, patient management systems, and telemedicine applications. Its compliance with stringent security standards ensures the protection of sensitive patient data.

Advantages of Deploying FS-1048E FortiSwitch

Enhanced Network Performance

The FS-1048E delivers exceptional network performance, minimizing latency and ensuring smooth operation of bandwidth-intensive tasks. Its ability to prioritize traffic using QoS settings enhances user experience across applications.

Streamlined Management

The centralized management capabilities of the FS-1048E simplify network configuration and monitoring. Administrators can easily manage multiple switches from a single interface, reducing complexity and saving time.

Cost Efficiency

By supporting PoE, energy efficiency, and advanced network features, the FS-1048E reduces operational expenses. Its long-term reliability ensures a lower total cost of ownership for organizations.

Scalable Architecture

As organizations grow, the FS-1048E scales effortlessly to accommodate new devices and higher bandwidth requirements. This scalability eliminates the need for frequent hardware upgrades, future-proofing the network infrastructure.

Seamless Integration with Fortinet Ecosystem

The FS-1048E integrates seamlessly with other Fortinet products, creating a unified and secure network ecosystem. This synergy enhances overall security, simplifies management, and maximizes the return on investment.

FS-1048E FortiSwitch Maintenance and Support

Fortinet Support Services

Fortinet offers comprehensive support services for the FS-1048E, including firmware updates, technical assistance, and hardware replacement options. These services ensure the switch remains operational and up-to-date with the latest security patches.

Proactive Maintenance Tips

Regular firmware updates, proper cable management, and routine performance monitoring are essential for maintaining the FS-1048E. Fortinet’s tools provide automated alerts and recommendations for optimal performance.

FS-1048E FortiSwitch Ethernet Switch Compatibility

Integration with Security Appliances

The FS-1048E is fully compatible with Fortinet firewalls, enabling dynamic threat response and seamless policy enforcement across the network. This ensures a unified security posture for the entire IT ecosystem.

Support for Third-Party Devices

While optimized for Fortinet ecosystems, the FS-1048E also supports integration with third-party devices and applications, providing flexibility for diverse IT environments.

Environmental Impact and Energy Efficiency

Green Networking Initiatives

Fortinet’s commitment to sustainability is evident in the energy-efficient design of the FS-1048E. By minimizing power consumption and supporting eco-friendly practices, this switch aligns with green IT initiatives.

Long-Term Sustainability

Durable construction and efficient energy use make the FS-1048E a sustainable choice for long-term networking solutions. Its extended lifecycle reduces e-waste and contributes to environmental conservation.

The FS-1048E FortiSwitch Ethernet Switch

Trusted Brand Reputation

Fortinet is renowned for its innovation and reliability in the networking and cybersecurity industry. The FS-1048E exemplifies the company’s commitment to delivering high-quality, secure networking solutions.

Future-Proof Technology

The FS-1048E incorporates cutting-edge technology to meet the evolving demands of modern businesses. Its features ensure compatibility with emerging trends and technologies, safeguarding your investment.
