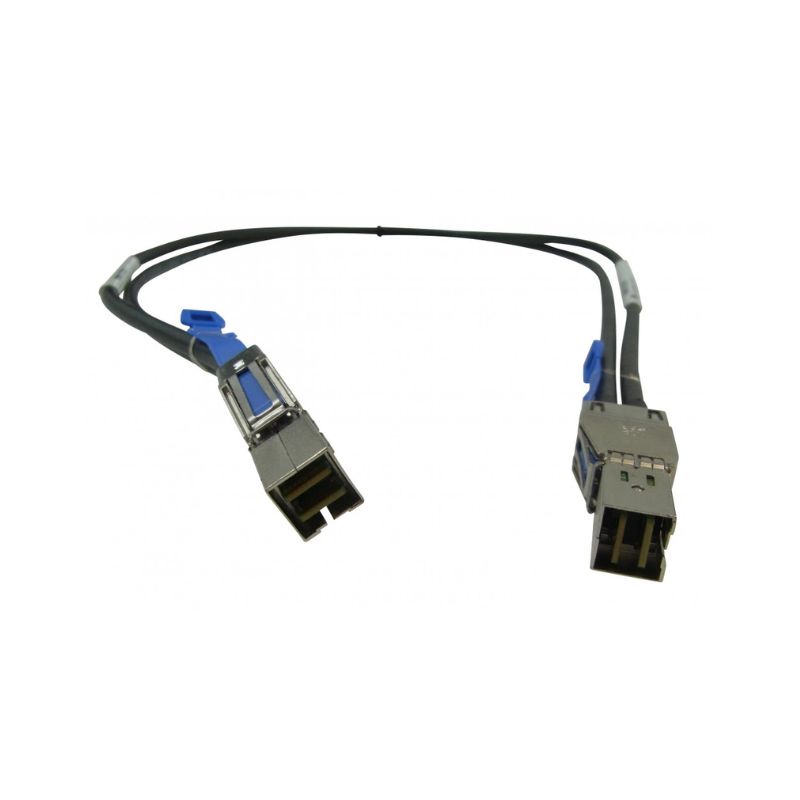

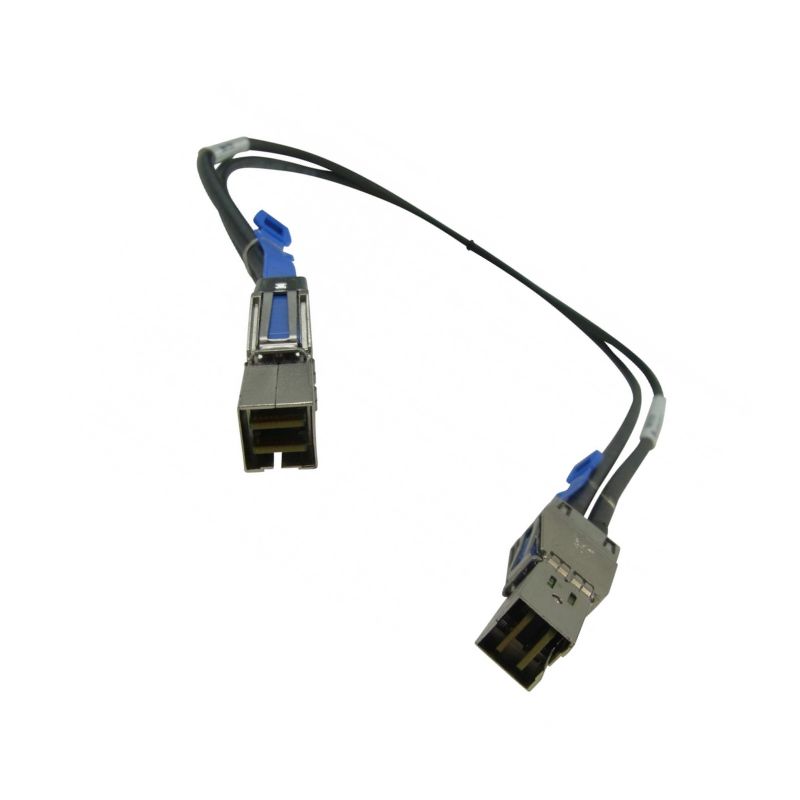

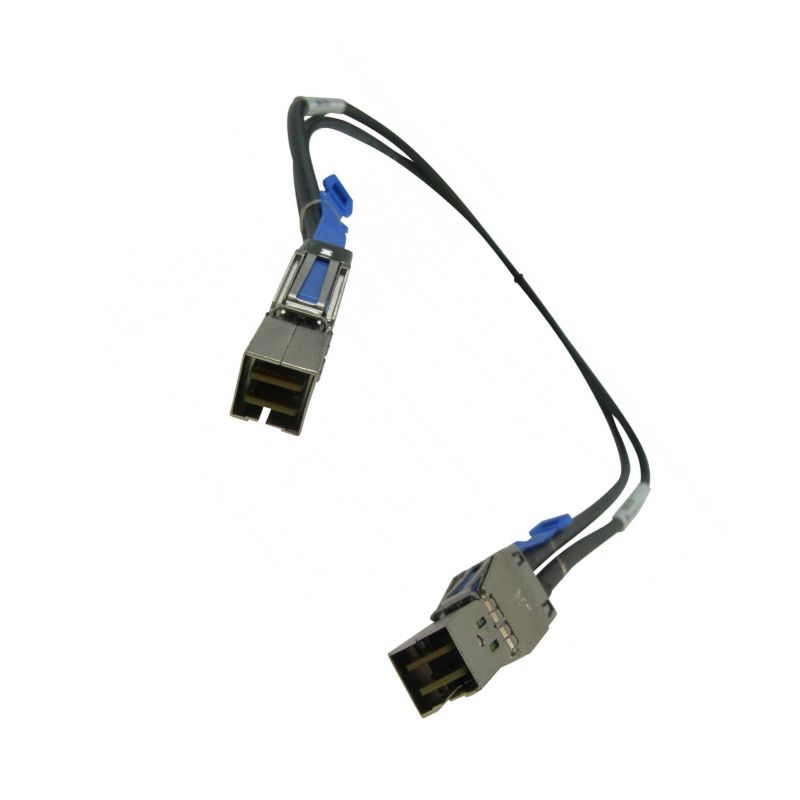

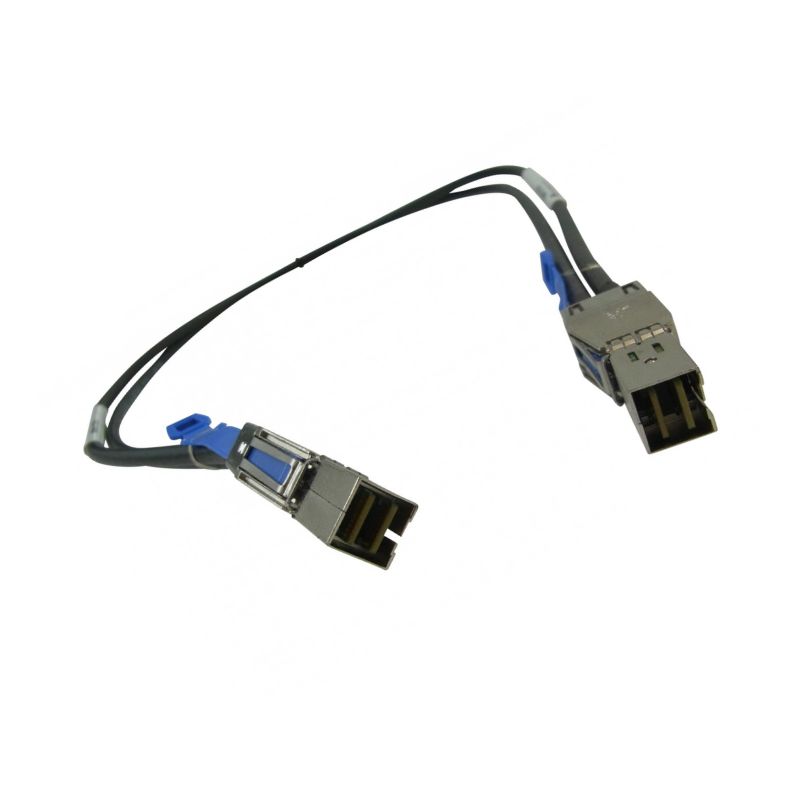

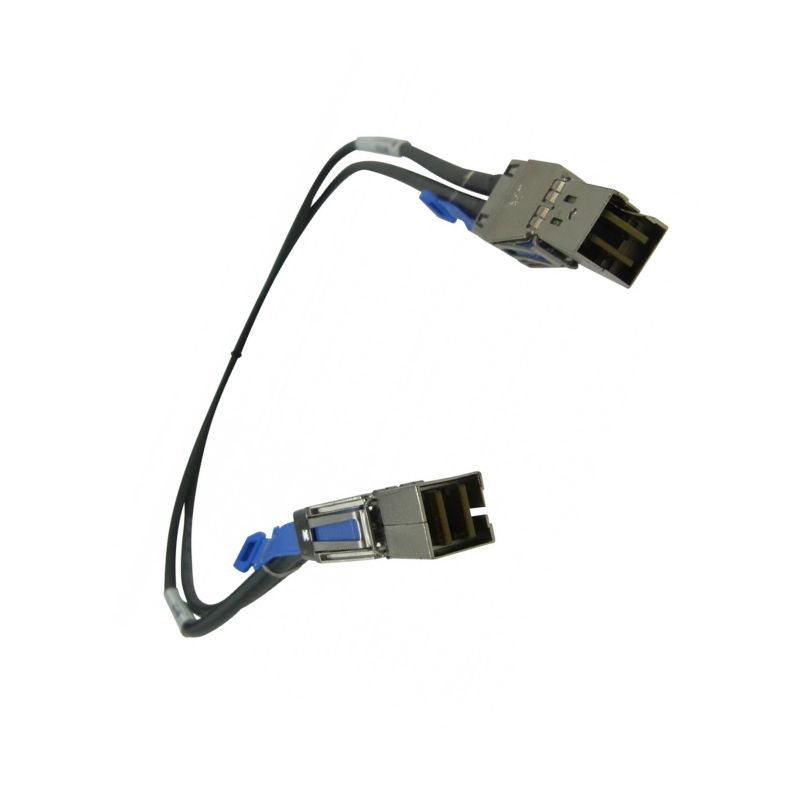

CA72314-0701 Fujitsu Mini SAS HD to Mini SAS HD 75cm Cable

Fujitsu CA72314-0701 75cm Mini SAS HD to Mini SAS HD Interconnect Cable

Optimized High-Speed Connectivity for Enterprise Hardware

• Engineered for high-performance data environments requiring Mini SAS HD (SFF-8644) interface on both ends.
• Supports seamless and stable connections between servers, storage enclosures, and RAID systems.
• Excellent compatibility with SAS 2.0/3.0 devices, ensuring fast data transmission and minimal latency.

Core Attributes of the CA72314-0701 Mini SAS HD Cable

• Model Number: CA72314-0701
• Manufacturer: Fujitsu Technology Solutions
• Length: 75 centimeters – ideal for close-range server rack setups.
• Connector Type: Mini SAS HD (SFF-8644) to Mini SAS HD (SFF-8644)

Designed for Data Centers and High-Throughput Systems

• Perfect for enterprise storage infrastructures needing dependable internal/external SAS connectivity.
• Constructed with durable shielding to eliminate electromagnetic interference (EMI).
• Flexible cable jacket allows efficient routing in compact server enclosures.

Advanced Build Quality & Compatibility

• Manufactured using premium-grade materials ensuring longevity and stable signal transmission.
• Tested rigorously to match or exceed OEM specifications for data-intensive applications.
• Seamlessly integrates with Fujitsu hardware and third-party SAS-enabled systems.

Why Choose Fujitsu’s CA72314-0701 Mini SAS HD Cable?

• Recognized for precision manufacturing and unmatched build consistency.
• Reliable part number: CA72314-0701 for quick sourcing and replacement.
• Backed by Fujitsu’s global reputation in server and data center hardware solutions.

Ideal Applications & Use Cases

• Connecting high-speed storage subsystems to host bus adapters (HBAs).
• Linking SAS expanders, RAID controllers, and JBOD enclosures.
• Perfect fit for short-distance internal rack deployments and high-performance server rooms.

Fujitsu CA72314‑0701 Mini SAS HD to Mini SAS HD 75 cm Cable Overview

The Fujitsu CA72314‑0701 cable is a high‑performance Mini SAS HD to Mini SAS HD 75 cm connectivity solution engineered for demanding storage environments. At 75 cm length (~2.5 ft), this precision‑manufactured cable supports robust data transfer performance, making it ideal for server backplanes, RAID controllers, storage arrays, and high‑density rack systems.

Manufactured to Fujitsu’s high‑quality standards, the CA72314‑0701 offers unmatched reliability, shielding, and signal integrity. This cable is designed to handle multi‑lane SAS (Serial Attached SCSI) links, delivering speeds of 12 Gb/s per lane when paired with SAS3 infrastructure—or lower speeds such as 6 Gb/s per lane with backward‑compatible setups.

Key Features & Technical Specifications

Compact Mini SAS HD Connectors

Featuring Mini SAS HD (SFF‑8644) male connectors on both ends, the CA72314‑0701 provides a compact form factor that saves space and improves airflow in dense server racks. These connectors support four lanes of SAS or SATA, all within a sleek, rugged housing.

75 cm Length for Optimal Reach

With a 75 cm cable length, this Fujitsu cable strikes a balance between flexibility and signal integrity. It’s long enough to route between components without excessive slack, yet short enough to minimize latency and interference.

High‑Speed Multi‑Lane Performance

Capable of supporting up to 48 Gb/s aggregate throughput (12 Gb/s × 4 lanes), the CA72314‑0701 excels in high‑bandwidth applications such as RAID arrays, SAN enclosures, and high‑availability clusters. Certification for SAS3 ensures full compatibility with server environments built on current generation hardware.

Durability & Environmental Standards

Constructed with shielded twisted‑pair conductors and rugged hooded connectors, this cable maintains signal integrity in noisy electromagnetic environments typical of data centers. It meets or exceeds relevant industrial and telecom standards for vibration, temperature range, and EMI resistance.

Benefits of Using Fujitsu CA72314‑0701 Cable

Reliable Data Transfer for Critical Systems

Designed for data‑center reliability, the CA72314‑0701 ensures stable, error‑free SAS links—even in high‑throughput, mission‑critical deployments. Whether for database servers, virtualization clusters, or storage backplanes, this cable maintains consistent performance under load.

Space‑Efficient Design

The slim, Mini SAS HD connectors and moderate cable length reduce clutter and improve airflow, contributing to cooler internal chassis operation and potentially extending component life.

Scalability & Future‑Proofing

Supporting SAS3 speeds and backward‑compatible with SAS2 (6 Gb/s) and SAS1 (3 Gb/s), the Fujitsu CA72314‑0701 enables seamless upgrades and reuse across multiple hardware generations—offering excellent ROI for evolving storage infrastructure.

Typical Applications & Use Cases

Server & Storage Enclosure Integration

Perfect for connecting RAID controllers to storage backplanes, JBODs, or hot‑swap enclosures in enterprise servers and blade chassis. The cable’s secure fit and robust shielding make it ideal for rack‑mount environments.

High‑Density Disk Arrays & SANs

Best suited for linking disk‑array modules in SAN setups, where pristine signal integrity and high throughput are indispensable. The cable’s short length reduces crosstalk, while its SAS3 rating ensures maximum performance.

Virtualization & High‑Availability Clusters

In virtualized environments requiring fast, redundant storage connections, the CA72314‑0701 becomes a key component in resilient architecture. Its dependable performance helps maintain uptime and reduces latency in I/O‑intensive applications.

Compatibility and Interchange Standards

Firmware and Controller Support

Compatible with a wide range of Fujitsu RAID controllers and host bus adapters—such as the SAS3008 or SAS3108 series—as well as third‑party SAS HBAs that support Mini SAS HD (SFF‑8644). Firmware revisions in your server or controller should support SAS3‑level signaling to fully capitalize on 12 Gb/s per lane performance.

Backward Compatibility with SAS2 & SAS1

Deployable with 6 Gb/s (SAS2) and 3 Gb/s (SAS1) systems. When operating in legacy gear, the cable’s built‑in auto‑negotiation ensures stable links at reduced speeds, without requiring manual intervention.

Cross‑Vendor Interoperability

While optimized for Fujitsu hardware, the CA72314‑0701 also works with other brands’ SAS3‑certified devices. Interoperability is determined more by cable and connector standards (Mini SAS HD, SAS3, SFF‑8644) than by OEM affiliation.

Connector Insertion & Safety

Mini SAS HD connectors feature latch mechanisms—press the latch gently but firmly when inserting, and listen for the click to ensure proper connection. When disconnecting, press the latch fully before pulling straight out; do not yank the cable to avoid damaging pins.

Thermal Considerations

Keep the cable away from heat‑generating components such as hot drives or power supplies. Although rated for typical data‑center temperatures (0 °C to 70 °C), minimizing direct exposure to extreme heat aids long‑term stability.

Troubleshooting & Maintenance

Verifying Link Status

Check your controller’s management software or system BIOS/RAID utility to confirm each SAS lane is active and running at expected speed (e.g. 12 Gb/s). Lower‑than‑expected throughput may indicate a bad cable, poor connector insertion, or incompatible hardware.

Identifying Cable Faults

If you suspect the cable is faulty, power down the system and swap it with a known‑good CA72314‑0701 or equivalent. Visually inspect for bent pins, kinks, or damaged shielding. Replacement is advisable at the first sign of wear.

Cleaning and Handling Precautions

Keep connector interfaces free of dust and debris. Use compressed air in short bursts (≤20 psi) to clear contaminants. Never touch connector pins directly—use anti‑static gloves if available.

Why Choose Mini SAS HD Over Other Designs?

Higher Density & Performance

Compared to older connectors like SFF‑8087 (Mini SAS), Mini SAS HD (SFF‑8644) delivers higher performance in a more compact form—making it the ideal choice for modern, high‑density deployments where rack space and airflow are premium concerns.

Enhanced Reliability & Locking Mechanism

Mini SAS HD connectors include improved retention latches and stronger metal housings, reducing accidental disconnections in vibration‑prone, mobile‑rack or blade‑server installations.

Scalability for Future Storage Upgrades

With support for multi‑lane channels and SAS3 speeds, Mini SAS HD enables easy migration into next‑generation storage fabrics without re‑cabling or re‑architecting your hardware layout.
