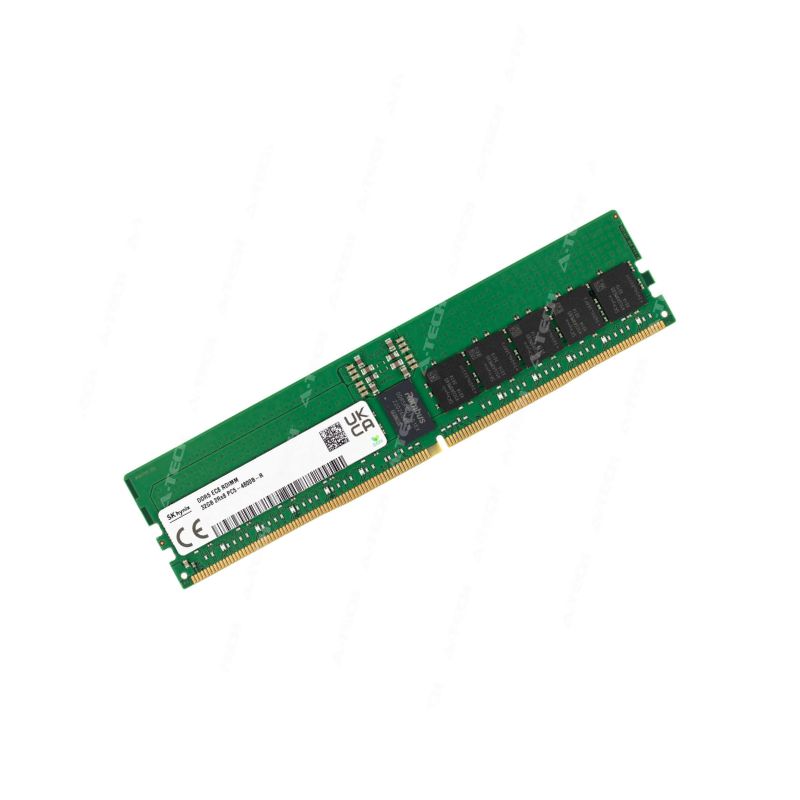

HMCG88AEBRA Hynix 32GB Memory Module

Deep Dive: Anatomy of the Hynix HMCG88AEBRA 32GB Module

To fully appreciate the capabilities of this memory module, one must understand the significance of each element in its product name: Hynix HMCG88AEBRA 32GB (1x32GB) 2Rx8 PC5-38400 4800MHz ECC Registered CL40 1.1V DDR5 SDRAM 288-Pin RDIMM. Each segment encodes critical information about its architecture and intended use.

Decoding the DDR5 RDIMM Specification

Capacity & Density: The 32GB (1x32GB) 2Rx8 Advantage

The "32GB (1x32GB)" denotes a single module with a massive 32-gigabyte capacity. The "2Rx8" is a key detail indicating the module's internal organization. "2R" means it is a dual-rank module, meaning the memory controller can access two sets of memory chips on the module alternately, improving efficiency and bandwidth utilization compared to a single-rank (1R) design. The "x8" refers to the bit width of each DRAM chip. This organization is optimal for balancing performance with capacity, allowing servers to achieve higher total memory capacities with fewer modules, which simplifies configuration and can improve signal integrity on the memory bus.

The Speed Standard: PC5-38400 and 4800MHz

This module adheres to the PC5-38400 industry standard. The "PC5" designates a DDR5 module, while the "38400" refers to the theoretical peak transfer rate in megabytes per second (MB/s). A single module can achieve up to 38,400 MB/s of bandwidth. This correlates directly to the 4800MHz data rate, which is the number of megatransfers per second (MT/s). This represents a significant increase over mainstream DDR4 speeds (typically 2666MT/s to 3200MT/s), directly translating to faster data access for CPUs and reduced latency in data-intensive applications.

Critical Server Features: ECC and Registered Design

The ECC (Error-Correcting Code) and Registered (or Buffered) features are non-negotiable for server stability. ECC is a hardware-level technology that detects and corrects single-bit memory errors on-the-fly, preventing silent data corruption that could lead to application crashes, calculation errors, or system instability. This is paramount for financial transactions, scientific research, and database integrity. The Registered (RDIMM) design incorporates a register (or buffer) on the module that sits between the memory controller and the DRAM chips. This buffer reduces the electrical load on the controller, enabling more reliable operation with higher numbers of modules installed per channel. This allows servers to support much larger total memory capacities—often into the terabytes—without sacrificing signal integrity or reliability.

Timing, Voltage, and Form Factor: CL40, 1.1V, and 288-Pin

CL40 refers to the CAS Latency, a primary timing of 40 clock cycles. While higher in number than DDR4 latencies, it's crucial to consider this in the context of the much faster clock speed; the actual time in nanoseconds is competitive and optimized for the DDR5 architecture. The 1.1V operating voltage highlights a key benefit of DDR5: improved power efficiency. Despite the massive performance increase, DDR5 operates at a lower voltage than DDR4 (typically 1.2V), reducing overall server power consumption and thermal output. Finally, the 288-pin layout is the physical standard for DDR5 modules, which is incompatible with DDR4 slots (284-pin), ensuring correct platform pairing.

Target Applications and Deployment Scenarios

The Hynix HMCG88AEBRA is engineered for specific, demanding server environments where reliability, capacity, and throughput are paramount.

Enterprise Data Centers and Cloud Infrastructure

In large-scale virtualization hosts running VMware, Hyper-V, or KVM, high memory density and reliability are critical. This 32GB RDIMM allows data center operators to maximize the memory per socket, hosting more virtual machines (VMs) per physical server. This improves consolidation ratios, lowers total cost of ownership (TCO), and simplifies management. For cloud infrastructure, the ECC protection ensures tenant isolation and data integrity across multi-tenant environments.

High-Performance Computing (HPC)

Computational tasks in scientific simulation, genomic sequencing, financial modeling, and machine learning training are often memory-bandwidth bound. The 4800MT/s speed of this Hynix module helps feed data-hungry CPUs (like AMD EPYC™ or Intel® Xeon® Scalable processors) faster, reducing compute idle time and accelerating time-to-results. The large 32GB capacity per module is essential for in-memory processing of massive datasets.

High-Transaction Databases and In-Memory

Enterprise database servers (e.g., SQL Server, Oracle DB, SAP HANA) and in-memory data grids thrive on low-latency, high-throughput memory. The combination of high bandwidth, ECC protection for data integrity, and the stability of registered design makes this module ideal for these applications. Reducing query times and transaction latency directly impacts business intelligence speed and customer-facing application performance.

Technical Advantages of the DDR5 Architecture in This Module

Beyond the raw specifications, the underlying DDR5 technology in this Hynix module introduces architectural improvements that benefit server environments.

On-Die ECC (ODECC) and Enhanced Reliability

DDR5 memory chips incorporate a foundational level of error correction known as On-Die ECC. This internal mechanism corrects bit errors within the DRAM chip itself before they even reach the module's main ECC logic. This two-tiered approach—ODECC plus standard module-level ECC—provides an exceptional level of data integrity and chip resilience, leading to higher overall module reliability and longevity in 24/7 operation.

Independent Sub-Channels for Improved Efficiency

A key innovation in DDR5 is the splitting of each module's 64-bit data channel into two independent 32-bit sub-channels. This effectively allows the memory controller to handle two simultaneous 32-bit access commands. For the Hynix HMCG88AEBRA, this means improved granularity in memory access, reduced command queue congestion, and ultimately, higher real-world efficiency, especially in multi-threaded server workloads that make numerous small memory requests.

Integrated Power Management (PMIC)

DDR5 modules relocate the power management integrated circuit (PMIC) from the motherboard to the memory module itself. This gives the Hynix module greater control over its power delivery and voltage regulation. The benefits are multifaceted: improved signal integrity due to cleaner power, better granularity for power optimization, and enhanced support for module-specific power management features. This contributes to the module's stability, especially in systems fully populated with RDIMMs.
