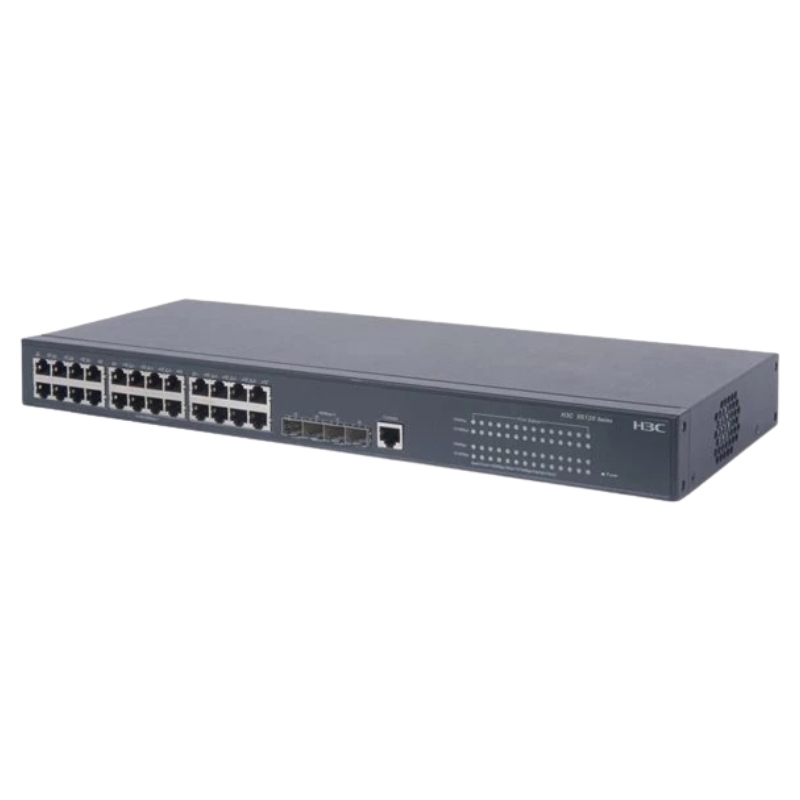

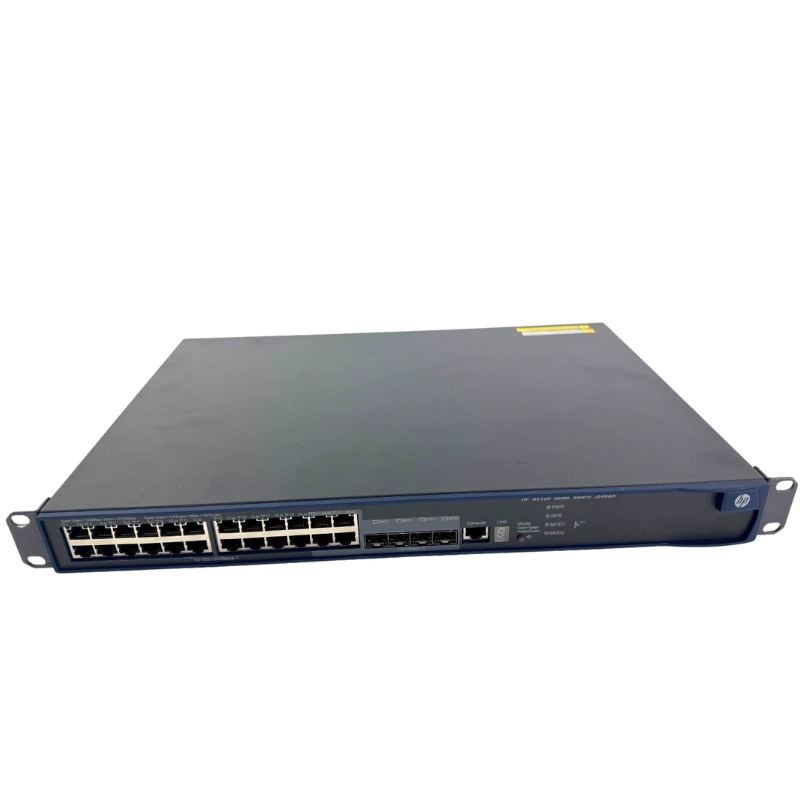

HP JE074A A5120-24g Switch Layer4 24x10/100/1000 4xSFP Managed Rack-Mountable

Product Overview

Device Specifications

• Type: Managed Switch with 24 Ports, Layer 4 Capabilities
• Enclosure: Rack-Mountable, 1U Form Factor
• Port Configuration: 24 x 10/100/1000 Ethernet Ports, 4 x SFP Ports
• MAC Address Table: 8,000 Entries

Routing and Management

• Routing Protocol: Static IPv4 Routing
• Remote Management: SNMP v1, SNMP v2c, SNMP v3, RMON, Telnet, HTTP, HTTPS, CLI
• Encryption: SSL
• Authentication: RADIUS, SSH v2

Advanced Features

• Flow Control: Yes
• Layer Switching: Layer 2 and Layer 3 Switching Supported
• Device Auto-Sensing: Yes
• DHCP Support: Yes
• ARP Support: Yes
• VLAN Support: Yes
• Auto-Uplink: Auto MDI/MDI-X
• Spanning Tree Protocols: Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) Support
• Virtual Cable Testing: VCT Technology
• DHCP Snooping: Yes
• Access Control Lists (ACL): Supported
• Quality of Service (QoS): Yes
• Jumbo Frames: Supported
• STP Root Guard: Yes

Compliance and Standards

• IEEE Standards: 802.3, 802.3u, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s

Memory and Storage

• RAM: 128 MB SDRAM
• Flash Memory: 128 MB

Expansion and Connectivity

• Interfaces:
  • 24 x 10BASE-T/100BASE-TX/1000BASE-T RJ-45 Ports
  • 1 x Console Port RJ-45
  • 4 x SFP (Mini-GBIC) Ports

Power Requirements

• Power Device: Integrated Power Supply
• Voltage Required: AC 120/230 V (50/60 Hz)

Number Of Ports

The HP A5120-24g Switch is a high-performance switch that offers 24 ports. This feature is essential for users who require a large number of ports to connect multiple devices and expand their network infrastructure.

Increased Connectivity

The 24 ports on this switch provide users with the ability to connect a wide range of devices such as computers, servers, printers, and IP cameras. With more ports available, users can easily expand their network and accommodate the growing number of devices in their organization.

Improved Network Performance

Each port on the HP A5120-24g Switch supports Gigabit Ethernet, allowing for fast and reliable data transfer. This high-speed connectivity ensures that users can enjoy seamless network performance, even when transferring large files or streaming media.

Flexibility and Scalability

The 24 ports on this switch offer users flexibility and scalability in their network design. Whether you need to connect a small office network or a large enterprise network, the HP A5120-24g Switch can accommodate your needs. Users can easily add or remove devices without worrying about running out of port capacity.

Cost-Efficiency

By providing 24 ports in a single switch, the HP A5120-24g Switch eliminates the need for additional switches and reduces overall infrastructure costs. Users can save money by consolidating their network equipment while still enjoying the benefits of a robust and reliable network.

Port Speed

The HP A5120-24g Switch supports port speeds of 10/100/1000 Mbps. This feature is crucial for users who require high-speed connectivity to support bandwidth-intensive applications and ensure smooth data transmission.

Fast Data Transfer

The 10/100/1000 Mbps port speed of the HP A5120-24g Switch enables users to transfer data at incredibly fast speeds. Whether you are transferring large files, streaming media, or engaging in real-time collaboration, this switch ensures that your data is transmitted quickly and efficiently.

Support for Bandwidth-Intensive Applications

With the increasing demand for bandwidth-intensive applications such as video conferencing, cloud computing, and virtualization, having a switch that supports 10/100/1000 Mbps port speed is essential. The HP A5120-24g Switch allows users to run these applications without experiencing any lag or performance issues.

Future-Proofing

As technology continues to advance, the need for faster network speeds will become more critical. By supporting 10/100/1000 Mbps port speed, the HP A5120-24g Switch ensures that your network is ready to handle the demands of future applications and technologies.

Number Of SFP Ports

The HP A5120-24g Switch features 4 Small Form-factor Pluggable (SFP) ports. These ports provide users with the flexibility to connect fiber optic cables and extend their network reach beyond the limitations of traditional copper Ethernet.

Extended Network Reach

The SFP ports on the HP A5120-24g Switch allow users to connect fiber optic cables, which can transmit data over much longer distances compared to copper Ethernet cables. This feature is especially beneficial for organizations that have remote locations or require connectivity between buildings.

Increased Bandwidth Capacity

Fiber optic cables offer significantly higher bandwidth capacity compared to copper cables. By utilizing the SFP ports on the HP A5120-24g Switch, users can take advantage of this increased capacity and enjoy faster data transfer rates.

Improved Network Reliability

Unlike copper cables, fiber optic cables are not susceptible to electromagnetic interference, making them more reliable in environments with high levels of electrical noise. The SFP ports on this switch allow users to establish a robust and stable network connection that is resistant to interference.

Management Type

The HP A5120-24g Switch is a managed switch, offering users advanced control and configuration options for their network. This feature is essential for organizations that require granular control over their network settings and the ability to optimize performance.

Network Monitoring and Troubleshooting

With a managed switch like the HP A5120-24g, users can monitor network traffic, identify bottlenecks, and troubleshoot connectivity issues. This level of visibility allows IT administrators to quickly identify and resolve network problems, minimizing downtime and ensuring smooth operation.

Quality of Service (QoS) Support

A managed switch offers users the ability to prioritize certain types of network traffic over others. This feature is particularly important in environments where bandwidth-intensive applications coexist with critical services. The HP A5120-24g Switch allows users to allocate bandwidth resources effectively and ensure that important applications receive the necessary network resources.

Enhanced Security Features

Managed switches typically provide advanced security features such as Access Control Lists (ACLs), VLANs, and port authentication. These features enable users to implement robust security measures and protect their network from unauthorized access or malicious activities. With the HP A5120-24g Switch, users can establish secure network environments that meet their specific security requirements.

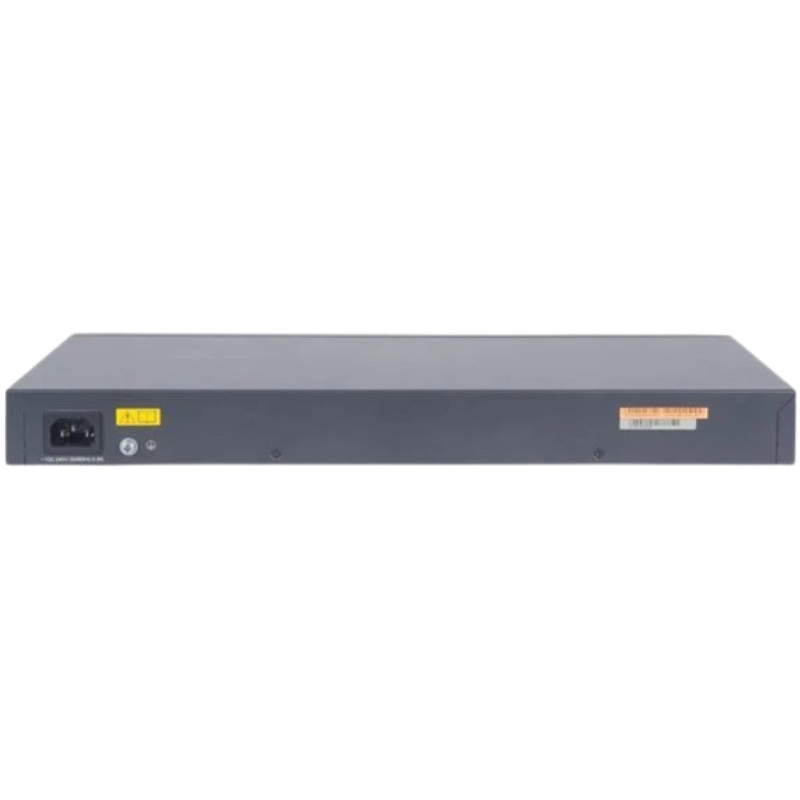

Mounting Type

The HP A5120-24g Switch is rack-mountable, allowing users to conveniently install and organize their network equipment in standard server racks or cabinets. This feature is particularly useful for organizations that have limited space or require a centralized network setup.

Space Efficiency

By being rack-mountable, the HP A5120-24g Switch helps users optimize their space utilization. Instead of having switches scattered across different locations, users can consolidate their network equipment in a single rack, saving valuable floor space.

Easy Installation and Maintenance

Rack-mountable switches are designed for easy installation and maintenance. The HP A5120-24g Switch can be quickly mounted in a standard server rack, allowing for hassle-free deployment. Additionally, the centralized location of the switch simplifies cable management and makes it easier to perform routine maintenance tasks.

Scalability and Expandability

With a rack-mountable switch like the HP A5120-24g, users can easily scale and expand their network infrastructure as their needs grow. The standardized rack form factor ensures compatibility with other rack-mountable equipment, making it simple to add or replace switches without disrupting the entire network.

Part Number

The part number for the HP A5120-24g Switch is JE074A. This alphanumeric code is unique to this specific model and is used to identify and differentiate it from other products in the HP networking portfolio.

Accurate Ordering and Inventory Management

The part number serves as a vital reference when ordering or procuring the HP A5120-24g Switch. By providing the correct part number, users can ensure that they receive the exact model they require, minimizing the risk of ordering errors and streamlining the procurement process. Additionally, the part number facilitates inventory management by enabling users to track and identify specific devices within their network infrastructure.

Compatibility and Interchangeability

Part numbers are used by manufacturers to indicate compatibility and interchangeability between different products. The JE074A part number for the HP A5120-24g Switch ensures that users can easily identify the exact model they need when expanding or replacing their network equipment. This simplifies the process of integrating new devices into an existing network without compatibility issues.

Technical Support and Documentation

The part number is often required when seeking technical support or referring to product documentation. By providing the JE074A part number, users can quickly access relevant resources and obtain accurate assistance from HP or authorized support channels. This ensures that users can efficiently troubleshoot any issues they encounter and make informed decisions about their network configuration.
