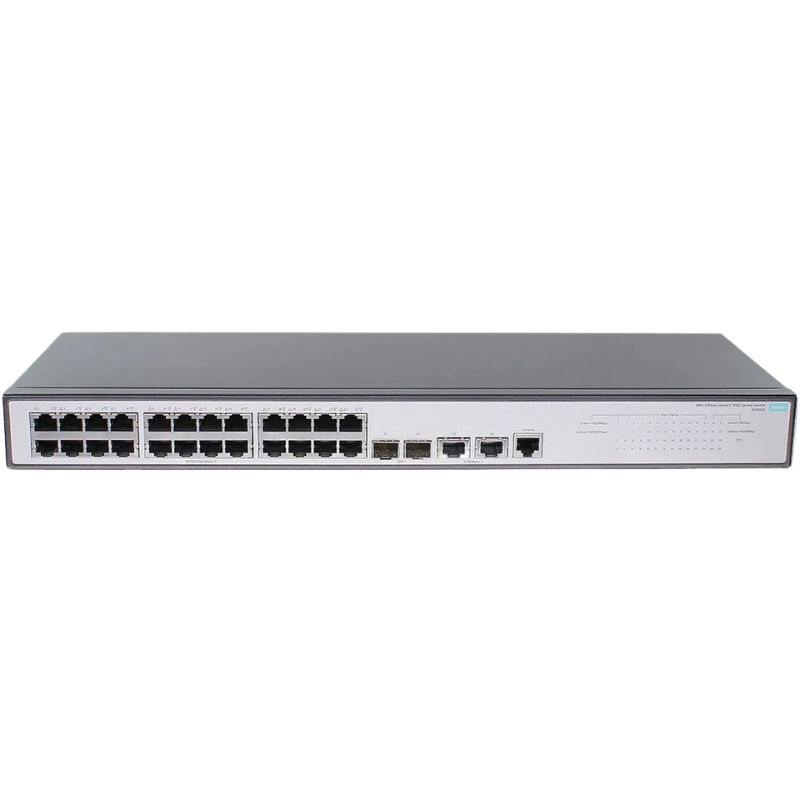

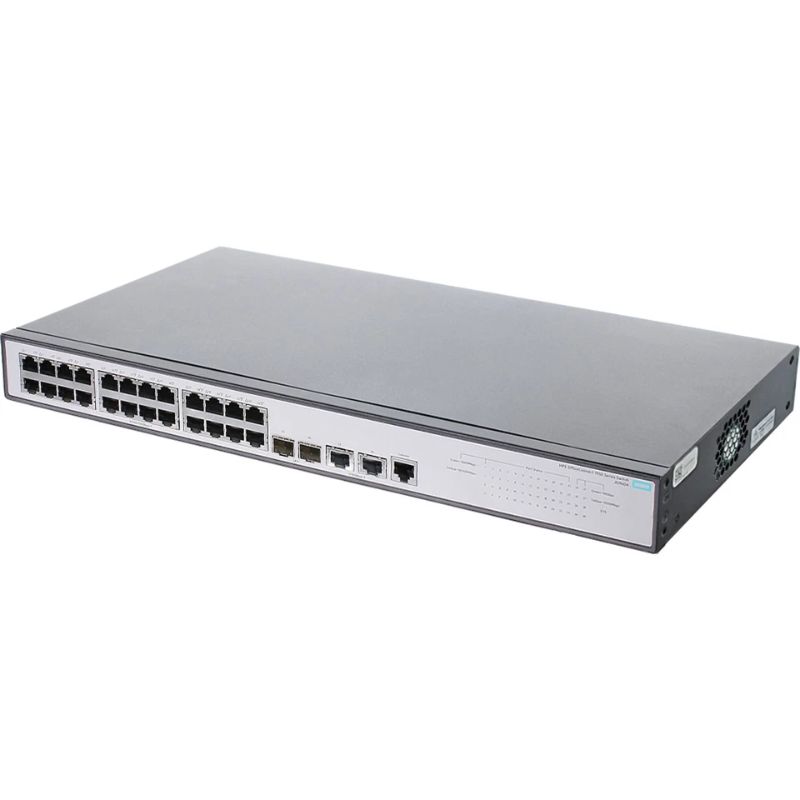

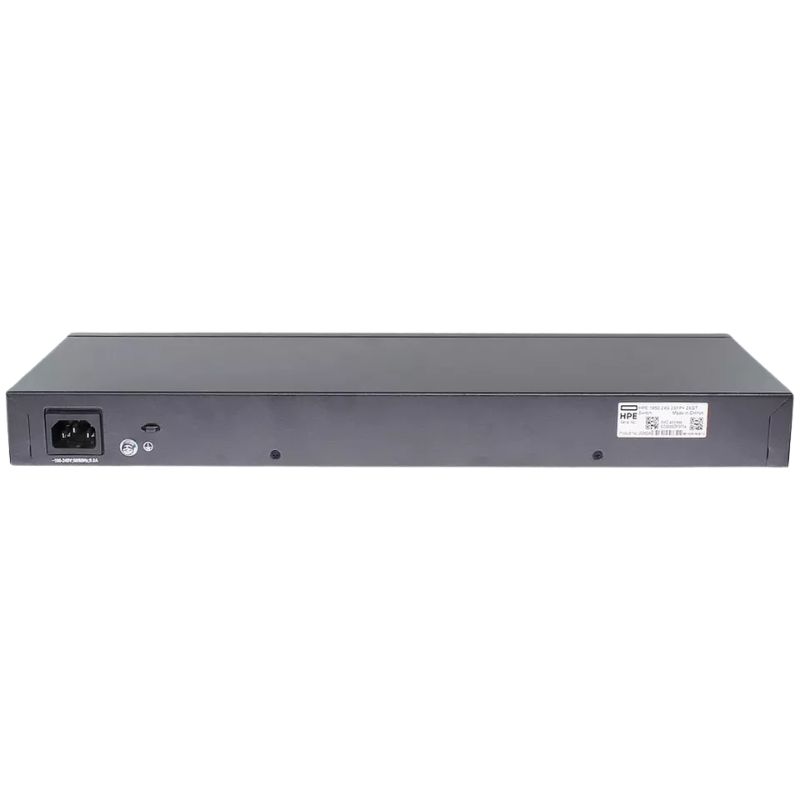

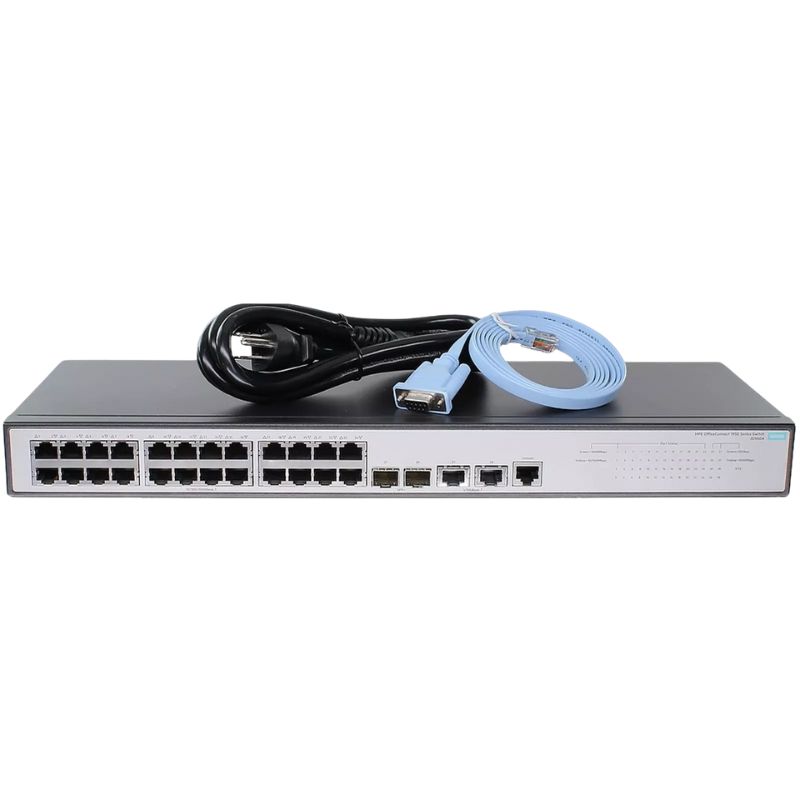

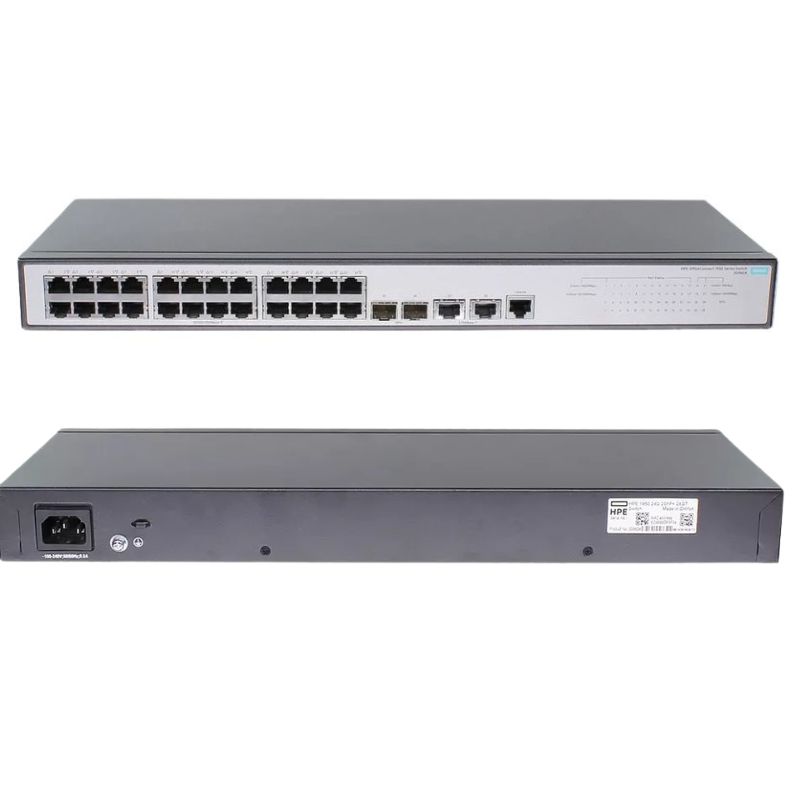

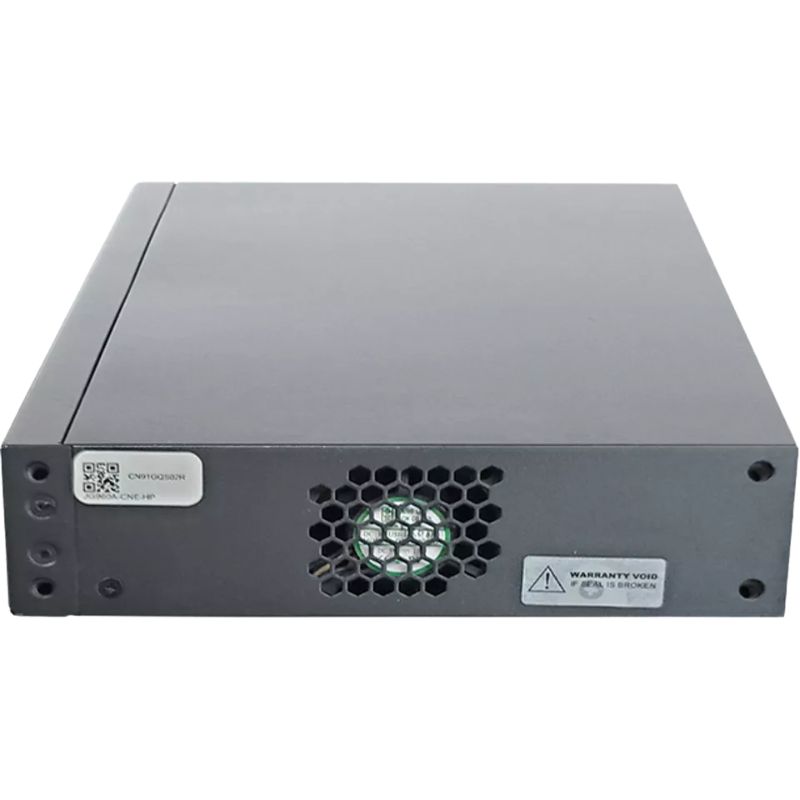

HPE JG962-61101 1950-24G-2 SFP+ 2xgt-PoE+ Switch 24 Ports

JG962-61101
Hover on image to enlarge

Brief Overview of JG962-61101

HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch 24 Ports Managed Rack Mountable JG962-61101. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE JG962-61101 1950-24G-2 SFP+ 2xgt-PoE+ Switch 24 Ports
$2,268.00
$1,645.00
You save: $623.00 (27%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPNJG962-61101Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

HPE JG962-61101 Network Switch Overview

Manufacturer and Product Details

  • Brand: HPE
  • Part Number / SKU: JG962-61101
  • Product Category: Network Switches
  • Switch Type: 24-Port Switch

Technical Specifications

Enclosure and Port Configuration

  • Mounting Style: Rack-Mountable (1U)
  • Network Type: Gigabit Ethernet
  • Port Details:
    • 24 x 10/100/1000 Mbps (PoE+)
    • 2 x Gigabit SFP / 10 Gigabit SFP+
    • 2 x 10G Ethernet
  • Power Over Ethernet (PoE): PoE+
  • PoE Budget: 370 Watts

Performance Metrics

  • Throughput (64-Byte Packets): Up to 95.2 Mpps
  • Routing/Switching Capacity: 128 Gbps

Capacity and Routing Features

  • Static Routes: 32
  • Virtual Interfaces (VLANs): 8
  • IPv4 Routing Table Entries: 32
  • IPv6 Routing Table Entries: 32
  • MAC Address Table Size: 16,384 Entries
  • Jumbo Frame Support: 10 KB

Supported Protocols

  • Routing Protocols: IGMP, VRRP, Static IPv4, Static IPv6, ECMP
  • Remote Management: SNMP v1, SNMP v2c, SNMP v3, RMON, HTTP, HTTPS, CLI

Features and Capabilities

  • Auto-Uplink (Auto MDI/MDI-X)
  • IGMP Snooping
  • Port Mirroring
  • Spanning Tree Protocol (STP) Support
  • Access Control Lists (ACLs)
  • Quality of Service (QoS)
  • STP Root Guard
  • Link Aggregation Control Protocol (LACP)
  • DHCP Client
  • Packet Storm Protection
  • Class of Service (CoS)

Compliance and Standards

  • IEEE 802.3 Standards: 802.3i, 802.3z, 802.3af, 802.3x, 802.3ad (LACP), 802.3at
  • IEEE 802.1 Standards: 802.1d, 802.1q, 802.1p, 802.1w, 802.1x, 802.1s
  • IEEE 802.1ab (LLDP)

Memory and Expansion

  • RAM: 1 GB SDRAM (Maximum)
  • Flash Memory: 128 MB
  • Interfaces:
    • 24 x 1000BASE-T (RJ-45) - PoE+
    • 2 x Gigabit / 10Gbit LAN - SFP+
    • 2 x 10GBASE-T (RJ-45)
    • 1 x Console - RJ-45 (Management)

Power Specifications

  • Power Supply: Internal Power Supply
  • Voltage Required: AC 120/230 V (50/60 Hz)

Ports

The HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch is equipped with 24 ports, making it an ideal choice for businesses of all sizes. With such a high number of ports, users can connect multiple devices to the switch simultaneously, ensuring efficient and seamless network connectivity.

Increased Connectivity

The 24 ports on this switch offer increased connectivity options for users. Whether it's connecting computers, printers, servers, or other network devices, the abundance of ports ensures that users can easily expand their network infrastructure without any limitations.

Flexibility in Network Design

Having 24 ports allows users to design their network in a flexible and scalable manner. They can easily add or remove devices from the network without having to worry about running out of available ports. This flexibility is particularly beneficial for growing businesses that need to accommodate new devices and expand their network infrastructure over time.

Improved Performance

With more ports available, the HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch enables improved network performance. Users can distribute the network load across multiple ports, preventing congestion and ensuring smooth data transfer. This results in faster response times, reduced latency, and enhanced overall network efficiency.

Management

The HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch comes with advanced management capabilities, making it a reliable choice for businesses that require a high level of control and oversight over their networks.

Centralized Control

This switch offers managed functionality, allowing users to have centralized control over their network infrastructure. With comprehensive management features, users can configure, monitor, and troubleshoot their network devices from a single location. This simplifies network management tasks and ensures efficient operation.

Enhanced Security

Managed switches like the HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch provide enhanced security features, including access control lists (ACLs), VLANs, and authentication mechanisms. These features enable users to secure their network against unauthorized access, protect sensitive data, and ensure compliance with industry regulations.

Improved Network Performance

The management capabilities of this switch contribute to improved network performance. Users can prioritize traffic, allocate bandwidth, and optimize network resources based on their specific requirements. This ensures that critical applications and services receive the necessary resources, resulting in enhanced performance and reduced latency.

Mounting

The HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch is rack mountable, offering a convenient and space-saving solution for organizations that need to manage multiple network devices efficiently.

Space Optimization

Rack mounting allows users to consolidate their network equipment into a single location, saving valuable office space. Instead of having multiple standalone switches occupying desk or floor space, users can mount them in a rack cabinet, keeping their network infrastructure organized and easily accessible.

Improved Cable Management

Rack mounting provides a structured environment for cable management. Users can neatly route and manage cables within the rack, reducing clutter and minimizing the risk of cable damage or accidental disconnections. This enhances the overall reliability of the network and simplifies troubleshooting tasks.

Scalability and Expansion

Rack mountable switches offer scalability and ease of expansion. As businesses grow and their network requirements increase, additional switches can be easily added to the rack, allowing for seamless expansion. This eliminates the need for complex reconfiguration or rewiring, minimizing disruption to the network infrastructure.

Part Number

The HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch has a part number of JG962-61101. This unique identifier is essential for users when it comes to ordering, inventory management, and technical support.

Ordering and Inventory Management

The part number serves as a reference when ordering the HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch. It ensures that users receive the exact model they require, avoiding any confusion or potential compatibility issues. Additionally, the part number helps in maintaining accurate inventory records, facilitating efficient stock management and replacement processes.

Technical Support and Documentation

When seeking technical support or consulting product documentation, the part number is invaluable. It allows users to identify the specific model they are using, ensuring that they receive accurate and relevant assistance. This simplifies troubleshooting tasks, speeds up issue resolution, and ensures that users can make the most of their switch's features and capabilities.

Compatibility and Interchangeability

The part number helps users ensure compatibility and interchangeability within their network infrastructure. By referencing the part number, users can verify that the HPE 1950-24G-2 SFP+ 2xgt-PoE+ Switch is compatible with their existing network devices or components. This ensures seamless integration and avoids any potential compatibility issues that may arise from using incompatible equipment.
