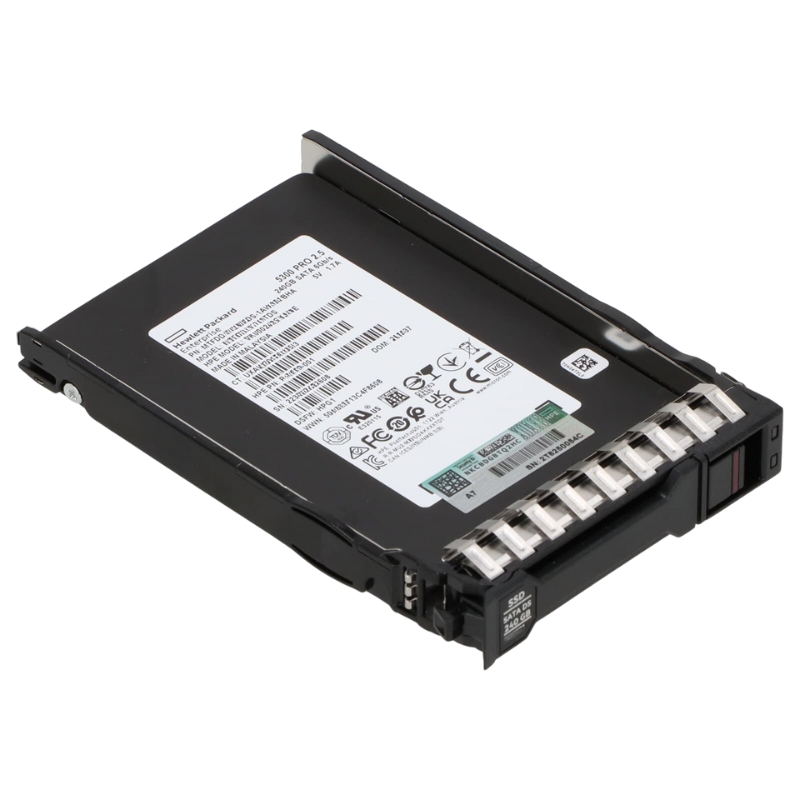

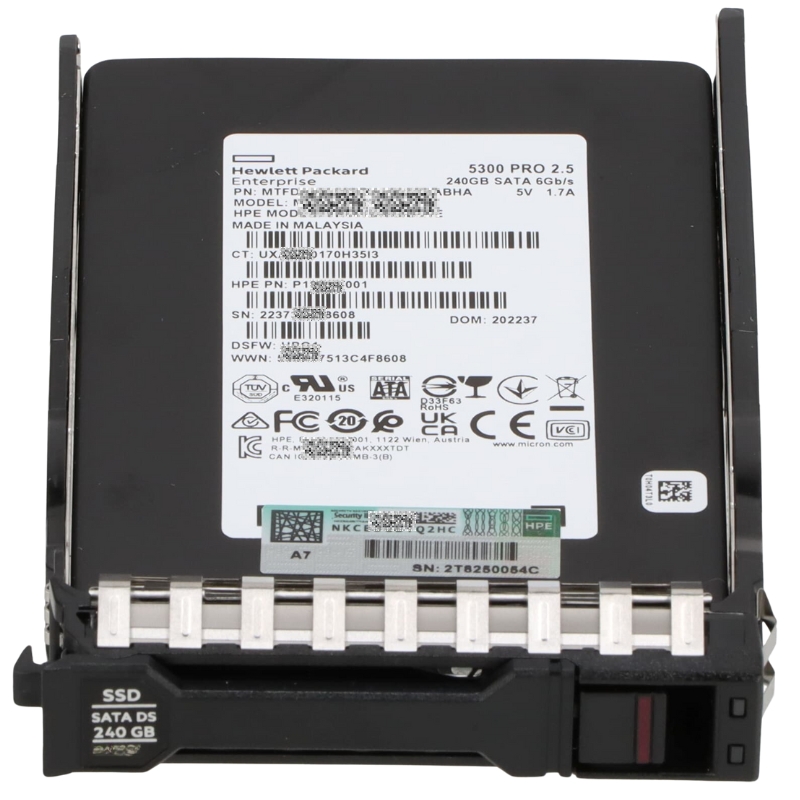

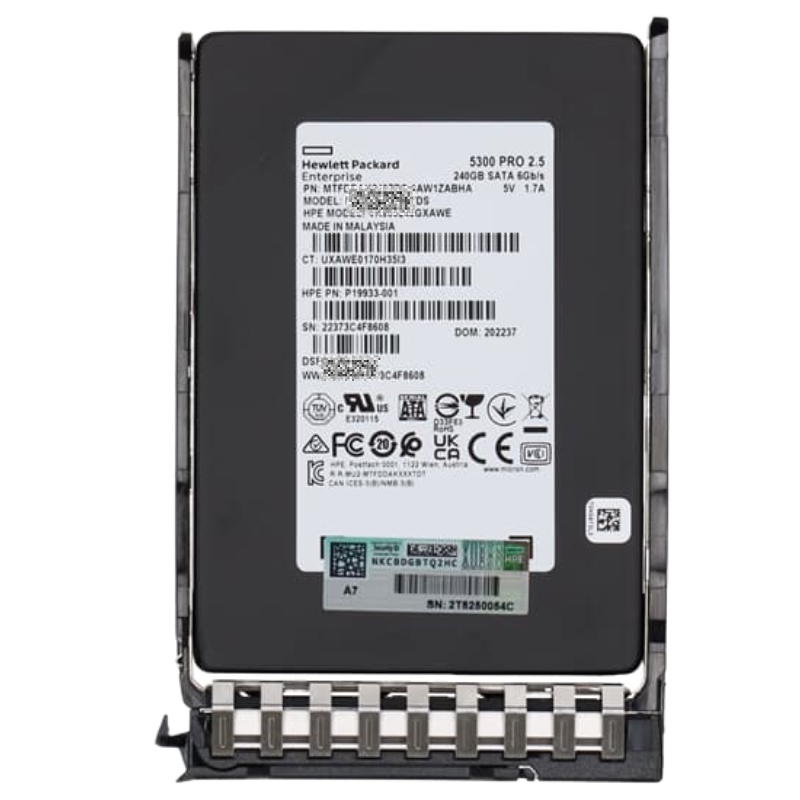

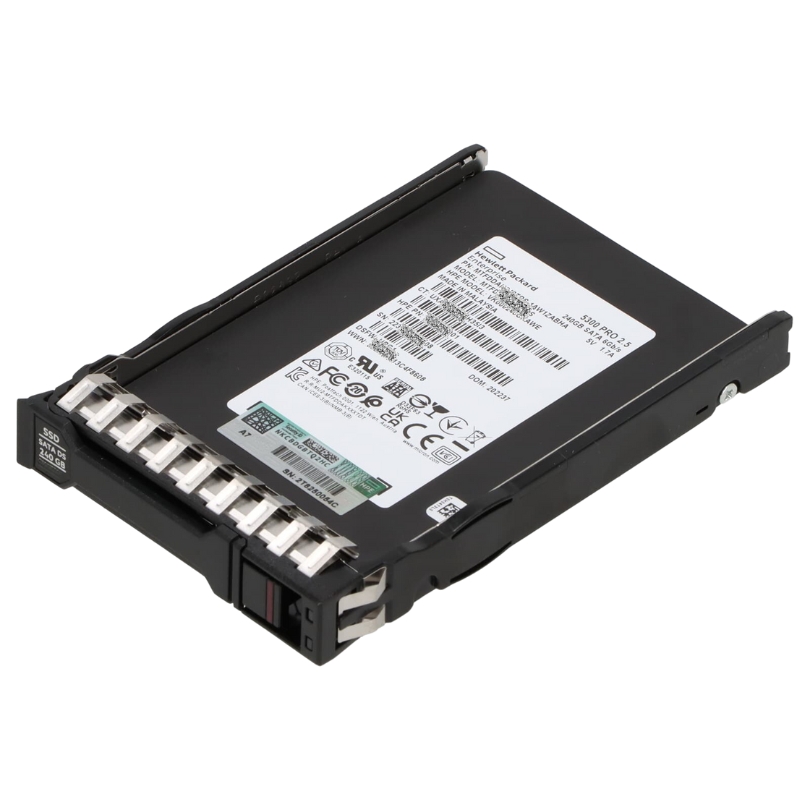

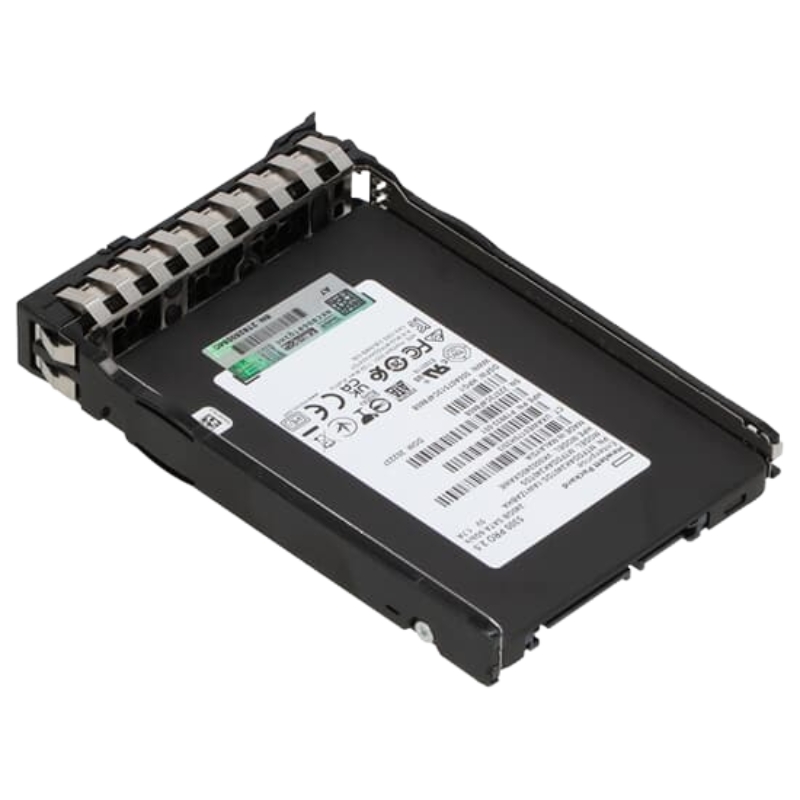

P18420-H21 HPE 240GB SATA 6GBPS SC SSD

P18420-H21 240GB SATA 6GBPS Hot-Swap SSD

Product Details

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P18420-H21
• Type: Hot-Swap Solid State Drive (SSD)
• SSD Type: SATA 6GBPS

Technical Information

• Capacity: 240 GB
• Form Factor: 2.5-inch SFF
• NAND Flash: Triple-Level Cell (TLC)
• Port: Single Port
• Plug Type: Hot Pluggable
• Carrier: Smart Carrier (SC)

Performance Metrics

Speed and IOPS

• Transfer Rate: 6 GB/s (External)
• Max Sequential Reads: 505 MiB/s
• Max Sequential Writes: 255 MiB/s
• Random Read IOPS (4KiB): Up to 65,000 (Q32)
• Random Write IOPS (4KiB): Up to 10,500 (Q1)

Latency

• Average Random Read Latency (4KiB, Q1): 203 µSec
• Average Random Write Latency (4KiB, Q1): 121 µSec

Endurance & Reliability

Endurance Metrics

• Lifetime Writes: 350 TB
• Endurance DWPD: 1 Drive Writes Per Day

Operational Power Usage

• Idle Power: 1.23W
• Random Read/Write Power: 2.48W
• Sequential Read Power: 2.21W
• Sequential Write Power: 2.44W
• Maximum Power: 2.48W

Dimensions & Weight

• Height: 0.63 inches
• Width: 3.10 inches
• Depth: 5.45 inches
• Weight: 1.50 lbs

Compatibility

ProLiant DL Series Compatibility

• HPE ProLiant DL160 Gen10 (2.5 inch), DL160 Gen10 Base (2.5 inch), DL160 Gen10 Entry (2.5 inch)
• DL180 Gen10 (2.5 inch), DL180 Gen10 Base (2.5 inch), DL180 Gen10 SMB (2.5 inch)
• DL20 Gen10 (2.5 inch), DL20 Gen10 Entry, DL20 Gen10 Performance (2.5 inch)
• DL325 Gen10 Series (2.5 inch)
• DL360 Gen10 Series (2.5 inch)
• DL380 Gen10 Series (2.5 inch)
• DL385 Gen10 Series (2.5 inch)
• DL388 Gen10 (2.5 inch)
• DL580 Gen10 Series (2.5 inch)

ProLiant ML Series Compatibility

• ML110 Gen10 Series (2.5 inch)
• ML30 Gen10 Series (2.5 inch)
• 480 Gen10 Base/Compute Modules (2.5 inch)
• 660 Gen10 Compute Blocks (2.5 inch)

Firmware

• Firmware: Digitally Signed (DS)
• Multi-Vendor SSD: Supported

Capacity: 240GB

The HPE P18420-H21 SSD offers an impressive capacity of 240GB, making it an ideal choice for users who require ample storage space for their data and applications. With this high capacity, users can store a significant amount of files, documents, videos, and images without worrying about running out of space. Whether you are a professional who deals with large files or a casual user who wants to store their personal media collection, the 240GB capacity ensures that you have enough room to store everything you need.

Form Factor: 2.5inch SFF

Enhanced Compatibility

The HPE P18420-H21 240GB SATA 6GBPS SC Read Intensive SSD is designed with a Form Factor of 2.5inch SFF, which stands for Small Form Factor. This compact size ensures enhanced compatibility with a wide range of devices and systems. Whether you are upgrading your laptop or server, this SSD will seamlessly fit into the existing infrastructure without requiring any modifications or additional adapters.

With the 2.5inch SFF Form Factor, you can enjoy the benefits of solid-state storage without worrying about compatibility issues. It is compatible with various server models and can be easily integrated into existing storage arrays. This flexibility allows you to upgrade your system's performance without the need for a complete overhaul, saving both time and money.

Space Optimization

The small form factor of this SSD is particularly advantageous in environments where space is limited. In compact servers or data centers, every inch counts. By choosing a 2.5inch SFF SSD, you can optimize your storage space and make the most out of your available resources.

Additionally, the compact size of this SSD makes it perfect for laptops and portable devices. It allows manufacturers to design slimmer and lighter devices without sacrificing storage capacity or performance. If you are looking to upgrade your laptop's storage, the HPE P18420-H21 240GB SATA 6GBPS SC Read Intensive SSD with a 2.5inch SFF Form Factor is an excellent choice.

Reduced Power Consumption

The smaller form factor of this SSD also translates into lower power consumption. With less surface area to cover, the drive requires less power to operate efficiently. This not only helps in reducing your energy bills but also contributes to a greener and more sustainable environment.

Whether you are running a large data center or using the SSD in your laptop, the reduced power consumption of the HPE 240GB SATA 6GBPS SC Read Intensive SSD can make a significant difference. It allows your system to operate at optimal efficiency while consuming less power, resulting in cost savings and extended battery life for portable devices.

Improved Airflow

The 2.5inch SFF Form Factor also offers improved airflow and cooling capabilities compared to larger form factors. The smaller size allows for better air circulation within the server or device enclosure, preventing overheating and ensuring the longevity of your SSD.

By choosing an SSD with a 2.5inch SFF Form Factor, you can ensure that your system remains cool even under heavy workloads. This is particularly beneficial for high-performance servers that require continuous operation without the risk of thermal throttling.

Easy Replacement and Upgrades

In addition to enhanced compatibility, the 2.5inch SFF FormFactor simplifies the replacement and upgrade process. If you need to replace a failed SSD or upgrade to a higher capacity model, you can easily swap out the existing drive with the HPE 240GB SATA 6GBPS SC Read Intensive SSD.

The plug-and-play nature of this SSD makes it incredibly convenient for users who want to upgrade their storage without any technical expertise. Simply remove the old drive and install the new one, and you're ready to go. This ease of replacement and upgrade is especially valuable in mission-critical systems where downtime must be minimized.

Part Number: P18420-H21

Product Identification

The Part Number P18420-H21 is a unique identifier for the HPE 240GB SATA 6GBPS SC Read Intensive SSD. It helps in accurately identifying and differentiating this specific model from other products in the market. When purchasing or requesting support for this SSD, providing the Part Number ensures that you receive the correct product and the appropriate assistance.

Furthermore, the Part Number can be used to verify compatibility with your system or server. By cross-referencing the with the manufacturer's documentation, you can ensure that the SSD is compatible with your specific hardware configuration. This prevents any potential issues or incompatibilities during installation or operation.

Inventory Management

The Part Number plays a vital role in inventory management for businesses and organizations. It helps to keep track of stock levels, order placement, and logistics. By using the Part Number P18420-H21, businesses can efficiently manage their inventory and ensure that they have an accurate count of available HPE 240GB SATA 6GBPS SC Read Intensive SSDs.

With proper inventory management, businesses can avoid stock outs and delays in fulfilling customer orders. This ensures a smooth and uninterrupted supply chain, ultimately leading to higher customer satisfaction.

Differentiation

Lastly, the Part Number P18420-H21 aids in product differentiation. Manufacturers often produce multiple variations of a product with different specifications or capacities. The Part Number allows customers to easily identify and select the specific model they need.

Compatibility

The SATA 6Gbps interface of the HPE P18420-H21 SSD ensures broad compatibility with a wide range of devices, including desktop computers, laptops, and servers. It is a widely adopted standard in the industry, making it easy to integrate this SSD into your existing hardware setup. Whether you are upgrading your personal computer or expanding storage capacity in a server environment, the SATA 6Gbps interface ensures seamless compatibility without the need for additional adapters or converters.
