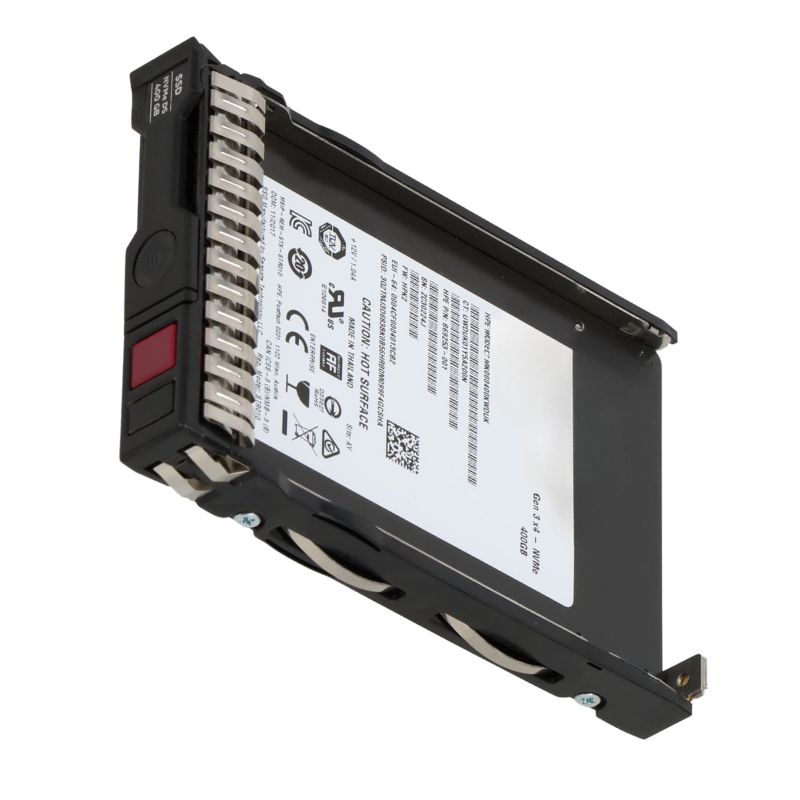

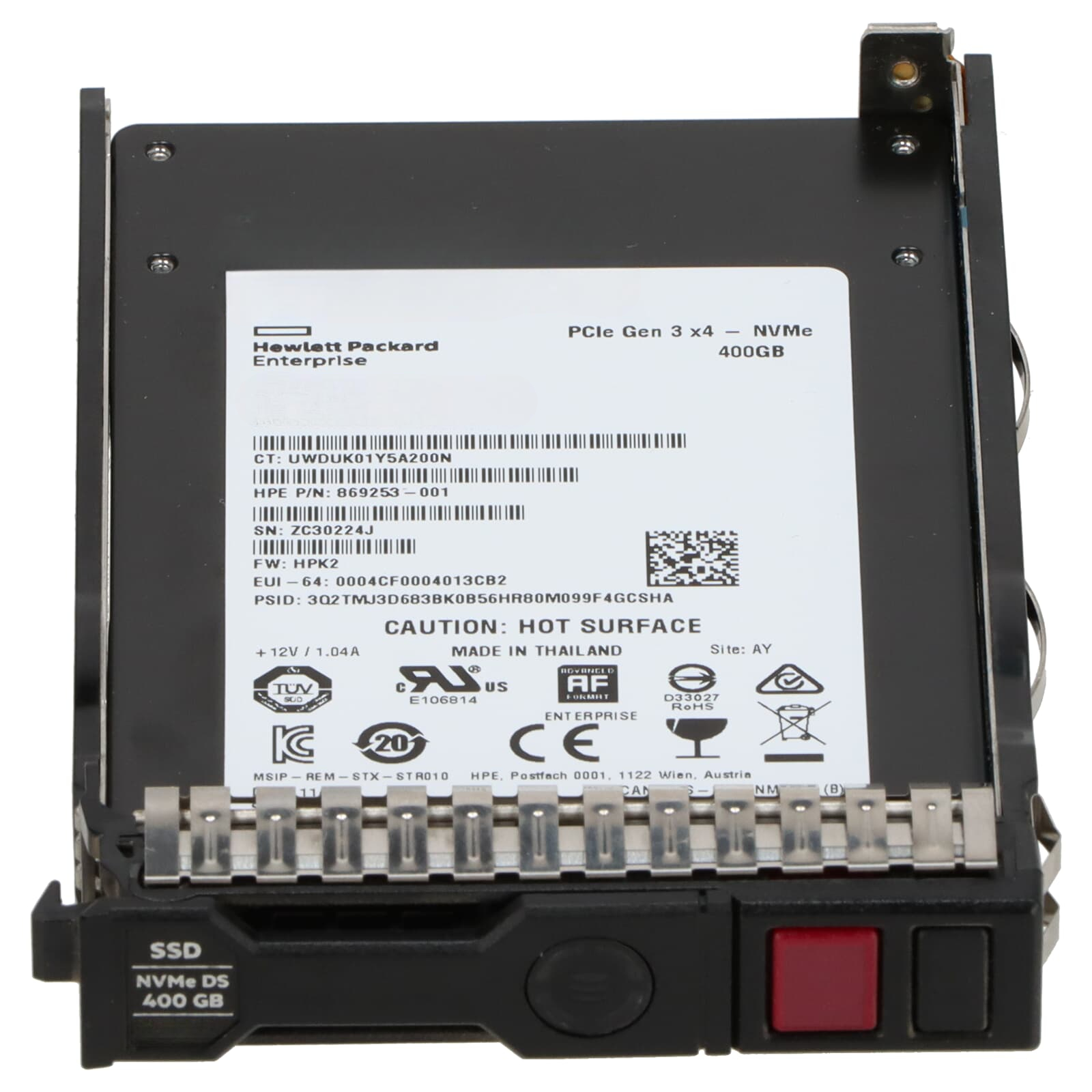

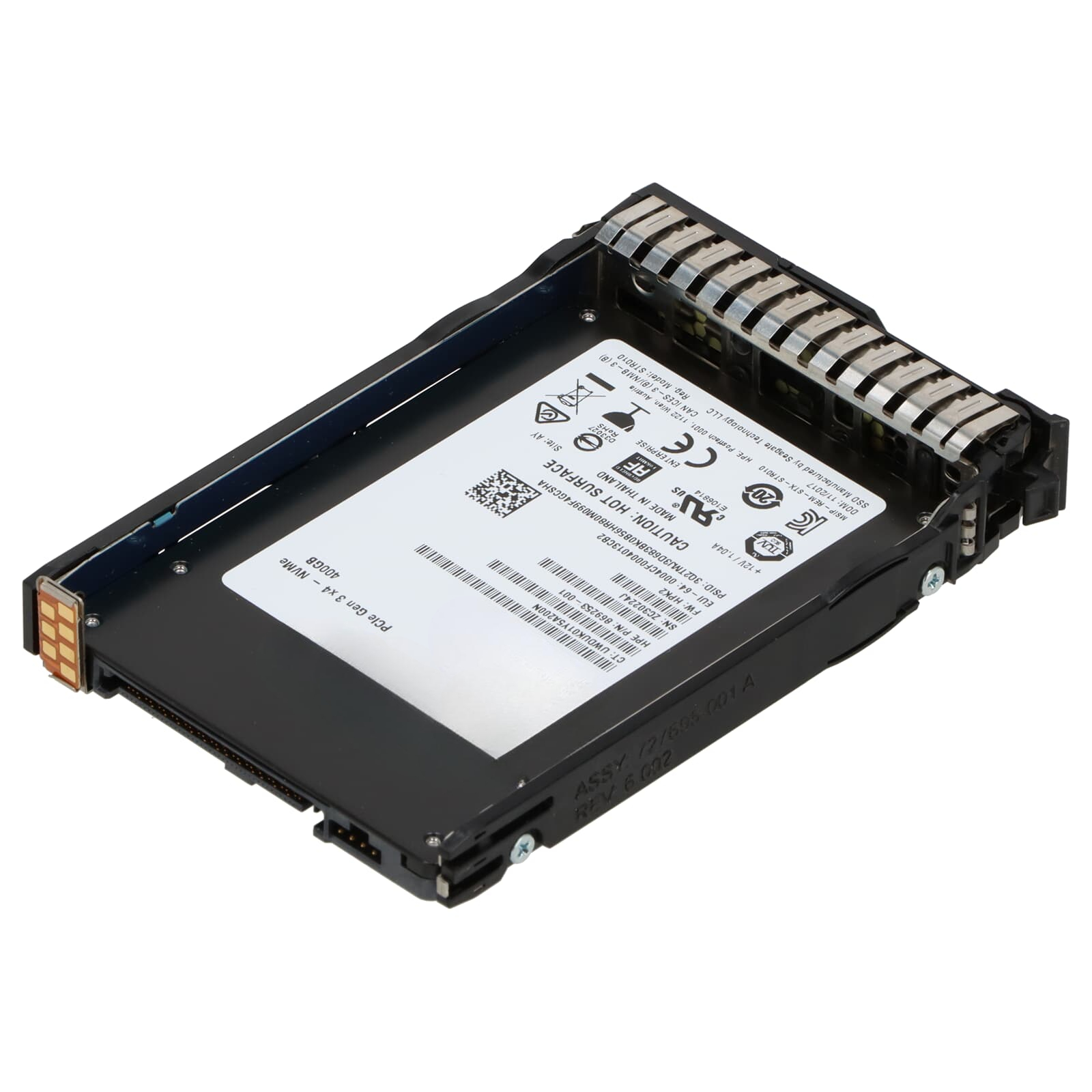

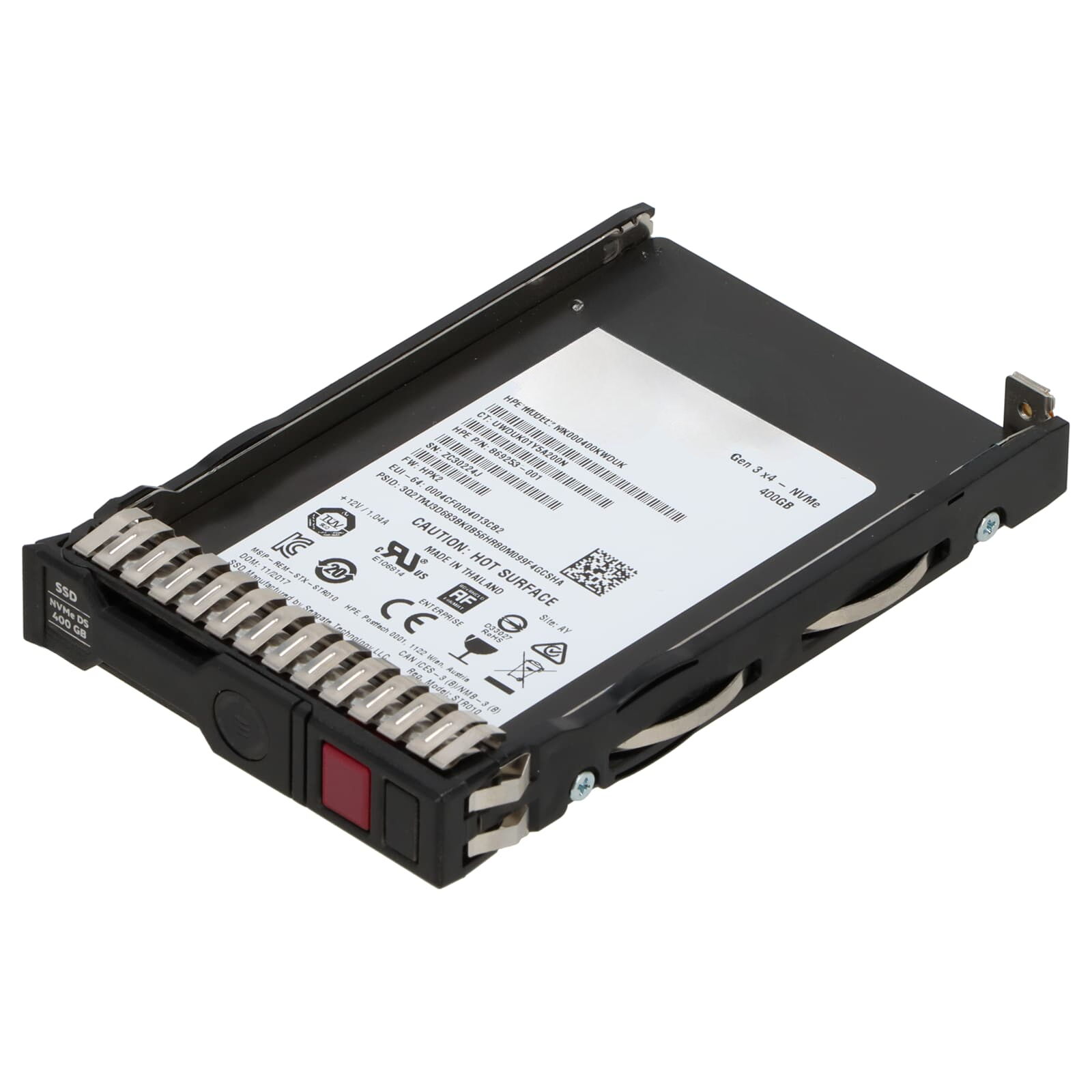

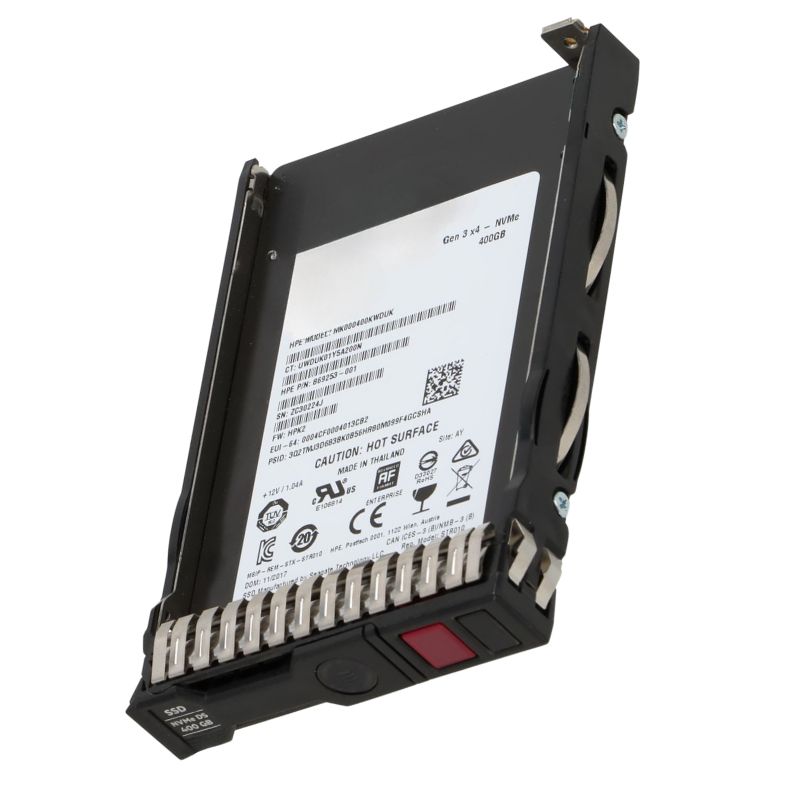

764903-001 HPE 400GB SSD 2.5" Internal PCI Express

Details of HPE 400GB NVMe PCIe SSD

Key Product Highlights

• Brand Name: HPE
• Item Code: 764903-001
• Drive Classification: Hot-Swap Solid State Drive

Hardware Specifications

Storage Volume & Physical Dimensions

• Capacity: 400 Gigabytes
• Size Format: 2.5-inch Small Form Factor
• Height: 15.00 mm / 0.60 inch

Interface & Memory Technology

• Connection Protocol: NVMe U.2 PCI Express 3.0 x4
• Flash Architecture: Multi-Level Cell (MLC)
• Insertion Type: Hot Pluggable
• Carrier Module: Smart Carrier NVMe (SCN)

System Compatibility

• HPE ProLiant Rackmount Servers
• HPE Tower-Based Systems
• HPE BladeSystem Infrastructure
• HPE Synergy Modular Platforms

Advanced Features

• Power Loss Protection (PLP)
• Optimized for Read-Heavy Workloads
• Supports x4 PCIe Lanes
• Bundled with HPE Smart Carrier NVMe (SCN)

Performance Capabilities

Endurance & Transfer Speeds

• Drive Writes Per Day (DWPD): 0.3
• Sequential Read Rate: Up to 2200 MiB/s
• Sequential Write Rate: Up to 950 MiB/s

Latency & Input/Output Operations

• Read Latency: 90 µs (4KiB, Q1)
• Write Latency: 40 µs (4KiB, Q1)
• Random Read IOPS: 150,000 (4KiB, Q=16)
• Random Write IOPS: 26,500 (4KiB, Q=16)
• Max Read IOPS: 445,000 @ Q128
• Max Write IOPS: 26,500 @ Q1

Mixed Workload Efficiency

• 70% Read / 30% Write (Queue 32): 55,000 IOPS
• 50% Read / 50% Write (Queue 32): 48,000 IOPS

Connectivity & Expansion

Interface & Slot Compatibility

• Connection Interface: PCIe NVMe
• Drive Bay Fit: 2.5-inch SFF slot

Power Efficiency Metrics

Energy Consumption Breakdown

• Idle Mode: 4.00 Watts
• Random Read: 8.14 Watts
• Random Write: 8.28 Watts
• Sequential Read: 7.55 Watts
• Sequential Write: 10.00 Watts
• Combined Random Read/Write: 7.81 Watts

Server Compatibility Matrix

HPE ProLiant BL Series

Blade Servers

• BL460c Gen10 (2.5-inch)

HPE ProLiant DL Series

DL360 Gen10 Variants

• Base, Entry, High Performance, Low, SMB, Solution

DL380 Gen10 Models

• Base, Entry, Entry SMB, High Performance, Network Choice, SAP HANA Compute Block, SMB, Solution

DL388 & DL580 Series

• DL388 Gen10 / Gen9 / Gen9 Base
• DL580 Gen8 / Gen9 / Gen9 Database / SAP HANA Scale-out & Scale-up

HPE 764903-001 400GB NVMe 2.5-inch SSD Overview

The HPE 764903-001 400GB PCI Express 3.0 x4 NVMe 2.5-inch internal SSD is a high-performance storage solution designed for enterprise-level servers and data centers. Engineered by HPE, this SSD combines cutting-edge NVMe technology with the reliability and endurance expected from Hewlett Packard Enterprise products. It offers exceptional throughput and low latency, making it ideal for mission-critical applications and workloads that require rapid access to large amounts of data.

Advanced NVMe Architecture

This HPE SSD utilizes the NVMe protocol, which significantly reduces latency compared to traditional SAS or SATA SSDs. By leveraging PCIe 3.0 x4 lanes, the device ensures that data transfer rates are optimized for read-intensive and mixed workload environments. NVMe architecture allows multiple queues and commands to be processed simultaneously, enhancing server efficiency and reducing bottlenecks in data-intensive operations. Enterprises can expect improved responsiveness in database transactions, virtualized workloads, and real-time analytics.

Performance Benefits for Enterprise Applications

The 400GB capacity of the HPE 764903-001 is optimized for high-speed data operations, supporting large-scale databases and complex computing tasks. Its consistent performance ensures minimal latency during peak loads, making it a reliable choice for enterprise applications such as ERP systems, customer relationship management, and big data analytics. Additionally, the SSD’s high Input/Output Operations Per Second (IOPS) allows faster data retrieval and storage, resulting in increased productivity and smoother user experiences for applications that demand immediate access to information.

Data Integrity and Reliability Features

HPE prioritizes data protection and endurance, integrating advanced error correction mechanisms and wear-leveling algorithms in the 764903-001 SSD. These features ensure long-term reliability and protect critical enterprise data from corruption or loss. The SSD also supports power-loss protection, which safeguards in-progress writes during unexpected outages, maintaining data consistency and preventing operational downtime. With its robust design, the device can withstand the rigors of continuous enterprise usage, ensuring that IT administrators can maintain high service levels with confidence.

Compatibility and Deployment Options

The HPE 764903-001 is designed for seamless integration with HPE ProLiant servers and other compatible enterprise hardware. Its 2.5-inch form factor provides flexibility for dense storage configurations, allowing data centers to maximize capacity while maintaining high performance. The PCIe interface ensures easy deployment in existing server infrastructures without the need for extensive modifications, reducing implementation time and associated costs. IT teams benefit from simplified installation and consistent compatibility across HPE-certified platforms.

Technical Optimization

The 400GB capacity, combined with PCIe 3.0 x4 NVMe connectivity, positions the HPE 764903-001 as a high-speed, low-latency solution for enterprise storage. Its read and write performance metrics meet the demands of modern data-intensive applications, providing a reliable foundation for mission-critical workloads. The 2.5-inch form factor allows for efficient storage deployments in high-density environments, optimizing rack space utilization while maintaining easy access for maintenance and upgrades.

Enterprise Data Security

Security is a critical consideration in enterprise environments, and the HPE 764903-001 addresses this with built-in data protection features. Advanced error correction, secure erase capabilities, and firmware safeguards help protect sensitive information from unauthorized access and corruption. Organizations can deploy this SSD in environments where regulatory compliance and data integrity are essential, ensuring that business-critical information remains protected at all times.

Integration with HPE Ecosystem

The HPE 764903-001 SSD integrates seamlessly with HPE’s broader hardware and software ecosystem, including storage controllers, servers, and management software. This integration simplifies deployment, monitoring, and support processes, reducing administrative overhead. IT teams can leverage HPE InfoSight and other management platforms to gain predictive insights, optimize performance, and proactively prevent issues, ensuring maximum uptime and operational efficiency.
