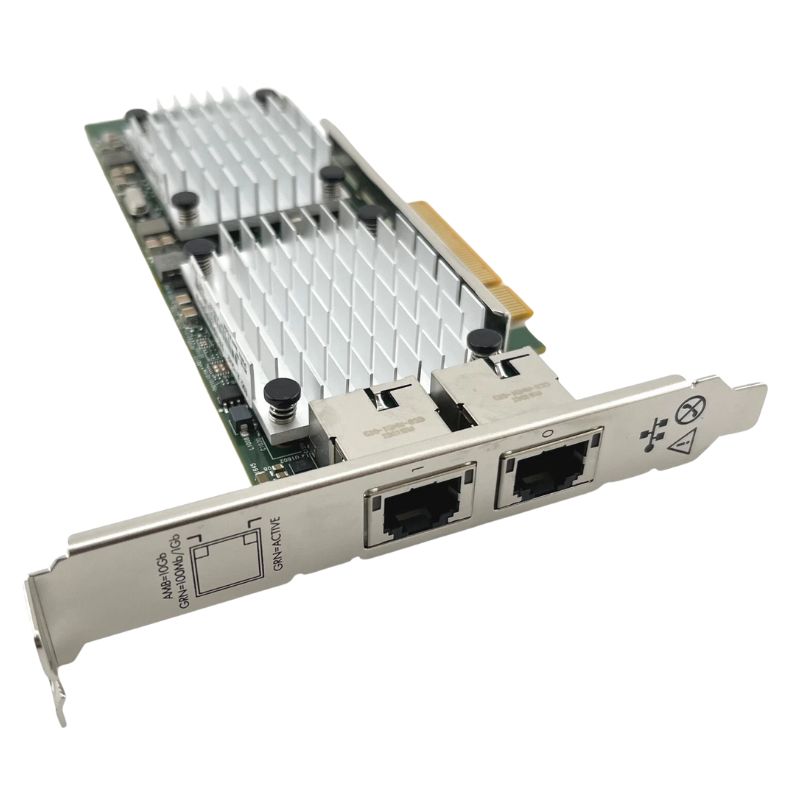

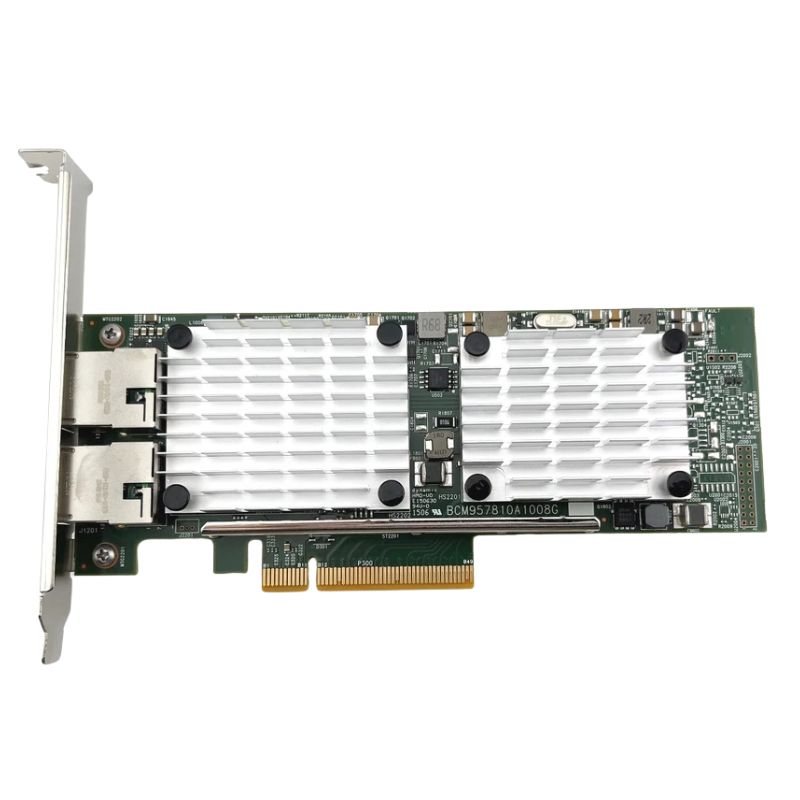

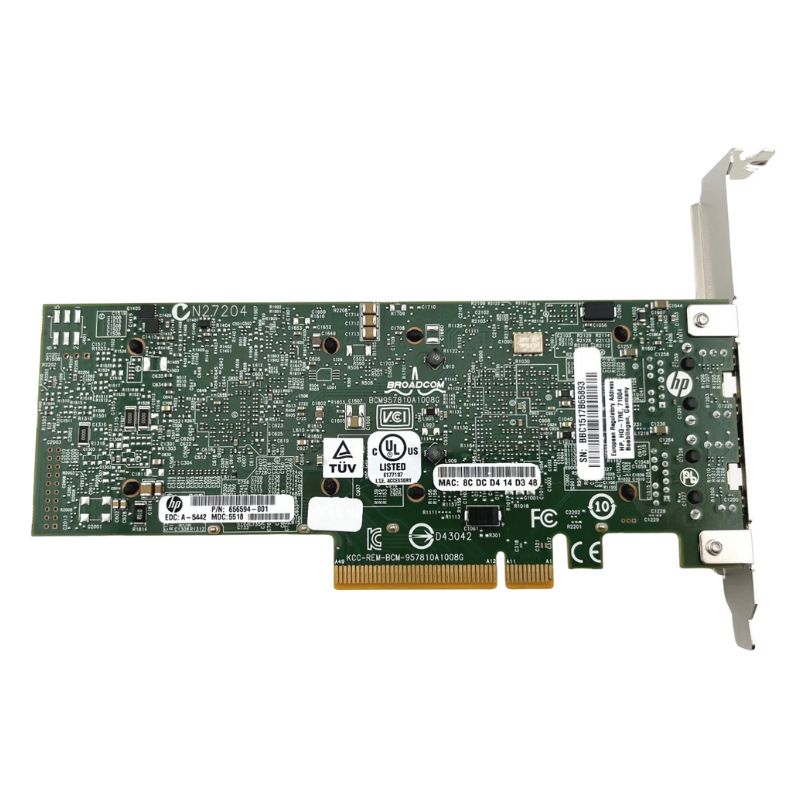

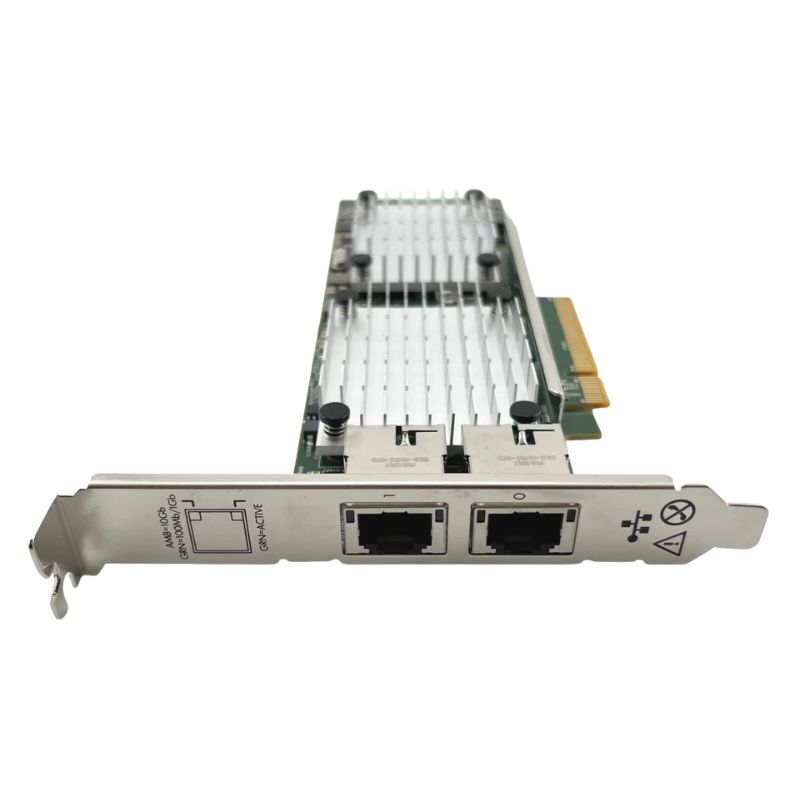

656594-001 HPE 530T G8 10GB Ethernet 2 Port PCIe Network Adapter

HPE 656594-001 10Gb Ethernet 2-Port PCIe Adapter Overview

The HPE 656594-001 10Gb Ethernet 2-Port PCIe 530T G8 Network Adapter is a high-performance server networking solution designed to deliver reliable, fast, and scalable connectivity for enterprise data centers. This dual-port Ethernet network interface card (NIC) enhances system throughput, reduces latency, and supports advanced networking features required for modern IT infrastructures.

General Information of HPE 656594-001

• Manufacturer: HPE
• Part Number: 656594-001
• Product Type: Network Adapter (NIC)
• Processor: Broadcom BCM57810S
• RAM: 256 MB onboard memory

Key Highlights of HPE 530T G8 Network Adapter

High-Speed 10 Gigabit Ethernet Performance

• Dual 10Gb Ethernet ports for maximum bandwidth
• Optimized for data-intensive enterprise environments
• Low latency communication for mission-critical systems

Advanced PCI Express Architecture

• Plug-in card form factor for easy installation
• Improved throughput with PCIe Gen2 x8 lane support
• Enhanced scalability for enterprise servers

Technical Specifications

Interface and Connectivity

• Interface Type: PCI Express 2.0 x8
• Ports: Dual 10Gb Ethernet ports
• Cabling Support: 1000BASE-T, 10GBASE-T Ethernet
• Protocols: Gigabit LAN, 10 Gigabit LAN support

Supported Standards

• IEEE 802.3
• IEEE 802.3x Flow Control
• IEEE 802.3ad Link Aggregation (LACP)
• IEEE 802.1Q VLAN tagging
• IEEE 802.1ax
• IEEE 802.1qbb, 802.1qaz, 802.1qau, 802.1qbg

Operating System Compatibility

• Microsoft Windows Server 2008 / 2008 R2 / 2012 (32/64-bit)
• Windows HPC Server 2008 SP2 & R2 SP1
• Windows Small Business Server 2011
• Red Hat Enterprise Linux (5.7 to 6.3)
• SUSE Linux Enterprise Server 10 SP4 & 11 SP2
• Citrix XenServer 6.0 & 6.1
• Sun Solaris 10 & 11

Compatible HPE ProLiant Servers

• ProLiant DL Series: DL160 Gen8, DL165 G7, DL320e Gen8
• ProLiant DL360 / DL380 Series: DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8
• High-Performance Servers: DL385p Gen8, DL560 Gen8, DL580 G7, DL585 G7, DL980 G7
• ML Series: ML310e Gen8, ML350e Gen8, ML350p Gen8
• SL Series: SL230s Gen8, SL250s Gen8, SL270s Gen8, SL4540 Gen8, SL4545 G7

Performance Benefits and Use Cases

Virtualization Optimization

• Supports virtual machine workloads efficiently
• Enhances VM migration speed with high bandwidth
• Reduces CPU overhead during network processing

Cloud and High-Performance Computing

• Ideal for private and hybrid cloud infrastructure
• Supports high-speed distributed computing tasks
• Enables scalable enterprise networking architecture

Key Advantages of HPE 656594-001 NIC

• Dual-port 10Gb Ethernet for enhanced redundancy
• Enterprise-grade reliability and durability
• Advanced Broadcom controller for stable performance
• Backward compatibility with Gigabit Ethernet networks
• Supports advanced IEEE networking standards

HPE 656594-001 10Gb Ethernet 2 Port PCIe Network Adapter

The HPE 656594-001 10Gb Ethernet 2 Port PCIe 530T G8 Network Adapter is a high-performance server networking component engineered to deliver advanced connectivity capabilities for enterprise-grade IT infrastructures. Designed specifically for HPE ProLiant Gen8 server environments, this dual-port 10 Gigabit Ethernet adapter provides robust throughput, low latency communication, and scalable network performance for data-intensive workloads. As modern enterprises continue to expand virtualization, cloud integration, and high-speed data processing, this network adapter plays a critical role in ensuring seamless data transfer between servers, storage systems, and network appliances.

This adapter belongs to the category of enterprise server network interface cards (NICs), where reliability, speed, and efficiency are essential. The HPE 530T G8 design focuses on optimizing PCI Express 2.0 x8 bandwidth utilization while maintaining compatibility with demanding workloads such as virtualization clusters, database management systems, high-performance computing environments, and cloud-based applications. Its dual-port configuration enables redundant network pathways and load balancing to ensure uninterrupted data flow in mission-critical systems.

Enterprise Networking Architecture and Design Philosophy

The architecture of the HPE 656594-001 10Gb Ethernet adapter is built around enterprise scalability and resilience. It integrates advanced silicon technology optimized for handling large volumes of network traffic without bottlenecks. The dual 10Gb Ethernet ports are designed to support simultaneous data streams, which significantly enhances server communication efficiency in distributed environments.

High-Speed Data Transmission Capabilities

At the core of the adapter is its 10 Gigabit Ethernet capability, which ensures extremely high bandwidth availability for data center operations. This level of speed is essential for environments where large datasets must be transferred rapidly between storage arrays and compute nodes. The adapter reduces latency while maintaining stable throughput, ensuring that applications remain responsive even under heavy network loads.

Bandwidth Optimization in PCIe 2.0 x8 Interface

The PCIe 2.0 x8 interface provides a dedicated and high-bandwidth communication channel between the network adapter and the server motherboard. This ensures that the adapter can fully utilize its dual 10Gb ports without encountering internal bottlenecks. The PCIe architecture allows efficient parallel data processing, which is crucial for virtualization workloads and multi-threaded server applications.

Efficient Lane Utilization and Throughput Stability

The x8 lane configuration distributes data traffic across multiple lanes, reducing congestion and improving overall throughput stability. This ensures that even during peak usage periods, the network adapter maintains consistent performance. The design also enhances fault tolerance by minimizing the risk of single-lane failure affecting overall connectivity.

Compatibility with HPE ProLiant Gen8 Server Ecosystem

The HPE 656594-001 10Gb Ethernet 2 Port PCIe 530T G8 Network Adapter is specifically optimized for integration with HPE ProLiant Gen8 servers. This compatibility ensures seamless driver support, firmware alignment, and system-level optimization. The adapter is engineered to work within the BIOS and firmware frameworks of Gen8 systems, allowing administrators to deploy it without complex configuration overhead.

Integration with Server Management Tools

Within the HPE server ecosystem, the adapter integrates with management tools such as HPE Integrated Lights-Out (iLO) and other system monitoring utilities. This enables administrators to monitor network performance, diagnose issues, and optimize configuration settings remotely. Such integration enhances operational efficiency and reduces downtime in enterprise environments.

Firmware Synchronization and Driver Optimization

Firmware synchronization ensures that the network adapter operates in harmony with the server’s hardware and software stack. HPE provides optimized drivers that enhance performance, improve stability, and support advanced networking features such as virtualization offloading and traffic segmentation. This tight integration reduces compatibility issues and enhances system reliability.

Dual-Port 10Gb Ethernet Functionality

One of the defining features of the HPE 656594-001 adapter is its dual-port architecture. Each port is capable of delivering 10 Gigabit Ethernet connectivity independently, allowing for multiple network configurations such as redundancy, load balancing, or dedicated traffic segmentation. This flexibility makes it suitable for enterprise data centers where network uptime and efficiency are critical.

Redundant Network Path Configuration

In enterprise environments, redundancy is essential to ensure uninterrupted service availability. The dual ports of this adapter allow administrators to configure failover mechanisms that automatically reroute traffic in case of a port or cable failure. This reduces the risk of downtime and ensures continuous access to critical applications and services.

Load Balancing for Optimized Network Efficiency

Load balancing across the two ports enables the distribution of network traffic in a balanced manner, preventing congestion and optimizing resource utilization. This is particularly beneficial in virtualized environments where multiple virtual machines generate simultaneous network requests.

Traffic Segmentation for Enhanced Security

The dual-port setup also allows administrators to segment network traffic based on security or operational requirements. For example, one port can be dedicated to internal data center communication while the other handles external client traffic. This segmentation enhances security and improves network performance by isolating workloads.

Performance Optimization for Virtualized Environments

The HPE 656594-001 10Gb Ethernet adapter is highly optimized for virtualization technologies such as VMware, Microsoft Hyper-V, and other hypervisor platforms. Virtualized environments require efficient network adapters capable of handling multiple virtual network interfaces simultaneously, and this adapter meets those requirements with advanced offloading capabilities.

Hardware-Based Offloading Technologies

The adapter supports hardware-based offloading features that reduce CPU overhead by handling network processing tasks directly on the NIC. This includes checksum offloading, segmentation offloading, and interrupt moderation, all of which contribute to improved system performance.

Improved Virtual Machine Density

By reducing CPU utilization for network processing, the adapter allows servers to host a higher density of virtual machines without performance degradation. This is especially valuable in cloud computing environments where maximizing resource utilization is a priority.

Reduced Latency in Virtual Network Traffic

Low latency communication between virtual machines is essential for maintaining application performance. The adapter minimizes latency by optimizing packet processing paths and reducing unnecessary data handling delays.

Enterprise Data Center Use Cases

The HPE 656594-001 10Gb Ethernet 2 Port PCIe 530T G8 Network Adapter is widely used in enterprise data centers for a variety of applications. Its high-speed connectivity and reliable architecture make it suitable for storage networking, virtualization clusters, cloud infrastructure, and high-performance computing environments.

High-Performance Storage Connectivity

In storage area network (SAN) environments, the adapter enables fast data access between servers and storage systems. This is essential for applications that require real-time data processing and large-scale database operations.

Database and Transaction Processing Systems

Database systems benefit significantly from high-speed network connectivity, as they rely on fast query execution and data retrieval. The adapter ensures that database transactions are processed efficiently without network-induced delays.

Cloud Infrastructure Scalability

Cloud environments require scalable networking solutions capable of handling dynamic workloads. The adapter supports scalable architectures by providing consistent performance across distributed systems.

Reliability and Fault Tolerance Engineering

Reliability is a key design principle of the HPE 656594-001 network adapter. It is built to operate continuously under demanding conditions while maintaining stable performance. The hardware is designed with enterprise-grade components that ensure durability and long-term operational stability.

Advanced Error Detection and Correction

The adapter incorporates advanced error detection mechanisms that identify and correct transmission errors in real time. This reduces the likelihood of data corruption and ensures integrity in critical applications.

Network Failover Capabilities

Failover mechanisms allow seamless transition between network paths in the event of hardware or connection failure. This ensures uninterrupted service availability in mission-critical environments.

Energy Efficiency and Thermal Management

The HPE 656594-001 adapter is designed with energy efficiency in mind, ensuring minimal power consumption while maintaining high performance. This is particularly important in large-scale data centers where energy costs are a significant operational factor.

Low Power Consumption Design

The adapter uses optimized circuitry to reduce power usage without compromising performance. This contributes to overall server energy efficiency and helps reduce operational costs.

Heat Dissipation and Cooling Optimization

Efficient thermal management ensures that the adapter operates within safe temperature ranges even under heavy workloads. This enhances hardware longevity and system stability.

Impact on Data Center Sustainability

By reducing energy consumption and improving thermal efficiency, the adapter supports sustainable data center practices and aligns with modern green IT initiatives.

Deployment Flexibility and Scalability

The HPE 656594-001 10Gb Ethernet 2 Port PCIe 530T G8 Network Adapter offers exceptional deployment flexibility, making it suitable for a wide range of enterprise IT environments. Whether used in small server clusters or large-scale data centers, it adapts easily to evolving infrastructure needs.

Scalable Network Expansion

Organizations can scale their network infrastructure by deploying multiple adapters across different servers, enabling expanded bandwidth and improved network segmentation.

Adaptability to Hybrid IT Environments

The adapter supports hybrid IT infrastructures that combine on-premises servers with cloud-based resources, ensuring consistent connectivity across environments.

Long-Term Infrastructure Investment Value

Its compatibility with enterprise systems and long lifecycle support makes it a valuable long-term investment for organizations aiming to maintain stable and scalable network infrastructures.
