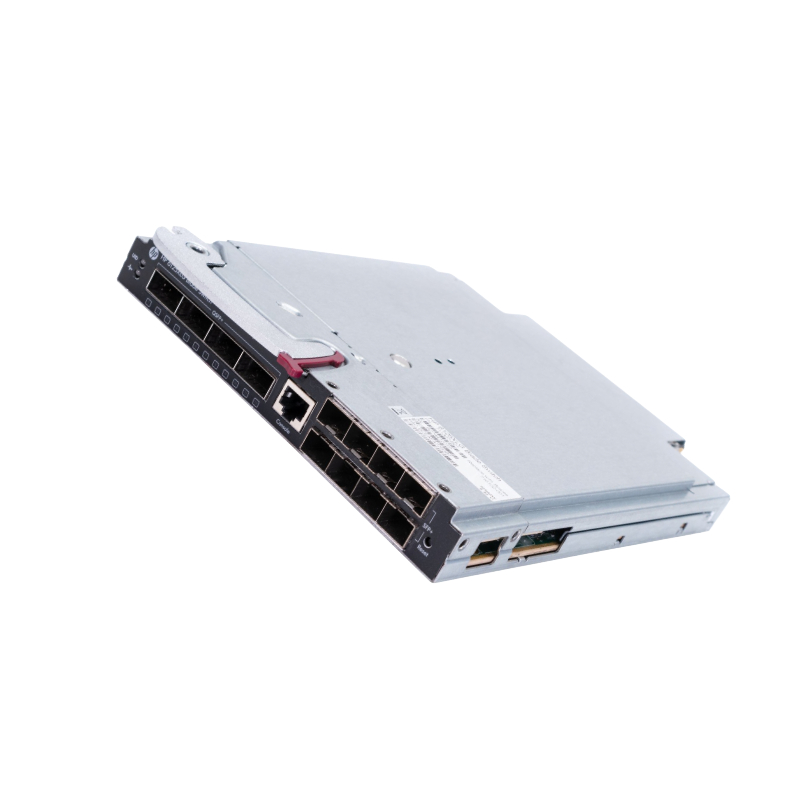

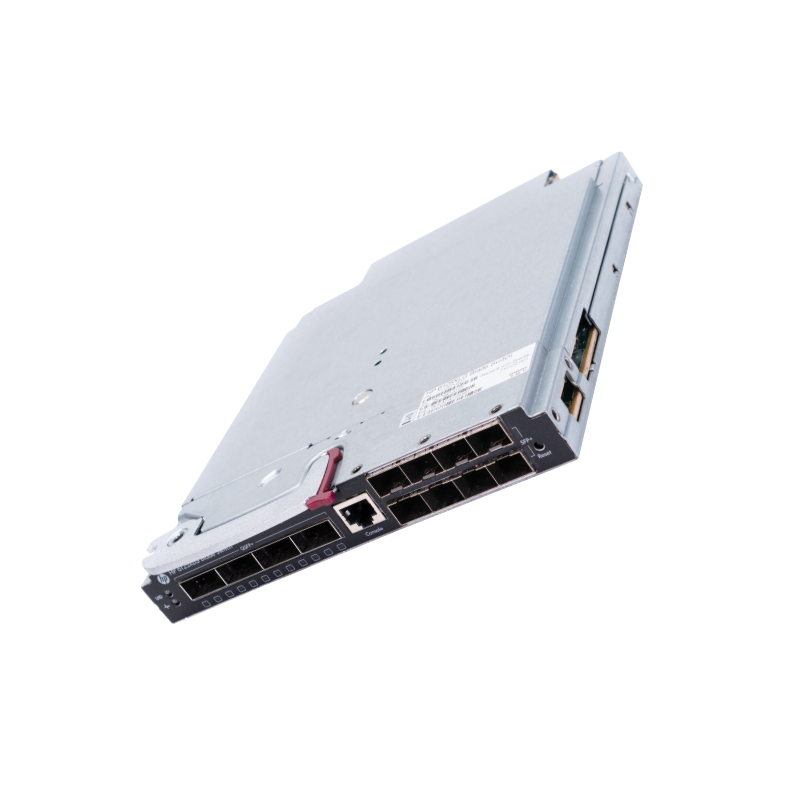

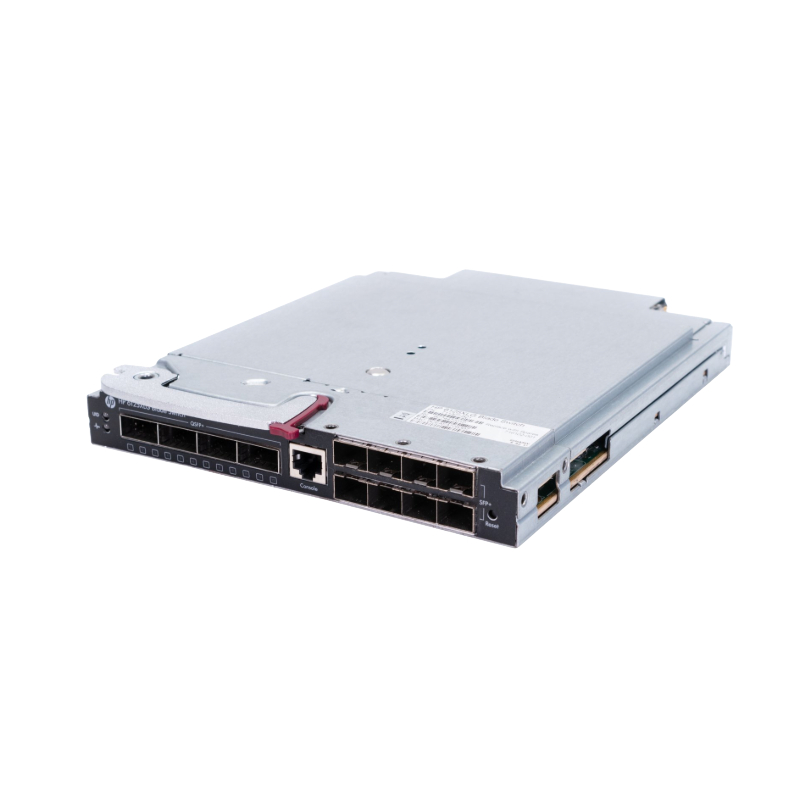

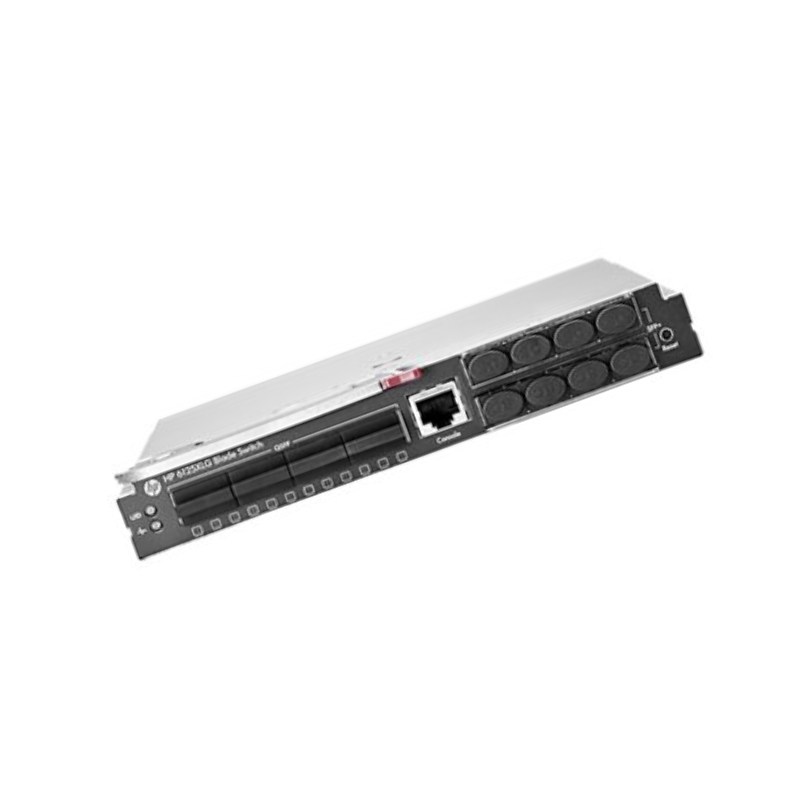

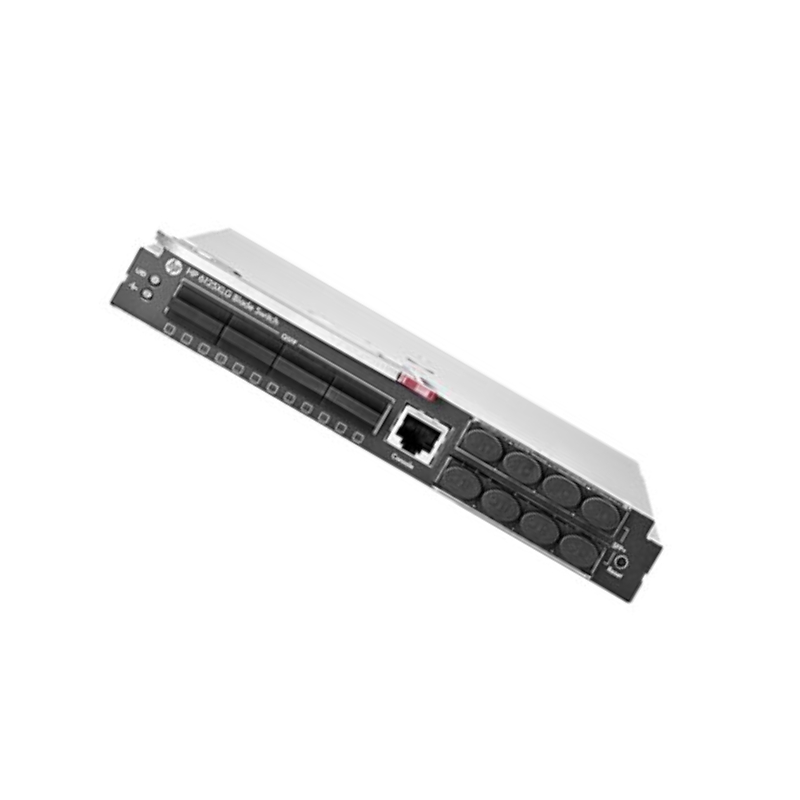

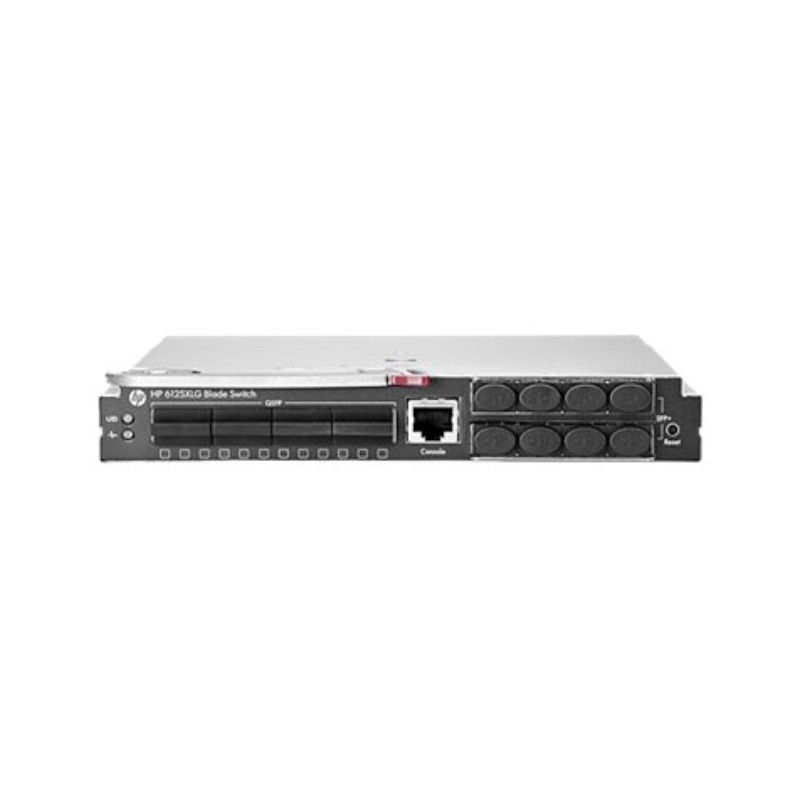

HPE 6125XLG Ethernet Blade Switch 711307-B21

Main Details of the HPE 711307-B21 Ethernet Blade Switch

• Brand: HPE
• Model Number: 711307-B21
• Product Category: Network Switch
• Type: 12-Port Managed Switch

Key Specifications

• Device Type: Layer 3 managed switch, stackable
• Form Factor: Plug-in module
• Port Configuration:
  • 4 x 40 Gigabit QSFP+ ports
  • 8 x 10 Gigabit SFP+ ports
• Forwarding Rate: 14,800,000 packets per second
• Bandwidth per Port: 240 Gbps

Performance and Capacity

• IGMP Group Support: Up to 1,024 groups
• Virtual Interfaces: Maximum of 4,094 VLANs
• MAC Address Table: 128K entries
• Jumbo Frame Support: 10,000 bytes

Routing and Protocol Features

• Supported Routing Protocols: OSPF, RIP (versions 1 and 2), BGP-4, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, bidirectional PIM, MSDP, static IPv4 and IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLD, CIDR
• Remote Management Options: SNMP (versions 1, 2, 2c, 3), Telnet, TFTP

Security and Management

• Encryption Methods: IKE (Internet Key Exchange)
• Authentication Mechanisms: RADIUS, TACACS+, SSH v2
• Management Features:
  • Flow control
  • Layer 2 switching with auto-sensing
  • DHCP support
  • Auto-negotiation and BOOTP support
  • ARP support and VLAN functionality
  • Syslog capability and port mirroring

Advanced Networking Capabilities

• IPv6 compatibility
• Full duplex mode
• sFlow and RSTP support
• VRRP and MSTP compliance
• Tunneling and DCBX functionality
• Comprehensive Quality of Service (QoS)
• IPSec passthrough and MLD snooping
• DLDP, EAD, STP root guard, and URPF
• LLDP and LACP support
• Management Information Base (MIB) and dynamic ARP protection

Compliance Standards

• IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3X
• IEEE 802.3ad (LACP), IEEE 802.1W, IEEE 802.1X
• IEEE 802.3ae, IEEE 802.1S, IEEE 802.3ah
• IEEE 802.1V, IEEE 802.1ag, IEEE 802.1ab (LLDP)
• IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz

Memory and Indicators

• RAM: 2 GB
• Flash Memory: 512 MB
• Status Indicators: Link activity, unit ID

Connectivity and Expansion

• Interface Ports:
  • 4 x 40Gb LAN
  • 8 x 10Gb LAN
  • 1 x Console for management

Part Number: 711307-B21

Overview

The HPE 6125XLG Ethernet Blade Switch is a cutting-edge networking solution designed to meet the demands of modern data centers and high-performance computing environments. As a critical component of the HPE BladeSystem infrastructure, this switch delivers exceptional performance, scalability, and flexibility. One of the key features that sets the HPE 6125XLG apart is its unique part number, 711307-B21, which provides users with several benefits and advantages.

Enhanced Performance

Innovative Technology

The part number 711307-B21 signifies that the HPE 6125XLG Ethernet Blade Switch is equipped with the latest technological advancements. This switch leverages advanced hardware and software capabilities to deliver remarkable performance. With support for high-speed connectivity and low-latency switching, it ensures fast and efficient data transfer, reducing network bottlenecks and enhancing overall system performance.

Increased Bandwidth

By utilizing the part number 711307-B21 switch in your network infrastructure, you gain access to increased bandwidth capabilities. With multiple 40 Gigabit Ethernet (GbE) uplink ports, this switch enables seamless data transmission at ultra-fast speeds. This enhanced bandwidth not only facilitates smoother communication between devices but also allows for the efficient handling of large data workloads, boosting productivity and minimizing latency.

Scalability and Flexibility

Modular Design

The HPE 6125XLG Ethernet Blade Switch with part number 711307-B21 features a modular design that offers unparalleled scalability and flexibility. Its blade form factor allows for easy integration into existing HPE BladeSystem c-Class enclosures, providing a streamlined deployment process. Moreover, the modular nature of this switch enables effortless expansion and customization as your network requirements evolve, ensuring long-term investment protection.

Virtual Connect Technology

With the inclusion of the part number 711307-B21 switch, you can take advantage of HPE's Virtual Connect technology. This innovative feature simplifies network management by allowing administrators to dynamically assign bandwidth to different servers and virtual machines (VMs). By effectively allocating resources in real-time, Virtual Connect enhances network agility, optimizes performance, and reduces complexity, ultimately leading to improved operational efficiency.

Reliability and Security

Advanced Security Features

The part number 711307-B21 switch incorporates advanced security features to safeguard your network infrastructure. With support for access control lists (ACLs), secure shell (SSH) encryption, and user authentication mechanisms, it ensures that only authorized individuals have access to sensitive data and resources. Additionally, this switch offers features like VLANs (Virtual LANs) and MAC address filtering, enabling you to create secure isolated networks for enhanced data protection.

High Availability

Designed with redundancy in mind, the HPE 6125XLG Ethernet Blade Switch with part number 711307-B21 ensures high availability of your network infrastructure. It supports features like link aggregation (LACP) and spanning tree protocols (STP), which provide failover capabilities and prevent network downtime. This switch also offers hot-swappable components, such as power supplies and fan modules, allowing for non-disruptive maintenance and minimizing the risk of service interruptions.

Easy Management

Intuitive Web Interface

Part number 711307-B21 signifies that the HPE 6125XLG switch is equipped with an intuitive web-based management interface. This user-friendly interface simplifies network administration tasks by providing a centralized platform for configuring and monitoring the switch. With its graphical representation of network topologies and intuitive navigation, users can easily manage and troubleshoot network-related issues, reducing the time and effort required for network management.

Integration with Network Management Tools

The part number 711307-B21 switch seamlessly integrates with various network management tools, making it easier to monitor and control your entire network infrastructure. By leveraging protocols such as SNMP (Simple Network Management Protocol) and CLI (Command Line Interface) support, administrators can efficiently manage and automate tasks, ensuring optimal network performance and minimizing manual intervention.

Conclusion

In conclusion, the HPE 6125XLG Ethernet Blade Switch with part number 711307-B21 offers numerous benefits and advantages for users in modern data centers and high-performance computing environments. With its enhanced performance, scalability, flexibility, reliability, security, and easy management features, this switch empowers organizations to build robust and efficient network infrastructures. By leveraging the capabilities provided by the part number 711307-B21 switch, businesses can accelerate their operations, improve productivity, and stay ahead in today's competitive landscape.
