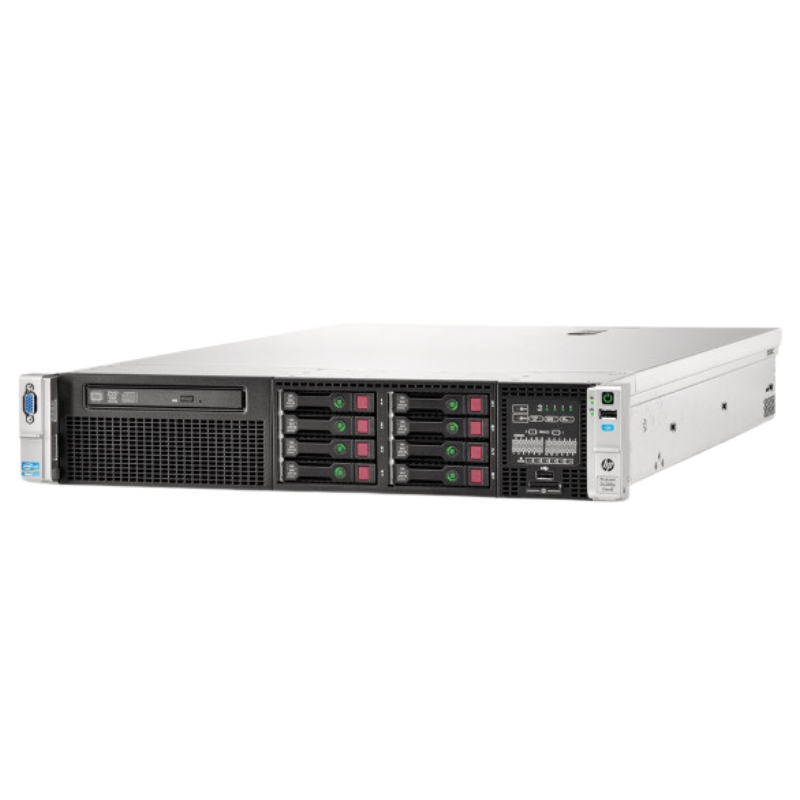

Product Overview Of HPE Proliant Dl380P Server

The HPE 665554-B21 ProLiant DL380p is a versatile and high-performance rack-mountable server designed to meet the demanding needs of modern enterprises. Engineered with flexibility, reliability, and efficiency in mind, this Gen8 CTO chassis server is ideal for data centers, virtualization environments, and high-density computing applications. Its Small Form Factor (SFF) design allows it to deliver exceptional performance in limited space

Key Manufacturer and Product Details

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number / SKU: 665554-B21
• Server Type: Rack-mountable
• Model Series: ProLiant DL380p
• Product Name: ProLiant DL380p Gen8 SFF CTO Rack Server

Processor and Chipset Features

This server is optimized for powerful computing tasks with support for Intel E5-2600 processor family. It provides flexibility in processor configurations to meet varying workloads.

• Processor Type: Intel E5-2600 Family
• Installed Processor: Not included
• Maximum Supported Processors: 2
• Upgradability: Processor can be upgraded
• Chipset Type: Intel C600
• Socket Type: FCLGA2011

Memory Specifications

The HPE DL380p offers advanced memory support for high-speed and reliable performance.

• Installed Memory: None (configurable)
• Maximum Memory Capacity: 384 GB
• Memory Technology: DDR3 SDRAM
• Form Factor: DIMM 240-Pin
• Features: Quad Channel Memory Architecture, HPE Smart Memory

Storage and Storage Controller Options

Equipped to handle demanding storage requirements, this server supports both SAS and SATA drives with advanced RAID configurations.

• Drive Bays: 25 SFF (with built-in expander)
• Installed Drives: None included
• Storage Controller: Smart Array P420i
• Controller Type: RAID Plug-in Card (PCI Express 3.0 x8)
• Interface Type: Serial ATA-300 / SAS 2.0
• Supported RAID Levels: RAID 0, 1, 10

Card Reader Support

• Type: Integrated card reader
• Supported Flash Memory Cards: SD memory card

Display and Graphics Capabilities

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200

Power Supply and Redundancy

This server provides reliable power management with options for redundancy to ensure continuous operation in critical environments.

• Power Supply Type: Hot-plug
• Redundancy Options: Optional 1+1 configuration
• Installed Power Supplies: None included
• Maximum Supported Power Supplies: 2
• Voltage Requirements: AC 120/230V, 50/60 Hz

Key Features of HPE 665554-B21 DL380p

• Rack-Mountable Form Factor: Optimized for 2U rack configurations, enabling efficient data center space utilization.
• Small Form Factor Drives: Supports SFF HDDs/SSDs for high-density storage and flexible storage expansion.
• DDR3 SDRAM Support: High-speed DDR3 memory modules provide exceptional performance for virtualization, database workloads, and business-critical applications.
• Gen8 Architecture: Offers advanced management, improved energy efficiency, and enhanced system reliability.
• CTO Configuration: Configure-to-order flexibility allows customization based on specific workload requirements.

Hardware Specifications

Processor Capabilities

The DL380p supports Intel Xeon E5-2600 series processors, providing multi-core performance for demanding enterprise workloads. This allows simultaneous handling of virtualization, large database operations, and multi-threaded applications efficiently.

• Supports dual Intel Xeon processors for high-performance computing.
• Enhanced cache memory for faster data processing.
• Optimized power consumption with Intelligent Power Discovery.

Memory Configuration

The server supports DDR3 SDRAM memory modules in RDIMM or LRDIMM form factors, delivering balanced memory bandwidth for high-performance computing and virtualization tasks.

• Maximum memory capacity: Up to 768 GB with LRDIMM modules.
• Multiple memory channels for improved throughput and lower latency.
• Advanced error correction (ECC) support ensures data integrity.

Storage Options

The DL380p CTO chassis server provides flexibility for storage expansion and high availability. With SFF drive bays, it supports a variety of enterprise-grade storage devices, including SAS, SATA, and SSDs.

• Up to 25 SFF drive bays in some configurations.
• Hot-plug drive support for minimal downtime during maintenance.
• Hardware RAID support (RAID 0, 1, 5, 6, 10, 50, 60) for enhanced data protection.

Networking Capabilities

The DL380p comes equipped with multiple embedded network adapters, providing high-speed connectivity and network redundancy.

• Standard dual-port Gigabit Ethernet.
• Optional 10 GbE and additional network interface cards for increased throughput.
• FlexibleLOM technology for network customization.

Advanced Management and Security Features

Integrated Lights-Out 4 (iLO 4)

HPE iLO 4 provides robust remote management capabilities for IT administrators, enabling proactive monitoring, diagnostics, and secure remote access to servers, reducing operational costs and downtime.

• Remote console access for monitoring and control.
• Integrated management engine for hardware health monitoring.
• Power and thermal monitoring to optimize energy usage.

Security Enhancements

The DL380p chassis server incorporates advanced security features to protect sensitive data and prevent unauthorized access.

• TPM (Trusted Platform Module) support for secure boot and encrypted storage.
• Drive-level encryption with self-encrypting drives (SEDs).
• Role-based access control for secure administration.

Energy Efficiency and Cooling

Intelligent Power Management

HPE Gen8 servers include Intelligent Power Discovery to monitor power consumption and optimize energy use without sacrificing performance.

• Dynamic Power Capping to control energy usage.
• Energy-efficient power supplies with 94% or higher efficiency.
• Reduced cooling requirements with optimized airflow design.

Cooling System

The DL380p is designed for efficient heat management, maintaining optimal operating temperatures even under heavy workloads.

• Redundant, hot-swappable fans for high availability.
• Advanced thermal sensors to detect and prevent overheating.
• Optimized airflow path for effective heat dissipation in rack environments.

High Availability and Redundancy

Power Supply Redundancy

The server supports multiple hot-plug redundant power supplies, ensuring uninterrupted operations and high availability for mission-critical applications.

• Optional dual or triple power supply configurations.
• Load-sharing to prevent downtime during power supply failure.
• 24/7 monitoring for predictive failure alerts.

RAID and Storage Redundancy

Hardware RAID controllers in the DL380p chassis provide comprehensive data protection, ensuring minimal risk of data loss.

• Support for RAID 0, 1, 5, 6, 10, 50, 60.
• Hot-spare drive support for automated failover.
• Advanced caching algorithms for improved read/write performance.

Deployment and Scalability

Flexible Deployment Options

The DL380p’s 2U rack-mountable design allows for flexible deployment in various data center environments, from small enterprise racks to large-scale server farms.

• Optimized for virtualization platforms such as VMware, Hyper-V, and XenServer.
• Supports high-density server configurations for maximum compute per rack unit.
• Compatibility with HPE BladeSystem and Synergy infrastructures.

Scalable Expansion Capabilities

This server offers extensive expansion capabilities, allowing organizations to scale compute, memory, and storage according to business requirements.

• Up to 3 PCIe expansion slots for additional storage controllers or network cards.
• Memory expansion for large-scale virtualization and high-performance workloads.
• Flexible drive bay configurations to add additional storage capacity as needed.
