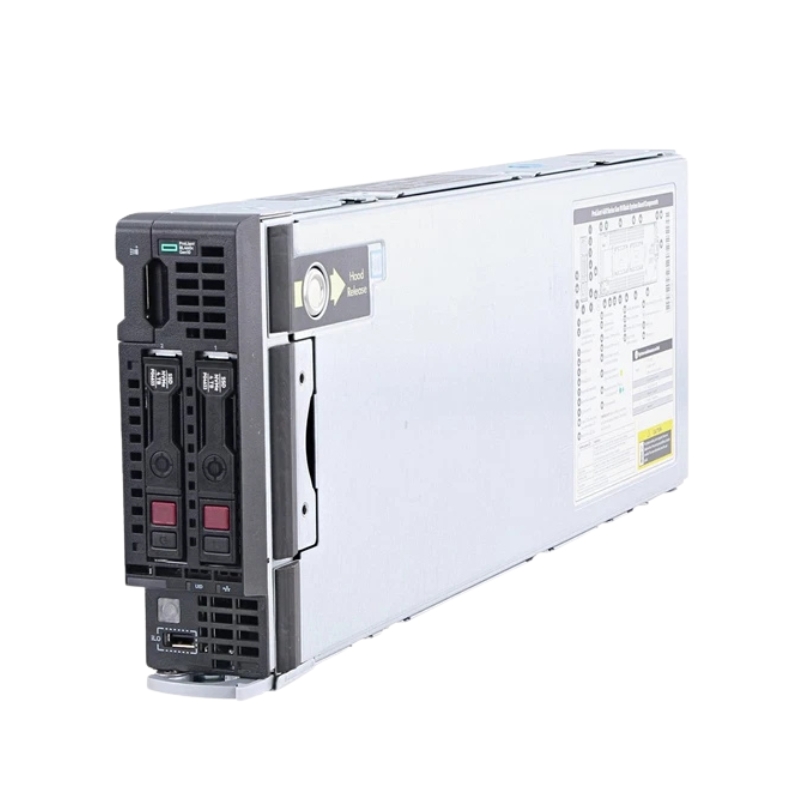

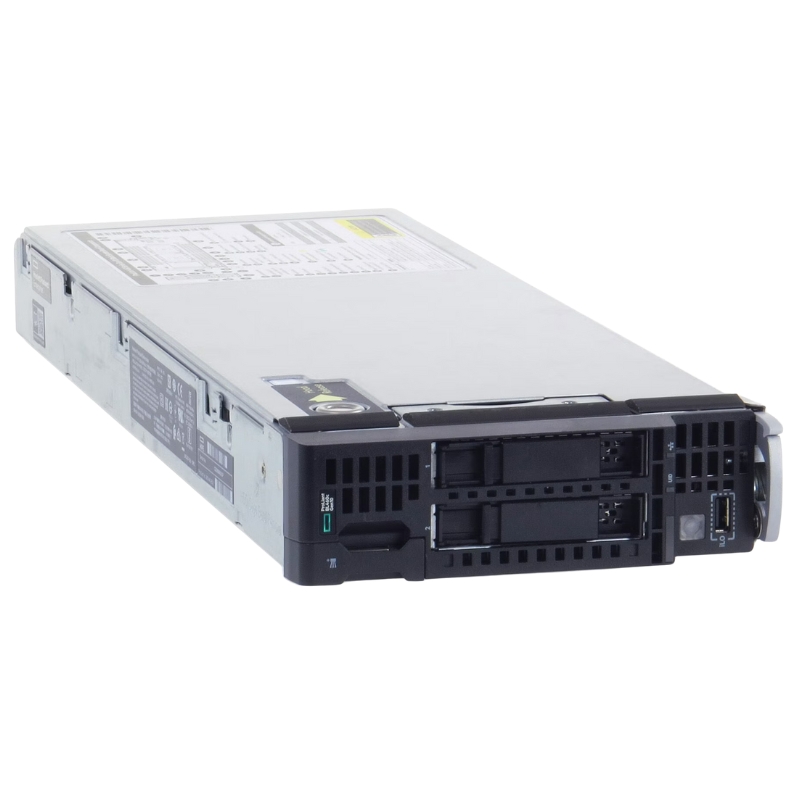

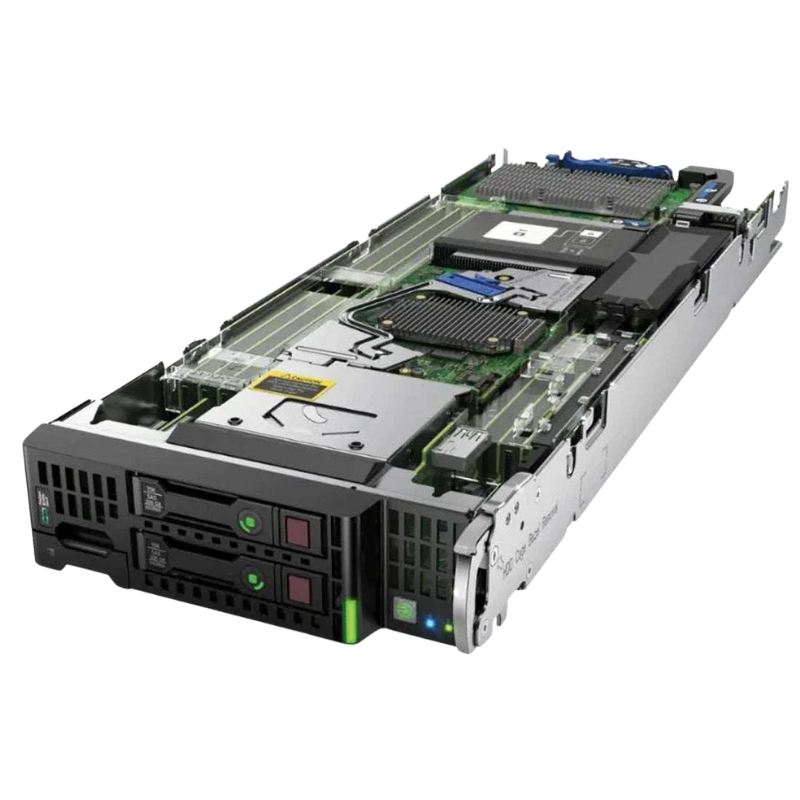

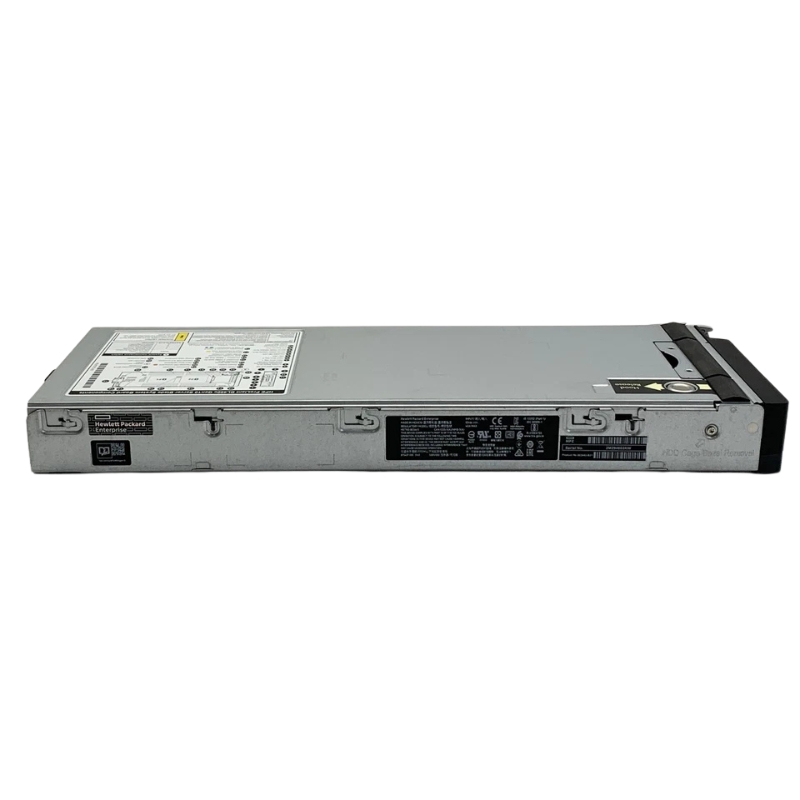

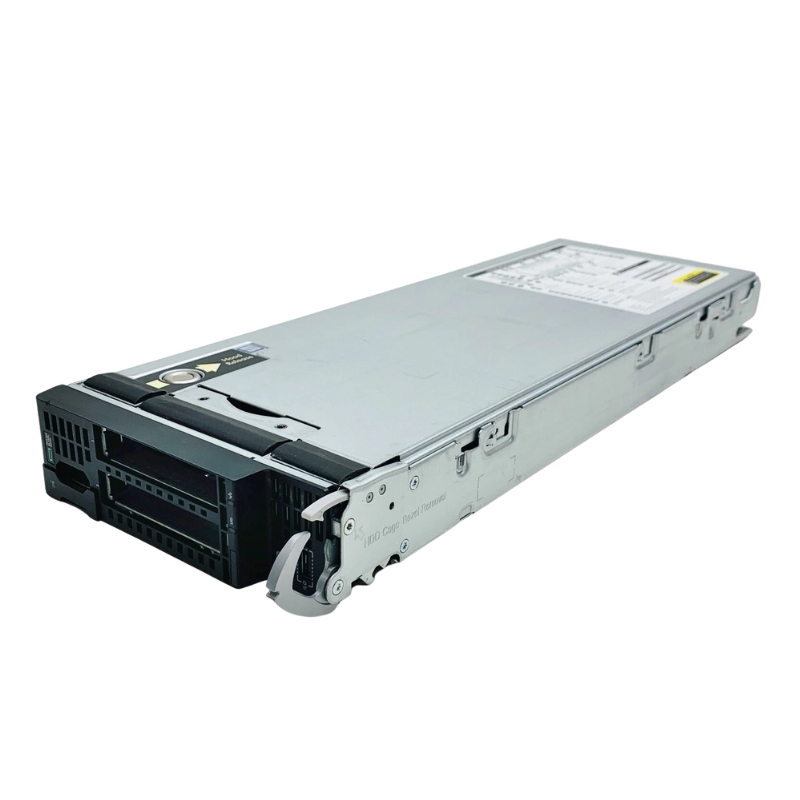

HPE Proliant BL460c G8 2x Xeon E52660v2 2.2GHZ 64GB DDR3 Sdram Smart Array P220i With 512MB Fbwc 2 Way Blade Server 724083-B21

Processor

The HPE Proliant Bl460c G8 2 Way Blade Server is equipped with a powerful 2x Xeon 10core E52660v2 2.2GHZ processor, making it an excellent choice for businesses and organizations that require high-performance computing capabilities. The processor is the heart of any server, and the dual Xeon configuration in this server provides exceptional processing power and efficiency.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 724083-B21
• Product Name: Proliant BL460c Gen8 - Dual Socket Blade Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2660v2 / 2.2 GHz
• Max Turbo Frequency: 3 GHz
• Cores: 10-core
• 64-bit Computing: Supported
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Upgradability: Yes
• Processor Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: L3 Cache - 50 MB
• Cache Per Processor: 25 MB

Memory Specifications

• Installed Capacity: 64 GB (up to 256 GB supported)
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1866 MHz
• Memory Speed Rating: 1866 MHz
• Memory Compliance: PC3-14900
• Form Factor: DIMM 240-pin
• Total Slots: 16 (12 available)
• Features: Registered, HP SmartMemory
• Configuration Example: 4 x 16 GB
• Supported RAM Types:
  • PC3-14900: Up to 256 GB Registered, 128 GB Unbuffered
  • PC3-10600: Up to 384 GB Low Voltage Registered
  • PC3-12800: Up to 256 GB Low Voltage Registered, 128 GB Low Voltage Unbuffered

Storage & Optical Storage

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Type: 1 x SAS-2 Integrated
• Interface: PCIe x4
• Controller Name: Smart Array P220i with 512 MB FBWC
• RAID Levels: RAID 0, RAID 1
• Buffer Size: 512 MB

Display & Graphics Controllers

• Graphics Type: Integrated
• Graphics Processor: Matrox G200

Network & Communication

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 554FLB
• Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel Over Ethernet (FCoE)
• Remote Management Protocols: SNMP, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL)
• Compliant Standards: IEEE 802.1Q, IEEE 802.1P, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap

Expansions & Connectivity

Expansion Bays

• Total Bays: 2 (Hot-swap 2.5-inch SFF)
• Available Bays: 2

Expansion Slots

• Total Slots: 2 x CPU, 16 x DIMM 240-pin (x16 mode)
• Available Slots: 2 x CPU, 12 x DIMM 240-pin, 1 x FlexibleLOM, 1 x microSDHC Card (internal)

Interfaces & Ports

• HP iLO: 1
• LAN Ports (10 Gigabit Ethernet): 2
• USB 2.0 Port: 1 (Internal)

Miscellaneous Features

• Administrator Password Control
• Power-On Password Security
• Serial Port I/O Control
• USB Port Control

Compliance & Standards

• ACPI 2.0
• WEEE

Dimensions & Weight

• Width: 2.2 inches
• Depth: 20.4 inches
• Height: 7.1 inches
• Weight: 10.5 lbs

Increased Performance

With two Xeon 10core E52660v2 processors running at 2.2GHZ, the HPE Proliant Bl460c G8 delivers exceptional performance. The multiple cores and high clock speed allow for smooth multitasking and efficient handling of demanding applications. Whether you're running resource-intensive databases, virtualization software, or complex analytics tasks, this server can handle it all with ease.

Improved Efficiency

The 2x Xeon 10core E52660v2 processors are designed to deliver maximum performance while minimizing power consumption. This means that you can enjoy high-performance computing without worrying about excessive energy costs. The efficient design of the processors also helps to reduce heat generation, ensuring that your server runs cool and stable even under heavy workloads.

Scalability and Future-Proofing

One of the key advantages of the HPE Proliant Bl460c G8's processor configuration is its scalability. With two processors already installed, you have the potential to further expand your server's processing power by adding additional processors in the future. This allows for easy scalability as your business grows or as your computing needs evolve over time.

The dual Xeon configuration also ensures that your server is future-proofed to a certain extent. As technology advances and applications become more demanding, having a powerful processor setup like this will help ensure that your server remains capable of handling the latest software and workloads.

Memory

The HPE Proliant Bl460c G8 is equipped with 64GB DDR3 SDRAM, offering ample memory capacity to support a wide range of applications and workloads. The memory capacity of a server is crucial for ensuring smooth performance and efficient multitasking.

Increased Workload Capacity

With 64GB of DDR3 SDRAM, this server can handle multiple concurrent tasks and applications without experiencing performance bottlenecks. Whether you're running virtual machines, hosting websites, or managing large databases, the generous memory capacity ensures that your server has enough resources to allocate to each task efficiently.

Enhanced Performance

The high memory capacity of the HPE Proliant Bl460c G8 allows for faster data access and retrieval. This translates into improved application performance and reduced latency. With larger datasets being stored in memory, your server can quickly process and manipulate data, resulting in faster response times and smoother user experiences.

Flexibility and Scalability

The 64GB DDR3 SDRAM can be expanded further to meet growing demands. The server supports multiple memory slots, allowing you to easily upgrade the memory capacity as your business needs evolve. This flexibility ensures that your server can keep up with increasing workloads and changing requirements without the need for a complete hardware overhaul.

Storage

The HPE Proliant Bl460c G8 features the Smart Array P220i with 512MB FBWC (Flash Backed Write Cache) storage controller, providing reliable and high-performance storage capabilities. The storage subsystem of a server is crucial for storing and retrieving data efficiently.

Improved Data Protection

The Smart Array P220i storage controller offers advanced RAID capabilities, allowing you to configure redundant disk arrays for data protection. RAID (Redundant Array of Independent Disks) technology ensures that your data remains accessible even if one or more hard drives fail. The 512MB FBWC acts as a cache, providing a temporary storage buffer that improves performance and protects against data loss in the event of a power failure.

Enhanced Performance

The Smart Array P220i storage controller is designed to deliver high-performance storage capabilities. With support for SAS (Serial Attached SCSI) and SATA (Serial ATA) drives, you can choose the storage solution that best suits your needs. The controller optimizes data access and retrieval, resulting in faster read and write speeds, reduced latency, and improved overall system performance.

Scalability and Flexibility

The HPE Proliant Bl460c G8 offers scalable storage options to accommodate growing data requirements. The server supports multiple drive bays, allowing you to easily expand the storage capacity as needed. Whether you need additional storage for databases, file sharing, or archival purposes, the Smart Array P220i controller provides the flexibility to scale your storage infrastructure without disrupting operations.

Networking

The HPE Proliant Bl460c G8 is equipped with the 554flb networking adapter, offering high-speed connectivity and advanced networking features. The networking capabilities of a server are crucial for efficient data transfer and communication within your network infrastructure.

High-Speed Connectivity

The 554flb networking adapter supports 10Gb Ethernet connectivity, providing blazing-fast network speeds. This allows for quick data transfers, reduced network latency, and improved overall network performance. With 10Gb Ethernet, your server can handle large data transfers, video streaming, and other bandwidth-intensive tasks without bottlenecks or slowdowns.

Advanced Networking Features

The networking adapter also supports advanced features such as VLAN (Virtual Local Area Network) tagging, which allows you to segment your network for improved security and performance. Additionally, the adapter supports advanced protocols and technologies like TCP/IP Offloading and Jumbo Frames, further enhancing network efficiency and reducing CPU overhead.

Reliability and Redundancy

The 554flb networking adapter offers built-in redundancy features to ensure uninterrupted network connectivity. With support for teaming and failover, you can configure multiple adapters for load balancing and automatic failover in case of a network adapter or cable failure. This redundancy ensures that your server remains connected and accessible even in the event of hardware failures.

Part Number

The HPE Proliant Bl460c G8 has a part number of 724083-B21. The part number is an essential identifier for ordering, maintaining, and troubleshooting the server. It provides information about the specific configuration and components of the server.

Ordering and Maintenance

The part number serves as a unique identifier when ordering additional components or replacement parts for the server. When contacting technical support or service providers, providing the part number ensures that they have accurate information about your server's configuration, facilitating faster troubleshooting and resolution of issues.

Compatibility and Interchangeability

The part number helps ensure compatibility when adding or replacing components in your server. It ensures that you select the correct components that are designed to work seamlessly with your specific server model. This eliminates compatibility issues and minimizes the risk of hardware conflicts or performance degradation.

Documentation and Resources

The part number is often referenced in server documentation, manuals, and online resources. It allows you to quickly locate relevant information specific to your server model. Whether you're looking for technical specifications, configuration guidelines, or firmware updates, knowing the part number helps streamline your search for accurate information.
