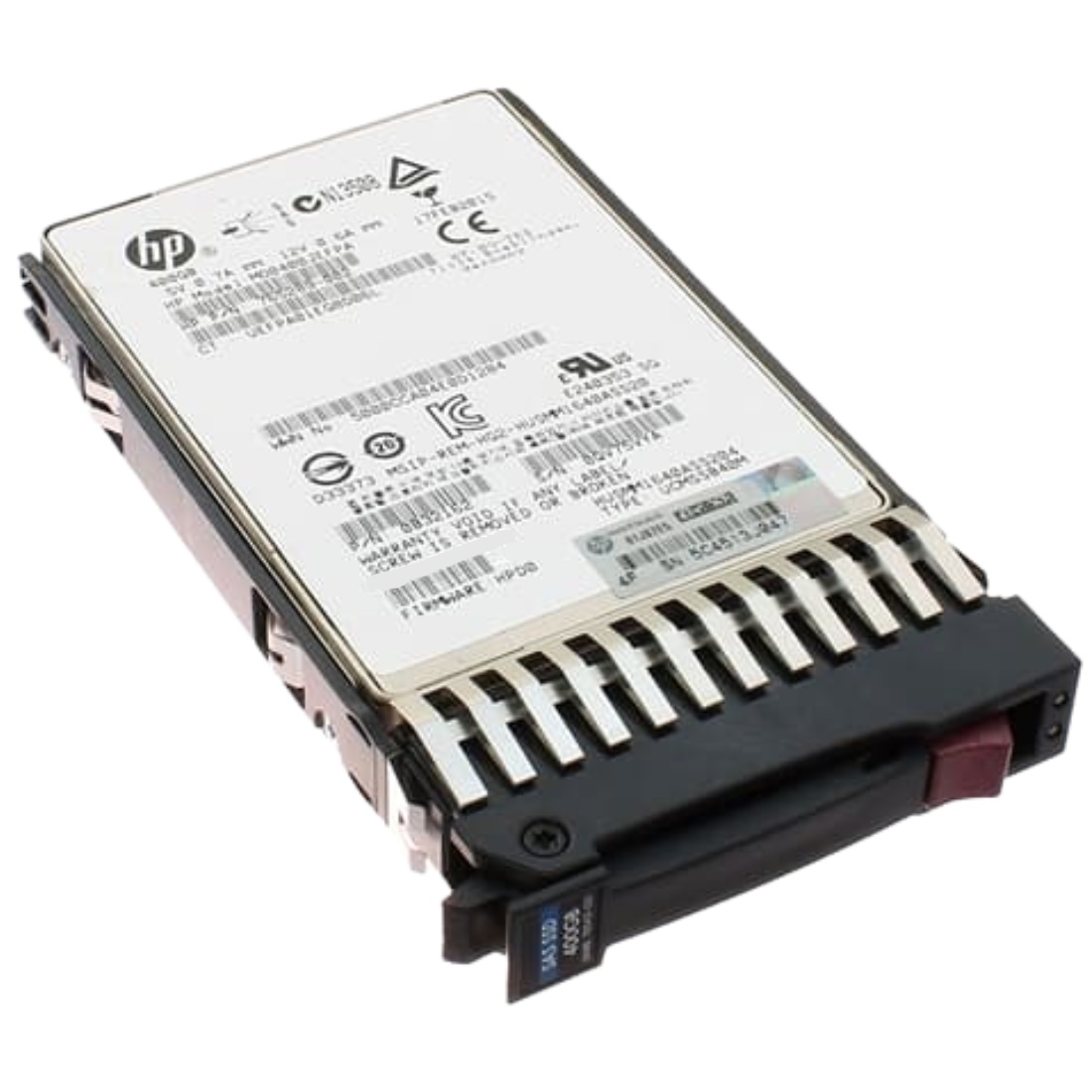

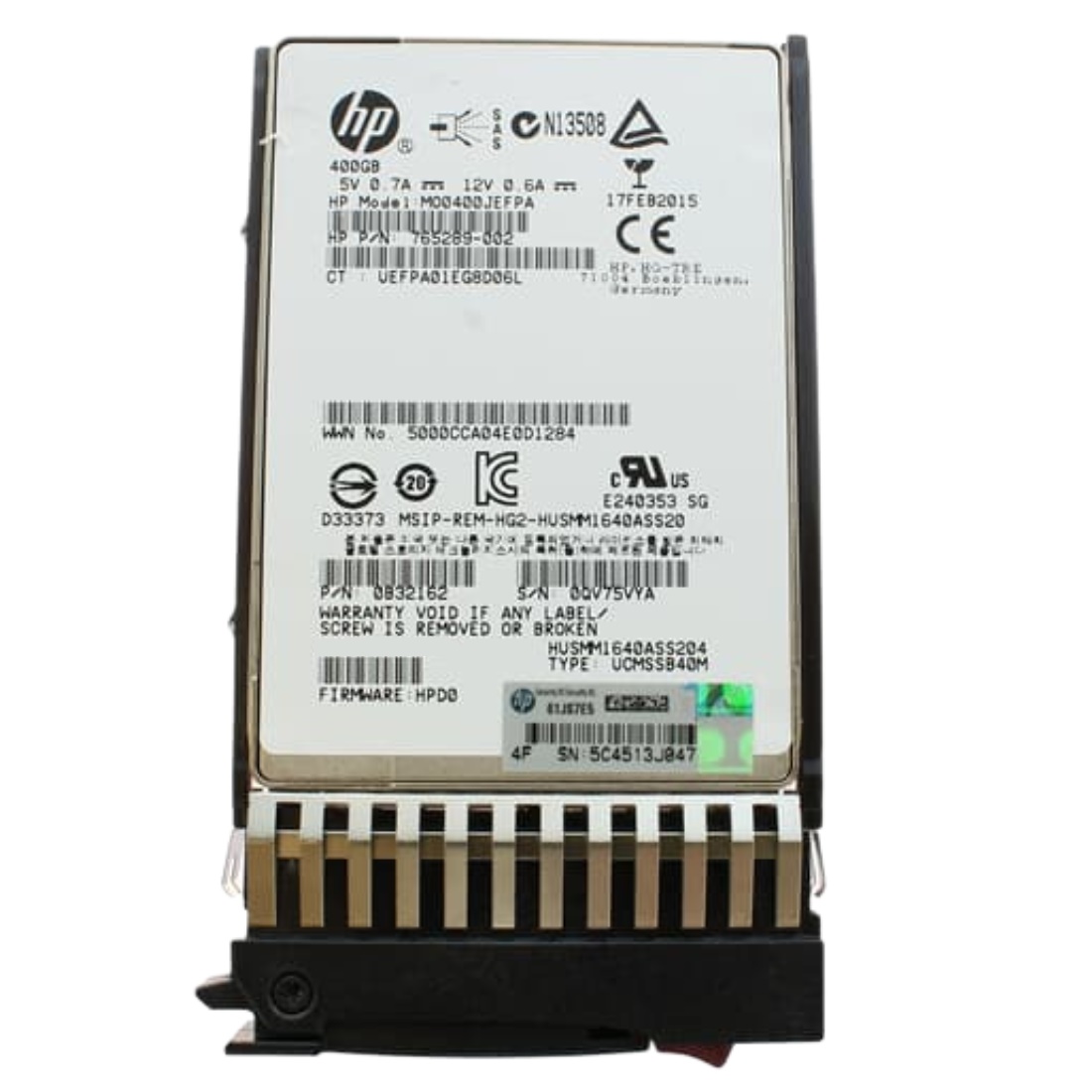

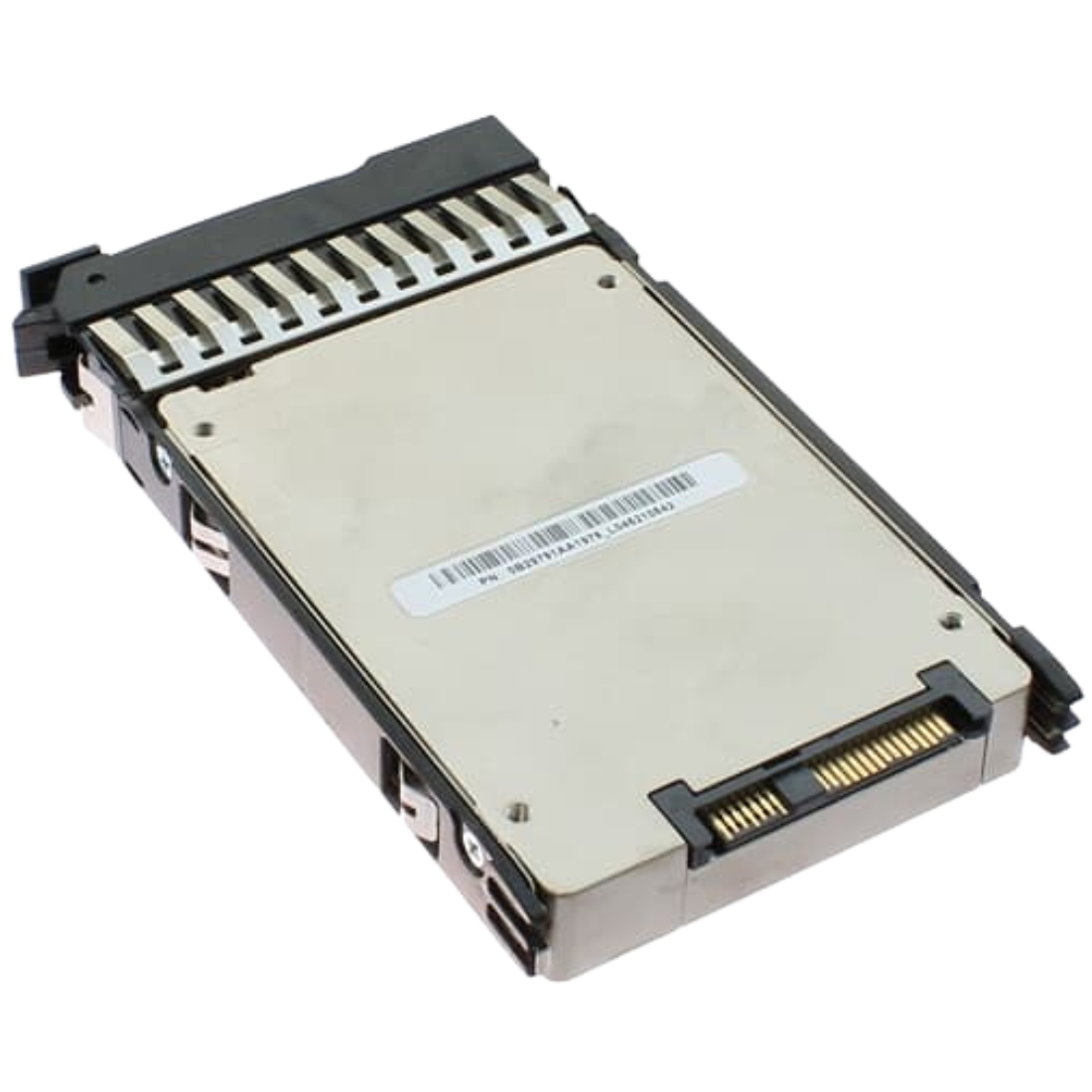

HPE 741125-001 MLC 400GB SAS-12GBPS SFF ME SSD

HPE 741125-001 Mainstream Endurance SSD Overview

The HPE 741125-001 Mainstream Endurance MLC 400GB SAS-12GBPS SFF Internal Solid State Drive is a purpose-built enterprise-class storage device designed to meet the durability, performance, and management requirements of modern datacenter workloads. This category description covers the drive family and related subcategories, exploring performance characteristics, endurance profiles, interface details, deployment scenarios, compatibility considerations, monitoring and management features, and best-practice recommendations for procurement, installation, and lifecycle management. Use this section when building product category pages, comparison tables, or buying guides where technical accuracy and search-engine discoverability for the HPE 741125-001 and similar SAS SSDs is essential.

Key Technical

The HPE 741125-001 is a 2.5" SFF (Small Form Factor) SAS SSD that uses MLC (Multi-Level Cell) NAND with a mainstream endurance rating. Its salient technical attributes include a 400GB usable capacity, 12 Gbps SAS interface, enterprise-optimized firmware, and features aimed at consistent low-latency I/O. These attributes together create a balance between cost, endurance, and write performance that makes the drive suitable for mixed read/write enterprise workloads such as virtualized environments, database indices, mail servers, boot/OS volumes, and certain caching tiers.

Interface: SAS-12Gb/s (SAS-3) advantages

The SAS-12Gb/s interface (often referred to as SAS-3) provides a robust, full-duplex connection designed for enterprise storage controllers. Compared to SATA, SAS offers dual-port connectivity (for redundancy), improved error handling, and higher command queue depths. The HPE 741125-001 benefits from these SAS-specific advantages: better fault tolerance in multi-path scenarios, faster negotiated bandwidth for sustained workloads, and tighter integration with HPE server storage controllers and RAID adapters.

NAND type and endurance profile

The drive uses Multi-Level Cell (MLC) NAND with mainstream endurance tuning. MLC stores two bits per memory cell which helps achieve a balance between cost-per-GB and write endurance. "Mainstream endurance" signals that the drive is optimized for general-purpose enterprise workloads rather than the heavy sustained writes expected in write-intensive tiers (where high-endurance or SLC/eMLC alternatives would be used). For procurement and lifecycle planning, this means the HPE 741125-001 is best suited to workloads that have a higher proportion of reads or moderate random writes.

Performance characteristics

Performance for the HPE 741125-001 can be characterized across three dimensions: throughput (MB/s), input/output operations per second (IOPS), and latency (ms/µs). Enterprise SSDs like this model are tuned to deliver consistent IOPS over long-tail workloads. Typical performance characteristics include strong random read IOPS, competitive sequential throughput for 12Gb/s SAS links, and predictable latencies under mixed loads. When comparing drives in the same category, pay attention to the performance at different queue depths and the behavior under sustained heavy writes (thermal throttling and write amplification).

IOPS and queue-depth considerations

Enterprise SAS SSDs usually report IOPS at multiple queue depths (QD1, QD4, QD32). The HPE 741125-001 is optimized to maintain high performance at higher queue depths commonly seen in server and virtualization environments. Designers should reference workload profiles—random 4K reads and 4K mixed read/write tests are especially useful—when estimating consolidation ratios and expected user experience.

Reliability, MTBF, and data protection features

The HPE 741125-001 is engineered with enterprise-grade reliability features. Important reliability metrics include Mean Time Between Failures (MTBF), UBER (Unrecoverable Bit Error Rate), and Power-Loss Protection (PLP) circuitry. While specific numbers vary by firmware revision and production batch, enterprise SAS SSDs typically provide high MTBF ratings and robust error correction (ECC) to minimize data corruption. Hardware and firmware PLP designs allow in-flight data to be safely written to NAND during unexpected power events, reducing the risk of partial writes and metadata corruption.

End-to-end data integrity

End-to-end data integrity means checking and protecting data at every stage: host interface, controller buffers, and NAND flash. The drive uses internal checksums, CRCs, and ECC to ensure that data sent by the host is what gets written and subsequently read back, which is invaluable for critical applications and enterprise backup chains.

Compatibility

The HPE 741125-001 is part of HPE's validated storage ecosystem and is commonly supported on HPE ProLiant servers and storage enclosures that accept 2.5" SAS drives. Compatibility considerations include:

• Controller support: Ensure HPE Smart Array controllers or HBA adapters support SAS-12Gb/s devices and have the appropriate firmware.
• Drive carrier/tray: Use the supported SFF carrier/tray for hot-swap capability and correct caddy latch alignment.
• Server firmware: Keep BIOS/UEFI and HPE SUM or Service Pack for ProLiant (SPP) up-to-date for drive firmware compatibility.

Deployment scenarios

The HPE 741125-001's mainstream endurance profile and balanced performance make it a good fit for the following deployment scenarios:

Virtualized server storage

In virtualized environments (Hyper-V, VMware ESXi, KVM), the drive can be used for datastore volumes, guest OS boot volumes, or as part of a hybrid storage pool where read-mostly VMs benefit from SSD performance while larger bulk volumes remain on HDD tiers.

Database indices and read-accelerated workloads

For OLTP databases with significant random read traffic and moderate write amplification, the HPE 741125-001 provides low-latency access for frequently-read index pages, tempdb, or cache layers.

Boot and OS volumes

Because of its predictable performance and endurance, this drive is ideal as a boot disk for enterprise servers where fast system startup and low I/O latency for OS services are desirable.

Hot-swap and serviceability

Using the supported drive caddy allows hot-swap replacement without powering down the server. Maintain a small spare pool of drives (or use vendor on-site replacement programs) to minimize downtime for failed units.

Comparisons

To make informed procurement choices, compare the HPE 741125-001 against alternatives along three axes: endurance (high vs mainstream vs read-intensive), form factor (2.5" SFF vs M.2 vs U.2), and interface (SAS vs NVMe). Key points:

Endurance tiers

High-endurance SSDs use higher-quality NAND or over-provisioning to sustain heavy write workloads (e.g., logging, large-scale database writes). Mainstream endurance like the HPE 741125-001 is a middle ground suitable for mixed workloads. Read-intensive SSDs optimize for reads and are the most cost-efficient where writes are minimal.

Interface trade-offs: SAS vs NVMe

NVMe offers lower latency and higher parallelism than SAS, but requires NVMe-capable backplanes and controllers. SAS remains a strong choice in environments standardized on SAS infrastructure, offering proven interoperability, dual-port redundancy, and simpler migration paths for existing HPE arrays and controllers.

RAID considerations and rebuild times

Rebuild times on SSD arrays are generally faster than HDD arrays due to higher throughput, but rebuilds still generate additional I/O and stress. Choosing the right RAID level (RAID 1, 5, 6, 10) depends on tolerance for capacity loss during failure and rebuild performance. For SSDs, RAID controllers’ handling of trim/UNMAP, and how they coordinate with drive garbage collection and TRIM commands, impacts long-term performance.
