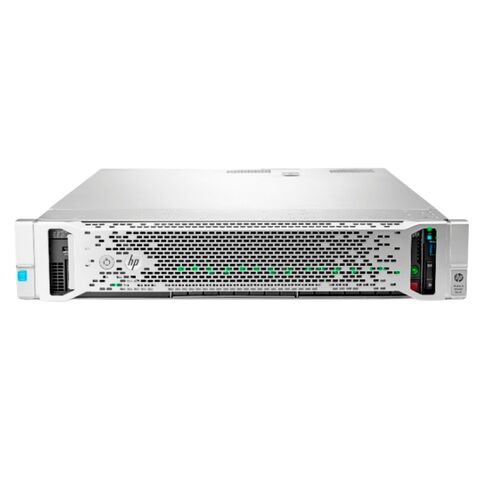

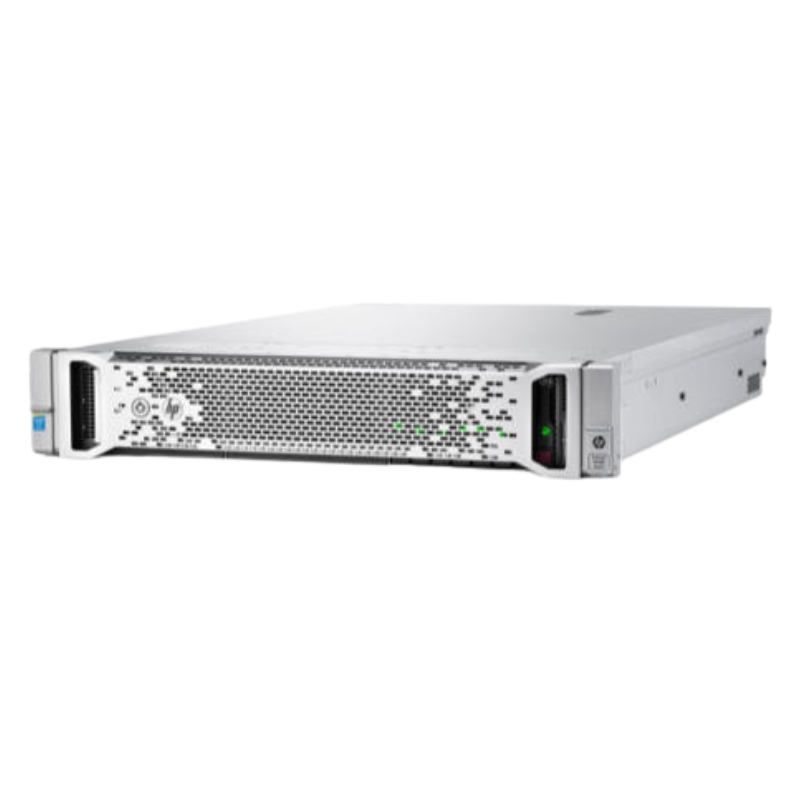

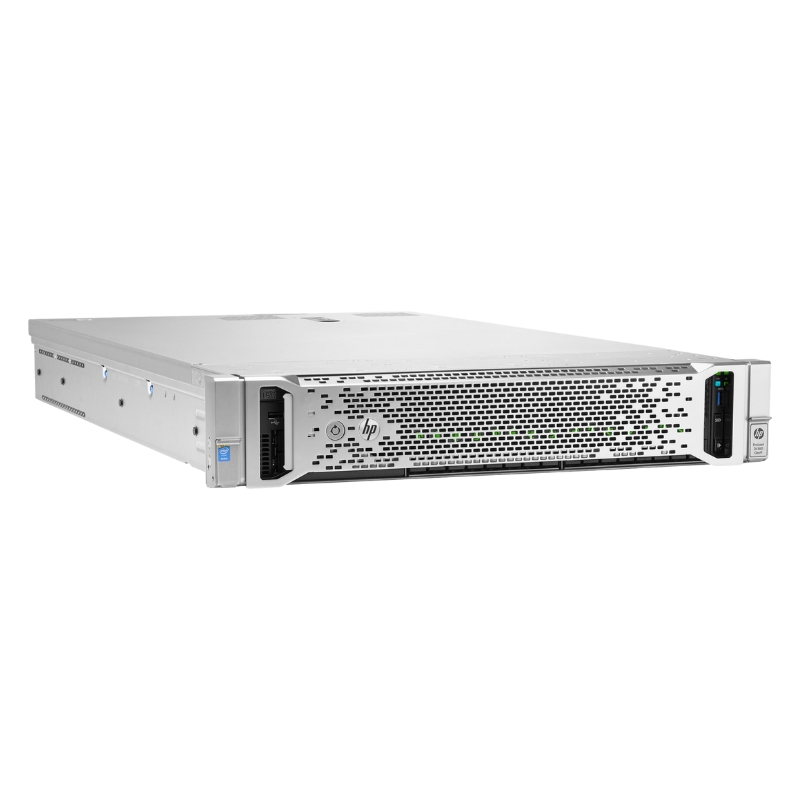

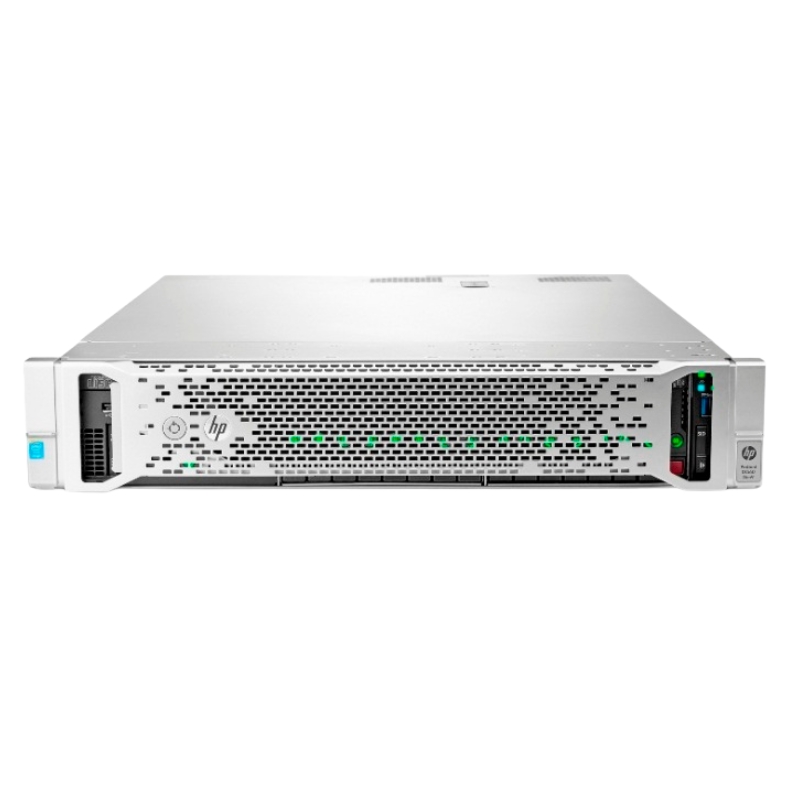

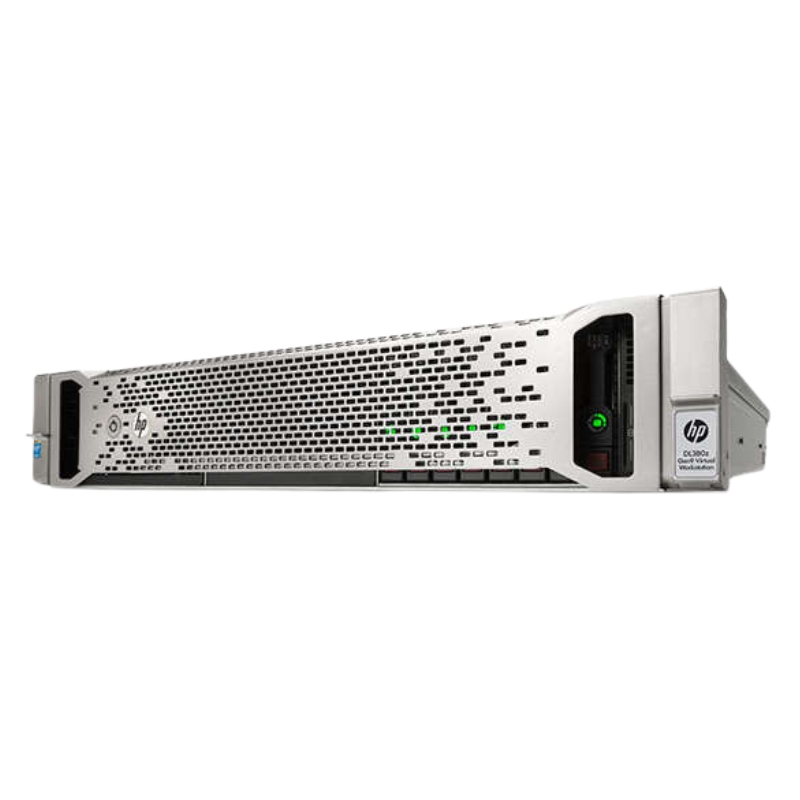

HPE Proliant DL380e G8 2x Xeon E5-2450v2 2.5GHz 8-Core 24GB DDR3 4-Port 366i Adapter 460W PS 2U Rack Server 747771-001

Processor

The HPE Proliant Dl380e G8 2u Rack Server is equipped with a powerful 2x Intel Xeon E5-2450v2/2.5GHz 8-Core processor. This processor is a key component of the server and plays a crucial role in its performance and capabilities.

Enhanced Performance

The 2x Intel Xeon E5-2450v2/2.5GHz 8-Core processor offers exceptional performance levels that are ideal for demanding workloads and applications. With a clock speed of 2.5GHz and 8 cores, it provides the server with the processing power needed to handle complex tasks efficiently. This enables users to run multiple applications simultaneously without experiencing any lag or slowdowns.

General Specification of Proliant Dl380e

Manufacturer: Hewlett Packard Enterprise
Part Number: 747771-001
Product Name: Proliant DL380e G8 2U Rack High-Performance Server

Processor & Chipset

• Type: Intel Xeon E5-2450v2, 2.5 GHz
• Core Count: 8-core
• 64-bit Support: Yes
• Installed Quantity: 2
• Maximum Supported: 2
• Upgrade Capability: Upgradable
• Chipset: Intel C600

Cache Memory

• Type: L3 Cache
• Installed Size: 40 MB
• Cache per Processor: 20 MB

Memory Specifications

• Installed Size: 24 GB
• Maximum Capacity: 384 GB
• Technology: DDR3 SDRAM
• Speed: 1600 MHz
• Compliance: PC3L-12800R
• Form Factor: DIMM 240-pin
• Configuration: 3 x 8 GB

Supported RAM Configurations

• PC3-12800: 192 GB - Registered
• PC3-10600: 384 GB - Low Voltage - Load-reduced
• PC3-10600: 96 GB - Low Voltage - Unbuffered - ECC
• PC3-10600: 192 GB - Low Voltage - Registered
• PC3-12800: 96 GB - Unbuffered - ECC

Storage & Controller

• Hard Drive: None Included by Default
• Internal Storage Bays: 8 SFF HDD Bays
• Controller Type: RAID Controller - PCI Express 2.0 x4
• Interface Types: SATA 3 Gb/s / SAS 6 Gb/s
• Controller Model: Smart Array P420 with 1 GB FBWC
• Channels: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Buffer Size: 1 GB

Graphics and Display

• Controller Type: Integrated
• Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

• Type: Integrated
• Interface (Bus) Type: PCI Express 2.0 x2
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP Ethernet 1GB 4-Port 366i Adapter
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion & Connectivity

• Hot-Swap Bays: 8 x 2.5-inch SFF
• External Slim Line Bay: 1 x 5.25-inch

Expansion Slots

• Memory Slots: 12 x LRDIMM 240-pin (9 available)
• Processor Slots: 2 (0 available)
• PCIe 3.0 x8: 1 x Full-length, Full-height (x4 Mode) (1 available)
• PCIe 3.0 x16: 1 x Half-length, Full-height (x8 Mode) (1 available)
• PCIe 3.0 x8: 1 x Half-length, Full-height (1 available)
• PCIe 2.0 x8: 1 x Low-profile (x4 Mode) (0 available)
• SD Card Slot: 1 (1 available)

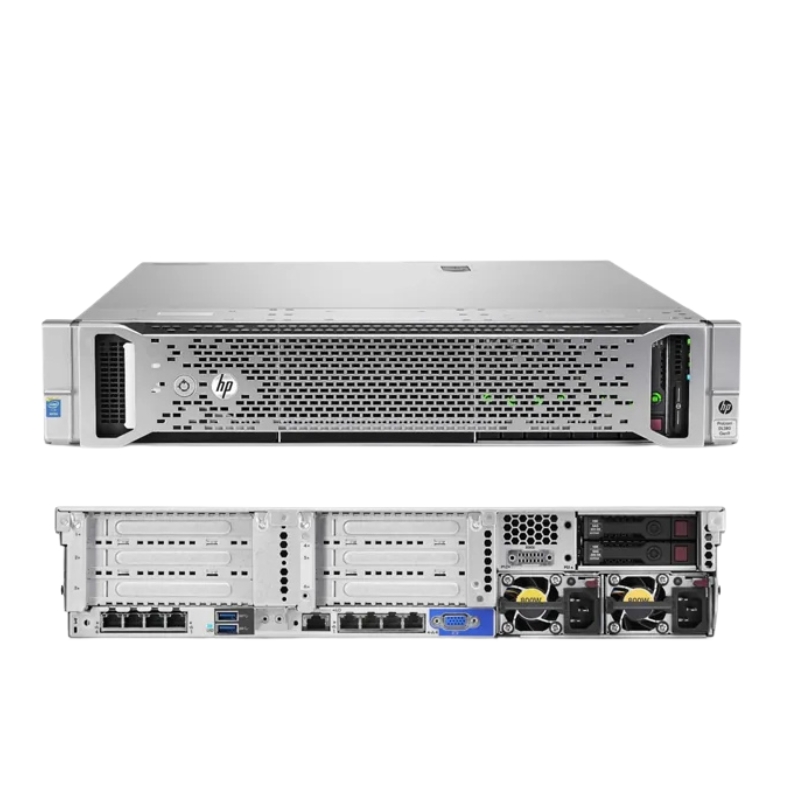

Interfaces & Ports

• Display/Video Ports: 2 (1 Front, 1 Rear)
• LAN Ports: 4 x Gigabit Ethernet
• Management Port: HP iLO
• USB 2.0 Ports: 7 (2 Front, 4 Rear, 1 Internal)
• Serial Port: 1

Power Device

• Device Type: Hot-Plug Power Supply
• Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watts
• 80 Plus Certification: 80 Plus Gold

Dimensions & Weight

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 30.9 lbs

Increased Productivity

The powerful processor ensures that tasks are executed quickly and efficiently, resulting in increased productivity for users. Whether it's running resource-intensive applications, handling virtualization environments, or managing large databases, the processor can handle it all with ease. This allows businesses to streamline their operations and improve overall efficiency.

Scalability and Future-Proofing

The dual-processor configuration of the HPE Proliant Dl380e G8 enables scalability and future-proofing for businesses. By having two processors, the server can handle higher workloads and accommodate growth as the needs of the business evolve. This ensures that the server can continue to meet the demands of the organization without requiring significant hardware upgrades.

Reliability and Stability

The Intel Xeon E5-2450v2/2.5GHz 8-Core processor is known for its reliability and stability. It is designed to deliver consistent performance under heavy workloads, ensuring that critical applications remain responsive and available. This level of reliability is essential for businesses that rely on their servers for mission-critical operations.

Energy Efficiency

In addition to its powerful performance, the processor is also designed with energy efficiency in mind. It features advanced power management technologies that optimize energy consumption while maintaining high performance levels. This not only helps to reduce operational costs but also contributes to a greener and more sustainable IT infrastructure.

Memory

The HPE Proliant Dl380e G8 2u Rack Server is equipped with 24GB DDR3 SDRAM memory. This significant amount of memory plays a vital role in the server's performance and ability to handle complex workloads.

Improved Multitasking

With 24GB of DDR3 SDRAM memory, the server can handle multiple tasks simultaneously without experiencing any performance degradation. This is particularly important for businesses that need to run multiple applications or virtualized environments on their server. The ample memory ensures that each application or virtual machine has enough resources to operate efficiently, resulting in smoother multitasking and improved productivity.

Faster Data Access

The high-speed DDR3 SDRAM memory allows for faster data access and retrieval. This is crucial when dealing with large databases or running data-intensive applications. The server can quickly retrieve information from memory, reducing latency and improving overall system responsiveness.

Optimized Performance

The ample amount of memory enables the server to optimize its performance by storing frequently accessed data in memory instead of relying on slower storage devices. This results in faster application response times and improved overall system performance. Users will notice a significant boost in speed and efficiency when working with applications or accessing data stored on the server.

Scalability and Future Expansion

The 24GB DDR3 SDRAM memory provides room for future expansion and scalability. As the needs of the business grow, additional memory modules can be added to the server to accommodate increased workloads. This allows businesses to scale their IT infrastructure without requiring a complete hardware replacement, saving both time and money.

Reliability and Data Integrity

The HPE Proliant Dl380e G8 server's memory is designed with reliability and data integrity in mind. It incorporates error-correcting code (ECC) technology, which detects and corrects single-bit memory errors. This ensures that data stored in memory remains accurate and reliable, minimizing the risk of data corruption or system crashes.

Networking

The HPE Proliant Dl380e G8 2u Rack Server features the HPE Gigabit Ethernet 4-Port 366i Adapter for networking capabilities. This adapter provides high-performance connectivity options for seamless communication within the network infrastructure.

Fast and Reliable Connectivity

The HPE Gigabit Ethernet 4-Port 366i Adapter allows for fast and reliable network connectivity. With four dedicated ports, the server can handle high volumes of network traffic without experiencing any bottlenecks or slowdowns. This is particularly important for businesses that rely heavily on network communication for their daily operations.

Improved Network Performance

The adapter supports gigabit Ethernet speeds, providing a significant boost in network performance compared to standard Ethernet connections. This ensures that data can be transferred quickly and efficiently across the network, resulting in improved overall system performance and reduced latency.

Flexibility and Scalability

The HPE Gigabit Ethernet 4-Port 366i Adapter offers flexibility and scalability options for businesses. With four ports, the server can be easily connected to multiple networks or segmented into different VLANs for enhanced security and performance optimization. This flexibility allows businesses to adapt their network infrastructure as their needs evolve without requiring major hardware changes.

Virtualization Support

The adapter is also designed to support virtualized environments, making it an ideal choice for businesses that utilize virtualization technologies. It provides the necessary network connectivity for virtual machines, enabling seamless communication between virtualized workloads and the rest of the network infrastructure. This ensures that businesses can fully leverage the benefits of virtualization without compromising network performance.

Advanced Network Management

The HPE Gigabit Ethernet 4-Port 366i Adapter comes with advanced network management capabilities, allowing for efficient monitoring and control of network traffic. Administrators can easily configure and manage the adapter settings, prioritize different types of traffic, and implement quality of service (QoS) policies to ensure optimal network performance.

Power Supply

The HPE Proliant Dl380e G8 2u Rack Server is equipped with two 460W hot-plug power supplies. The power supply unit (PSU) is a critical component of the server infrastructure and plays a crucial role in ensuring reliable and uninterrupted power delivery.

Redundancy and High Availability

The dual power supply configuration provides redundancy and high availability for the server. In the event of a power supply failure, the second PSU automatically takes over, ensuring that the server remains operational without any downtime or data loss. This redundancy feature is particularly important for businesses that rely on their servers for mission-critical applications or services.

Efficient Power Management

The 460W hot-plug power supplies are designed with energy efficiency in mind. They feature advanced power management technologies that optimize energy consumption based on the server's workload. This not only helps to reduce operational costs but also contributes to a greener and more sustainable IT infrastructure.

Hot-Plug Capability

The hot plug capability of the power supplies allows for easy replacement or addition of power modules without shutting down the server. This ensures that businesses can perform maintenance or upgrades without interrupting critical operations. The hot plug feature adds flexibility and convenience to the server's power management.

Compatibility and Reliability

The HPE Proliant Dl380e G8 server's power supplies are specifically designed and tested for compatibility with the server hardware, ensuring reliable and stable power delivery. They undergo rigorous testing to guarantee consistent performance and durability, minimizing the risk of power-related issues or system failures.

Power Fault Protection

The power supplies are equipped with power fault protection mechanisms to safeguard the server and connected devices from voltage spikes, surges, or other power-related issues. This protection feature adds an extra layer of security to the server infrastructure, reducing the risk of damage to critical hardware components.

Part Number

The HPE Proliant Dl380e G8 2u Rack Server has a unique part number: 747771-001. The part number is an essential identifier that helps users and IT professionals in various aspects of managing and maintaining the server.

Easy Identification

The part number serves as a unique identifier for the HPE Proliant Dl380e G8 server model. It allows users, IT administrators, and support personnel to easily identify and differentiate this specific server model from others in the HPE product lineup. This simplifies the process of ordering, troubleshooting, or requesting technical support for the server.

Compatibility Assurance

The part number also ensures compatibility with specific hardware components, accessories, or spare parts designed for the HPE Proliant Dl380e G8 model. When searching for additional components or replacement parts, users can rely on the part number to ensure that they select compatible options. This helps to avoid compatibility issues and ensures the smooth operation of the server.

Documentation and Resources

The part number serves as a reference point for accessing relevant documentation, user manuals, technical specifications, and other resources specific to the HPE Proliant Dl380e G8 model. Users can easily find the information they need to set up, configure, or troubleshoot the server by referring to the part number.

Warranty and Support

The part number is often required when registering the server for warranty or seeking support from HPE or authorized service providers. It helps to ensure that the server is covered under the appropriate warranty terms and allows for efficient handling of support requests. Providing the part number speeds up the troubleshooting process and ensures that users receive accurate and timely assistance.

Future Proofing

The part number can also be useful for future-proofing purposes. By knowing the specific part number of the server model, users can easily assess its compatibility with future hardware upgrades, software updates, or system expansions. This helps businesses plan for future growth and ensure that their IT infrastructure remains flexible and scalable.
