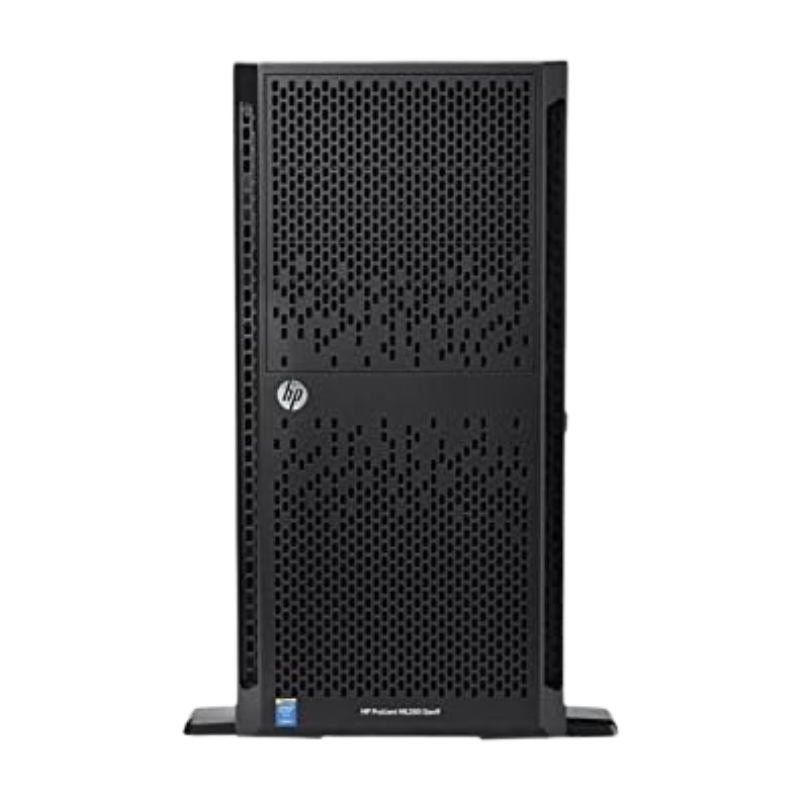

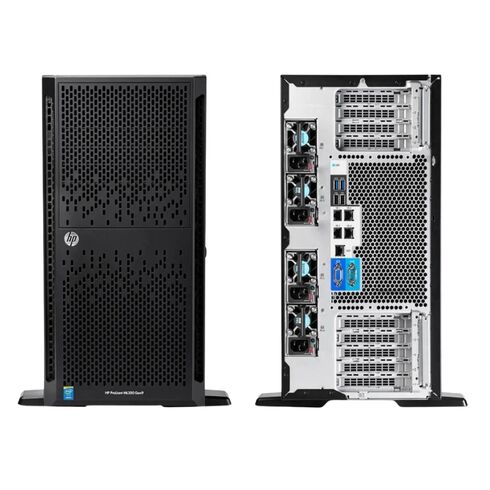

HPE ML350 G9 E5-2620V3 1P 16G 8SFF 5u Tower Server 765820-001.

Processor

The processor is one of the most critical components of a server, as it determines its overall performance and capabilities. The HPE Proliant Ml350 G9 Base Model Tower Server is equipped with an Intel Xeon 6-Core E5-2620v3/ 2.4GHz processor. This powerful processor offers a range of benefits and is essential for users who require high-speed processing and multitasking capabilities.

Main Overview of Proliant ML350

• Brand: Hewlett Packard Enterprise
• Model Number: 765820-001
• Product Name: Proliant ML350 G9 - 5U Tower Server (Base Model)

Processor & Chipset Specifications

• Processor Type: Intel Xeon E5-2620v3, 2.4 GHz
• Maximum Turbo Speed: 3.2 GHz
• QuickPath Interconnect: 8 GT/s
• Core Count: 6-core
• 64-bit Computing: Supported
• Compatible Socket: FCLGA2011-3
• Installed Processors: 1
• Maximum Supported Processors: 2
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Type: Smart Cache
• Installed Cache Size: 15 MB
• Cache Per Processor: 15 MB

Memory Configuration

• Installed Memory Size: 16 GB / Up to 384 GB
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 1866 MHz
• Rated Memory Speed: 2133 MHz
• Memory Specification: PC4-17000
• Form Factor: DIMM 288-pin
• Memory Slots: 24 (total), 23 (available)
• Memory Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Supported RAM: PC4-17000 up to 768 GB (Load-reduced) / 384 GB (Registered)

Storage Options

• Hard Drive: None Included
• Optical Drive: None Included

Storage Controllers

• Controller Model: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Interface: 12 Gb/s SAS / 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Graphics & Display

• Graphics Processor: Matrox G200
• Video Interfaces: VGA
• Graphics Type: Integrated

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• External Bays: 1 x 5.25 Slim Line (free)

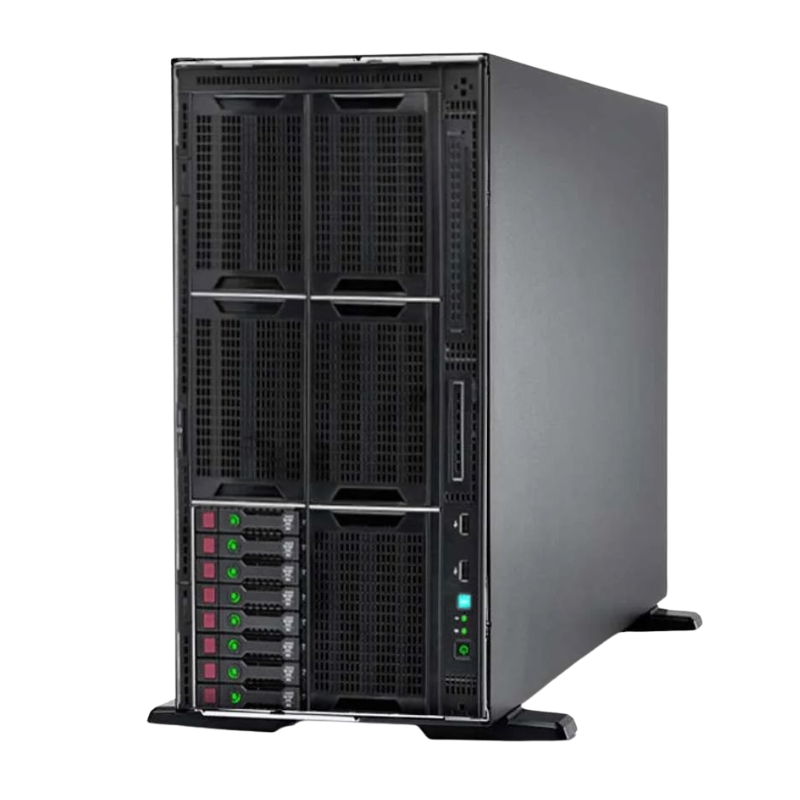

• Hot-swap Bays: 8 x 2.5 SFF (free)

Expansion Slots

• DIMM Slots: 24 (total), 23 (available)
• CPU Slots: 2 (total), 1 (available)
• PCIe 3.0 x8 Slots: 4 (full-length, full-height, x4 mode)
• PCIe 3.0 x16 Slots: 3 (full-length, full-height)
• PCIe 2.0 x8 Slots: 1 (half-length, full-height, x4 mode)
• PCIe 3.0 x16 Slots: 1 (full-length, full-height, x8 mode)
• MicroSD Card Slot: 1 (internal)

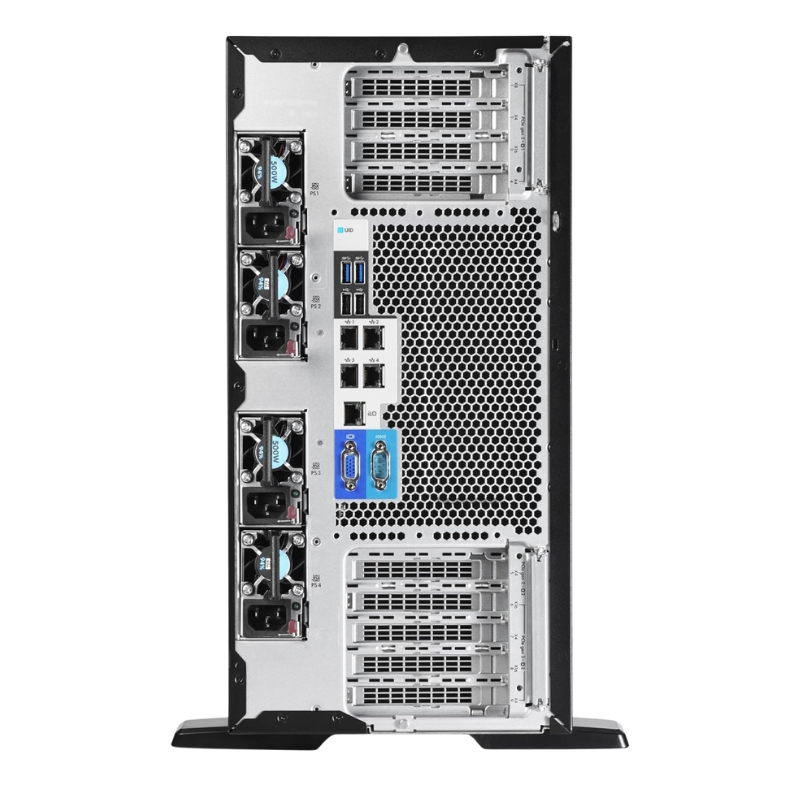

Interfaces & Ports

• VGA Port: 1
• Serial Port: 1
• Gigabit Ethernet Ports: 4
• HP iLO Port: 1
• USB 3.0 Ports: 2
• USB 2.0 Ports: 4 (2 front, 2 rear)

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Serial Port I/O Control, Setup Password
• BIOS: UEFI

Compliance & Standards

• Certifications: ACPI 2.0b, FCC Class A, EN 61000-3-2, EN 55022, ICES-003, EN 61000-3-3, EN 55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Power Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Yes, 1+1 Scheme
• Installed Power Supply Units: 1
• Maximum Power Supply Units: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts
• Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 8.6 inches
• Depth: 30.3 inches
• Height: 18.3 inches
• Weight: 66.1 lbs

Enhanced Performance

The Intel Xeon 6-Core E5-2620v3/ 2.4GHz processor delivers exceptional performance, allowing users to effortlessly handle resource-intensive tasks. With its six cores and twelve threads, it offers a significant boost in processing power compared to lower-end processors. This means that users can run multiple applications simultaneously without experiencing any lag or slowdowns.

Efficient Multitasking

The processor's six cores enable efficient multitasking, making it ideal for businesses or individuals who need to run multiple virtual machines, databases, or complex applications simultaneously. Whether you're running data analysis software, virtualization platforms, or hosting multiple websites, this processor ensures that all tasks are executed smoothly and without any performance bottlenecks.

Improved Responsiveness

With a clock speed of 2.4GHz, the Intel Xeon 6-Core E5-2620v3 offers excellent responsiveness. This means that your server will quickly respond to user requests and deliver data at an impressive speed. Whether you're accessing files, running queries on a database, or serving web pages, the processor ensures that there are no delays in delivering data to end users.

Excellent Scalability

The Intel Xeon 6-Core E5-2620v3 processor offers excellent scalability options for future growth. With its powerful architecture and support for advanced technologies, such as virtualization and cloud computing, it can accommodate increased workloads and handle demanding applications. This scalability ensures that your server can grow with your business needs, saving you the hassle and cost of upgrading or replacing the processor in the near future.

Energy Efficiency

Aside from its performance benefits, the Intel Xeon 6-Core E5-2620v3 processor is designed to be energy-efficient. It features Intel's advanced power-saving technologies, allowing it to deliver high performance while consuming less power. This not only reduces your server's energy costs but also contributes to a greener and more sustainable IT infrastructure.

Overall, the Intel Xeon 6-Core E5-2620v3/ 2.4GHz processor is a crucial component of the HPE Proliant Ml350 G9 Base Model Tower Server. Its enhanced performance, efficient multitasking capabilities, improved responsiveness, excellent scalability options, and energy efficiency make it an ideal choice for users who require a reliable and powerful server solution.

Memory

Memory is an essential component of any server, as it directly impacts its ability to handle multiple tasks simultaneously and store data for quick access. The HPE Proliant Ml350 G9 Base Model Tower Server comes with 16GB(1x16gb) Ddr4 Sdram memory, which offers several benefits and is crucial for users who require fast and efficient data processing.

Enhanced Performance

The 16GB(1x16gb) Ddr4 Sdram memory module provides a significant boost in performance compared to lower-capacity memory options. With 16GB of memory, your server can efficiently handle resource-intensive applications, databases, virtual machines, and other demanding workloads. This ensures that your server operates smoothly without any slowdowns or bottlenecks.

Improved Multitasking

The large memory capacity allows for efficient multitasking, enabling your server to run multiple applications simultaneously without any performance degradation. Whether you're running complex calculations, hosting multiple websites, or managing a large database, the 16GB(1x16gb) Ddr4 Sdram memory ensures that all tasks are executed seamlessly.

Quick Data Access

The Ddr4 Sdram memory technology provides faster data transfer rates compared to its predecessors. This means that your server can quickly retrieve and store data, resulting in reduced latency and improved overall system responsiveness. Whether you're accessing files or running queries on a database, the 16GB(1x16gb) Ddr4 Sdram memory ensures that data is readily available when needed.

Scalability and Future-Proofing

The 16GB(1x16gb) Ddr4 Sdram memory module offers scalability options for future growth. With its large capacity, your server can accommodate increased workloads and handle expanding data requirements. This scalability ensures that your server can keep up with your business needs, saving you the hassle and cost of upgrading or adding additional memory modules in the near future.

Reliability and Error Correction

The Ddr4 Sdram memory technology includes advanced error correction capabilities, ensuring data reliability and integrity. It detects and corrects errors in real-time, minimizing the risk of data corruption or system crashes. This feature is particularly crucial for businesses and organizations that handle sensitive or critical data, as it provides an added layer of protection against potential data loss.

In conclusion, the 16GB(1x16gb) Ddr4 Sdram memory module is an essential component of the HPE Proliant Ml350 G9 Base Model Tower Server. Its enhanced performance, improved multitasking capabilities, quick data access, scalability options, and reliability features make it an ideal choice for users who require a powerful and efficient server solution.

Storage

Storage is a critical aspect of any server, as it determines the capacity to store and retrieve data efficiently. The HPE Proliant Ml350 G9 Base Model Tower Server is equipped with Smart Array P440ar with 2GB Fbwc storage, offering several benefits that are essential for users who require high-speed data access, data protection, and scalability.

High-Speed Data Access

The Smart Array P440ar with 2GB FBWC storage provides high-speed data access, allowing your server to retrieve and deliver data quickly. With its advanced caching algorithms and RAID support, it optimizes read and write operations, resulting in reduced latency and improved overall system performance. Whether you're serving web pages, running applications, or accessing files, the storage system ensures that data is readily available without any delays.

Data Protection and Redundancy

The Smart Array P440ar with 2GB FBWC storage offers robust data protection features, including RAID functionality. RAID (Redundant Array of Independent Disks) allows you to configure multiple hard drives in an array, providing redundancy and data resilience. In the event of a hard drive failure, the system can seamlessly switch to a mirrored or parity disk without any interruption or loss of data.

Scalability and Flexibility

The storage system supports various RAID levels, including RAID 0, RAID 1, RAID 5, and RAID 10. This flexibility allows you to choose the appropriate RAID configuration based on your specific needs. Whether you require maximum performance, data redundancy, or a balance between the two, the Smart Array P440ar with 2GB FBWC storage can be configured to meet your requirements. Additionally, the storage system supports expansion options, allowing you to add more drives as your data storage needs grow.

Advanced Management and Monitoring

The Smart Array P440ar with 2GB FBWC storage includes advanced management and monitoring features. It provides a user-friendly interface that allows you to easily configure and manage your storage system. You can monitor the health and status of your drives, set up alerts for potential issues, and perform maintenance tasks, such as firmware updates or drive replacements. This proactive approach to storage management ensures that your data remains protected and accessible at all times.

Improved Performance with Flash-Backed Write Cache

The 2GB Fbwc (Flash-Backed Write Cache) feature enhances the overall performance of the storage system. It uses a dedicated flash memory module to cache write operations, ensuring that data is quickly written to the drives without any bottlenecks. This significantly improves the system's write performance, making it ideal for applications that require frequent write operations or real-time data processing.

In summary, the Smart Array P440ar with 2GB Fbwc storage is a crucial component of the HPE Proliant Ml350 G9 Base Model Tower Server. Its high-speed data access, data protection and redundancy features, scalability options, advanced management capabilities, and improved performance with Flash-Backed Write Cache make it an excellent choice for users who require reliable and efficient storage solutions.

Networking

Networking capabilities play a vital role in any server, as they determine its ability to connect to other devices and networks efficiently. The HPE Proliant Ml350 G9 Base Model Tower Server comes equipped with a 1gb 4-Port 331i Adapter, offering several benefits that are essential for users who require high-speed network connectivity, reliability, and flexibility.

High-Speed Network Connectivity

The 1 GB 4-Port 331i Adapter provides high-speed network connectivity, allowing your server to communicate with other devices or connect to the internet at impressive speeds. With its four ports and Gigabit Ethernet capabilities, it delivers fast data transfer rates, ensuring that your server can handle demanding network applications, such as file transfers, video streaming, or online collaboration, without any performance bottlenecks.

Reliability and Redundancy

The 1gb 4-Port 331i Adapter offers built-in redundancy features to ensure uninterrupted network connectivity. With multiple ports, you can establish redundant network connections, allowing your server to automatically switch to an alternate connection in the event of a port or cable failure. This redundancy minimizes downtime and ensures that your server remains accessible and available to users at all times.

Flexible Network Configuration

The 1gb 4-Port 331i Adapter supports various network configurations, giving you the flexibility to adapt to different networking environments. Whether you need to connect to a local area network (LAN), wide area network (WAN), or virtual private network (VPN), the adapter offers the necessary capabilities and protocols to establish secure and reliable connections. Additionally, the adapter supports VLAN (Virtual Local Area Network) tagging, allowing you to segment your network for improved security and performance.

Advanced Network Management

The 1 GB 4-Port 331i Adapter includes advanced network management features that simplify the configuration and monitoring of your server's network connections. It provides a user-friendly interface that allows you to easily set up and manage network settings, monitor traffic usage and performance, and diagnose potential network issues. This comprehensive management capability ensures that your server's networking infrastructure is optimized for performance and reliability.

Energy Efficiency

The 1gb 4-Port 331i Adapter is designed to be energy-efficient, reducing your server's power consumption and overall operating costs. It incorporates advanced power-saving technologies, such as Energy Efficient Ethernet (EEE), which dynamically adjusts power usage based on network traffic. This energy efficiency not only saves you money on electricity bills but also contributes to a greener and more sustainable IT infrastructure.

In conclusion, the 1gb 4-Port 331i Adapter is an essential component of the HPE Proliant Ml350 G9 Base Model Tower Server. Its high-speed network connectivity, reliability and redundancy features, flexible network configuration options, advanced network management capabilities, and energy efficiency make it an ideal choice for users who require fast and reliable network connections.

Power Supply

The power supply is a critical component of any server, as it provides the necessary electrical power to ensure its proper operation. The HPE Proliant Ml350 G9 Base Model Tower Server features an Fs Rps power supply, offering several benefits that are essential for users who require reliable and efficient power delivery.

Reliable Power Delivery

The Fs Rps power supply ensures reliable power delivery to your server, minimizing the risk of unexpected shutdowns or system failures. With its robust design and built-in protection mechanisms, it provides a stable and consistent power output, even under heavy loads or in demanding environments. This reliability is crucial for businesses or individuals who rely on their servers to operate continuously without any interruptions.

Redundancy and Fault Tolerance

The Fs Rps power supply offers redundant power capabilities, providing an additional layer of fault tolerance. With redundant power supplies, your server can continue operating even if one power supply fails. This redundancy eliminates single points of failure and ensures that your server remains accessible and functional, minimizing downtime and maximizing uptime.

Energy Efficiency

The Fs Rps power supply is designed to be energy-efficient, reducing your server's power consumption and environmental impact. It incorporates advanced power-saving technologies, such as high-efficiency power conversion and intelligent fan control, which optimize energy usage without sacrificing performance or reliability. This energy efficiency not only saves you money on electricity bills but also contributes to a greener and more sustainable IT infrastructure.

Hot-Swap Capabilities

The Fs Rps power supply supports hot-swapping, allowing you to replace a failed power supply without powering down your server. This feature minimizes downtime and simplifies maintenance tasks, as you can replace a faulty power supply while the server is still running. Hot-swapping ensures that your server remains operational and accessible to users, even during power supply replacements.

Enhanced Power Monitoring and Management

The Fs Rps power supply includes advanced power monitoring and management features. It provides real-time information on power usage, temperature, and fan speed, allowing you to monitor the health and status of your server's power system. You can set up alerts for potential issues or perform proactive maintenance tasks to ensure optimal performance and reliability.

In summary, the Fs Rps power supply is an essential component of the HPE Proliant Ml350 G9 Base Model Tower Server. Its reliable power delivery, redundancy and fault tolerance features, energy efficiency, hot-swap capabilities, and enhanced power monitoring and management make it an ideal choice for users who require a stable and efficient power supply for their servers.

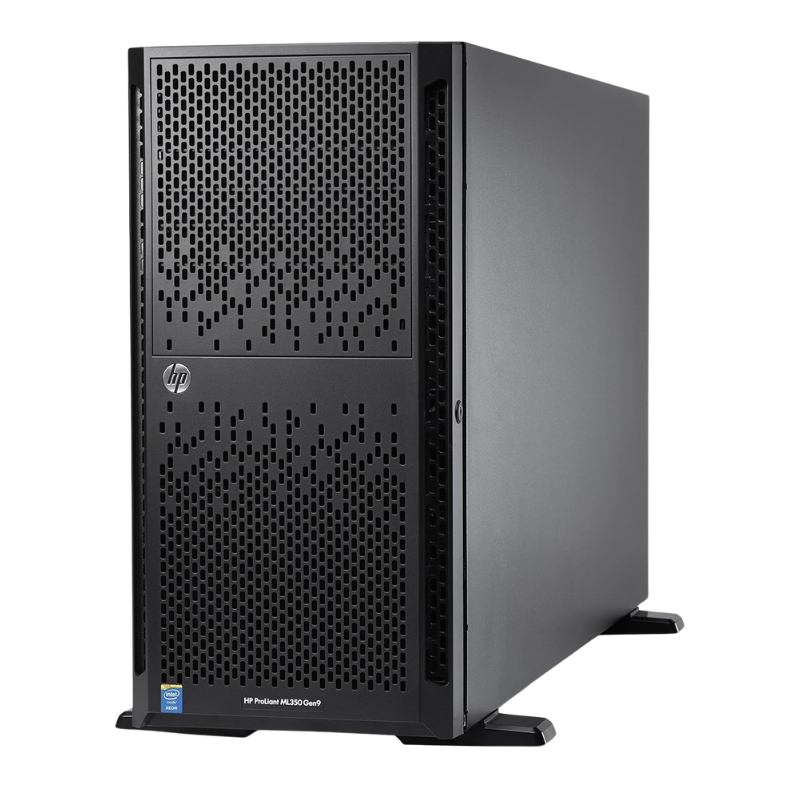

Form Factor

The form factor of a server refers to its physical size and shape, which determines its compatibility with different rack or tower configurations. The HPE Proliant Ml350 G9 Base Model Tower Server has a 5U Tower form factor, offering several benefits that are essential for users who require a versatile and easily manageable server solution.

Versatility and Flexibility

The 5U Tower form factor provides versatility and flexibility in terms of installation options. Unlike rack-mounted servers, which require specific rack enclosures or cabinets, a tower server can be placed on any flat surface, such as a desk or shelf. This flexibility allows you to position the server in a location that best suits your needs, whether it's in an office environment, a small server room, or a remote site.

Ease of Maintenance

Tower servers are designed with ease of maintenance in mind. The 5U Tower form factor allows for easy access to internal components, such as hard drives, memory modules, or expansion cards. This accessibility simplifies routine maintenance tasks, such as upgrades or replacements, as you can easily remove and replace components without the need for additional tools or complicated procedures.

Scalability and Expansion

The 5U Tower form factor provides ample space for expansion and scalability. Tower servers typically have more room for additional hard drives, memory modules, or expansion cards compared to smaller form factors. This scalability allows you to accommodate future growth and easily add or upgrade components as your server's requirements evolve. Whether you need to increase storage capacity, enhance processing power, or add specialized hardware, the tower form factor ensures that you have enough space to do so.

Noise Reduction

Tower servers are generally quieter compared to rack-mounted servers. The form factor allows for better airflow and larger cooling fans, resulting in reduced noise levels. This is particularly beneficial for office environments or small server rooms where noise can be a concern. The quieter operation ensures a more comfortable working environment without sacrificing performance or reliability.

Ease of Deployment

Tower servers are easy to deploy and set up compared to rack-mounted servers. As they do not require specific rack enclosures or cabinets, you can quickly install and configure a tower server without the need for additional infrastructure. This ease of deployment makes tower servers an ideal choice for small
