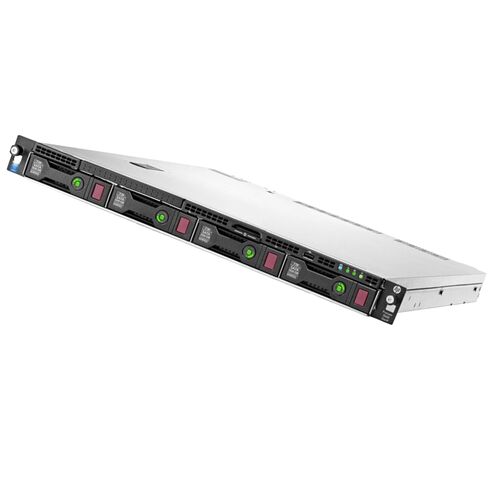

HPE 777428-B21 Proliant DL120 Gen9 4LFF Non-Hot Plug 1U Rack Server.

Processor

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server is equipped with an Intel Xeon E5-v3 processor, which is a powerful and efficient processor designed for high-performance computing. This processor is built on Intel's Haswell architecture and offers a range of benefits for users.

General Overview

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 777428-B21
• Product Name: Proliant DL120 Gen9 - 1U Rack Server (CTO Model)

Processor & Chipset Details

• Processor Type: Intel Xeon E5-v3
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Maximum Supported Processors: 1
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Memory Type: Smart Cache

Memory Specifications

• Installed Size: 0 GB / Up to 256 GB
• Memory Technology: DDR4 SDRAM PC4-17000R (DDR4-1600)
• Form Factor: DIMM 288-pin
• Total Memory Slots: 8 (all slots available)
• Supported RAM: Up to 128 GB (Registered), 256 GB (Load-reduced)

Storage Options

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Controller Name: Smart Array B140i
• Buffer Size: None
• Supported Disk Drives: Up to 6 Gb/s SATA
• Internal SATA Connectors: 10
• Server Interface: X4 PCIe 2.0
• SATA Speed: 6 Gb/s
• Logical Drives Supported: Up to 8 logical volumes (6 physical drives)
• Host Memory Addressing: 64-bit
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Graphics Controllers

• Type: Integrated
• Graphics Processor: Matrox G200EH2
• Video Interface: VGA

Networking & Communication

• Bus Interface Type: PCI Express 2.0 x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC361i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake-on-LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion & Connectivity

• Expansion Bays: 4 x Hot-swap 3.5 LFF (all available)
• Expansion Slots:
  • 1 x CPU Slot
  • 8 x DIMM 288-pin Slots
  • 1 x PCIe 3.0 x16 - Low-profile
  • 1 x PCIe 3.0 x8 - Low-profile
  • 1 x PCIe 3.0 x8 - Half-length, Full-height
  • 1 x MicroSD Card (internal)
• Interfaces & Ports:
  • 2 x LAN (Gigabit Ethernet)
  • 1 x VGA
  • 1 x USB 2.0 (Front)
  • 3 x USB 3.0 (2 Rear, 1 Internal)

Miscellaneous Information

• Included Accessories: HP Thumbscrew Ears
• Security Features: Administrator Password, Power-on Password
• BIOS Type: UEFI
• Compliant Standards: ACPI 2.0b, FCC Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438
• Pricing Type: CTO (Configure-To-Order)

Physical Dimensions

• Depth: 23.9 inches
• Width: 17.1 inches
• Height: 1.7 inches
• Weight: 19.8 lbs

Improved Performance

The Intel Xeon E5-v3 processor provides exceptional performance capabilities, making it ideal for demanding workloads and applications. With multiple cores and threads, this processor can handle heavy multitasking and parallel computing tasks with ease. It also supports advanced technologies like Turbo Boost, which dynamically increases the clock speed to deliver extra processing power when needed. This results in faster data processing, reduced latency, and improved overall system performance.

Enhanced Virtualization

Virtualization has become a crucial aspect of modern data centers, allowing businesses to maximize their server resources and reduce costs. The Intel Xeon E5-v3 processor includes advanced virtualization features like Intel Virtualization Technology (VT-x), which improves efficiency and security for virtualized environments. With VT-x, users can create and manage multiple virtual machines without sacrificing performance or compromising data integrity.

Optimized Power Efficiency

Energy efficiency is a key concern for many organizations, as it directly impacts operating costs and environmental sustainability. The Intel Xeon E5-v3 processor incorporates power-saving technologies like Intel Intelligent Power Technology, which dynamically adjusts power consumption based on workload demands. This ensures that the server operates at optimal power levels while minimizing energy wastage. By choosing a server with an efficient processor like the Intel Xeon E5-v3, users can lower their electricity bills and reduce their carbon footprint.

Overall, the Intel Xeon E5-v3 processor offers significant benefits to users of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server. Its improved performance, enhanced virtualization capabilities, and optimized power efficiency make it a reliable and efficient choice for various applications and workloads.

CPU

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server comes with the option of "No CPU," allowing users to customize the server according to their specific requirements. While it may seem unusual to emphasize the absence of a CPU, this feature provides several benefits and importance for users.

Flexibility in Configuration

By offering the option of "No CPU," HPE allows users to tailor the server's CPU selection to their specific needs. This flexibility is crucial as different applications and workloads have varying CPU requirements. Users can choose from a wide range of compatible CPUs based on factors such as performance, power consumption, and budget constraints. This ensures that the server is optimized for their specific workload, resulting in improved overall performance and efficiency.

Cost Savings

Opting for "No CPU" can also result in cost savings for users. Instead of paying for a pre-installed CPU that may not meet their exact needs, users have the freedom to select a compatible CPU separately. This allows them to find the best price-performance ratio and avoid unnecessary expenses.

Future-Proofing

Technology is constantly evolving, and new CPU models with improved performance and features are regularly released. By choosing "No CPU," users can future-proof their server by keeping it open to future CPU upgrades without having to replace the entire system. This saves both time and money in the long run, as upgrading a CPU is often more cost-effective than replacing an entire server.

In summary, while it may seem unconventional, the "No CPU" feature of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server offers users flexibility, cost savings, and future-proofing capabilities. By allowing users to select their own CPU, HPE ensures that the server is optimized for their specific needs while keeping their options open for future upgrades.

RAM

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server is available with "No RAM," providing users with the flexibility to choose the appropriate amount and type of memory for their specific requirements. This feature offers several benefits and importance for users.

Customizable Memory Configuration

The option of "No RAM" allows users to customize the server's memory configuration according to their specific needs. Different applications and workloads have varying memory requirements, and having the flexibility to select the appropriate amount of RAM ensures optimal performance. Users can choose from a wide range of compatible memory modules, including different capacities and speeds, to meet their specific workload demands.

Scalability

As businesses grow and their workloads increase, the demand for system resources, including memory, also grows. The "No RAM" feature enables users to start with a basic configuration and easily scale up the memory capacity as their needs evolve. This scalability ensures that the server can accommodate future growth without requiring a complete system replacement, saving both time and money.

Cost Efficiency

By offering "No RAM," HPE provides users with cost efficiency in terms of memory selection. Instead of paying for pre-installed memory that may not fully align with their requirements, users can select and purchase memory separately. This gives them the opportunity to find the best price-performance ratio and avoid unnecessary expenses.

In conclusion, the "No RAM" feature of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server offers users customizable memory configuration, scalability, and cost efficiency. By allowing users to select their own RAM, HPE ensures that the server is optimized for their specific workload while providing the flexibility to adapt to future memory requirements.

Network Adapter

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server is equipped with a 1GB 2-Port 361i Ethernet Adapter as its network adapter. This feature plays a crucial role in facilitating network connectivity and communication within the server environment. The use of the 1GB 2-Port 361i Ethernet Adapter offers several benefits and importance for users.

High-Speed Connectivity

The 1GB 2-Port 361i Ethernet Adapter provides high-speed connectivity, allowing for fast and reliable data transfer between the server and other network devices. With a maximum speed of 1 Gigabit per second, this adapter can handle large data volumes, ensuring smooth and efficient network operations. Whether it's transferring files, streaming media, or accessing cloud services, users can expect optimal network performance with this adapter.

Improved Network Efficiency

Efficient network utilization is essential for maximizing productivity and minimizing potential bottlenecks. The 1GB 2-Port 361i Ethernet Adapter supports advanced features like TCP/IP Offloading, which offloads certain network processing tasks from the CPU to the adapter itself. This improves overall system performance by reducing CPU overhead and freeing up system resources for other critical tasks. Additionally, features like Jumbo Frames support allow for larger data packets to be transmitted, further optimizing network efficiency.

Reliable Network Connectivity

Uninterrupted network connectivity is crucial for businesses to ensure smooth operations and minimize downtime. The 1GB 2-Port 361i Ethernet Adapter offers reliable connectivity with its fault-tolerant features. It supports features like link aggregation (or bonding), which allows multiple network connections to be combined for increased bandwidth and redundancy. In the event of a network failure, the adapter can seamlessly switch to an alternate connection, ensuring continuous network access.

In summary, the 1GB 2-Port 361i Ethernet Adapter of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server provides high-speed connectivity, improved network efficiency, and reliable network connectivity. Its advanced features and fault-tolerant capabilities make it an essential component for users who require fast and reliable network communication within their server environment.

Drive Bays

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server features 4LFF Non-Hot Plug drive bays. This drive bay configuration offers several benefits and importance for users who require a storage solution that balances capacity, flexibility, and cost-effectiveness.

Ample Storage Capacity

With 4LFF (Large Form Factor) Non-Hot Plug drive bays, this server provides ample storage capacity for users' data and applications. Large form factor drives typically offer higher storage capacities compared to small form factor drives, making them suitable for storing large amounts of data or running applications that require substantial disk space. Whether it's hosting databases, running virtual machines, or storing multimedia content, the 4LFF drive bays can accommodate a wide range of storage requirements.

Flexibility in Drive Selection

The Non-Hot Plug nature of the drive bays allows users to have more flexibility in selecting the type of drives they need. Users can choose from various SATA or SAS drives, depending on their performance, reliability, and budget requirements. This flexibility enables users to tailor their storage configuration to their specific needs, ensuring optimal performance and efficient resource utilization.

Cost-Effective Solution

The 4LFF Non-Hot Plug drive bay configuration offers a cost-effective storage solution. By utilizing large form factor drives, users can take advantage of higher storage capacities at a lower cost per gigabyte compared to small form factor drives. This allows businesses to meet their storage needs without breaking their budget, making the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server an attractive option for cost-conscious organizations.

In conclusion, the 4LFF Non-Hot Plug drive bays of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server provide ample storage capacity, flexibility in drive selection, and a cost-effective solution for users. Whether it's for data storage, running applications, or managing virtual environments, the drive bays offer the necessary capacity and flexibility to meet users' diverse storage requirements.

Product Number

The HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server has a unique product number - 777428-B21. This product number plays a vital role in identifying and differentiating this specific server model from others. Understanding the benefits and importance of the product number is essential for users who want to ensure they are purchasing the correct server configuration for their needs.

Easy Identification

The product number acts as a unique identifier for the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server. With numerous server models available in the market, having a distinct product number simplifies the purchasing process. Users can easily search for and identify this specific server model by using its product number, ensuring they are selecting the correct configuration that aligns with their requirements.

Compatibility Assurance

The product number also helps ensure compatibility when purchasing additional components or accessories for the server. By referring to the product number, users can verify that the components they are considering are compatible with the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server. This prevents compatibility issues and potential waste of resources, saving users time and money.

Support and Documentation

The product number is often required when seeking support or accessing documentation for the server. Whether it's contacting technical support or downloading drivers and manuals, providing the correct product number ensures accurate assistance and access to the relevant resources. This streamlines troubleshooting processes and enhances overall user experience.

In summary, the product number 777428-B21 of the HPE Proliant DL120 Gen9 CTO Model (LFF) 1U Rack Server offers easy identification, compatibility assurance, and streamlined support and documentation access. Understanding and utilizing the product number can help users ensure they are selecting the correct server configuration and facilitate a smooth user experience from purchase to maintenance.
