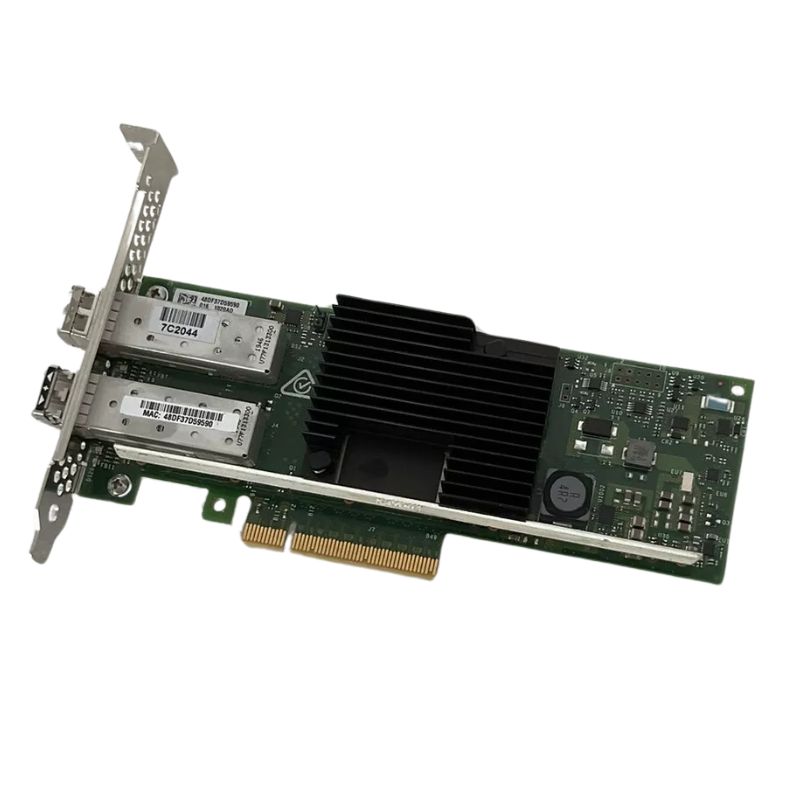

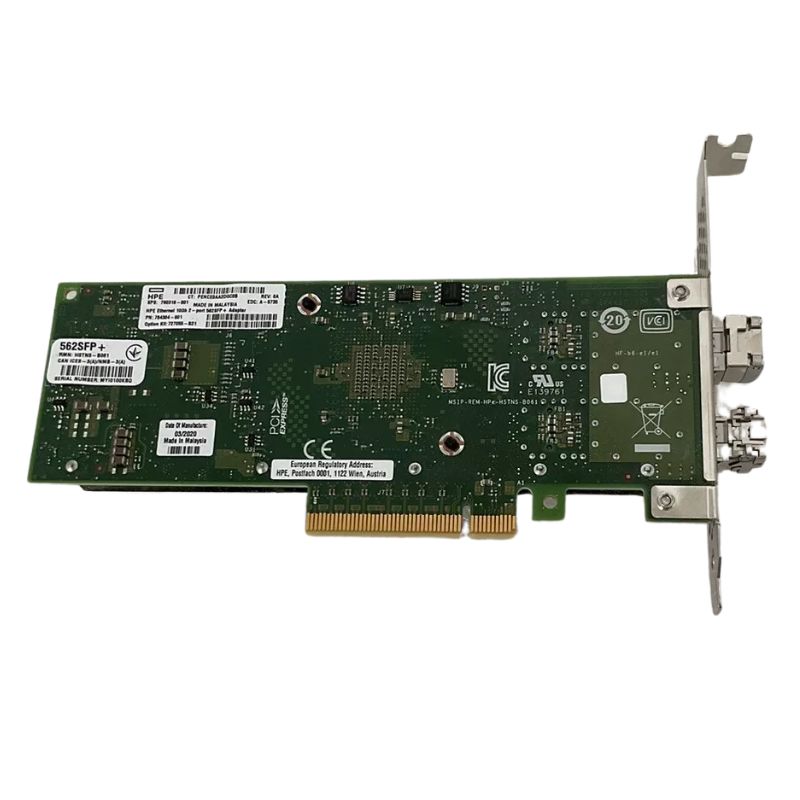

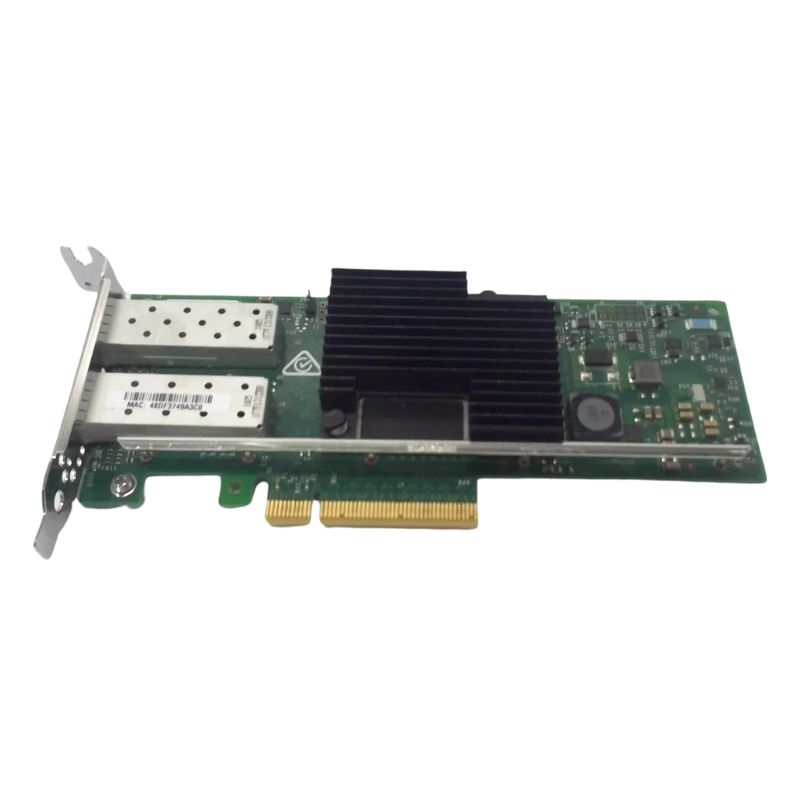

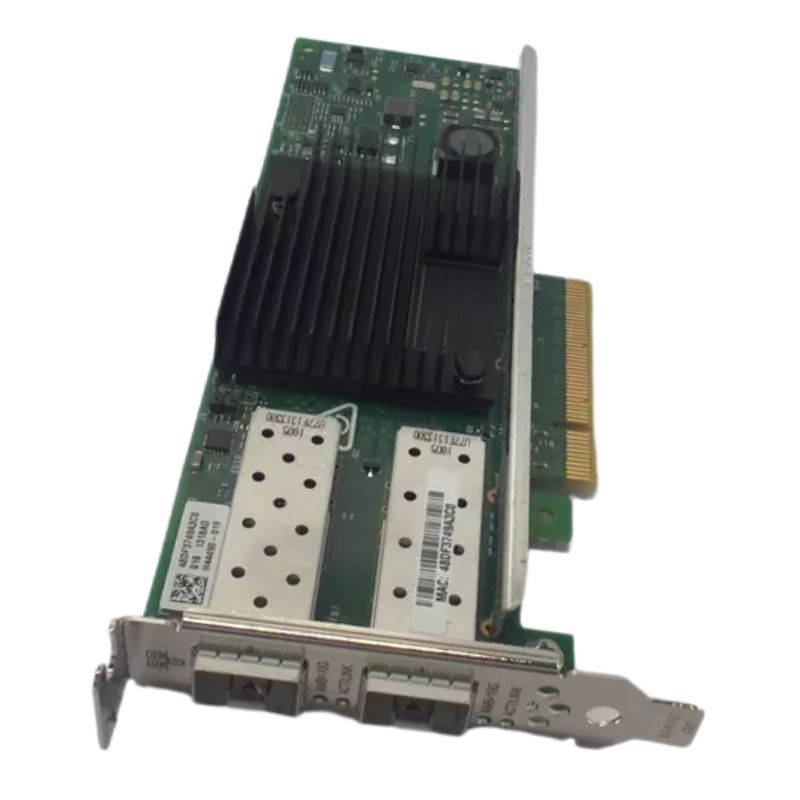

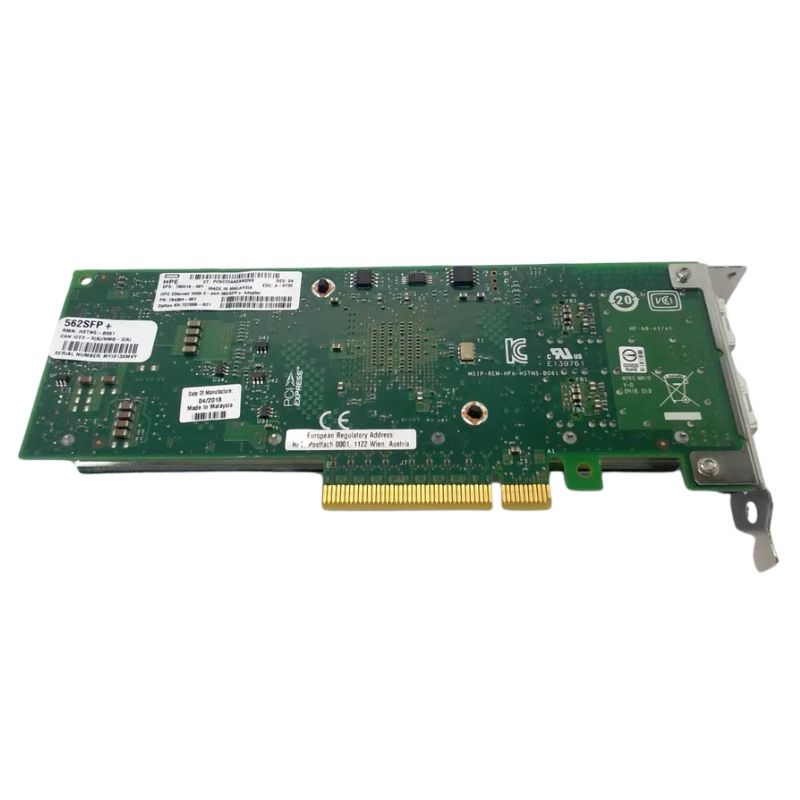

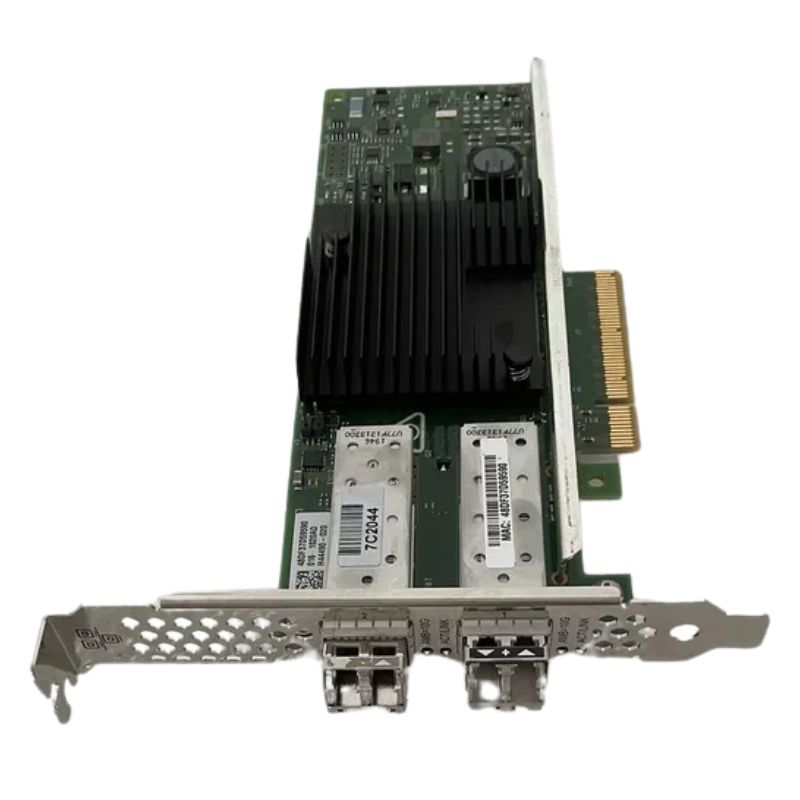

HPE 790316-001 Network Adapter PCI Express 10GBPS Ethernet IEEE 802.3 2 Ports

Main Specifications

• Manufacturer: HPE
• Model Number: 790316-001
• Product Type: 10GB Ethernet Network Adapter

Key Features

• Form Factor: Available in both standard and low-profile designs for flexible installation, fully compliant with PCI Express (PCIe) 3.0 standards.
• Bus Interface: PCIe 3.0 x8, with data rates of 8 GT/s.
• Network Processor: Powered by the Intel® X710 Controller for enhanced performance and reliability.
• Ports: Dual 10 Gigabit SFP+ ports, ideal for high-speed data transmission.
• Connectivity: Supports wired connections with up to 40 Gb/s total bi-directional bandwidth.
• Jumbo Frame Support: Handles frame sizes up to 9.5 KB for optimized data flow.

Advanced Networking Capabilities

• Wake on LAN (WOL): Ensures remote network access by automatically waking up the system.
• PXE Boot Support: Enables remote booting for centralized management and deployment.
• IEEE Standards Compliance: Adheres to a wide range of IEEE standards, including 802.3, 802.1q, and 802.3ad, ensuring seamless network integration.

Performance Specifications

• Data Rate: Each port supports 20 Gb/s bi-directional bandwidth, with a total aggregate bandwidth of 40 Gb/s.
• Typical Power Consumption: Operates efficiently at 10.00 watts, with a maximum power usage of 10.80 watts.
• Temperature Range: Functions in temperatures from 32°F to 131°F (0°C to 55°C), suitable for diverse environments.

Networking Protocols Supported

• Supports key networking protocols such as 10 Gigabit Ethernet (10GbE) for high-speed data transmission.
• IEEE standards like 802.3x for flow control, 802.1ab for link layer discovery, and more are fully supported.

Physical and Environmental Considerations

• Humidity Range: Operates effectively in environments with humidity levels from 5% to 95%, non-condensing.
• Emissions Compliance: Rated Class B for electromagnetic interference, making it suitable for both residential and commercial use.
• RoHS Compliance: Environmentally friendly, complying with 5 of 6 RoHS standards.

Compatibility with HPE Systems

• Compatible with a wide range of HPE ProLiant DL, ML, and Apollo server models, including the DL360 Gen10 and DL380 Gen9 series.
• Certified for use with multiple operating systems, such as Microsoft Windows Server, Red Hat Enterprise Linux, and VMware ESXi.

Safety and Regulatory Certifications

• Complies with UL and CE safety standards, ensuring reliable performance in both the USA and international markets.
• Approved for use in various regions including the USA (FCC Part 15), Canada (ICES-003), Japan (VCCI), and the EU (EN55022).

Additional Features

• LED Indicators: Status and link/activity lights for quick network diagnostics.
• Supported Servers: Broad compatibility with HPE server lines including ProLiant DL, ML, and Apollo models.

Interface: PCI Express

The HPE 790316-001 Network Adapter is equipped with a PCI Express interface, which brings numerous benefits and advantages to users. This interface is an essential feature in modern networking devices, providing a high-speed and reliable connection between the network adapter and the computer system. With the PCI Express interface, users can experience enhanced performance, improved efficiency, and seamless connectivity.

Enhanced Performance

The PCI Express interface offers significant performance improvements compared to older interfaces such as PCI or ISA. It provides faster data transfer rates, reduced latency, and increased bandwidth, allowing for more efficient communication between the network adapter and the computer system. This enhanced performance is particularly crucial in demanding network environments where high-speed data transmission is essential.

Increased Bandwidth

One of the main advantages of the PCI Express interface is its ability to provide increased bandwidth. The interface utilizes multiple lanes, each capable of transmitting data simultaneously. This parallel data transfer allows for higher overall throughput, ensuring that network traffic can flow smoothly and efficiently. With increased bandwidth, users can handle larger amounts of data without experiencing bottlenecks or performance degradation.

Reduced Latency

Latency refers to the time delay between a request being sent and a response being received. The PCI Express interface significantly reduces latency compared to older interfaces. It achieves this by utilizing point-to-point connections, allowing for direct communication between the network adapter and the computer system without shared resources or bus contention. The reduced latency ensures faster response times, enabling quicker data transfers and improved overall system performance.

Improved Efficiency

The PCI Express interface plays a vital role in improving the overall efficiency of the HPE 790316-001 Network Adapter.

Hot-Plugging Support

PCI Express supports hot-plugging, which means that network adapters can be inserted or removed while the computer system is running. This feature allows for easy installation and replacement of network adapters without the need to power down the system. Users can add or upgrade network adapters without interrupting their workflow, contributing to increased productivity and reduced downtime.

Scalability

Another advantage of the PCI Express interface is its scalability. The interface comes in multiple generations, with each generation offering increased performance and capabilities. This scalability allows users to future-proof their network infrastructure by easily upgrading to newer generations of PCI Express when required. Users can take advantage of faster data transfer rates and improved features without the need to replace the entire network adapter.

Speed: 10 GBPS

The HPE 790316-001 Network Adapter boasts a blazing-fast speed of 10 Gbps. This impressive speed brings numerous benefits to users, allowing for high-performance networking and efficient data transmission.

High-Speed Data Transfer

With a speed of 10 Gbps, the HPE 790316-001 Network Adapter enables lightning-fast data transfer between the computer system and the network. This speed is particularly advantageous in bandwidth-intensive applications or environments that require large file transfers, such as data centers or multimedia production studios. Users can experience smooth and uninterrupted network performance, ensuring quick access to critical resources and minimizing network congestion.

Reduced Transfer Times

The 10 Gbps speed significantly reduces transfer times compared to slower network adapters. Users can enjoy faster downloads, quicker file transfers, and improved overall system responsiveness. The reduced transfer times contribute to enhanced productivity, allowing users to complete tasks more efficiently and effectively.

Support for High-Bandwidth Applications

High-bandwidth applications, such as video streaming, online gaming, and virtual reality, require a network adapter capable of handling large amounts of data. The 10 Gbps speed of the HPE 790316-001 Network Adapter ensures smooth and uninterrupted performance in these demanding applications. Users can enjoy lag-free streaming, immersive gaming experiences, and seamless virtual reality environments without any performance bottlenecks.

Standard: IEEE 802.3

The HPE 790316-001 Network Adapter adheres to the IEEE 802.3 standard, which is a widely recognized and accepted standard for Ethernet networking. This standard brings several benefits and importance to users, ensuring compatibility, interoperability, and reliable network connectivity.

Compatibility

By adhering to the IEEE 802.3 standard, the HPE 790316-001 Network Adapter ensures compatibility with a vast range of networking equipment and devices. Users can seamlessly integrate the network adapter into their existing network infrastructure without any compatibility issues. This compatibility allows for easy deployment and expansion of the network, supporting various configurations and setups.

Interoperability

The IEEE 802.3 standard promotes interoperability between different networking devices from various manufacturers. This interoperability ensures that the HPE 790316-001 Network Adapter can communicate and work seamlessly with other devices within the network, regardless of their brand or model. Users can build a heterogeneous network environment with confidence, knowing that their network adapter will operate reliably with other components.

Reliable Network Connectivity

The IEEE 802.3 standard sets guidelines and requirements for network adapters to ensure reliable and consistent network connectivity. By adhering to this standard, the HPE 790316-001 Network Adapter provides stable and uninterrupted communication between the computer system and the network. Users can rely on the network adapter to maintain a reliable connection, minimizing network disruptions and ensuring smooth data transmission.

Ports: 2

The HPE 790316-001 Network Adapter features two ports, which offer numerous benefits and importance to users. These ports provide flexibility, redundancy, and increased network capacity for demanding networking environments.

Flexibility

The presence of two ports in the HPE 790316-001 Network Adapter provides users with increased flexibility in network configuration. Users can connect the network adapter to multiple networks simultaneously or create a link aggregation group for higher bandwidth. The flexibility offered by the dual ports allows users to customize their network setup according to their specific requirements and optimize network performance.

Redundancy

Dual ports also offer redundancy in case of a network failure. By connecting the HPE 790316-001 Network Adapter to two separate networks or switches, users can ensure continuous network connectivity even if one network or switch goes down. The redundant configuration provides peace of mind and minimizes the risk of downtime in critical applications or environments where uninterrupted connectivity is essential.

Increased Network Capacity

The two ports on the HPE 790316-001 Network Adapter effectively double the network capacity. Users can distribute network traffic across both ports, balancing the load and preventing congestion. This increased network capacity allows for smoother data transmission, improved responsiveness, and enhanced overall network performance. Users can handle higher volumes of data without sacrificing speed or reliability.
