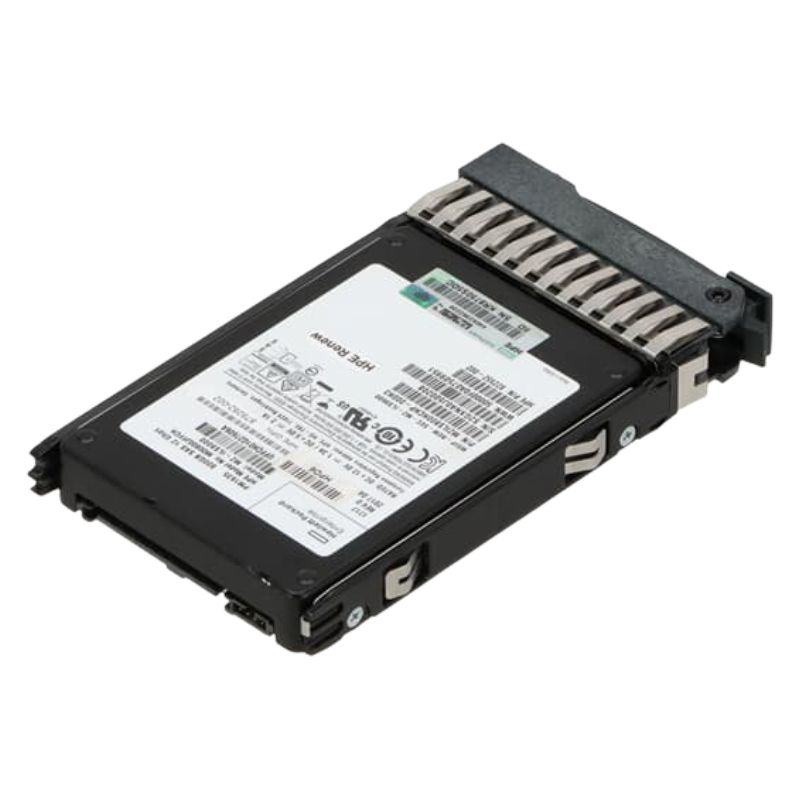

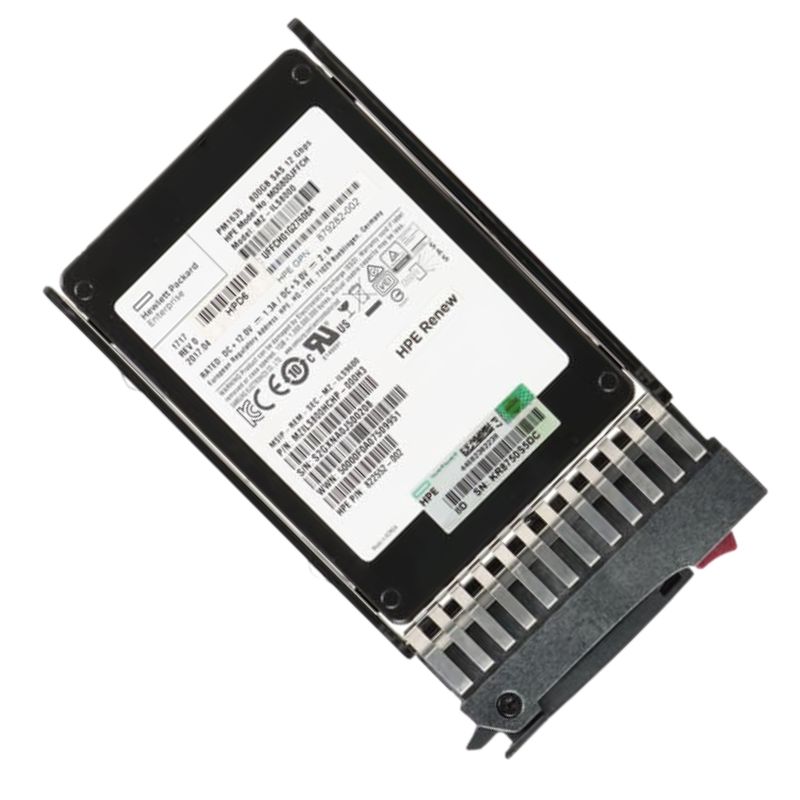

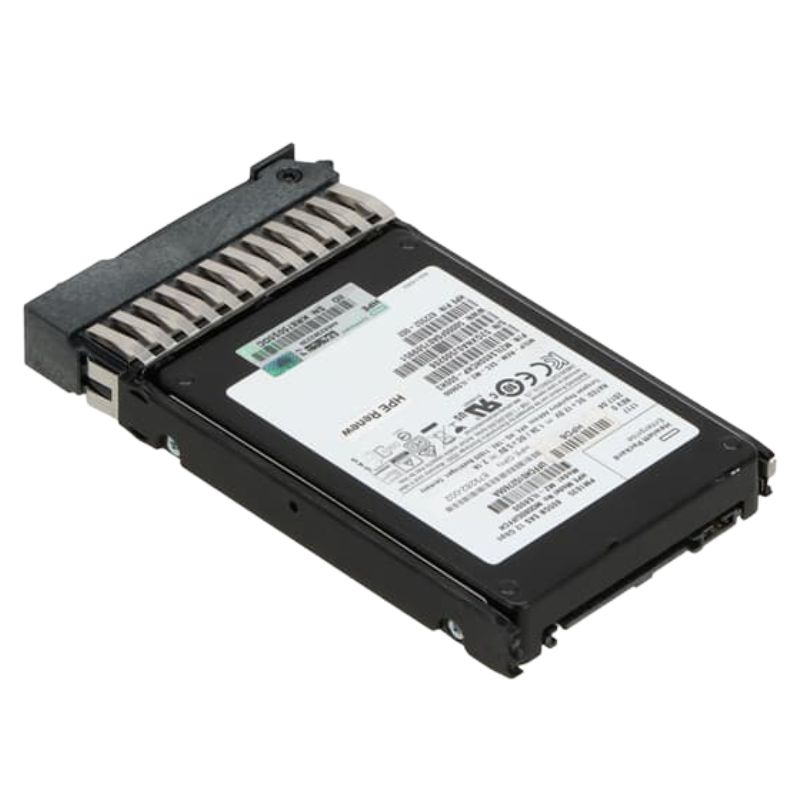

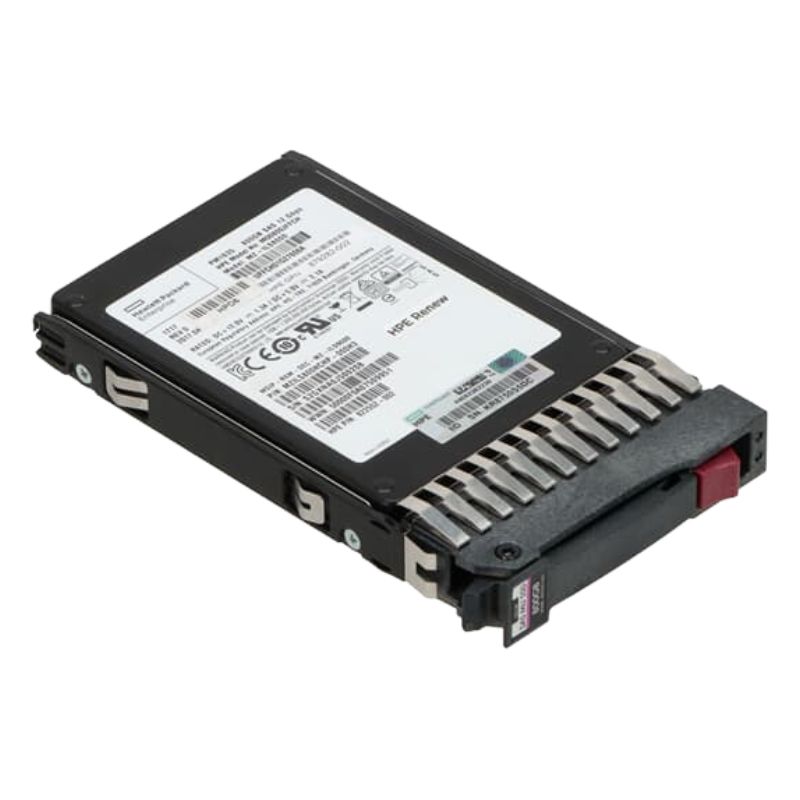

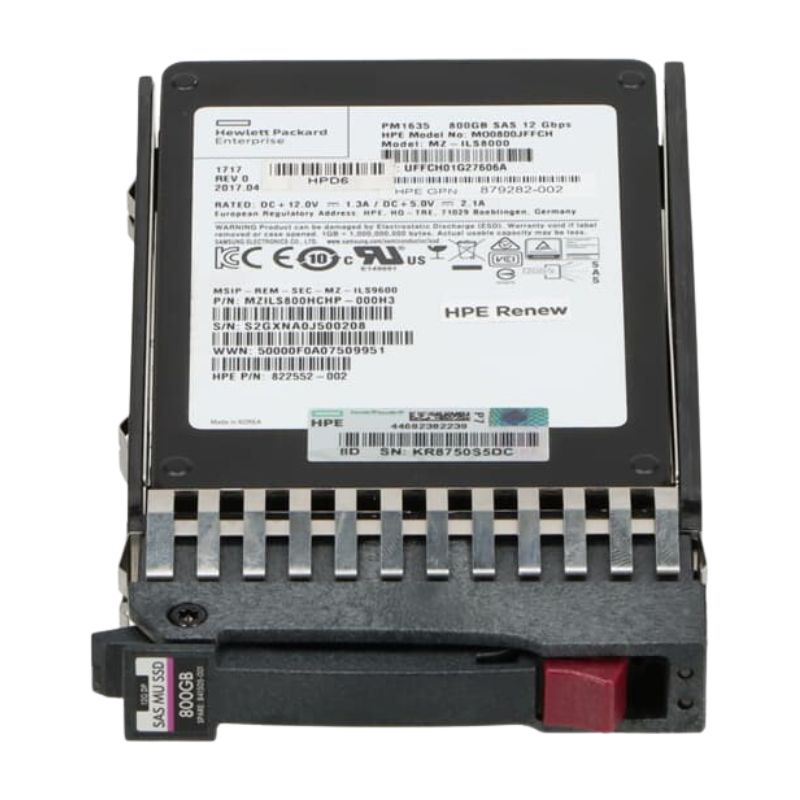

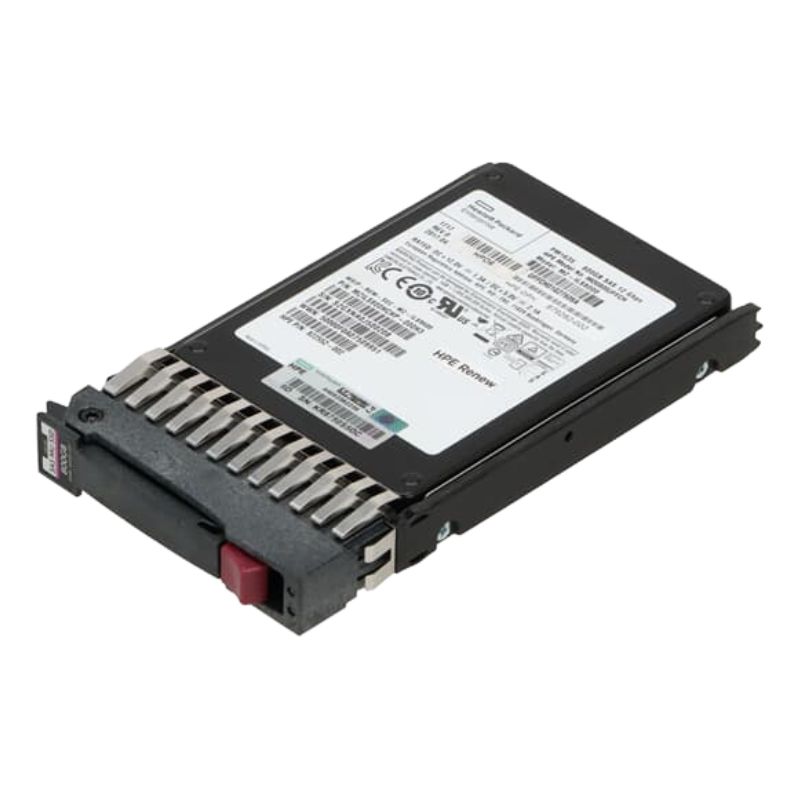

HPE 800GB DS SAS-12GBPS SC Mixed Use G9 G10 SSD P09090-H21.

Product Overview

• Manufacturer: HPE
• Part Number (MPN): P09090-H21
• Drive Type: Solid State Drive (SSD)
• Interface Type: SAS-12Gbps
• SKU: P09090-H21
• Spare Part Identifiers: P09923-001, MO000800JWUFU, P07442-002, P09105-002

Technical Specifications

• Storage Capacity: 800 GB
• NAND Flash Technology: Multi-Level Cell (MLC)
• Form Factor: 2.5 Inch SFF
• Data Interface: SAS 12Gbps
• Connection Type: Hot Pluggable
• Carrier Type: Smart Carrier (SC)
• Usage Profile: Mixed Use
• Firmware Features: Digitally Signed
• Included With: HPE Smart Carrier
• Drive Height: 0.6 inch (15 mm)

Performance Metrics

• Total Writes Over Lifetime: 4,500 TBW (Terabytes Written)
• Endurance Rating: 3 DWPD (Drive Writes Per Day)
• External Transfer Rate: 12 GB/sec
• Internal Read Rate: 1,095 MB/s
• Internal Write Rate: 1,010 MB/s
• Random Read IOPS (4KiB, Q=16): 130,000
• Peak Random Read IOPS (4KiB): 210,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 123,000
• Peak Random Write IOPS (4KiB): 124,000 @ Q16

Dimensions and Weight

• Height: 0.63 inch
• Width: 3.10 inches
• Depth: 5.45 inches
• Weight: 1.50 lbs

Power Requirements

• Idle Consumption: 3 Watts
• Power for Random Read: 5.78 Watts
• Power for Random Write: 5.78 Watts
• Power for Sequential Read: 5.26 Watts
• Power for Sequential Write: 8.76 Watts
• Combined Random Read/Write Power: 5.78 Watts
• Maximum Power Consumption: 8.76 Watts

Compatibility Information

HPE ProLiant DL Series

• DL325 Gen10 (2.5 Inch)
• DL325 Gen10 Entry (2.5 Inch)
• DL325 Gen10 Performance (2.5 Inch)
• DL325 Gen10 SMB Solution (2.5 Inch)
• DL360 Gen9 (2.5 Inch)
• DL360 Gen9 Base (2.5 Inch)
• DL360 Gen9 CMS (2.5 Inch)
• DL360 Gen9 Entry (2.5 Inch)
• DL360 Gen9 Performance (2.5 Inch)
• DL360 Gen9 Special Server (2.5 Inch)
• DL380 Gen10 (2.5 Inch)
• DL380 Gen10 Base (2.5 Inch)
• DL380 Gen10 Entry (2.5 Inch)
• DL380 Gen10 High Performance (2.5 Inch)
• DL380 Gen10 Performance (2.5 Inch)
• DL380 Gen10 Solution (2.5 Inch)

HPE ProLiant ML Series

• ML110 Gen10 (2.5 Inch)
• ML110 Gen10 Entry (2.5 Inch)
• ML110 Gen10 Performance (2.5 Inch)
• ML110 Gen10 Solution (2.5 Inch)
• ML30 Gen10 (2.5 Inch)
• ML30 Gen10 Entry (2.5 Inch)
• ML30 Gen10 Performance (2.5 Inch)
• ML30 Gen10 Solution (2.5 Inch)
• ML30 Gen9 (2.5 Inch)
• ML30 Gen9 Base (2.5 Inch)
• ML30 Gen9 Entry (2.5 Inch)
• ML30 Gen9 Performance (2.5 Inch)
• ML30 Gen9 Solution (2.5 Inch)

HPE ProLiant XL Series

• XL190r Gen10 (2.5 Inch)
• XL230k Gen10 Compute Tray (2.5 Inch)
• XL270d Gen10 (2.5 Inch)

HPE Synergy Compatibility

• 480 Gen10 Base Compute Module (2.5 Inch)
• 480 Gen10 Compute Module (2.5 Inch)
• 480 Gen10 Entry Compute Module (2.5 Inch)
• 480 Gen10 Performance Compute Module (2.5 Inch)
• 480 Gen10 Premium Backplane Compute Module (2.5 Inch)
• 480 Gen10 Standard Backplane Compute Module (2.5 Inch)
• 480 Gen10 W/O Drives Compute Module (2.5 Inch)
• 660 Gen10 Base Compute Module (2.5 Inch)
• 660 Gen10 Compute Module (2.5 Inch)
• 660 Gen10 Entry Compute Module (2.5 Inch)

Capacity: 800GB

Enhanced Storage Space for Efficient Data Management

The HPE P09090-H21 SSD provides an impressive storage capacity of 800GB, making it an ideal choice for users who require ample space for their data storage needs. With this significant capacity, users can store a large volume of files, documents, multimedia content, and applications without worrying about running out of storage space. Whether you are a professional who deals with extensive data sets or an individual with a vast collection of media files, this SSD ensures that you have enough room to accommodate all your data.

Improved Performance and Productivity

The substantial 800GB capacity of the HPE P09090-H21 SSD not only offers ample storage but also contributes to enhanced performance and productivity. With more storage space available, users can experience faster file transfer speeds and quicker access to their data. This is particularly beneficial for businesses and professionals who rely on efficient data management to streamline their workflow. The increased performance translates into improved productivity, as users can execute tasks swiftly without any lag caused by limited storage capacity.

Seamless Scalability for Future Expansion

Scalability is a crucial aspect of any storage solution, and the HPE P09090-H21 SSD excels in this regard. With its impressive 800GB capacity, users have the flexibility to scale up their storage infrastructure as their needs grow. This feature is especially important for businesses that anticipate an increase in data volume over time. By investing in this SSD, users can future-proof their storage systems and avoid the hassle of frequent upgrades or replacements.

Cost-Efficient Storage Solution

The 800GB capacity of the HPE P09090-H21 SSD offers excellent value for money, as it provides a balance between storage space and cost-effectiveness. Users can enjoy a significant amount of storage without having to invest in higher-priced alternatives that may offer excessive capacity they don't require. This SSD is an ideal choice for users who prioritize affordability without compromising on performance and reliability.

Reliable Data Storage and Protection

In addition to its generous capacity, the HPE P09090-H21 SSD ensures reliable data storage and protection. With its advanced technology and robust design, this SSD is built to withstand various environmental factors, ensuring the safety of your valuable data. Whether it's accidental drops, vibrations, or temperature fluctuations, this SSD can withstand them all, providing users with peace of mind regarding the safety and integrity of their stored data.

Form Factor: 2.5-Inch

Optimal Size for Versatile Installation

The HPE P09090-H21 SSD features a compact 2.5-inch form factor, making it an excellent choice for users who require a versatile storage solution. This size enables easy installation in various devices, such as laptops, desktops, servers, and external storage enclosures. The compact form factor ensures compatibility with a wide range of systems, allowing users to seamlessly integrate the SSD into their existing infrastructure without any additional modifications or upgrades.

Space-Saving Design

The 2.5-inch form factor of the HPE P09090-H21 SSD offers a space-saving advantage, particularly in scenarios where physical space is limited. Whether you have a small workstation or a crowded server room, this compact SSD can fit into tight spaces without compromising on performance or functionality. The space-saving design allows for efficient utilization of available space while providing users with exceptional storage capabilities.

Improved System Performance

The 2.5-inch form factor plays a significant role in enhancing system performance. By utilizing this compact size, the HPE P09090-H21 SSD reduces cable clutter and minimizes the distance between the storage device and the system components. This results in faster data transfer speeds and reduced latency, leading to overall improved system performance. Whether you are running resource-intensive applications or performing data-intensive tasks, this SSD ensures that your system operates at its optimal level.

Easy Hot-Swapping and Upgrades

The 2.5-inch form factor of the HPE P09090-H21 SSD facilitates easy hot-swapping and upgrades, providing convenience to users who need to replace or upgrade their storage devices on the go. This feature is particularly beneficial for businesses and professionals who require uninterrupted operation and minimal downtime. Users can effortlessly remove or insert the SSD while the system is running, ensuring seamless data accessibility without any disruptions.

Reliable and Durable Construction

The HPE P09090-H21 SSD's 2.5-inch form factor is not only compact but also designed to withstand various physical stresses. With its sturdy construction, this SSD offers durability and reliability, safeguarding your data even in demanding environments. The compact size does not compromise on its ability to withstand shocks, vibrations, or extreme temperatures, ensuring that your valuable data remains protected at all times.

Interface: SAS-12GBPS

Enhanced Data Transfer Speeds

The SAS-12GBPS interface of the HPE P09090-H21 SSD delivers exceptional data transfer speeds, enabling users to experience lightning-fast performance. With a maximum data transfer rate of 12 gigabits per second (Gbps), this interface ensures swift transmission of data between the SSD and the system. Whether you are transferring large files, accessing multimedia content, or running intensive applications, the SAS-12GBPS interface ensures minimal latency and faster response times.

Seamless Integration with Existing Infrastructure

The SAS-12GBPS interface offers excellent compatibility and seamless integration with existing infrastructure. It is designed to work with a wide range of systems, including servers, workstations, and storage arrays. Users can easily connect the HPE P09090-H21 SSD to their systems without the need for additional adapters or converters, saving time and effort. This interface ensures that users can leverage the benefits of this SSD without any compatibility issues or complex setup processes.

Scalability and Flexibility

The SAS-12GBPS interface provides scalability and flexibility for users who require expandable storage solutions. This interface allows for easy integration of multiple SSDs within a system, enabling users to scale up their storage capacity as per their requirements. Whether you need to accommodate increasing data volumes or implement RAID configurations for data redundancy, the SAS-12GBPS interface offers the necessary flexibility to meet your evolving storage needs.

Reliable Data Integrity and Protection

The SAS-12GBPS interface ensures reliable data integrity and protection. With its advanced error-checking mechanisms and robust data transfer protocols, this interface minimizes the risk of data loss or corruption during transmission. Users can trust that their valuable data will remain intact and secure, even during high-speed transfers or under challenging operating conditions. The reliability of the SAS-12GBPS interface ensures that users can confidently rely on this SSD for critical data storage and access.

Compatibility: G9 G10 Servers

Seamless Integration with HPE Servers

The HPE P09090-H21 SSD is specifically designed to be compatible with G9 and G10 servers from Hewlett Packard Enterprise (HPE). This compatibility ensures seamless integration without any compatibility issues or complex configurations. Users can trust that this SSD will work optimally with their HPE servers, providing reliable and efficient storage capabilities.

Enhanced Performance for Server Applications

The compatibility with G9 and G10 servers translates into enhanced performance for server applications. These servers are designed to handle demanding workloads and critical data processing tasks. By using the HPE P09090-H21 SSD, users can leverage its impressive capacity and speed to ensure smooth operation of server applications. Whether you are running databases, virtualization environments, or content delivery networks, this SSD offers the performance required to meet the demands of these server-centric applications.

Streamlined System Management

The compatibility of the HPE P09090-H21 SSD with G9 and G10 servers simplifies system management processes. Users can benefit from integrated management tools and software provided by HPE, enabling efficient monitoring and control of the SSD within the server environment. This streamlined system management ensures that users can easily configure, monitor, and maintain their storage infrastructure without the need for additional third-party tools or complex setups.

Reliable Data Storage for Critical Workloads

G9 and G10 servers are often deployed in mission-critical environments where data reliability is paramount. The HPE P09090-H21 SSD's compatibility with these servers ensures reliable data storage for critical workloads. Whether it's financial transactions, healthcare records, or sensitive customer information, this SSD can handle the demands of these high-stakes applications while ensuring data integrity and protection. Users can trust that their valuable data will remain safe and accessible at all times.

Conclusion

In conclusion, the HPE P09090-H21 SSD offers an impressive capacity of 800GB, providing users with ample storage space for their data storage needs. The 2.5-inch form factor ensures versatile installation options and space-saving benefits. The SAS-12GBPS interface delivers enhanced data transfer speeds and seamless integration with existing infrastructure. The compatibility with G9 and G10 servers ensures optimized performance and reliable data storage for critical workloads. Whether you are a professional, business, or individual user, this SSD's features and benefits make it a compelling choice for efficient and reliable data storage.
