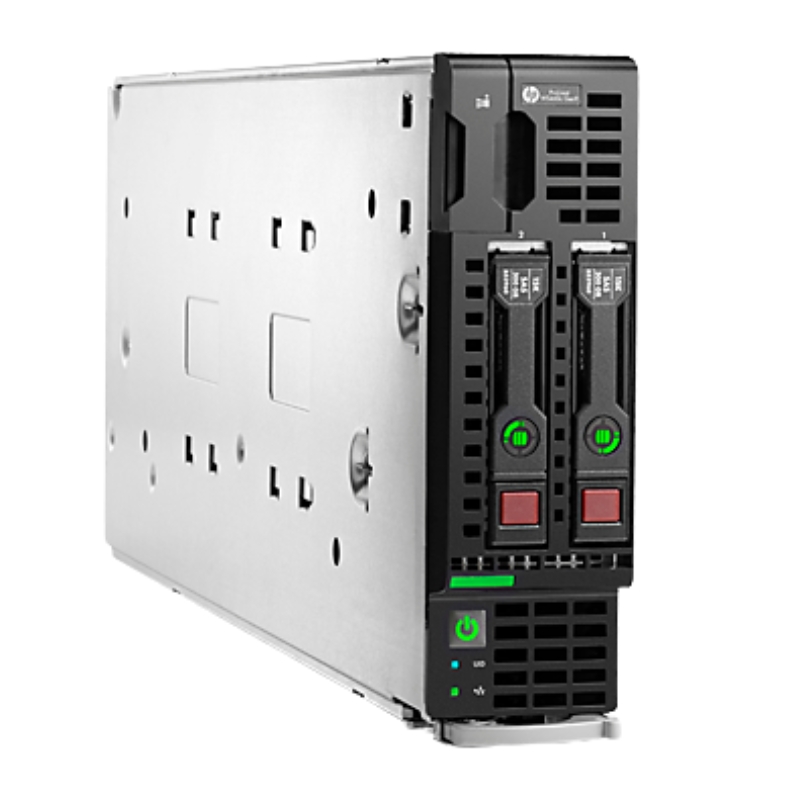

HPE Proliant BL460C Gen9 2x Intel Xeon E5-2680V4/2.4GHz 256GB DDR4 SDRAM 2X20 Gigabit Ethernet 2-Way Blade Server 813197-B21
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
813197-B21 | Six-Month (180 Days) | $820.00 | Excellent Refurbished | You save: $617.75 (43%) |
813197-B21 | Six-Month (180 Days) | Contact us for a price | Factory-Sealed New in Original Box (FSB) |
Processor
The HPE Proliant BL460C Gen9 2-Way Blade Server boasts a powerful processor that is essential for handling complex tasks and ensuring optimal performance. It is equipped with 2x Intel Xeon 14-Core E5-2680V4 processors, which provide exceptional computing power and efficiency.
General Information
Manufacturer Details
- Brand: HPE
- Part Number: 813197-B21
- Product Model: Proliant Bl460c Gen9 2-way Blade Server
Processor & Chipset
Processor Specifications
- Type: Intel Xeon E5-2680v4, 2.4 GHz
- Max Turbo Speed: 3.3 GHz
- Core Count: 14-core
- 64-bit Computing: Supported
- Installed Quantity: 2
- Maximum Supported Quantity: 2
- Upgradability: Yes
- Chipset: Intel C600
- Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory
- Type: L3 Cache
- Installed Size: 70 MB
- Cache Per Processor: 35 MB
Memory
Memory Configuration
- Installed Size: 256 GB
- Maximum Capacity: 512 GB
- Technology: DDR4 SDRAM
- Speed: 2400 MHz
- Specification Compliance: PC4-19200
- Form Factor: DIMM 288-pin
- Features: Online Spare Memory, Load-Reduced DIMM (LRDIMM), HP SmartMemory
- Configuration: 8 x 32 GB
- Supported RAM Types:
- PC4-19200 - 256 GB - Registered - ECC
- PC4-19200 - 512 GB - Load-Reduced - ECC
Storage & Controller
Hard Drive and Storage Controller
- Hard Drive: None
- Controller Type: 1 x SAS-3 - PCIe 3.0 x8
- Interface Type: SATA 6Gb/s / SAS 12Gb/s
- Controller Model: HP H244br Smart Host Bus Adapter
- RAID Levels: RAID 0, RAID 1
Display & Graphics
Graphics Processor
- Model: Matrox G200eh
Network & Communication
Network Interfaces
- Bus Type: FlexibleLOM
- Ethernet Ports: 2 x 20 Gigabit Ethernet
- Ethernet Controller: HP FlexFabric 650FLB
- Data Link Protocols: Fibre Channel over Ethernet (FCoE), 20 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE)
- Remote Management Protocols: SNMP, IPMI 2.0, SMASH CLP
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake On LAN (WOL)
- Standards Compliance: IEEE 802.1q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AB (LLDP), IEEE 802.3ap, IEEE 802.1qbb, IEEE 802.1qaz, IEEE 802.1qbg
Expansion & Connectivity
Expansion Bays & Slots
- Expansion Bays (Free): 2 x Hot-swap 2.5" SFF
- Expansion Slots:
- Processor: 2 (total), 0 (free)
- Memory DIMM: 16 (total), 8 (free) x 240-pin
- Expansion Slot (x16 Mode): 2
- MicroSDHC Card (Internal): 1 (total), 1 (free)
- FlexibleLOM: 1 (total), 0 (free)
Interfaces & Ports
- HP iLO: 1
- USB 3.0 Ports: 1
- LAN Ports: 2 x 20 Gigabit Ethernet
Dimensions & Weight
Physical Specifications
- Width: 2.2 in
- Depth: 20.4 in
- Height: 7.1 in
- Weight: 10.47 lbs
Enhanced Performance
The 2x Intel Xeon 14-Core E5-2680V4 processors offer a significant boost in performance compared to previous generations. With a higher number of cores, these processors can handle more simultaneous tasks, resulting in improved multitasking capabilities and faster data processing. This is particularly beneficial for businesses that rely on high-performance computing, such as data analysis, virtualization, and database management.
Efficient Virtualization
Virtualization has become a vital component in modern IT infrastructure. The 2x Intel Xeon 14-Core E5-2680V4 processors are designed to support virtualization technologies, allowing businesses to consolidate multiple virtual machines onto a single server. This reduces hardware costs, simplifies management, and improves resource utilization.
Increased Scalability
With the 2x Intel Xeon 14-Core E5-2680V4 processors, the HPE Proliant BL460C Gen9 server offers excellent scalability. The high core count and processing power enable businesses to easily scale their computing resources as their needs grow. Whether it's adding more virtual machines or handling increased workloads, the server can adapt to changing demands without compromising performance.
Advanced Security Features
Security is a top priority for any organization. The 2x Intel Xeon 14-Core E5-2680V4 processors include advanced security features that help protect sensitive data and prevent unauthorized access. These processors support hardware-enhanced security technologies, such as Intel® Trusted Execution Technology (TXT) and Intel® Advanced Encryption Standard New Instructions (AES-NI), which provide robust encryption and secure execution environments.
Energy Efficiency
The 2x Intel Xeon 14-Core E5-2680V4 processors are designed to deliver excellent performance while minimizing power consumption. They incorporate Intel's energy-efficient technologies, such as Intel® Turbo Boost Technology and Intel® Intelligent Power Technology, which dynamically adjust power levels based on workload requirements. This not only reduces energy costs but also contributes to a greener and more sustainable IT infrastructure.
Processor Speed
In addition to the powerful processors, the HPE Proliant BL460C Gen9 server offers an impressive processor speed of 2.4GHz. This high clock speed ensures speedy execution of tasks and enables efficient handling of demanding workloads.
Fast Data Processing
The 2.4GHz processor speed significantly enhances the server's data processing capabilities. It allows for quick execution of instructions, resulting in faster application response times and reduced latency. This is especially crucial in time-sensitive environments where real-time data processing is essential, such as financial institutions or scientific research facilities.
Seamless Multi-Tasking
With its high processor speed, the HPE Proliant BL460C Gen9 server can handle multiple tasks simultaneously without sacrificing performance. Whether it's running resource-intensive applications or handling a large number of user requests, the server can efficiently allocate processing power to ensure smooth operation across various workloads.
Optimized Virtualization Performance
Virtualized environments often require substantial processing power to deliver optimal performance. The 2.4GHz processor speed enables the HPE Proliant BL460C Gen9 server to handle virtual machines efficiently, ensuring minimal latency and maximizing overall virtualization performance. This is particularly beneficial for businesses that heavily rely on virtualization technologies to run their applications and services.
Enhanced User Experience
The fast processor speed of the HPE Proliant BL460C Gen9 server translates into a better user experience. Applications load quickly, data retrieval is swift, and users can seamlessly navigate through various tasks. This improved speed and responsiveness contribute to increased productivity and user satisfaction.
Real-Time Computations
Certain industries, such as scientific research or real-time analytics, require near-instantaneous computations. The 2.4GHz processor speed allows the HPE Proliant BL460C Gen9 server to handle complex calculations in real-time, enabling businesses to make critical decisions based on up-to-date information.
L3 Cache
The HPE Proliant BL460C Gen9 server is equipped with a generous L3 cache size of 70MB. The L3 cache plays a crucial role in improving system performance by reducing memory latency and speeding up data access.
Reduced Memory Latency
The large 70MB L3 cache minimizes memory latency by storing frequently accessed data closer to the processor cores. This reduces the time it takes for the processor to retrieve data from the main memory, resulting in faster execution of instructions and improved overall system performance. Reduced memory latency is particularly beneficial for applications that heavily rely on random memory access or require fast data retrieval.
Improved Data Access Speed
The L3 cache acts as a high-speed buffer between the processor and the main memory. By storing frequently accessed data in the cache, the processor can quickly retrieve information without waiting for it to be fetched from the main memory. This significantly speeds up data access and enhances system responsiveness, especially for applications that require frequent access to large datasets.
Efficient Workload Management
The 70MB L3 cache allows the HPE Proliant BL460C Gen9 server to efficiently manage workloads by intelligently storing and prioritizing data. The cache's large size can accommodate a substantial amount of data, reducing the need for frequent memory access. This results in improved workload performance and better utilization of system resources.
Optimized Multithreading
Multithreading is a technique that allows multiple threads to execute concurrently within a single process. The large L3 cache size of 70MB enables efficient multithreading by providing sufficient space to store data associated with different threads. This reduces the need for frequent data swapping and context switching, resulting in improved overall performance and responsiveness.
Enhanced Virtual Machine Performance
Virtualized environments benefit greatly from a large L3 cache. By storing frequently accessed data in the cache, the HPE Proliant BL460C Gen9 server can efficiently handle multiple virtual machines, reducing latency and improving overall virtualization performance. This is particularly important for businesses that heavily rely on virtualization technologies to run their applications and services.
Memory
The HPE Proliant BL460C Gen9 server features an impressive memory capacity of 256GB DDR4 SDRAM. The abundant memory resources provide businesses with the ability to handle memory-intensive workloads and ensure smooth operation even under heavy loads.
Seamless Multitasking
The 256GB DDR4 SDRAM enables the server to handle multiple tasks simultaneously without experiencing performance bottlenecks. Whether it's running resource-intensive applications, virtual machine workloads, or managing large databases, the ample memory capacity ensures smooth multitasking capabilities and efficient resource utilization.
Improved Application Performance
Applications often require a significant amount of memory to operate efficiently. With 256GB DDR4 SDRAM, the HPE Proliant BL460C Gen9 server can load and cache more data, reducing the need for frequent disk access. This leads to faster application response times, smoother user experience, and improved overall performance.
Enhanced Virtualization Performance
Virtualized environments demand substantial memory resources to run multiple virtual machines simultaneously. The 256GB DDR4 SDRAM capacity of the HPE Proliant BL460C Gen9 server allows businesses to deploy and manage more virtual machines, resulting in improved virtualization performance and better resource allocation.
Efficient Database Management
Databases often require significant memory resources to store and retrieve data efficiently. The 256GB DDR4 SDRAM capacity of the HPE Proliant BL460C Gen9 server ensures that databases can be held entirely in memory, minimizing disk I/O and improving query response times. This enhances database performance and enables businesses to handle large datasets with ease.
Future-Proofing
With technology evolving rapidly, it is essential to invest in servers with ample memory capacity. The 256GB DDR4 SDRAM of the HPE Proliant BL460C Gen9 server provides businesses with future-proofing capabilities, allowing them to accommodate growing memory requirements as their needs expand. This ensures long-term scalability and avoids the need for immediate hardware upgrades.
Networking
The networking capabilities of the HPE Proliant BL460C Gen9 server are exceptional, featuring 2X20 Gigabit Ethernet connectivity. This high-speed networking ensures efficient data transfer, seamless communication between systems, and reliable connectivity for businesses.
Rapid Data Transfer
The 2X20 Gigabit Ethernet connectivity allows for lightning-fast data transfer rates. With a total bandwidth of up to 40Gbps, businesses can quickly transfer large files, stream multimedia content, or access centralized resources without experiencing network bottlenecks. This is particularly advantageous for data-intensive applications, such as video editing or cloud-based services.
Improved System Collaboration
Efficient networking is crucial for enabling system collaboration and ensuring seamless communication between different components. The 2X20 Gigabit Ethernet connectivity of the HPE Proliant BL460C Gen9 server facilitates smooth data exchange between servers, storage systems, and other network devices. This enhances overall system performance and enables businesses to build reliable and interconnected IT infrastructures.
Enhanced Virtualization Performance
Virtualized environments heavily rely on efficient networking to ensure optimal performance. The 2X20 Gigabit Ethernet connectivity of the HPE Proliant BL460C Gen9 server enables businesses to deploy and manage multiple virtual machines with ease, ensuring seamless communication between virtualized systems and minimizing network latency. This leads to improved virtualization performance and better resource allocation.
Reliable Connectivity
The 2X20 Gigabit Ethernet connectivity provides businesses with reliable network connections. With dual Ethernet ports, the HPE Proliant BL460C Gen9 server offers redundancy and failover capabilities, ensuring uninterrupted network connectivity even in the event of a network component failure. This is crucial for businesses that require constant network availability to support critical operations.
Scalable Network Infrastructure
The high-speed networking capabilities of the HPE Proliant BL460C Gen9 server enable businesses to scale their network infrastructure effortlessly. Whether it's expanding the number of connected devices or accommodating higher network traffic, the server's networking capabilities can adapt to changing demands. This ensures that businesses can meet their evolving networking requirements without compromising performance or reliability.
Part Number
The part number of the HPE Proliant BL460C Gen9 server is 813197-B21. This unique identifier plays a crucial role in identifying and ordering the correct server model, ensuring compatibility with other components and accessories.
Accurate Identification
The part number serves as a precise identifier for the HPE Proliant BL460C Gen9 server. By using the part number 813197-B21, businesses can ensure that they are ordering the correct server model, avoiding any confusion or compatibility issues. This is particularly important in complex IT environments where multiple server models may be deployed.
Compatibility Assurance
The part number 813197-B21 guarantees compatibility with other components and accessories designed specifically for the HPE Proliant BL460C Gen9 server. This ensures that businesses can seamlessly integrate the server into their existing infrastructure without encountering any compatibility issues or limitations.
Efficient Ordering Process
The part number simplifies the ordering process for the HPE Proliant BL460C Gen9 server. By providing the part number 813197-B21 to vendors or resellers, businesses can quickly and accurately procure the required server model, reducing lead times and minimizing potential delays in deployment.
Easy Maintenance and Support
The part number facilitates easy maintenance and support for the HPE Proliant BL460C Gen9 server. When contacting technical support or searching for documentation or firmware updates, businesses can use the part number 813197-B21 to ensure they are accessing the correct resources specific to their server model. This streamlines troubleshooting processes and ensures efficient resolution of any issues that may arise.
Future Expandability
The part number also plays a role in future expandability. By using the correct part number when adding additional servers to an existing infrastructure, businesses can maintain consistency and compatibility across their IT environment. This simplifies future expansion efforts and ensures seamless integration of new server models into the existing network ecosystem.
