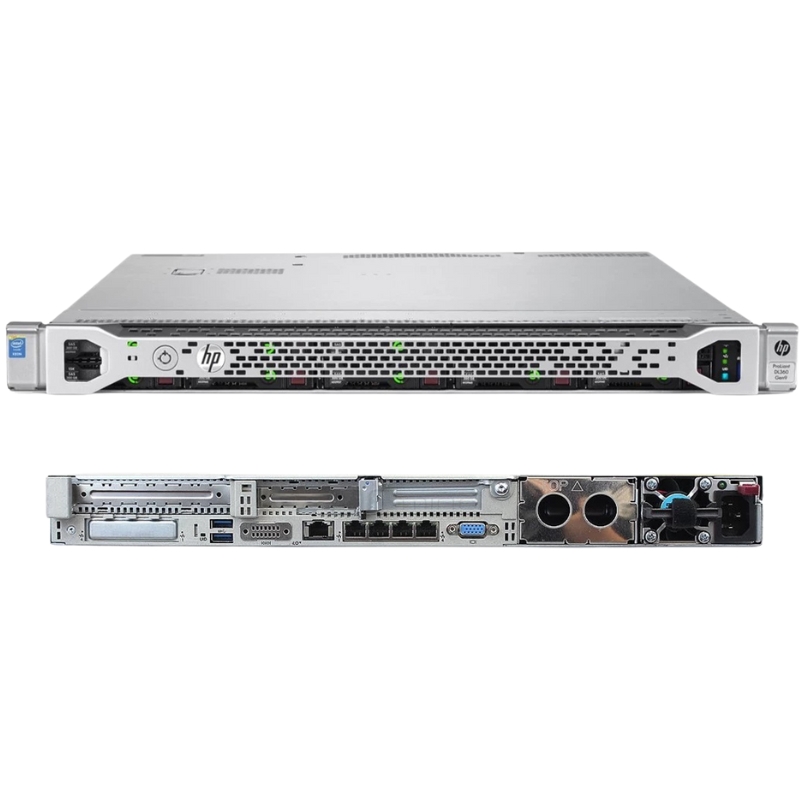

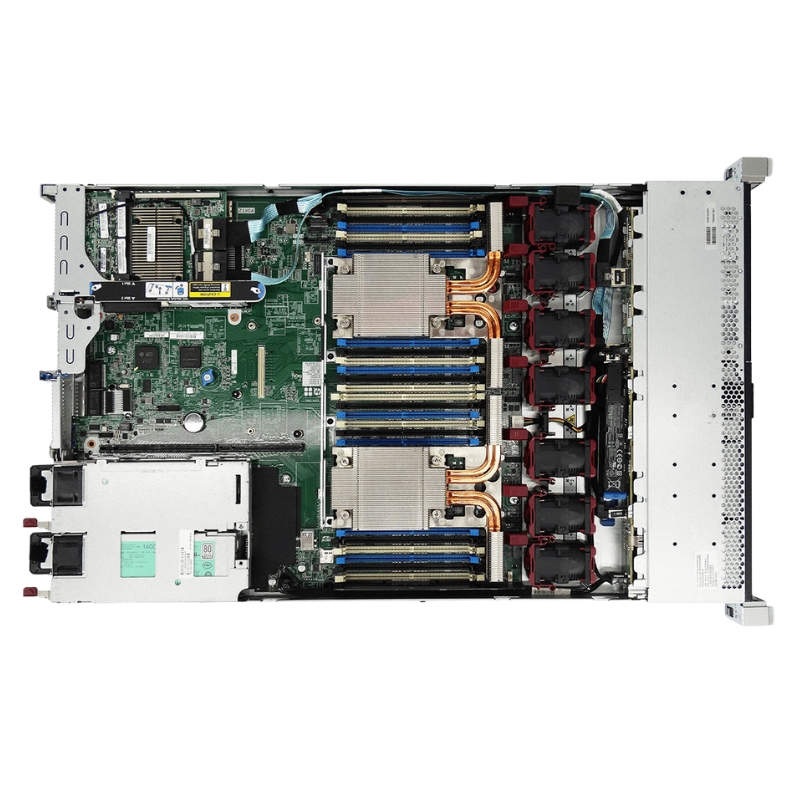

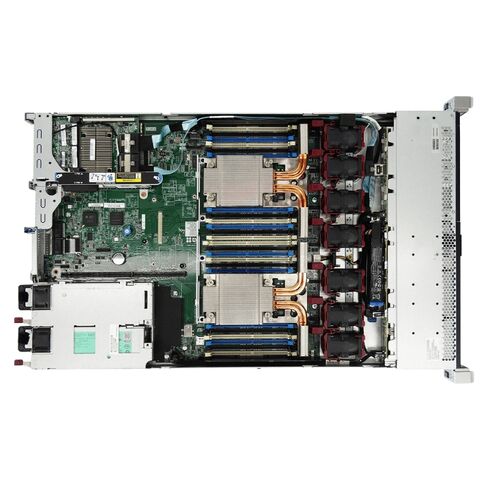

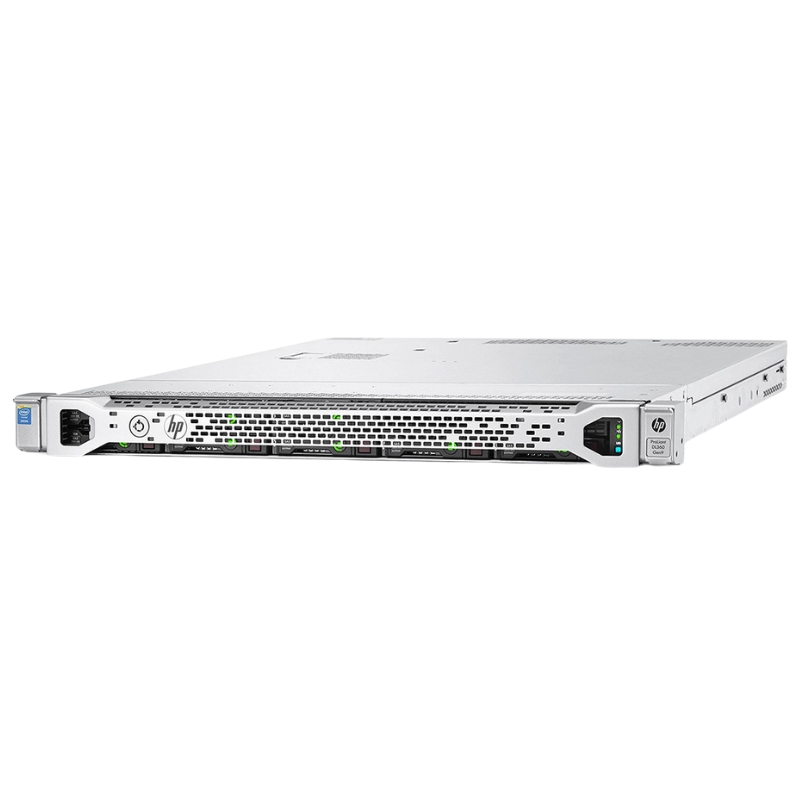

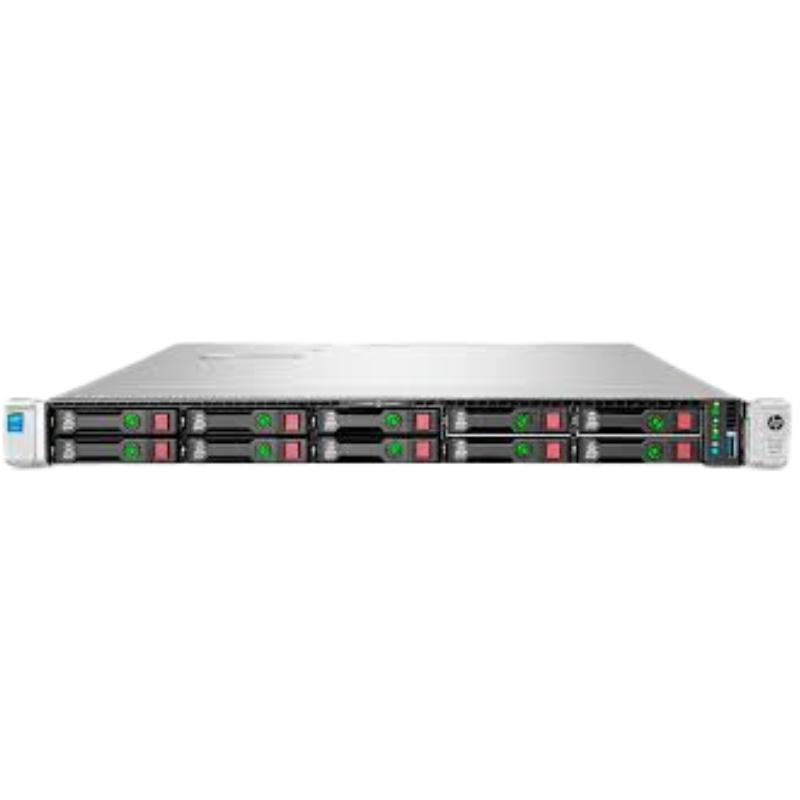

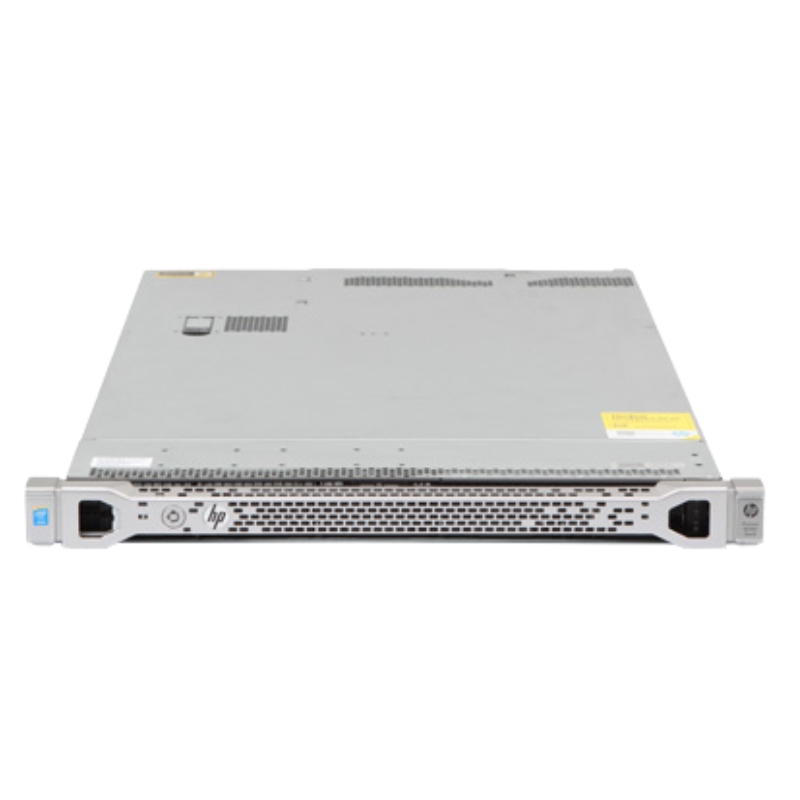

SSD-HDD TraysHPE 818208-B21 Proliant DL360 G9 1X Intel Xeon E5-2630V4 10-Core 2.2GHz 16GB DDR4 1GB 4-PORT 331I Adapter 1X 500W FS PS 1U Rack Server.
818208-B21
Hover on image to enlarge
Brief Overview of 818208-B21
HPE Proliant DL360 G9 1X Intel Xeon 10-Core E5-2630V4 2.2GHz 16GB DDR4 SDRAM P440AR with 2GB FBWC 8SFF 1GB 4-PORT 331I Adapter 1X 500W FS PS 1U Rack Server 818208-B21. Excellent Refurbished 6-Month Replacement Warranty
Our Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Description
Processor
The HPE Proliant DL360 G9 Base Model 1U Rack Server is equipped with a powerful 1X Intel Xeon 10-Core E5-2630V4 processor, clocked at 2.2GHz. This processor is a standout feature of the server, providing exceptional performance and reliability for users across various industries.
General Product Overview
Manufacturer Details
- Brand: Hewlett Packard Enterprise
- Part Number: 818208-B21
- Product Model: Proliant DL360 Gen9 - 1U Rack-Mountable Server (Base Model)
Processor & Chipset
CPU Specifications
- Processor: Intel Xeon E5-2630v4, 2.2 GHz
- Max Turbo Speed: 3.1 GHz
- Core Count: 10 Cores
- CPU Quantity: 1 (Upgradeable to 2)
Main Features
- Hyper-Threading Technology
- Intel Turbo Boost Technology 2
- CPU Socket: LGA2011-v3
Cache Memory
Details
- Installed Cache: 25 MB
- Cache Per Processor: 25 MB
Memory Configuration
Installed and Maximum Capacity
- Standard Size: 16 GB
- Maximum Capacity: 768 GB
Memory Specifications
- Type: DDR4 SDRAM with Advanced ECC
- Speed: 2133 MHz
- Compliance: PC4-19200
- Form Factor: DIMM 288-pin
- Features: Registered, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
Supported RAM
- PC4-19200: Up to 3 TB (Load-reduced)
- PC4-17000: Up to 768 GB (Registered)
- 128 GB: Non-volatile
Storage Options
Drives
- Hard Drive: Not Included
- Optical Drive: Not Included
Storage Controllers
Controller Information
- Type: RAID - PCIe 3.0 x8
- Interface: SATA 6 Gb/s, SAS 12 Gb/s
- Controller Name: Smart Array P440ar with 2GB FBWC
- RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
- Buffer Size: 2 GB
Display & Graphics
Graphics Controller
- Processor: Matrox G200
- Video Output: VGA
Networking and Communication
Network Ports
- Ethernet Ports: 4 x Gigabit Ethernet
- Ethernet Controller: HP 331i
- Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management: Integrated Lights-Out 4
Networking Features
- Wake On LAN (WoL)
- PXE Support
Compliance Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion & Connectivity
Expansion Bays
- 8 Total (All Free) x Hot-Swap 2.5 SFF
Expansion Slots
- 24 DIMM Slots (23 Free)
- 2 CPU Slots (1 Free)
- 1 PCIe 3.0 x16 Slot (Full-height, Three-quarter-length) - 1 Free
- 1 PCIe 3.0 x8 Slot (Low-profile) - 1 Free
- 1 FlexibleLOM Slot - 1 Free
- 1 MicroSD Card Slot (Internal) - 1 Free

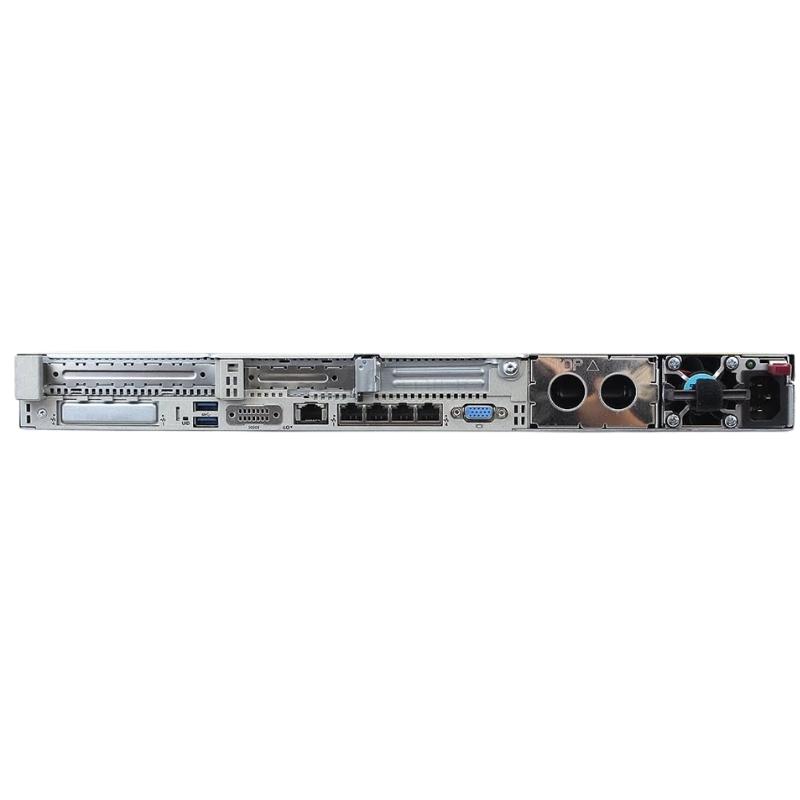

Interfaces & Ports
- 1 VGA Port
- 1 Serial Port
- 4 LAN Ports (Gigabit Ethernet)
- 1 HP iLO Port
- 5 USB 3.0 Ports (1 Front, 2 Rear, 2 Internal)
Miscellaneous
Included Accessories
- HP Easy Install Rails
Compliance Standards
- ACPI 2.0b, FCC Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438
Power Description
Power Supply Details
- Type: Hot-Plug Power Supply
- Redundancy: Optional
- Redundancy Scheme: 1+1 (with Optional Power Supply)
- Installed Quantity: 1
- Max Supported Quantity: 2
- Nominal Voltage: AC 120/230 V (50/60 Hz)
- Power Output: 500 Watts
- 80 Plus Certification: 80 Plus Platinum
Dimensions & Weight
Physical Dimensions
- Width: 17.1 inches
- Depth: 27.5 inches
- Height: 1.7 inches
- Weight: 27.01 lbs
Benefits of the 1X Intel Xeon 10-Core E5-2630V4 Processor
1. Improved Performance
The 10 cores of the Intel Xeon E5-2630V4 processor allow for efficient multitasking and handling of complex workloads. With a base clock speed of 2.2GHz, this processor ensures fast and responsive performance, enabling users to run resource-intensive applications without experiencing any lag or slowdowns.
2. Enhanced Productivity
The high core count and clock speed of the processor enable faster data processing and computation. This feature is particularly beneficial for businesses that rely on data analysis, virtualization, and other demanding tasks. Users can expect reduced processing times, increased productivity, and improved overall efficiency.
3. Scalability and Future-Proofing
The Intel Xeon E5-2630V4 processor supports hyper-threading technology, which allows each physical core to handle two threads simultaneously. This feature enhances the server's ability to handle multiple tasks concurrently, making it suitable for scaling up operations as business needs evolve.
4. Energy Efficiency
Intel processors are known for their energy-efficient design, and the E5-2630V4 is no exception. It utilizes advanced power management features to optimize energy consumption without compromising performance. This not only helps reduce electricity costs but also contributes to a greener and more sustainable IT infrastructure.
5. Reliability and Stability
Intel Xeon processors are renowned for their reliability and stability. The E5-2630V4 is designed to deliver consistent performance under demanding workloads, making it ideal for critical applications and server environments that require continuous operation. Users can have peace of mind knowing that their server is powered by a trusted and dependable processor.
Importance of the 1X Intel Xeon 10-Core E5-2630V4 Processor
The processor is the brain of any server, and the 1X Intel Xeon 10-Core E5-2630V4 is a top-of-the-line choice for businesses seeking exceptional performance, scalability, and reliability. Its advanced features and capabilities make it suitable for a wide range of applications, including database management, virtualization, cloud computing, and high-performance computing.
By investing in a server with this processor, businesses can streamline their operations, improve productivity, and handle more demanding workloads with ease. The combination of high core count, fast clock speed, hyper-threading support, and energy efficiency ensures that users can achieve optimal performance while minimizing costs.
Whether you are a small business looking to expand your IT infrastructure or an enterprise-level organization requiring robust computing power, the 1X Intel Xeon 10-Core E5-2630V4 processor delivers the performance and reliability you need to stay ahead in today's competitive digital landscape.
Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
