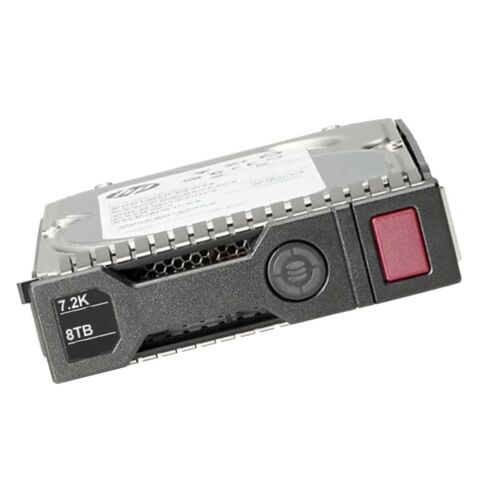

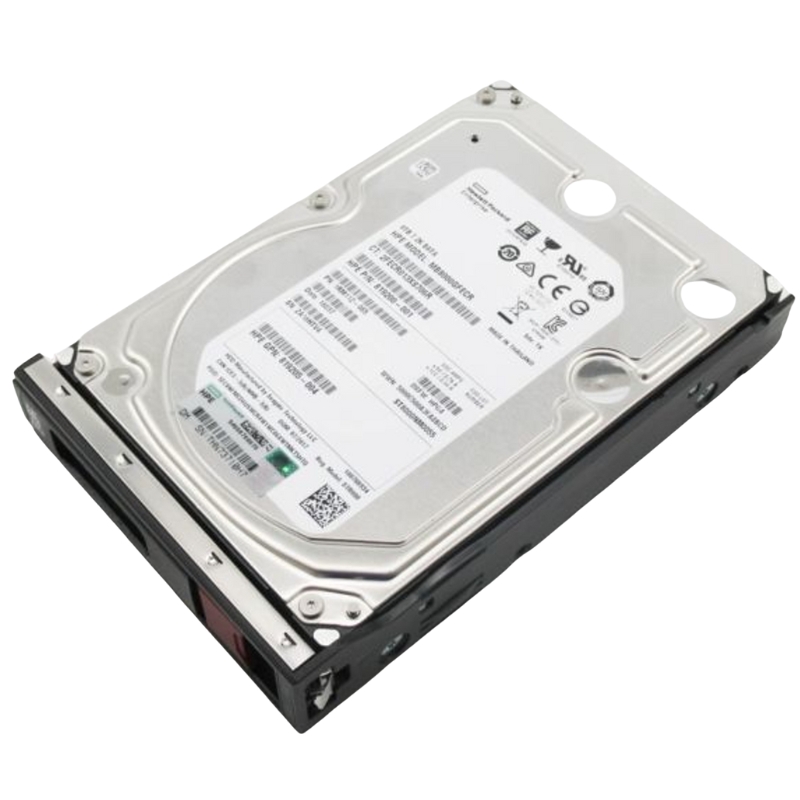

HPE 819203-K21 8TB 7.2K RPM 3.5" LFF SATA 6GBPS Hard Drive

819203-K21
Hover on image to enlarge

Brief Overview of 819203-K21

HPE 8TB 7.2K RPM 3.5inch LFF 512e Dual Port SATA 6GBPS SC Midline Hard Drive 819203-K21. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE 819203-K21 8TB 7.2K RPM 3.5" LFF SATA 6GBPS Hard Drive
$477.90
$323.83
You save: $154.07 (32%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN819203-K21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

General Information

  • Manufacturer: HPE
  • Part Number: 819203-K21
  • Type of Device: Hard Disk Drive

Technical Specifications

Storage Capacity

  • Total Capacity: 8 TB
  • Form Factor: 3.5 inch LFF

Interface and Configuration

  • Connection Type: SATA-6GBPS
  • Bytes per Sector: 512
  • Drive Technology: Air
  • Plug Type: Hot Plug
  • Format Type: 512e
  • Carrier Type: Smart Carrier (SC)
  • Workload Type: Midline
  • Key Features: Native Command Queuing (NCQ), Digitally Signed Firmware, Advanced Format 512e
  • Included Accessories: HPE SmartDrive carrier

Performance Metrics

Drive Speed and Efficiency

  • Data Transfer Rate: 6 GB/Sec (External)
  • Average Seek Time: 8.5 ms
  • Maximum Seek Time: 15.7 ms
  • Track-to-Track Seek Time: 0.7 ms
  • Spindle Speed: 7200 RPM

IOPS (Input/Output Operations Per Second)

  • Max Sequential Throughput: 230 MiB/s
  • 128Kib Random Read: 105 IOPs
  • 128Kib Random 70% Read / 30% Write: 110 IOPs
  • 128Kib Random 50% Read / 50% Write: 115 IOPs

Expansion and Connectivity Options

  • Interfaces: 1 x SATA 6 GB/s
  • Compatible Bays: 1 x 3.5 inch LFF

Power Consumption Details

  • Idle Power Usage: 8.80 Watts
  • Random Read/Write Power Usage: 12.10 Watts
  • Sequential Read Power Usage: 10.80 Watts
  • Sequential Write Power Usage: 10.50 Watts

Dimensions and Weight Specifications

  • Width: 4 Inches
  • Depth: 5.8 Inches
  • Height: 1 Inch
  • Weight: 1.52 Pounds

Environmental Requirements

  • Minimum Operating Temperature: 50 °F
  • Maximum Operating Temperature: 95 °F

Compatibility with HPE Systems

HPE ProLiant DL Series

  • DL180 Gen9 (3.5 inch)
  • DL360 Gen10 (3.5 inch)
  • DL380 Gen10 (3.5 inch)
  • Additional models available in the DL series

HPE ProLiant ML Series

  • ML110 Gen9 (3.5 inch)
  • ML30 Gen9 (3.5 inch)
  • Further options exist within the ML series

Capacity

The HPE 819203-K21 Hard Drive boasts an impressive capacity of 8TB, making it an ideal choice for users who require ample storage space for their data-intensive applications. With this massive storage capacity, users can store and access a vast amount of data, including documents, photos, videos, and large files, without worrying about running out of space.

Increased Storage Capability

One of the primary benefits of the 8TB capacity is the increased storage capability it offers. Users can now store more data on a single drive, reducing the need for multiple drives and simplifying data management. This is especially beneficial for businesses and organizations that deal with large amounts of data on a daily basis.

Efficient Data Organization

By providing a larger storage capacity, the HPE 819203-K21 Hard Drive enables users to keep their data organized and easily accessible. With ample space, users can create folders and subfolders to categorize their files, ensuring efficient data management and quick retrieval when needed. This promotes productivity and saves valuable time that would otherwise be spent searching for specific files.

Less Clutter and More Workspace

With the 8TB capacity, users can avoid cluttering their workspace with multiple external hard drives or constantly swapping out smaller drives. This not only reduces physical clutter but also frees up valuable desk space for other essential equipment. Additionally, having all the data in one drive simplifies backup processes and ensures that all important files are protected.

Speed

The HPE 819203-K21 Hard Drive features a speed of 7.2K RPM (rotations per minute), which plays a crucial role in ensuring fast and efficient data access. The speed at which the drive operates directly impacts the overall performance and responsiveness of the system.

Enhanced Data Transfer

The 7.2K RPM speed of the HPE 819203-K21 Hard Drive allows for faster data transfer rates, resulting in improved overall system performance. Users can expect quicker file transfers, reduced loading times for applications, and seamless multitasking. This is particularly beneficial for users who work with large files or perform resource-intensive tasks, such as video editing or data analysis.

Reduced Latency

The high rotational speed of the drive significantly reduces latency, which is the time it takes for the drive to locate and retrieve data. With lower latency, users experience minimal delays when accessing their files, resulting in a smooth and uninterrupted workflow. This is particularly important in critical applications where real-time data access is crucial.

Optimized System Performance

The combination of the 7.2K RPM speed and large capacity of the HPE 819203-K21 Hard Drive ensures an optimized system performance. The faster data transfer rates and reduced latency contribute to improved overall responsiveness, allowing users to complete tasks more efficiently. Whether it's running demanding applications or managing complex databases, this drive provides the speed necessary to handle intensive workloads.

Form Factor

The HPE 819203-K21 Hard Drive features a form factor of 3.5inch LFF (Large Form Factor), which offers several benefits in terms of compatibility, installation, and storage density.

Wide Compatibility

The 3.5inch LFF form factor of the HPE 819203-K21 Hard Drive ensures compatibility with a wide range of systems and server configurations. It can easily fit into standard drive bays found in most desktop computers, workstations, and servers. This makes it a versatile choice for users who need to upgrade their existing systems or expand their storage capacity without compatibility issues.

Ease of Installation

The larger form factor of the drive simplifies the installation process. It provides ample space for connectors and ensures easy access to the drive's ports. Users can effortlessly connect the drive to their system without any complicated installation procedures. This saves time and minimizes the risk of damage during installation.

Increased Storage Density

The 3.5inch LFF form factor allows for higher storage density compared to smaller form factors. This means that users can have more storage capacity within the same physical space, maximizing the utilization of their system's drive bays. With increased storage density, users can accommodate more drives, resulting in a greater overall storage capacity.

Interface

The HPE 819203-K21 Hard Drive utilizes the SATA 6GBPS (Gigabit per second) interface, which offers several advantages in terms of data transfer speed, compatibility, and ease of use.

High Data Transfer Speed

The SATA 6GBPS interface provides a significantly higher data transfer speed compared to older interfaces. This enables faster read and write operations, allowing users to access their data more quickly and efficiently. Whether it's copying files, running applications, or performing backups, the high data transfer speed ensures optimal performance.

Backward Compatibility

One of the key benefits of the SATA 6GBPS interface is its backward compatibility with previous SATA versions. Users can seamlessly connect the HPE 819203-K21 Hard Drive to systems that support older SATA interfaces, such as SATA 3GBPS or SATA 1.5GBPS. This ensures compatibility with a wide range of systems and allows users to take advantage of the improved speed without needing to upgrade their entire infrastructure.

Plug-and-Play Convenience

The SATA interface offers plug-and-play convenience, making it easy to connect the HPE 819203-K21 Hard Drive to compatible systems. Users can simply plug in the drive and start using it without the need for additional drivers or complex setup procedures. This user-friendly interface saves time and effort, allowing users to quickly integrate the drive into their system.

Port

The HPE 819203-K21 Hard Drive features a dual port configuration, offering users enhanced reliability, redundancy, and flexibility.

Redundancy and Data Protection

The dual port configuration provides redundancy, ensuring that data remains accessible even if one port fails. In case of a port failure, the drive seamlessly switches to the functioning port, allowing uninterrupted data access. This redundancy offers an additional layer of protection against data loss and ensures the availability of critical information.

Load Balancing and Performance Optimization

The dual port configuration enables load balancing, distributing data traffic across both ports. This helps optimize performance by preventing bottlenecks and ensuring efficient utilization of available bandwidth. By evenly distributing data transfer operations, users can achieve faster and more reliable performance.

Flexibility in System Configuration

The dual port feature provides flexibility in system configuration, allowing users to connect the HPE 819203-K21 Hard Drive to different devices simultaneously. This is particularly useful in environments where multiple systems need to access the same data or in setups requiring failover capabilities. The ability to connect to multiple systems or controllers offers versatility and adaptability to various IT infrastructures.

Technology

The HPE 819203-K21 Hard Drive utilizes the 512e (512-byte emulation) technology, which combines compatibility with modern systems and optimal performance for legacy applications.

Compatibility with Modern Systems

The 512e technology ensures compatibility with modern systems that utilize Advanced Format drives. It allows the drive to work seamlessly with the latest operating systems and applications, ensuring smooth integration into existing IT infrastructures. Users can take advantage of the drive's capabilities without worrying about compatibility issues.

Optimal Performance for Legacy Applications

The 512-byte emulation technology provides optimal performance for legacy applications that were designed to work with traditional 512-byte sector drives. It allows these applications to function without any modifications or performance degradation when using the HPE 819203-K21 Hard Drive. This ensures that users can continue using their legacy software and systems without any disruptions.

Data Integrity and Error Correction

The 512e technology includes advanced error correction features to ensure data integrity and minimize the risk of data loss or corruption. This technology enhances data reliability by detecting and correcting errors that may occur during read or write operations. Users can confidently store their important data on the drive, knowing that it is protected against potential errors.

Usage

The HPE 819203-K21 Hard Drive is designed for midline usage, making it suitable for a wide range of applications that require a balance between performance and cost-effectiveness.

Versatility in Applications

The midline usage designation allows the HPE 819203-K21 Hard Drive to be used in various applications, including data centers, media storage, backup systems, and surveillance systems. Its versatility makes it an ideal choice for users who need reliable storage solutions that can handle different workloads.

Cost-Effective Storage Solution

The midline usage designation indicates that the HPE 819203-K21 Hard Drive offers a cost-effective storage solution. It provides a balance between performance and affordability, making it an attractive option for users who require a large storage capacity without breaking the budget. This makes it particularly suitable for small to medium-sized businesses or budget-conscious individuals.

Durability and Reliability

Despite being a cost-effective solution, the HPE 819203-K21 Hard Drive does not compromise on durability and reliability. It is built to withstand demanding environments and heavy workloads, ensuring long-term reliability and data protection. Users can rely on this drive to securely store their valuable data without worrying about premature failures or data loss.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
