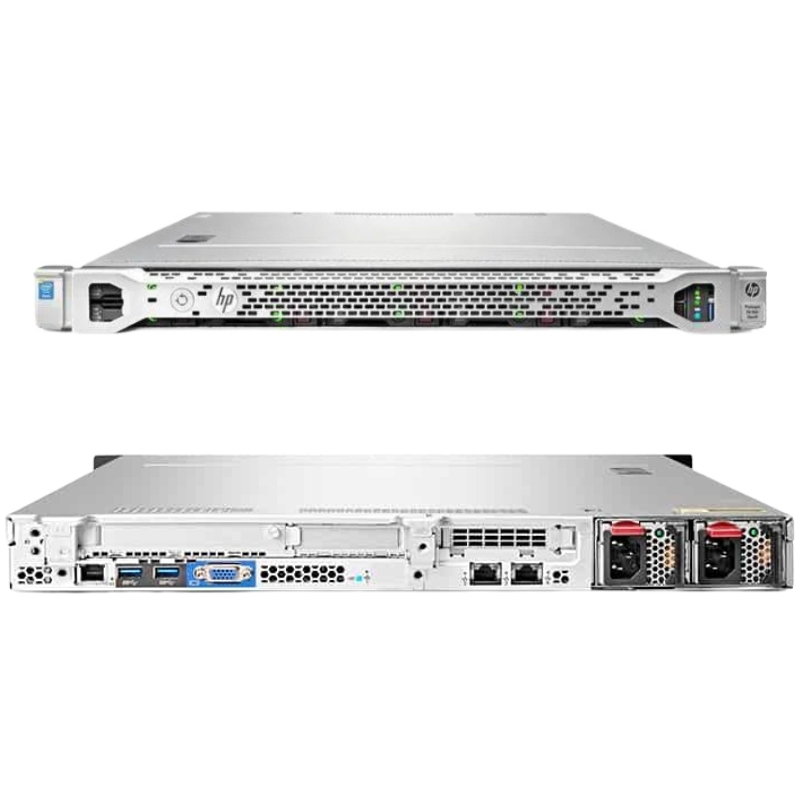

HPE Proliant DL160 Smart Buy 830574-S01 Server E5-2609v4, 8GB DDR4 SDRAM, 4LFF, 1GB 2-Port Nc361i Adapter, 550w PS

Processor

The HPE Proliant DL160 Smart Buy Server is equipped with the powerful E5-2609v4 processor. This processor is designed to deliver exceptional performance and reliability, making it an excellent choice for businesses of all sizes.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 830574-S01

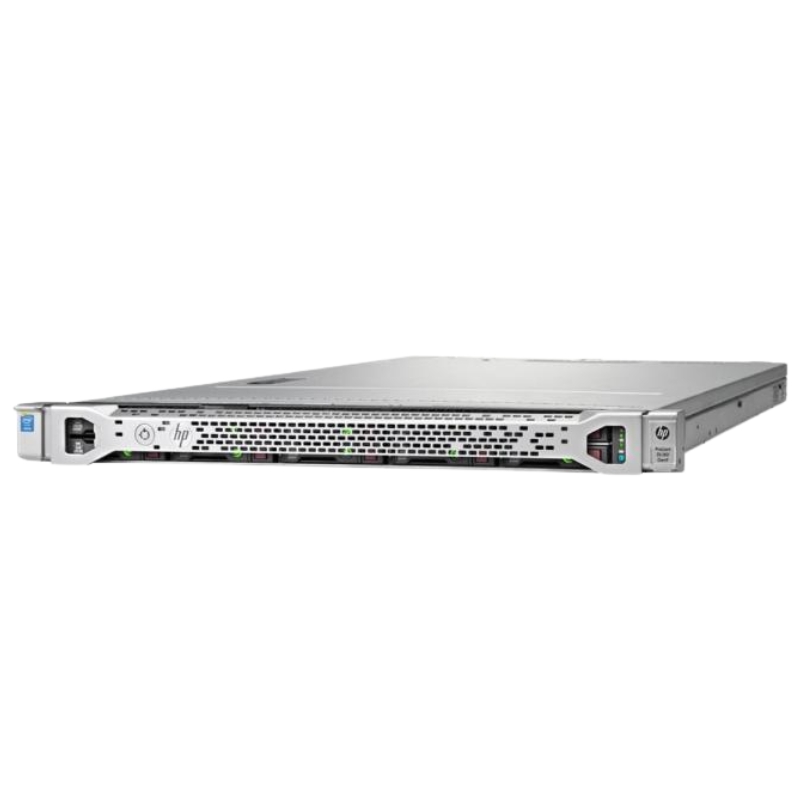

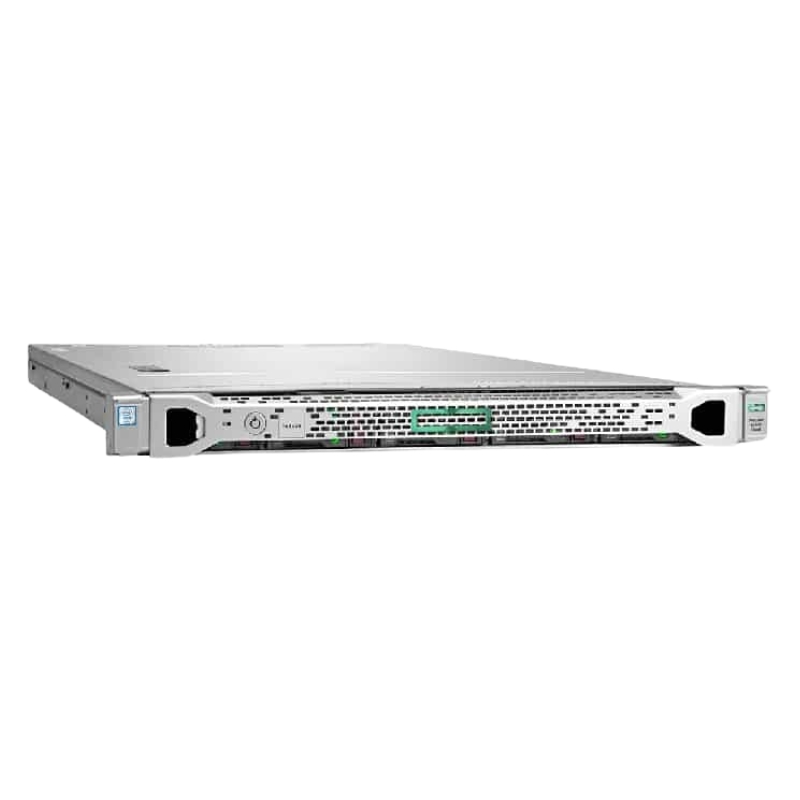

• Product Name: ProLiant DL160 Gen9 - 1U Rack-Mountable Server (Smart Buy Model)

Processor & Chipset

Processor Specifications

• Type: Intel Xeon E5-2609v4, 1.7 GHz
• QuickPath Interconnect: 6.4 GT/s
• Number of Cores: 8-core
• 64-bit Computing: Supported
• Socket Compatibility: FCLGA2011-3
• Installed Processors: 1 (supports up to 2)
• Main Features: Intel Turbo Boost Technology 2

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB
• Cache Per Processor: 20 MB

Memory

Installed and Supported Memory

• Installed Size: 8 GB (up to 256 GB maximum)
• Technology: DDR4 SDRAM
• Memory Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered
• Configuration: 1 x 8 GB
• Supported RAM: PC4-17000 - 256 GB - Registered, PC4-17000 - 512 GB - Load-Reduced

Storage Options

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

Controller Features

• Controller Name: Smart Array B140i
• Buffer Size: None
• Disk Drive Support: Up to 6 Gb/s SATA (Serial ATA)
• Internal Connectors: 10 SATA connectors
• Server Interface: x4 PCIe 2.0
• SATA Speed: 6 Gb/s
• Logical Drives Supported: Up to 8 logical volumes (6 physical drives)
• Host Memory Addressing: 64-bit, supporting more than 4 GB server memory space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Display & Graphics

• Graphics Controller: Integrated Matrox G200eh2

Networking & Communication

Network Connectivity

• Networking: Integrated Network Adapter
• Bus Type: PCI Express 2.0 x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller(s): HP NC361i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion & Connectivity

Expansion Bays

• External: 1 x 5.25" Slim Line (available)
• Internal: 4 x 3.5" LFF (available)

Expansion Slots

• CPU: 2 (1 available)
• DIMM: 16 (15 available)
• PCIe 3.0 x16: 1 (available, half-length, full-height)
• PCIe 3.0 x8: 1 (available, low-profile)

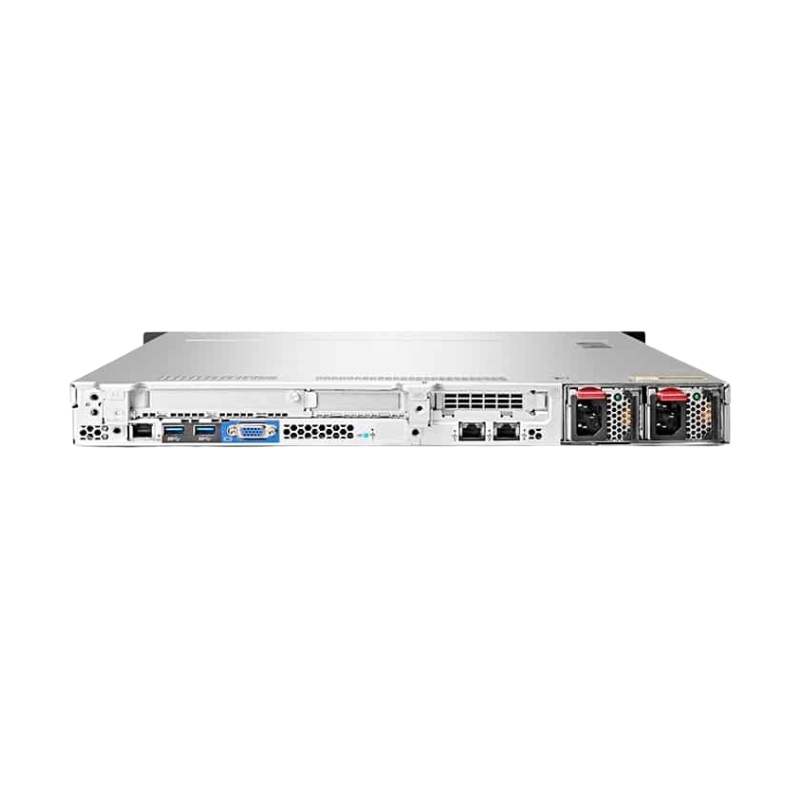

Interfaces & Ports

• LAN Ports: 2 x Gigabit Ethernet (RJ-45)
• HP iLO Port: 1 x (RJ-45)
• VGA Port: 1 x
• USB Ports: 1 x USB 2.0 (front), 3 x USB 3.0 (2 rear, 1 internal)

Miscellaneous

Included Accessories

• Rail Kit: HPE Short Friction Rail Kit

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• CNS 13438

Power Specifications

• Type: Non-hot-plug Power Supply
• Nominal Voltage: AC 100-240V (50/60 Hz)
• Power Output: 550 Watts

Dimensions & Weight

• Width: 17.1 inches
• Depth: 23.9 inches
• Height: 1.7 inches
• Weight: 22 lbs

Improved Performance

The E5-2609v4 processor features a total of 8 cores and 16 threads, allowing it to handle demanding workloads with ease. With a base clock speed of 1.7GHz and a maximum turbo frequency of 3.7GHz, this processor can rapidly process data and execute tasks efficiently. It also supports Hyper-Threading technology, which enables each core to handle two threads simultaneously, further enhancing performance.

Enhanced Productivity

By utilizing the E5-2609v4 processor, businesses can experience increased productivity in their daily operations. The processor's advanced architecture ensures smooth multitasking capabilities, enabling users to run multiple applications simultaneously without experiencing any lag or slowdowns. This is particularly beneficial for businesses that rely on resource-intensive software or perform data-intensive tasks.

Optimized Virtualization

Virtualization has become an essential component of modern IT infrastructure, allowing businesses to maximize the utilization of their resources. The E5-2609v4 processor supports Intel Virtualization Technology (VT-x), which enhances virtual machine performance by offloading virtualization-related tasks to dedicated hardware. This results in improved efficiency and responsiveness in virtualized environments.

Energy Efficiency

In addition to its impressive performance capabilities, the E5-2609v4 processor is designed with energy efficiency in mind. It features Intel's Enhanced SpeedStep Technology, which dynamically adjusts the processor's frequency and voltage based on workload demands. This intelligent power management enables the server to optimize its energy consumption while maintaining high levels of performance.

Memory

The HPE Proliant DL160 Smart Buy Server is equipped with 8GB DDR4 SDRAM, providing ample memory capacity for various applications and workloads. This memory configuration offers several benefits and is crucial for ensuring optimal server performance.

Faster Data Access

DDR4 SDRAM is the latest generation of memory technology, offering significant improvements over its predecessor. With higher clock speeds and increased data transfer rates, DDR4 memory enables faster access to data stored on the server. This results in reduced latency and improved overall system responsiveness, allowing users to access their applications and data quickly.

Efficient Multitasking

The 8GB capacity of DDR4 SDRAM ensures that the server can handle multiple tasks simultaneously without experiencing performance bottlenecks. This is particularly beneficial for businesses that rely on multitasking or run resource-intensive applications. With ample memory, the server can efficiently allocate resources to each task, ensuring smooth operation and preventing slowdowns.

Scalability and Future-Proofing

The 8GB DDR4 SDRAM configuration provides a solid foundation for future scalability. As business needs grow and evolve, additional memory modules can be easily added to expand the server's capacity. This flexibility allows businesses to adapt their infrastructure to increasing demands without requiring a complete hardware overhaul.

Reliability and Error Correction

DDR4 SDRAM incorporates advanced error correction capabilities, ensuring data integrity and system stability. The memory modules are equipped with Error Correcting Code (ECC) technology, which detects and corrects single-bit errors automatically. This feature is crucial for businesses that handle critical data or operate in industries where data integrity is of utmost importance.

Drive Bays

The HPE Proliant DL160 Smart Buy Server features 4LFF (Large Form Factor) drive bays, providing ample storage capacity for businesses with growing data requirements. The drive bays offer various benefits and are essential for efficient data management and storage.

High Storage Capacity

The 4LFF drive bays allow businesses to install multiple large-capacity hard drives or solid-state drives (SSDs) within the server. This enables businesses to store vast amounts of data, including files, applications, and databases, all in one centralized location. With ample storage capacity, businesses can easily manage their expanding data needs without the need for additional external storage devices.

Flexibility and Customization

The 4LFF drive bays provide flexibility when it comes to configuring the server's storage setup. Businesses can choose to install a combination of hard disk drives (HDDs) and SSDs based on their specific requirements. HDDs are ideal for cost-effective storage of large volumes of data, while SSDs offer faster access times and improved performance for critical applications or frequently accessed data.

Hot-Swap Capability

One of the key advantages of the 4LFF drive bays is their hot-swappable design. This means that drives can be inserted or removed from the server while it is still running, without causing any disruption to operations. Hot-swapping allows businesses to replace faulty or outdated drives without having to power down the server, ensuring minimal downtime and uninterrupted access to data.

Data Redundancy and RAID Support

The DL160 Smart Buy Server supports various RAID (Redundant Array of Independent Disks) configurations, which enhance data redundancy and protection against drive failures. By utilizing RAID technology, businesses can create mirrored or striped arrays across multiple drives, ensuring that data remains accessible even if one or more drives fail. This level of data protection is crucial for businesses that cannot afford to lose critical information.

Network Adapter

The HPE Proliant DL160 Smart Buy Server is equipped with a 1GB 2-Port Nc361i network adapter, offering reliable and high-performance networking capabilities. The network adapter plays a crucial role in ensuring seamless connectivity and efficient data transfer between the server and the network.

High-Speed Connectivity

The 1GB 2-Port Nc361i network adapter provides Gigabit Ethernet connectivity, enabling fast and reliable data transfer between the server and other devices on the network. This high-speed connection is essential for businesses that require rapid access to shared resources or handle large volumes of network traffic. With Gigabit Ethernet, businesses can experience smooth and uninterrupted communication across their network infrastructure.

Improved Network Performance

The network adapter's advanced features, such as TCP/IP offloading, help improve overall network performance. TCP/IP offloading allows the adapter to handle the processing of network protocols, reducing the server's CPU utilization and improving overall system efficiency. This results in faster data transfer rates and reduced latency, ensuring that network-intensive applications run smoothly.

Virtualization Support

For businesses utilizing virtualization technology, the 1GB 2-Port Nc361i network adapter offers excellent support. It is compatible with virtualization technologies like VMware and Hyper-V, allowing businesses to seamlessly integrate the server into their virtualized environments. This enables efficient allocation of network resources to virtual machines, ensuring optimal performance and responsiveness.

Reliability and Redundancy

The DL160 Smart Buy Server's network adapter supports features like link aggregation and failover, enhancing reliability and redundancy in networking. Link aggregation combines multiple network connections into a single logical link, increasing bandwidth and providing fault tolerance. Failover ensures that if one network connection fails, traffic is automatically rerouted through an alternate connection, minimizing downtime and ensuring continuous network connectivity.

Power Supply

The HPE Proliant DL160 Smart Buy Server is equipped with a 550W power supply, providing reliable and efficient power to the server's components. The power supply is a critical component of any server infrastructure and plays a vital role in ensuring uninterrupted operation.

Stable and Reliable Power Delivery

The 550W power supply delivers a stable and consistent power output, ensuring reliable operation of the server's components. It provides the necessary voltage levels required by the processor, memory, drives, and other components, preventing system instability or damage caused by fluctuating power.

Energy Efficiency

In addition to its reliable performance, the 550W power supply is designed with energy efficiency in mind. It meets industry-leading standards for energy efficiency, such as 80 PLUS certification. This certification ensures that the power supply operates at high efficiency levels, minimizing energy waste and reducing operating costs for businesses.

Redundancy and Failover Support

The DL160 Smart Buy Server's power supply supports redundant configurations and failover capabilities. Redundant power supplies provide backup power in case one power supply fails, ensuring uninterrupted operation. Failover mechanisms automatically switch to the backup power supply in case of a failure, minimizing downtime and maintaining continuous power delivery.

Quiet Operation

The 550W power supply is designed to operate quietly, minimizing noise levels in the server environment. This is particularly important for businesses that require a quiet working environment or have limited space for server deployment. The quiet operation ensures that the server can be placed in various office environments without causing disturbance or inconvenience.

In conclusion, the HPE Proliant DL160 Smart Buy Server offers an exceptional combination of features and capabilities. The E5-2609v4 processor delivers outstanding performance, enabling businesses to handle demanding workloads efficiently. The 8GB DDR4 SDRAM provides ample memory capacity for multitasking and ensures smooth operation of applications. The 4LFF drive bays offer high storage capacity, flexibility, and data redundancy options. The 1GB 2-Port Nc361i network adapter provides high-speed and reliable connectivity, while the 550W power supply ensures stable and efficient power delivery. With these features, the DL160 Smart Buy Server is an ideal choice for businesses seeking a powerful and reliable server solution.
