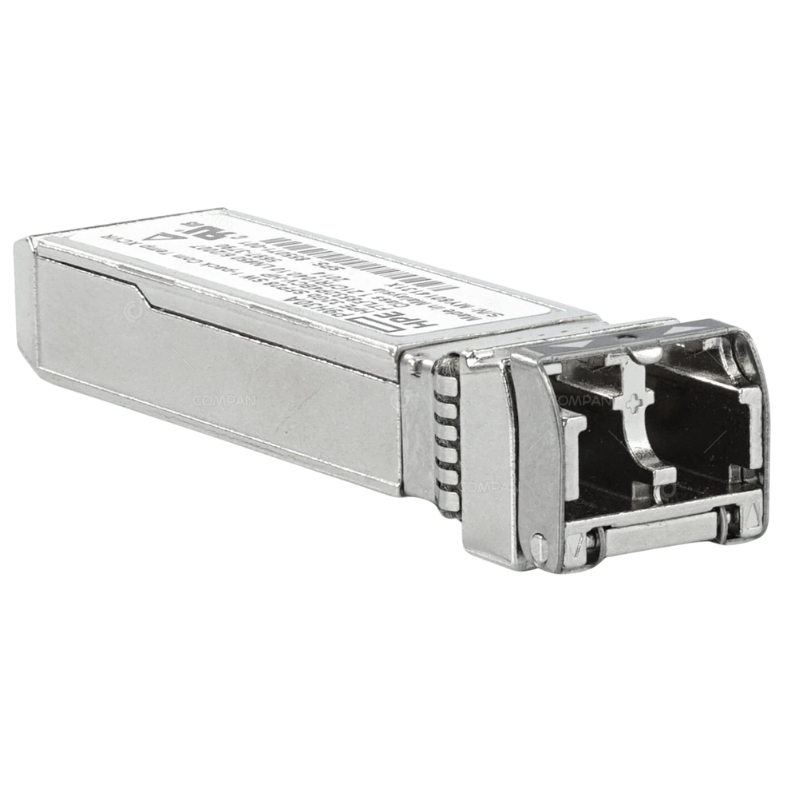

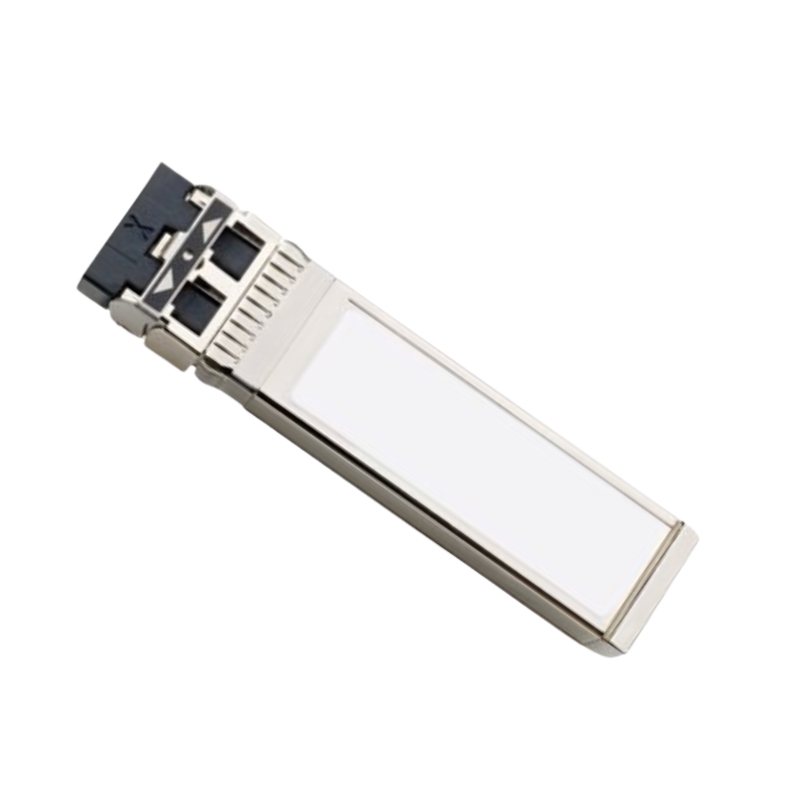

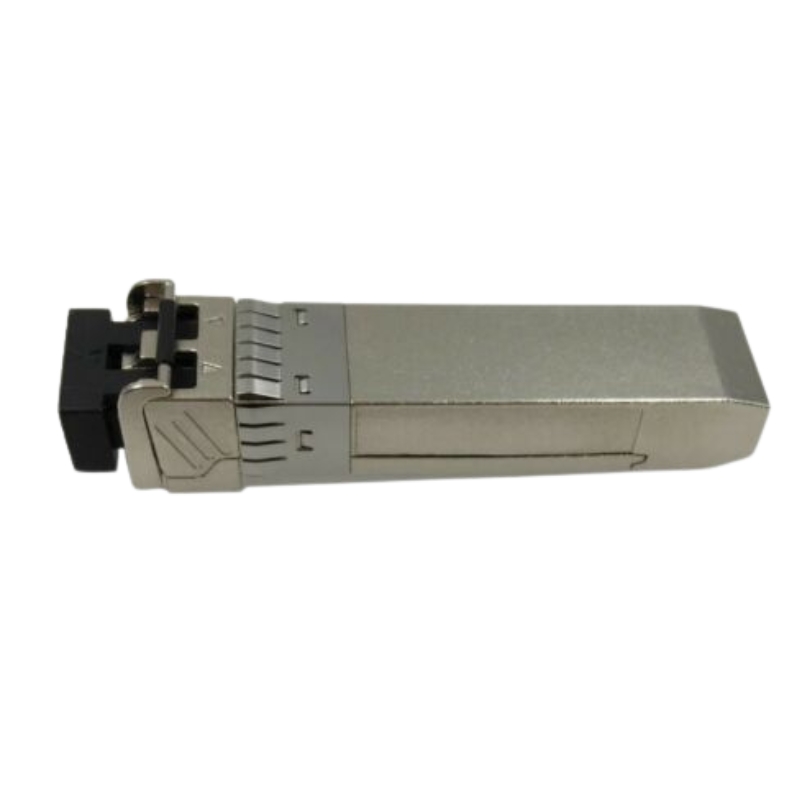

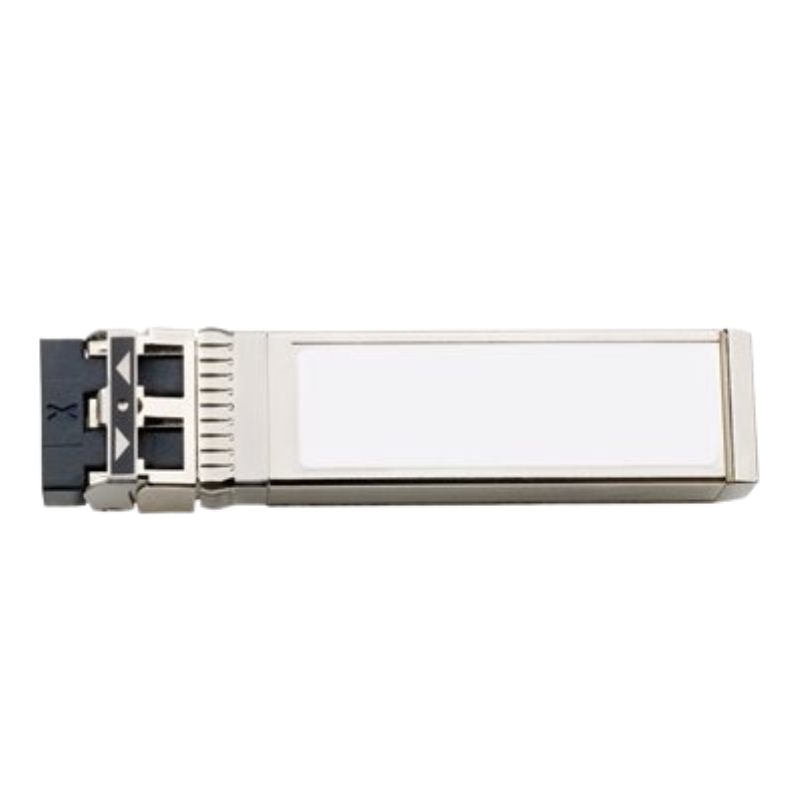

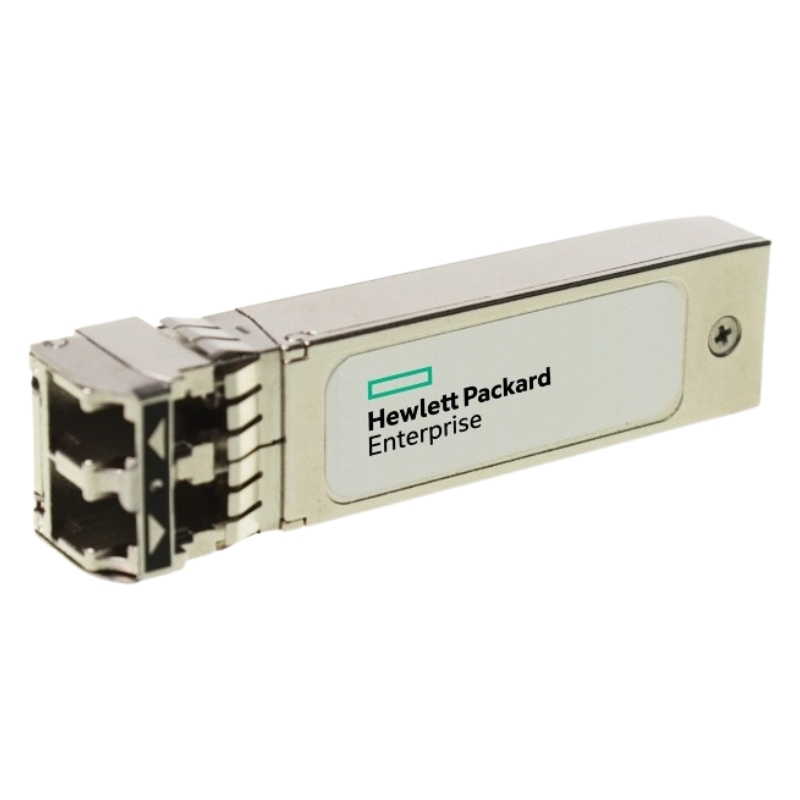

HPE 855070-001 B-series 32gb SFP28 Long Wave 1-pack Transceiver

Overview of the HPE 855070-001 B-Series 32GB SFP28 Long Wave 1-Pack Transceiver

The HPE 855070-001 B-Series 32GB SFP28 Long Wave Transceiver is a high-performance optical transceiver module designed to provide high-speed data transmission over long distances. Supporting a 32Gbps (gigabits per second) data rate, the transceiver is optimized for Fibre Channel networking and is commonly used in storage area networks (SANs), data centers, and other high-performance computing environments. This module offers a 1-pack configuration, providing businesses with an efficient and scalable solution for upgrading or expanding their network infrastructure.

Key Features of the HPE 855070-001 Transceiver

The HPE 855070-001 B-Series 32GB SFP28 Long Wave Transceiver comes with several important features that ensure high performance, reliability, and ease of deployment.

High-Speed 32Gbps Data Rate

Designed for high-bandwidth applications, the HPE 855070-001 transceiver provides an impressive 32Gbps data rate. This high-speed capability is crucial for modern data centers, which demand fast and reliable data transmission for tasks such as data storage, backup, and real-time processing. The 32Gbps speed enables fast data transfers, reducing latency and improving overall system efficiency.

SFP28 Form Factor

The transceiver utilizes the SFP28 form factor, which is a smaller, more efficient version of the traditional SFP+ module. The SFP28 interface supports data rates of up to 32Gbps, making it an ideal solution for next-generation Fibre Channel networks. The compact size of the SFP28 form factor allows for higher density in network configurations, ensuring that your system can support the growing demands of modern workloads.

Long-Wave Optics for Extended Reach

The HPE 855070-001 features long-wave optics, enabling the transceiver to transmit data over distances of up to 10 kilometers (6.2 miles) using single-mode fiber. This extended reach is ideal for connecting distant devices in large-scale data centers or wide-area networks, ensuring that high-speed data transmission is possible across long distances without significant signal degradation.

High Compatibility with HPE B-Series Switches

Designed for use with HPE B-Series Fibre Channel switches, the HPE 855070-001 transceiver ensures seamless integration into HPE network environments. This module is optimized to work with HPE's line of enterprise networking equipment, allowing for easy deployment and long-term stability. By ensuring compatibility with HPE hardware, businesses can rely on consistent performance across their entire network infrastructure.

Energy Efficiency

Incorporating the latest energy-saving technology, the HPE 855070-001 is designed to minimize power consumption while maintaining high data transmission rates. Its energy-efficient operation helps businesses reduce operating costs, especially in environments where numerous transceivers are deployed. This energy-saving feature also helps support sustainability initiatives by reducing the overall carbon footprint of your network infrastructure.

Specifications of the HPE 855070-001 Transceiver

To understand the full capabilities of the HPE 855070-001 transceiver, it's essential to review its technical specifications, which highlight its performance and physical attributes.

General Specifications

• Model Number: 855070-001
• Data Rate: 32Gbps
• Form Factor: SFP28
• Wavelength: 1330 nm (Long Wave)
• Connector: LC duplex
• Fiber Type: Single-mode fiber
• Transmission Distance: Up to 10 km (6.2 miles)
• Transmitter Power: -3.4 dBm
• Receiver Sensitivity: -14 dBm

Performance Specifications

• Speed: 32Gbps
• Optical Loss Budget: 7.3 dB
• Power Consumption: 1.0W (typical)
• Connector Type: LC duplex

Environmental and Physical Specifications

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 85% (non-condensing)
• Dimensions (L x W x H): 56.5mm x 13.4mm x 8.5mm
• Weight: 0.02 kg

Compliance and Certifications

• Compliant with IEEE 802.3bm and Fibre Channel Standards
• RoHS Compliant
• CE Certified
• UL Listed
• Class 1 Laser Safety Certified

Applications of the HPE 855070-001 Transceiver

The HPE 855070-001 B-Series 32GB SFP28 Long Wave Transceiver is designed for high-performance networking environments that require reliable, long-range, and high-speed optical connectivity. Below are some of the key applications where this transceiver excels:

Storage Area Networks (SANs)

Fibre Channel-based SANs are often used in environments where high-speed data access and low-latency communication are critical. The HPE 855070-001 transceiver supports the high bandwidth required for storage systems, enabling rapid data transfers between servers, storage devices, and other networked devices in SAN architectures. This transceiver is ideal for businesses that require reliable and fast storage solutions for mission-critical applications.

Data Center Networking

Data centers often need high-speed connections to support large-scale data processing, storage, and backup operations. The HPE 855070-001 transceiver enables long-distance, high-speed connectivity between various components in the data center, such as servers, storage devices, and switches. With a reach of up to 10 kilometers, this transceiver is ideal for large data center environments where long-range fiber optic connections are necessary.

High-Performance Computing (HPC)

HPC applications require ultra-fast and reliable networking to handle complex simulations and large data sets. The HPE 855070-001 transceiver provides the necessary performance for high-bandwidth tasks in environments like scientific research, financial modeling, and AI/ML workloads. Its 32Gbps data rate allows for the rapid movement of large datasets, improving the overall efficiency of computational tasks in HPC clusters.

Cloud Computing and Virtualization

Cloud environments require scalable, high-speed networking to support virtualized applications and services. The HPE 855070-001 is a great fit for cloud-based networks, offering the performance and reach needed to interconnect multiple servers, storage systems, and virtualized environments. Its long-wave optics provide reliable connectivity over long distances, ensuring that cloud services remain accessible and performant for users across vast geographical areas.

Enterprise Networks

As enterprises grow and their network traffic increases, they require scalable, high-performance solutions to meet their networking needs. The HPE 855070-001 transceiver is perfect for enterprise environments that require low-latency, high-bandwidth communication across their network infrastructure. It is ideal for upgrading or expanding existing Fibre Channel networks to support the demands of modern applications.

Benefits of the HPE 855070-001 Transceiver

By implementing the HPE 855070-001 B-Series 32GB SFP28 Long Wave Transceiver, businesses can experience a range of benefits that enhance network performance, scalability, and overall efficiency.

Superior Performance

With a data rate of 32Gbps, the HPE 855070-001 offers high-speed performance that can handle even the most demanding applications. Whether it's moving large amounts of data between servers or ensuring fast access to storage, this transceiver provides the throughput needed to ensure smooth operations in critical networking environments.
