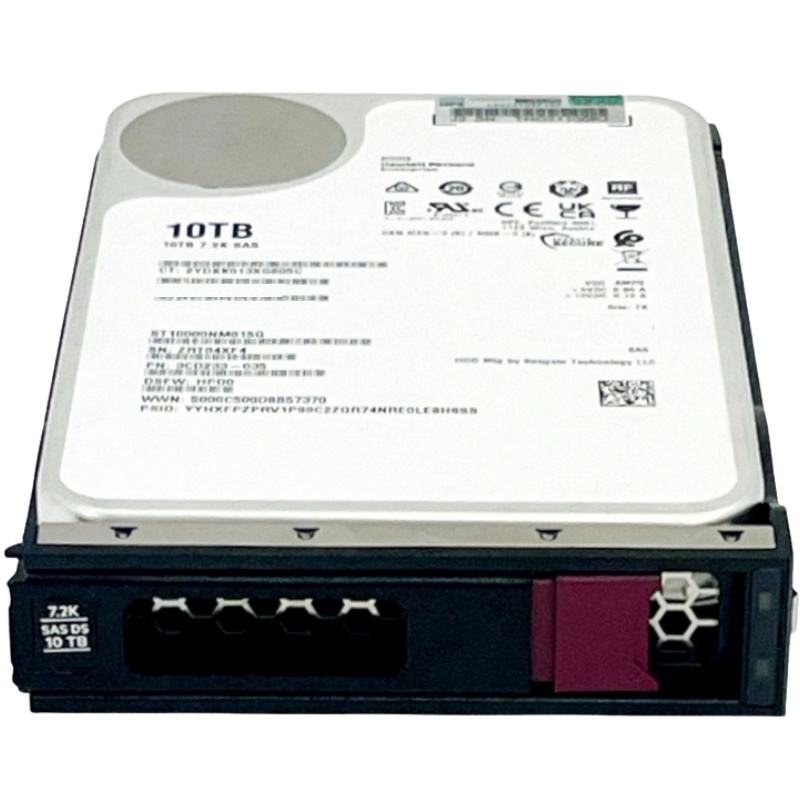

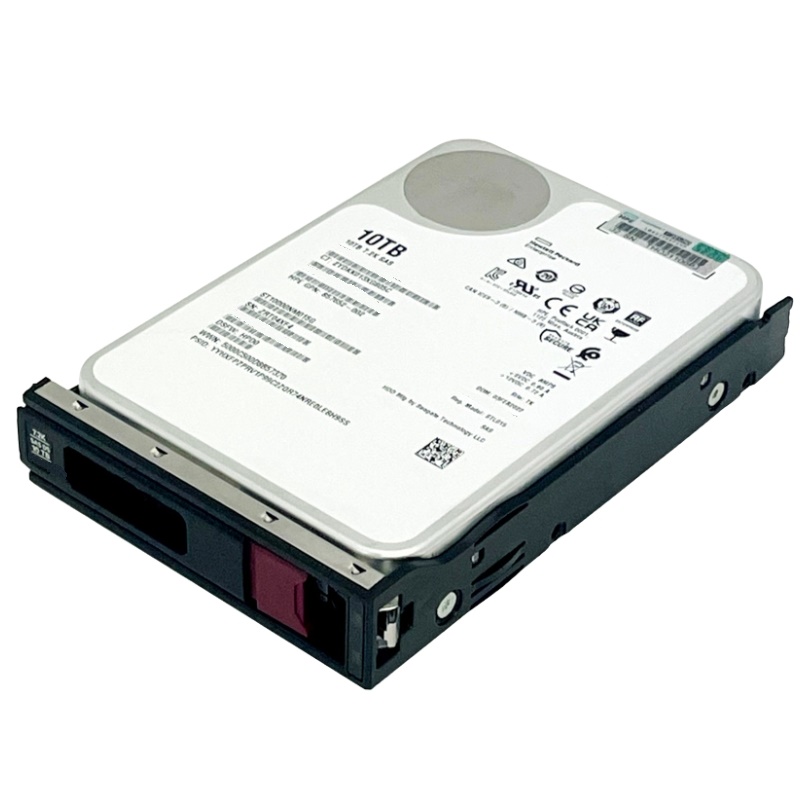

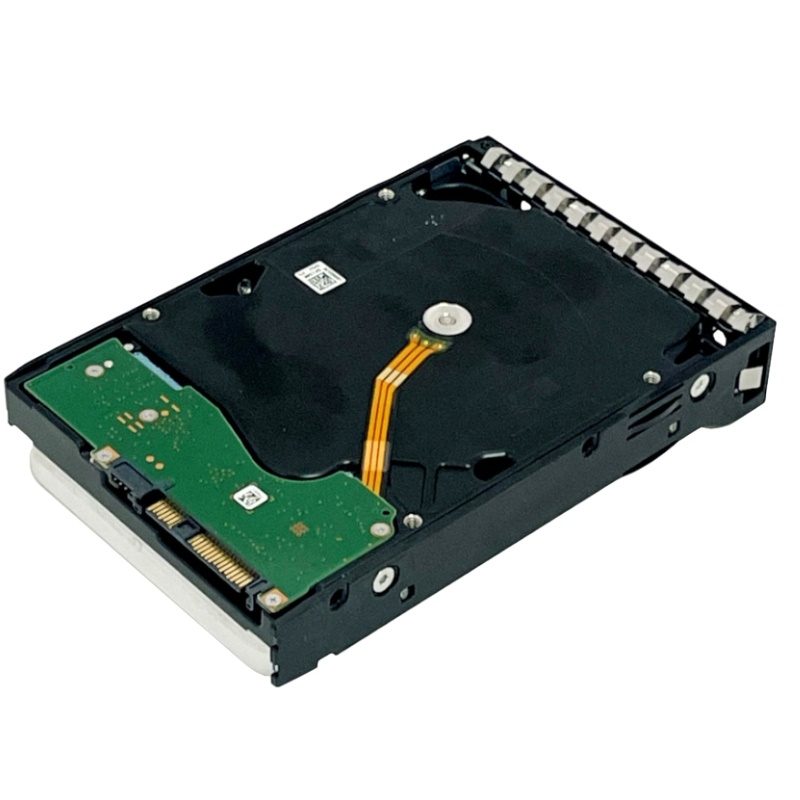

HPE 857644-H21 10TB 7.2K RPM SAS-12GBPS SC Midline Hard Disk

857644-H21
Hover on image to enlarge

Brief Overview of 857644-H21

10TB HPE 857644-H21 7.2K RPM SAS-12GBPS SC Midline Hard Disk. Excellent Refurbished with 6-Month Replacement Warranty

QR Code of HPE 857644-H21 10TB 7.2K RPM SAS-12GBPS SC Midline Hard Disk
$378.00
$253.02
You save: $124.98 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN857644-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview

Manufacturer Details

  • Brand: HPE
  • MPN: 857644-H21

Drive Specifications

  • Type: Midline Hard Drive
  • HDD Classification: SAS 12GBPS
  • Spare Part Number: 857965-001
  • Model Number: MB010000JWAYK
  • Assembly Number: 857642-002
  • HPE GPN: 857652-002

Technical Specifications

Storage Capacity and Design

  • Storage Size: 10 TB
  • Form Factor: 3.5-inch LFF
  • Interface: SAS 12GBPS
  • Bytes per Sector: 512
  • Rotation Speed: 7200 RPM
  • Drive Technology: Helium-Filled
  • Plug Type: Hot Plug
  • Format: 512e
  • Carrier Type: Smart Carrier (SC)
  • Workload Type: Midline
  • Key Features: Advanced format 512e, Digitally Signed Firmware
  • Included With: HPE SmartDrive carrier

Physical Dimensions

  • Width: 4 inches
  • Depth: 5.8 inches
  • Height: 1 inch
  • Weight: 1.52 lbs

Performance Metrics

Speed and Efficiency

  • Max Transfer Rate: 12 Gb/sec
  • Single Track Seek Time: 0.22 ms
  • Average Seek Time: 8.00 ms
  • Full Stroke Seek Time: 16.00 ms
  • Max Sequential Throughput: 235 MiB/s
  • IOPS for 128Kib Random 50% RD/50% WT: 115

Compatibility Information

Supported HPE ProLiant DL Series

  • DL120 Gen9 (3.5 inch)
  • DL120 Gen9 Entry (3.5 inch)
  • DL180 Gen9 Series (3.5 inch variants)
  • DL20 Gen9 Series (3.5 inch variants)
  • DL360 Gen10 Series (3.5 inch variants)

Supported HPE ProLiant ML Series

  • ML110 Gen9 Series (3.5 inch variants)
  • ML150 Gen9 Series (3.5 inch variants)
  • ML30 Gen9 Entry (3.5 inch)

Compatible HPE Enclosures

  • D3600
  • D3610

Capacity: 10TB

When it comes to storage solutions, having ample capacity is a crucial factor for businesses and individuals alike. The HPE 857644-H21 Hard Disk offers an impressive capacity of 10TB, making it an ideal choice for those who require vast amounts of storage space. In this section, we will delve into the benefits and importance of this feature, exploring how it can enhance your storage capabilities.

1. Ample Storage Space

With 10TB of capacity, the HPE 857644-H21 Hard Disk provides an abundance of storage space for all your data needs. Whether you are a small business looking to store large amounts of customer information or an individual with a vast multimedia collection, this hard disk ensures that you never run out of space. It allows you to store countless files, documents, videos, and images without worrying about reaching the storage limit.

2. Enhanced Performance

The high capacity of the HPE 857644-H21 Hard Disk translates into improved performance. With ample space to store your data, you can organize and access your files more efficiently. The larger capacity minimizes the need for frequent transfers or deletions, reducing downtime and improving productivity. You can experience faster data retrieval times and seamless multitasking without any disruption caused by limited storage space.

3. Future-Proof Investment

Investing in a hard disk with a significant capacity like the HPE 857644-H21 is a smart decision for the future. As technology continues to evolve and file sizes increase, having ample storage space becomes even more critical. By opting for a 10TB hard disk, you future-proof your storage needs, ensuring that you won't face any limitations as your data requirements grow over time. It saves you from the hassle and expense of frequently upgrading to larger capacity drives.

4. Versatile Application

The 10TB capacity of the HPE 857644-H21 Hard Disk opens up a world of possibilities for its application. It is suitable for various industries, including data centers, media production, surveillance systems, and personal data storage. Whether you need to store massive amounts of server data or create a backup of your entire media library, this hard disk can handle it all. Its versatility makes it a valuable asset for businesses and individuals with diverse storage needs.

Easy Expansion and Scalability

One significant advantage of the HPE 857644-H21 Hard Disk's 10TB capacity is its ability to accommodate future expansion and scalability. As your storage requirements increase, you can effortlessly add additional drives or create RAID configurations without worrying about running out of space. This scalability ensures that your storage infrastructure remains flexible and adaptable to your evolving needs.

Reduction in Hardware Costs

By opting for a high-capacity hard disk like the HPE 857644-H21, you can potentially reduce hardware costs. Instead of purchasing multiple smaller drives to meet your storage needs, a single 10TB drive can offer the same capacity while requiring fewer physical components. This reduction in hardware not only saves money but also simplifies maintenance and reduces power consumption.

Data Security and Backup

Having a large-capacity hard disk enables you to maintain comprehensive backups of your critical data. With 10TB at your disposal, you can create multiple backup copies, ensuring the safety and integrity of your files. In case of any data loss or system failure, you have peace of mind knowing that your important information is securely stored on the HPE 857644-H21 Hard Disk.

Data Accessibility and Organization

With the 10TB capacity, organizing and accessing your data becomes effortless. You can maintain a well-structured file hierarchy, categorizing your files into folders and subfolders without worrying about space limitations. This organization enhances your productivity and saves time when searching for specific files or documents.

Seamless Multimedia Storage

For multimedia enthusiasts, the HPE 857644-H21 Hard Disk's 10TB capacity is a dream come true. You can store vast collections of high-definition videos, movies, music, and images without compromise. No longer will you need to delete or transfer files to free up space for new additions. The 10TB capacity ensures that you have ample room to grow your multimedia library and enjoy seamless playback without any storage-related interruptions.

Speed: 7.2K RPM

In addition to its impressive capacity, the HPE 857644-H21 Hard Disk boasts a speed of 7.2K RPM (rotations per minute). This speed contributes significantly to the overall performance and efficiency of the hard disk. In this section, we will explore the benefits and importance of this feature, shedding light on how it enhances your data storage experience.

1. Faster Data Transfer

The 7.2K RPM speed of the HPE 857644-H21 Hard Disk allows for faster data transfer rates. With each rotation, the disk can read and write data more quickly, resulting in reduced transfer times. This speed is particularly beneficial when dealing with large files or performing data-intensive tasks like video editing or database management. It ensures that you can complete your operations swiftly, enhancing productivity and minimizing waiting times.

2. Improved System Responsiveness

The higher rotational speed of the HPE 857644-H21 Hard Disk leads to improved system responsiveness. As data is accessed and retrieved faster, your computer or server can process instructions more efficiently. This translates into snappier application launch times, smoother multitasking, and reduced lag. Whether you are running resource-intensive software or working with multiple applications simultaneously, the 7.2K RPM speed ensures that your system remains responsive and performs optimally.

3. Enhanced Performance in RAID Configurations

For users employing RAID (Redundant Array of Independent Disks) configurations, the 7.2K RPM speed of the HPE 857644-H21 Hard Disk is particularly advantageous. RAID setups distribute data across multiple drives, improving performance and data redundancy. When all drives operate at a higher rotational speed, the overall performance of the RAID array is significantly enhanced. The increased speed of the HPE 857644-H21 ensures that your RAID setup operates at peak efficiency, delivering optimal performance and data protection.

4. Reduced Latency

The 7.2K RPM speed of the HPE 857644-H21 Hard Disk contributes to reduced latency. Latency refers to the time delay between a request for data and its retrieval. With a higher rotational speed, the disk can access the required data more quickly, minimizing latency and improving overall system responsiveness. This reduced latency is particularly crucial in scenarios where real-time data processing or quick access to frequently accessed files is essential.

Seamless Multimedia Playback

For multimedia enthusiasts, the 7.2K RPM speed is of great importance as it ensures smooth playback of high-definition videos and multimedia content. The faster rotational speed allows for quicker retrieval of multimedia files, eliminating buffering issues or stuttering during playback. Whether you are streaming videos or playing demanding games, the HPE 857644-H21 Hard Disk's 7.2K RPM speed ensures a seamless multimedia experience.

Improved Database Performance

Databases are critical components of many businesses and organizations. The 7.2K RPM speed of the HPE 857644-H21 Hard Disk significantly improves database performance. Faster data retrieval and reduced latency mean that database queries and operations can be processed more swiftly. This translates into quicker response times for applications relying on the database, enhancing overall productivity and efficiency.

Efficient Virtualization

For virtualization environments, the 7.2K RPM speed offers improved efficiency. Virtual machines (VMs) heavily rely on disk I/O operations, and faster rotational speeds ensure that these operations are completed more quickly. Whether you are running multiple VMs or performing resource-intensive tasks within a virtualized environment, the HPE 857644-H21 Hard Disk's speed ensures optimal performance and minimal bottlenecks.

Reduced Power Consumption

While the focus has primarily been on performance, it is worth noting that the 7.2K RPM speed of the HPE 857644-H21 Hard Disk also contributes to reduced power consumption. The higher rotational speed allows for faster data retrieval, reducing the time the disk needs to be active. As a result, power usage is minimized, leading to energy savings and a smaller environmental footprint.

Optimized Backup and Restore Operations

Backup and restore operations are essential for data protection and disaster recovery. The 7.2K RPM speed of the HPE 857644-H21 Hard Disk accelerates these operations, allowing for faster backup creation and restoration. With reduced transfer times, you can efficiently safeguard your critical data and recover it quickly in case of any unforeseen events. This speed ensures that your backup and restore processes are streamlined and minimize any potential downtime.

Interface: SAS-12GBPS

The interface is a key aspect when considering a hard disk, as it determines how the drive connects to your system and influences its overall performance. The HPE 857644-H21 Hard Disk features the SAS-12GBPS interface, offering several benefits and important advantages for users. In this section, we will delve into the significance of this feature and explore its impact on data storage.

1. High Data Transfer Rates

The SAS-12GBPS interface of the HPE 857644-H21 Hard Disk delivers high data transfer rates. With a maximum transfer rate of 12 gigabits per second, it ensures that data can be transmitted swiftly between the drive and your system. This high-speed interface is especially beneficial when dealing with large files or performing data-intensive tasks, allowing for quick and efficient data transfers.

2. Enhanced Scalability

The SAS-12GBPS interface offers enhanced scalability, making it an ideal choice for growing storage needs. The high data transfer rates enable seamless integration of additional drives or expansion of existing storage configurations without compromising performance. Whether you need to add more drives to your server or expand your storage capacity, the SAS-12GBPS interface ensures that your storage infrastructure remains flexible and adaptable.

3. Improved Reliability

Reliability is a crucial factor when it comes to data storage. The SAS-12GBPS interface of the HPE 857644-H21 Hard Disk contributes to improved reliability by employing advanced error detection and correction mechanisms. It ensures that data integrity is maintained during transmission, reducing the risk of corruption or loss. This reliability is particularly vital in enterprise environments where data consistency and accuracy are paramount.

4. Hot Swapping Capabilities

The SAS-12GBPS interface supports hot swapping, allowing for the removal or addition of drives without having to shut down the system. This feature is highly convenient in scenarios where uninterrupted operation is essential, such as in data centers or mission-critical environments. With hot swapping, you can easily replace faulty drives or expand storage capacity on the fly, minimizing downtime and ensuring continuous data availability.

Efficient Data Center Management

For data centers with extensive storage infrastructures, the SAS-12GBPS interface streamlines management and maintenance. The high data transfer rates and hot swapping capabilities enable efficient data center operations by simplifying drive installation, removal, and replacement. This interface ensures that data centers can quickly adapt to changing storage requirements and maintain optimal performance.

Optimized Performance in RAID Configurations

The SAS-12GBPS interface is particularly advantageous for RAID configurations. When multiple drives are combined in a RAID setup, the high data transfer rates ensure that the data can be transmitted swiftly between the drives. This optimized performance enhances the overall efficiency and reliability of the RAID array, delivering superior performance and data redundancy.

Compatibility with Existing Systems

The SAS-12GBPS interface offers backward compatibility with previous SAS versions, ensuring seamless integration with existing systems. Whether you are upgrading your storage infrastructure or adding new drives to an older system, the HPE 857644-H21 Hard Disk's SAS-12GBPS interface ensures compatibility and eliminates any compatibility concerns or limitations.

Scalable Storage for Video Surveillance

In video surveillance systems where vast amounts of data are constantly being recorded and stored, the SAS-12GBPS interface provides scalable storage options. The high data transfer rates enable efficient recording and retrieval of surveillance footage, ensuring that no frames are missed and critical events are captured accurately. With the SAS-12GBPS interface, video surveillance systems can seamlessly scale their storage capacity to meet growing demands.

Efficient Data Backup and Recovery

The SAS-12GBPS interface significantly improves data backup and recovery operations. The high transfer rates allow for faster creation of backups, minimizing the time required to safeguard critical data. In case of any data loss or system failure, the quick data retrieval enabled by the SAS-12GBPS interface ensures that your recovery process is swift and efficient. This interface is essential for maintaining robust backup and recovery strategies.

Accelerated Data Migration

Data migration is a common task when upgrading storage systems or moving data between drives. The SAS-12GBPS interface accelerates data migration by providing high-speed data transfer capabilities. Whether you are transferring data from an old drive to a new one or migrating data between storage arrays, the SAS-12GBPS interface ensures that the process is completed quickly and efficiently, minimizing disruption and downtime.

Form Factor: SC Midline

The form factor of a hard disk refers to its physical size and shape, determining its compatibility with different systems and storage enclosures. The HPE 857644-H21 Hard Disk features the SC Midline form factor, which offers several benefits and advantages for users. In this section, we will explore the significance of this feature and its impact on storage solutions.

1. Compact Design

The SC Midline form factor of the HPE 857644-H21 Hard Disk enables a compact design, making it suitable for environments with limited space. Whether you are building a small-scale server or need to fit multiple drives in a compact storage enclosure, the SC Midline form factor ensures efficient utilization of space. Its compact size allows for easy installation in tight spaces without compromising performance or capacity.

2. Increased Storage Density

The SC Midline form factor enables increased storage density, making it an ideal choice for applications where maximizing capacity within a limited area is crucial. By utilizing the SC Midline form factor drives, you can fit more drives into your storage system without requiring additional physical space. This increased storage density is particularly beneficial in data centers or server rooms where space optimization is essential.

3. Improved Airflow and Cooling

The compact design and efficient layout of SC Midline form factor drives contribute to improved airflow and cooling within storage enclosures. With reduced physical footprint, the drives allow for better air circulation, preventing heat buildup and maintaining optimal operating temperatures. This enhanced cooling ensures that the drives can perform reliably, reducing the risk of overheating and extending their lifespan.

4. Easy Integration and Replacement

The SC Midline form factor ensures easy integration and replacement in various systems and storage enclosures. Whether you are upgrading your storage infrastructure or need to replace a faulty drive, the SC Midline form factor allows for straightforward installation and removal. Its standardized size and connectors ensure compatibility with a wide range of storage solutions, eliminating any compatibility concerns or limitations.

Optimized Storage Density in Rack Servers

For rack servers with limited physical space, the SC Midline form factor maximizes storage density. By utilizing these compact drives, you can fit more storage capacity within the limited rack space available. This optimization allows for efficient utilization of resources and ensures that your rack servers can accommodate growing storage requirements without the need for additional physical infrastructure.

Enhanced Efficiency in Blade Servers

Blade servers are known for their high-density architecture, where multiple server modules are housed in a single chassis. The SC Midline form factor drives are ideal for blade servers as they enable efficient utilization of space within the limited blade enclosure. By utilizing these compact drives, you can equip each blade module with ample storage capacity without compromising the overall density and performance of the blade server.

Seamless Integration in Storage Arrays

Storage arrays often require large numbers of drives to provide extensive storage capacity. The SC Midline form factor ensures seamless integration of drives within these storage arrays, allowing for efficient utilization of space and enhanced storage density. By utilizing drives with the SC Midline form factor, you can maximize the capacity of your storage arrays without requiring additional physical infrastructure.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
