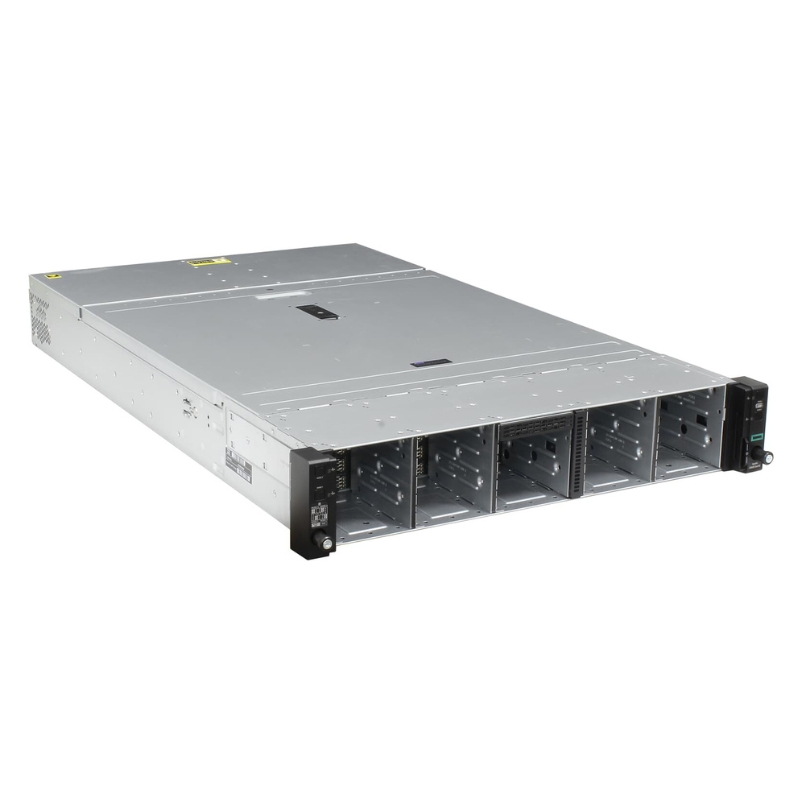

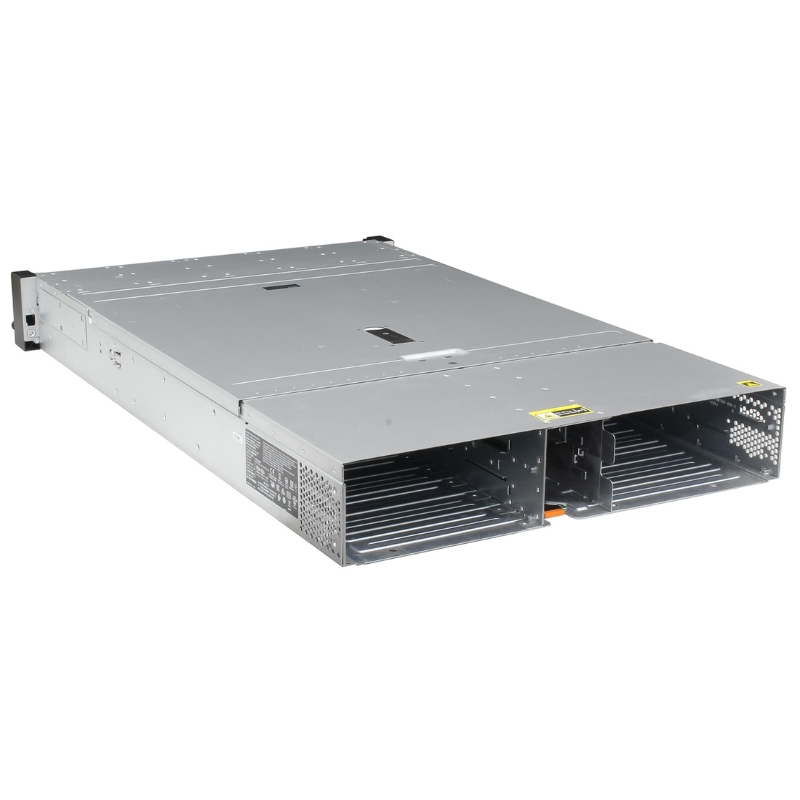

867158-B21 HPE Apollo R2600 Gen10 24 SFF Premium CTO Chassis.

HPE 867158-B21 Apollo R2600 Gen10 24 SFF Premium CTO Chassis Overview

The HPE Apollo r2600 Gen10 (Model 867158-B21) represents a robust, high-performance server platform designed to meet the demanding requirements of modern data centers. Engineered with precision, this 2U rack server delivers exceptional computational power, flexible storage options, and advanced management capabilities, making it ideal for virtualization, high-performance computing, and enterprise workloads.

Technical Specifications

• Brand: HPE
• Model Number: 867158-B21
• Product Name: HPE Apollo r2600 Servers
• Processor Options: Intel Xeon Processor E5-2600 v4 Series
• Memory: 16 DDR4 DIMM slots, up to 3TB
• System Bus: Up to 9.6 GT/s QPI
• Storage Controller: HPE Smart Array P440ar/2G FIO Controller
• Storage Options: Hot Plug LFF SAS/SATA, SSDs
• Expansion Slots: 3 PCIe 3.0 slots
• Network Interface: 4 x 1GbE, optional FlexibleLOM
• Graphics: Integrated Matrox G200
• Form Factor: 2U Rack
• Management: HPE iLO (Integrated Lights-Out)
• Power Supply: 500W Platinum Power Supply
• Cooling: 4 x standard fans
• Operating System Support: Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
• Security: TPM 2.0, Locking Bezel Kit
• Dimensions: Width: 44.55 cm, Depth: 75.18 cm, Height: 8.73 cm

Memory and Performance Capabilities

Designed for memory-intensive applications, the server features 16 DDR4 DIMM slots supporting up to 3TB of system memory. This ensures seamless performance for large-scale database operations, virtualization, and analytics. Additional features include:

• Low-latency memory access for faster data processing.
• Enhanced reliability with ECC protection across all DIMM slots.
• Flexible memory expansion options to accommodate growing business needs.

Storage Solutions for Every Workload

The HPE Apollo r2600 offers versatile storage options suitable for various enterprise scenarios. It supports hot-plug LFF SAS/SATA drives and SSDs, enabling rapid deployment and easy scalability. Key storage features:

• HPE Smart Array P440ar/2G FIO Controller for high-performance RAID configurations.
• Ability to expand storage up to 3TB, meeting diverse capacity requirements.
• Hot-swappable drives for minimal downtime during maintenance.

Expansion and Connectivity

Designed for flexibility, the server comes with multiple expansion and networking options, allowing seamless integration into existing infrastructure:

• Three PCIe 3.0 slots for advanced expansion cards and accelerators.
• Four integrated 1GbE network ports with optional FlexibleLOM for enhanced connectivity.
• Integrated Matrox G200 graphics for basic display and server management tasks.

Management and Remote Administration

HPE iLO (Integrated Lights-Out) provides comprehensive management and remote monitoring capabilities, enhancing server uptime and operational efficiency. Benefits include:

• Remote server power control and health monitoring.
• Automated firmware updates and troubleshooting tools.
• Detailed analytics for proactive maintenance and optimization.

Power and Cooling Efficiency

Energy-efficient design ensures optimal performance while minimizing operational costs:

• 500W Platinum Power Supply for reliable and efficient energy use.
• Four high-performance standard fans for consistent airflow and temperature regulation.
• Advanced thermal design for enhanced system longevity and reliability.

Security Features

The Apollo r2600 Gen10 provides enterprise-grade security to protect critical data and server integrity:

• TPM 2.0 (Trusted Platform Module) for hardware-level security.
• Locking bezel kit to prevent unauthorized physical access.
• Firmware and BIOS protection to guard against malicious attacks.

Operating System and Software Support

Compatible with a broad range of enterprise OS platforms, the server ensures maximum flexibility and ease of integration:

• Microsoft Windows Server for enterprise applications.
• Red Hat Enterprise Linux and SUSE Linux Enterprise Server for open-source environments.
• Full support for virtualization platforms and containerized workloads.

Physical Dimensions and Deployment

The HPE Apollo r2600 is built for dense data center environments, balancing compact design with performance:

• Form factor: 2U rack server, ideal for scalable deployment.
• Dimensions: Width 44.55 cm, Depth 75.18 cm, Height 8.73 cm.
• Lightweight and modular design for quick installation and maintenance.

Why Choose HPE Apollo r2600 Gen10?

• High-performance computing tailored for enterprise workloads.
• Flexible storage and expansion options for future scalability.
• Advanced management and security features ensuring reliability.
• Energy-efficient design reduces operational costs while maintaining performance.
• Trusted HPE quality with robust warranty and support services.

Key Features of HPE Apollo R2600 Gen10 Chassis

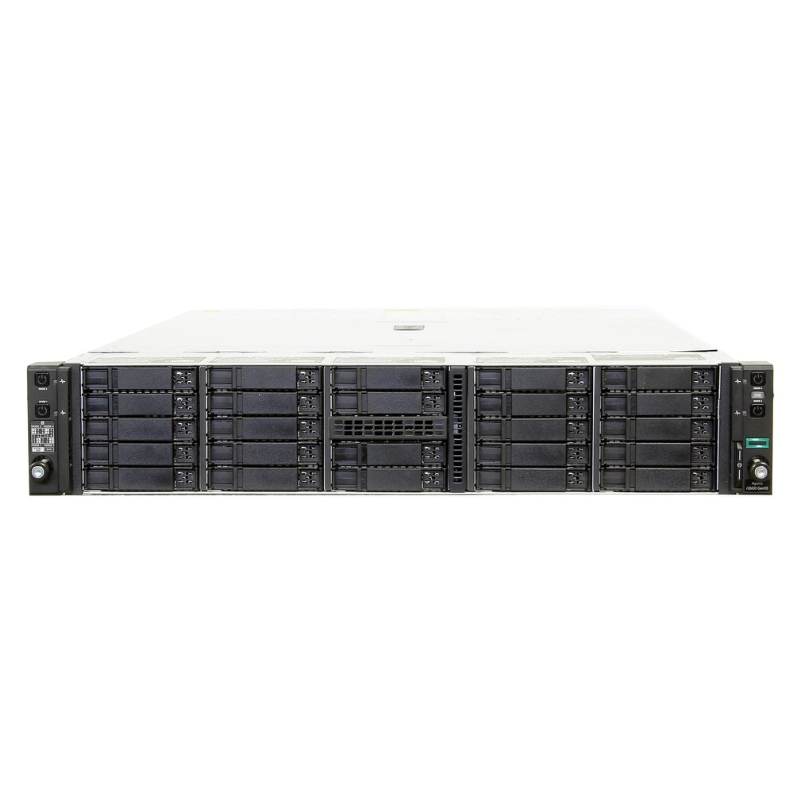

• High-Density Storage Capability: Supports up to 24 Small Form Factor (SFF) drives, maximizing storage capacity while maintaining a compact footprint.
• Advanced CTO Configuration: Configurable to meet specific business needs, allowing customized CPU, memory, and storage options.
• Enterprise-Grade Reliability: Built with premium materials and redundant components for optimal uptime and reliability.
• Enhanced Cooling Architecture: Optimized airflow and high-efficiency cooling solutions to ensure stable performance under heavy workloads.
• Flexible Networking Options: Supports multiple network interface configurations, enabling high-speed connectivity and scalability.

Performance and Scalability

The HPE Apollo R2600 Gen10 chassis is engineered to deliver exceptional performance across a wide range of applications:

Processing Power

Equipped with dual-socket support for the latest Intel Xeon processors, this chassis provides scalable computational power ideal for virtualization, data analytics, and scientific computing.

Memory Expansion

With support for a high number of DIMM slots, the R2600 chassis allows memory expansion to accommodate resource-intensive applications, enabling faster processing and improved data throughput.

Storage Flexibility

• Supports SAS, SATA, and NVMe SFF drives for high-speed storage performance.
• Enables hot-swappable drive configurations to ensure minimal downtime during maintenance.
• Compatible with HPE Smart Array Controllers for enhanced storage management and RAID configurations.

Chassis Design and Build

The Apollo R2600 Gen10 chassis is designed with both performance and operational efficiency in mind:

Compact and High-Density Form Factor

The 2U rack-mounted chassis allows data centers to maximize space utilization without compromising on performance or cooling efficiency.

Thermal Efficiency

Advanced thermal design ensures effective heat dissipation, reducing the risk of hardware failures and improving the lifespan of critical components.

Ease of Maintenance

• Tool-less access for drive bays and internal components.
• Intuitive LED indicators for quick system status monitoring.
• Front-access power supplies and fans for simplified replacement.

Networking and Connectivity Options

The HPE Apollo R2600 Gen10 chassis supports multiple networking configurations suitable for modern enterprise environments:

Integrated Network Interfaces

• Supports dual 1GbE, 10GbE, or optional 25/40GbE adapters.
• Optimized for high-speed data transfer between nodes and external storage systems.

Expansion Flexibility

• Multiple PCIe slots for networking and storage expansion cards.
• Supports HPE FlexibleLOM adapters for customized networking solutions.

Security and Management Features

HPE prioritizes both data security and system management in the Apollo R2600 Gen10 chassis:

Secure Configuration

• TPM-enabled for hardware-level security and encryption.
• Secure boot and firmware validation to prevent unauthorized access.

Intelligent System Management

• Integrated HPE iLO 5 management engine for remote monitoring and management.
• Automated alerts and diagnostic tools for proactive system maintenance.
• Energy-efficient design with predictive analytics for optimized power consumption.

Applications and Use Cases

The HPE 867158-B21 chassis is versatile and suitable for various enterprise applications:

Data Center Optimization

• Supports virtualization platforms like VMware and Hyper-V.
• Enables efficient server consolidation and resource allocation.

High-Performance Computing (HPC)

• Ideal for scientific research, AI workloads, and big data analytics.
• High compute density reduces latency and improves processing efficiency.

Cloud and Hybrid Deployments

• Optimized for private and hybrid cloud infrastructures.
• Supports containerized workloads and orchestration platforms like Kubernetes.

Compatibility and Expandability

The Apollo R2600 Gen10 chassis supports a wide range of HPE components for future-proof scalability:

Processor and Memory Compatibility

• Compatible with Intel Xeon Scalable processors for next-generation computing performance.
• Supports HPE DDR4 SmartMemory modules with error-correcting code (ECC) for reliability.

Storage Integration

• Fully compatible with HPE ProLiant and Apollo storage drives.
• Supports advanced RAID configurations via HPE Smart Array Controllers.

Expansion Modules

• PCIe expansion slots for additional network or storage adapters.
• Optional GPU and accelerator support for AI and HPC workloads.

Energy Efficiency and Environmental Considerations

The Apollo R2600 Gen10 chassis is designed to minimize energy consumption while maintaining optimal performance:

• High-efficiency power supplies reduce energy costs in large-scale deployments.
• Advanced cooling architecture lowers overall thermal footprint.
• HPE GreenLake compatibility supports sustainable IT operations and cloud-managed efficiency.
