868089-001 HPE ConnectX-4 Lx EN 25GbE PCIe3 Network Adapter

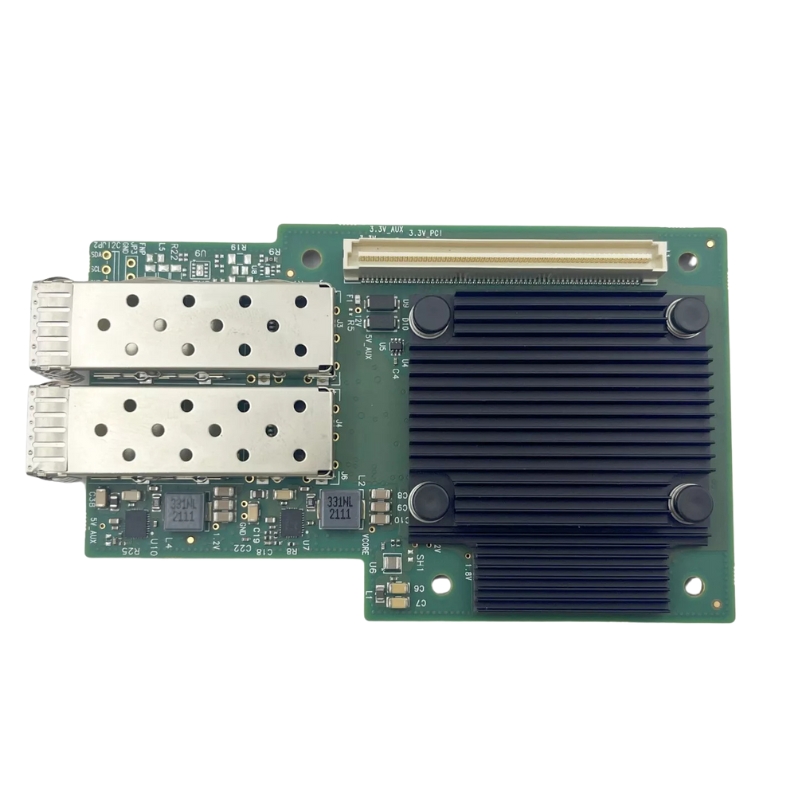

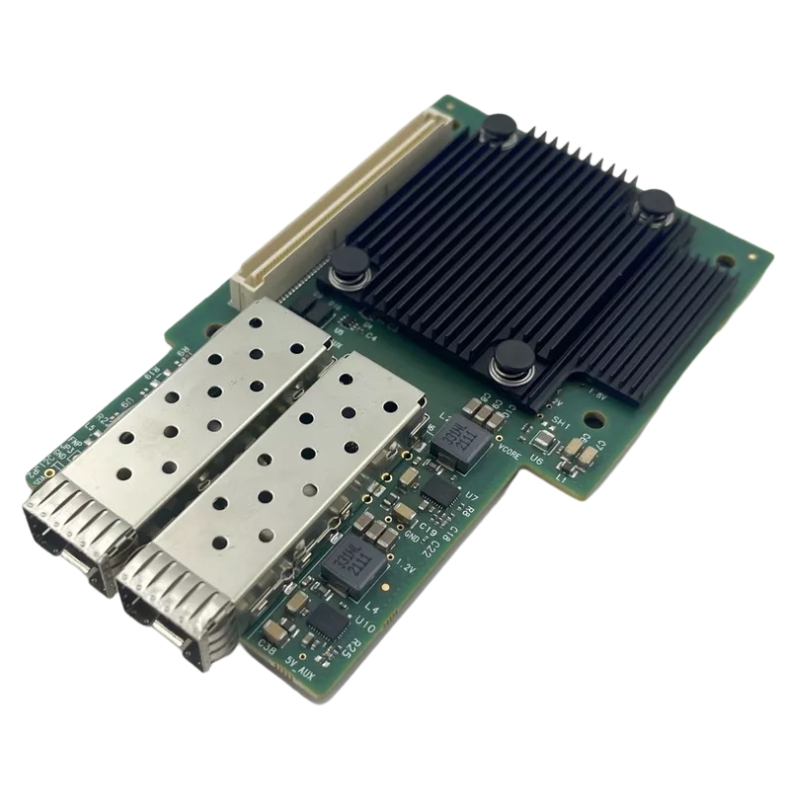

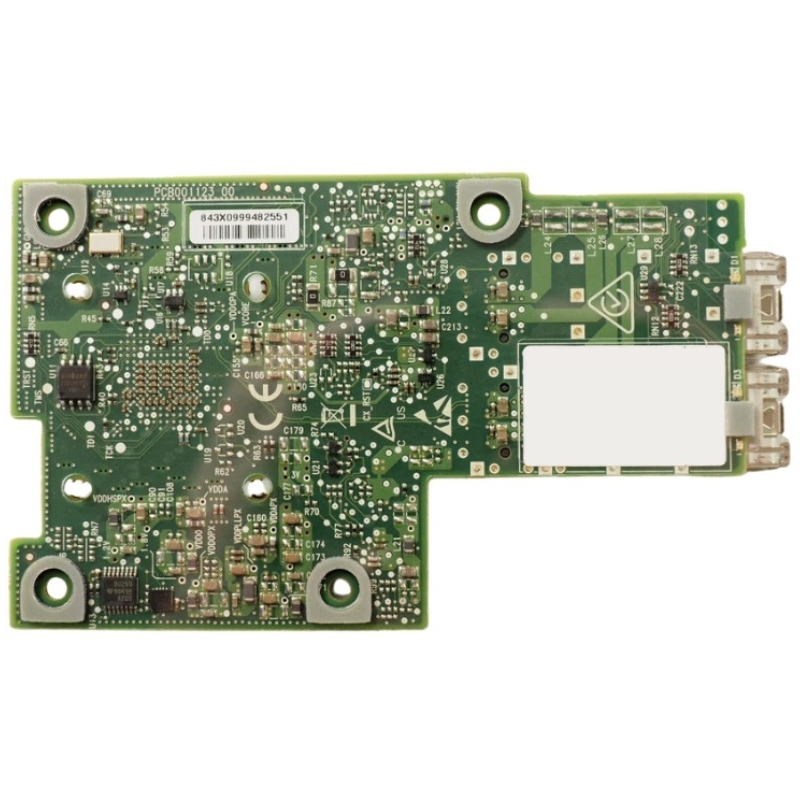

Overview of HPE 868089-001 Mellanox PCIe3 Network Adapter

The HPE 868089-001 Mellanox ConnectX-4 Lx EN 25GbE PCIe3 Network Adapter is a high-speed solution designed for enterprise-grade networking. With dual 25 Gigabit Ethernet ports, advanced compliance standards, and PCIe 3.0 support, it ensures reliable connectivity and optimized performance for modern data centers.

General Information

• Manufacturer: HPE
• Part Number: 868089-001
• Product Type: Network Adapter
• Form Factor: Plug-in Card
• Interface Type: PCI Express 3.0 x8
• PCI Specification Revision: PCIe 1.1, PCIe 2.0, PCIe 3.0

Networking Capabilities

Port Configuration

• Ports: 2 x 25 Gigabit Ethernet
• Protocol: 25 Gigabit LAN
• Data Transfer Rate: 25 Gbps

Performance & Efficiency

High-Speed Connectivity

• Dual 25GbE ports for demanding workloads
• Optimized for enterprise networking and virtualization

Reliability

• Stable throughput for mission-critical applications
• Designed for low-latency communication

IEEE Standards Supported

Ethernet & VLAN

• IEEE 802.1Q (VLAN tagging)
• IEEE 802.1P (Traffic prioritization)
• IEEE 802.3ad (Link Aggregation Control Protocol - LACP)

High-Speed & Energy Efficiency

• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet)

Advanced Networking

• IEEE 802.1QBB (Priority-based Flow Control)
• IEEE 802.1QAZ (Enhanced Transmission Selection)
• IEEE 802.1QAU (Congestion Notification)

Diagnostics & Synchronization

• IEEE 1149.1 (JTAG for testing)
• IEEE 1588v2 (Precision Time Protocol)

HPE 868089-001 ConnectX-4 Lx EN PCIe3 Network Adapter

Modern enterprise environments demand significantly higher throughput, lower latency, and improved scalability compared to traditional 1GbE and even 10GbE infrastructures. The transition toward 25 Gigabit Ethernet represents a critical milestone in this evolution, enabling organizations to meet the exponential growth of cloud workloads, virtualization density, and data-intensive applications. The HPE 868089-001 Mellanox MCX4421A-ACAN ConnectX-4 Lx EN 25GbE PCIe3 Network Adapter is engineered to deliver this transformation with efficiency, stability, and advanced offloading capabilities designed for enterprise and hyperscale data centers.

This network adapter is built on Mellanox ConnectX-4 Lx architecture, widely recognized for its balance of cost efficiency and high-performance networking features. By leveraging PCI Express 3.0 interface technology, it ensures consistent bandwidth delivery while maintaining compatibility with a wide range of server platforms and enterprise workloads.

Architectural Foundation of Mellanox ConnectX-4 Lx EN Technology

Advanced ASIC Design and Packet Processing Engine

At the core of this adapter lies a specialized ASIC designed to handle high-throughput packet processing efficiently. The architecture is optimized for low-latency communication, making it suitable for workloads that require near real-time data exchange such as financial trading systems, cloud-native microservices, and high-performance computing clusters.

The packet processing engine integrates multiple hardware acceleration mechanisms that reduce software dependency and enhance deterministic performance under heavy traffic conditions. This ensures predictable latency even during peak data center utilization periods.

PCIe 3.0 Interface Efficiency

The PCIe 3.0 x8 interface provides a high-bandwidth communication channel between the network adapter and the host system. This interface ensures that the adapter can fully utilize its 25GbE capability without being constrained by system-level data transfer limitations. The efficient lane utilization also reduces latency in data exchange between CPU memory and network buffers.

This interface design is particularly beneficial in dense server environments where multiple adapters may be deployed simultaneously, ensuring scalability without compromising system stability.

25 Gigabit Ethernet Performance Advantages

Bandwidth Optimization for Modern Workloads

The transition from 10GbE to 25GbE offers a 2.5x increase in raw bandwidth, which significantly improves performance for storage replication, distributed computing, and large-scale virtualization environments. This improvement is essential for organizations dealing with big data analytics, artificial intelligence training workloads, and real-time streaming applications.

Low Latency Communication Capabilities

Latency reduction is a critical requirement for high-performance networks. The ConnectX-4 Lx architecture minimizes latency through optimized hardware packet forwarding and intelligent queue management. This ensures that data packets traverse the network stack with minimal delay, improving application responsiveness and system throughput.

Efficient CPU Offloading Mechanisms

One of the most important features of this adapter is its ability to offload CPU-intensive networking tasks. This includes TCP/UDP checksum offloading, segmentation offloading, and interrupt moderation. By reducing CPU overhead, the system can allocate more resources to application-level processing rather than network management.

Multi-Queue Architecture for Parallel Processing

The adapter supports multiple transmit and receive queues that enable parallel processing of network traffic. This architecture aligns with modern multi-core processors, ensuring balanced workload distribution across CPU cores and reducing bottlenecks in packet processing pipelines.

Hypervisor Integration Efficiency

Integration with hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based environments allows seamless deployment in virtualized infrastructures. The adapter’s optimized driver stack ensures minimal performance overhead while maintaining compatibility with enterprise virtualization platforms.

Deployment Considerations in Enterprise Infrastructure

Rack Server Integration Efficiency

The adapter is designed for seamless integration into rack-mounted server systems commonly used in data centers. Its compact form factor and PCIe compatibility ensure easy installation and scalability.

Network Fabric Design Compatibility

It supports leaf-spine and hierarchical network topologies commonly used in modern data center architectures. This ensures optimal traffic flow and reduced latency across network layers.

Bandwidth Planning and Optimization

Proper bandwidth planning is essential when deploying 25GbE infrastructure. This adapter provides predictable performance that helps administrators design efficient network capacity strategies.

Comparison with 10GbE and 40GbE Technologies

Performance Advantage over 10GbE

Compared to 10GbE solutions, the 25GbE architecture offers significantly higher throughput while maintaining similar infrastructure complexity. This makes it an ideal upgrade path for growing enterprises.

Cost Efficiency Compared to 40GbE

While 40GbE provides higher raw bandwidth, it often comes at increased cost and power consumption. The 25GbE standard offers a balanced approach between performance and operational efficiency.

Scalability Advantages in Hybrid Environments

Hybrid environments often combine multiple Ethernet speeds. This adapter supports smooth integration into mixed-speed networks, allowing gradual infrastructure upgrades without disruption.

Energy Efficiency and Thermal Optimization

Power-Aware Operation Modes

The adapter includes energy-efficient operation modes that reduce power consumption during low traffic conditions. This contributes to overall data center energy savings.

Thermal Management Design

Efficient thermal management ensures stable operation under sustained workloads. The hardware is designed to maintain optimal operating temperatures even in high-density server environments.

Reduced Total Cost of Ownership

By combining performance efficiency with reduced power consumption, the adapter helps lower long-term operational costs in enterprise deployments.

Network Convergence and Future-Ready Infrastructure

Unified Data and Storage Networking

The convergence of storage and data networking simplifies infrastructure design and reduces hardware redundancy. This adapter supports such unified architectures effectively.

Support for Emerging Data Center Technologies

As data centers evolve toward automation and software-defined networking, this adapter remains compatible with emerging technologies that prioritize flexibility and scalability.

Long-Term Infrastructure Relevance

Designed with forward compatibility in mind, the adapter ensures relevance in evolving enterprise environments where network demands continue to grow rapidly.
