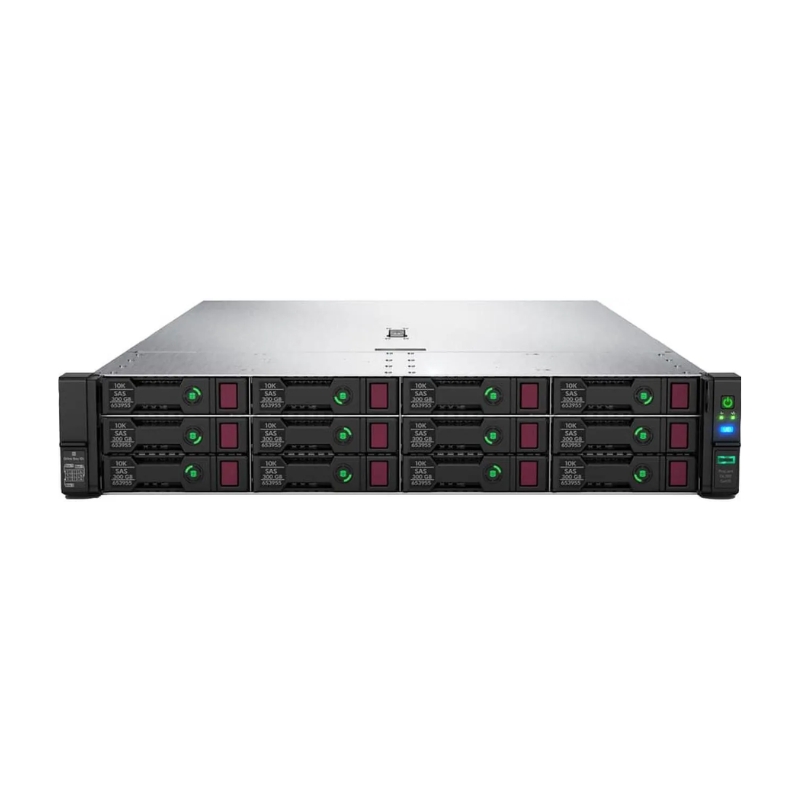

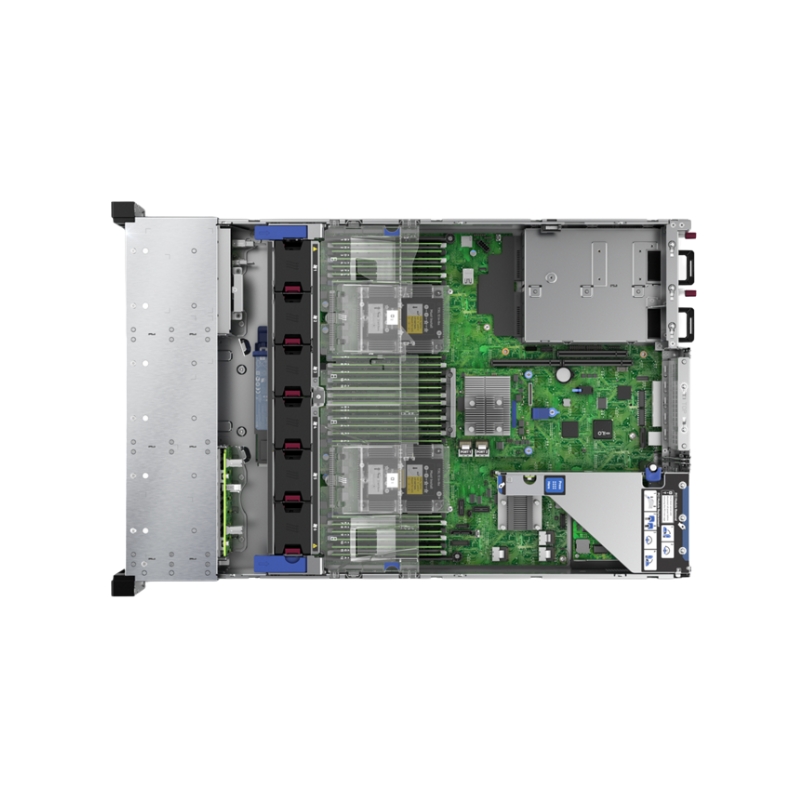

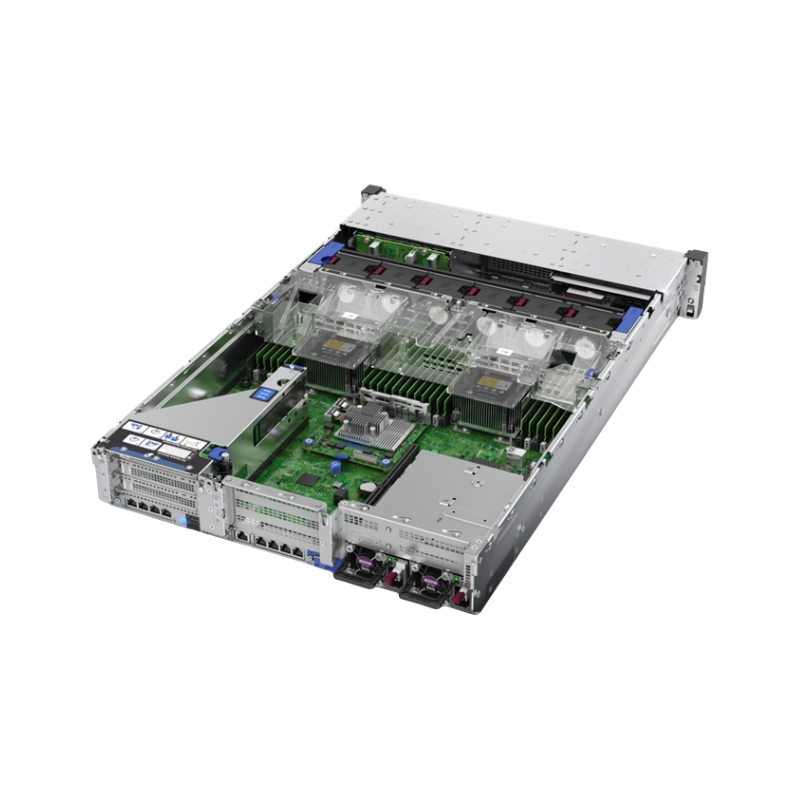

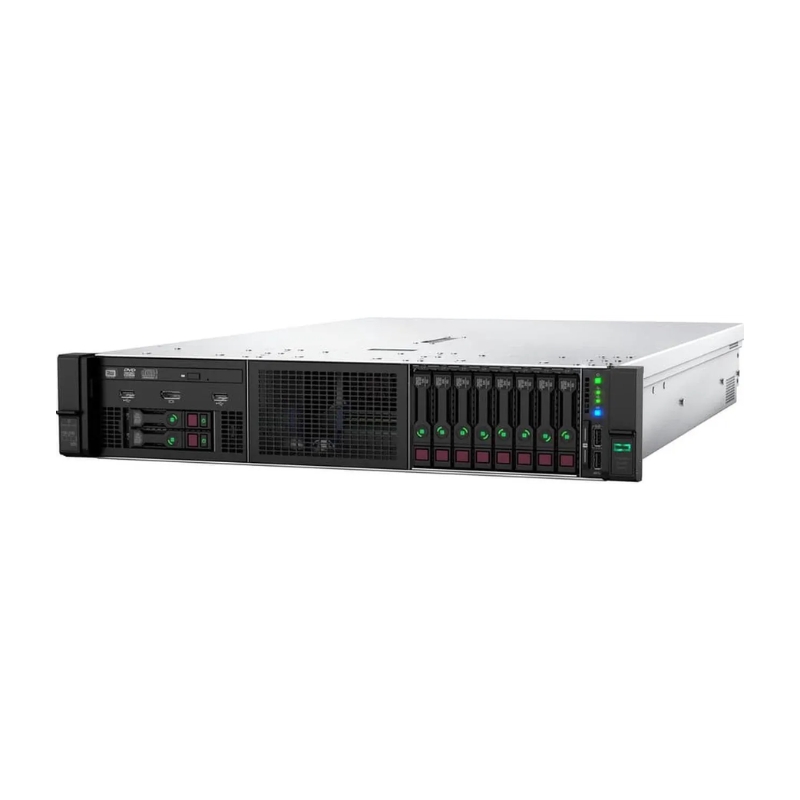

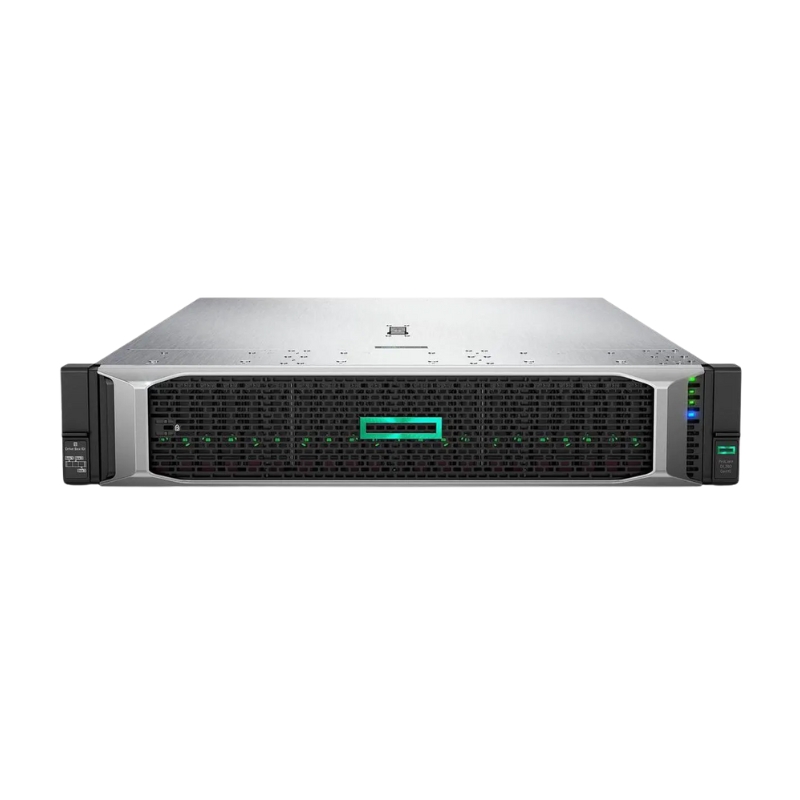

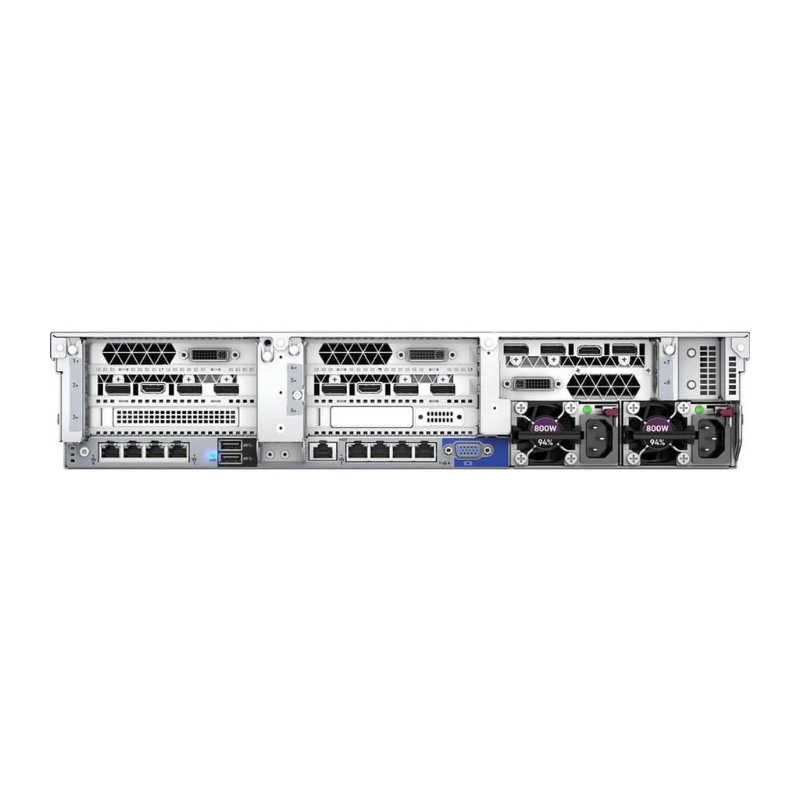

868710-B21 ​HPE Proliant Dl380 Intel Xeon Silver 8-core G-10 2.1 GHz, 32GB DDR4 Server

General Information

• Brand: Hewlett Packard Enterprise (HPE)
• Part Number: 868710-B21
• Product Title: HPE ProLiant DL380 Gen10 – 2U Rackmount Server (Base LFF Model)

Processor and Chipset

CPU Specifications

• Processor Model: Intel Xeon Silver 4110
• Base Frequency: 2.1 GHz
• Turbo Frequency: Up to 3.0 GHz
• Core Count: 8-core architecture
• Installed Processors: 1 (supports dual processors)
• Upgradeable for enhanced performance

Ports and Interfaces

• 4 x RJ-45 Gigabit Ethernet
• 1 x HPE iLO RJ-45 (rear)
• 1 x VGA (rear)
• 16 x SATA 6Gb/s / SAS 3.0
• 1 x HPE iLO USB Type-A (front)
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x USB 2.0 (front)
• 1 x DisplayPort (front)

Dimensions and Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Advanced CPU Technologies

• Intel Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0

Chipset and Socket

• Chipset: Intel C621
• Processor Socket: Socket P (LGA3647)

Cache Memory

• Total L3 Cache: 11 MB
• Per Processor Cache: 11 MB

System Memory

Installed and Expandable Memory

• Installed: 32 GB DDR4 SDRAM
• Maximum Capacity: Up to 384 GB Registered or 768 GB Load-Reduced

Memory Speed and Type

• Effective Speed: 2400 MHz
• Rated Speed: 2666 MHz
• Compliance: PC4-20800

Memory Features

• Form Factor: 288-pin DIMM
• Configuration: 2 x 16 GB modules
• Registered and dual-rank memory with HPE Smart Memory optimization
• 6-channel memory architecture

Storage Options

• Hard Disk Drive: None pre-installed
• Optical Drive: Not included

Storage Controllers

• Controller: HPE Smart Array P816i-a
• Interface Support: SATA 6Gb/s and SAS 12Gb/s
• Channel Availability: 16 channels
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Cache Buffer: 4 GB

Graphics and Display

• Video Memory: 16 MB
• Supported Interface: VGA port

Networking and Connectivity

Ethernet and Protocols

• 4 x Gigabit Ethernet LAN ports
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Integrated Lights-Out 5 (iLO 5)
• Protocols Supported: SNMP 3, IPMI 2.0, SMASH CLP
• Features: PXE support, Wake-on-LAN

Power Supply

• Power Supply Type: Hot-plug, redundant
• Power Redundancy: 1+1 configuration
• Included Units: 2 installed (maximum 2 supported)
• Input Voltage: 120/230V AC, 50/60 Hz
• Output Capacity: 800 Watts
• Certification: 80 Plus Platinum (94% efficiency)

Expansion and Slots

Drive Bays

• 1 x External Bay (free)
• 8 x 3.5-inch LFF Hot-swap bays (all available)

Expansion Slots

• 2 CPU sockets (1 free)
• 12 DIMM slots (10 free)
• 1 x PCIe 3.0 x16 full-length, full-height
• 2 x PCIe 3.0 x8 half-length, full-height
• 1 x Internal MicroSD card slot

Key Specifications of HPE 868710-B21

• Processor: Intel Xeon Silver, 8-core, 2.1 GHz base clock speed
• Turbo Frequency: Up to 3.0 GHz for peak performance
• Memory Capacity: 32GB DDR4 SDRAM for improved multitasking
• Form Factor: 2U rackmount server
• Scalability: Expansion slots and drive bays for flexible growth

Performance and Efficiency

The ProLiant DL380 Gen10 server delivers high-performance computing with its Intel Xeon Silver CPU, enabling faster response times and optimized workloads. DDR4 memory ensures low-latency operations, enhancing data processing and system responsiveness.

Optimized for Enterprise Applications

• Virtualization and cloud infrastructure
• Database management systems
• High-performance computing (HPC)
• File, print, and collaboration services

Memory and Storage Capabilities

Equipped with 32GB DDR4 RAM, this server supports scalable memory configurations, allowing businesses to expand capacity as requirements grow. Flexible drive options provide large-scale storage solutions for business-critical data.

Benefits of DDR4 Memory Integration

• Higher bandwidth for intensive tasks
• Lower power consumption for energy efficiency
• Reliable stability under continuous workloads

Expandability and Future-Ready Design

The HPE 868710-B21 DL380 Gen10 server is designed to adapt to evolving business needs. With multiple drive bays, I/O ports, and PCIe expansion slots, it ensures flexibility for future upgrades and enterprise scaling.

Expansion Features

• Support for additional processors
• Enhanced storage capacity
• Network and controller upgrades
• Redundant power supplies for uptime assurance

Reliability and Security

Engineered with HPE Silicon Root of Trust technology, the ProLiant DL380 safeguards enterprise workloads with robust firmware security, reducing vulnerabilities and protecting sensitive data.

Advanced Protection Features

• Firmware intrusion detection
• Runtime malware protection
• Secure encryption of data at rest and in motion
