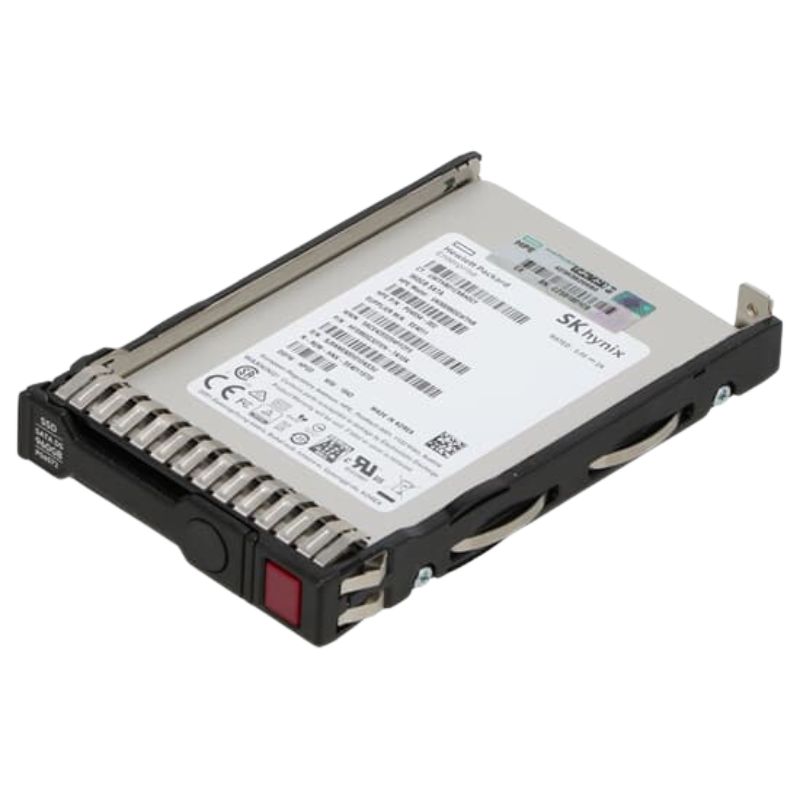

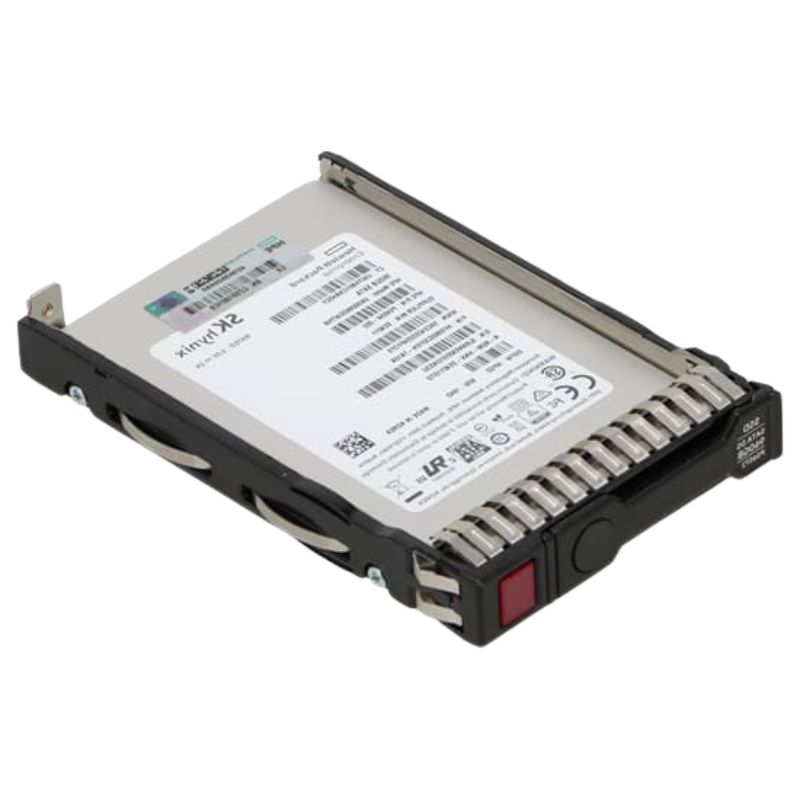

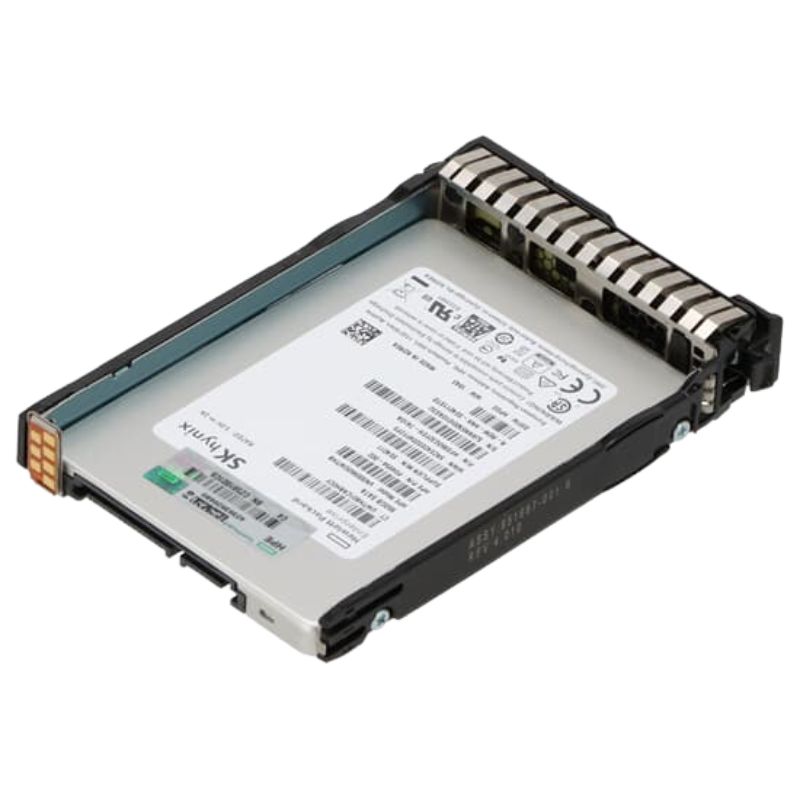

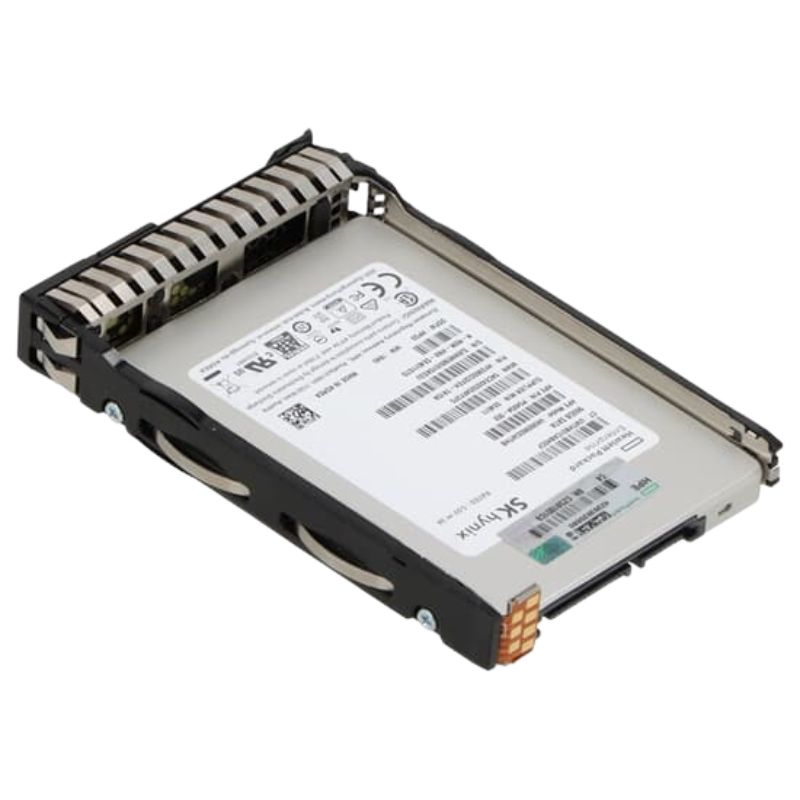

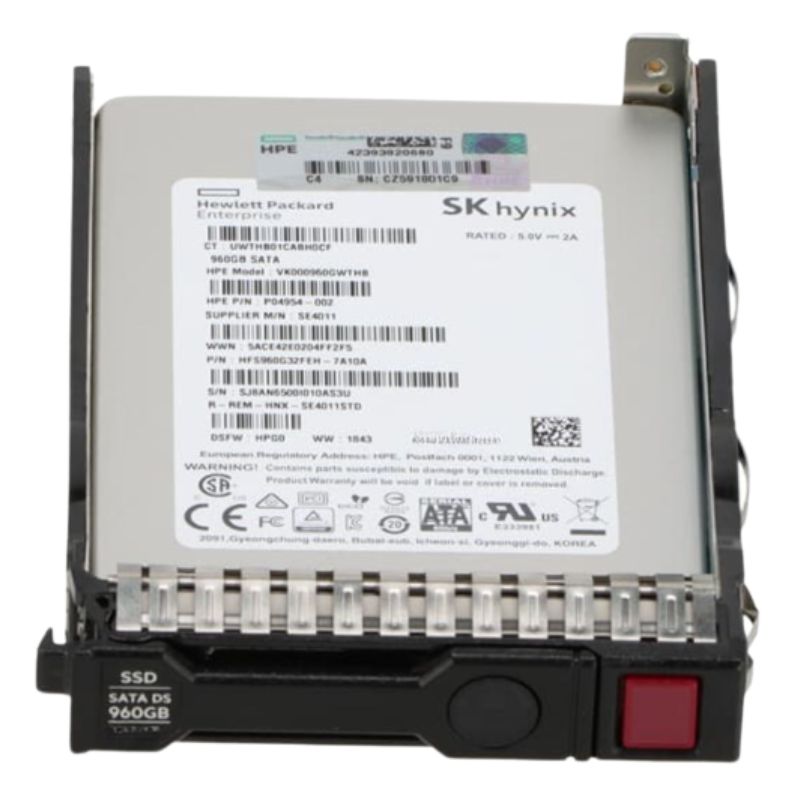

HPE 868822-H21 960GB SATA 6GBPS SC Read Intensive DS 2.5Inch SFF SSD

868822-H21
Hover on image to enlarge

Brief Overview of 868822-H21

960GB SATA 6GBPS SC Read Intensive DS 2.5Inch SFF SSD HPE 868822-H21. New (System) Pull with 6-Month Replacement Warranty
QR Code of HPE 868822-H21 960GB SATA 6GBPS SC Read Intensive DS 2.5Inch SFF SSD
$901.94
$600.02
You save: $301.92 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN868822-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Manufacturer Details of HPE 2.5Inch SFF SSD

  • Brand: HPE
  • Model Number: 868822-H21

Drive Specifications

  • Type: Hot-Swap Solid State Drive
  • SSD Interface: SATA-6GBPS

Technical Specifications

Drive Capacity and Form Factor

  • Storage Capacity: 960 GB
  • Form Factor: 2.5-Inch SFF

Key Features

  • Firmware: Digitally Signed
  • Carrier Type: Smart Carrier
  • Hot Plug Capability: Yes
  • Intended Workload: Read Intensive
  • Bundled Item: HPE Smart Drive Carrier

Performance Metrics

Endurance and Data Rates

  • Endurance (DWPD): 0.8
  • Drive Transfer Speed: 6 GB/Sec (External)
  • Internal Data Transfer Rates:
    • Read: 530 MBPS
    • Write: 490 MBPS

IOPS Performance

  • Random Write IOPS (4KiB, Q=16): 24500
  • Max Random Write IOPS (4KiB): 24500 @ Q4
  • Random Read IOPS (4KiB, Q=16): 64000
  • Max Random Read IOPS (4KiB): 75500 @ Q32

Power and Dimensions

Power Consumption

  • Wattage: 9 Watts

Physical Dimensions

  • Height: 0.63 Inch
  • Width: 3.10 Inch
  • Depth: 5.45 Inch
  • Weight: 1.50 lbs

Compliance and Environmental Standards

Standards

  • WEEE Compliance: Yes

Operating Conditions

  • Minimum Operating Temperature: 32 °F
  • Maximum Operating Temperature: 140 °F

Compatibility Information

Supported HPE ProLiant Models

  • BL Series: BL460c Gen10 (2.5 Inch)
  • DL Series:
    • DL360 Gen10 (2.5 Inch)
    • DL360 Gen10 Base (2.5 Inch)
    • DL360 Gen10 High Performance (2.5 Inch)
    • DL388 Gen9 (2.5 Inch)
    • DL580 Gen10 (2.5 Inch)
  • ML Series:
    • ML350 Gen10 (2.5 Inch)
    • ML350 Gen10 Performance (2.5 Inch)
  • XL Series: XL190r Gen9 (2.5 Inch)
  • Synergy Modules:
    • 480 Gen10 Base Compute Module (2.5 Inch)
    • 660 Gen10 Base Compute Module (2.5 Inch)

Related Products

Similar Drives

  • Samsung MZ7LM960HMJP-00005 960GB SATA MLC Internal SSD | Refurbished
  • 756601-B21 HPE 960GB SATA-6GBPS SFF SC Enterprise SSD | New Bulk Pack
  • HPE 757232-001 960GB SATA 6GBPS Light Endurance SC Enterprise SSD | New Bulk Pack

Recently Viewed Items

  • HPE 960GB SATA-6GBPS SFF SC Enterprise SSD

Capacity: 960GB

Enhanced Storage Space

The HPE 868822-H21 SSD is equipped with a generous capacity of 960GB, making it an ideal choice for users who require ample storage space for their data. Whether you are a professional who deals with large files or a casual user who wants to store a vast amount of multimedia content, this SSD has got you covered. With its impressive capacity, you can say goodbye to the hassle of constantly managing your storage and enjoy the convenience of having all your files in one place.

Improved Performance

In addition to the increased storage space, the 960GB capacity of the HPE 868822-H21 SSD contributes to improved performance. The larger capacity allows for better data organization and reduces the need for frequent read and write operations, resulting in faster access to your files and applications. Whether you are running resource-intensive software or multitasking between various applications, this SSD's capacity ensures smooth and efficient performance.

Flexible Data Management

Having a high-capacity SSD like the HPE 868822-H21 enables users to manage their data more efficiently. With 960GB at your disposal, you can store a wide range of files, including documents, photos, videos, and even large software installations. This flexibility in data management allows for better organization and easier access to your files whenever you need them.

Seamless Multimedia Experience

For users who work with multimedia content, such as photographers, videographers, or designers, the 960GB capacity of the HPE 868822-H21 SSD is particularly beneficial. It provides ample space to store high-resolution images, videos, and graphics-intensive projects without compromising on performance. You can seamlessly edit and transfer large files without worrying about running out of storage space.

Efficient Backup Solutions

With a capacity of 960GB, the HPE 868822-H21 SSD offers an excellent solution for data backup. You can create regular backups of your important files, ensuring their safety in case of system failure or accidental deletion. The spacious capacity allows for comprehensive backups, including system files, applications, and personal data, giving you peace of mind knowing that your valuable information is secure.

Future-Proof Investment

Investing in a high-capacity SSD like the HPE 868822-H21 with its 960GB storage ensures that your storage needs are met not only now but also in the future. As file sizes continue to grow with advancements in technology, having a larger capacity becomes essential to accommodate the increasing demands of modern applications and data storage. By opting for this SSD, you are making a future-proof investment that will continue to serve you well as your storage requirements evolve.

Interface: SATA 6GBPS

Blazing Fast Data Transfer

The HPE 868822-H21 SSD features a SATA 6Gbps interface, providing users with lightning-fast data transfer speeds. With this interface, you can expect significantly improved read and write speeds compared to traditional hard drives or older SSDs. Whether you are transferring large files, running resource-intensive applications, or booting up your system, the SATA 6Gbps interface ensures swift and seamless performance.

Compatibility and Versatility

One of the key advantages of the SATA 6Gbps interface is its widespread compatibility with various devices and systems. The HPE 868822-H21 SSD can easily be integrated into laptops, desktops, workstations, and servers that support SATA interfaces. This versatility allows users to upgrade their existing systems without worrying about compatibility issues or limitations.

Smooth Multimedia Streaming

The high-speed data transfer capability of the SATA 6Gbps interface makes it an excellent choice for users who frequently stream multimedia content. Whether you are watching high-definition videos, listening to music, or engaging in online gaming, this interface ensures uninterrupted streaming with minimal buffering. You can enjoy a smooth multimedia experience without any lag or delays.

Faster Application Load Times

The SATA 6Gbps interface of the HPE 868822-H21 SSD significantly reduces application load times. Whether you are launching resource-intensive software or everyday applications, the faster data transfer speeds allow for quicker access to your programs. This not only enhances productivity but also improves overall user experience by reducing waiting times and increasing efficiency.

Efficient File Transfers

Transferring large files between devices can be a time-consuming process. However, with the SATA 6Gbps interface, the HPE 868822-H21 SSD ensures efficient and rapid file transfers. Whether you are moving files between internal drives or external storage devices, the high-speed interface minimizes the time required for data transfer, allowing you to work more efficiently and save valuable time.

Seamless Gaming Performance

Gamers can benefit greatly from the SATA 6Gbps interface offered by the HPE 868822-H21 SSD. The fast data transfer speeds enable quicker game installations, faster level loading times, and smoother gameplay. With reduced loading screens and improved responsiveness, you can fully immerse yourself in your favorite games without any interruptions.

Form Factor: 2.5 Inch SFF

Space-Saving Design

The HPE 868822-H21 SSD features a compact 2.5-inch form factor, making it an excellent choice for systems with limited space. Whether you have a small form factor PC, a laptop, or a server rack with restricted space, this SSD can easily fit into tight quarters without compromising on performance. Its compact size allows for easy installation and ensures that it won't interfere with other components or obstruct airflow.

Versatile Compatibility

The 2.5-inch form factor of the HPE 868822-H21 SSD ensures compatibility with a wide range of devices and systems. It can be seamlessly integrated into laptops, desktops, workstations, and servers that support the 2.5-inch drive bay. This versatility allows users to upgrade their existing systems without worrying about compatibility issues or the need for additional hardware modifications.

Enhanced Portability

The small and lightweight design of the 2.5-inch form factor makes the HPE 868822-H21 SSD highly portable. Whether you need to carry your data with you on the go or transfer it between different devices, this SSD provides convenient portability. You can easily slip it into your bag or pocket, ensuring that your important files are always within reach.

Hot-Swapping Capability

The 2.5-inch form factor of the HPE 868822-H21 SSD offers hot-swapping capability, allowing for easy and convenient drive replacement or upgrade without shutting down the system. This feature is particularly useful in environments where continuous operation is critical, such as servers or high-demand workstations. With hot-swapping, you can minimize system downtime and ensure seamless operation.

Efficient Cooling

The small form factor of the HPE 868822-H21 SSD allows for efficient cooling within the system. The compact size ensures that the airflow remains unobstructed, preventing overheating and maintaining optimal operating temperatures. This feature is especially beneficial in high-performance systems where heat dissipation is crucial for stable performance and longevity.

Noise Reduction

The 2.5-inch form factor of the HPE 868822-H21 SSD contributes to noise reduction within the system. The compact size and solid-state design eliminate the mechanical components typically found in traditional hard drives, resulting in silent operation. This is particularly advantageous for users who require a quiet working environment or those who value a noise-free computing experience.

Intended Use: Read Intensive

Optimized for Reading Operations

The HPE 868822-H21 SSD is specifically designed for read-intensive workloads, making it an ideal choice for applications that require fast data retrieval. Whether you are working with databases, running virtual machines, or handling content delivery, this SSD's read-intensive nature ensures quick access to your data and applications.

Improved Application Responsiveness

The read-intensive nature of the HPE 868822-H21 SSD significantly enhances application responsiveness. With faster read speeds, you can expect reduced loading times and improved performance when launching applications or accessing frequently used files. This translates into a smoother and more efficient user experience, allowing you to work seamlessly without delays.

Reliable Data Retrieval

The read-intensive design of the HPE 868822-H21 SSD ensures reliable data retrieval even under heavy workloads. With its optimized architecture, it can handle multiple read requests simultaneously without compromising on performance or reliability. This makes it an excellent choice for servers, databases, and other applications that rely on fast and consistent data access.

Accelerated Boot Times

One of the key benefits of using a read-intensive SSD like the HPE 868822-H21 is accelerated boot times. When used as a system drive, it significantly reduces the time required for the operating system to load. This means that you can start your computer or server quickly and get to work immediately, without having to wait for the system to initialize.

Efficient Content Delivery

For users involved in content delivery, such as media streaming or web hosting, the read-intensive nature of the HPE 868822-H21 SSD is particularly advantageous. It allows for rapid retrieval and delivery of content to end-users, ensuring a seamless and uninterrupted streaming experience. With faster data access, you can serve your audience with minimal buffering and superior performance.

Enhanced Virtualization Performance

Virtualization environments often involve heavy read operations as virtual machines access shared storage resources. The read-intensive capabilities of the HPE 868822-H21 SSD enable efficient and responsive virtual machine performance. With faster data retrieval, you can ensure smooth operation and improved overall virtualization performance.

In conclusion, the HPE 868822-H21 SSD offers a range of impressive features that cater to the needs of various users. Its 960GB capacity provides ample storage space for all your files and ensures improved performance. The SATA 6Gbps interface offers lightning-fast data transfer speeds, enhancing productivity and providing seamless multimedia experiences. The compact 2.5-inch form factor allows for easy installation and compatibility with various devices, while the read-intensive design ensures quick data retrieval and optimized performance. Whether you are a professional user or a casual enthusiast, the HPE 868822-H21 SSD is a reliable and efficient storage solution that will meet your needs and enhance your computing experience.
