872307-B21 HPE Proliant Ml110 Gen10 4.5U Rack LFF 192GB PCIE DDR4 Server

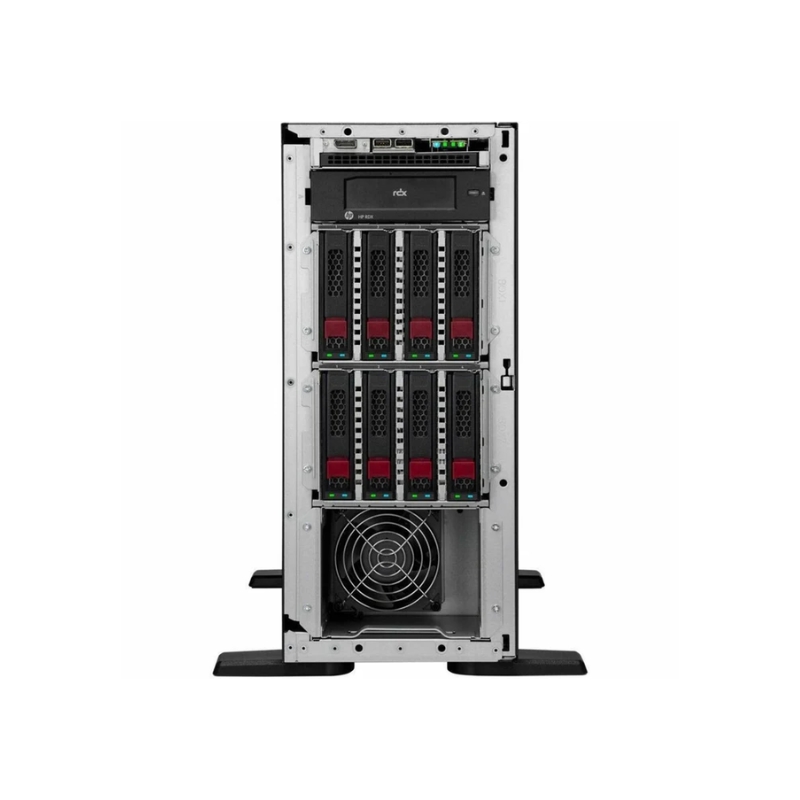

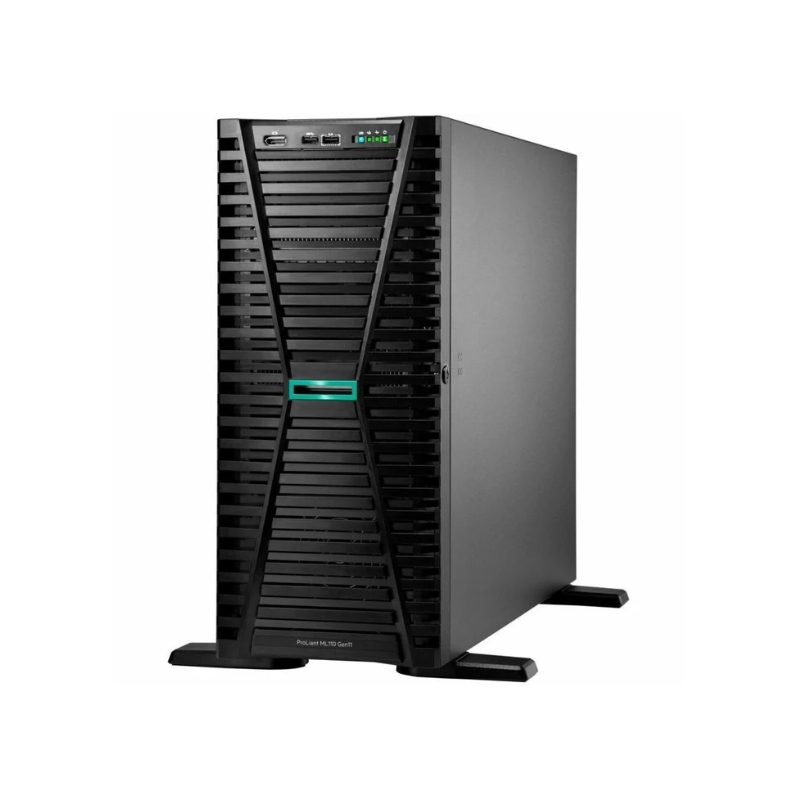

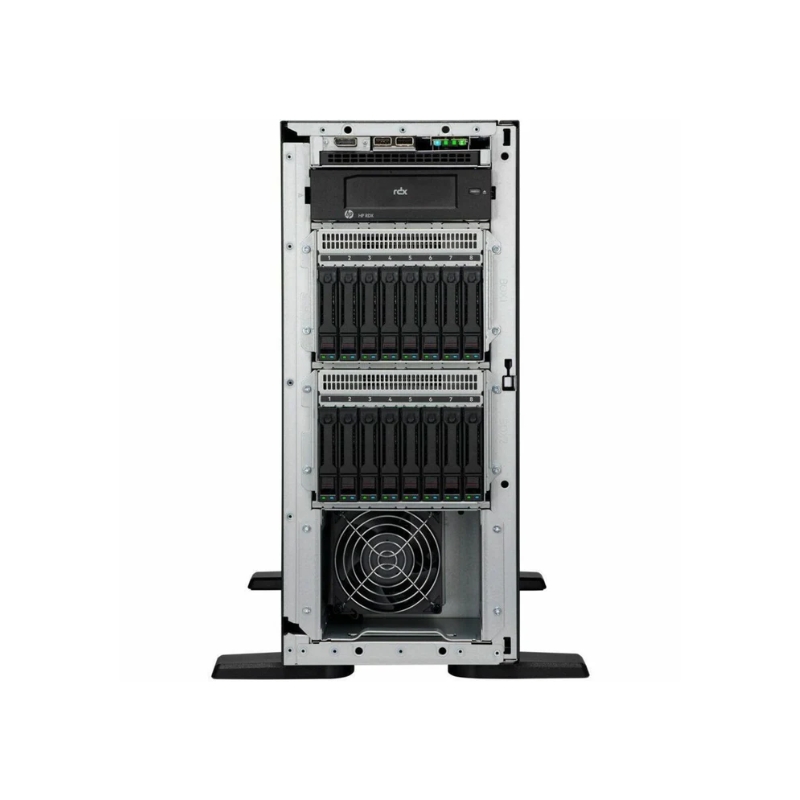

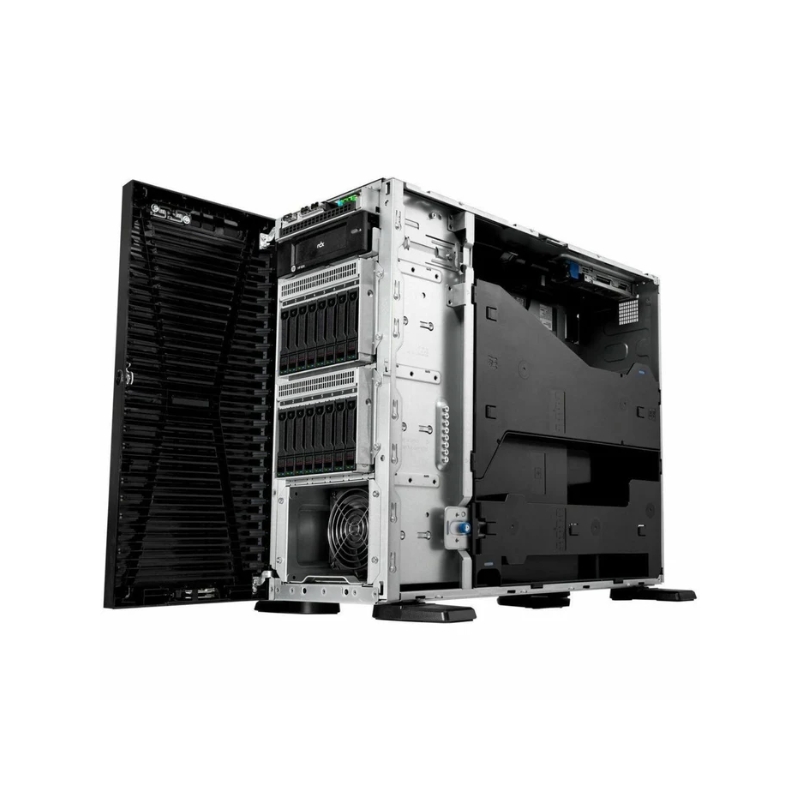

HPE 872307-B21 ProLiant ML110 Gen10 Tower Server Overview

The HPE 872307-B21 ProLiant ML110 Gen10 is designed for performance, flexibility, and growth, offering a balance between expandability and reliability. With strong processing power, generous memory support, scalable storage, and advanced networking, this server is well-suited for small to mid-sized businesses.

General Features

• Form Factor: Tower – 4.5U (rack-mountable option available)
• Server Scalability: Single-socket system
• Front Accessible Bays: 1
• Hot-Swap Bays: 4 available for flexible drive installation

Key Specifications

• Model: HPE 872307-B21 ProLiant ML110 Gen10
• Form Factor: 4.5U Rack Tower with LFF (Large Form Factor)
• Memory: Up to 192GB DDR4
• Expansion: PCIe slots for scalability
• Ideal for SMBs, virtualization, and storage-intensive workloads

Processor and Chipset

CPU Support

• Processor: Intel Xeon Scalable (socket FCLGA3647)
• CPU Installed: None (upgradeable with 1 CPU maximum)
• Chipset: Intel C621

Memory Capabilities

DDR4 SmartMemory

• Installed: 0 GB (expandable as required)
• Maximum Capacity: 192 GB Registered ECC
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Form Factor: DIMM, 288-pin
• Slots: 6 total, all empty
• Features: HPE SmartMemory, Registered DIMMs, 6-channel architecture

Storage Options

Hard Drive and Controller

• Pre-installed Storage: None
• Supported Drive Types: 8 LFF or 16 SFF configurations
• Storage Controller: HPE Smart Array S100i SR Software RAID
• Interface: SATA 6Gbps
• RAID Levels Supported: 0, 1, 5, 10
• Channel Quantity: 10

Networking and Connectivity

Integrated Ethernet

• Ports: Dual Gigabit Ethernet
• Controller: HPE 332i
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out (iLO) Advanced Management ASIC
• Networking Features: PXE boot support, Wake-on-LAN
• Compliance Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3az

Expansion and Interfaces

Slots and Bays

• External Bays: 1 × 5.25”
• Hot-Swap Bays: 4 × 3.5” LFF
• PCIe Slots:
  • 2 × PCIe 3.0 x8 (half-length, full-height)
  • 1 × PCIe 3.0 x16 (full-length, full-height)
  • 1 × PCIe 3.0 x8 (half-length, full-height)
  • 1 × PCIe 3.0 x16 (three-quarter-length, full-height)
  • 1 × microSD card (internal)

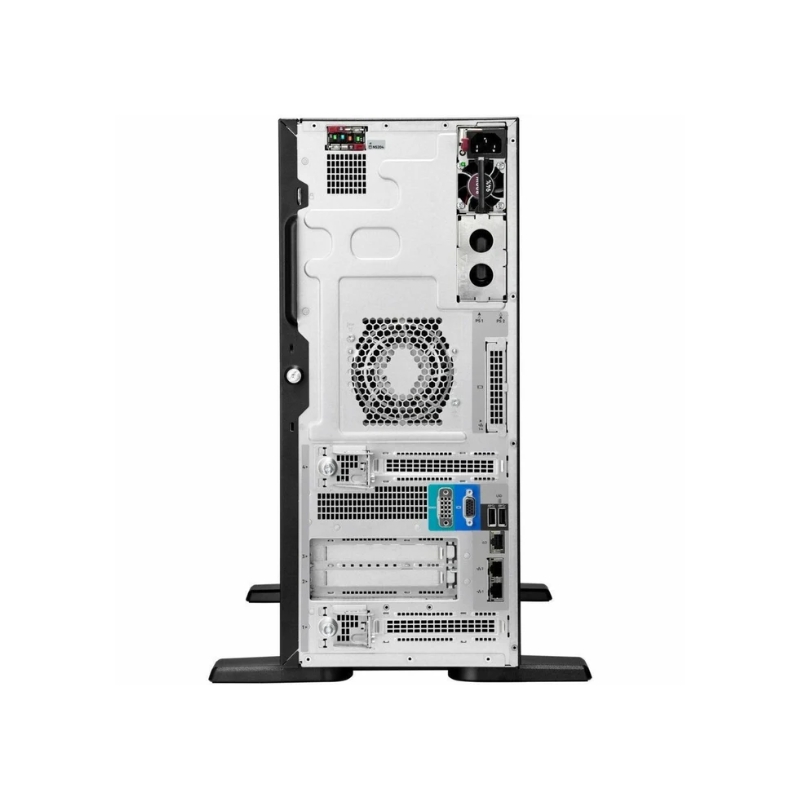

Interface Ports

• 1 × VGA
• 2 × LAN (Gigabit Ethernet)
• 2 × HPE iLO (1 front, 1 rear)
• 5 × USB 3.0 (2 front, 2 rear, 1 internal)
• 3 × USB 2.0 (2 rear, 1 internal)

Physical Specifications

• Width: 7.7 in
• Depth: 18.9 in
• Height: 17.3 in
• Weight: 29.76 lbs

Key Advantages

• Rack-convertible design for flexible deployment
• Expandable memory up to 192 GB for demanding workloads
• Support for multiple storage configurations with RAID options
• Reliable network management via HPE iLO
• Scalable architecture suitable for growing businesses
