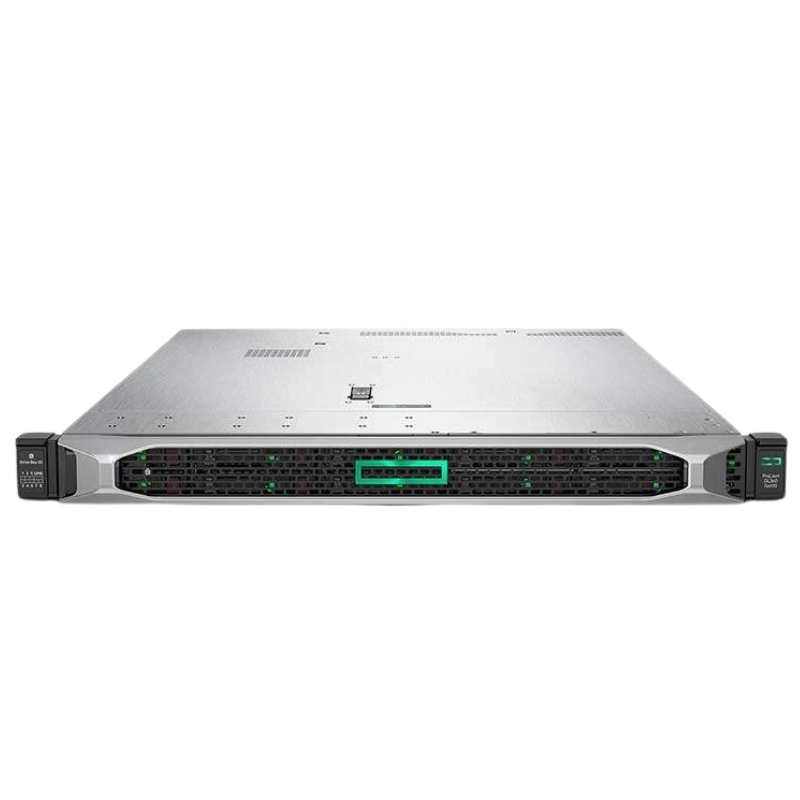

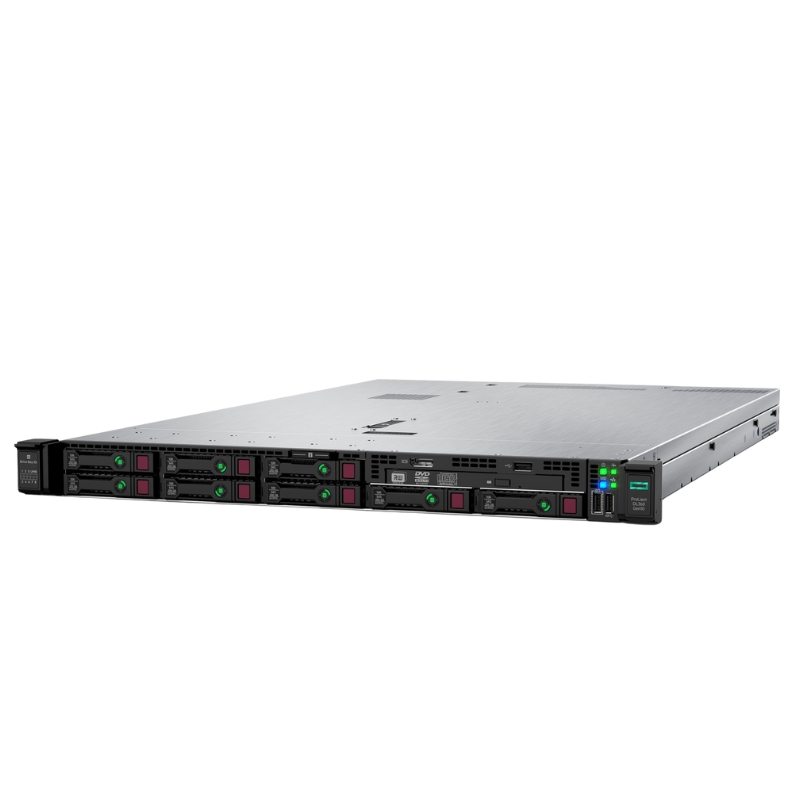

HPE DL360 Gen10 5118 105W 1P 32G-2R P408I-A 8SFF 2X800W Server

Power

The HPE Proliant DL360 Gen10 5118 Server is equipped with a powerful 105W power supply. This feature is of utmost importance as it ensures that the server has a consistent and reliable power source, allowing it to operate efficiently and effectively.

General Specification of DL360 Gen10

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 874461-S01
• Product Name: Proliant DL360 Gen10 - 1U Rack Mountable Server (Smart Buy Model)

Processor & Chipset

• Processor: 1st Gen Intel Xeon Gold 5118, 2.3 GHz
• Maximum Turbo Frequency: 3.2 GHz
• Number of Cores: 12-core
• Installed CPU Quantity: 1
• Maximum CPU Capacity: 2
• CPU Upgradability: Upgradable

Processor Features

• Hyper-threading Technology
• Intel Turbo Boost Technology 2.0
• Chipset Type: Intel C621

Cache Memory

• Installed Size: L3 Cache - 16.5 MB
• Cache Per Processor: 16.5 MB

Memory Specifications

• Standard Size: 32 GB
• Maximum Supported Size: 768 GB

Memory Technology and Features

• Type: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Total Slots: 12 (10 empty)

Memory Configuration

• 2 x 16 GB
• Supported RAM: PC4-20800 up to 768 GB Registered, PC4-20800 up to 3 TB Load-reduced, PC4-20800 up to 192 GB Non-volatile

Storage

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: 1 x RAID
• Interface Type: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Display & Graphics Controllers

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

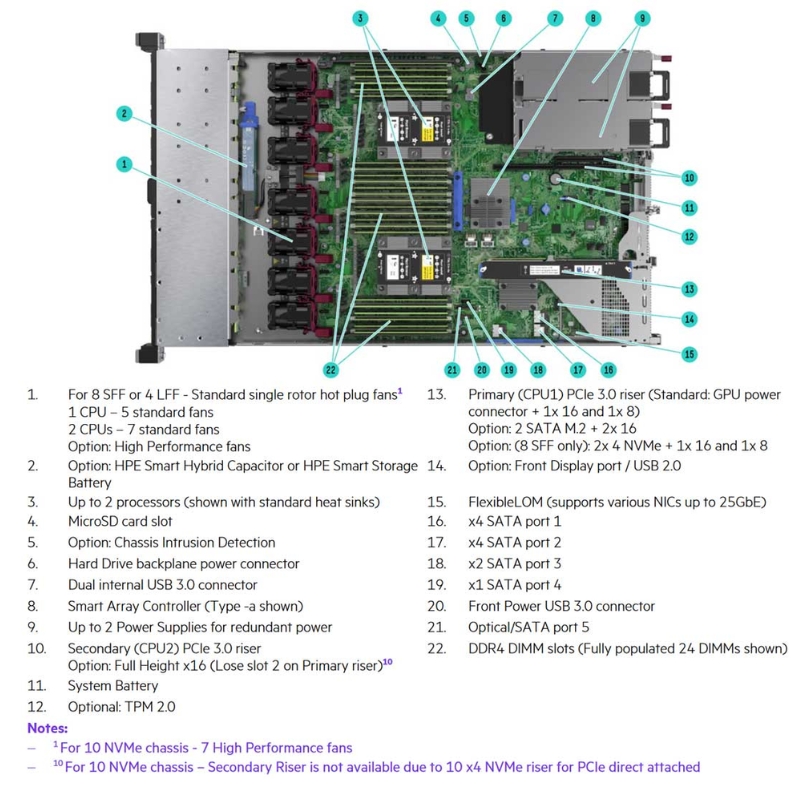

Expansion & Connectivity

• 1 x External (free)
• 8 x Hot-swap 2.5 SFF (all free)

Slots

• 1 x FlexibleLOM - Three-quarter-length, Full-height (low-profile)
• 1 x PCIe 3.0 x16 - Full-height
• 1 x PCIe 3.0 x8 (low-profile)
• 1 x MicroSD Card (internal)
• 2 x CPU

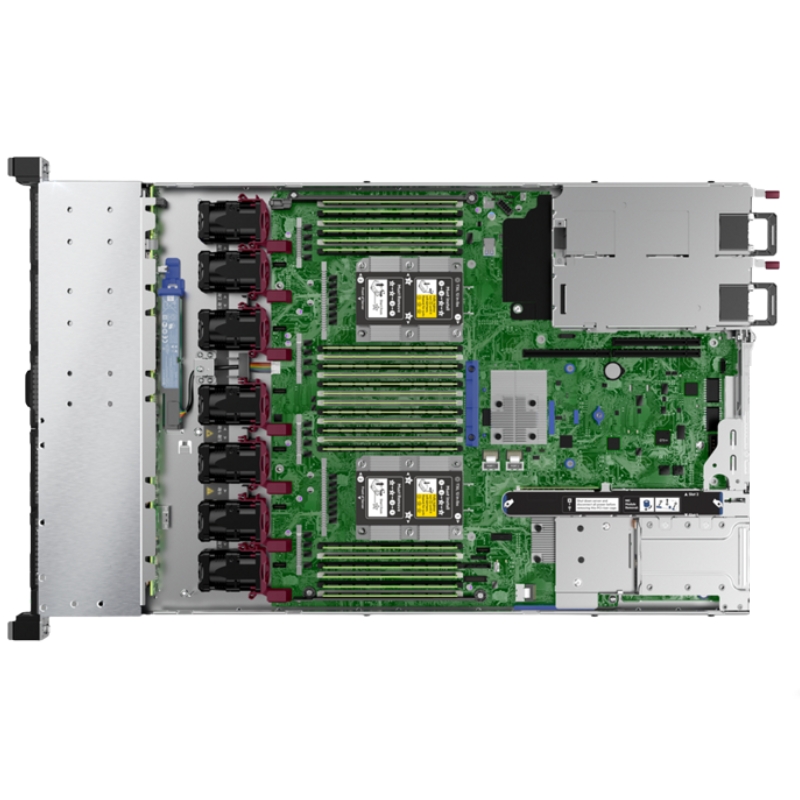

• 12 x DIMM 288-pin (10 free)

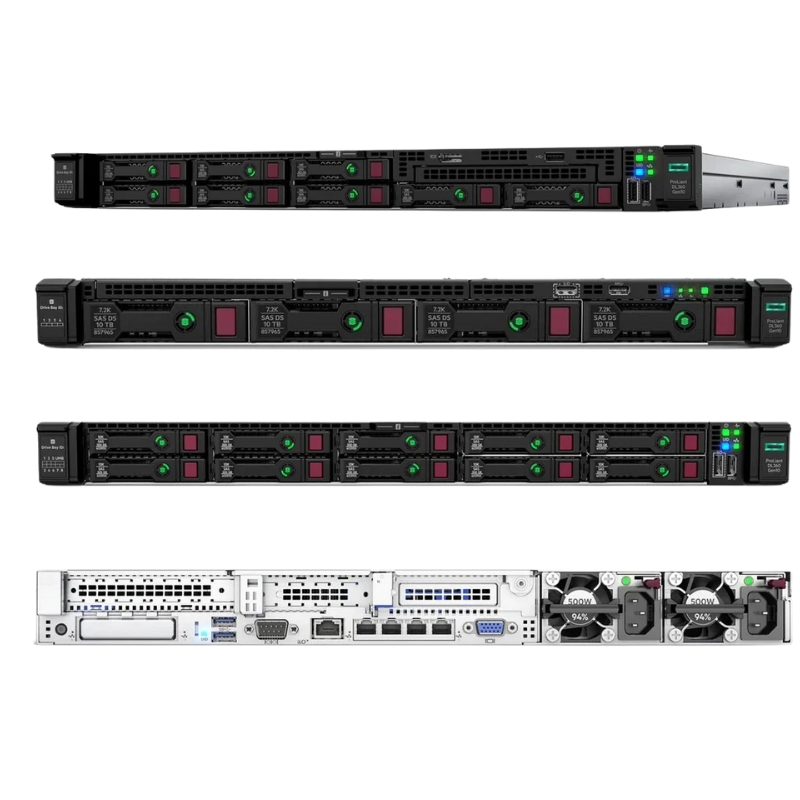

Interfaces

• 4 x LAN (Gigabit Ethernet) - RJ-45 (rear)
• 1 x PoweredUSB 3.0 (front)
• 1 x HP iLO - RJ-45 (rear)
• 4 x USB 3.0 (2 rear, 2 internal)
• 1 x HP iLO - Type A (front)
• 8 x SATA-600 / SAS 3.0
• 1 x VGA (rear)

Miscellaneous

• HP Easy Install Rail Kit
• CPU Standard Heatsink
• 5 x Standard Hot Plug Fans

Cables Included

• Power Cable

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt

Dimensions & Weight

• Width: 17.1 in
• Depth: 27.8 in
• Height: 1.7 in
• Weight: 28.75 lbs

Enhanced Performance

With a 105W power supply, the HPE Proliant DL360 Gen10 5118 Server is capable of delivering enhanced performance. The server can handle demanding workloads and perform complex tasks without any interruptions or slowdowns. This is particularly beneficial for businesses that rely on their servers to process large amounts of data or run resource-intensive applications.

High Availability

A 105W power supply also contributes to the high availability of the server. In the event of a power outage or fluctuation, the server is equipped to handle the situation smoothly and prevent any data loss or system failures. This ensures that critical business operations can continue uninterrupted, minimizing downtime and maximizing productivity.

Energy Efficiency

While a 105W power supply provides ample power for the server's operations, it is also designed to be energy-efficient. This means that it consumes only the required amount of power, reducing energy wastage and contributing to cost savings. Additionally, an energy-efficient power supply helps organizations meet their sustainability goals by reducing their carbon footprint.

Processor

The HPE Proliant DL360 Gen10 5118 Server features a 1P processor, which stands for a single processor configuration. This feature plays a crucial role in determining the server's performance and capabilities.

Efficient Workload Management

A 1P processor allows for efficient workload management within the server. It ensures that tasks are distributed evenly across the available processing cores, maximizing utilization and preventing bottlenecks. This is particularly beneficial for businesses that require their servers to handle multiple concurrent tasks or run virtualized environments.

Scalability

The use of a 1P processor also offers scalability options for the server. Organizations can easily upgrade or expand their server's processing power by adding additional processors if needed. This flexibility allows businesses to adapt to changing demands and future-proof their infrastructure without significant hardware investments.

Cost-Effective Solution

Opting for a 1P processor configuration can be a cost-effective solution for businesses that don't require the additional processing power provided by multiple processors. It eliminates the need for purchasing and maintaining additional processors, reducing overall hardware costs. This makes the HPE Proliant DL360 Gen10 5118 Server an attractive choice for organizations with budget constraints.

Memory

The HPE Proliant DL360 Gen10 5118 Server is equipped with 32G-2R memory, providing users with ample memory capacity to support their computing needs.

Enhanced Performance

Having 32G-2R memory ensures that the server can handle demanding workloads and perform complex calculations efficiently. It allows for fast data retrieval and storage, reducing latency and improving overall system performance. This is particularly beneficial for applications that require extensive data processing or real-time analytics.

Multi-Tasking Capability

With ample memory capacity, the server can handle multiple tasks simultaneously without experiencing performance degradation. This is especially important for businesses that rely on their servers to support a large number of users or run resource-intensive applications. The 32G-2R memory configuration ensures that each task receives the required amount of memory resources, minimizing bottlenecks and maximizing productivity.

Future Expansion

The HPE Proliant DL360 Gen10 5118 Server's memory configuration allows for future expansion. It provides room for organizations to scale up their memory capacity as their needs grow. This flexibility ensures that the server can adapt to changing requirements and accommodate future upgrades without the need for significant hardware replacements.

Controller

The HPE Proliant DL360 Gen10 5118 Server features a P408I-A controller, which is essential for managing and controlling the server's storage devices.

Optimized Storage Performance

The P408I-A controller optimizes storage performance by providing advanced RAID capabilities. It allows for efficient data protection, striping, and mirroring across multiple drives, ensuring data integrity and minimizing the risk of data loss. This is particularly important for businesses that rely on their servers to store critical data or run database-intensive applications.

Improved Flexibility

The P408I-A controller offers improved flexibility in terms of storage configuration. It supports various drive types and sizes, allowing organizations to choose the most suitable storage solution for their specific requirements. The ability to mix and match different drives provides organizations with the flexibility to optimize their storage infrastructure based on performance, capacity, and cost considerations.

Enhanced Scalability

With the P408I-A controller, the HPE Proliant DL360 Gen10 5118 Server can easily scale its storage capacity as needed. The controller supports additional drive enclosures, enabling organizations to expand their storage capabilities without disrupting operations or requiring significant hardware changes. This scalability ensures that businesses can accommodate their growing data storage needs without incurring unnecessary costs or downtime.

Drive Bays

The HPE Proliant DL360 Gen10 5118 Server is equipped with 8SFF (Small Form Factor) drive bays, providing users with a compact yet efficient storage solution.

Space Optimization

The 8SFF drive bays allow for optimal use of the server's physical space. They are designed to accommodate small-sized drives, allowing for a higher drive density within the server chassis. This is particularly beneficial for businesses that have limited rack space or require a large number of drives in a compact form factor.

Hot-Swappable Drives

The drive bays in the HPE Proliant DL360 Gen10 5118 Server are hot-swappable, meaning that drives can be added or removed without powering down the server. This feature offers increased flexibility and convenience when it comes to managing and maintaining the server's storage. It allows for easy drive replacement or upgrades, minimizing downtime and reducing the risk of data loss.

Data Redundancy

With 8SFF drive bays, organizations can implement various RAID configurations to ensure data redundancy and protection. RAID (Redundant Array of Independent Disks) technology allows for data to be distributed across multiple drives, providing fault tolerance in case of a drive failure. This redundancy ensures that critical data remains accessible even in the event of a hardware failure, minimizing the risk of data loss and downtime.

Power Supply

The HPE Proliant DL360 Gen10 5118 Server is equipped with dual 2X800W power supplies, ensuring a reliable and redundant power source.

Redundancy and Reliability

The dual 2X800W power supplies provide redundancy and reliability to the server. In case one power supply fails, the other can seamlessly take over, ensuring an uninterrupted power supply to the server. This redundancy eliminates single points of failure and minimizes the risk of downtime due to power-related issues.

High Energy Efficiency

The power supplies in the HPE Proliant DL360 Gen10 5118 Server are designed to be highly energy-efficient. They are certified with high-efficiency ratings, such as 80 PLUS Platinum, which ensures that they convert a high percentage of input power into usable output power. This energy efficiency not only reduces the server's overall power consumption but also contributes to cost savings and environmental sustainability.

Scalability and Flexibility

The dual power supply configuration allows for scalability and flexibility. Organizations can easily expand their server's power capacity by adding additional power supplies if needed. This flexibility ensures that the server can adapt to changing power requirements without the need for significant hardware replacements. It also provides organizations with peace of mind, knowing that their server has the necessary power capacity to support future growth and expansion.

Part Number

The HPE Proliant DL360 Gen10 5118 Server is identified by its unique part number, which is 874461-S01.

Easy Identification

The part number serves as an identifier for the HPE Proliant DL360 Gen10 5118 Server. It allows users and IT professionals to easily locate and differentiate this specific server model from other similar models or product variants. This simplifies the procurement process and ensures that the correct server model is selected for deployment or replacement.

Compatibility Assurance

The part number also ensures compatibility between various components and accessories specific to the HPE Proliant DL360 Gen10 5118 Server. It guarantees that any additional components or upgrades, such as memory modules, storage drives, or expansion cards, are compatible with this particular server model. This compatibility assurance eliminates potential compatibility issues and ensures a seamless integration of hardware components.

Technical Support and Documentation

With the part number, users can easily access technical support resources and documentation specific to the HPE Proliant DL360 Gen10 5118 Server. This includes product manuals, firmware updates, driver downloads, and troubleshooting guides. Having access to these resources simplifies system maintenance and troubleshooting, ensuring that users can maximize the server's performance and address any issues effectively.
