HPE DL360 Gen10 5118 105W 1P 32G-2R P408I-A 8SFF 2X800W Server

Power

The HPE Proliant DL360 Gen10 5118 Server is equipped with a powerful power supply, boasting a maximum power output of 105W. This feature plays a crucial role in ensuring the server's optimal performance and reliability.

Product Overview of 874461-S01

The Hewlett Packard Enterprise ProLiant DL360 Gen10 is a 1U rack-mountable server designed for high performance and flexibility. Model number 874461-S01 is part of the Smart Buy series, offering a balance of power and efficiency for various business applications.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 874461-S01
• Product Name: ProLiant DL360 Gen10 - 1U Rack Mountable Server (Smart Buy Model)

Processor & Chipset Specifications

• CPU: 1st Gen Intel Xeon Gold 5118, 2.3 GHz
• Maximum Turbo Speed: 3.2 GHz
• Core Count: 12-core
• Installed CPUs: 1 (upgradable to 2)
• CPU Features: Hyper-threading, Intel Turbo Boost Technology 2
• Chipset Type: Intel C621

Cache Memory

• Cache Size: 16.5 MB L3 Cache per Processor

Memory Specifications

• Installed Size: 32 GB (expandable to 768 GB)
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin

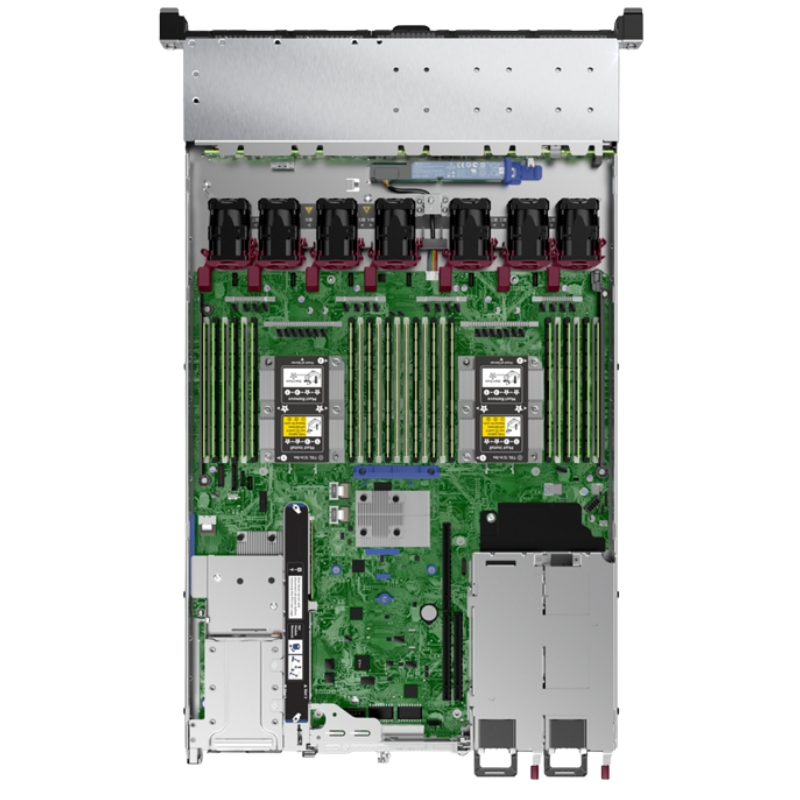

• Memory Slots: 12 (10 available)

Memory Features

• Configuration: 2 x 16 GB
• Supported Memory Types: PC4-20800 up to 768 GB Registered, PC4-20800 up to 3 TB Load-Reduced, PC4-20800 up to 192 GB Non-Volatile

Storage Information

• Hard Drive: None included
• Optical Drive: None included

Storage Controllers

• Type: RAID Controller
• Interface Types: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels Supported: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5 (iLO 5)
• Features: Wake on LAN (WoL), PXE Support

Expansion and Connectivity

• External Bays: 1 (free)
• Hot-swap Bays: 8 (all available for 2.5 SFF drives)
• Expansion Slots:
  • 1 x FlexibleLOM (full-height, low-profile)
  • 1 x PCIe 3.0 x16 (full-height)
  • 1 x PCIe 3.0 x8 (low-profile)
  • 1 x microSD Card (internal)
  • 2 x CPU slots
  • 12 x DIMM 288-pin

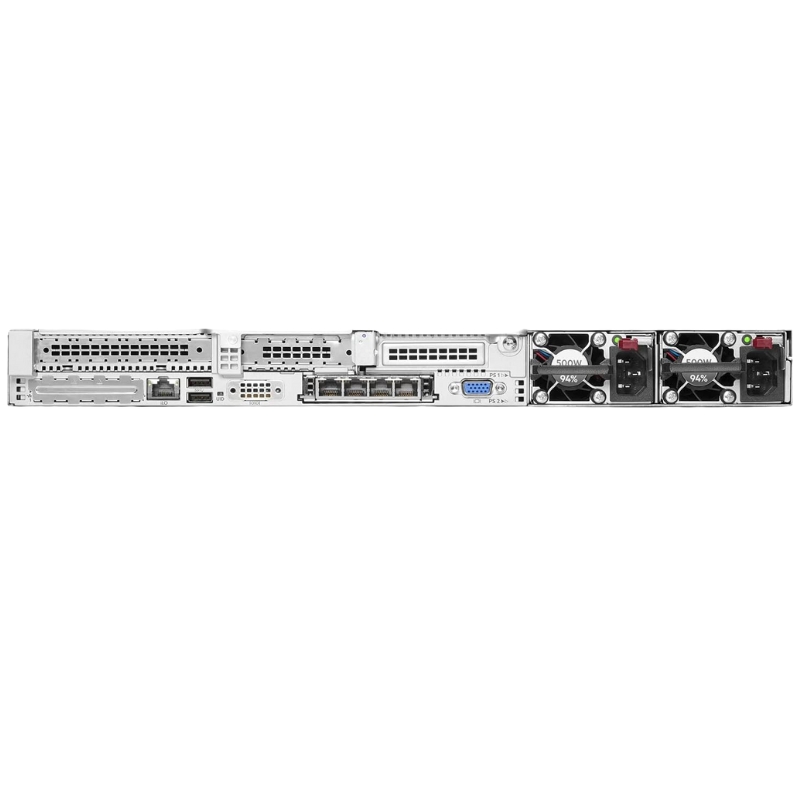

Interfaces

• 4 x LAN (Gigabit Ethernet) - RJ-45 (rear)
• 1 x PoweredUSB 3.0 (front)
• 1 x HP iLO - RJ-45 (rear)
• 4 x USB 3.0 (2 rear, 2 internal)
• 1 x HP iLO - Type A (front)
• 8 x SATA-600 / SAS 3.0
• 1 x VGA (rear)

Additional Information

• HP Easy Install Rail Kit
• Standard CPU Heatsink
• 5 x Standard Hot Plug Fans

Cables Included

• Power Cable

Compliance Standards

• AES, FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

The 105W power supply of the HPE Proliant DL360 Gen10 5118 Server enables it to deliver exceptional performance, even when handling resource-intensive tasks. The high power output ensures that the server can handle demanding workloads and maintain consistent performance levels without any hiccups. This is particularly important for businesses that rely on their servers to run critical applications or process large amounts of data.

Improved Efficiency

In addition to its impressive performance capabilities, the 105W power supply also contributes to the server's overall energy efficiency. By delivering power precisely where it is needed, the server can minimize energy wastage and operate more efficiently. This not only reduces electricity costs but also has a positive environmental impact by lowering carbon emissions.

Reduced Downtime

The robust power supply of the HPE Proliant DL360 Gen10 5118 Server helps minimize the risk of unexpected downtime. With a reliable and powerful power supply, the server can avoid sudden power failures or fluctuations that could lead to system crashes or data corruption. This reliability ensures uninterrupted operation and enhances the server's availability, which is crucial for businesses that cannot afford any downtime.

Processors

One of the standout features of the HPE Proliant DL360 Gen10 5118 Server is its single processor configuration (1P). This design choice brings several benefits to users, making it an excellent choice for a wide range of applications.

Cost-Effective Solution

The single-processor configuration of the HPE Proliant DL360 Gen10 5118 Server offers a cost-effective solution for businesses that do not require the additional processing power provided by dual or multi-processor systems. By eliminating the need for an extra processor, users can save on hardware costs without compromising on performance.

Efficient Resource Utilization

With a single processor, the server ensures efficient resource utilization. The available processing power is concentrated on a single CPU, allowing applications and workloads to benefit from dedicated resources. This optimized resource allocation ensures that each task receives the necessary computing power, resulting in improved performance and responsiveness.

Ease of Management

The simplicity of managing a single processor configuration is another advantage of the HPE Proliant DL360 Gen10 5118 Server. With fewer components to monitor and configure, IT administrators can streamline their management processes and reduce complexity. This translates into easier troubleshooting, faster deployment times, and simplified overall server management.

Memory

The HPE Proliant DL360 Gen10 5118 Server is equipped with 32G-2R memory, offering impressive memory capabilities that are essential for handling demanding workloads and ensuring smooth operation.

Enhanced Performance

The 32G-2R memory configuration allows the server to handle multiple simultaneous tasks efficiently. With ample memory capacity, the server can store and access large amounts of data quickly, providing a seamless user experience even when dealing with resource-intensive applications or databases.

Improved Scalability

The HPE Proliant DL360 Gen10 5118 Server's memory configuration also supports scalability. With the ability to expand the memory capacity up to a maximum of 3TB using RDIMMs or LRDIMMs, businesses can easily adapt to changing requirements or accommodate future growth without replacing the entire server infrastructure.

Optimized Virtualization

The generous memory capacity of the HPE Proliant DL360 Gen10 5118 Server makes it an excellent choice for virtualization environments. With ample memory available, multiple virtual machines can be hosted simultaneously, each with sufficient resources to operate efficiently. This enables businesses to consolidate their IT infrastructure, reduce costs, and improve resource utilization.

RAID Controller

The HPE Proliant DL360 Gen10 5118 Server is equipped with the P408I-A RAID controller, offering advanced data protection and storage management capabilities.

Data Redundancy and Protection

The P408I-A RAID controller allows for various RAID configurations, including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. These RAID levels provide different levels of data redundancy and protection, ensuring that critical data is safe and accessible even in the event of drive failures. Businesses can choose the appropriate RAID level based on their specific needs and risk tolerance.

Improved Performance

The P408I-A RAID controller also enhances the server's performance by leveraging its advanced caching algorithms and support for SSDs. This allows for faster data access and retrieval, reducing latency and improving overall system responsiveness. With improved performance, businesses can handle demanding workloads more efficiently and achieve higher productivity.

Simplified Storage Management

The P408I-A RAID controller simplifies storage management through its intuitive management interface. IT administrators can easily configure and monitor storage resources, create logical drives, and perform maintenance tasks without needing extensive technical expertise. This streamlines storage management processes reduces administrative overhead and ensures efficient utilization of storage resources.

Drive Bays

The HPE Proliant DL360 Gen10 5118 Server features eight Small Form Factor (8SFF) drive bays, offering ample storage capacity and flexibility.

Increased Storage Capacity

The eight drive bays provide businesses with the ability to store large amounts of data directly on the server. With each bay capable of accommodating a standard 2.5-inch drive, users can leverage high-capacity hard drives or solid-state drives to meet their storage requirements. This increased storage capacity allows businesses to store critical data and applications within the server, ensuring quick and easy access.

Flexible Configuration Options

The 8SFF drive bays offer flexibility in configuring storage solutions. Businesses can choose to utilize all eight bays for maximum storage capacity or opt for a more balanced configuration with a combination of hard drives and SSDs. This flexibility enables businesses to tailor their storage setup to meet their specific needs, whether they require high-speed access or cost-effective mass storage.

Hot-Swap Capability

The HPE Proliant DL360 Gen10 5118 Server's drive bays support hot-swappable drives, allowing for seamless maintenance and upgrades without interrupting operations. IT administrators can replace or add drives while the system is running, minimizing downtime and ensuring continuous availability of data. This hot-swap capability is particularly beneficial for businesses that require non-stop operation or have stringent uptime requirements.

Power Supply

The HPE Proliant DL360 Gen10 5118 Server is powered by two 800W power supplies, providing redundancy and ensuring reliable operation.

Redundancy and Fault Tolerance

The dual 800W power supplies offer redundancy, safeguarding against power supply failures. In the event of a power supply malfunction, the server seamlessly switches to the backup unit, ensuring uninterrupted operation and preventing data loss. This redundancy feature is crucial for businesses that cannot afford any downtime or risk losing critical data.

High Availability

The redundant power supplies contribute to the overall high availability of the HPE Proliant DL360 Gen10 5118 Server. With two power supplies, the server can continue to operate even if one of the power supplies fails. This ensures that businesses can rely on the server to deliver consistent performance and availability, minimizing the risk of disruptions or loss of productivity.

Efficient Power Management

The dual 800W power supplies also enable efficient power management. Each power supply operates at an optimal load, reducing energy wastage and maximizing energy efficiency. This not only helps businesses reduce their electricity costs but also contributes to a greener environment by lowering carbon emissions.

Product Number

The HPE Proliant DL360 Gen10 5118 Server is identified by the product number 874461-S01, which serves as a unique identifier for this specific server model.

Accurate Identification

The product number allows users and IT administrators to accurately identify and differentiate the HPE Proliant DL360 Gen10 5118 Server from other server models. This is particularly useful when ordering replacement parts, upgrades, or additional servers that need to match the specific model requirements. The product number ensures compatibility and helps avoid any potential compatibility issues.

Simplified Support and Warranty

With the product number, users can easily reference the server model when seeking support or warranty services from HPE or authorized service providers. The unique identifier streamlines the process of troubleshooting issues, requesting assistance, or initiating warranty claims. This simplification saves time and ensures a smoother support experience for users.

Documentation and Resources

The product number serves as a reference point for accessing relevant documentation, user manuals, and technical resources specific to the HPE Proliant DL360 Gen10 5118 Server. Users can quickly find the necessary information for installation, configuration, and maintenance, ensuring they have all the resources needed to effectively utilize the server's capabilities.
