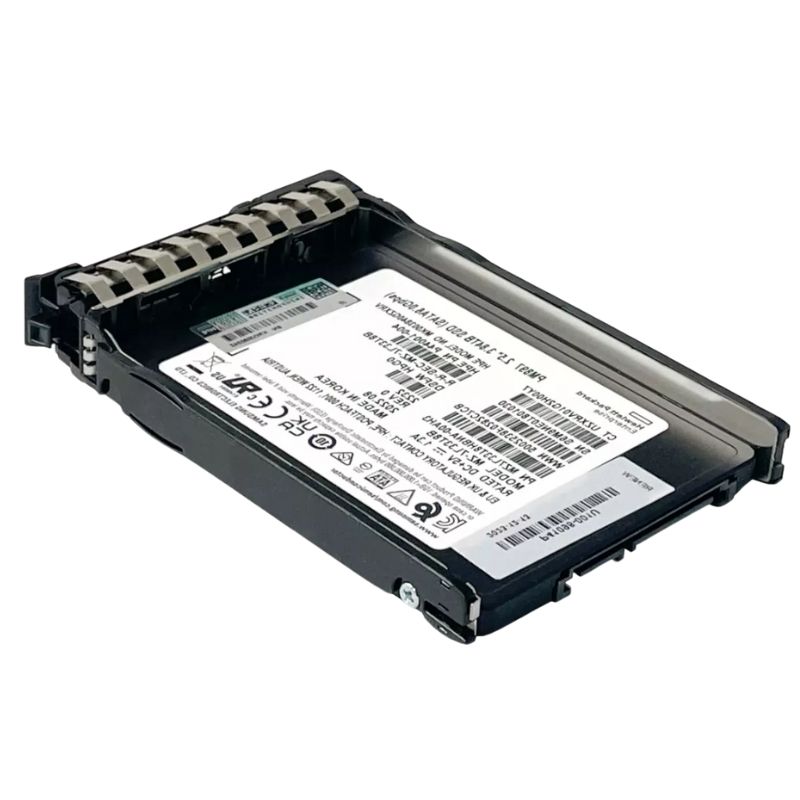

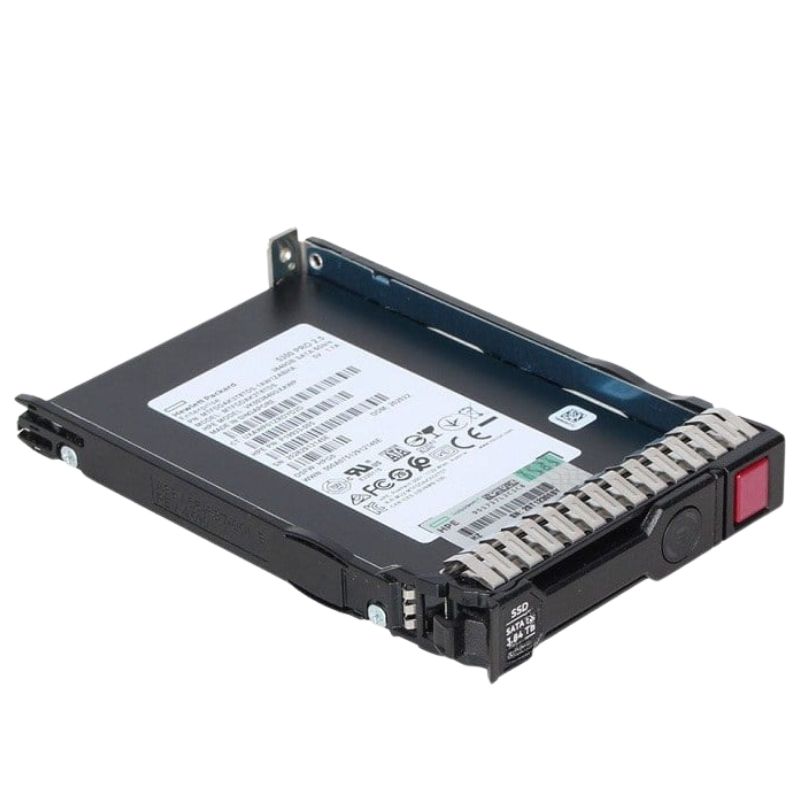

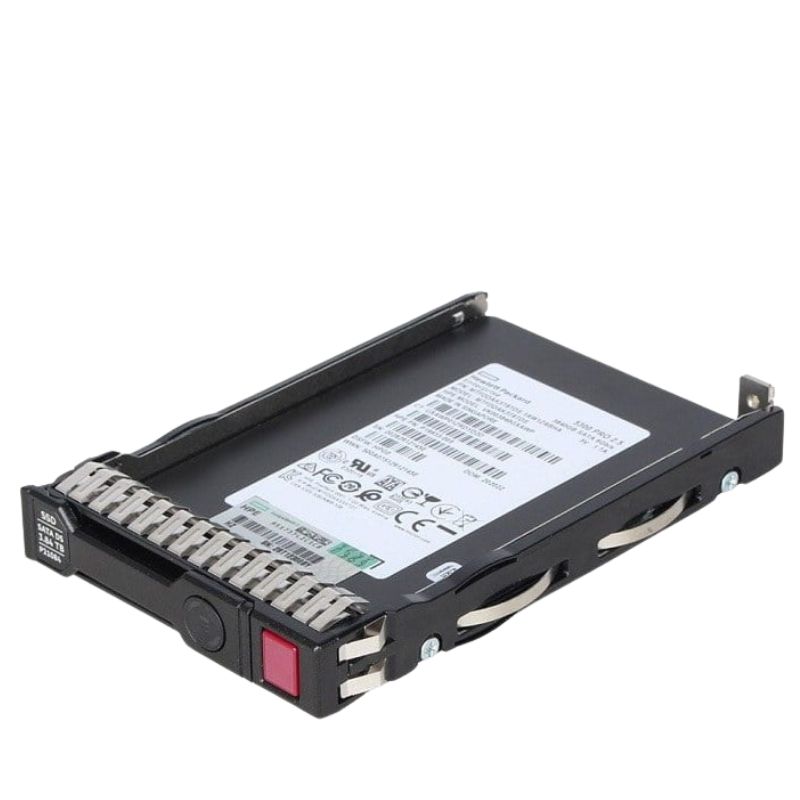

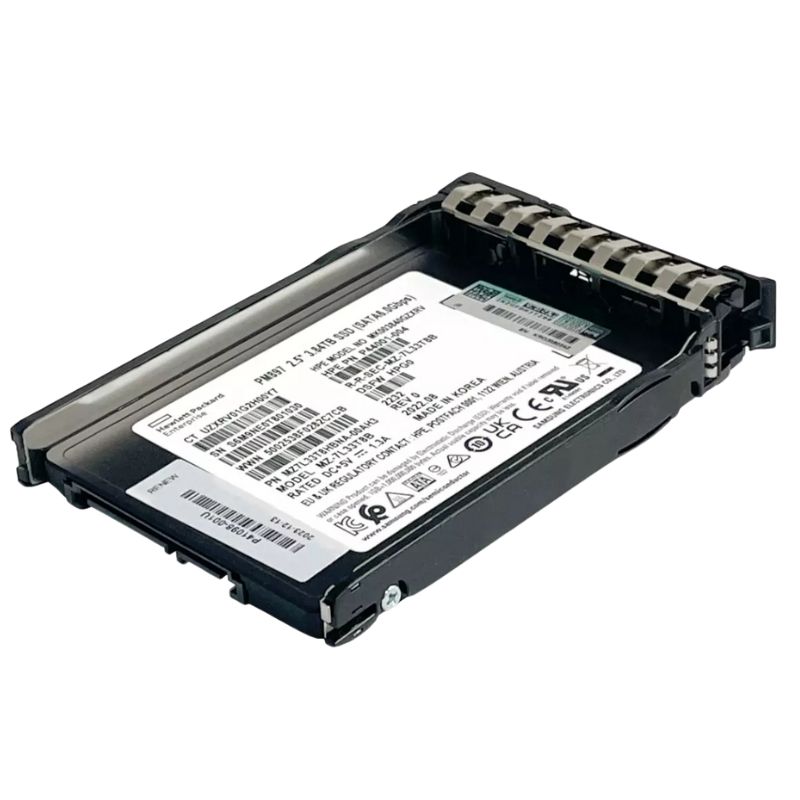

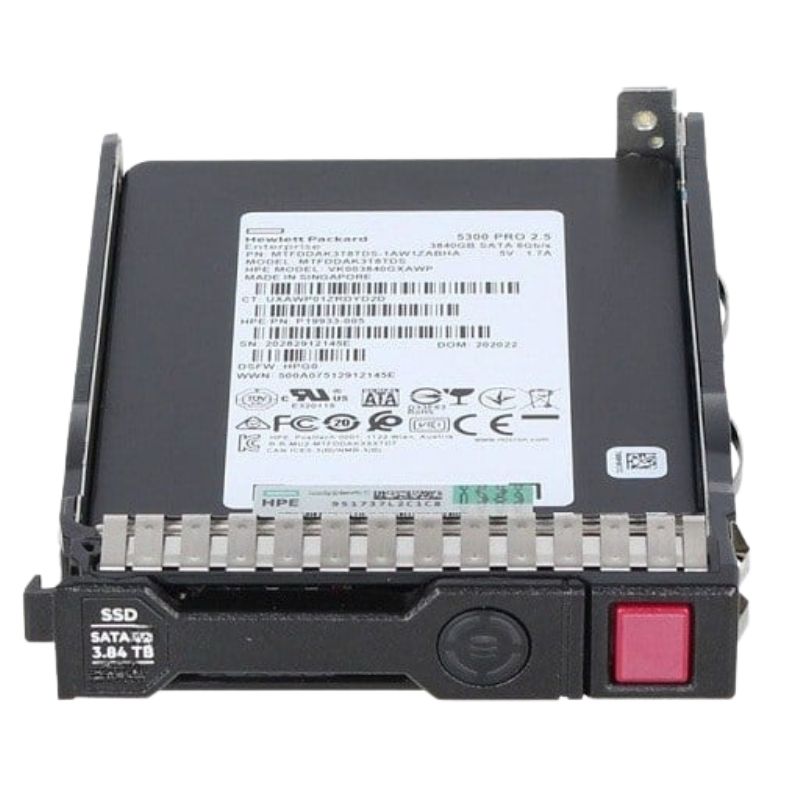

HPE 877764-H21 3.84TB SATA 6GBPS 2.5" SFF Hot Swap SSD

877764-H21
Hover on image to enlarge

Brief Overview of 877764-H21

HPE 877764-H21 3.84TB SATA 6GBPS 2.5inch SFF Hot Swap Internal SSD. New (System) Pull with 6-Month Replacement Warranty

QR Code of HPE 877764-H21 3.84TB SATA 6GBPS 2.5" SFF Hot Swap SSD
$1,648.77
$1,078.86
You save: $569.91 (35%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPN877764-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Comprehensive Details of HPE 877764-H21 SSD

General Product Specifications

  • Manufacturer: HPE
  • MPN: 877764-H21
  • Drive Type: Hot-Swap Solid State Drive (SSD)
  • Interface Type: SATA 6GBPS for fast data transfers

Technical Specifications of HPE 3.84TB SSD

Core Attributes

  • Storage Capacity: 3.84 TB
  • Form Factor: 2.5 Inch Small Form Factor (SFF)
  • Flash Memory Type: Multi-Level Cell (MLC)
  • Plug Type: Hot Pluggable
  • Carrier Type: Smart Carrier (SC)
  • Workload Suitability: Optimized for Read-Intensive workloads
  • Firmware Security: Digitally Signed Firmware
  • Bundled Component: HPE Smart Carrier
  • Physical Height: 0.30 Inch

Performance Metrics of HPE 877764-H21

Endurance and Transfer Rates

  • Drive Writes Per Day (DWPD): 1
  • External Data Transfer Rate: 6 GB/sec
  • Internal Read Data Rate: 500 MBPS
  • Internal Write Data Rate: 445 MBPS

Random Access Performance

  • Random Read IOPS: 59,000 (4KiB, Q=16)
  • Maximum Random Read IOPS: 63,000 at Queue 32
  • Random Write IOPS: 30,000 (4KiB, Q=16)
  • Maximum Random Write IOPS: 30,000 at Queue 32
  • Average Latency: 60 µS

Power Consumption Details

Energy Efficiency

  • Idle Consumption: 1.35 Watt
  • Random Read Power: 3.00 Watt
  • Random Write Power: 5.44 Watt
  • Sequential Read Power: 2.50 Watt
  • Sequential Write Power: 5.28 Watt

Environmental Standards and Conditions

Compliance and Operating Environment

  • Compliance: WEEE Compliant
  • Minimum Operating Temperature: 32 °F
  • Maximum Operating Temperature: 140 °F

Physical Dimensions and Weight

  • Height: 0.63 Inch
  • Width: 3.10 Inch
  • Depth: 5.45 Inch
  • Weight: 1.50 lbs

Compatibility Information for HPE Read-Intensive SSD

Compatible with HPE ProLiant DL Series

  • DL120 Gen9 (2.5 Inch), DL120 Gen9 Entry (2.5 Inch), DL160 Gen9 models (2.5 Inch), including Base, Entry, Performance, and Thoughtspot configurations
  • DL20 Gen9 variations (2.5 Inch), including Base, Entry, and Performance versions
  • DL360 Gen10 models (2.5 Inch), available in Base, Entry, High Performance, and Performance variations
  • DL580 models, compatible with both Gen10 (2.5 Inch) and Gen9 options, including Base, Database, and High Performance variants

Compatibility with HPE ProLiant ML Series

  • ML110 Gen9 versions (2.5 Inch), compatible across Base, Entry configurations
  • ML150 Gen9 models (2.5 Inch), compatible with Base, Entry, and Performance variations
  • ML30 Gen9 configurations, compatible with Base and Performance options
  • ML350 Gen9 (2.5 Inch), available in Base, Entry, and Performance versions

Compatibility with HPE ProLiant XL Series

  • XL170R Gen10 (2.5 Inch)
  • XL190R Gen10 (2.5 Inch)

Capacity: 3.84TB

The Power of Massive Storage

When it comes to storage capacity, the HPE 877764-H21 Internal SSD is in a league of its own. With a whopping capacity of 3.84TB, this SSD provides users with an exceptional amount of storage space to store and access their data. Whether you are a professional dealing with large files or an avid gamer with an extensive library of games, this SSD ensures that you never run out of space.

Unleash Your Creativity

For creative professionals such as photographers, videographers, and graphic designers, having a high-capacity storage solution is essential. The 3.84TB capacity of the HPE 877764-H21 Internal SSD allows you to store your raw files, edited projects, and creative assets without worrying about running out of space. You can focus on your work without the constant need to delete or transfer files to free up storage.

Efficient Data Management

In addition to providing ample storage space, the 3.84TB capacity also enables efficient data management. With such a large capacity, you can organize your files and data in a way that suits your workflow. You can create separate folders for different projects, clients, or categories, making it easier to locate and retrieve specific files when needed.

Seamless Collaboration

In collaborative work environments, where multiple users need access to shared files and data, the 3.84TB capacity becomes even more valuable. You can store all the necessary files in one centralized location, allowing team members to access and collaborate on projects effortlessly. This eliminates the need for time-consuming file transfers or using external storage devices for sharing data.

Future-Proof Your Storage

As technology advances and file sizes continue to grow, having a high-capacity storage solution becomes increasingly important. The 3.84TB capacity of the HPE 877764-H21 Internal SSD ensures that you are prepared for the future. You can confidently invest in this SSD, knowing that it will meet your storage needs for years to come.

Interface: SATA 6GBPS

Lightning-Fast Data Transfer

The HPE 877764-H21 Internal SSD features a SATA 6GBPS interface, which offers lightning-fast data transfer speeds. With this interface, you can expect significantly improved performance compared to traditional hard drives or older SSDs with slower interfaces.

Rapid File Access

The SATA 6GBPS interface enables the HPE 877764-H21 Internal SSD to deliver blazing-fast read and write speeds. This means that you can access your files, launch applications, and boot up your system in a matter of seconds. Say goodbye to long loading times and enjoy a seamless computing experience.

Enhanced Productivity

In today's fast-paced world, every second counts. Whether you are working on a critical project or playing an intense gaming session, the SATA 6GBPS interface ensures that you don't waste time waiting for your storage device to catch up. The fast data transfer speeds allow you to work more efficiently and accomplish tasks in less time.

Smooth Multitasking

With the HPE 877764-H21 Internal SSD's SATA 6GBPS interface, multitasking becomes a breeze. You can run multiple applications simultaneously without experiencing any lag or slowdowns. Switching between tasks is seamless, allowing you to maintain your productivity and focus without interruptions.

Optimized Gaming Performance

Gamers, in particular, can benefit greatly from the SATA 6GBPS interface. It ensures smooth gameplay with reduced loading times and faster level transitions. You can enjoy the latest games with stunning graphics and immersive worlds without any performance hiccups caused by slow storage.

FormFactor: 2.5inch SFF

Compact and Versatile Design

The HPE 877764-H21 Internal SSD features a 2.5inch SFF (Small Form Factor) design, which offers a perfect balance between compactness and versatility. This form factor makes it compatible with a wide range of devices, including laptops, desktops, servers, and storage arrays.

Upgrade Your Laptop

If you are looking to upgrade your laptop's storage capacity and performance, the 2.5inch SFF form factor is ideal. It allows you to easily replace your existing hard drive or SSD with the HPE 877764-H21 Internal SSD. The small size ensures a hassle-free installation process without any compatibility issues.

Expand Your Desktop's Storage

For desktop users, the 2.5inch SFF form factor provides an opportunity to expand their storage capabilities without sacrificing valuable space inside the computer case. You can install the HPE 877764-H21 Internal SSD in an available drive bay or use mounting brackets to secure it in a convenient location.

Seamless Integration with Servers and Storage Arrays

The versatility of the 2.5inch SFF form factor extends beyond personal computers. It is also compatible with servers and storage arrays, allowing businesses to enhance their data storage infrastructure. The HPE 877764-H21 Internal SSD can seamlessly integrate into existing setups, providing a significant boost in performance and capacity.

Portability for On-the-Go Professionals

For professionals who frequently work on the go, the 2.5inch SFF form factor offers portability and convenience. You can easily carry the HPE 877764-H21 Internal SSD in your bag or pocket, ensuring that your valuable data is always with you. Whether you are traveling for business or working remotely, you can access your files and applications without relying on cloud storage or external drives.

HotSwap: 1

Effortless Drive Replacement

The HPE 877764-H21 Internal SSD features HotSwap capability, allowing for effortless drive replacement. This feature enables you to remove and replace the SSD while the system is still running, eliminating the need to power down the entire system or interrupt ongoing operations.

Minimize Downtime

In environments where continuous uptime is critical, such as servers or high-demand workstations, minimizing downtime is of utmost importance. The HotSwap feature of the HPE 877764-H21 Internal SSD ensures that drive replacement can be done quickly and easily, reducing the impact on productivity and preventing any service disruptions.

Enhanced Data Protection

The ability to hot-swap drives also improves data protection. In case of a drive failure or other issues, you can swiftly replace the faulty SSD with a new one without interrupting data access or risking data loss. This ensures that your critical data remains safe and accessible at all times.

Flexible Maintenance and Upgrades

The HotSwap feature provides flexibility when it comes to maintenance and upgrades. You can perform hardware upgrades or firmware updates without the need to bring the entire system offline. This saves time and allows for seamless integration of new components or improvements to your storage infrastructure.

Streamlined IT Operations

For IT departments managing multiple systems, the HotSwap capability simplifies drive maintenance and replacement. It reduces the workload associated with manual drive replacement and allows for efficient management of storage resources. The HPE 877764-H21 Internal SSD with HotSwap capability is a valuable asset for streamlining IT operations and ensuring uninterrupted service.

Features
Product/Item Condition:
New (System) Pull
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
