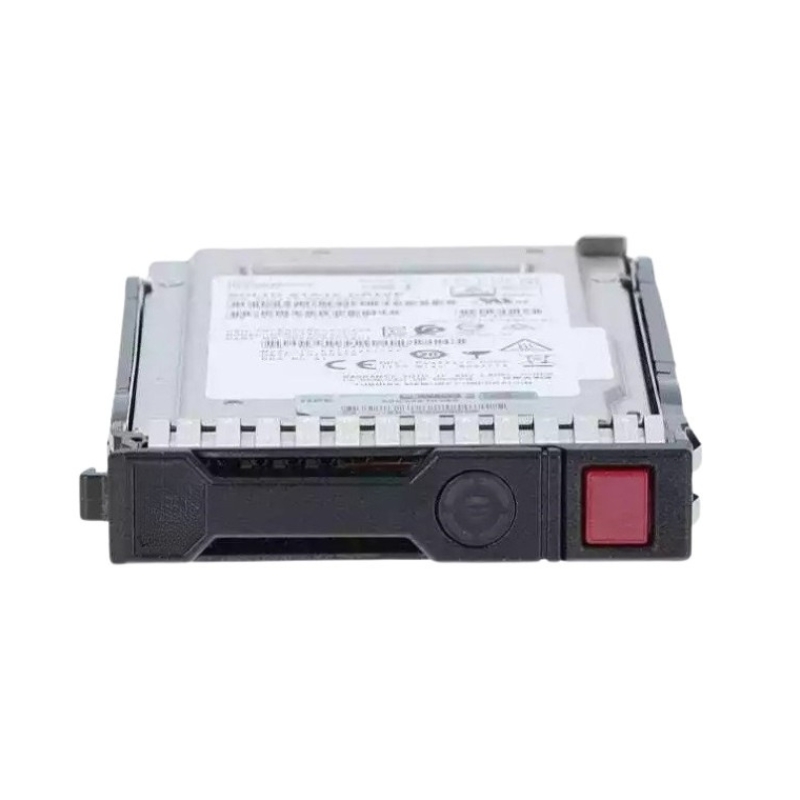

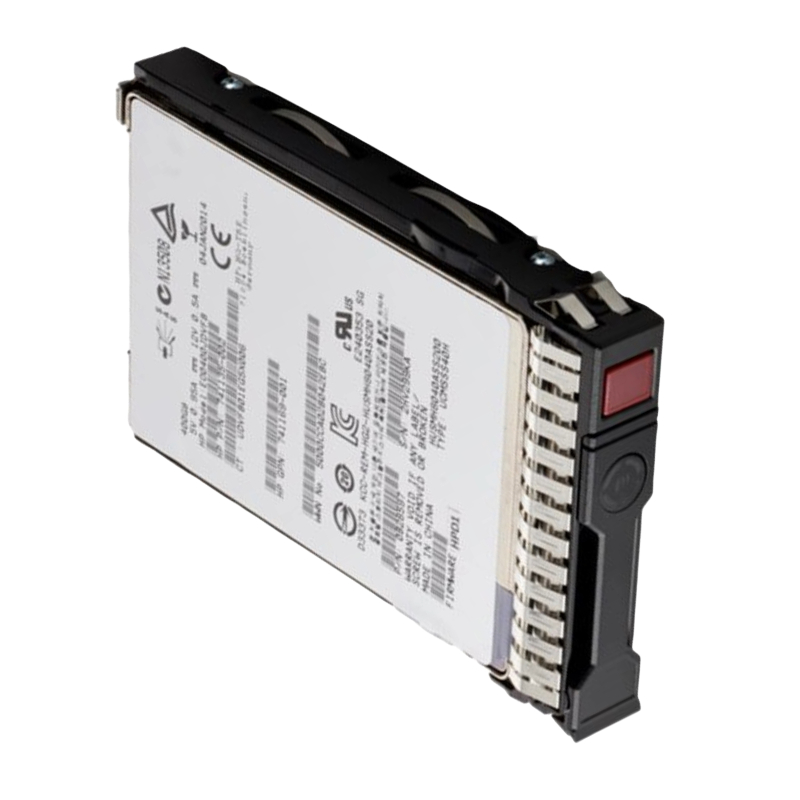

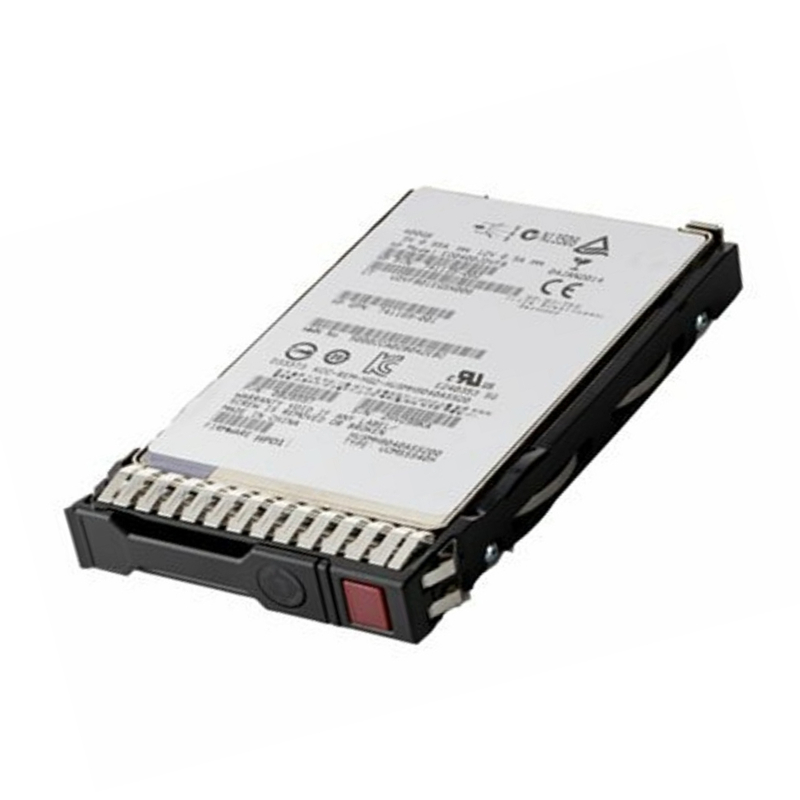

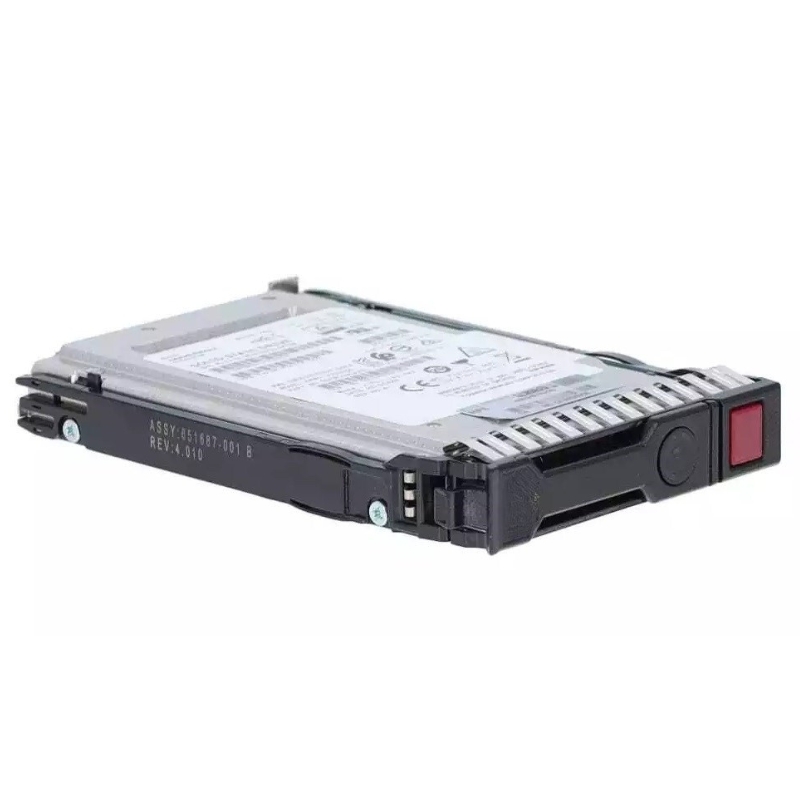

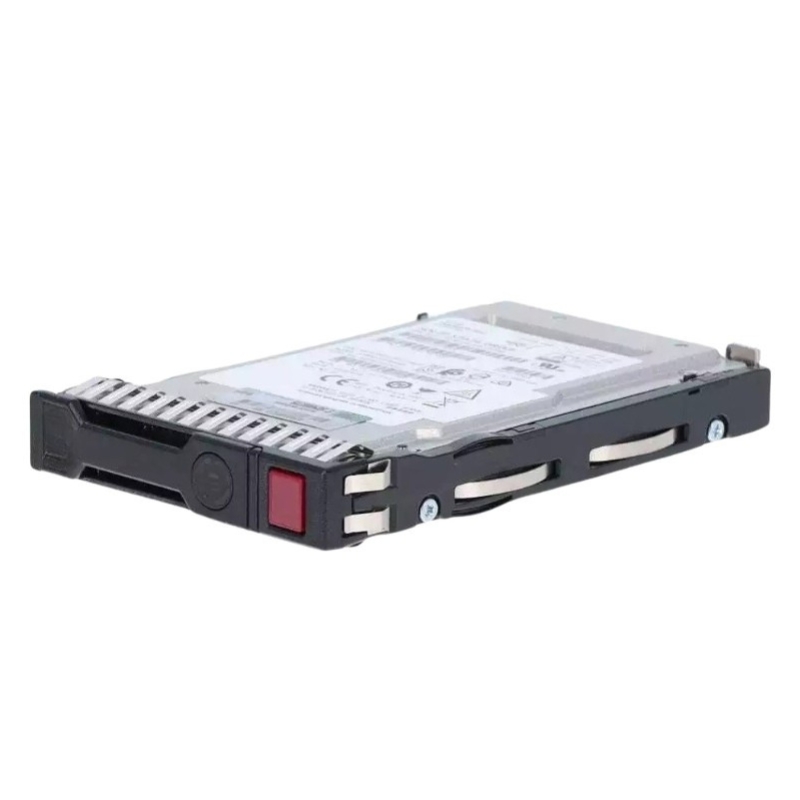

870668-003 HPE 960GB SATA 6G Smart Carrier Converter Mixed Use SSD

Specification of HPE 960GB SATA 6GBPS SSD

The HPE 870668-003 SATA 6Gbps 960GB Smart Carrier Converter Mixed Use SSD is a high-performance enterprise-grade solid-state drive engineered to deliver superior speed, endurance, and reliability. Designed for seamless integration into HPE ProLiant servers, this SSD enhances data center efficiency and accelerates workload performance. Its hot-swap capability, digitally signed firmware, and Smart Carrier Converter technology make it an ideal choice for businesses requiring robust storage solutions.

General Specifications

Product Information

• Brand: HPE
• Model Number: 870668-003
• Device Type: Solid State Drive (SSD) - Hot-Swap

Technical Specifications

• Storage Capacity: 960 GB
• Form Factor: 3.5-inch LFF
• Interface: SATA 6GBPS
• Special Features: Digitally Signed Firmware for enhanced security
• Included Accessories: HPE Smart Carrier Converter (SCC)

Performance and Reliability

Sequential and Random Performance Metrics

• Drive Transfer Rate: 600 Mbps (external)
• Maximum Sequential Read Speed: 510 MiB/s
• Maximum Sequential Write Speed: 480 MiB/s
• Random Read Average Latency: 130 µs (4KiB, Q1)
• Random Write Average Latency: 40 µs (4KiB, Q1)

IOPS Performance

• Random Read IOPS (4KiB, Q=16): 60,000
• Random Write IOPS (4KiB, Q=16): 52,500
• Max Random Read IOPS (4KiB, Q=32): 67,500
• Max Random Write IOPS (4KiB, Q=16): 52,500

Endurance and Write Capability

• Drive Writes Per Day (DWPD): 5
• 90-Day Write Endurance: 8800

Connectivity and Expansion Options

Interface and Bay Compatibility

• Interface: 1 x SATA 6Gb/s
• Compatible Drive Bay: 3.5-inch LFF

Supported HPE ProLiant Server Models

Compatible ProLiant DL Series Models

• DL20 Gen9 Solution (3.5")
• DL360 Gen10 Series – Base, Entry, High Performance, Low, Performance, SMB, Solution (3.5")
• DL360 Gen9 Series – Base, CMS, Entry, Performance, Special Server (3.5")
• DL380 Gen10 Series – Base, Entry, Entry SMB, Cohesity DataPlatform, High Performance, Performance, SMB, Solution (3.5")
• DL380 Gen9 Series – Base, Entry, High Performance, Performance, Scale-up SAP HANA TDI Compute Block, Special (3.5")

HPE 870668-003 SATA 6GBPS 960GB MU LFF SSD Overview

The HPE 870668-003 SATA 6Gbps 960GB Smart Carrier Converter Mixed Use SSD is a high-performance enterprise-class solid-state drive designed for organizations seeking enhanced storage efficiency, reliability, and performance. It is engineered to deliver exceptional speed and consistent throughput for demanding workloads, making it an ideal choice for servers and data centers. Built with Hewlett Packard Enterprise’s advanced SSD technology, this storage device ensures optimized operations for applications requiring balanced read and write performance. It supports mixed-use scenarios, allowing businesses to handle transactional, database, virtualization, and general-purpose workloads with reliability and speed. As part of HPE’s Smart Carrier ecosystem, it integrates advanced features that provide real-time monitoring, improved data integrity, and simplified drive management, ensuring long-term operational stability.

Design and Build of HPE 870668-003 SSD

Form Factor and Construction Quality

The HPE 870668-003 SSD is built with a 2.5-inch small form factor, which ensures broad compatibility with a wide range of HPE ProLiant servers and storage arrays. The compact form factor makes it ideal for high-density server environments where space optimization is crucial. The build quality reflects enterprise-grade engineering, with robust materials designed to operate reliably in mission-critical environments. This SSD is enclosed in a durable chassis that enhances thermal stability and protects internal components from physical stress, ensuring consistent performance even under intensive workloads.

Smart Carrier Converter Design

One of the defining features of this drive is its Smart Carrier Converter integration. The smart carrier not only simplifies drive installation and replacement but also provides valuable drive health and status information directly on the front panel. With built-in LED indicators, IT administrators can easily monitor drive activity, status, and predictive failure alerts without requiring system downtime. This design feature significantly improves operational efficiency and reduces maintenance complexity in enterprise data centers. Additionally, the converter allows seamless integration into existing server infrastructures, minimizing compatibility concerns and supporting future scalability.

Performance Capabilities of HPE 870668-003 SSD

High-Speed SATA 6Gbps Interface

The HPE 870668-003 SSD utilizes the SATA 6Gbps interface, ensuring high-speed data transfer and low latency. The SATA III interface provides reliable connectivity and optimal performance for enterprise workloads, allowing the SSD to deliver consistent throughput for both sequential and random operations. Whether handling database queries, virtualization tasks, or file-serving operations, the drive provides smooth and responsive performance across diverse environments. Its efficient interface also ensures backward compatibility with older SATA systems, making it a versatile choice for varied IT infrastructures.

Optimized for Mixed Use Workloads

This SSD is designed for mixed-use applications, striking the perfect balance between read and write performance. With a 960GB capacity, it supports data-intensive operations that involve frequent read/write cycles. The drive is capable of sustaining high IOPS (Input/Output Operations Per Second), ensuring minimal latency and fast response times. This makes it particularly suitable for workloads such as online transaction processing (OLTP), virtual desktop infrastructure (VDI), and enterprise resource planning (ERP) applications. The mixed-use design means that the SSD can efficiently handle both random read/write operations and sequential transfers, enabling flexible performance across a wide range of enterprise applications.

Low Latency and Consistent Throughput

The internal architecture of the HPE 870668-003 SSD ensures low latency and consistent throughput, even under heavy load conditions. The drive maintains steady performance across extended usage periods, supporting mission-critical applications that require predictable responsiveness. This is particularly important in virtualized environments where consistent storage performance impacts the overall system efficiency. The advanced controller and NAND flash technology work in harmony to deliver sustained throughput, ensuring that performance remains stable over time, even as the drive approaches full capacity.

Advanced Reliability and Endurance Features

Enterprise-Grade Endurance

Built for demanding enterprise environments, the HPE 870668-003 SSD offers exceptional endurance to support continuous read/write operations over its lifespan. The mixed-use classification indicates that the drive is designed to handle a balanced workload with a high number of drive writes per day (DWPD). This ensures reliability in scenarios where data is constantly written, erased, and rewritten. The endurance rating allows organizations to deploy the SSD in high-intensity environments without worrying about premature wear, reducing maintenance costs and downtime.

Enhanced Error Correction and Data Protection

The drive incorporates advanced error correction algorithms to maintain data integrity even during unexpected failures or power loss events. Features like end-to-end data protection and power-loss protection help safeguard data from corruption or loss, providing an additional layer of reliability for critical business operations. The SSD also utilizes wear-leveling and bad block management techniques to extend its usable lifespan and ensure consistent performance throughout its operational life. These technologies collectively enhance the reliability and durability of the drive, making it suitable for mission-critical applications.

Thermal Management and Operational Stability

Efficient thermal management is another key aspect of the HPE 870668-003 SSD design. It operates within a wide temperature range and incorporates features to prevent overheating, ensuring optimal performance even during intensive workloads. The Smart Carrier design aids heat dissipation, reducing thermal stress on the drive and adjacent components. Consistent operating temperatures not only improve reliability but also extend the overall lifespan of the SSD, reducing the frequency of replacements and lowering total cost of ownership for organizations.

Integration and Compatibility with HPE Systems

Seamless Compatibility with HPE ProLiant Servers

The HPE 870668-003 SATA 960GB SSD is optimized for seamless integration with HPE ProLiant Gen9 and Gen10 servers, among others. It is fully tested and validated by HPE to ensure compatibility with server firmware, storage controllers, and management software. This compatibility guarantees stable performance and eliminates potential conflicts, simplifying deployment across existing server infrastructures. Its Smart Carrier Converter further ensures that it can be easily installed into standard drive bays, streamlining the upgrade process for enterprises expanding their storage capabilities.

Compatibility with HPE Smart Storage Solutions

As part of HPE’s storage ecosystem, the 870668-003 SSD is fully compatible with Smart Storage technologies, including HPE Smart Array and HPE Smart Carrier systems. These technologies provide advanced features like predictive failure analysis, performance monitoring, and simplified management through HPE Integrated Lights-Out (iLO). By integrating with HPE’s management tools, IT administrators can proactively monitor drive health, receive alerts, and plan maintenance schedules without service interruptions. This compatibility enhances operational efficiency and reduces the risk of unexpected downtime.

Applications and Use Cases of HPE 870668-003 SSD

Virtualization and Cloud Computing

In virtualization environments, storage performance plays a critical role in determining overall system responsiveness and scalability. The HPE 870668-003 SSD delivers the low latency and high throughput necessary for hosting multiple virtual machines on a single server. It ensures that applications and services respond quickly, even under heavy user loads. For cloud infrastructure, the SSD provides the performance and endurance needed to support dynamic workloads, allowing businesses to scale resources efficiently while maintaining consistent service levels.

Database and Transactional Workloads

Database systems require fast and reliable storage to handle large volumes of read and write operations. The HPE 870668-003 SSD is optimized for such tasks, providing the speed and endurance needed for online transaction processing (OLTP), data warehousing, and real-time analytics. Its mixed-use performance ensures rapid query responses and smooth data indexing operations. This makes it an excellent choice for applications like SQL and NoSQL databases, enterprise resource planning (ERP), and customer relationship management (CRM) systems that rely on consistent storage performance.

Content Delivery and Web Hosting

Web hosting and content delivery networks benefit from the drive’s low latency and high throughput, which ensure fast content access and delivery. The HPE 870668-003 SSD can handle high traffic volumes with minimal latency, making it ideal for web servers, application servers, and content management systems. Its reliability ensures consistent uptime and fast response times, enhancing the user experience and supporting business continuity. Additionally, its efficient performance under heavy load conditions makes it suitable for e-commerce platforms, online services, and high-traffic websites.

Virtual Desktop Infrastructure (VDI)

For organizations deploying virtual desktops, storage performance directly affects user experience and productivity. The HPE 870668-003 SSD delivers the fast boot times, quick application loading, and consistent performance required for VDI environments. It supports a large number of concurrent users without performance degradation, enabling smooth operation even during peak usage periods. Its high endurance ensures reliable performance over time, reducing the need for frequent replacements and lowering total cost of ownership.

Deployment Flexibility and Scalability

Scalable Storage Architecture

The HPE 870668-003 SSD is designed to support scalable storage architectures, making it suitable for growing businesses and expanding data center environments. Its compatibility with a wide range of HPE servers and storage solutions enables organizations to scale storage capacity seamlessly without major infrastructure changes. As data requirements grow, additional drives can be added to expand capacity while maintaining consistent performance. This scalability ensures long-term value and protects investments by enabling organizations to adapt to evolving storage needs.

Ease of Deployment and Management

Deployment of the HPE 870668-003 SSD is straightforward, thanks to its Smart Carrier Converter design and seamless integration with HPE systems. The plug-and-play installation process minimizes setup time and reduces the complexity of storage upgrades. Integrated management tools such as HPE Integrated Lights-Out (iLO) and Smart Storage Administrator (SSA) simplify monitoring, configuration, and maintenance tasks. Administrators can easily track drive health, performance metrics, and firmware updates from a centralized interface, improving operational efficiency and reducing administrative overhead.

Technical Specifications and Architecture Details

Storage Capacity and Form Factor

The HPE 870668-003 offers a 960GB storage capacity in a 2.5-inch form factor, striking a balance between capacity and performance for enterprise workloads. The capacity is sufficient to handle large databases, virtual machines, and content libraries, providing flexibility for a variety of applications. The compact form factor allows for high-density storage deployments, maximizing the use of available rack space in data centers and server rooms.

Interface and Performance Metrics

The drive uses a SATA 6Gbps interface, delivering high-speed connectivity and reliable data transfer rates. It achieves excellent read and write speeds suitable for mixed-use applications, supporting rapid data access and efficient workload execution. The SSD delivers high IOPS performance, ensuring responsive application performance even during intensive operations. Its optimized latency characteristics ensure quick access to stored data, enhancing overall system responsiveness.

Durability and Endurance Ratings

The mixed-use design of the HPE 870668-003 SSD ensures a balanced endurance profile, supporting a high number of write cycles throughout its lifespan. Its robust NAND architecture and wear-leveling technologies extend the usable life of the drive, making it a reliable solution for continuous enterprise workloads. The endurance capabilities make it suitable for write-intensive environments without compromising on performance or reliability.
