AP-505H-US HPE Aruba Dual Ethernet PSE USB Hospitality Wireless Access Point

HPE AP-505H-US Aruba Wi-Fi 6 Hospitality Access Point

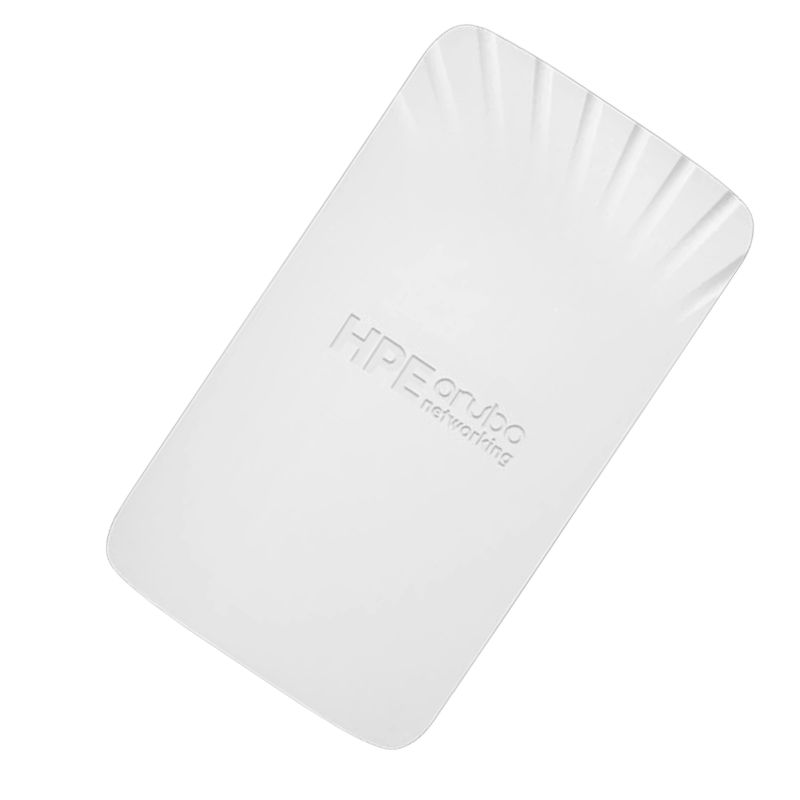

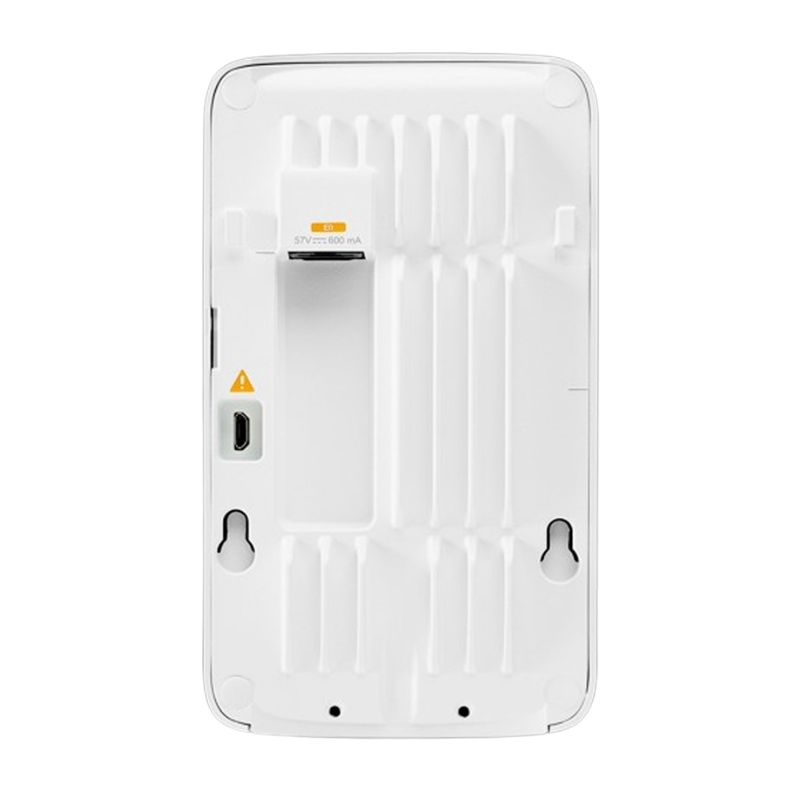

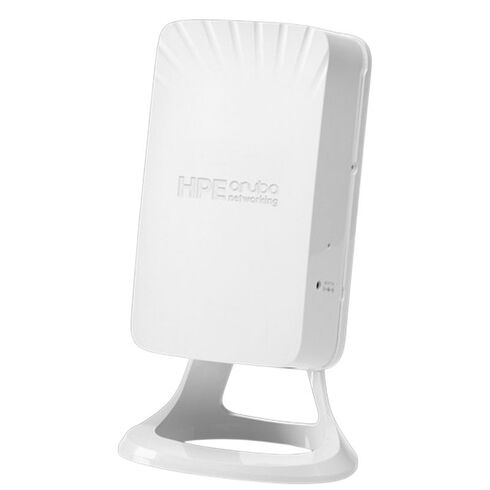

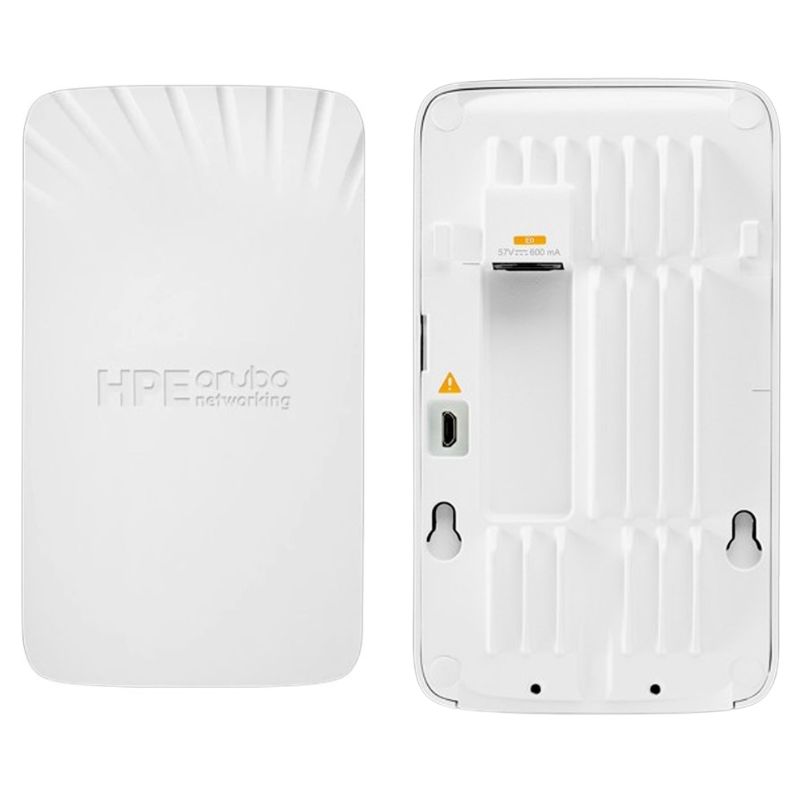

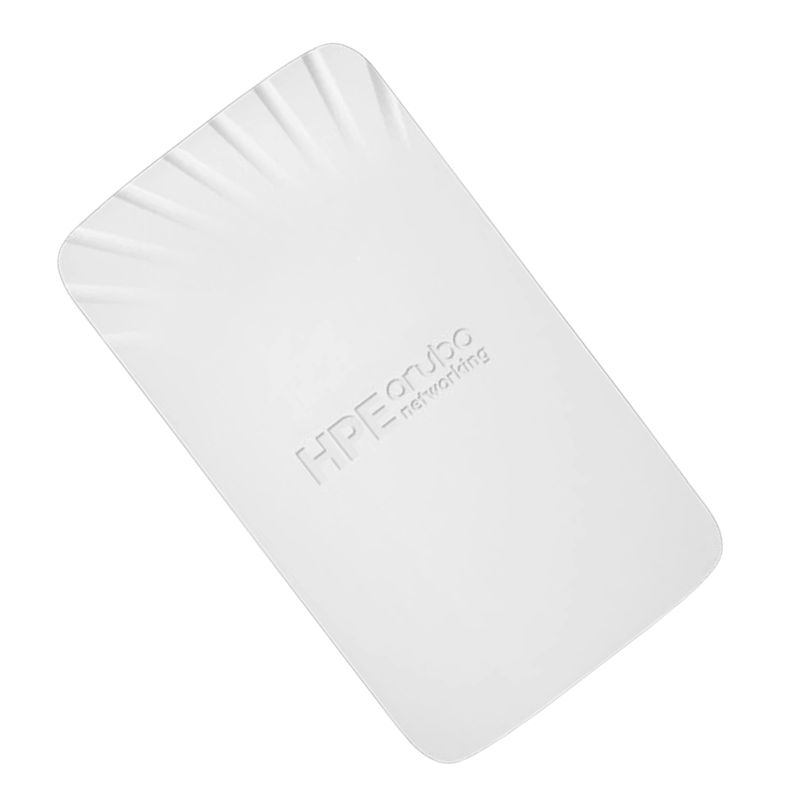

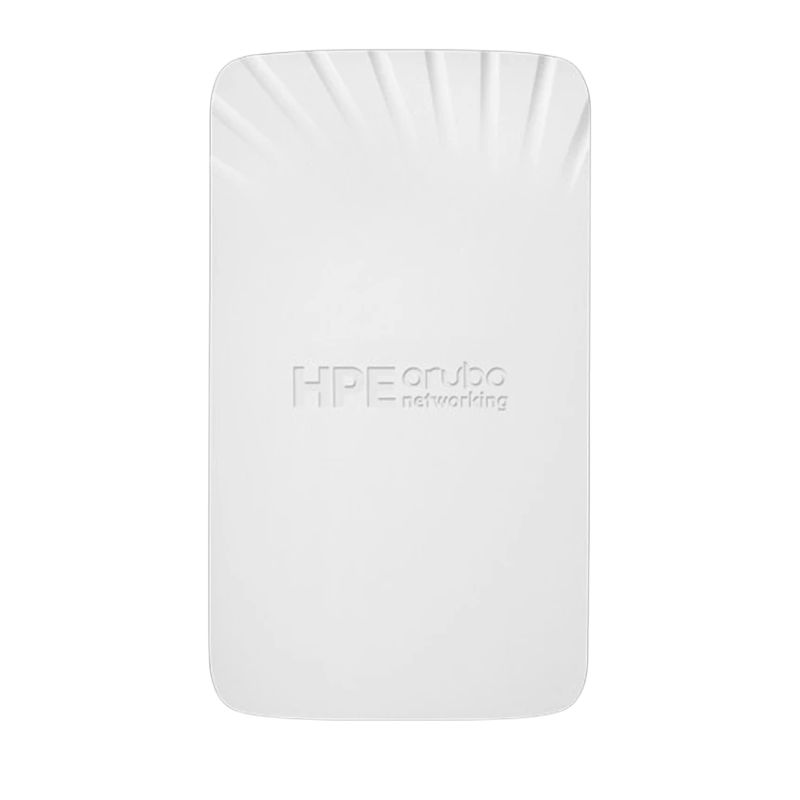

The HPE AP-505H-US Aruba Networking Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality Wireless Access Point is a compact, wall-plate style Wi-Fi 6 solution purpose-built for hotels, dormitories, healthcare rooms, and multi-dwelling environments. Designed HPE this advanced hospitality access point delivers enterprise-grade wireless connectivity, multi-gig wired uplinks, integrated Power over Ethernet (PoE) support, and secure network segmentation for guest and staff access.

Engineered with next-generation 802.11ax (Wi-Fi 6) technology, this Aruba Networking AP enhances capacity, improves spectral efficiency, and ensures seamless roaming in high-density indoor deployments. With dual-radio 2x2 MIMO architecture, integrated semi-directional antennas, and multi-gig Smart Rate Ethernet, the AP-505H-US provides reliable and high-speed wireless networking while maintaining a sleek, low-profile installation footprint.

Product Identification Details

• Manufacturer: HPE
• Part Number: AP-505H-US
• Device Category: Wireless Access Point

• Dual-radio 802.11ax (Wi-Fi 6) performance
• 2x2 MIMO for both 2.4 GHz and 5 GHz bands
• Multi-gig 2.5Gbps Smart Rate uplink
• Four additional Gigabit Ethernet downlink ports
• Integrated PoE support for connected devices
• Enhanced WPA3 enterprise-grade security
• Optimized for wall-mounted hospitality deployments

Dual-Band 2x2 MIMO Architecture

• 5 GHz Radio: Up to 1.2 Gbps wireless throughput (HE80)
• 2.4 GHz Radio: Up to 287 Mbps wireless throughput (HE20)
• Improved spectrum efficiency with OFDMA
• Reduced latency for real-time applications
• Enhanced client density support

High-Efficiency Wireless Performance

• Hotel guest rooms with multiple smart devices
• University dormitories
• Assisted living facilities
• Hospital patient rooms
• MDUs (Multi-Dwelling Units)

Antenna Gain Specifications

• 5.2 dBi peak single antenna gain at 2.4 GHz
• 5.4 dBi peak single antenna gain at 5 GHz
• Combined average peak gain of 3.3 dBi (2.4 GHz)
• Combined average peak gain of 2.9 dBi (5 GHz)

2.5Gbps Smart Rate Port

• Auto-negotiating 100/1000/2500 Mbps speeds
• MDI/MDX auto-sensing
• NBASE-T and 802.3bz compliant
• Ideal for high-throughput Wi-Fi 6 deployments

Four Gigabit Downlink Ethernet Ports

• IP phones
• IPTV systems
• IoT gateways
• Desktop PCs and thin clients
• Security cameras

Integrated Power over Ethernet (PoE) and PSE Capabilities

• Supports PoE standards
• Eliminates extra power cabling
• Simplifies structured cabling designs
• Enables centralized power management

Wi-Fi Alliance Certifications

• Wi-Fi Certified a/b/g/n/ac
• Wi-Fi Certified 6 (802.11ax)
• Wi-Fi Agile Multiband
• WMM and WMM-PS
• Passpoint Release 2
• Wi-Fi Certified Location (AP-505H specific)

Enterprise-Grade Encryption and Authentication

• WPA, WPA2, and WPA3-Enterprise
• CNSA option support
• WPA3-Personal (SAE)
• Enhanced Open (OWE)

Global Regulatory Approvals

• FCC / ISED certified
• CE marked
• RED Directive 2014/53/EU compliant
• EMC Directive 2014/30/EU compliant
• Low Voltage Directive 2014/35/EU compliant

Safety and Medical Environment Compliance

• UL/IEC/EN 62368-1
• EN 60601-1-1
• EN 60601-1-2

Bluetooth SIG Certification

• Indoor positioning support
• Asset tracking capabilities
• Proximity marketing integration
• Beacon-based navigation

Wireless Capabilities

• 802.11ax Wi-Fi 6 compliant
• 2x2 SU/MU-MIMO
• Up to 1.2 Gbps (5 GHz)
• Up to 287 Mbps (2.4 GHz)

Networking Interfaces

• 1 x 2.5Gbps Smart Rate RJ-45 uplink
• 4 x Gigabit Ethernet downlink ports
• Auto-sensing MDI/MDX support

Power and Efficiency

• PoE support with Ethernet Alliance certification
• Maximum 50W power consumption
• Energy-efficient Wi-Fi 6 radio design

Next-Generation Hospitality Wireless Access Point Architecture

The HPE AP-505H-US Aruba Networking Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality Wireless Access Point belongs to an advanced category of wall-plate WiFi 6 access points engineered specifically for hospitality environments, remote offices, branch deployments, multi-dwelling units, and healthcare facilities. This category is defined by compact form factor wireless devices that combine high-efficiency 802.11ax performance, integrated wired switching, Power over Ethernet output capabilities, USB expansion, and enterprise-grade security into a single unified platform. Designed for in-room or wall-mounted deployment, these access points deliver seamless connectivity while reducing cabling complexity and infrastructure costs.

As part of Aruba Networking’s enterprise mobility portfolio under Hewlett Packard Enterprise, this hospitality wireless access point category is optimized for distributed edge networking. It enables consistent wireless coverage and secure wired connectivity directly inside guest rooms, dormitories, patient rooms, and small office spaces. The combination of dual-radio WiFi 6 performance and multiple Ethernet downlink ports transforms each deployment location into a micro network hub capable of supporting laptops, IP phones, smart TVs, IoT devices, and mobile endpoints simultaneously.

WiFi 6 802.11ax Dual Radio Performance

This category of Aruba Networking hospitality access points leverages IEEE 802.11ax technology to deliver higher throughput, improved spectral efficiency, and lower latency compared to previous WiFi generations. The dual-radio 2x2 MIMO architecture operates concurrently on both 2.4 GHz and 5 GHz frequency bands, ensuring compatibility with legacy devices while maximizing high-speed performance for modern wireless clients. Aggregate data rates approach 1.5 Gbps, with optimized distribution of bandwidth across connected endpoints.

WiFi 6 enhancements such as Orthogonal Frequency Division Multiple Access allow multiple users to transmit and receive data simultaneously within subdivided channel resources. This significantly reduces contention in high-density hospitality deployments where dozens of devices may connect within a single room or adjacent units. Multi-User MIMO further enhances efficiency by enabling parallel communication streams to multiple clients at once.

High-Density Client Optimization

Hospitality and multi-dwelling deployments demand consistent performance even when multiple devices connect simultaneously. The 2x2 spatial stream architecture ensures balanced throughput and reliable connectivity for smartphones, tablets, laptops, streaming devices, and IoT endpoints. Intelligent client steering and band balancing distribute devices appropriately across frequency bands to prevent congestion and maintain optimal performance.

Target Wake Time and Power Efficiency for Endpoints

Target Wake Time functionality schedules communication intervals for compatible devices, improving battery efficiency and reducing unnecessary radio activity. This is particularly beneficial in environments with numerous IoT sensors or mobile devices requiring extended battery life. By optimizing communication timing, the access point reduces interference and improves overall airtime utilization.

Integrated Wired Switching with 1+4 Ethernet

A defining characteristic of the HPE AP-505H-US category is its integrated multi-port Ethernet switching capability. The 1+4 Ethernet configuration typically includes one uplink port and four downlink ports, enabling the access point to function as a compact edge switch within a room or small office environment. This eliminates the need for separate access switches in many hospitality deployments, reducing capital expenditures and simplifying infrastructure design.

The integrated uplink port supports high-speed connectivity to upstream network switches, ensuring that aggregated wireless traffic flows efficiently to the core network. The four downlink Ethernet ports allow wired devices such as IP phones, desktop computers, security cameras, and entertainment systems to connect directly to the access point. This unified wired and wireless design streamlines cabling requirements and improves space utilization.

Power over Ethernet Output for Edge Devices

Select Ethernet downlink ports support Power over Ethernet output, enabling connected devices to receive both data and electrical power through a single cable. This functionality is particularly valuable in hospitality guest rooms where space constraints limit additional power outlets. By powering IP phones or IoT sensors directly from the access point, installation becomes cleaner and more cost-effective.

USB Expansion and IoT Integration

The inclusion of a USB port expands the functionality of this hospitality wireless access point category. USB interfaces can support additional IoT modules, cellular failover dongles, or future expansion devices. This flexibility allows organizations to adapt to evolving connectivity requirements without replacing core infrastructure hardware.

In addition to USB expansion, integrated Bluetooth and Zigbee radios enable direct connectivity with IoT devices. This allows the access point to function as a unified IoT gateway for smart locks, environmental sensors, asset tracking beacons, and building automation systems. Consolidating wireless networking and IoT aggregation into a single platform reduces equipment footprint and simplifies network management.

Edge-Based IoT Security and Segmentation

Integrated IoT connectivity is secured through enterprise-grade encryption and dynamic segmentation. Devices connecting via Bluetooth or Zigbee can be logically separated from guest or corporate traffic, ensuring compliance with data protection standards. Policy-based routing ensures that IoT traffic is directed appropriately within the network infrastructure.

Enterprise-Grade Security Framework

Security is a critical component of the Aruba Networking hospitality access point category. Support for WPA3 encryption strengthens wireless authentication mechanisms, protecting user data against modern attack vectors. Enhanced open authentication provides secure guest access while maintaining ease of onboarding. Built-in policy enforcement firewall capabilities enable granular traffic inspection and control at the network edge.

Dynamic segmentation technology ensures that users, devices, and applications are automatically assigned to appropriate network segments based on identity or role. This prevents unauthorized lateral movement and protects sensitive corporate resources. Trusted hardware modules safeguard device credentials and firmware integrity, ensuring that the access point boots securely and resists tampering.

Cloud and Controller-Based Management Flexibility

The HPE AP-505H-US hospitality wireless access point category supports both cloud-managed and controller-based deployment models. Organizations can centrally manage large fleets of access points using Aruba’s cloud-based management platforms or integrate devices into existing on-premises controller infrastructures. This flexibility allows businesses to align network architecture with operational preferences and compliance requirements.

Zero touch provisioning simplifies deployment by allowing access points to automatically retrieve configuration settings upon connecting to the internet. This feature is especially valuable for hospitality chains and distributed enterprises deploying devices across multiple geographic locations.

AI-Driven Network Optimization

Cloud management platforms incorporate artificial intelligence analytics to monitor network health, detect anomalies, and optimize radio frequency parameters. Automated channel selection and transmit power adjustments enhance coverage and reduce interference without manual intervention. Predictive analytics can identify potential issues before they impact end users.

Deployment Versatility in Hospitality and Multi-Dwelling Units

The wall-plate form factor of this Aruba Networking access point category enables discrete installation within guest rooms or residential units. Mounting directly onto standard wall junction boxes ensures clean aesthetics while delivering powerful wireless coverage precisely where it is needed. This placement strategy improves signal quality compared to corridor-mounted access points and reduces coverage dead zones.

In multi-dwelling units and student housing environments, per-room access point deployment ensures predictable bandwidth allocation and consistent performance. The integrated Ethernet ports support in-room wired connectivity for workstations and entertainment systems, enhancing user satisfaction and enabling premium service offerings.

Energy Efficiency and Sustainable Network Operations

Energy-efficient hardware design and intelligent power management contribute to reduced operational costs. The access point dynamically adjusts power consumption based on utilization levels, optimizing efficiency without compromising performance. Support for modern PoE standards enables streamlined power delivery over existing Ethernet infrastructure.

Green networking features align with sustainability initiatives by minimizing energy waste and supporting environmentally responsible IT strategies. Intelligent monitoring capabilities provide visibility into power usage patterns, assisting organizations in achieving operational efficiency targets.

Long-Term Investment Protection and Scalability

Backward compatibility with earlier WiFi standards ensures seamless support for legacy devices, while WiFi 6 capabilities prepare networks for future growth. Multi-gigabit uplink readiness and integrated IoT radios extend the functional lifespan of deployments. Firmware updates and cloud-based feature enhancements allow continuous improvement without hardware replacement.

The HPE AP-505H-US Aruba Networking Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality Wireless Access Point category represents a convergence of high-performance wireless connectivity, integrated edge switching, advanced security, IoT enablement, and centralized management. Its architecture is purpose-built to meet the demands of modern hospitality, enterprise, healthcare, and multi-dwelling environments where reliable connectivity, scalability, and security are essential.
