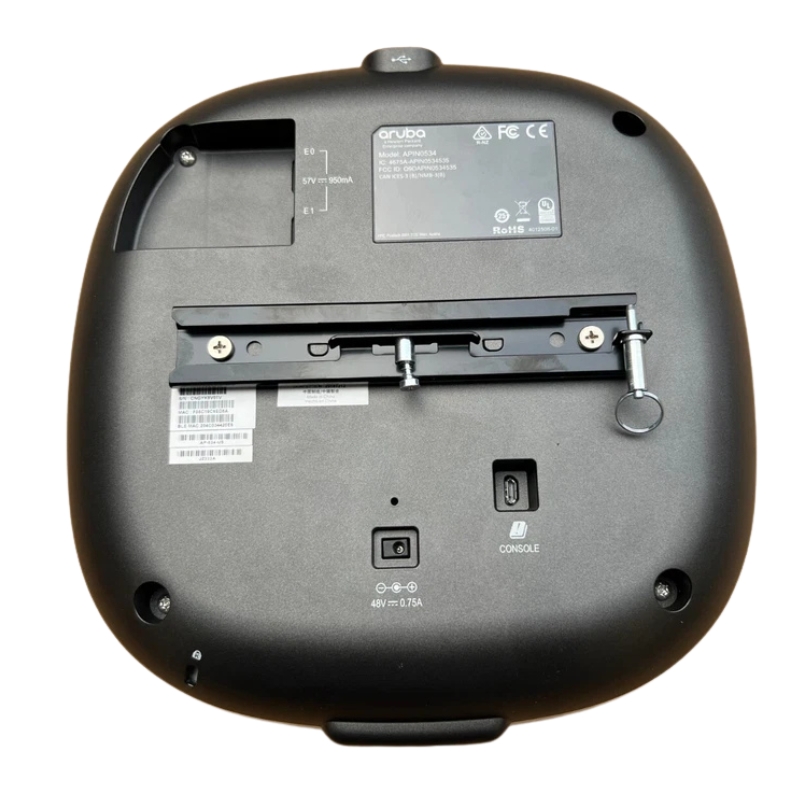

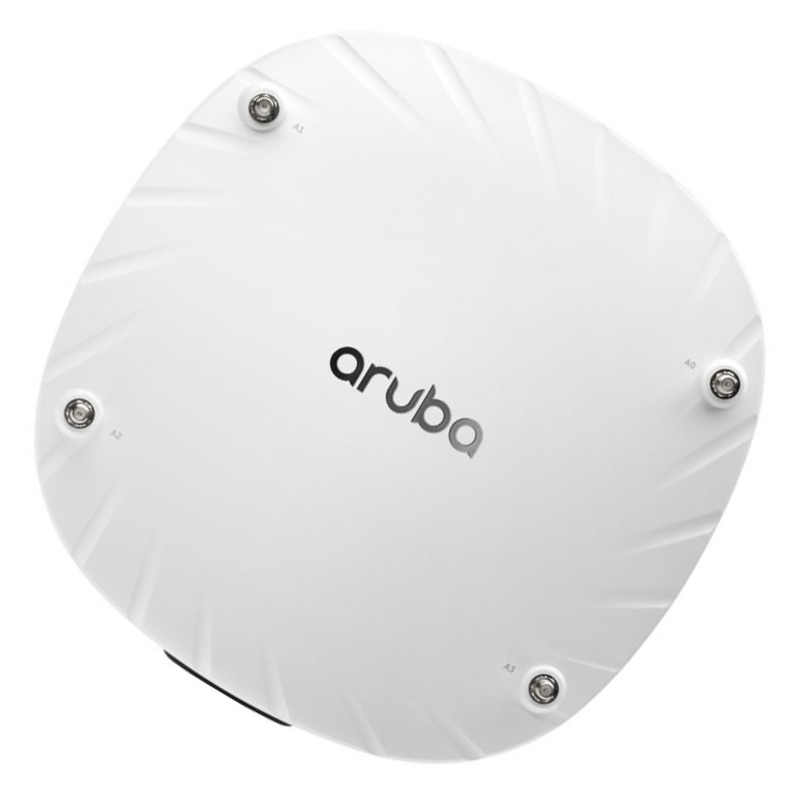

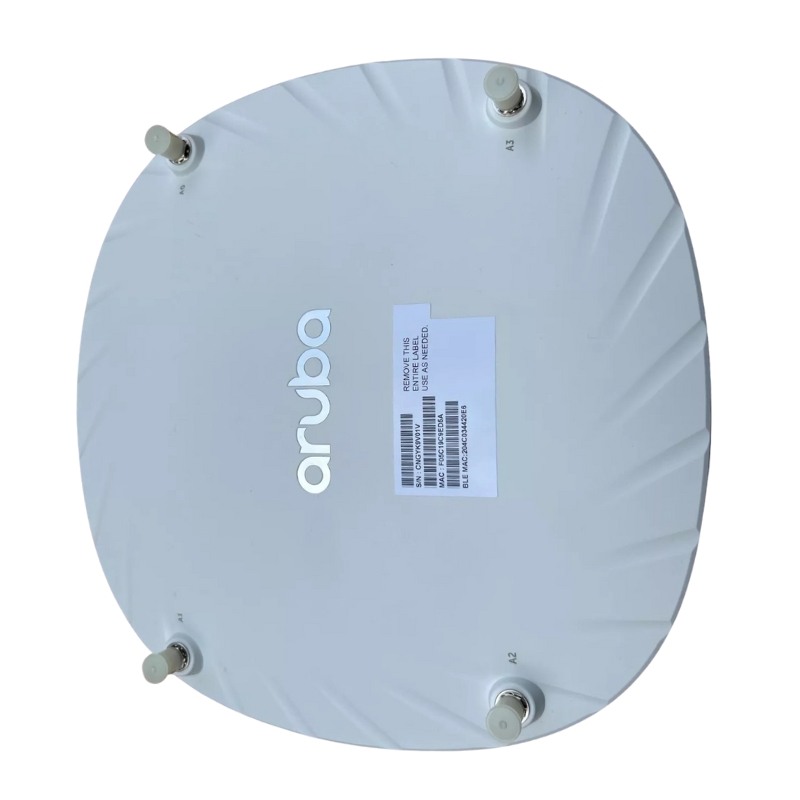

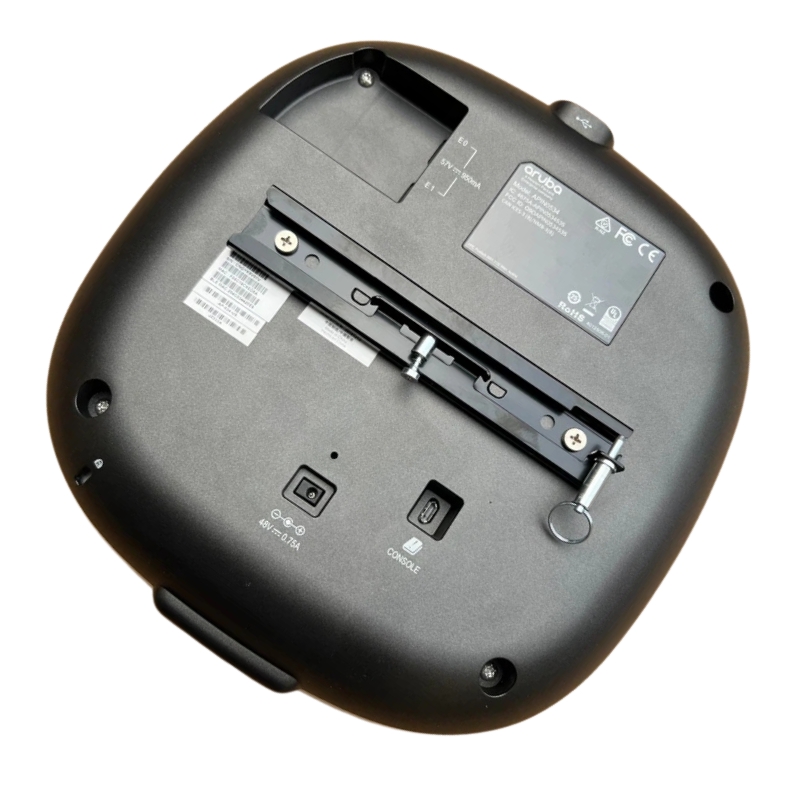

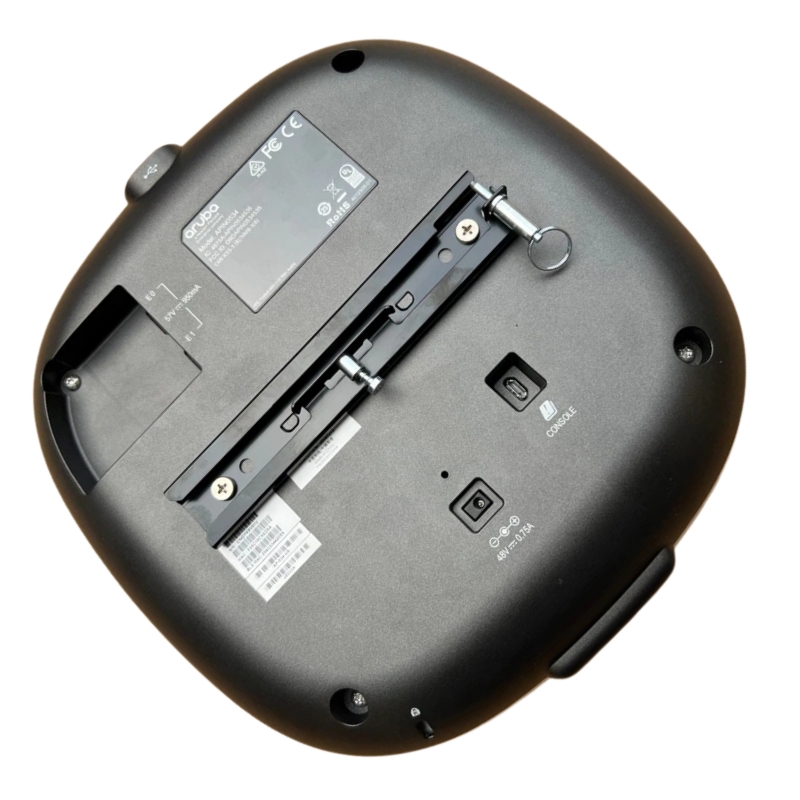

HPE JZ332A AP-534 Aruba Dual Radio AP with 4x4:4 802.11AX Technology

JZ332A
Hover on image to enlarge

Brief Overview of JZ332A

HPE JZ332A AP-534 Aruba Dual Radio Access Point with 4x4:4 802.11AX Technology. Excellent Refurbished with 6-Month Replacement Warranty

QR Code of HPE JZ332A AP-534 Aruba Dual Radio AP with 4x4:4 802.11AX Technology
$848.48
$288.00
You save: $560.48 (66%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJZ332AAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Summary

The HPE JZ332A Aruba AP-534 (US) is a high-performance Dual Radio 4x4:4 802.11ax Unified Campus Access Point designed for robust networking solutions.

Networking Specifications

Design and Form Factor

  • Type: In-ceiling
  • Connectivity Type: Wireless

Data Transfer Capabilities

  • Maximum Data Rate: 2.4 Gbps
  • Line Coding Formats:
    • CCK
    • 64 QAM
    • 256 QAM
    • BPSK
    • QPSK
    • 16 QAM
    • OFDM
    • 1024 QAM
    • OFDMA
  • Data Link Protocols:
    • IEEE 802.11b
    • IEEE 802.11a
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.11ac
    • Bluetooth 5.0
    • IEEE 802.11ax
  • Spread Spectrum Techniques: OFDM, DS, OFDMA
  • Frequency Bands: 2.4 GHz and 5 GHz

Performance Metrics

Speed and Capacity

  • Max Data Rate (2.4 GHz): 1150 Mbps
  • Max Data Rate (5 GHz): 2.4 Gbps
  • Total Aggregate Bandwidth: 3.55 Gbps

Client Handling Capabilities

  • Supported Wireless Clients (per Wi-Fi Radio): Up to 1024
  • OFDMA Units: 37
  • BSSIDs (per Radio): 16
  • Status Indicators: System and Status LEDs

Key Features

  • Trusted Platform Module (TPM)
  • LACP Support
  • Adaptive Radio Management (ARM)
  • Maximum Ratio Combining (MRC)
  • Low-Density Parity Check (LDPC)
  • Transmit Beamforming (TxBF) Ready
  • Direct Sequence Spread Spectrum (DS)
  • Cyclic Delay Diversity (CDD)
  • Space-Time Block Coding (STBC)
  • Advanced Cellular Coexistence (ACC)
  • ClientMatch Technology
  • Cyclic Shift Diversity (CSD)
  • APRF Technology
  • MU-MIMO Technology
  • Packet Aggregation (A-MPDU and A-MSDU)
  • Air Monitor (AM)
  • Intelligent Power Monitoring (IPM)
  • Dynamic Frequency Selection (DFS)
  • High-Throughput (HT) Support
  • 4x4 MU-MIMO Technology
  • Orthogonal Frequency Division Multiplexing (OFDM)
  • Aruba Airmatch
  • Spectrum Analyzer
  • Very High Throughput (VHT) Support
  • Orthogonal Frequency Division Multiple Access (OFDMA)
  • Unified AP Support
  • Custom Deep-Sleep Mode
  • High Efficiency (HE) Support
  • Target Wait Time (TWT)

Security and Compliance

  • Encryption Protocols: WPA, WPA2, WPA3
  • Compliance Standards:
    • IEEE 802.11b
    • IEEE 802.11a
    • IEEE 802.3af
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3at
    • IEEE 802.11ac
    • IEEE 802.3bz
    • IEEE 802.3bt
    • IEEE 802.11ax

Antenna Information

  • Type: External Detachable
  • Quantity: 4

Connectivity Options

Interface Overview

  • 1 x HPE Smart Rate - RJ-45
  • 1 x USB 2.0 - Type A
  • 4 x Antenna - RP-SMA (x 4)

Technology: 802.11AX

Introduction

The HPE Aruba AP-534 Dual Radio AP is a cutting-edge wireless access point that leverages the power of 802.11AX technology. This advanced technology is designed to deliver unprecedented performance, reliability, and efficiency in wireless networks. In this section, we will explore the benefits and importance of 802.11AX in detail.

Enhanced Throughput and Capacity

Increased Data Rates

One of the key advantages of 802.11AX is its ability to deliver significantly higher data rates compared to its predecessors. With support for multi-user multiple-input multiple-output (MU-MIMO) technology, the AP-534 can transmit data to multiple devices simultaneously, resulting in faster and more efficient data transfers. This is particularly beneficial in high-density environments such as offices, schools, and stadiums where multiple users are accessing the network simultaneously.

Better Spectrum Efficiency

802.11AX introduces orthogonal frequency-division multiple access (OFDMA), a new modulation scheme that enables the access point to divide its available spectrum into smaller sub-channels. These sub-channels can be allocated to different clients, allowing for more efficient use of the available bandwidth. By efficiently utilizing the spectrum, the AP-534 can support a larger number of devices without sacrificing performance.

Reduced Latency

In addition to increased throughput and capacity, 802.11AX also brings significant improvements in latency. With the introduction of target wake time (TWT), devices can schedule specific times to wake up and transmit data, reducing unnecessary waiting periods and minimizing latency. This is especially crucial for real-time applications such as video conferencing or online gaming, where low latency is essential for a seamless user experience.

Improved Coverage and Range

BSS Coloring

802.11AX introduces a feature called basic service set (BSS) coloring, which helps reduce interference and improve coverage. BSS coloring allows neighboring access points to differentiate their signals by using different colors, reducing co-channel interference. This results in better overall coverage and ensures that clients can connect to the access point with the strongest signal, even in crowded environments.

Beamforming

Another important feature of 802.11AX is beamforming, a technology that focuses the wireless signal towards the intended receiver. By dynamically adjusting the signal direction, the AP-534 can enhance signal strength and range, ensuring a more reliable connection for devices even at greater distances. This is particularly valuable in environments with physical obstacles or challenging layouts where maintaining a strong wireless connection can be difficult.

Uplink and Downlink OFDMA

802.11AX introduces uplink and downlink orthogonal frequency-division multiple access (OFDMA), enabling simultaneous transmission of multiple devices in both directions. This improvement in bi-directional communication allows for more efficient use of the available spectrum, resulting in improved coverage and range. Users will experience better connectivity throughout their wireless network, even when multiple devices are actively transmitting data.

Antennas: 4x4:4

Introduction

The HPE Aruba AP-534 Dual Radio AP incorporates powerful antennas with a 4x4:4 configuration. This antenna setup plays a crucial role in ensuring optimal performance and coverage across your wireless network. Let's delve into the benefits and importance of this antenna configuration.

Increased Capacity and Throughput

Multiple Spatial Streams

The 4x4:4 antenna configuration means that the AP-534 supports four spatial streams for both receive and transmit functions. This allows for parallel data transmission and reception, resulting in increased capacity and throughput. With more spatial streams available, the access point can handle a higher number of simultaneous connections without sacrificing performance.

Support for Multi-User MIMO

Multi-User Multiple-Input Multiple-Output (MU-MIMO) technology is a key feature supported by the 4x4:4 antenna configuration. MU-MIMO enables the access point to communicate with multiple clients simultaneously, rather than sequentially. This capability significantly improves the overall network capacity and ensures a smoother user experience, especially in high-density environments where numerous devices are competing for bandwidth.

Enhanced Coverage and Range

Wider Beamwidth

The 4x4:4 antenna configuration allows for a wider beamwidth, which means that the AP-534 can transmit and receive signals over a broader area. This wider coverage ensures that devices located farther away from the access point can still establish a reliable connection. It also reduces the number of access points required to cover a given area, resulting in cost savings and simplified network deployments.

Improved Signal Strength

With four transmit and receive antennas, the AP-534 can leverage beamforming technology to enhance signal strength. Beamforming enables the access point to focus its signal toward specific devices, compensating for signal attenuation caused by distance or obstacles. By optimizing signal strength, the AP-534 ensures that devices experience a strong and stable wireless connection, even in challenging environments.

Flexibility and Scalability

Support for Different Frequencies

The 4x4:4 antenna configuration provides support for both 2.4GHz and 5GHz frequencies. This flexibility allows compatibility with a wide range of client devices operating on different frequencies. Whether it's older devices that only support 2.4GHz or newer devices that leverage the higher speeds offered by 5GHz, the AP-534 can accommodate them all, ensuring seamless connectivity for all users.

Scalability for Growing Networks

As your network expands and the number of connected devices increases, the 4x4:4 antenna configuration ensures that the AP-534 can handle the growing demands. With its increased capacity and throughput, the access point can accommodate more devices without experiencing performance degradation. This scalability feature makes the AP-534 an ideal choice for businesses or organizations planning for future growth.

In conclusion, the HPE Aruba AP-534 Dual Radio AP offers cutting-edge technology and powerful antennas to deliver exceptional performance, coverage, and scalability. With its support for 802.11AX technology and a 4x4:4 antenna configuration, this access point ensures high-speed connectivity, improved range, and enhanced capacity. Whether you're operating in a high-density environment or planning for future network expansion, the AP-534 is equipped to meet your wireless networking needs.
