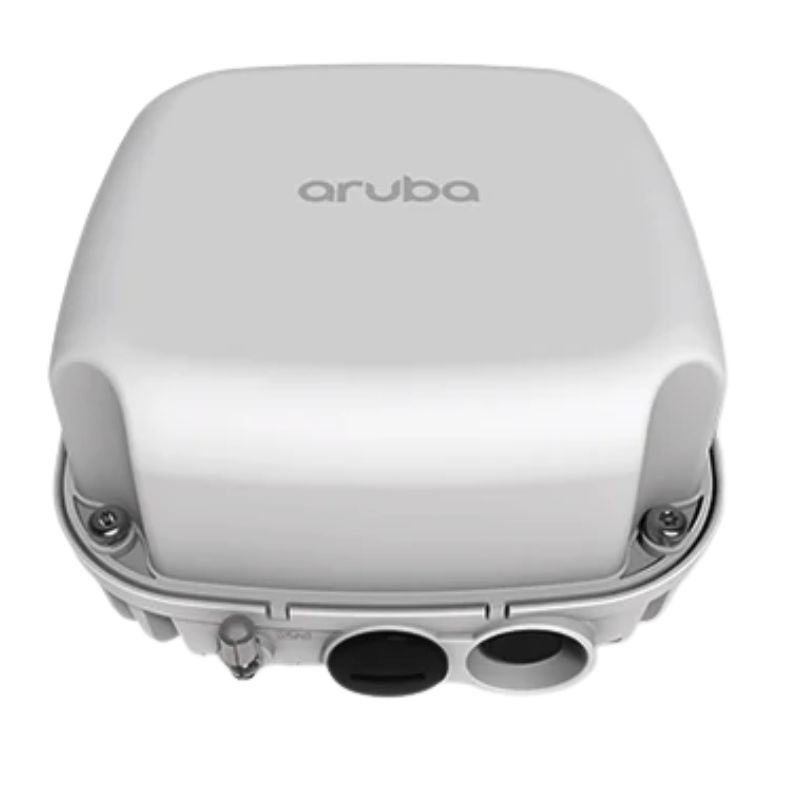

Outdoor Wi-Fi 6 Access Point with Directional Coverage

The HPE AP-567-US Aruba Networking wireless access point is engineered for dependable high-speed connectivity in outdoor environments. Featuring integrated directional antennas and a hardened enclosure, this device delivers focused wireless coverage across open spaces such as campuses, industrial zones, public venues, and transportation hubs. Its robust construction ensures reliable operation despite exposure to weather, temperature fluctuations, dust, and humidity.

General Product Information

• Manufacturer: HPE
• Part Number: AP-567-US
• Device Category: Outdoor Wireless Access Point
• Design: Ruggedized for external deployment

Next-Generation Wi-Fi 6 (802.11ax) Technology

Built on the IEEE 802.11ax standard, this access point enhances wireless efficiency, reduces latency, and increases overall network capacity compared to earlier Wi-Fi generations. Dual 2x2 radios operate simultaneously on both 2.4 GHz and 5 GHz bands, enabling optimized performance for legacy devices and modern high-bandwidth clients.

Maximum Throughput Capabilities

• Up to 1.2 Gbps on the 5 GHz band
• Up to 574 Mbps on the 2.4 GHz band
• Aggregate data rate approaching 1.49 Gbps
• Improved spectral efficiency using OFDMA

Enhanced Wireless Efficiency

• 1024-QAM modulation for higher data density
• Target Wake Time (TWT) for power optimization
• Reduced interference through intelligent channel allocation
• Lower latency for real-time applications

Wireless Standards and Protocols

• IEEE 802.11ax (Wi-Fi 6)
• IEEE 802.11ac Wave 2
• IEEE 802.11n, 802.11g, 802.11a, 802.11b
• Bluetooth 5.0 and Zigbee connectivity

Advanced Line Coding Formats

• BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• CCK and OFDM modulation techniques
• OFDMA for multi-user transmissions

Benefits of Directional Antenna Design

• Extended range in specific coverage zones
• Improved signal strength at long distances
• Reduced co-channel interference
• Ideal for point-to-area outdoor deployments

Capacity Specifications

• Up to 256 wireless clients per radio
• 16 BSSIDs per radio for network segmentation
• 16 OFDMA resource units for concurrent communication

Ideal High-Density Applications

• University campuses and school grounds
• Sports arenas and event venues
• Industrial facilities and warehouses
• Transportation terminals
• Municipal public access networks

Signal Optimization Techniques

• Maximum Ratio Combining (MRC)
• Transmit Beamforming (TxBF)
• Space Time Block Coding (STBC)
• Cyclic Delay Diversity (CDD)
• Cyclic Shift Diversity (CSD)

High-Efficiency Data Transmission

• Low Density Parity Check (LDPC)
• Packet aggregation (A-MPDU and A-MSDU)
• High Throughput (HT), Very High Throughput (VHT), and High Efficiency (HE) support

MU-MIMO and OFDMA for Multi-User Environments

• Parallel data streams to multiple users
• Reduced airtime contention
• Enhanced streaming and voice performance
• Smooth connectivity for mobile users

Built-In Security Features

• Trusted Platform Module (TPM)
• Policy Enforcement Firewall (PEF)
• Layer 7 Deep Packet Inspection (DPI)
• Release 2 secure roaming

Interference and Coexistence Enhancements

• Dynamic Frequency Selection (DFS)
• Advanced Cellular Coexistence (ACC)
• ClientMatch technology for optimal access point selection

Management and Deployment Capabilities

• Auto uplink detection (Auto MDI/MDI-X)
• Virtual Mobility Controller mode
• Remote configuration support
• Centralized management compatibility

Energy-Efficient Operation

• Intelligent Power Monitoring (IPM)
• Energy Efficient Ethernet (EEE)
• Adaptive power consumption based on workload

Rugged Design Benefits

• Weather-resistant housing
• Protection against moisture and dust
• Stable operation in extreme temperatures
• Reliable performance in exposed locations

Status Indicators

• System health indicator
• Operational status display
• Radio activity monitoring

Common Installation Environments

• Corporate and educational campuses
• Industrial yards and logistics centers
• Healthcare facility grounds
• Public parks and recreation areas
• Smart city infrastructure projects

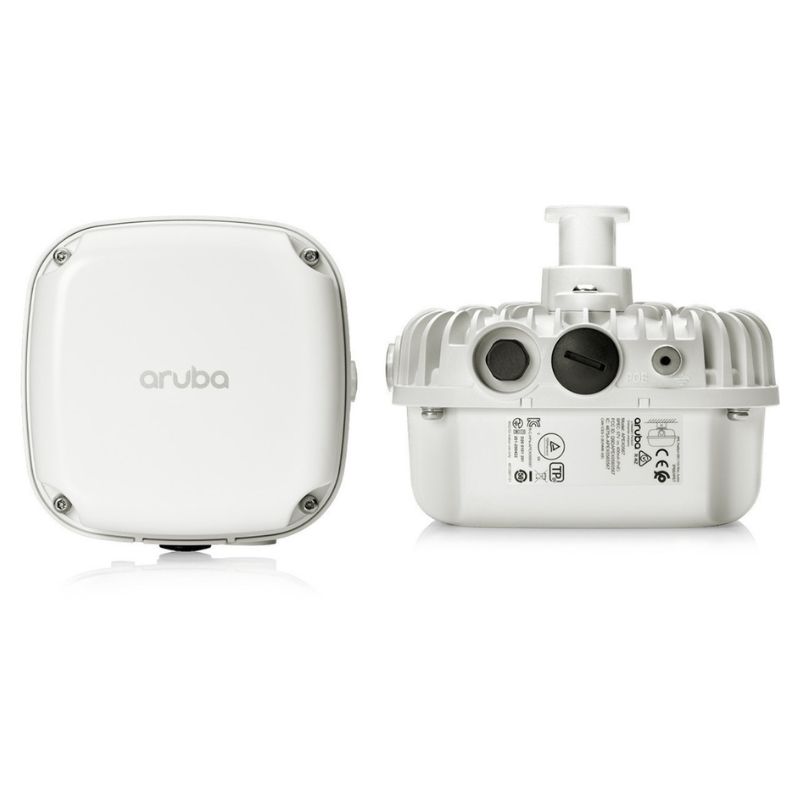

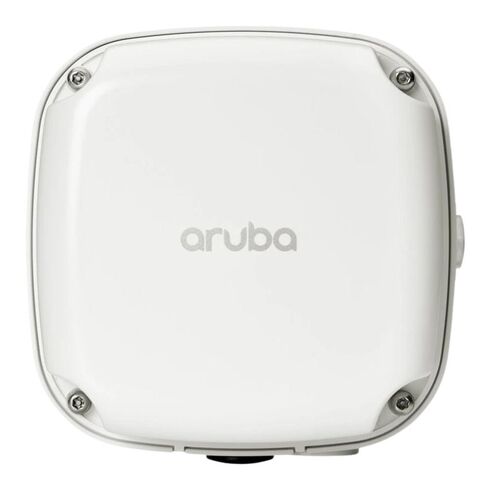

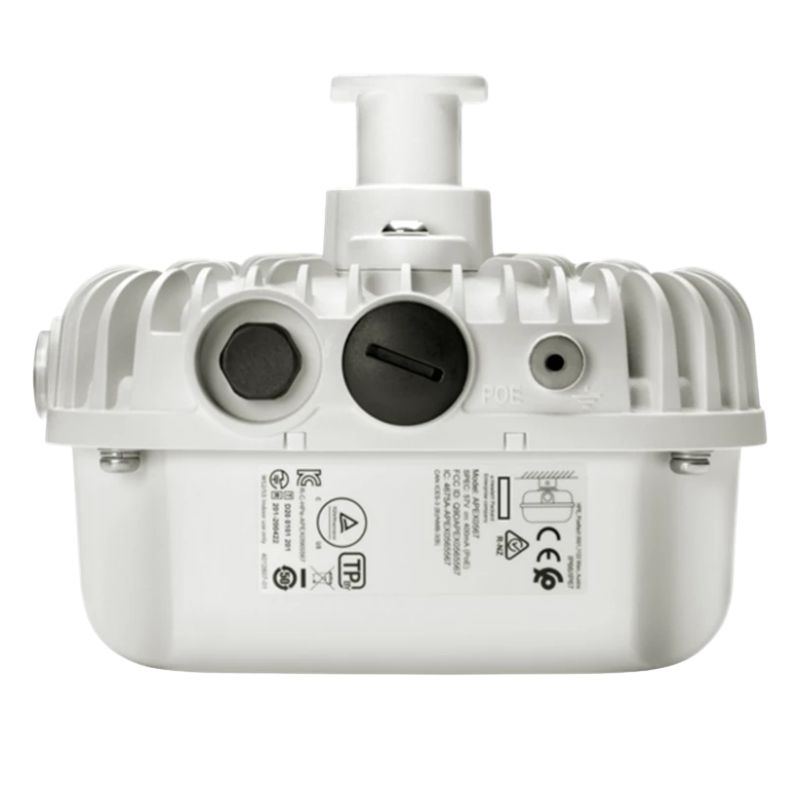

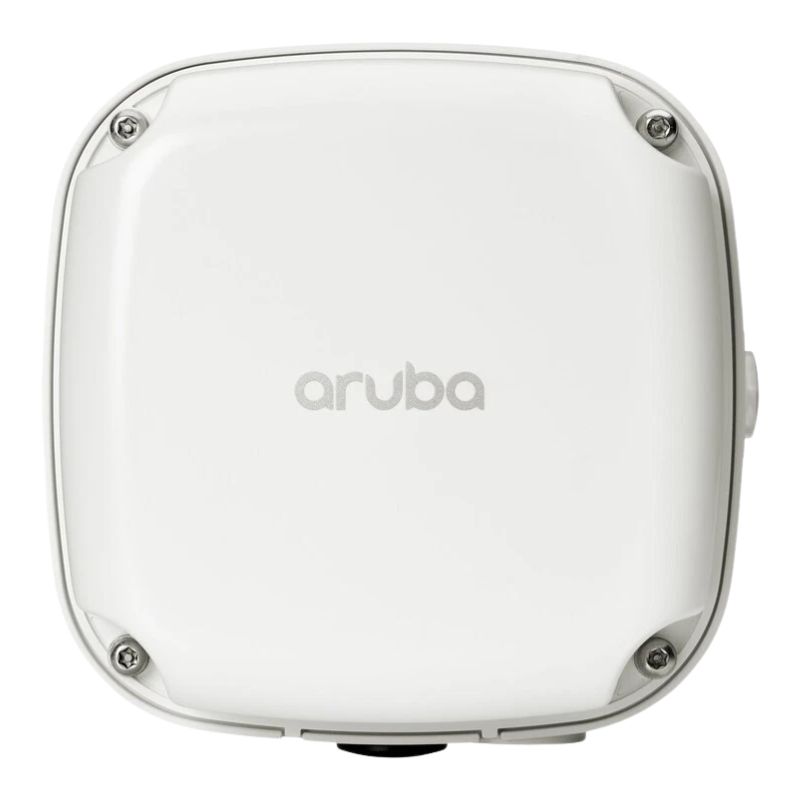

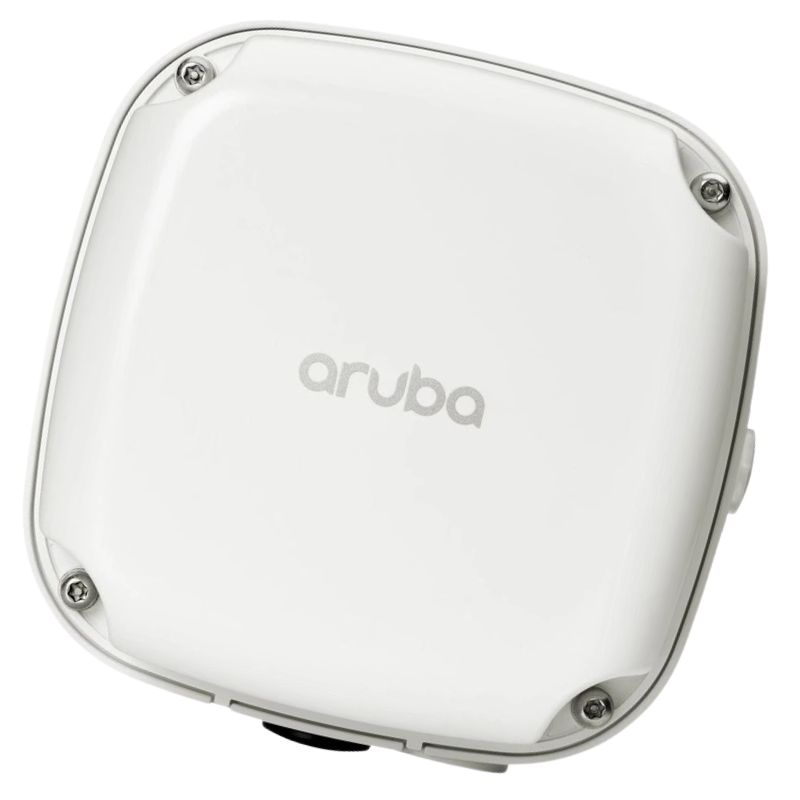

HPE AP-567-US Aruba Networking Outdoor Access Point

The HPE AP-567-US Aruba Networking 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor Wireless Access Point is engineered to deliver high-performance wireless connectivity in demanding outdoor environments. Designed for enterprise deployments, this ruggedized access point supports Wi-Fi 6 technology, enabling faster throughput, improved efficiency, and enhanced capacity for high-density outdoor scenarios. Its integrated directional antennas focus RF energy precisely where coverage is needed, making it ideal for campuses, stadium perimeters, industrial sites, transportation hubs, and smart city applications.

Purpose-Built Outdoor Wireless Infrastructure

Outdoor networking requires specialized hardware capable of withstanding harsh environmental conditions while maintaining reliable connectivity. The HPE AP-567-US is constructed with weather-resistant materials and sealed enclosures that protect internal components from dust, moisture, temperature fluctuations, and UV exposure. This durability ensures consistent performance throughout the year, even in extreme climates, while minimizing maintenance requirements and operational disruptions.

Weatherproof and Ruggedized Construction

The enclosure of the AP-567-US is designed to meet stringent outdoor standards, protecting against rain, wind, humidity, and airborne contaminants. Industrial-grade components allow the device to operate continuously in environments where conventional indoor access points would fail. The robust design reduces downtime and supports mission-critical wireless services in challenging outdoor deployments.

Extended Temperature Operation

Outdoor installations often experience wide temperature swings between day and night. This access point supports operation across extended temperature ranges, maintaining stable performance in both hot and cold climates. Advanced thermal management ensures that internal components remain within safe operating limits, preserving long-term reliability.

Wi-Fi 6 Performance and Efficiency

At the core of the HPE AP-567-US is 802.11ax technology, commonly known as Wi-Fi 6. This standard introduces significant improvements over previous generations, including higher data rates, improved spectral efficiency, and better performance in congested environments. Outdoor venues with numerous connected devices benefit from these enhancements, as the access point can handle simultaneous connections without compromising speed or responsiveness.

Dual 2x2 Radio Architecture

The dual-radio 2x2 configuration provides simultaneous operation on both 2.4 GHz and 5 GHz frequency bands. This architecture enables balanced traffic distribution, reduced interference, and optimized throughput for a variety of client devices. Each radio supports multiple input multiple output technology, allowing the access point to transmit and receive data streams concurrently for improved performance.

Orthogonal Frequency Division Multiple Access

Wi-Fi 6 introduces Orthogonal Frequency Division Multiple Access, which allows the access point to serve multiple clients within the same channel simultaneously. This capability significantly improves efficiency in high-density scenarios, such as outdoor events or crowded public spaces, where many devices compete for bandwidth.

Target Wake Time for Power Efficiency

Target Wake Time scheduling allows compatible client devices to conserve battery power by coordinating communication intervals with the access point. This feature is particularly valuable for Internet of Things sensors, handheld devices, and mobile equipment operating in outdoor environments where battery life is critical.

Integrated Directional Antennas for Focused Coverage

Unlike omnidirectional antennas that broadcast signals in all directions, the integrated directional antennas in the AP-567-US concentrate RF energy toward a specific coverage area. This focused transmission increases signal strength at greater distances while minimizing interference outside the intended zone. Directional coverage is especially beneficial for outdoor corridors, walkways, parking areas, and point-to-point connections between buildings.

Improved Signal Reach and Quality

By directing wireless signals toward target locations, the access point achieves stronger and more stable connections for users within the coverage area. This reduces packet loss, improves data rates, and enhances overall user experience. Concentrated RF patterns also help overcome obstacles such as trees, walls, or structural elements commonly found in outdoor settings.

Reduced Co-Channel Interference

Directional antennas limit signal spillover into adjacent areas, which reduces interference between neighboring access points. This characteristic is essential for large-scale deployments where multiple units operate in proximity. Efficient spectrum utilization leads to higher network capacity and improved reliability.

High-Density Connectivity for Public Spaces

Outdoor venues frequently host large numbers of users simultaneously. The HPE AP-567-US is optimized for high-density connectivity, enabling reliable wireless access for thousands of devices within a coverage zone. Advanced scheduling algorithms and airtime fairness mechanisms ensure equitable bandwidth distribution among users.

Concurrent Client Devices

The access point can manage numerous active connections without performance degradation. This capability is crucial for environments such as university campuses, transportation terminals, outdoor retail areas, and municipal Wi-Fi networks, where user demand fluctuates throughout the day.

Optimized Multimedia Performance

Modern outdoor networks must support video streaming, voice communications, and real-time applications. The AP-567-US prioritizes latency-sensitive traffic, ensuring smooth playback and clear voice quality even during peak usage periods.

Advanced Security and Network Protection

Security is a fundamental requirement for enterprise wireless deployments. The HPE AP-567-US incorporates multiple layers of protection to safeguard data and prevent unauthorized access. Built-in security features help organizations comply with regulatory requirements while maintaining user trust.

Encryption and Authentication Mechanisms

Strong encryption protocols protect data transmissions from interception. The access point supports modern authentication frameworks that verify user identities before granting network access, reducing the risk of unauthorized connections.

Integrated Threat Detection

The device continuously monitors wireless activity to detect suspicious behavior, rogue access points, or potential intrusion attempts. Automated alerts enable network administrators to respond quickly to emerging threats, maintaining network integrity.

Seamless Integration with Enterprise Infrastructure

The AP-567-US is designed to integrate smoothly into existing network architectures. It supports centralized management platforms that allow administrators to configure, monitor, and troubleshoot devices from a single interface. This simplifies large-scale deployments and reduces operational complexity.

Centralized

Administrators can deploy multiple access points across wide geographic areas while maintaining consistent policies and performance standards. Remote monitoring tools provide real-time insights into network health, client activity, and traffic patterns.

Power

Outdoor installations often present logistical challenges, including limited access to electrical infrastructure. The HPE AP-567-US supports flexible power options that simplify deployment in diverse locations.

Power over Ethernet

Power over Ethernet allows both power and data to be delivered through a single cable, reducing the need for separate electrical wiring. This approach streamlines installation, lowers costs, and enables placement in locations where traditional power sources are unavailable.

Mounting Versatility

The access point can be mounted on poles, walls, or outdoor structures, providing flexibility to optimize coverage. Secure mounting hardware ensures stability even in windy conditions, preserving alignment of directional antennas.

Use Cases Across Industries

The HPE AP-567-US serves a wide range of industries that require reliable outdoor wireless connectivity. Its performance, durability, and security features make it suitable for mission-critical applications in both public and private sectors.

Campus and Educational Environments

Educational institutions deploy outdoor access points to extend connectivity across courtyards, sports fields, and walkways. Students and staff benefit from uninterrupted access to learning resources, communication tools, and cloud services throughout the campus.

Transportation and Logistics Facilities

Airports, rail stations, and shipping yards rely on robust wireless networks to support operational systems, passenger services, and real-time tracking. The AP-567-US provides dependable coverage across large outdoor areas where wired connections are impractical.

Industrial and Manufacturing Sites

Factories, refineries, and energy facilities use outdoor wireless networks for monitoring equipment, managing inventory, and supporting mobile workers. The rugged design of this access point ensures reliable operation in environments with dust, vibration, and temperature extremes.

Municipal and Smart City Deployments

City governments deploy outdoor Wi-Fi to enhance public services, enable surveillance systems, and support connected infrastructure. The AP-567-US facilitates these initiatives by providing secure, high-capacity connectivity across streets, parks, and public venues.

Performance Optimization and Reliability

Consistent network performance is essential for user satisfaction and operational efficiency. The AP-567-US incorporates advanced radio management techniques to maintain optimal performance under varying conditions.

Automatic Channel Selection

The access point dynamically selects the best available channels to minimize interference and maximize throughput. This adaptive behavior ensures stable connectivity even as environmental conditions change.

Load Balancing Capabilities

Traffic distribution mechanisms prevent individual access points from becoming overloaded while others remain underutilized. Balanced utilization improves overall network efficiency and reduces latency for end users.

Scalability for Future Expansion

As organizations grow, their connectivity requirements evolve. The HPE AP-567-US supports scalable deployments that can expand without major infrastructure changes. Additional units can be integrated seamlessly to extend coverage or increase capacity.

Large-Scale Deployments

Enterprise environments often require hundreds of access points across extensive outdoor areas. Centralized management and automated provisioning simplify expansion while maintaining consistent performance standards.

Investment Protection

By adopting Wi-Fi 6 technology and enterprise-grade hardware, organizations ensure long-term viability of their wireless infrastructure. The AP-567-US is designed to accommodate future device growth and emerging applications without frequent hardware replacements.
