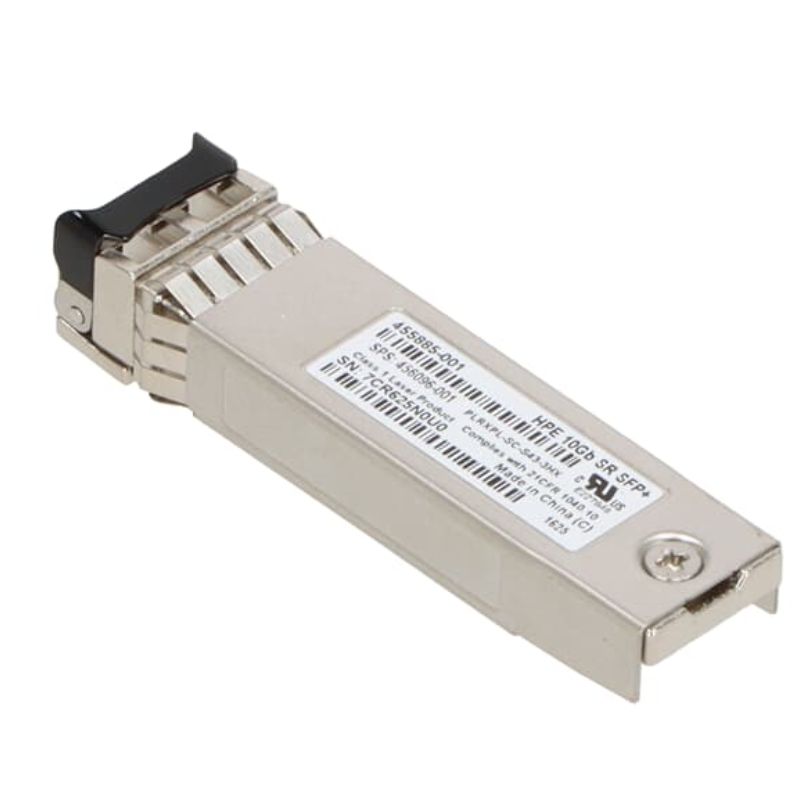

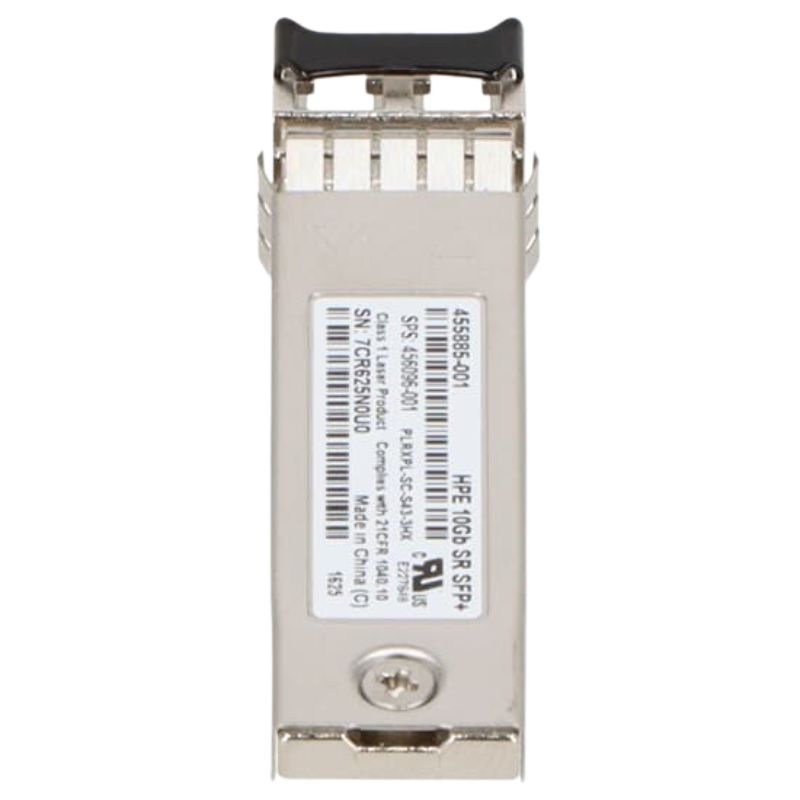

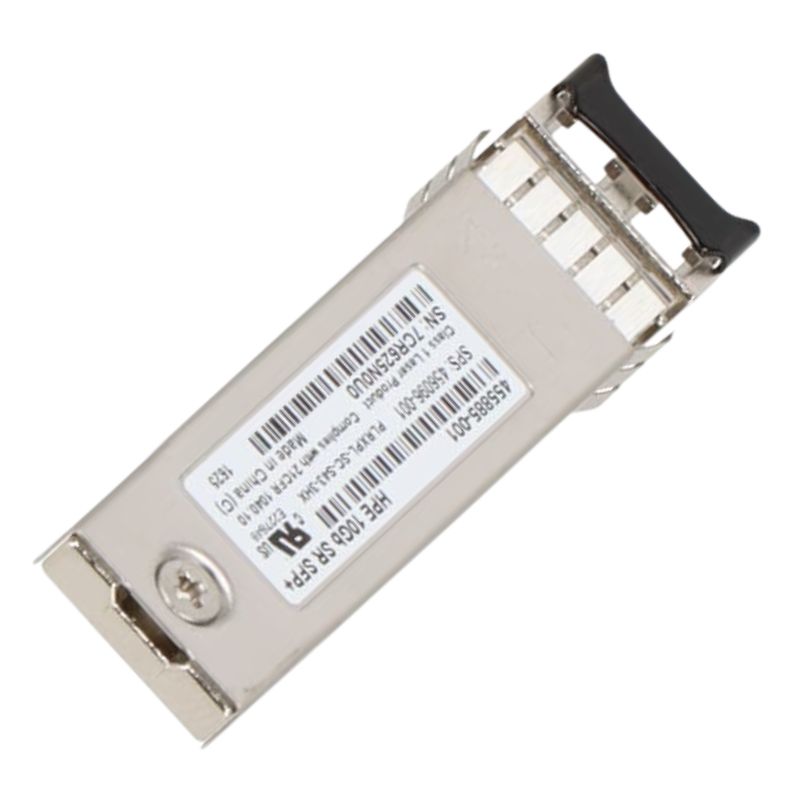

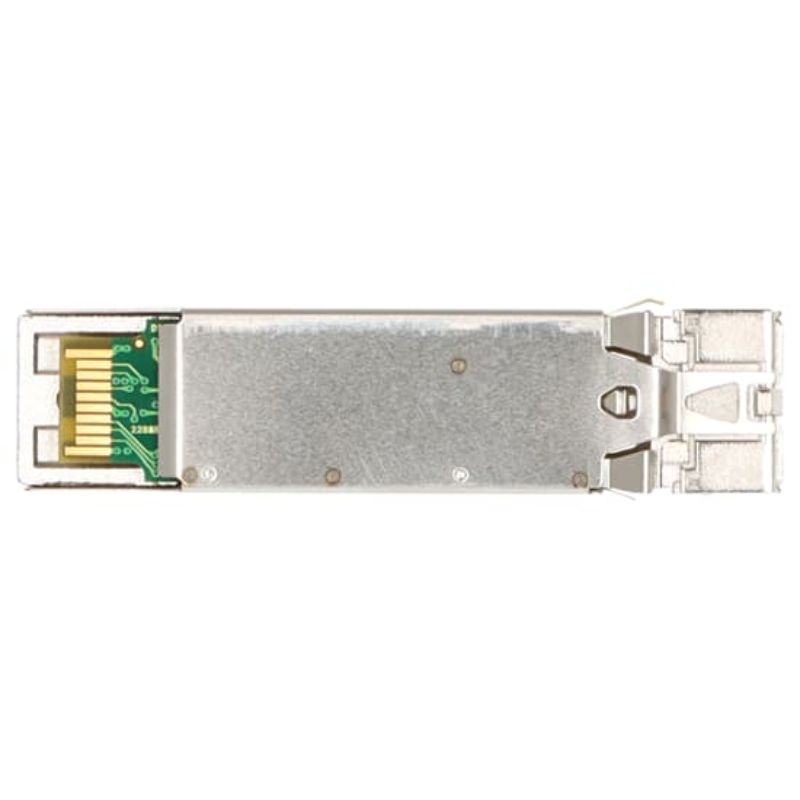

Product Overview of the HPE AP783A SFP+ Transceiver

The HPE AP783A SFP+ optical transceiver is a high-performance networking module engineered for ultra-fast 10 Gigabit Ethernet data transmission over multi-mode fiber infrastructure. Designed for enterprise-grade environments, it operates at a wavelength of 850nm and supports reliable connectivity up to 300 meters, making it an excellent choice for short-range, high-speed data center links. This compact LC connector-based transceiver ensures stable performance, low latency, and efficient bandwidth utilization across modern networking systems.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model / Part Number: AP783A
• Device Type: SFP+ Network Transceiver Module
• Category: Optical networking hardware component

Technical Specifications

• Connection Architecture: Wired fiber-optic networking solution
• Supported Protocol: 10 Gigabit Ethernet (10GbE)
• Transmission Medium: Multi-mode fiber (MMF)
• Operating Wavelength: 850nm optimized signal transmission
• Maximum Reach: Up to 300 meters depending on fiber quality

Connectivity & Expansion Features

• Network Interface: Single high-speed optical port
• Slot Requirement: Compatible with standard SFP+ slots
• Installation Type: Hot-swappable plug-and-play module
• Integration: Seamless deployment in enterprise networking environments

Features of HPE AP783A Transceiver

• Enables stable 10Gbps Ethernet connectivity for demanding network workloads
• Optimized for short-distance fiber links with minimal signal degradation
• Compact and energy-efficient design suitable for dense rack installations
• Simple installation process requiring no complex configuration
• Reliable performance for high-speed switching and routing operations
• Built to meet enterprise networking standards for durability and efficiency

Performance Advantages

• Low latency data transmission for time-sensitive applications
• Reduced electromagnetic interference compared to copper solutions
• High bandwidth efficiency for data center optimization
• Improved network scalability in enterprise environments

Compatibility

• Fully compatible with HPE networking switches supporting SFP+ ports
• Works seamlessly with HPE Aruba networking devices
• Supports HPE ProCurve series switches with SFP+ interfaces
• Compatible with HPE ProLiant servers equipped with SFP+ networking cards
• Integrates with enterprise-grade data center switching equipment using 10GbE fiber infrastructure
• Suitable for any networking hardware that follows standard SFP+ 10GbE optical module specifications

HPE AP783A SFP+ Transceiver 10Gbps Fiber Transceiver

The category of high speed small form-factor pluggable plus optical transceivers represents a critical foundation for modern enterprise networking and data center connectivity. Devices such as the HPE AP783A SFP+ Transceiver with LC Connector for 10Gbps Multi-mode Fiber 300m 850nm are designed to deliver efficient, compact, and high performance optical communication between network switches, routers, storage systems, and server infrastructure. This category is widely adopted in environments where reliable short to medium range optical transmission is required with minimal latency and maximum bandwidth efficiency.

Within enterprise-grade networking architecture, SFP+ transceivers are engineered to support 10 Gigabit Ethernet speeds while maintaining compatibility with multi-mode fiber optic cabling. The HPE AP783A model is part of a structured ecosystem of optical modules that ensure seamless interoperability with HPE networking equipment. Its design emphasizes stable signal transmission, energy efficiency, and high-density deployment capability, making it suitable for modern virtualization and cloud-driven infrastructures.

HPE AP783A SFP+ Architecture

The internal architecture of the HPE AP783A SFP+ transceiver is built around precision optical-electrical conversion mechanisms. Electrical signals from network hardware are converted into optical signals using a vertical-cavity surface-emitting laser operating at 850nm wavelength. This wavelength is optimized for multi-mode fiber transmission, enabling efficient propagation over short to medium distances while maintaining low dispersion characteristics.

The module integrates photodiodes for receiving optical signals and converting them back into electrical signals with minimal latency. The internal circuitry is designed to reduce noise interference and maintain signal integrity across high bandwidth transmissions. This allows consistent 10Gbps throughput, which is essential for modern enterprise workloads such as virtualization clusters, database synchronization, and high frequency transactional systems.

SFP+ Form Factor and Compact Engineering

The SFP+ form factor is a compact evolution of earlier SFP standards, designed specifically for higher data rates and improved port density. The HPE AP783A leverages this small footprint to allow multiple transceivers to be installed within a single switch chassis without compromising thermal performance or airflow efficiency.

This compact design is particularly valuable in data center environments where rack space optimization is essential. By enabling high density port configurations, network architects can scale infrastructure without requiring significant physical expansion. The mechanical design ensures secure hot-pluggable functionality, allowing modules to be inserted or removed without interrupting system operation.

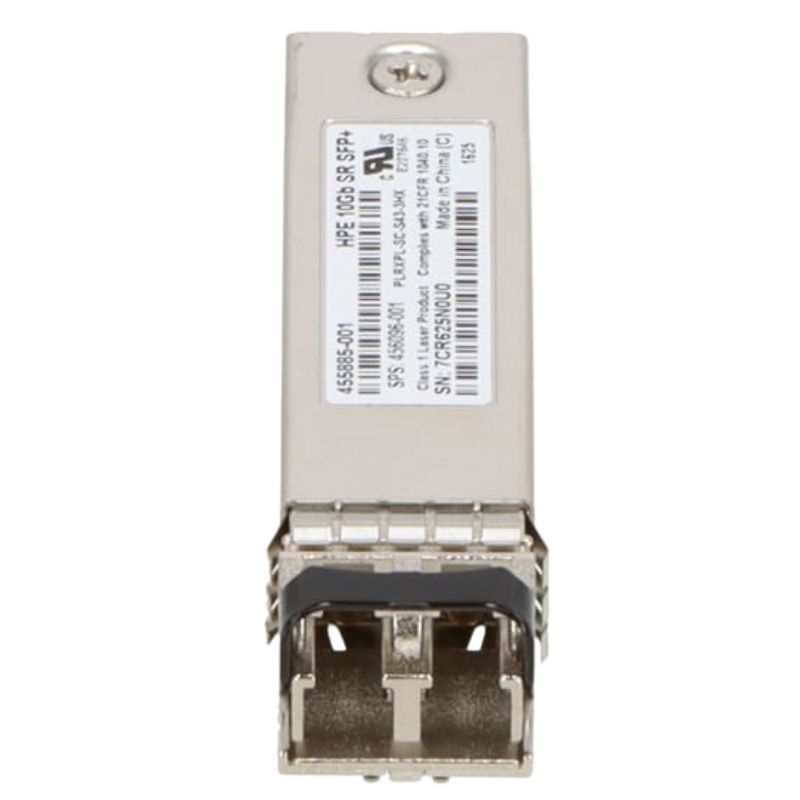

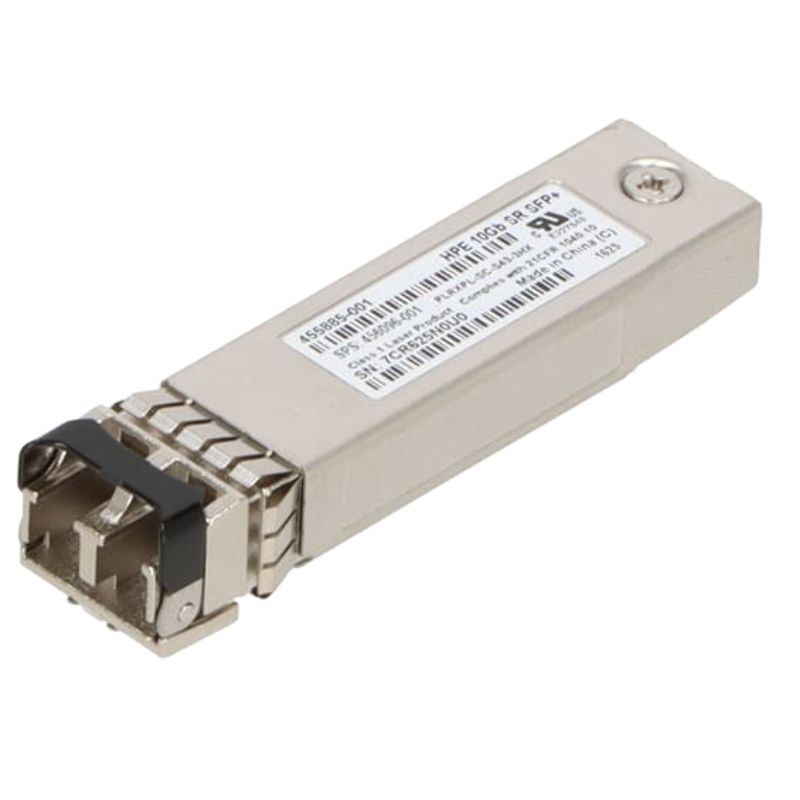

LC Connector Interface and Optical Efficiency

The LC connector used in the HPE AP783A transceiver is a widely adopted standard in fiber optic communication due to its precision alignment and compact structure. It enables stable optical coupling between the transceiver and multi-mode fiber cables, ensuring minimal signal loss and reflection.

The push-pull locking mechanism of the LC connector provides secure physical engagement, reducing the risk of accidental disconnection in high density networking environments. Its small size allows dual fiber termination within a single port, supporting both transmit and receive channels simultaneously. This enhances reliability in bidirectional communication systems.

10Gbps Performance and Network Efficiency

The 10Gbps data rate supported by this transceiver category is essential for high performance computing environments. It allows rapid movement of large datasets between servers, storage arrays, and network switches. This level of throughput is particularly important in virtualization platforms where multiple virtual machines depend on shared network infrastructure.

The consistent bandwidth delivery ensures reduced latency in communication-intensive applications such as real-time analytics, video streaming services, and distributed cloud computing environments. The architecture is optimized to maintain stable performance even under sustained high traffic loads.

Multi-mode Fiber and 300m Capability

The HPE AP783A transceiver is designed for multi-mode fiber optic cables, which are commonly used in enterprise buildings and data centers. Multi-mode fiber allows multiple light paths to propagate simultaneously, enabling efficient short-range transmission.

With a reach of up to 300 meters, this transceiver is suitable for interconnecting network equipment across different rooms, floors, or adjacent data center halls. The 850nm wavelength ensures optimal performance within this distance range by minimizing modal dispersion and maintaining signal clarity.

Data Center Integration Deployment

Modern data centers rely heavily on high density networking components to maximize performance within limited physical space. The SFP+ form factor allows multiple transceivers to be installed in a single switch, enabling scalable infrastructure expansion without increasing rack footprint.

The thermal efficiency of the module ensures stable operation even in densely populated networking environments. Proper airflow management within server racks supports sustained performance without overheating risks.

Signal Integrity and Noise Reduction

Signal integrity is a critical factor in high speed optical communication systems. The HPE AP783A incorporates advanced shielding and signal conditioning techniques to reduce electromagnetic interference and optical noise.

This ensures that data transmission remains accurate and stable across all supported distances. Error rates are minimized through precise modulation and detection mechanisms, allowing consistent communication between connected devices.

Operational Reliability and Environmental Stability

The HPE AP783A transceiver is engineered for consistent performance under a wide range of environmental conditions. It is designed to operate within controlled temperature and humidity ranges typical of enterprise data centers.

Its robust construction ensures long term reliability even in continuous operation scenarios. The module is tested for durability under sustained network loads, ensuring stable performance across extended deployment cycles.

Use Cases

In virtualization environments, the transceiver supports rapid data exchange between compute nodes and storage systems, enabling efficient workload distribution. In cloud computing infrastructures, it provides reliable backbone connectivity for distributed services.

It is also widely used in storage area networks where high speed data replication and backup operations require stable and fast connectivity. Campus networks benefit from its ability to connect distributed buildings and network segments with consistent performance.

Comparison with Optical Transceiver

Compared to long range single-mode transceivers, this multi-mode solution is optimized for shorter distances with lower deployment cost. Single-mode solutions typically support greater distances but require more precise alignment and higher cost infrastructure.

Compared to lower speed SFP modules, the SFP+ category provides significantly higher bandwidth capacity, making it suitable for modern high demand applications. This balance of speed, distance, and cost efficiency makes it a preferred choice for enterprise environments.
