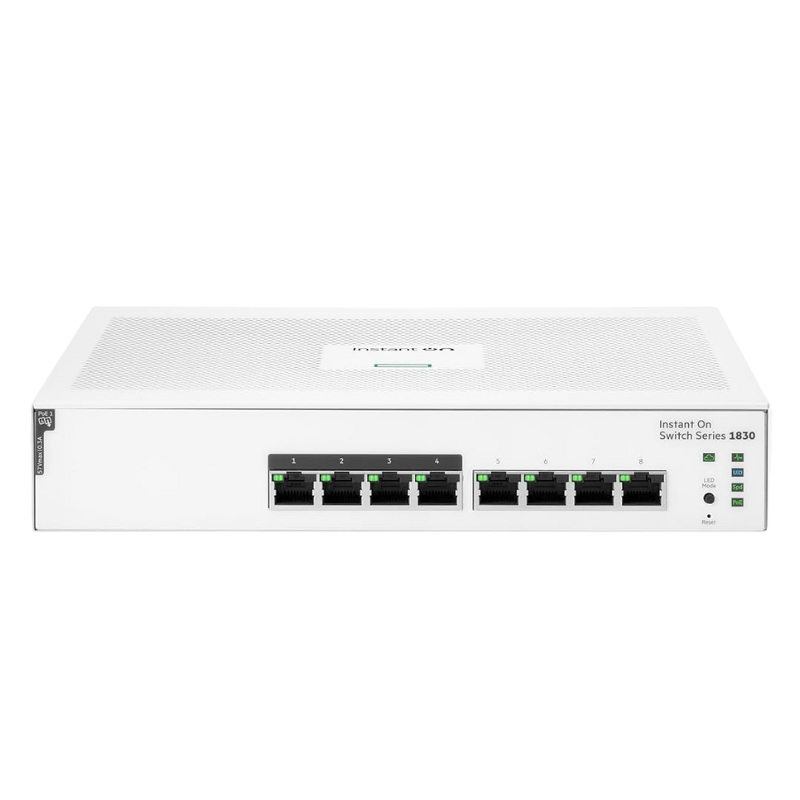

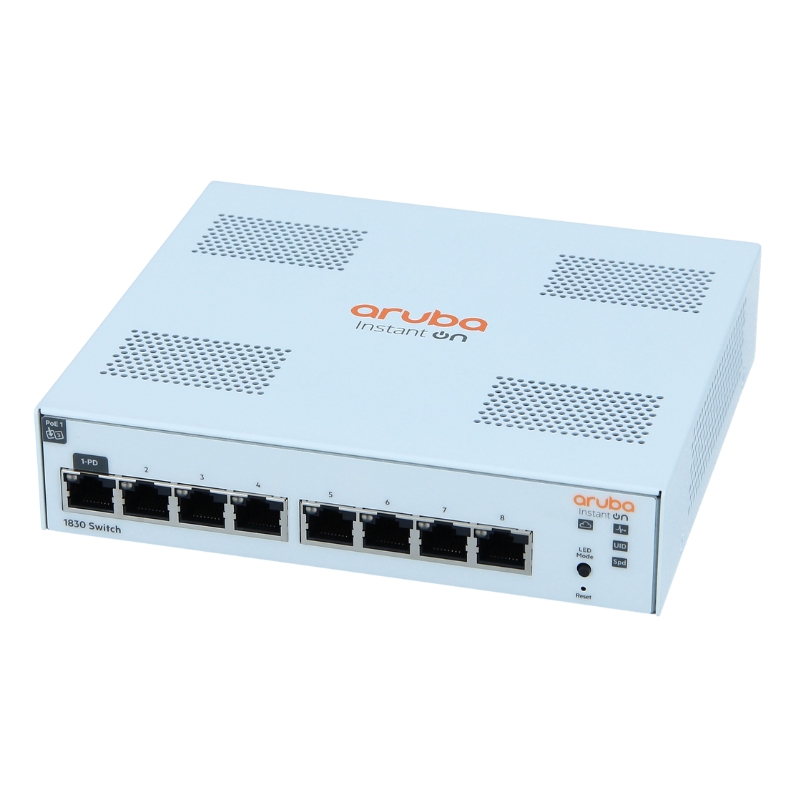

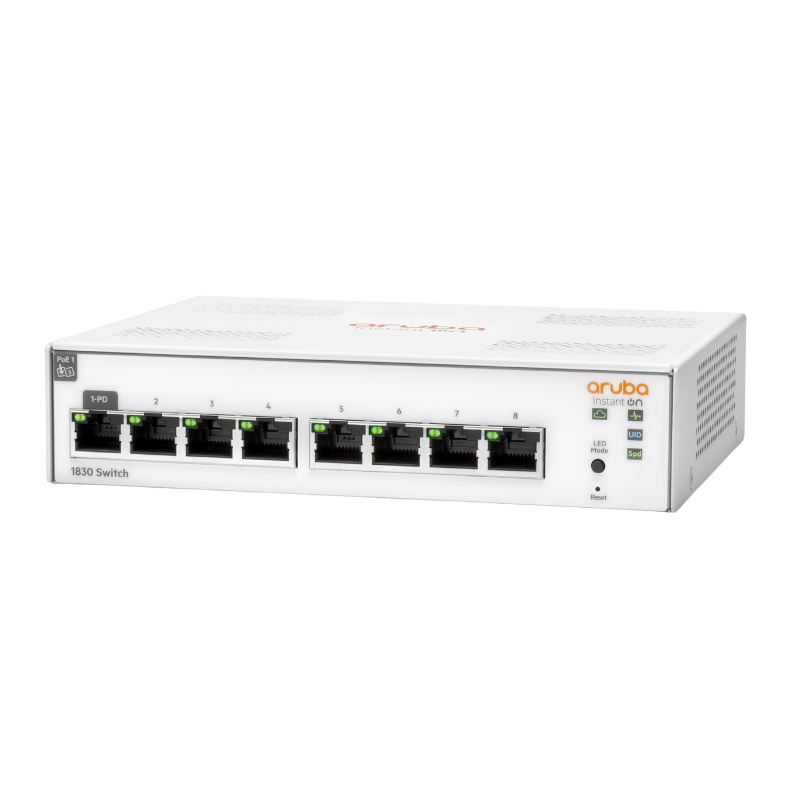

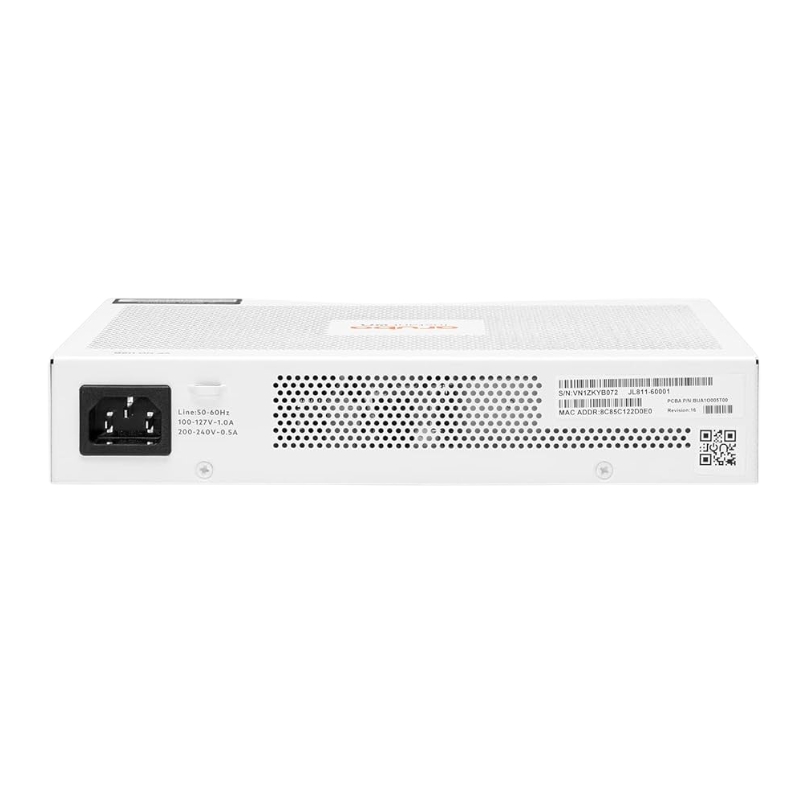

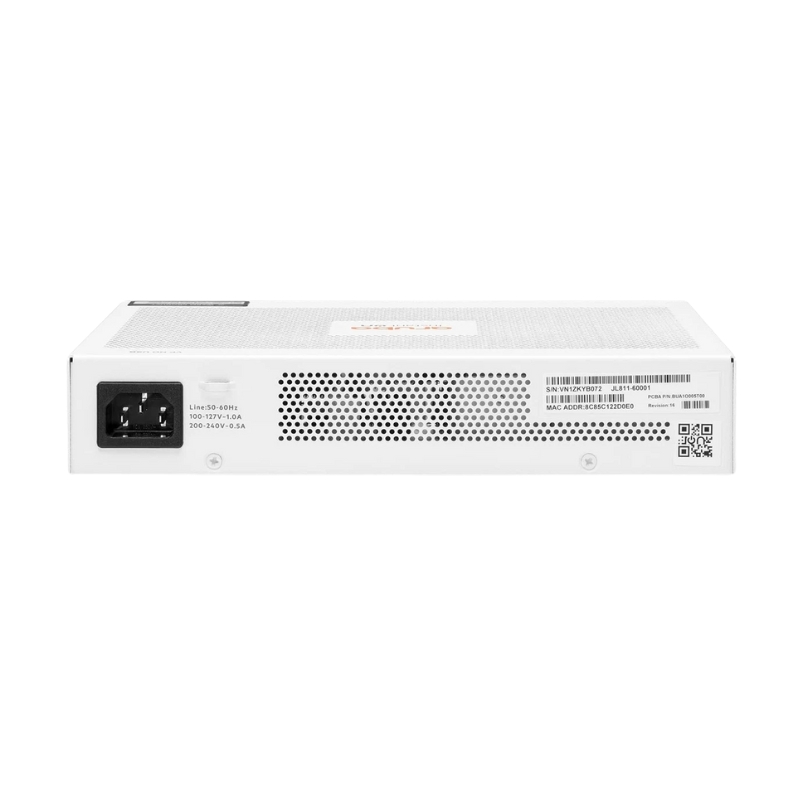

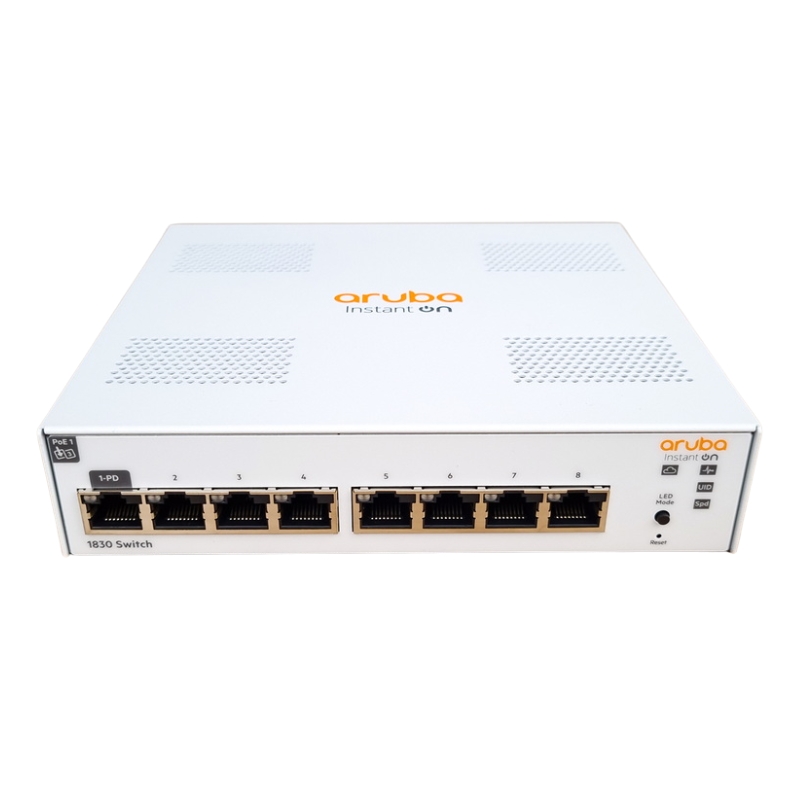

HPE Aruba 1830 8g 4p PoE Network Switches - JL811A#ABA

Overview of HPE JL811A#ABA Aruba Instant On 1830 8g 4p Class4 PoE 65W Switch

The HPE JL811A#ABA Aruba Instant On 1830 8G 4P Class4 PoE 65W Switch is a powerful, rack-mountable smart switch, designed to enhance connectivity and performance for small to medium-sized businesses. With eight ports and four PoE+ ports, this switch is ideal for delivering power and data in a streamlined manner.

Device Type and Build

• Device Type: 8-port smart switch with PoE+ capabilities
• Enclosure: 1U rack-mountable for easy installation
• Subtype: Gigabit Ethernet

Port Specifications

• Total Ports: 8 x 10/100/1000 Mbps Ethernet ports
• PoE Ports: 4 PoE+ ports for powering compatible devices
• Power Over Ethernet: PoE+ with 65W total PoE budget

Performance Metrics

• Latency: 5.2 µs (100 Mbps), 2.8 µs (1 Gbps)
• Throughput: 11.9 Mpps (million packets per second)
• Switching Capacity: 16 Gbps for fast data transfers
• MAC Address Table: 8,000 entries for efficient data routing
• Jumbo Frame Support: Up to 9,216 bytes

Advanced Routing and Remote Management

• Routing Protocols: IGMPv2, IGMP for multicast management
• Remote Management: SNMP (v1/v2c), HTTP, HTTPS, TFTP, SCP, ICMP for full control

Enhanced Security Features

• Encryption Algorithm: SSL for secure data transmission
• Denial of Service (DoS) Protection: Built-in protection to prevent malicious attacks
• Trusted Platform Module (TPM): Secure hardware for cryptographic operations

Switch Features and Protocol Support

• Flow Control: Optimized traffic management to avoid data loss
• Auto-Sensing and Auto-Negotiation: Seamless device detection and speed adjustment
• VLAN Support: Virtual LAN configuration for network segmentation
• IGMP Snooping: Efficient multicast traffic management
• Quality of Service (QoS): Prioritize traffic for smoother performance
• Link Aggregation: Combine multiple links for higher bandwidth

Reliability and Maintenance Features

• Dual Image Support: Enables seamless firmware upgrades
• Fanless Design: Quiet operation for noise-sensitive environments
• Port Mirroring: Facilitates network monitoring and diagnostics
• Spanning Tree Protocol (STP): Prevents network loops and ensures redundancy
• Cable Diagnostics: Identify and troubleshoot connectivity issues with ease

Cloud and Remote Management

• Cloud-Managed: Manage your switch from anywhere via the cloud
• Secure Copy (SCP): For secure file transfers
• Simple Network Time Protocol (SNTP): Synchronizes time across devices

Power Efficiency and Environmental Standards

• Energy-Efficient Ethernet (EEE): Reduces power consumption during low activity periods
• Global Storm Control: Manages broadcast and multicast traffic efficiently
• BPDU Filter and Loop Protection: Ensures smooth and secure network operation

Compliance and Standards

• Compliant Standards: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1Q, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3ad (LACP), 802.1w, 802.1AB (LLDP), 802.3at, 802.3az

Processor, Memory, and Indicators

• Processor: ARM 800 MHz for efficient data handling
• Memory: 512 MB SDRAM for improved performance
• Flash Memory: 256 MB for firmware and settings
• Status Indicators: Displays port status, duplex mode, link activity, and speed

Connectivity and Expansion

• Interfaces: 4 x 1000Base-T RJ-45, 4 x 1000Base-T RJ-45 PoE+

Power Requirements and Consumption

• Power Supply: Internal power supply for easy integration
• Voltage: AC 100-240 V (50/60 Hz) for global compatibility
• Power Consumption: 86.07 watts during full operation

Sku: JL811A#ABA

Overview

The HPE Aruba 1830 8g 4p PoE Network Switches are equipped with the JL811A#ABA Sku, which offers advanced features and capabilities to enhance network performance and efficiency. This Sku is designed to meet the needs of small to medium-sized businesses, providing them with a reliable and cost-effective networking solution.

High Performance

With the JL811A#ABA Sku, users can expect high-performance switching capabilities. The switch supports Gigabit Ethernet connectivity, allowing for fast data transfer rates between devices. This ensures that users can enjoy seamless and uninterrupted network connectivity, enabling them to efficiently carry out their tasks without any delays or bottlenecks.

Power over Ethernet (PoE)

One of the key features of the JL811A#ABA Sku is its Power over Ethernet (PoE) capability. This allows the switch to deliver both data and power over a single Ethernet cable, eliminating the need for additional power outlets near network devices. With PoE, users can easily deploy devices such as IP phones, wireless access points, and IP cameras without the hassle of running separate power cables. This not only simplifies installation but also reduces costs associated with additional wiring and power infrastructure.

Flexibility and Scalability

The JL811A#ABA Sku offers flexibility and scalability, making it suitable for businesses of all sizes. The switch supports up to 8 Gigabit Ethernet ports, allowing users to connect multiple devices simultaneously. Additionally, it features 4 PoE ports, providing power to compatible devices directly from the switch. This flexibility enables businesses to expand their network infrastructure as needed without any limitations.

Enhanced Security

Security is a top priority for any network environment, and the JL811A#ABA Sku has been designed with this in mind. The switch supports advanced security features such as Access Control Lists (ACLs) and IEEE 802.1X network access control, ensuring that only authorized users can access the network. With these security measures in place, businesses can protect their sensitive data and prevent unauthorized access, enhancing overall network security.

Easy Management

The JL811A#ABA Sku offers easy management options, allowing users to efficiently monitor and control their network. The switch is compatible with Aruba Central, a cloud-based management platform that provides a centralized interface for managing multiple switches and network devices. This simplifies network administration and reduces the complexity associated with managing a large number of devices. Additionally, the switch supports SNMP (Simple Network Management Protocol), enabling integration with existing network management systems for seamless monitoring and control.

Importance of JL811A#ABA Sku

The JL811A#ABA Sku plays a crucial role in enhancing the overall performance and functionality of the HPE Aruba 1830 8g 4p PoE Network Switches. Its advanced features and capabilities ensure that businesses can optimize their network infrastructure to meet their specific requirements.

Cost-Effective Solution

By choosing the JL811A#ABA Sku, businesses can benefit from a cost-effective networking solution. The switch offers high-performance switching capabilities at an affordable price point, making it an ideal choice for small to medium-sized businesses with budget constraints. Additionally, the PoE capability eliminates the need for additional power infrastructure, further reducing costs associated with installation and maintenance.

Improved Productivity

The JL811A#ABA Sku enables businesses to enhance their productivity by providing fast and reliable network connectivity. With Gigabit Ethernet support, data transfer rates are significantly increased, allowing for quick access to resources and seamless communication between devices. This ensures that employees can efficiently carry out their tasks without experiencing network-related bottlenecks or slowdowns.

Streamlined Deployment

The PoE capability of the JL811A#ABA Sku simplifies the deployment of network devices. With the ability to provide power and data over a single Ethernet cable, businesses can easily install devices such as IP phones and wireless access points without the need for additional power outlets. This streamlines the deployment process, saving time and effort.

Scalability and Future-Proofing

The JL811A#ABA Sku offers scalability, allowing businesses to expand their network infrastructure as their needs grow. With support for multiple Gigabit Ethernet ports and PoE capabilities, businesses can easily add new devices and scale their network without any limitations. This ensures that the network can accommodate future growth and technological advancements, providing a future-proofing solution.

Enhanced Security and Control

Security is a critical aspect of any network environment, and the JL811A#ABA Sku helps businesses in maintaining a secure network. With advanced security features such as ACLs and 802.1X network access control, unauthorized access is prevented, protecting sensitive data from potential threats. The easy management options further enhance control over the network, allowing businesses to efficiently monitor and manage their network infrastructure.

In conclusion, the JL811A#ABA Sku is an essential feature of the HPE Aruba 1830 8g 4p PoE Network Switches. Its high-performance capabilities, Power over Ethernet functionality, flexibility, scalability, enhanced security, and easy management options make it a valuable asset for businesses of all sizes. By choosing this Sku, businesses can benefit from a cost-effective networking solution that improves productivity, simplifies deployment, ensures scalability and future-proofing, and enhances network security and control.
