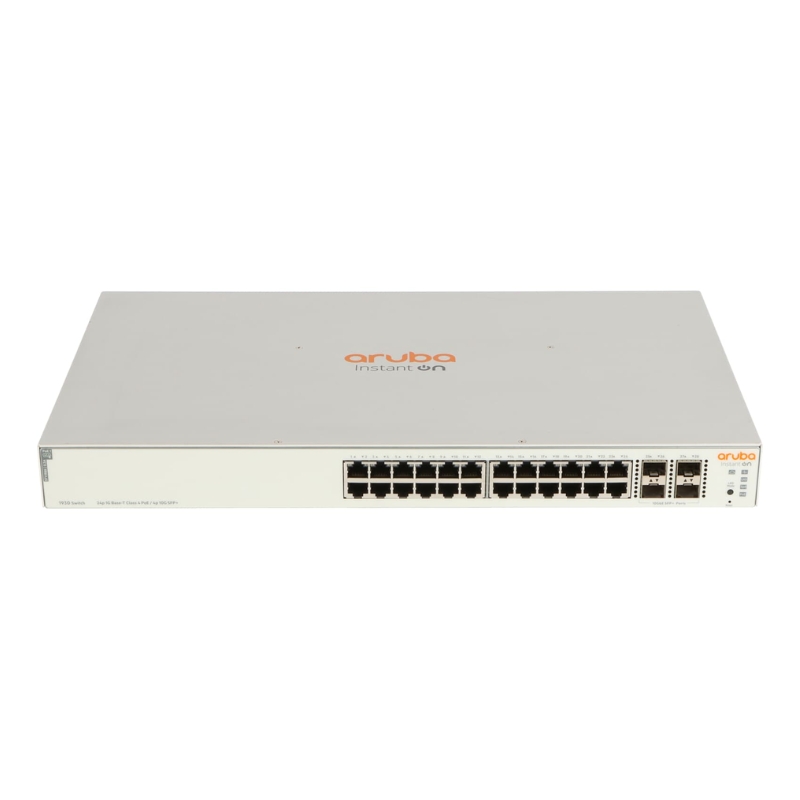

HPE Aruba 1930 24g sfp+ 28 Port Network Switch JL682A

JL682A
Hover on image to enlarge

Brief Overview of JL682A

HPE Aruba 28 Port Network Switch Instant On 1930 24g sfp+ Rack-mountable - JL682A. New (System) Pull

with 6-Month Replacement Warranty
QR Code of HPE Aruba 1930 24g sfp+ 28 Port Network Switch JL682A
$384.75
$273.00
You save: $111.75 (29%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL682AAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Details

HPE JL682A Aruba Instant On 1930 Switch

This advanced networking solution, the HPE JL682A, is designed for efficiency and performance. With a total of 28 ports, it offers exceptional management capabilities, making it a reliable choice for your networking needs.

Key Specifications

  • Device Type: 28-Port Managed Switch (Layer 3)
  • Form Factor: Rack-mountable 1U
  • Network Type: Gigabit Ethernet
  • Ports: 24 x 10/100/1000 + 4 x 1/10G SFP/SFP+

Performance Metrics

  • Switching Capacity: 128 Gbps
  • Throughput: 95.23 Mpps
  • Latency: 2.4 µs (1 Gbps); 1.3 µs (10 Gbps)

Capacity and Limits

  • Link Aggregation Ports: 8
  • IPv4 Static Routes: 32
  • VLAN Support: 256
  • Access Control Entries (ACEs) per ACL: 480
  • Packet Buffer Size: 1.5 MB
  • MAC Address Table Size: 16,000 Entries
  • Jumbo Frame Support: 9216 Bytes

Routing and Management

  • Routing Protocol: Static IP Routing
  • Remote Management Protocols: SNMP v1, SNMP v2c, SNMP v3, RMON, HTTP, HTTPS, TFTP, RADIUS
  • Encryption: SSL
  • Authentication Method: RADIUS

Additional Features

  • Flow Control
  • DHCP and ARP Support
  • VLAN and IGMP Snooping
  • Auto-Uplink (Auto MDI/MDI-X)
  • IPv6 Support
  • Half and Full Duplex Modes
  • Spanning Tree Protocol (STP) and Multiple Spanning Tree Protocol (MSTP) Support
  • Quality of Service (QoS)
  • Trusted Platform Module (TPM)
  • Link Aggregation Control Protocol (LACP)
  • Energy Efficient Ethernet
  • Class of Service (CoS)
  • BPDU Filter

Compliance Standards

  • IEEE 802.3, 802.3u, 802.1d, 802.1q, 802.3ab, 802.1p
  • IEEE 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x
  • IEEE 802.1s, 802.1ab (LLDP), 802.3at, 802.3az

Hardware Specifications

  • Processor: 1 x ARM Cortex-A9 at 800 MHz
  • RAM: 512 MB SDRAM
  • Flash Memory: 256 MB
  • Status Indicators: Port Status, Power

Connectivity Options

  • 24 x 10/100/1000 Base-T RJ-45 Ports
  • 4 x 1/10 Gbps LAN SFP+

Power Specifications

  • Power Supply: Internal Power Supply
  • Voltage Requirements: AC 120/230 V (50/60 Hz)
  • Operational Power Consumption: 22.6 Watts

Ports

The HPE Aruba 1930 24g sfp+ 28 Network Switch is equipped with an impressive 28 ports that make it an ideal choice for small and medium-sized businesses. With such a high number of ports, this switch offers exceptional flexibility and scalability, allowing users to easily connect multiple devices and expand their network as needed.

Increased Connectivity

One of the key benefits of having 28 ports on the HPE Aruba 1930 switch is the increased connectivity it provides. Whether you need to connect computers, printers, servers, or other networking devices, this switch has you covered. With more ports available, you can eliminate the need for additional switches or hubs, simplifying your network infrastructure and reducing costs.

Efficient Network Management

Managing a network with multiple devices can be a daunting task, but with 28 ports on the HPE Aruba 1930 switch, you can easily organize and control your network. Each port can be configured individually, allowing you to prioritize traffic, set up VLANs, and implement security measures to protect your network. This level of control ensures optimal performance and efficiency.

Enhanced Network Performance

With 28 ports at your disposal, the HPE Aruba 1930 switch enables high-speed data transfer between connected devices. Whether you're transferring large files, streaming multimedia content, or running bandwidth-intensive applications, this switch ensures smooth and uninterrupted connectivity. The increased number of ports also helps distribute network traffic evenly, preventing congestion and improving overall network performance.

Scalability

As your business grows and your network requirements evolve, having 28 ports on the HPE Aruba 1930 switch gives you the scalability you need. You can easily add more devices to your network without worrying about running out of available ports. This flexibility allows your network to expand along with your business, saving you the hassle and cost of replacing your switch in the future.

Redundancy and Reliability

Having multiple ports on the HPE Aruba 1930 switch also enables redundancy and improves network reliability. By connecting devices to different ports, you can create redundant links, ensuring that if one link fails, traffic can automatically be rerouted through an alternate path. This redundancy minimizes downtime and enhances the overall reliability of your network.

Future-Proofing

Investing in a switch with 28 ports like the HPE Aruba 1930 ensures that you are future-proofing your network. As technology advances and more devices require network connectivity, having a sufficient number of ports becomes crucial. By choosing a switch with ample port capacity, you can accommodate future growth and avoid the need for costly upgrades or replacements.

Summary

In summary, the HPE Aruba 1930 24g sfp+ 28 Network Switch offers users the advantage of 28 ports, providing increased connectivity, efficient network management, enhanced network performance, scalability, redundancy, reliability, and future-proofing. With these benefits, this switch is an excellent choice for businesses looking to optimize their network infrastructure.

Interface

The HPE Aruba 1930 24g sfp+ 28 Network Switch stands out with its SFP+ interface, offering users a range of advantages for their networking needs. The SFP+ interface is designed to provide high-speed data transfer capabilities and is widely recognized as a reliable and efficient connectivity solution.

High-Speed Data Transfer

The SFP+ interface on the HPE Aruba 1930 switch allows for high-speed data transfer rates, making it ideal for bandwidth-intensive applications such as video streaming, data backups, and server virtualization. With speeds of up to 10 gigabits per second, this interface ensures quick and efficient data transmission, reducing latency and improving overall network performance.

Flexibility and Compatibility

The SFP+ interface offers users flexibility when it comes to connectivity options. It supports a variety of transceiver modules, including fiber optic and copper modules, providing compatibility with different network infrastructures. This versatility allows users to choose the most suitable transceiver for their specific needs, whether it's for short-range connections within a building or long-range connections between different locations.

Scalability

The SFP+ interface on the HPE Aruba 1930 switch also offers scalability, allowing users to easily increase their network capacity as their business grows. With the ability to support multiple SFP+ modules, you can connect additional devices without the need for complex configurations or infrastructure changes. This scalability ensures that your network can adapt to changing demands without compromising performance.

Reliability

Reliability is a crucial factor in any network infrastructure, and the SFP+ interface delivers in this aspect. By utilizing optical fiber or copper cabling with low signal loss and electromagnetic interference, the SFP+ interface provides a stable and reliable connection. This reliability is particularly important for mission-critical applications where uninterrupted connectivity is essential.

Cost-Effectiveness

Despite its high-speed capabilities, the SFP+ interface offers a cost-effective solution for network connectivity. The use of transceiver modules allows for easy replacement or upgrade of specific components without the need to replace the entire switch. This modularity reduces costs associated with maintenance and upgrades, making the HPE Aruba 1930 switch with SFP+ interface an economical choice for businesses.

Summary

In summary, the HPE Aruba 1930 24g sfp+ 28 Network Switch with its SFP+ interface provides users with high-speed data transfer, flexibility and compatibility, scalability, reliability, and cost-effectiveness. These features make it an excellent choice for businesses looking to enhance their network performance and meet the demands of a growing network infrastructure.

Sku

The HPE Aruba 1930 24g sfp+ 28 Network Switch is identified by its SKU, JL682A. This unique identifier plays a crucial role in ensuring the right switch is selected and helps streamline the procurement process.

Product Identification

The SKU, JL682A, serves as a specific product identification code for the HPE Aruba 1930 switch. It distinguishes this particular model from other switches in the Aruba 1930 series and ensures accurate product selection. By referencing the SKU, users can easily identify and purchase the exact switch they need, minimizing the risk of ordering incorrect or incompatible equipment.

Compatibility and Support

The SKU also plays a vital role in compatibility and support. When seeking technical assistance or looking for compatible accessories or software updates, having the correct SKU ensures that users receive accurate information and appropriate solutions. It simplifies communication with vendors or support teams, allowing for swift resolution of any issues or inquiries.

Inventory Management

For businesses managing multiple network switches, keeping track of inventory can be a challenge. The SKU provides an efficient way to manage and organize switches within an inventory system. By associating each switch with its unique SKU, businesses can quickly identify the specific model, track its location, monitor warranty status, and plan for future upgrades or replacements.

Efficient Procurement

The SKU simplifies the procurement process by streamlining order placement and fulfillment. When ordering the HPE Aruba 1930 switch, providing the SKU, JL682A, ensures that the correct model is selected. This eliminates any confusion or potential errors during the purchasing process, saving time and preventing unnecessary delays.

Product Differentiation

Within the Aruba 1930 series, there may be multiple switches with different features or specifications. The SKU helps users differentiate between these models and select the one that best suits their requirements. Whether it's based on port count, interface options, or other distinguishing factors, the SKU ensures accurate identification and selection of the desired switch.

Summary

In summary, the SKU, JL682A, associated with the HPE Aruba 1930 24g sfp+ 28 Network Switch, serves as a unique identifier for accurate product selection, compatibility and support, inventory management, efficient procurement, and product differentiation. By leveraging the SKU, users can streamline their network infrastructure management and ensure they have the right switch for their specific needs.

Features
Product/Item Condition:
New (System) Pull
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
