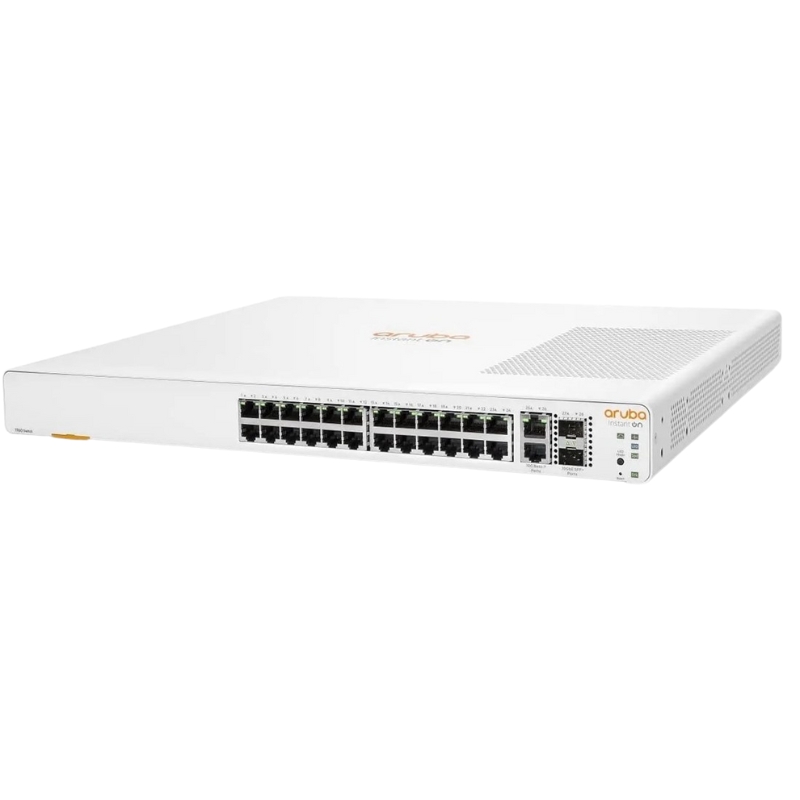

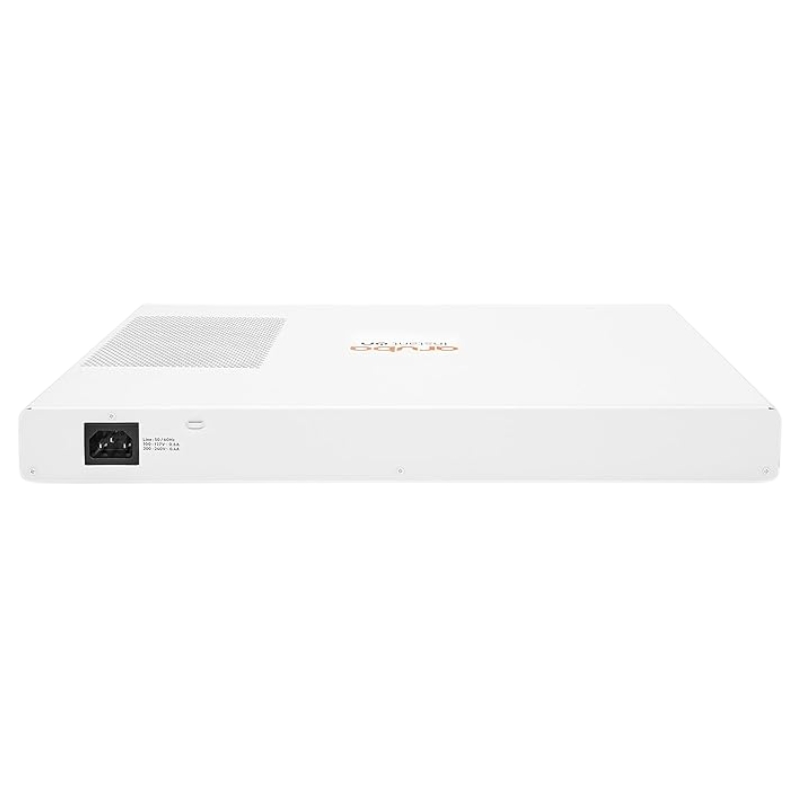

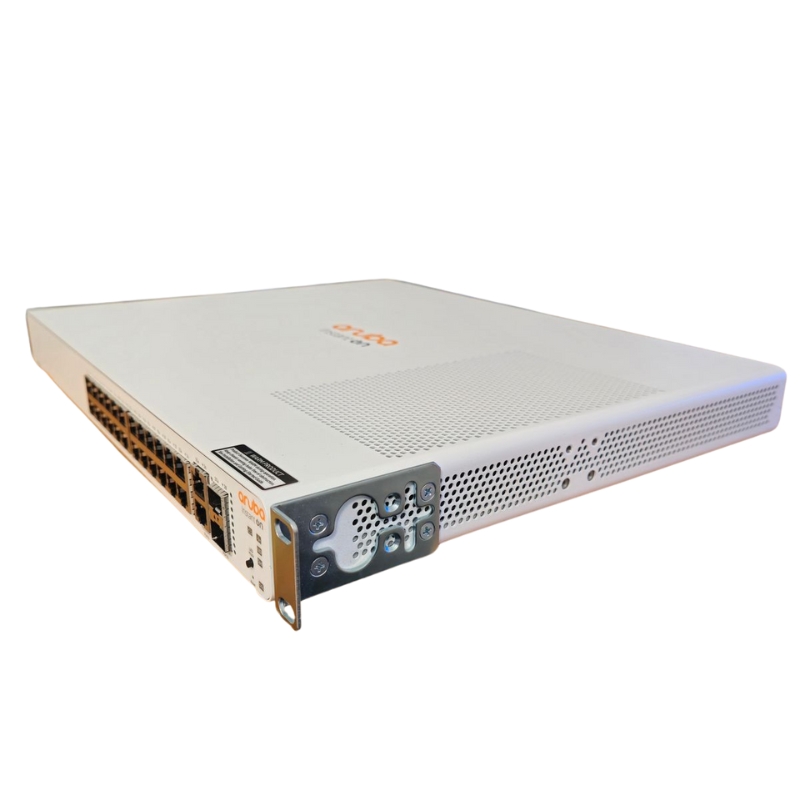

HPE JL806A#ABA Aruba 24-Port Network Switch with 2 SFP+ Ports.

JL806A#ABA
Hover on image to enlarge

Brief Overview of JL806A#ABA

HPE Aruba 24-Port Managed Rack-Mountable Network Switch with 2 SFP+ Ports JL806A#ABA. Factory-Sealed New in Original Box (FSB)

with 3-Year Replacement Warranty
QR Code of HPE JL806A#ABA Aruba 24-Port Network Switch with 2 SFP+ Ports.
$877.50
$458.00
You save: $419.50 (48%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL806A#ABAAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Device Overview

  • The HPE Switch 24 Ports (Model: JL806A#ABAg) is a versatile network solution designed to provide robust performance and comprehensive features for managing a range of network traffic demands. This switch is ideal for environments that require high availability and efficient operation.

Manufacturer Details

  • Brand: HPE
  • Part Number: JL806A#ABAg
  • Device Type: 24-Port Switch

Performance Specifications

With excellent throughput capabilities, this HPE switch delivers high-speed performance and low-latency connectivity. Its key specifications include:

Throughput and Switching Capacity

  • Throughput: 95 Million Packets Per Second (MPPS)
  • Switching Capacity: 128 Gigabits per Second (Gbps)

Latency Performance

  • At 100 Mbps: 4.4 µs
  • At 1 Gbps: 2.2 µs
  • At 10 Gbps: 1.1 µs

Capacity & Address Table

  • MAC Address Entries: 16,000
  • IPv4 Static Routes: 32
  • IPv6 Static Routes: 32
  • MAC Address Table Size: 16,000 entries

Key Features & Protocol Support

Advanced Features

  • Flow Control
  • DHCP Support
  • ARP Support
  • VLAN Support
  • Auto-Negotiation
  • Port Mirroring
  • Link Aggregation Control Protocol (LACP)
  • Class of Service (CoS)
  • Energy Efficient Ethernet (EEE)
  • Spanning Tree Protocol (STP) Support
  • Access Control List (ACL) Support
  • Trusted Platform Module (TPM)
  • Fanless Design for Quiet Operation
  • IPv6 Support
  • Auto Voice VLAN
  • Media Endpoint Discovery (LLDP-MED)

Routing and Remote Management

  • Routing Protocol: Static IP Routing
  • Management Protocols: SNMP v1, v2c, v3, HTTP, HTTPS, RADIUS

Compliance Standards

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1d
  • IEEE 802.1q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3ad (LACP)
  • IEEE 802.1s
  • IEEE 802.1ab (LLDP)

Expansion & Connectivity Options

Interface Connectivity

  • 24 x 10/100/1000 Base-T RJ-45 Ports
  • 2 x 10 Gigabit Ethernet Ports (SFP+ and RJ-45)
  • 2 x 10GBASE-T RJ-45 Ports

Power Specifications

Power Supply

  • Power Device: Internal Power Supply
  • Voltage Requirement: AC 100-240V (50/60Hz)

Ports

The HPE Aruba JL806A#ABA Network Switch is equipped with a remarkable 24 ports, making it an ideal choice for businesses of all sizes. With such a large number of ports, this switch provides users with the ability to connect numerous devices to their network infrastructure, enabling smooth and efficient communication among various devices.

Increased Connectivity

Having 24 ports on the HPE Aruba JL806A#ABA Network Switch means that businesses can connect a wide range of devices to their network, including computers, printers, servers, and IP phones. This high level of connectivity streamlines operations by ensuring that all devices are seamlessly integrated into the network, allowing for effortless data transfer and collaboration.

Improved Productivity

The abundance of ports on this network switch translates to improved productivity for users. With more ports available, employees can connect their devices directly to the network without the need for additional equipment or complex setups. This simplifies the process of connecting devices and reduces the time spent troubleshooting connectivity issues, ultimately leading to increased efficiency and productivity in the workplace.

Scalability

Another significant advantage of having 24 ports is the scalability it offers. As businesses grow and expand, they often need to add more devices to their network. The HPE Aruba JL806A#ABA Network Switch provides ample room for future growth by accommodating additional devices without requiring the purchase of another switch. This scalability feature saves businesses both time and money by eliminating the need for frequent upgrades or replacements.

Flexibility

The versatility provided by 24 ports allows organizations to tailor their network setup to their specific needs. Whether they require a large number of wired connections or plan to incorporate various wireless access points, this network switch can easily accommodate different configurations. The flexibility offered by having numerous ports ensures that businesses can adapt their network infrastructure as their requirements change over time.

SFP+ Ports

In addition to the impressive 24 ports, the HPE Aruba JL806A#ABA Network Switch also features 2 SFP+ ports. These ports provide users with enhanced capabilities and flexibility, making them an essential component for businesses that require high-speed connections.

High-Speed Connectivity

The 2 SFP+ ports on this network switch support data rates of up to 10 Gbps, enabling lightning-fast data transmission. This high-speed connectivity is crucial for organizations that handle large amounts of data or engage in bandwidth-intensive activities such as video streaming, file sharing, or cloud computing. The SFP+ ports ensure that data flows seamlessly without any bottlenecks, resulting in improved performance and reduced latency.

Network Redundancy

The inclusion of SFP+ ports allows for network redundancy, which is vital for businesses that cannot afford any downtime. By connecting the switch to other devices or switches using fiber optic cables, users can create redundant paths for data transmission. In the event of a cable failure or network disruption, the redundant path ensures that data can still flow through the network, minimizing downtime and preventing any loss of critical information.

Long-Distance Connectivity

SFP+ ports support long-distance connectivity by utilizing fiber optic cables. Unlike traditional copper cables that have limitations in terms of distance, fiber optic cables can transmit data over much longer distances without signal degradation. This feature is especially useful in large office spaces or buildings where devices are spread out across different floors or rooms. With SFP+ ports, businesses can establish reliable connections over extended distances while maintaining optimal performance.

Future-Proof Technology

Having 2 SFP+ ports on the HPE Aruba JL806A#ABA Network Switch ensures that businesses are prepared for future technological advancements. As network speeds continue to increase, these ports offer the necessary infrastructure to support higher data rates and emerging technologies. Investing in a network switch with SFP+ ports ensures that organizations can adapt to future requirements without the need for costly upgrades or replacements.

In conclusion, the HPE Aruba JL806A#ABA Network Switch stands out with its impressive 24 ports and 2 SFP+ ports. The extensive number of ports allows for increased connectivity, improved productivity, scalability, and flexibility. The inclusion of SFP+ ports further enhances the switch's capabilities by providing high-speed connectivity, network redundancy, long-distance connectivity, and future-proof technology. Whether you are a small business or a large enterprise, this network switch offers the features and performance required to support your growing network infrastructure.
