HPE Aruba 2930f 12g Poe+ 139w Switch, 12 Ports, Managed, Rack-mountable (JL693A#ABA)

Product Overview of HPE JL693A#ABA

Manufacturer Details

• Brand: HPE
• Model Number: JL693A#ABA

Product Specifications

Type of Device

• Switch Type: 12-Port Network Switch

Physical Characteristics

• Form Factor: Rack-Mountable 1U
• Enclosure Style: 1U Rack-Mount

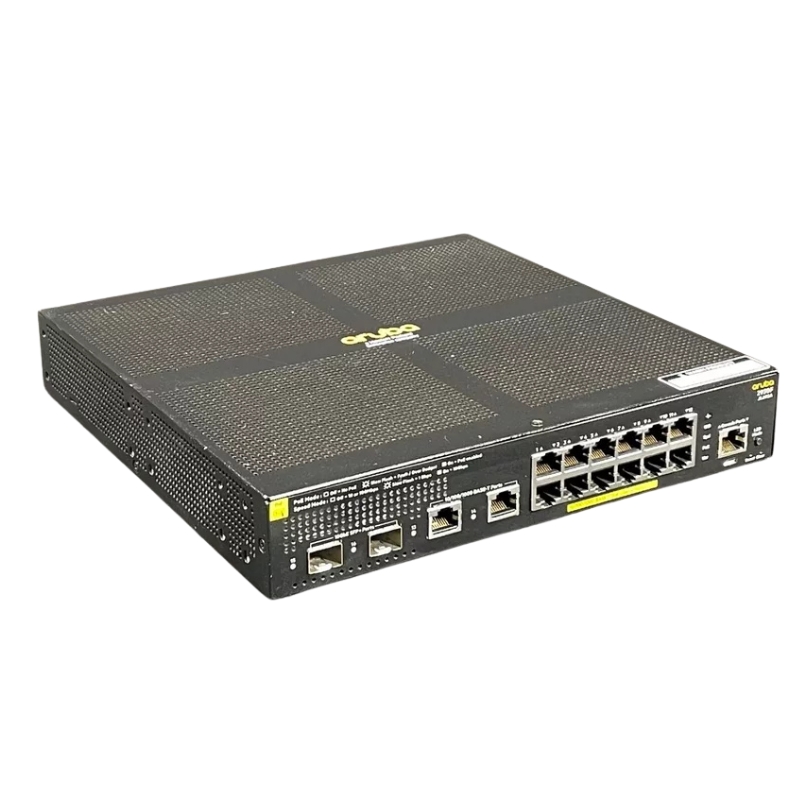

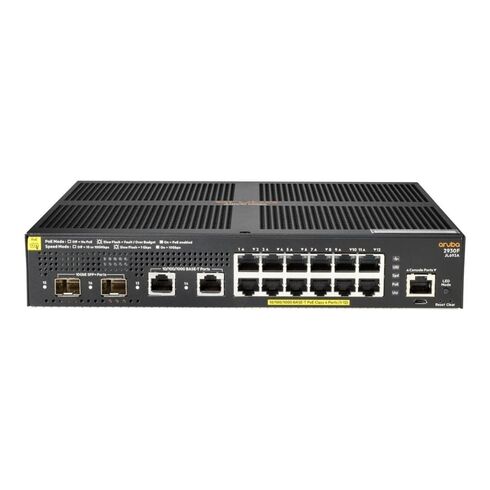

Port Configuration

Port Types

• 12 x 10/100/1000 (PoE+)
• 2 x 1 Gigabit / 10 Gigabit SFP+ (Uplink)
• 2 x 10/100/1000

Power Features

• Power Over Ethernet (PoE): PoE+
• PoE Power Budget: 139 Watts

Advanced Features

• Flow Control
• Full Duplex Operation
• DHCP and BOOTP Support
• ARP Support
• VLAN Configuration
• IGMP Snooping
• Syslog and DiffServ Support
• IPv6 Compatibility
• SNTP and SFlow Integration
• Spanning Tree Protocol (STP) and Multiple Spanning Tree Protocol (MSTP)
• Trivial File Transfer Protocol (TFTP) Support
• Access Control Lists (ACL) Management
• Quality of Service (QoS)
• Support for Jumbo Frames
• DHCP Server Capability
• MLD Snooping
• STP Root Guard
• Uni-Directional Link Detection (UDLD)
• Link Aggregation Control Protocol (LACP)
• Dynamic ARP Protection
• Dynamic VLAN Support (GVRP)
• Multiple VLAN Registration Protocol (MVRP)
• Neighbor Discovery Protocol (NDP)
• Class of Service (CoS)
• SNMP Support
• Type of Service (ToS)
• OpenFlow Compatibility
• CPU Protection Mechanisms
• Internet Control Message Protocol (ICMP)
• ICMP Router Discovery Protocol (IRDP)
• Virtual Extensible LAN (VXLAN)

Compliance and Standards

• IEEE 802.3 Series
• IEEE 802.1 Series
• IEEE 802.3at (PoE+)
• IEEE 802.3az (Energy Efficient Ethernet)

Performance Metrics

Switching Capabilities

• Switching Capacity: 68 Gbps
• Throughput: 41.7 Mpps
• Latency:
  • 1 Gbps: 3.8 µs
  • 10 Gbps: 1.6 µs

Capacity Details

• Jumbo Frame Size: 9220 Bytes
• IPv4 Routing Table: 2000 Entries
• IPv6 Routing Table: 1000 Entries
• MAC Address Table: 32,000 Entries

Routing Protocols Supported

• OSPF, RIP (RIP-1, RIP-2)
• IGMPv2, IGMPv3
• Static IP Routing (IPv4 and IPv6)
• RIPng, MLD, CIDR

Remote Management Options

• SNMP Versions 1, 2, and 3
• RMON
• Telnet
• SSH and CLI Management

Security Features

• Encryption Algorithms: MD5, SSL
• Authentication Methods: RADIUS, PAP, CHAP, TACACS, TACACS+

Hardware Specifications

Processor

• Single ARM Cortex-A9 processor at 1.016 GHz

Memory and Storage

• RAM: 1 GB DDR3 SDRAM
• Flash Memory: 4 GB

Expansion and Connectivity Options

• 12 x 1000BASE-T RJ-45 PoE+
• 2 x Gigabit / 10Gbit LAN SFP+
• 1 x Serial Console Port
• 2 x 1000BASE-T RJ-45 Ports
• Expansion Slot: 1 available
• Maximum Installed Modules: 0 (up to 2 allowed)

Power Requirements

• Power Source: Internal Power Supply
• Installed Units: 1
• Voltage Range: AC 120/230 V (50/60 Hz)

HPE Aruba 2930f 12g Poe+ 139w 2g/2sfp+ Switch, 12 Ports, Managed, Rack-mountable (JL693A#ABA).

Ports

The HPE Aruba 2930f Switch is equipped with 12 ports, making it an ideal choice for small to medium-sized businesses or organizations that require a reliable network infrastructure. These ports offer a wide range of benefits and functionalities that enhance connectivity and support various networking needs.

Increased Connectivity

With 12 ports, the HPE Aruba 2930f Switch provides ample connectivity options for devices such as computers, printers, servers, and other network devices. This allows users to easily connect their devices to the network without the need for additional switches or hubs. The increased number of ports ensures that users can connect multiple devices simultaneously, enabling seamless data transfer and communication across the network.

Improved Network Performance

The 12 ports of the HPE Aruba 2930f Switch also contribute to improved network performance. Each port operates at high speeds, typically 10/100/1000 Mbps, enabling fast data transmission between connected devices. This high-speed connectivity is essential for tasks such as file sharing, video streaming, and online collaboration, ensuring a smooth and efficient workflow within the organization.

Versatile Deployment Options

The availability of 12 ports on the HPE Aruba 2930f Switch allows for versatile deployment options. Users have the flexibility to connect devices directly to the switch or create a network topology that suits their specific requirements. Whether it's a small office setup or a larger network infrastructure, the multiple ports ensure that users can easily expand their network without compromising performance or connectivity.

The 12 ports feature of the HPE Aruba 2930f Switch proves crucial for businesses and organizations that require a reliable and scalable network infrastructure. The increased connectivity options, improved network performance, and versatile deployment possibilities make it an excellent choice for various networking needs.

Power Over Ethernet

One of the standout features of the HPE Aruba 2930f Switch is its Power Over Ethernet (PoE) capability, which allows it to deliver power to connected devices through Ethernet cables. This feature offers numerous benefits and convenience for users, making it an essential consideration for those who require PoE functionality.

Simplified Deployment

The PoE feature of the HPE Aruba 2930f Switch simplifies the deployment of network devices that require power, such as IP phones, wireless access points, and surveillance cameras. Instead of relying on separate power outlets or installing additional power sources, users can conveniently power their devices through the Ethernet cables connected to the switch. This eliminates the need for extra wiring and reduces installation complexity.

Cost Savings

By utilizing PoE, users can significantly reduce costs associated with installing and maintaining separate power sources for each network device. The HPE Aruba 2930f Switch's PoE capability eliminates the need for additional electrical infrastructure, resulting in cost savings during initial setup and ongoing maintenance.

Flexible Device Placement

The PoE feature enables users to deploy network devices in locations where power outlets might not be readily accessible. This flexibility allows for optimal placement of devices based on network coverage requirements or physical layout considerations. With the HPE Aruba 2930f Switch's PoE support, users can efficiently extend their network to areas that would otherwise be challenging or costly to reach with traditional power sources.

Power Over Ethernet functionality is a crucial aspect of the HPE Aruba 2930f Switch, providing simplified deployment, cost savings, and flexible device placement options. It caters to the needs of businesses and organizations that require efficient power delivery to network devices without compromising on performance or convenience.

Power Capacity

The HPE Aruba 2930f Switch boasts a power capacity of 139w, making it capable of providing sufficient power to connected devices. This feature is essential for organizations that require reliable and consistent power delivery, ensuring uninterrupted network operations.

Support for Multiple Devices

With a power capacity of 139w, the HPE Aruba 2930f Switch can support multiple PoE devices simultaneously. This allows users to connect and power devices such as IP phones, wireless access points, and surveillance cameras without worrying about power limitations. The ample power capacity ensures that all connected devices receive sufficient power, eliminating the risk of network downtime or device failure due to insufficient power supply.

Scalability and Future-Proofing

The power capacity of the HPE Aruba 2930f Switch also contributes to its scalability and future-proofing capabilities. As businesses grow and their networking needs expand, additional devices may need to be connected to the network. The switch's high power capacity ensures that it can accommodate the addition of new devices without compromising on performance or requiring costly upgrades.

Efficient Power Management

The HPE Aruba 2930f Switch's power capacity facilitates efficient power management. It allows users to allocate power to connected devices based on their individual requirements, ensuring optimal utilization of available resources. This capability is particularly useful in environments where different devices have varying power demands, enabling users to prioritize power allocation and prevent overload situations.

The robust power capacity of the HPE Aruba 2930f Switch provides organizations with the assurance of reliable power delivery to their network devices. Whether it's supporting multiple devices, facilitating scalability, or enabling efficient power management, this feature plays a crucial role in maintaining network stability and performance.

Management

The HPE Aruba 2930f Switch is a managed switch, offering advanced management capabilities that empower users to have complete control over their network infrastructure. This feature is highly beneficial for businesses and organizations that require granular control, security, and monitoring of their network.

Enhanced Network Visibility

As a managed switch, the HPE Aruba 2930f provides comprehensive network visibility, allowing users to monitor and analyze network traffic, performance, and security. Advanced management features such as port mirroring, traffic monitoring, and VLAN support enable administrators to gain insights into network behavior, identify potential bottlenecks or security vulnerabilities, and take appropriate measures to optimize performance.

Granular Control and Configuration

Managed switches like the HPE Aruba 2930f offer granular control and configuration options, empowering users to customize their network according to their specific requirements. Administrators can define VLANs, implement Quality of Service (QoS) policies, and manage access control lists (ACLs) to ensure secure and efficient data transmission across the network. This level of control enables organizations to prioritize critical applications, allocate bandwidth effectively, and enforce network security policies.

Remote Management and Troubleshooting

The managed nature of the HPE Aruba 2930f Switch allows for remote management and troubleshooting capabilities. Administrators can access the switch's management interface remotely, enabling them to monitor and configure the network from any location. This feature proves invaluable in scenarios where immediate action is required or when dealing with distributed network environments.

The management capabilities of the HPE Aruba 2930f Switch provide organizations with the tools they need to maintain a secure, optimized, and reliable network infrastructure. Enhanced network visibility, granular control and configuration options, as well as remote management capabilities make it an ideal choice for businesses that require advanced management features.

Mounting Options

The HPE Aruba 2930f Switch offers flexible mounting options, including rack-mountable capabilities. This feature provides users with the versatility to install the switch in various environments, ensuring optimal space utilization and ease of deployment.

Space Efficiency

The rack-mountable design of the HPE Aruba 2930f Switch allows for efficient use of space in server rooms, data centers, or network closets. By mounting the switch in a standard rack, users can consolidate their network equipment into a single location, reducing clutter and optimizing space utilization. This not only improves organization and accessibility but also facilitates better airflow management, enhancing overall network performance and reliability.

Scalability and Future Expansion

Rack-mountable switches like the HPE Aruba 2930f offer scalability and future expansion possibilities. As businesses grow and their networking needs evolve, additional switches may need to be added to accommodate increased network traffic or device connectivity. The rack-mountable design allows for easy integration of new switches into existing racks, simplifying expansion while maintaining a tidy and organized network infrastructure.

Convenient Installation and Maintenance

The rack-mountable feature of the HPE Aruba 2930f Switch streamlines installation and maintenance processes. Mounting the switch in a standard rack eliminates the need for additional brackets or hardware, reducing installation complexity. It also provides easy access to the switch's ports, cables, and connectors, simplifying cable management and facilitating troubleshooting or maintenance tasks.

The rack-mountable capability of the HPE Aruba 2930f Switch ensures efficient space utilization, scalability, and convenient installation and maintenance processes. Whether it's a server room, data center, or network closet, this feature offers users the flexibility to deploy the switch in various environments while maintaining a clean and organized network infrastructure.

Part Number

The HPE Aruba 2930f Switch has a unique part number, JL693A#ABA, which serves as an identifier for the specific model. This part number holds importance for users in terms of compatibility, support, and easy identification of the switch.

Compatibility Verification

The part number, JL693A#ABA, allows users to verify compatibility with their existing network infrastructure or other network devices. It ensures that the switch is compatible with the required network protocols, standards, and interfaces, preventing any potential compatibility issues that may arise during integration into an existing network environment.

Support and Warranty

The part number also plays a crucial role in accessing support and warranty services for the HPE Aruba 2930f Switch. By providing the unique part number, users can easily identify and register their switch for warranty coverage and technical support. This ensures that users have access to necessary assistance and resources in case of any issues or inquiries related to the switch's performance or functionality.

Identification and Documentation

The part number serves as an essential identifier for the HPE Aruba 2930f Switch in documentation, such as user manuals, technical specifications, and compatibility guides. Users can refer to the part number to access relevant documentation that provides detailed information about the switch's features, installation processes, configuration options, and troubleshooting guidelines. This ensures that users have comprehensive resources at their disposal when setting up or managing the switch.

The part number, JL693A#ABA, holds significance for users as it allows for compatibility verification, access to support and warranty services, and easy identification of documentation related to the HPE Aruba 2930f Switch. By leveraging this unique identifier, users can ensure a seamless integration process and have the necessary resources for effective management of their network infrastructure.
