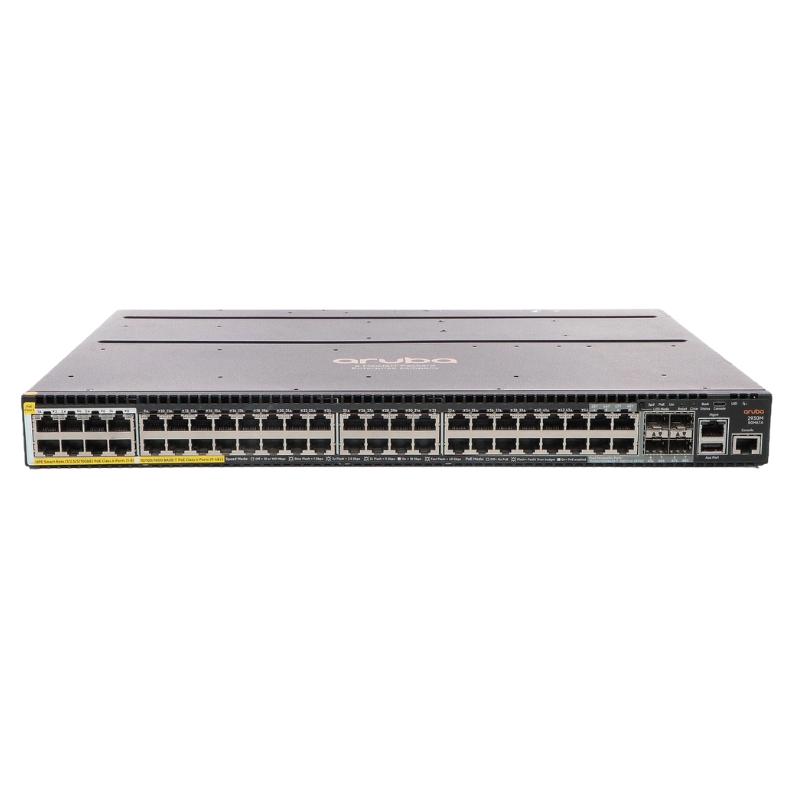

HPE Aruba 2930m 40g 8 Smart Rate Poe Class 6 1-slot Switch - R0M67-61101

Product Overview of HPE R0M67-61101

Manufacturer Details

• Brand: HPE
• Model Number: R0M67-61101

Model Specifications

• The HPE R0M67-61101 is a sophisticated Aruba 2930m switch, tailored for high-performance networking demands. This managed switch features:
• Device Type: 48-Port Managed L3 Stackable Switch
• Enclosure: Rack-Mountable (1U)
• Port Types:
  • 36 x 10/100/1000 Ethernet Ports
  • 4 x Combo Gigabit SFP Ports
  • 8 x 1/2.5/5/10GBASE-T Ports (PoE Class 6)

Power Over Ethernet Capabilities

• PoE Class: Class 6
• PoE Budget: 1440 Watts

Performance Metrics

Latency and Throughput

• Latency (1 Gbps): 3.1 μs
• Latency (2.5 Gbps): 6.5 μs
• Latency (5 Gbps): 4.2 μs
• Latency (10 Gbps): 3.4 μs
• Throughput: 112 Mpps
• Stacking Bandwidth: 100 Gbps
• Switching Capacity: 320 Gbps

Routing Capacity

• IPv4 Routing Table Entries: 2000
• IPv6 Routing Table Entries: 1000
• OSPF Routes: 200
• RIP Routes: 10,000
• Static Routes: 256

MAC Address and Jumbo Frame Support

• MAC Address Table Size: 32,768 Entries
• Jumbo Frame Support: Up to 9220 Bytes

Supported Protocols

Routing Protocols

• OSPF, RIP (RIP-1, RIP-2), IGMPv2, IGMPv3
• Static IP Routing, ECMP, RIPng
• IPv4 and IPv6 Static Routing
• MLD, CIDR, and others

Management and Security Features

Remote Management Protocols

• SNMP (versions 1, 2, 3)
• RMON, Telnet, HTTP, SSH (SSH-2), CLI

Encryption and Authentication

• Encryption Algorithms: MD5, SSL, TLS
• Authentication Methods: RADIUS, PAP, CHAP, TACACS, TACACS+

Advanced Networking Features

• Flow Control, Full Duplex Support
• DHCP and BOOTP Support
• VLAN and IGMP Snooping
• Quality of Service (QoS) and Jumbo Frame Support
• Dynamic ARP Protection and DHCP Protection

Compliance and Standards

Industry Standards

• IEEE 802.1d, 802.1q, 802.3ab, 802.1p, 802.3af
• IEEE 802.3ad (LACP), 802.1w, 802.1x, and more

Hardware Specifications

Processor and Memory

• Processor: 1 x ARM Cortex-A9 (1.016 GHz)
• RAM: 1 GB DDR3 SDRAM
• Flash Memory: 4 GB

Connectivity and Expansion Options

• Interfaces:
  • 40 x 1000BASE-T RJ-45
  • 4 x Gigabit LAN SFP
  • 8 x 1/2.5/5/10GBASE-T RJ-45 (PoE Class 6 - 60 W)
  • 1 x Serial Console
  • 1 x USB Type B
  • 1 x 1000BASE-T Management Port
• Expansion Slots:
  • 1 Stacking Module Slot (available)
  • 1 Expansion Slot (available)

Power Requirements

• Power Device: Internal Power Supply (not included)
• Maximum Supported Quantity: 2
• Voltage Requirement: AC 120/230 V (50/60 Hz)

HPE Aruba 2930m 40g 8 Smart Rate Poe Class 6 1-slot Switch - Switch - 48 Ports - Managed - Rack-mountable - R0M67-61101.

Smart Rate Feature

The HPE Aruba 2930m Switch is equipped with the Smart Rate feature, which plays a crucial role in enhancing network performance and flexibility. This feature enables the switch to support higher data rates on specific ports, providing users with the ability to optimize their network infrastructure for high-bandwidth applications.

Benefits of the Smart Rate Feature

1. Enhanced Network Speeds

One of the key benefits of the Smart Rate feature is its ability to deliver higher network speeds. With the increasing demand for bandwidth-intensive applications such as video streaming, cloud computing, and virtualization, organizations require switches that can handle higher data rates. The Smart Rate feature allows users to achieve speeds of up to 10 Gigabits per second (Gbps) on specific ports, ensuring smooth and efficient data transmission.

2. Future-Proofing Network Infrastructure

As technology continues to advance, network requirements evolve as well. The Smart Rate feature helps future-proof your network infrastructure by allowing you to easily upgrade to higher data rates without replacing the entire switch. This scalability ensures that your network remains capable of meeting the demands of emerging technologies and applications.

3. Improved Network Flexibility

The Smart Rate feature offers users increased flexibility in configuring their network infrastructure. By providing support for various data rates on different ports, organizations can allocate bandwidth according to their specific needs. This flexibility is particularly useful when deploying devices that require higher speeds, such as access points, IP cameras, or network storage systems.

Importance of the Smart Rate Feature

1. Accommodating High-Bandwidth Applications

With the proliferation of data-intensive applications, organizations need switches that can handle the increased traffic load. The Smart Rate feature ensures that your network can support bandwidth-hungry applications without compromising performance. It allows for seamless integration of devices that demand higher speeds, making it an essential feature for modern networking environments.

2. Optimizing User Experience

In today's digital age, a smooth and uninterrupted user experience is vital for businesses. The Smart Rate feature ensures that your network can handle the demands of multiple users accessing high-bandwidth applications simultaneously. Whether it's video conferencing, file sharing, or cloud-based services, this feature guarantees a seamless user experience, resulting in increased productivity and customer satisfaction.

3. Cost-Effective Solution

The Smart Rate feature offers a cost-effective solution for organizations looking to upgrade their network infrastructure. By allowing for the reuse of existing cabling infrastructure, users can avoid the expenses associated with rewiring their network environment. Additionally, the ability to upgrade specific ports instead of replacing the entire switch significantly reduces the overall cost of network expansion.

PoE Class Feature

The HPE Aruba 2930m Switch is equipped with Power over Ethernet (PoE) capabilities, specifically PoE Class 6. This feature provides significant benefits for users who need to power various network devices directly through the Ethernet cable.

Benefits of the PoE Class Feature

1. Simplified Deployment

The PoE Class 6 feature simplifies the deployment of network devices by eliminating the need for separate power sources. Devices such as IP phones, wireless access points, and security cameras can be powered directly through the Ethernet cable, eliminating the clutter and complexity associated with traditional power supplies.

2. Cost Savings

By utilizing PoE Class 6, organizations can save on installation costs by eliminating the need for additional electrical outlets near each network device. This eliminates the need for costly electrical work and reduces energy consumption by centralizing power distribution. Additionally, the ability to remotely power cycle devices reduces the need for on-site maintenance visits, resulting in further cost savings.

3. Flexibility and Scalability

The PoE Class 6 feature provides users with flexibility and scalability in their network deployments. With the ability to power a wide range of devices, organizations can easily add or relocate network devices without the constraints of power availability. This flexibility allows for more efficient use of office space and simplifies network expansion.

Importance of the PoE Class Feature

1. Simplified Network Management

The PoE Class 6 feature simplifies network management by consolidating power and data transmission into a single cable. This not only reduces the number of cables required but also eliminates the need for separate power adapters and reduces cable clutter, resulting in a cleaner and more organized network environment.

2. Support for Power-Hungry Devices

As network devices become more advanced, their power requirements increase as well. The PoE Class 6 feature ensures that your switch can provide sufficient power to support power-hungry devices such as high-performance access points or pan-tilt-zoom cameras. This capability is essential for organizations that rely on these devices to deliver critical services or enhance security.

3. Reliable Power Delivery

The PoE Class 6 feature ensures reliable power delivery to network devices by providing advanced power management capabilities. It includes features such as prioritization and monitoring, allowing administrators to allocate power resources effectively and troubleshoot power-related issues quickly. This reliability is crucial for maintaining uninterrupted network connectivity and minimizing downtime.

Slots Feature

The HPE Aruba 2930m Switch is designed with a single slot, offering users the flexibility to customize their switch's functionality according to their specific needs.

Benefits of the Slots Feature

1. Expansion Capability

The presence of a slot allows users to expand the capabilities of their switch by adding various modules. These modules can provide additional functionality such as increased port density, stacking capabilities, or enhanced security features. The slots feature ensures that your switch can scale to accommodate future growth and changing network requirements.

2. Customization Options

The slots feature provides users with the ability to customize their switch's functionality based on their unique network demands. Whether it's adding extra ports for increased connectivity or incorporating specialized modules for specific applications, the slots feature allows for a tailored solution that meets your organization's specific requirements.

3. Investment Protection

By offering the slots feature, HPE Aruba ensures that users can protect their investment in the switch. As technology advances and network needs change, being able to upgrade or modify the switch without replacing the entire unit provides long-term cost savings. The slots feature allows for future-proofing your network infrastructure and adapting to emerging technologies without the need for a complete overhaul.

Importance of the Slots Feature

1. Scalability

The slots feature is crucial for organizations that anticipate future growth or have dynamic network requirements. It allows for easy expansion as your network evolves, ensuring that your switch can accommodate increasing demands without disruption. This scalability is particularly important for businesses that experience rapid growth or frequently add new devices to their network.

2. Versatility

The slots feature provides versatility by allowing users to customize their switch's functionality based on their specific needs. This versatility enables organizations to adapt their network infrastructure to support different applications and technologies without investing in separate switches for each requirement. It simplifies network management and reduces complexity by consolidating multiple functions into a single device.

3. Seamless Integration

The slots feature facilitates seamless integration with existing network infrastructure. Users can add modules that are compatible with their current setup, ensuring a smooth transition and minimizing potential disruptions during the implementation process. This ease of integration makes the slots feature invaluable for organizations looking to enhance their network capabilities without causing significant downtime or reconfiguration.

Ports Feature

The HPE Aruba 2930m Switch is equipped with 40 ports, providing users with ample connectivity options for their network devices.

Benefits of the Ports Feature

1. Increased Connectivity

The availability of 40 ports ensures that organizations have sufficient connectivity options for their network devices. Whether it's connecting computers, printers, servers, or other peripherals, the ports feature allows for seamless integration and facilitates efficient data transfer between devices. It eliminates the need for additional switches or network infrastructure, reducing complexity and cost.

2. Flexibility in Network Design

The ports feature offers flexibility in network design by providing multiple connection points for devices. Users can deploy devices in different locations without the constraints of limited ports, enabling them to create a network layout that best suits their specific requirements. This flexibility allows for efficient use of office space and simplifies network expansion or reconfiguration.

3. Improved Network Performance

The ports feature plays a crucial role in enhancing network performance by eliminating bottlenecks and congestion. With 40 ports available, data can flow freely between devices without any limitations on bandwidth or speed. This ensures that users experience optimal network performance, resulting in improved productivity and reduced latency.

Importance of the Ports Feature

1. Scalability

The ports feature provides scalability for organizations that anticipate future growth or have expanding network requirements. With 40 ports, the switch can accommodate additional devices or handle increased network traffic without compromising performance. This scalability allows businesses to adapt to evolving needs and ensures that their network remains capable of supporting their operations.

2. Simplified Network Management

The availability of multiple ports simplifies network management by centralizing device connectivity. Users can consolidate their network devices onto a single switch, reducing the number of switches required and streamlining the management process. This simplification improves efficiency, reduces maintenance efforts, and minimizes the risk of configuration errors.

3. Enhanced Connectivity Options

The ports feature offers enhanced connectivity options for organizations with diverse network requirements. Users can connect a wide range of devices, including computers, printers, servers, and IP phones, to a single switch. This versatility allows for seamless integration of various devices and provides a unified platform for data transfer and communication within the network.

Product Code Feature

The HPE Aruba 2930m Switch has a product code of R0M67-61101, which serves as a unique identifier for this specific model.

Benefits of the Product Code Feature

1. Identification and Tracking

The product code feature enables easy identification and tracking of the HPE Aruba 2930m Switch model. With a unique product code, users can quickly refer to the specific model when seeking support or ordering additional components or accessories. It simplifies communication and ensures accurate information exchange between users, vendors, and support teams.

2. Compatibility Assurance

The product code provides assurance of compatibility when purchasing or integrating additional components or modules with the HPE Aruba 2930m Switch. By referencing the product code, users can ensure that any accessories or upgrades they acquire are specifically designed to work seamlessly with their switch model. This compatibility minimizes the risk of compatibility issues or performance limitations.

3. Warranty and Support

The product code feature plays a crucial role in warranty and support services. It allows manufacturers and vendors to identify the exact model and version of the switch, ensuring that the correct support and warranty coverage are provided. Users can easily refer to the product code when registering their switch, seeking technical assistance, or requesting warranty claims, streamlining the process and maximizing support efficiency.

Importance of the Product Code Feature

1. Efficient Maintenance and Upgrades

The product code feature simplifies maintenance and upgrades by providing accurate identification of the switch model. When seeking firmware updates, software patches, or hardware upgrades, users can refer to the product code to ensure that they obtain the correct resources for their specific switch model. This reduces downtime and minimizes the risk of compatibility issues during the upgrade process.

2. Streamlined Ordering Process

The product code feature facilitates a streamlined ordering process for additional components or accessories. By accurately referencing the product code, users can ensure that they receive the correct parts or modules that are designed specifically for their switch model. This eliminates potential delays or errors in the procurement process, ensuring that users can quickly obtain the necessary components to enhance their network infrastructure.

3. Simplified Documentation and Communication

The product code feature simplifies documentation and communication by providing a standardized reference point for the HPE Aruba 2930m Switch model. Whether it's documenting network configurations, troubleshooting issues, or collaborating with colleagues or support teams, referring to the product code ensures clear and accurate communication. This streamlines documentation efforts and improves collaboration among stakeholders involved in managing or supporting the network infrastructure.
