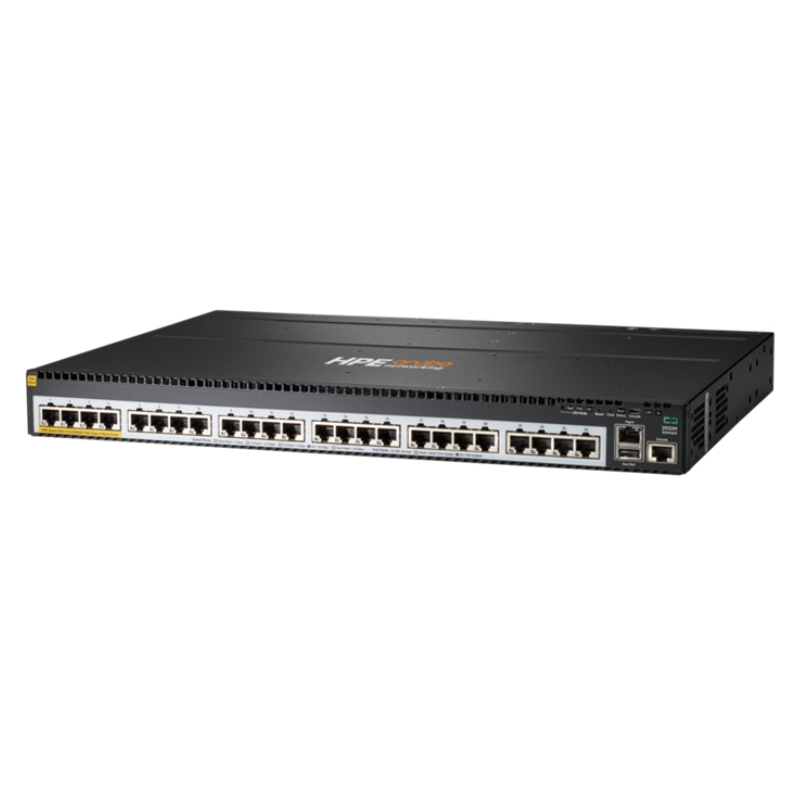

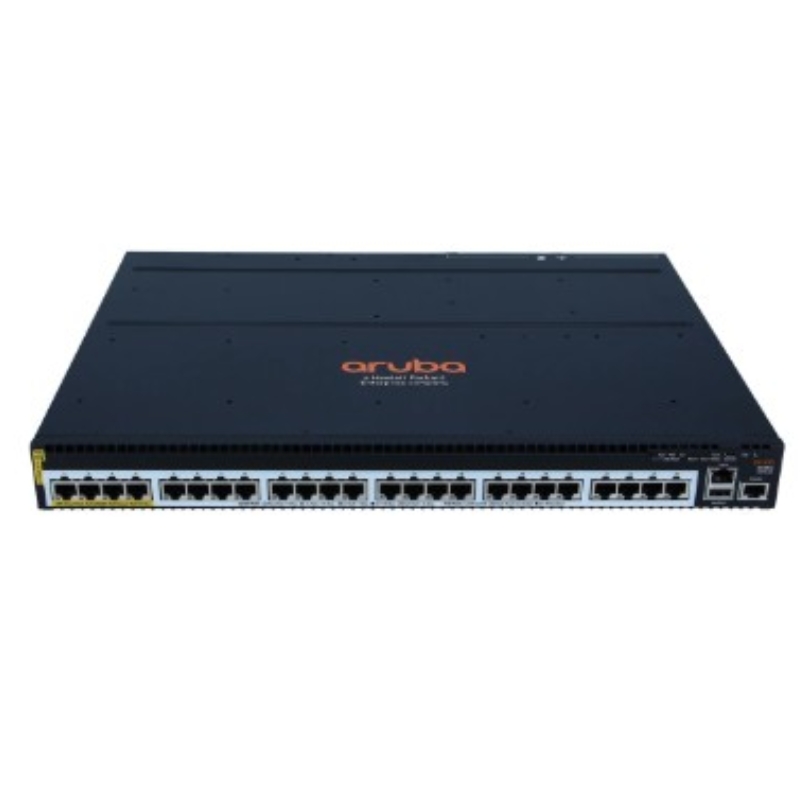

HPE Aruba 2930m Poe+ 24-Port Managed Stackable Switch - R0M68-61101

R0M68-61101
Hover on image to enlarge

Brief Overview of R0M68-61101

HPE Aruba 2930m Poe+ 1-slot 24 Ports Managed Stackable Rack-mountable Switch - R0M68-61101. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE Aruba 2930m Poe+ 24-Port Managed Stackable Switch - R0M68-61101
$5,054.40
$3,360.00
You save: $1,694.40 (34%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNR0M68-61101Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview Of HPE R0M68-61101

  • Device Type: Managed, stackable 24-port L3 switch
  • Form Factor: 1U rack-mountable
  • Subtype: 5 Gigabit Ethernet with 1/2.5/5Gbps support
  • Power over Ethernet: PoE+ with a budget of 860W

Network Performance

  • Throughput: 112 Mpps
  • Stacking Bandwidth: 100 Gbps
  • Switching Capacity: 320 Gbps
  • Latency:
    • 1 Gbps: 3.1 μs
    • 2.5 Gbps: 6.5 μs
    • 5 Gbps: 4.2 μs
    • 10 Gbps: 3.4 μs

Network Routing and Addressing

  • IPv4/IPv6 Routing: Supports up to 2000 IPv4 and 1000 IPv6 routes
  • OSPF and RIP Support: Capable of handling 200 OSPF and 10,000 RIP routes
  • Static Routes: Supports 256 entries
  • MAC Address Table: 32,768 entries with jumbo frame support up to 9220 bytes

Protocol Support and Management

  • Routing Protocols: OSPF, RIP, RIPng, IGMPv2/v3, ECMP, and CIDR
  • Management Protocols: SNMP (v1, v2, v3), Telnet, SSH, HTTP, CLI, and XRMON
  • Security and Encryption: MD5, SSL, TLS
  • Authentication Methods: RADIUS, TACACS+, PAP, CHAP, EAP, SSHv2

Advanced Features and Controls

  • Traffic and Flow Control: Full duplex, DHCP, BOOTP, ARP, VLAN, IGMP snooping
  • QoS and ACL Support: Enhanced quality of service, access control lists
  • Spanning Tree Protocols: STP, MSTP, and BPDU guard for enhanced loop prevention
  • Additional Features: CPU protection, ICMP, VRRP, and Uni-directional Link Detection (UDLD)

Compliant Standards

  • IEEE Standards: Compliance with IEEE 802.1d, 802.1q, 802.3ab, 802.3af, 802.3x, 802.3at, among others

Hardware Specifications

  • Processor: ARM Cortex-A9 running at 1.016 GHz
  • Memory: 1 GB DDR3 SDRAM
  • Flash Storage: 4 GB

Connectivity and Expansion Options

  • Ports: 24 x 1/2.5/5Gbps PoE+ ports, 1 serial (console), 1 USB Type B, 1 x 1000Base-T management
  • Expansion Slots: 1 stacking module slot, 1 expansion slot

Power Management

  • Power Supply: Internal, supports up to 2 power units (120/230V AC, 50/60 Hz)

HPE Aruba 2930m Poe+ 1-slot 24 Ports Managed Stackable Rack-mountable Switch - R0M68-61101

Ports

The HPE Aruba 2930m Managed Stackable Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. These ports allow users to connect multiple devices such as computers, printers, servers, and other network devices to the switch.

Increased Flexibility

With 24 ports, this switch provides users with increased flexibility when it comes to connecting various devices to their network. Whether it is a small office or a large enterprise, having multiple ports ensures that there is enough capacity to support the growing needs of the organization.

Users can easily connect their devices without worrying about running out of ports. This flexibility allows for seamless expansion and simplifies network management, making it easier for IT teams to add or remove devices as needed.

Improved Performance

The 24 ports on the HPE Aruba 2930m Managed Stackable Switch are designed to deliver high-performance connectivity. Each port supports Gigabit Ethernet, providing fast and reliable data transfer speeds. This is especially important for businesses that rely heavily on data-intensive applications or require real-time communication.

By utilizing these high-performance ports, users can experience improved network performance, reduced latency, and faster data transfers. This ensures that critical business operations run smoothly and efficiently without any bottlenecks or delays.

Enhanced Productivity

The availability of 24 ports on this switch enhances productivity within the organization. Users can easily connect their devices directly to the switch without the need for additional hardware or complex configurations.

With more ports available, employees can connect their workstations, laptops, and other devices directly to the switch, eliminating the need for additional switches or hubs. This simplifies the network infrastructure and reduces the complexity of managing multiple devices, resulting in increased productivity and streamlined operations.

Future-Proof Investment

Investing in a switch with 24 ports ensures that businesses are prepared for future growth and expansion. As technology continues to evolve, the demand for network connectivity will only increase.

By choosing a switch with ample ports, organizations can future-proof their investments and avoid the need for costly upgrades or replacements down the line. The HPE Aruba 2930m Managed Stackable Switch provides users with the scalability they need to support their growing network requirements, making it a smart choice for long-term planning.

Simplified Network Management

The 24 ports on this switch also contribute to simplified network management. With fewer devices needed to accommodate multiple connections, IT teams can streamline their operations and reduce the time and effort required to manage the network.

Having all devices connected directly to the switch allows for easier monitoring, troubleshooting, and maintenance. This simplification of network management not only saves time but also reduces the risk of human error, ensuring a more reliable and secure network infrastructure.

Power Over Ethernet (PoE+)

The HPE Aruba 2930m Managed Stackable Switch is equipped with Power over Ethernet (PoE+) technology, offering significant benefits for users who require both data connectivity and power delivery over a single Ethernet cable.

Streamlined Deployment

PoE+ eliminates the need for separate power supplies or electrical outlets for devices such as IP phones, wireless access points, or security cameras. This simplifies deployment by reducing cabling requirements and eliminating the need for dedicated power sources at each device location.

With PoE+ support, users can conveniently install devices in locations where power outlets may not be readily available, providing greater flexibility and cost savings during network setup.

Cost-Efficiency

By utilizing PoE+ technology, users can significantly reduce the overall costs associated with deploying and managing devices within their network infrastructure. The ability to power devices via the Ethernet cable eliminates the need for additional electrical wiring and power supplies, resulting in cost savings on installation and ongoing maintenance.

Furthermore, PoE+ allows for easier scalability and reconfiguration of the network. Devices can be easily added or relocated without the need to consider power source availability, saving both time and money.

Reliable Power Delivery

PoE+ ensures reliable power delivery to connected devices. The HPE Aruba 2930m Managed Stackable Switch is capable of providing up to 30 watts of power per port, ensuring that power-hungry devices receive sufficient power to operate optimally.

This feature is particularly important for devices that require a stable power source, such as IP phones or wireless access points. With PoE+, users can have peace of mind knowing that their critical devices will remain powered even in the event of a power outage or disruption.

Centralized Management

With PoE+ technology, the HPE Aruba 2930m Managed Stackable Switch allows for centralized management of both data and power delivery. This simplifies network administration and enables IT teams to monitor and control connected devices from a single interface.

Centralized management provides greater visibility into the network, making it easier to detect and troubleshoot issues related to both data and power delivery. This ultimately leads to improved network reliability and reduced downtime.

Energy Efficiency

PoE+ technology also contributes to energy efficiency within the network infrastructure. By eliminating the need for separate power supplies, users can reduce overall power consumption and lower their carbon footprint.

The HPE Aruba 2930m Managed Stackable Switch incorporates advanced power management features, allowing users to optimize power usage and prioritize power delivery to devices based on their needs. This not only helps in reducing energy costs but also aligns with sustainability initiatives.

Part Number: R0M68-61101

The part number R0M68-61101 refers to a specific variant of the HPE Aruba 2930m Managed Stackable Switch. It serves as a unique identifier for this particular model and is essential for users when ordering or searching for information related to the switch.

Accurate Ordering and Support

Having the correct part number ensures that users receive the exact model they require when placing orders or seeking support from vendors or manufacturers. The part number R0M68-61101 specifically identifies the HPE Aruba 2930m Managed Stackable Switch, enabling accurate and efficient processing of orders.

In case of technical issues or inquiries, providing the part number to support teams allows them to quickly understand the specific model involved and provide appropriate assistance or troubleshooting guidance.

Compatibility and Interchangeability

Part numbers play a crucial role in ensuring compatibility and interchangeability with other components or accessories. The HPE Aruba 2930m Managed Stackable Switch with part number R0M68-61101 is designed to work seamlessly with other devices and modules within the Aruba networking ecosystem.

Users can refer to the part number when selecting expansion modules, transceivers, or other accessories to ensure compatibility with their existing switch. This eliminates the risk of purchasing incompatible components and ensures a smooth integration within the network infrastructure.

Documentation and Resources

The part number R0M68-61101 serves as a valuable reference when searching for documentation, user manuals, firmware updates, or any other resources related to the HPE Aruba 2930m Managed Stackable Switch.

By using the correct part number, users can easily access specific information pertaining to their switch model. This ensures that they have the necessary resources available to maximize the functionality and performance of their network infrastructure.

Warranty and Support Coverage

Apart from facilitating accurate identification, the part number is essential for warranty and support purposes. Registering the correct part number with the manufacturer ensures that users receive the appropriate warranty coverage and support services.

In case of any hardware failures or technical issues, having the correct part number helps in expediting warranty claims or obtaining prompt assistance from support teams. This ensures minimal downtime and maximum uptime for critical network operations.

Product Differentiation

The part number also serves as a means of differentiating between various models or configurations of the HPE Aruba 2930m Managed Stackable Switch. Manufacturers often offer multiple variants of a product to cater to different requirements or budgets.

By providing a unique part number for each variant, users can easily identify and select the specific model that best suits their needs. This ensures that they obtain the desired features and capabilities without any confusion or ambiguity.

Features
