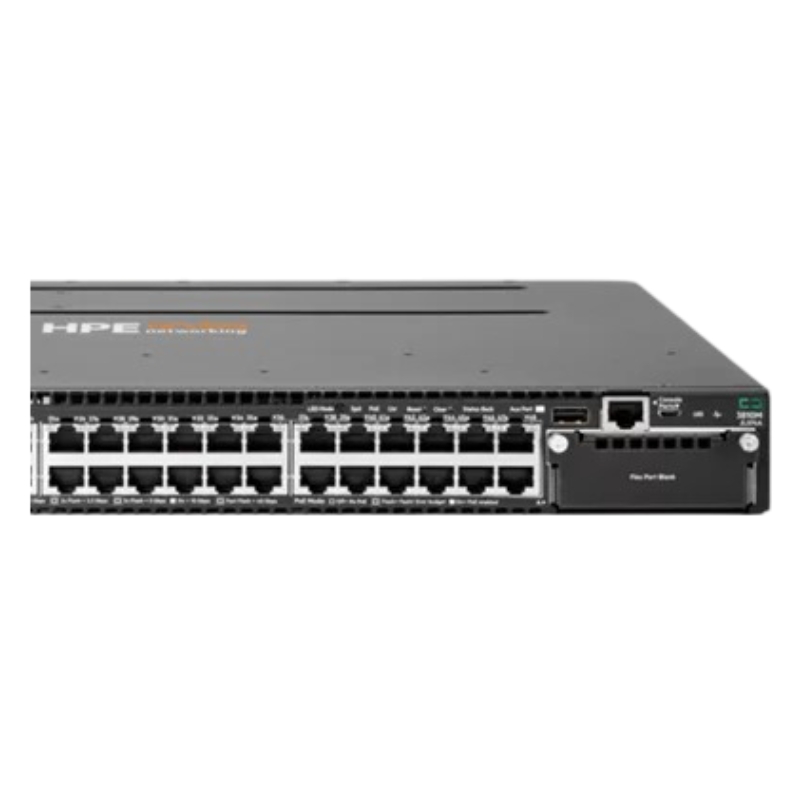

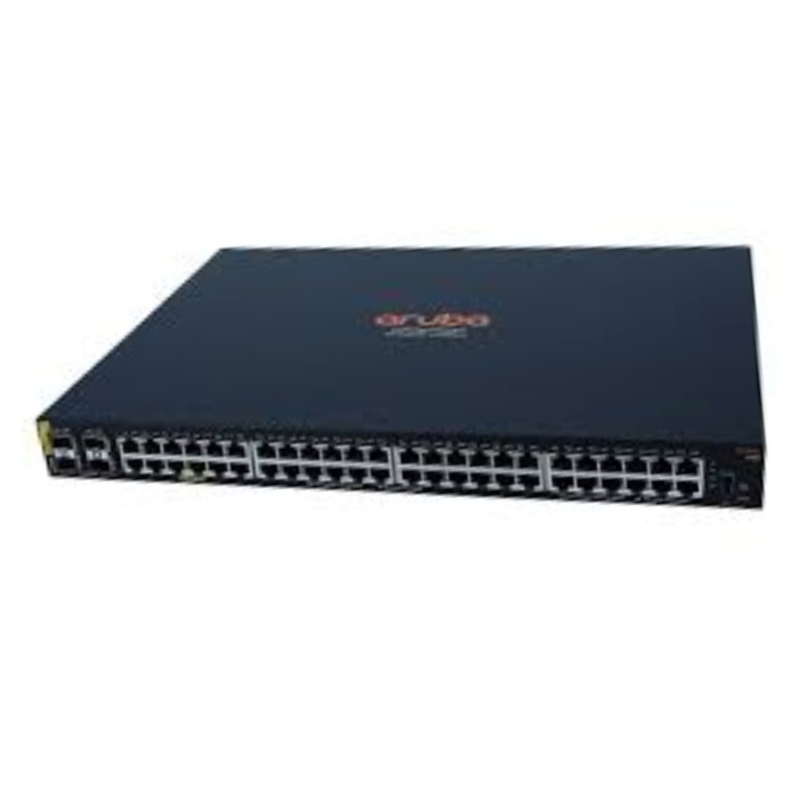

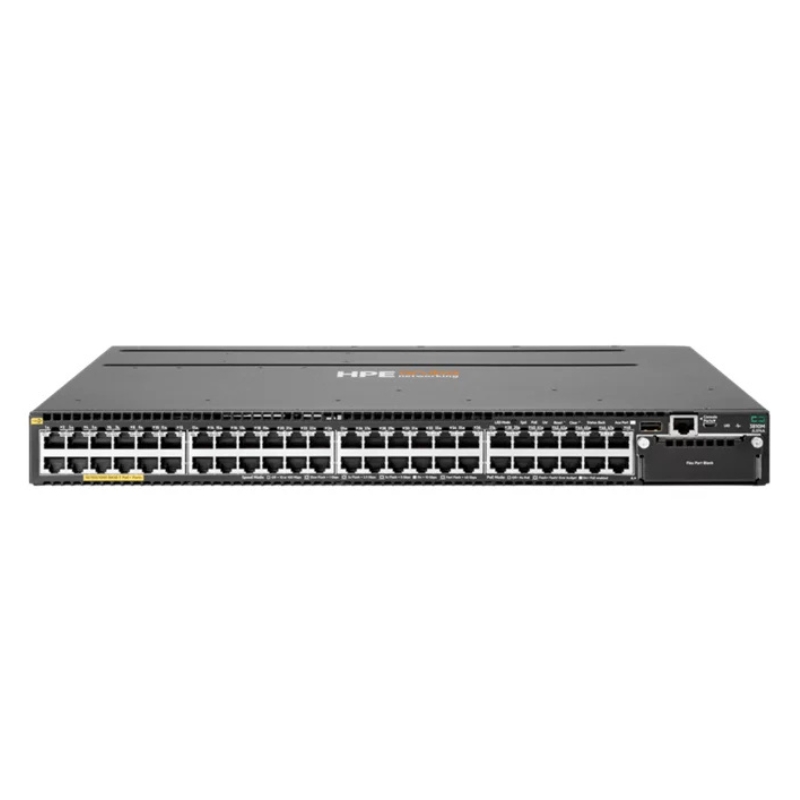

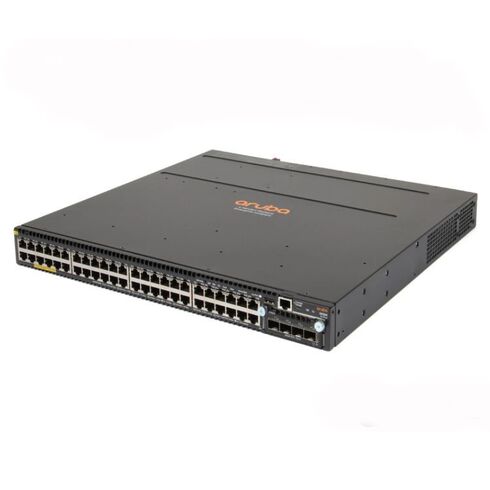

HPE Aruba JL429-61001 48-Ports Network Managed Switch.
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Details
HPE JL429-61001 Aruba 3810m Switch
Specifications
- Device Type: 48-Port L3 Managed Stackable Switch
- Form Factor: Rack-Mountable, 1U
- Ethernet Subtype: Gigabit Ethernet
- Total Ports: 48 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE): Yes (PoE+)
Performance Metrics
- Latency:
- 1000Base-T: 2.8 μs
- 10 Gbps: 1.8 μs
- 40 Gbps: 1.5 μs
- Throughput: Up to 190.5 Mpps (64-byte packet size)
- Routing/Switching Capacity: 320 Gbps
- Switching Fabric Bandwidth: 338 Gbps
Routing and Capacity
- IPv4 Routing Table Entries: 10,000
- IPv6 Routing Table Entries: 5,000
- MAC Address Table Size: 64,000 Entries
- Jumbo Frame Support: Available
Supported Protocols
- OSPF, RIP, BGP
- Static IPv4 and IPv6 Routing
- VRRP, MLD, Bidirectional Forwarding Detection (BFD)
Management and Remote Access
- Remote Management Protocols:
- SNMP (v1, v2c, v3)
- Telnet, SSH (v2)
- HTTP, CLI
- Encryption: SSL
- Authentication Methods: RADIUS, TACACS+
Key Features
Enhanced Functionality
- ARP Support
- Spanning Tree Protocol (STP)
- Quality of Service (QoS)
- Dynamic VLAN Support (GVRP)
- OpenFlow Support
Compliance Standards
- IEEE 802.3, 802.3u, 802.3ab
- IEEE 802.1p, 802.1x, 802.1s
- IEEE 802.1ab (LLDP), 802.3af, 802.3at
Hardware Specifications
- Processor: Dual-core
- RAM: 6 GB DDR3 SDRAM
- Flash Memory: 1 GB
Connectivity and Expansion Options
Interface Configuration
- 48 x 1000Base-T RJ-45 (PoE+)
- 1 x Serial Console RJ-45
- 1 x Management RJ-45
- 1 x Micro-USB Type B
Expansion Slots
- 1 x Expansion Slot (1 free)
- 1 x Stacking Module Slot (1 free)
Power Specifications
- Power Supply: Internal, Hot-Plug
- Installed Quantity: 1 (max 2)
- Redundancy: Yes (1+1 with optional power supply)
- Output Power: 1050 Watts
- Voltage Requirement: DC 54 V
- Energy Star Qualification: Yes
Ports
The HPE Aruba JL429-61001 Network Switch is equipped with 48 ports, making it a highly versatile and powerful networking solution for businesses of all sizes. The ample number of ports allows for seamless connectivity and expansion, enabling users to connect multiple devices simultaneously without compromising on performance or speed.
Enhanced Connectivity
With 48 ports, this network switch provides an extensive range of connectivity options, ensuring that all devices within the network can be easily linked together. Whether it's computers, printers, servers, or other networking devices, the abundance of ports allows for efficient and hassle-free connectivity.
Flexibility and Scalability
The 48 ports on the HPE Aruba JL429-61001 Network Switch provide businesses with the flexibility to adapt to their evolving needs. As the number of devices in the network grows, having additional ports readily available ensures that expansion can be seamlessly accommodated. This scalability is crucial for businesses experiencing growth or planning for future expansions.
Improved Performance
The large number of ports in this network switch eliminates the need for additional networking equipment such as hubs or additional switches. This consolidation not only simplifies the network infrastructure but also enhances overall performance. With fewer devices in the network path, data transmission is faster and more reliable, resulting in improved productivity and reduced latency.
Power Source
The HPE Aruba JL429-61001 Network Switch is powered by an electric source, providing users with a reliable and convenient power solution. By utilizing an electric power source, businesses can ensure uninterrupted operation and eliminate the need for battery replacements or recharging.
Reliability and Stability
Electric power sources offer a high level of reliability and stability compared to alternative power options such as batteries or renewable energy sources. With a consistent and uninterrupted power supply, businesses can rely on the HPE Aruba JL429-61001 Network Switch to function without interruption, minimizing downtime and ensuring continuous productivity.
Convenience and Accessibility
Electric power sources are widely available, making them easily accessible for businesses in various locations. Unlike batteries that require periodic replacement or recharging, an electric power source eliminates the need for manual intervention, allowing businesses to focus on their core operations without worrying about power management.
Cost-Effectiveness
Electricity is a cost-effective power source compared to alternative options. By utilizing the electric power source of the HPE Aruba JL429-61001 Network Switch, businesses can avoid the recurring expenses associated with battery replacements or renewable energy sources. This cost-effectiveness contributes to overall operational efficiency and reduces the total cost of ownership.

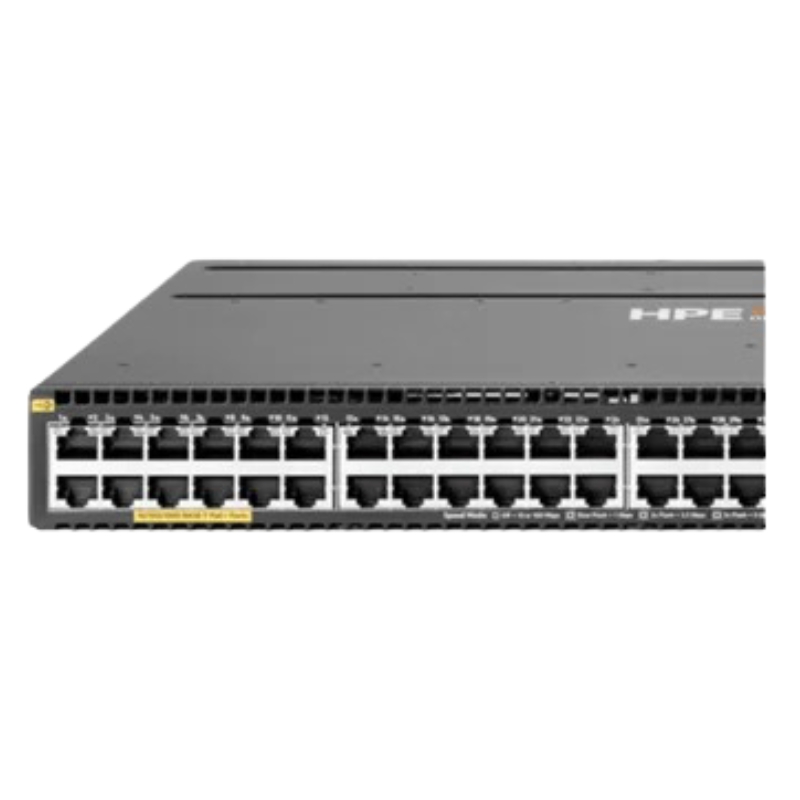

Rack Mountable
The HPE Aruba JL429-61001 Network Switch is rack mountable, offering users a space-saving and organized solution for network infrastructure. The ability to mount the switch in a rack provides several benefits in terms of installation, cable management, and maintenance.
Optimized Space Utilization
Rack mounting the network switch allows for efficient utilization of space within server rooms or network closets. By keeping the switch securely mounted in a rack, businesses can maximize their available space and avoid clutter caused by loose networking equipment. This organized setup not only enhances aesthetics but also facilitates easy access during installation or maintenance.
Improved Cable Management
Rack mountable switches offer superior cable management capabilities compared to standalone devices. With designated cable routing features and cable management accessories available in most racks, businesses can keep their network cables neatly organized and minimize the risk of accidental disconnections. This streamlined cable management simplifies troubleshooting and maintenance tasks.
Easier Maintenance
Rack mountable switches simplify maintenance procedures by providing easy access to the device. When mounted in a rack, the switch can be quickly identified, allowing for efficient troubleshooting and replacement if necessary. Additionally, rack-mountable switches often feature hot-swappable components, enabling businesses to replace faulty parts without interrupting network operations.
Speed
The HPE Aruba JL429-61001 Network Switch offers a speed of 10/100/1000 Mbps, ensuring fast and efficient data transmission within the network. This high-speed capability is essential for businesses that rely on bandwidth-intensive applications or require rapid data transfer across their network infrastructure.
Seamless Data Transfer
With a speed of 10/100/1000 Mbps, the HPE Aruba JL429-61001 Network Switch facilitates seamless data transfer between connected devices. This speed enables businesses to transmit large files, multimedia content, or real-time data without experiencing bottlenecks or slowdowns. The fast data transfer capabilities contribute to improved productivity and user satisfaction.
Support for Bandwidth-Intensive Applications
Bandwidth-intensive applications such as video conferencing, multimedia streaming, or cloud-based services require a robust network infrastructure capable of handling high data volumes. The 10/100/1000 Mbps speed of this network switch ensures that businesses can support these applications without compromising on performance or quality.
Future-Proofing
As technology continues to advance, network speeds are expected to increase. By investing in a switch with a speed of 10/100/1000 Mbps, businesses future-proof their network infrastructure and ensure compatibility with upcoming technologies. This future-readiness minimizes the need for frequent upgrades and provides long-term value for businesses.
Managed
The HPE Aruba JL429-61001 Network Switch is a managed switch, offering users advanced control and customization options for their network. This feature provides businesses with the ability to optimize network performance, monitor traffic, and implement security measures tailored to their specific requirements.
Network Optimization
Managed switches allow businesses to optimize network performance by providing granular control over various network parameters. Users can configure VLANs, prioritize traffic, implement Quality of Service (QoS) policies, and perform other optimization tasks to ensure that critical applications receive the necessary bandwidth and resources. This level of control enhances network efficiency and user experience.
Enhanced Security
Managed switches offer advanced security features such as Access Control Lists (ACLs), port-based security, and encryption protocols. These security measures provide businesses with the flexibility to enforce strict access controls, protect sensitive data, and mitigate potential threats. By utilizing a managed switch like the HPE Aruba JL429-61001, businesses can proactively safeguard their network infrastructure.
Monitoring and Troubleshooting
Managed switches provide comprehensive monitoring capabilities, allowing businesses to track network traffic, identify bottlenecks, and troubleshoot issues effectively. With features like SNMP (Simple Network Management Protocol) or syslog support, network administrators can gain insights into network performance, monitor device health, and identify potential problems before they impact operations. The ability to proactively monitor and troubleshoot enhances overall network reliability.
