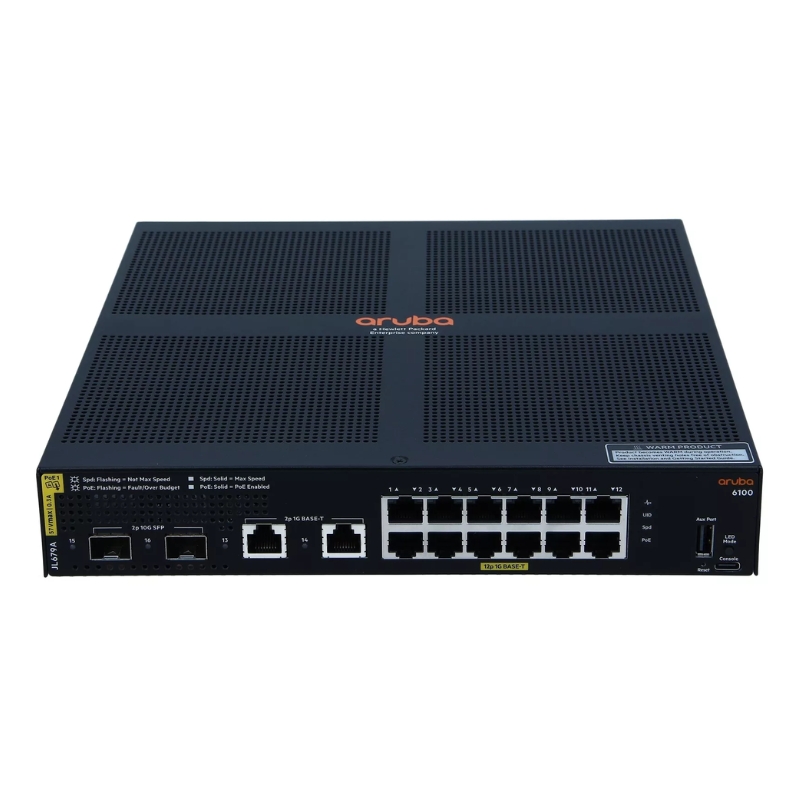

JL679A#ABA HPE Aruba 6100 12G 16-Ports Switch with 139W Power.

JL679A#ABA
* Product may have slight variations vs. image
Hover on image to enlarge

Brief Overview of JL679A#ABA

HPE JL679A#ABA Aruba 6100 12G 16-Ports Managed Network Switch with 139W Power and 2 SFP+ Ports. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of JL679A#ABA HPE Aruba 6100 12G 16-Ports Switch with 139W Power. DMCA.com Protection Status
$1,011.15
$749.00
You save: $262.15 (26%)
Ask a question
+ −
Quote

Additional 7% discount at checkout

SKU/MPNJL679A#ABAAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement Warranty1 Year Warranty
Google Top Quality Store Customer Reviews
Our Advantages
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Bank Transfer (11% Off)
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • — For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Factory-Sealed New in Original Box (FSB) New Sealed in Box (NIB)
Description

Product Specifications

Device Characteristics

  • Type: Managed Switch
  • Part Number# JL679A#ABA
  • Port Configuration: 16 Ports, Stackable
  • Mounting: Rack-mountable (1U)

Technical Overview

  • Network Subtype: 10 Gigabit Ethernet
  • Port Types:
    • 12 x 10/100/1000 (PoE+)
    • 2 x 1G/10G SFP+
    • 2 x 1000Base-T
  • Power Over Ethernet: PoE+
  • Power Budget: 139 Watts

Performance Metrics

  • Switching Capacity: 68 Gbps
  • Throughput: 45.1 Mpps
  • Latency:
    • 1 Gbps: 2.3 µs
    • 10 Gbps: 2.6 µs

Capacity Specifications

  • Switched Virtual Interfaces (SVIs): 16
  • ARP Entries: 1,024
  • IPv4 Routes (Unicast): 512
  • IPv6 Routes (Unicast): 512
  • IGMP Groups: 512
  • MLD Groups: 512
  • ACL Entries:
    • IPv4 (Ingress): 256
    • IPv6 (Ingress): 128
    • MAC (Ingress): 256

MAC Address Table

  • Size: 8,192 Entries

Protocols and Encryption

  • Supported Routing Protocols: IGMPv2, IGMPv3
  • Encryption Method: SSL
  • Authentication Methods:
    • Secure Shell (SSH)
    • RADIUS
    • TACACS+
    • Secure Shell V.2 (SSH2)

Advanced Features

  • Flow Control
  • BootP and ARP Support
  • VLAN and DiffServ Support
  • IPv6 and SNTP Support
  • Multiple Spanning Tree Protocol (MSTP)
  • Trivial File Transfer Protocol (TFTP)
  • Fanless Operation
  • LACP Support
  • LLDP and LLDP-MED Support
  • Port-Based Access Control
  • DHCP Client
  • Energy Efficient Ethernet
  • Management Information Base (MIB)
  • Network Access Control (NAC)
  • Neighbor Discovery Protocol (NDP)
  • SNMP Support
  • Internet Control Message Protocol (ICMP)
  • Rapid Spanning Tree Reconfiguration (RSTP)
  • IPv6 Addressing

Compliance Standards

  • IEEE 802.3
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.1P
  • IEEE 802.3X
  • IEEE 802.3AD (LACP)
  • IEEE 802.1W
  • IEEE 802.1S
  • IEEE 802.3AT
  • IEEE 802.3AZ

Hardware Configuration

  • Processor: 1 x ARM A9 at 1.016 GHz
  • Memory: 4 GB DDR3 SDRAM
  • Flash Storage: 16 GB

Connectivity Options

  • 12 x 10/100/1000 Base-T RJ-45 Ports
  • 2 x 1/10 Gbit LAN SFP+ Ports
  • 1 x USB-C Console Port
  • 1 x USB Type A Port
  • 2 x Gigabit LAN Ports

Power Specifications

  • Power Supply: Internal Power Supply
  • Total Power Provided: 165 Watts at 0.9 A
  • Voltage Requirement: AC 230 V (50/60 Hz)
  • Operational Power Consumption: 16 Watts

Part Number

The HPE Aruba 6100 12G CL4 Switch has a unique part number, JL679A#ABA, which serves as an identifier for this specific model. Understanding the importance of part numbers is crucial when it comes to product identification, compatibility, and support.

Product Identification

The part number JL679A#ABA allows users to easily identify and differentiate the HPE Aruba 6100 12G CL4 Switch from other networking devices or variants within the same product line. This ensures accurate product ordering, troubleshooting, and support requests.

Compatibility Assurance

By referring to the specific part number JL679A#ABA, users can ensure compatibility with other networking equipment and accessories. Compatibility is essential for seamless integration into existing network infrastructures, preventing any potential issues or conflicts that may arise from using incompatible hardware.

Support and Warranty Services

The part number JL679A#ABA also plays a crucial role in accessing support and warranty services provided by HPE. When contacting customer support or registering for warranty, providing the correct part number ensures that users receive the appropriate assistance and coverage specific to their HPE Aruba 6100 12G CL4 Switch.

In conclusion, the HPE Aruba 6100 12G CL4 Switch offers a range of powerful features that contribute to its versatility and reliability in network environments. With its 16 ports, businesses can enjoy increased connectivity, flexibility in network design, and improved bandwidth allocation. The switch's high power capacity of 139W enables users to power multiple devices efficiently, enhancing their performance and eliminating the need for additional power sources. The unique part number JL679A#ABA allows for accurate product identification, compatibility assurance, and streamlined support services. Overall, the HPE Aruba 6100 12G CL4 Switch provides a robust networking solution that is suitable for various business needs.
