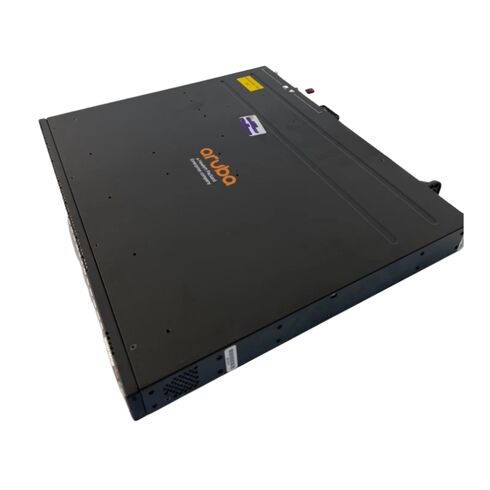

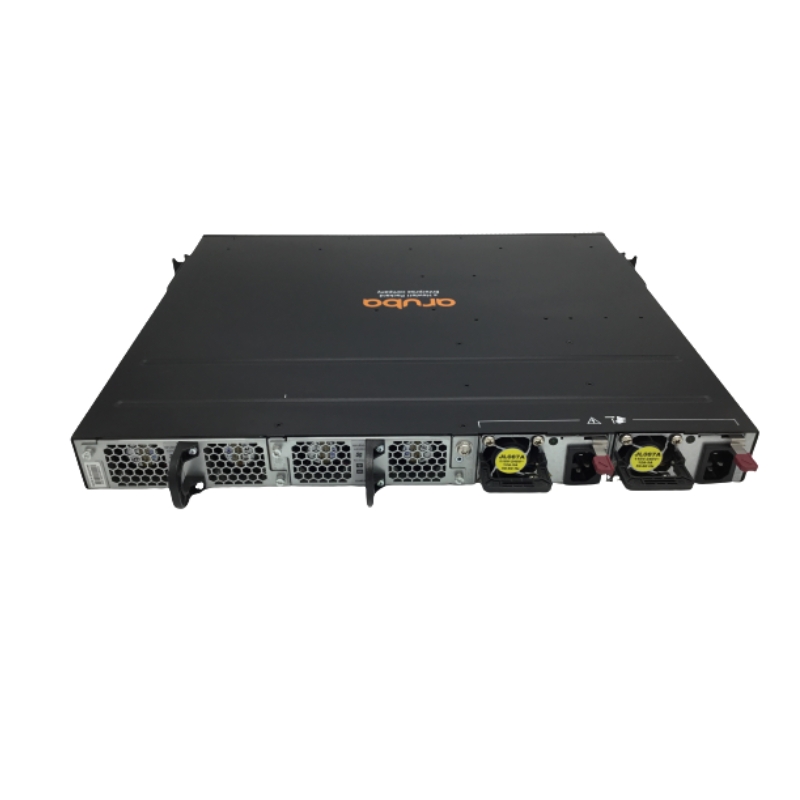

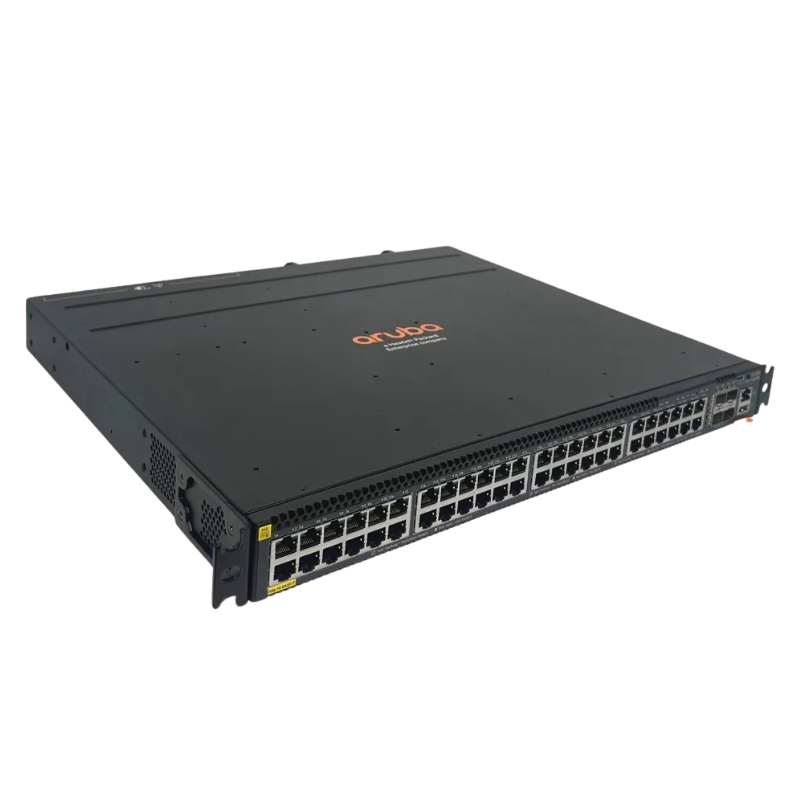

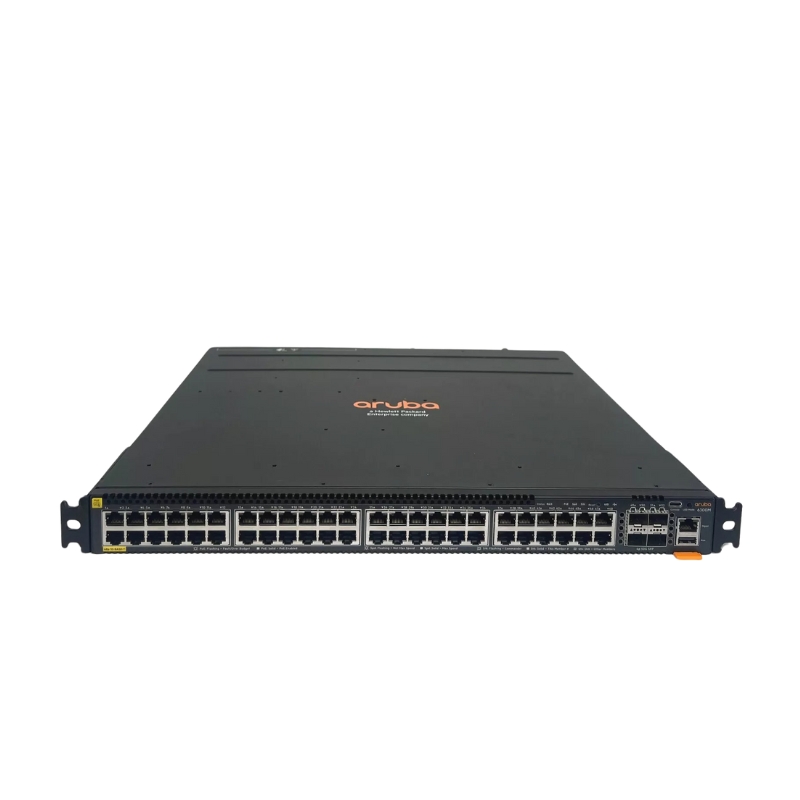

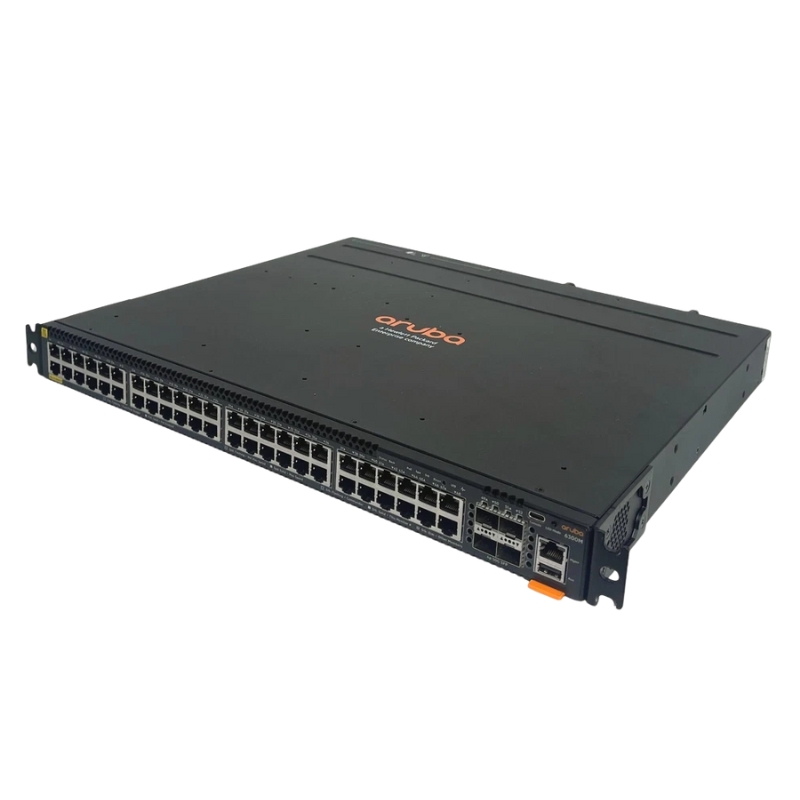

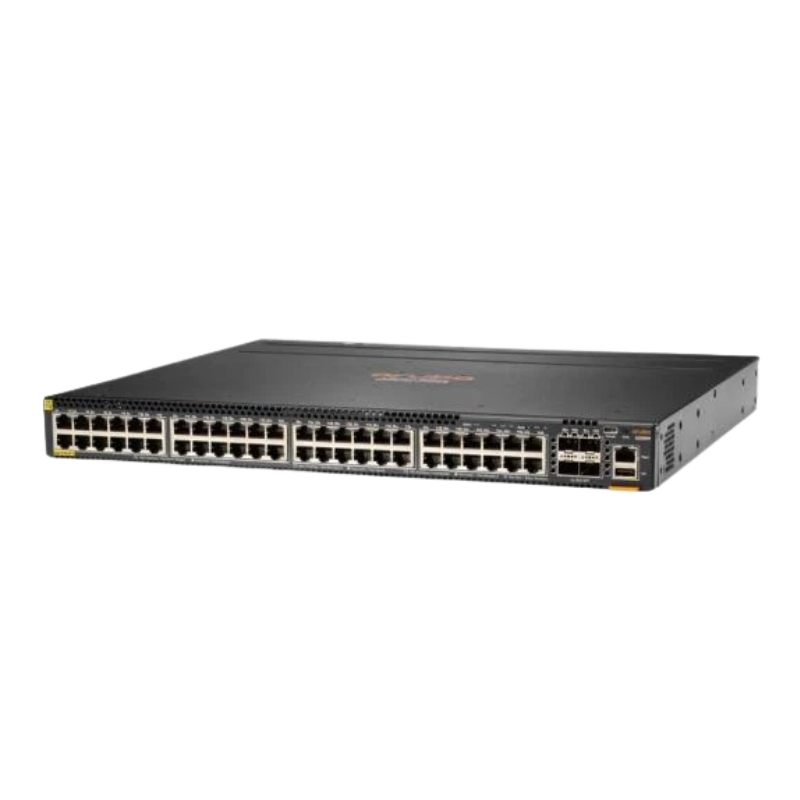

HPE Aruba 6100 JL675A#ABA 48-Port Managed Rack-mountable Switches.

JL675A#ABA
Hover on image to enlarge

Brief Overview of JL675A#ABA

HPE Aruba 6100 48-Port Managed Rack-mountable Network Switches JL675A#ABA. New (Box Not Sealed) with 1-Year Replacement Warranty

QR Code of HPE Aruba 6100 JL675A#ABA 48-Port Managed Rack-mountable Switches.
$1,470.00
$1,200.00
You save: $270.00 (18%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPNJL675A#ABAAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty1 Year Warranty Original Brand Product/Item ConditionNew (Box Not Sealed) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Main Specification

  • Device Type: Managed Switch with 52 Ports
  • Form Factor: Rack-Mountable (1U)
  • Manufacturer: HPE
  • Model Number: JL675A#ABA

Key Features

  • Port Configuration:
    • 48 Ports (10/100/1000 Mbps) with Power over Ethernet Plus (PoE+)
    • 4 SFP+ Ports for 1G/10G Connections
  • Power Over Ethernet (PoE+): 370 Watts Budget
  • Switching Capacity: 176 Gbps
  • Throughput: 98.6 Gbps
  • Latency:
    • 1 Gbps: 1.9 ns
    • 10 Gbps: 1.8 ns

Performance Metrics

Capacity Details

  • Switched Virtual Interfaces (SVIs): 16
  • ARP Entries: 1024
  • IPv4 Unicast Routes: 512
  • IPv6 Unicast Routes: 512
  • IGMP Groups: 512
  • MAC Address Table: 8192 Entries

Advanced Features

Protocol Support

  • Routing Protocols: IGMPv2, IGMPv3
  • Encryption: SSL
  • Authentication Methods:
    • Secure Shell (SSH)
    • RADIUS
    • TACACS+

Additional Features

  • Flow Control Support
  • BootP and ARP Support
  • VLAN and DiffServ Support
  • SNTP and sFlow Support
  • Multiple Spanning Tree Protocol (MSTP) Support
  • MLD Snooping and LACP Support
  • Dynamic Host Configuration Protocol (DHCP) Client
  • Energy Efficient Ethernet
  • Network Access Control (NAC)

Technical Specifications

Hardware Details

  • Processor: ARM A9, 1.016 GHz
  • RAM: 4 GB DDR3 SDRAM
  • Flash Memory: 16 GB

Power Requirements

  • Power Device: Internal Power Supply
  • Power Output: 500 Watts
  • Voltage: AC 120/230 V (50/60 Hz)
  • Operational Power Consumption: 30.6 Watts

Expansion and Connectivity Options

  • Network Interfaces:
    • 48 x 10/100/1000 Base-T RJ-45 (PoE+)
    • 4 x 1/10 Gbps SFP+ Ports
  • USB Connectivity:
    • 1 x USB-C Console
    • 1 x USB Type-A Port

Compliance and Standards

  • IEEE 802.3 Series Standards
  • IEEE 802.1D (Spanning Tree Protocol)
  • IEEE 802.1Q (VLAN Tagging)
  • IEEE 802.3AB (1000BASE-T)
  • IEEE 802.3X (Flow Control)

Ports

The HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches come equipped with a total of 48 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. The abundance of ports ensures that users have plenty of options to connect various devices, such as computers, servers, printers, and other networking equipment.

Increased Connectivity

With 48 ports, this switch offers an impressive level of connectivity compared to switches with fewer ports. It allows businesses to connect multiple devices simultaneously without the need for additional switches or hubs. This feature is particularly beneficial for organizations with a large number of employees or departments that require seamless network connectivity.

Efficient Network Management

The HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches' 48 ports enable efficient network management. Each port can be configured individually, allowing network administrators to control and monitor the traffic flowing through each specific port. This level of control helps optimize network performance and ensures that bandwidth is allocated effectively to meet the demands of different devices and applications.

Scalability

The availability of 48 ports makes the HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches highly scalable. As businesses grow and expand their operations, they often require additional network connections to accommodate new devices or departments. Having a switch with ample ports means that companies can easily scale their network infrastructure without investing in new switches or sacrificing performance.

Flexibility in Network Design

The 48 ports on the HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches offer flexibility in network design. Businesses can create complex network topologies to meet their specific requirements. With a generous number of ports available, organizations have the freedom to segment their network into different VLANs (Virtual Local Area Networks) or create separate networks for different departments, ensuring enhanced security and efficient traffic management.

Improved Network Performance

By distributing devices across multiple ports, the HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches help improve network performance. With fewer devices sharing a single port, the overall network traffic is reduced, leading to faster data transfers and reduced latency. This is especially crucial in environments where high-speed data transfers are essential, such as multimedia production or large-scale data centers.

Redundancy and Failover

The 48 ports on this switch also allow for redundancy and failover configurations. By connecting critical devices or servers to multiple ports, businesses can ensure that in case of a port failure, the network traffic can be seamlessly redirected to other available ports. This redundancy helps prevent network downtime and ensures continuous operation even in the event of equipment failure.

Future-Proofing

Investing in a switch with 48 ports provides future-proofing for businesses. As technology advances and more devices become network-enabled, the demand for network connectivity continues to grow. By choosing a switch with ample ports, businesses can accommodate future expansion without the need for immediate hardware upgrades. This saves both time and money while ensuring that the network infrastructure remains capable of supporting emerging technologies.

Conclusion

In conclusion, the HPE Aruba 6100 JL675A#ABA Managed Rack-mountable Switches' 48 ports offer numerous benefits and importance for users. The increased connectivity, efficient network management, scalability, flexibility in network design, improved network performance, redundancy and failover capabilities, and future-proofing make it an excellent choice for businesses of all sizes. With this switch, organizations can ensure seamless connectivity, optimize network performance, and accommodate future growth, ultimately enhancing productivity and efficiency.
