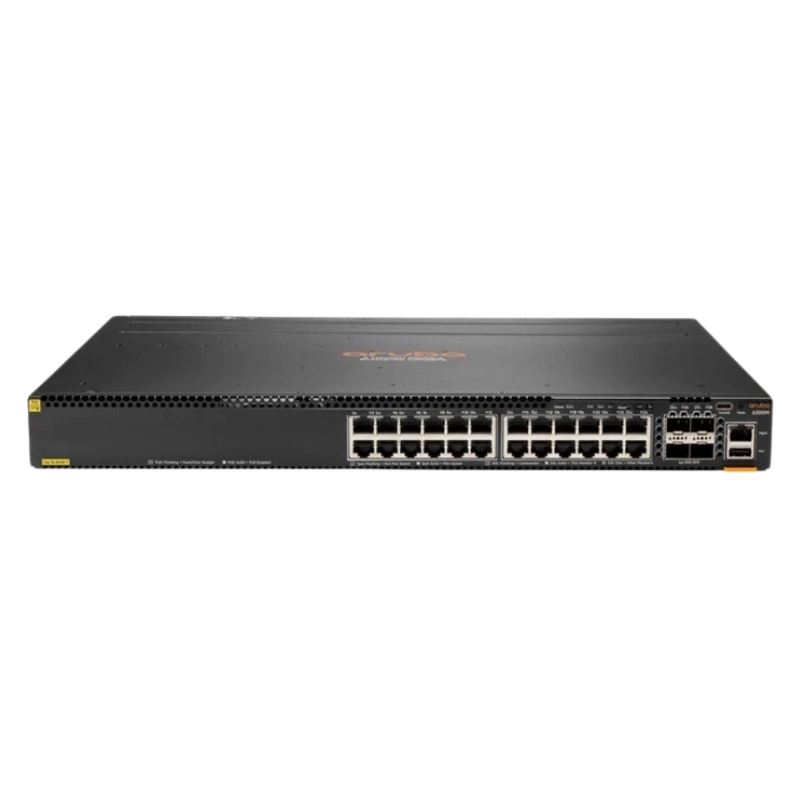

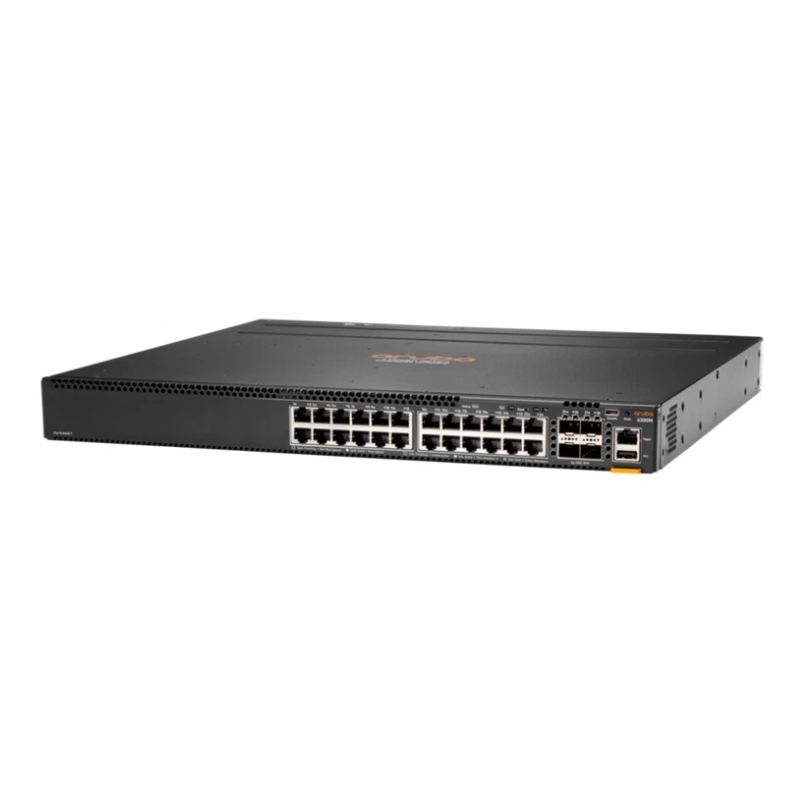

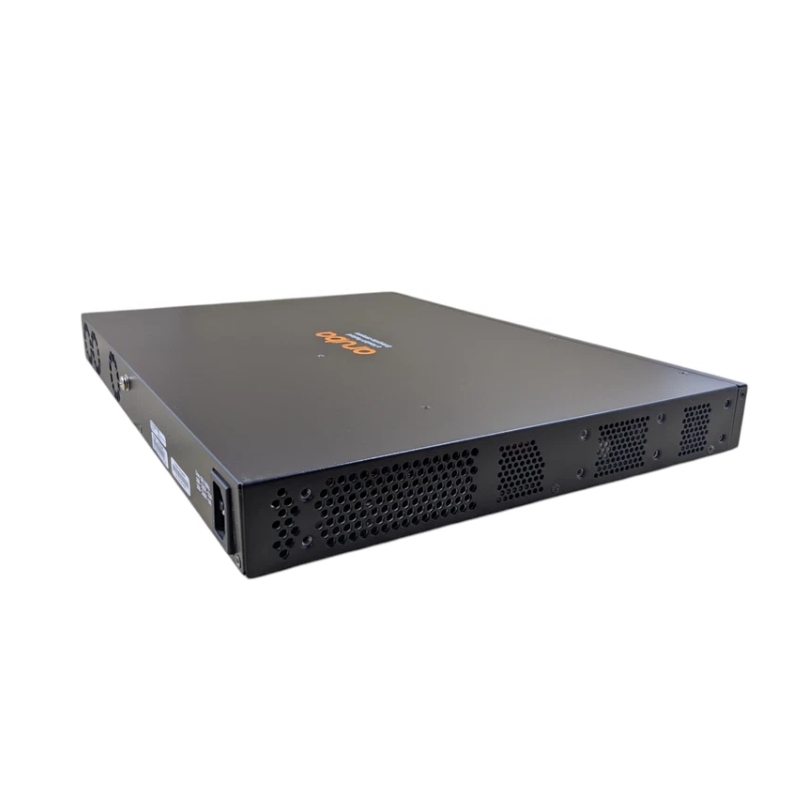

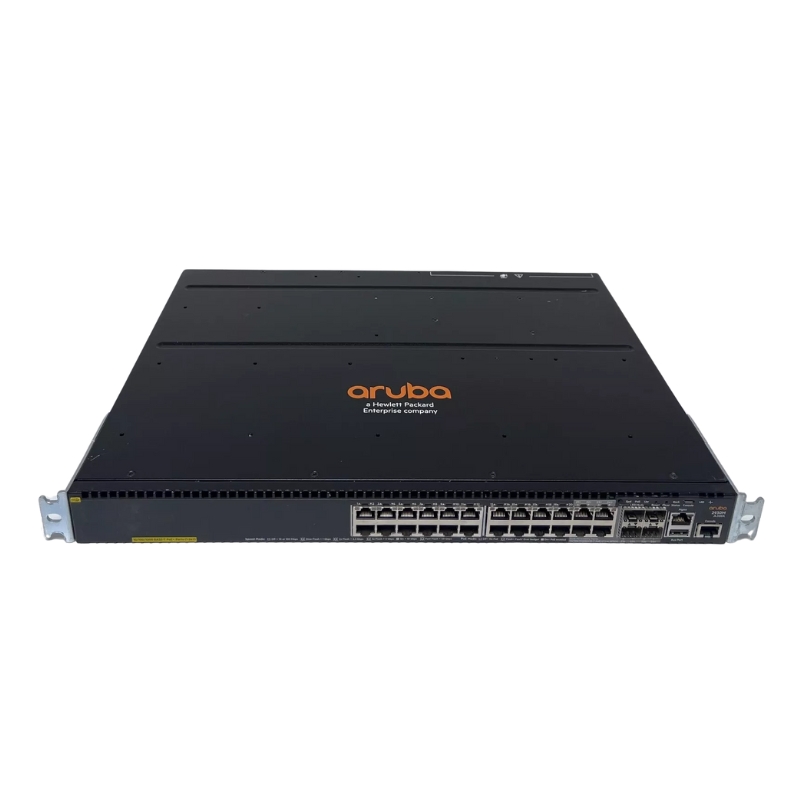

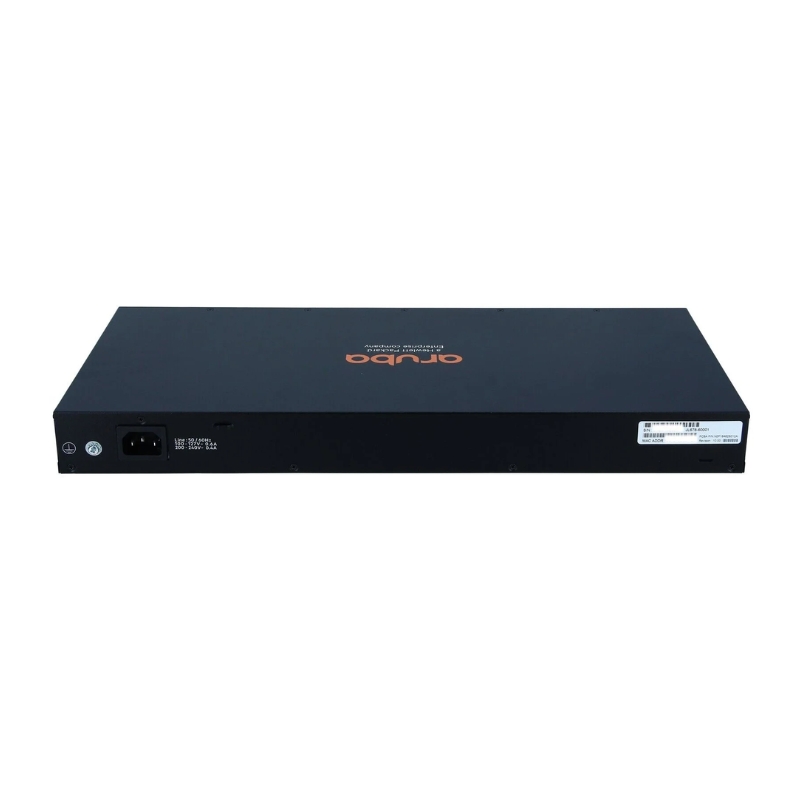

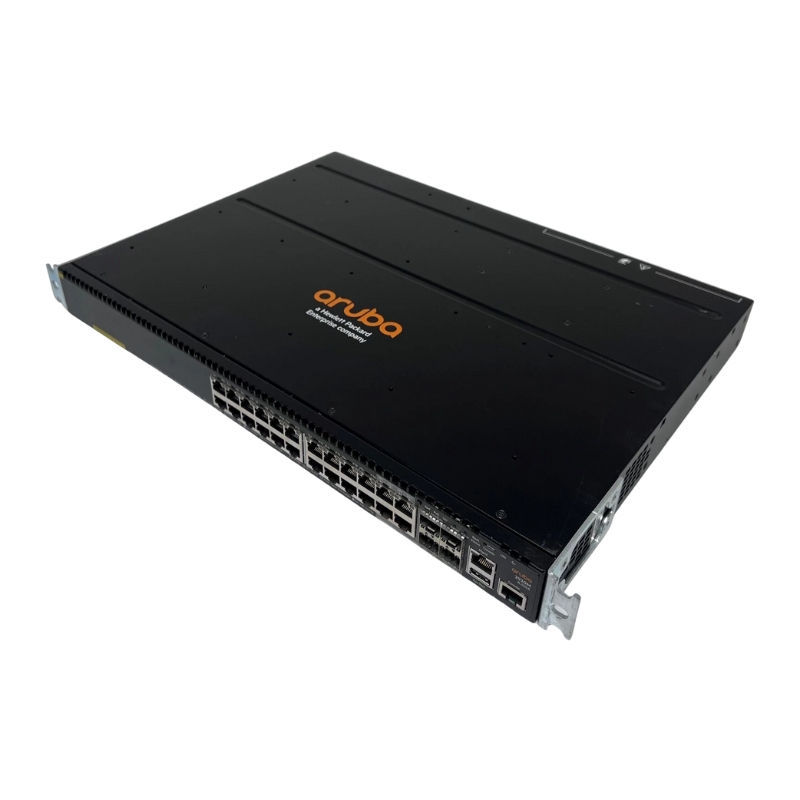

HPE Aruba 6300F JL666-61101 24-Port Managed Network Switch.

JL666-61101
Hover on image to enlarge

Brief Overview of JL666-61101

HPE Aruba 6300F 24-Port Managed Rack-mountable Network Switch JL666-61101. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE Aruba 6300F JL666-61101 24-Port Managed Network Switch.
$3,861.00
$2,591.76
You save: $1,269.24 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL666-61101Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Details

  • Brand: HPE
  • Part Number: JL666-61101
  • Device Type: Managed Layer 3 Stackable Switch
  • Enclosure: 1U Rack-Mountable
  • Subtype: Gigabit Ethernet

Physical Specifications

  • Ports: 24 x 10/100/1000 (PoE+) + 4 x 50GbE SFP56
  • PoE Type: PoE+
  • Power Budget: 370W
  • Internal Power Supply: 950W

Performance and Capacity

  • Switching Capacity: 448 Gbps
  • Throughput: 334 Mpps
  • Average Latency (1 Gbps): 2.28 µs
  • Stacking Bandwidth: 200 Gbps
  • Jumbo Frame Support: 9198 Bytes

Routing & Addressing Features

  • IPv4 Routes: 64,000 Unicast, 8,000 Multicast
  • IPv6 Routes: 32,000 Unicast, 8,000 Multicast
  • MAC Address Table Size: 32,000 Entries
  • Virtual Routing Interfaces: 1000 SVIs
  • IGMP & MLD Groups: 8,000 / 4,000

Advanced Features

  • Routing Protocols: OSPF, BGP, IGMP, PIM-DM, and more
  • Security Protocols: SSH, Radius, TACACS+
  • Encryption Algorithms: SSL, FIPS 140-2
  • Quality of Service (QoS): Supports DiffServ, Strict Priority, and Class of Service
  • Redundancy Features: VRRP, MSTP, RSTP, and more

Protocols and Standards Compliance

  • IEEE Standards: 802.1d, 802.3af, 802.3ad (LACP), 802.1q, 802.3bt, and more
  • ITU-T Standards: G.8032, Y.1344
  • Routing Protocols: BGP-4, OSPFv2, and more

Expansion and Connectivity

Interfaces Overview

  • 24 x 1000Base-T RJ-45 (PoE+): Up to 30W per port
  • 4 x 50GbE SFP56 Ports: High-speed fiber connectivity
  • Console Ports: 1 x USB Type-C
  • USB Ports: 1 x USB Type-A

Memory and Processor Specifications

  • Processor: ARM Cortex-A72 (1.8 GHz)
  • RAM: 8 GB DDR4 SDRAM
  • Flash Memory: 32 GB

Key Features & Benefits

Network Reliability & Scalability

  • Supports high availability through VRRP and multiple Spanning Tree Protocols (MSTP).
  • Stacking capabilities with 200 Gbps bandwidth for increased network resilience.

Advanced Security & Management

  • Robust security mechanisms with SSH, SSL encryption, and TACACS+ authentication.
  • Advanced traffic monitoring and management using SNMP, RMON, and port mirroring.

Optimized for High Performance

  • Supports PoE+ for powering devices while managing high-bandwidth traffic efficiently.
  • Low latency (sub-microsecond) ensures reliable network performance in demanding applications.

Ports

The HPE Aruba 6300F JL666-61101 Managed Network Switch is equipped with 24 ports, making it an essential tool for managing and expanding your network infrastructure. In this section, we will explore the benefits and importance of the 24 ports feature, highlighting its significance for users.

Enhanced Connectivity

With 24 ports, this managed network switch offers an abundance of connectivity options for your network devices. Whether you need to connect computers, servers, printers, or other networking equipment, the ample number of ports ensures that you can easily establish connections without worrying about running out of available ports. This enhanced connectivity eliminates the need for additional switches or complex configurations, simplifying your network setup and saving valuable time and resources.

Scalability

The 24 ports feature of the HPE Aruba 6300F JL666-61101 Managed Network Switch allows for seamless scalability. As your network grows and evolves, you can effortlessly add new devices without having to invest in additional switches or perform major overhauls to your existing infrastructure. The flexibility provided by the 24 ports ensures that your network can accommodate future expansion and adapt to changing business needs, making it a cost-effective solution in the long run.

Improved Performance

Having 24 ports on a managed network switch significantly enhances the overall performance of your network. Each port provides a dedicated connection that allows for efficient data transfer and minimizes network congestion. This not only improves the speed and responsiveness of your network but also ensures that data-intensive tasks such as large file transfers or video streaming can be handled seamlessly without any disruptions or bottlenecks.

Optimized Workflows

The HPE Aruba 6300F JL666-61101 Managed Network Switch's 24 ports enable optimized workflows within your network environment. With multiple ports available, you can conveniently set up separate VLANs (Virtual Local Area Networks) to segment your network traffic. This segmentation enhances security, as it allows you to isolate sensitive data or critical systems from the rest of the network. Additionally, VLANs enable you to prioritize certain types of traffic, ensuring that critical applications or real-time communication receive the necessary bandwidth for optimal performance.

Redundancy and High Availability

The 24 ports feature also allows for redundancy and high availability in your network infrastructure. By connecting critical devices through multiple ports, you can create redundant paths that ensure continuous operation even if one port or link fails. This redundancy eliminates single points of failure, enhancing the reliability and resilience of your network. With 24 ports at your disposal, you have the flexibility to implement various redundancy schemes, such as link aggregation or Spanning Tree Protocol (STP), to ensure uninterrupted connectivity and minimize downtime.

Flexibility in Network Management

Having 24 ports on the HPE Aruba 6300F JL666-61101 Managed Network Switch provides flexibility in network management. The switch offers advanced management features, allowing you to monitor and control each port individually. You can configure specific settings for each port, such as speed, duplex mode, and VLAN assignments, to optimize performance based on the connected devices' requirements. This granular control empowers administrators to tailor the network configuration to their specific needs, ensuring efficient resource allocation and maximizing overall network performance.

Future-Proof Investment

Investing in a managed network switch with 24 ports is a future-proof decision. As technology continues to advance and networks become increasingly complex, having ample ports ensures that your infrastructure can accommodate future devices and technologies seamlessly. By investing in a switch with 24 ports now, you can avoid potential limitations or bottlenecks in the future, saving you from costly upgrades or replacements.

In conclusion, the 24 ports feature of the HPE Aruba 6300F JL666-61101 Managed Network Switch offers enhanced connectivity, scalability, improved performance, optimized workflows, redundancy, high availability, flexibility in network management, and future-proof investment. With its numerous benefits and importance, this feature ensures that your network infrastructure is equipped to handle the demands of today and tomorrow.
