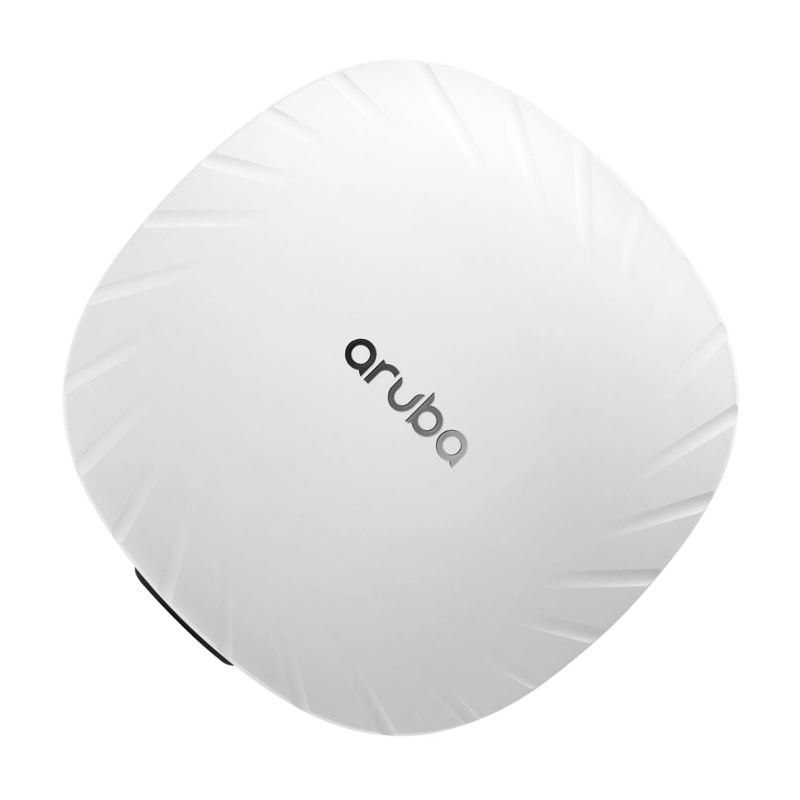

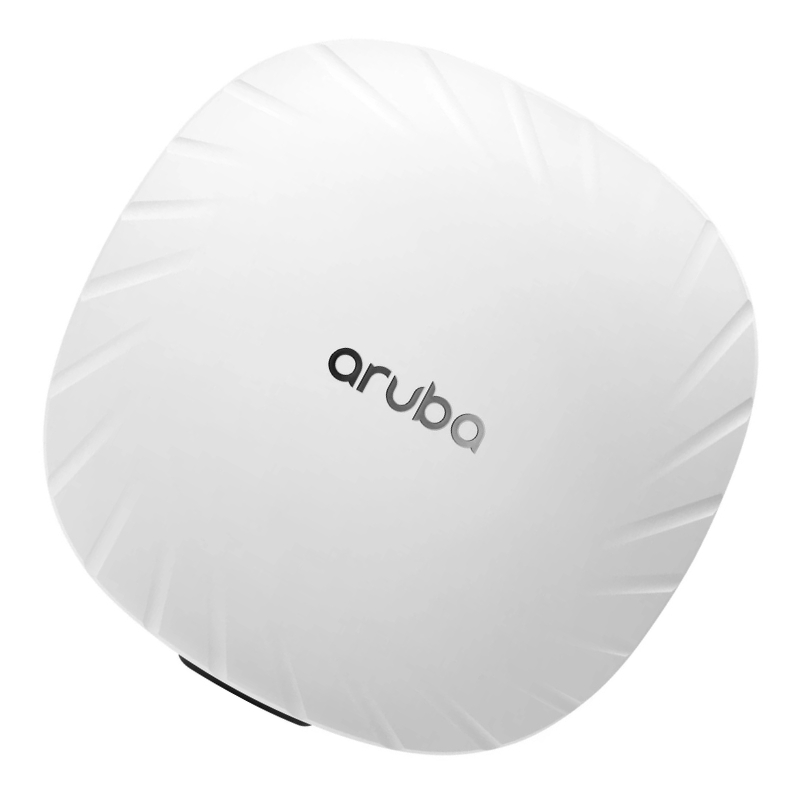

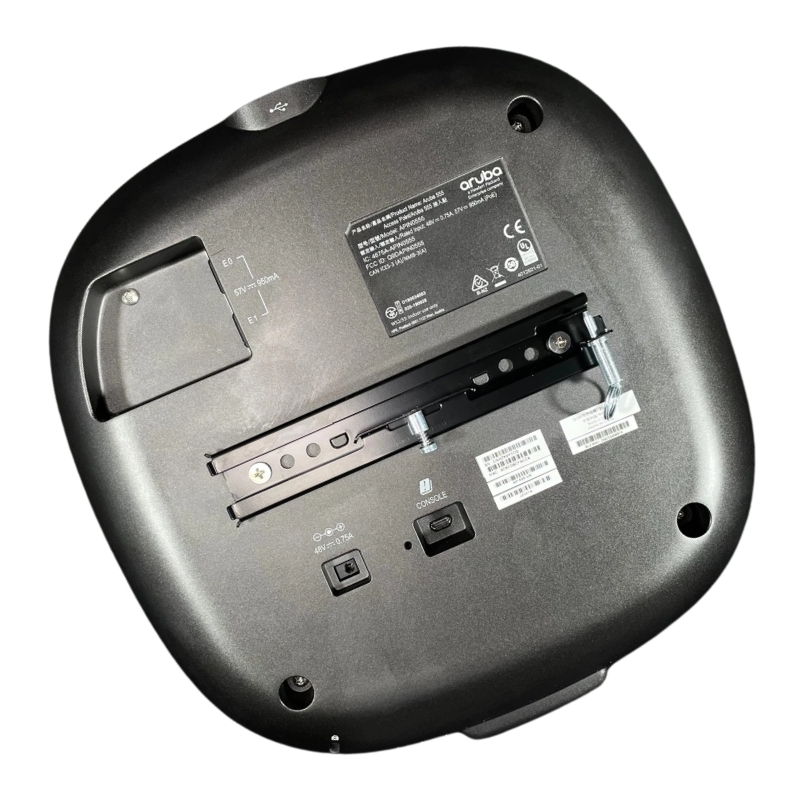

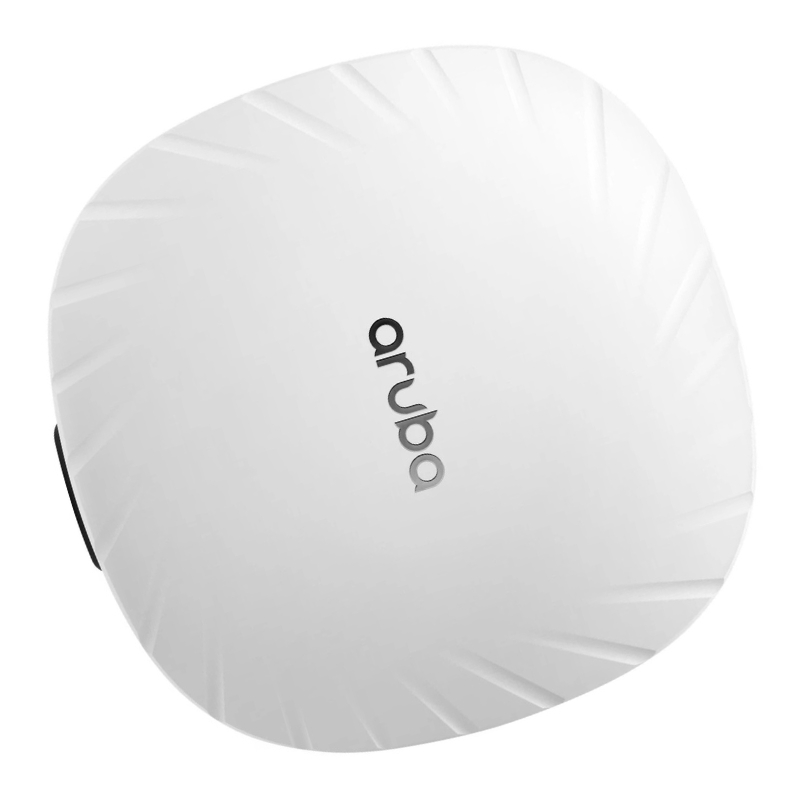

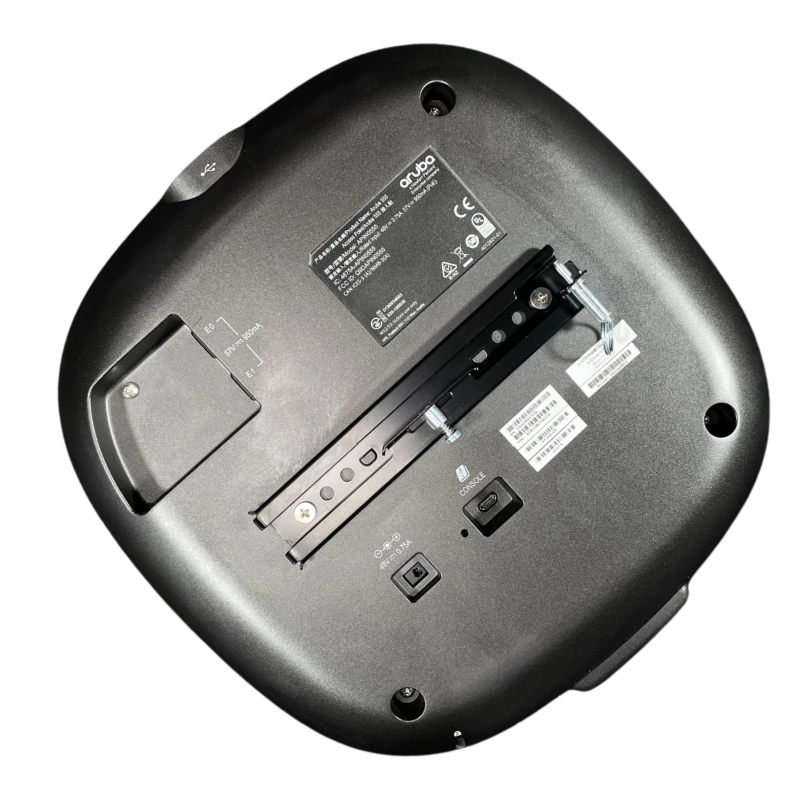

JZ357-61001 HPE Aruba AP-555 Dual Radio 8x8:8 4x4:4 802.11AX Antenna

HPE Aruba AP-555 Dual Radio Access point

The HPE JZ357-61001 Aruba AP-555 is a dual-radio wireless access point equipped with advanced 8x8:8 and 4x4:4 802.11AX antenna technology, delivering exceptional speed and reliability for enterprise-grade networks.

Main Information

• Manufacturer: HPE
• Part Number: JZ357-61001
• Device Type: Wireless Access Point

Technical Information

• Form Factor: In-ceiling
• Connectivity: Wireless
• Data Transfer Rate: 4.8 Gbps

Supported Coding Formats

• Cck
• 64 Qam
• 256 Qam
• Bpsk
• Qpsk
• 16 Qam
• Ofdm
• 1024 Qam
• Ofdma

Protocols & Standards

• IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
• IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
• Zigbee
• Bluetooth 5.0

Frequency Bands

• 2.4 GHz
• 5 GHz

Performance Metrics

• Maximum at 2.4 GHz: 1.150 Mbps
• Maximum at 5 GHz: 4.8 Gbps
• Aggregate Bandwidth: 5.95 Gbps

Capacity

• Wireless Clients per Radio: 1024
• OFDMA Units: 37
• BSSIDs per Radio: 16

Advanced Features

• Trusted Platform Module (TPM)
• Adaptive Radio Management (ARM)
• Secure Core Technology (SCT)
• Kensington Security Lock Compatible

Wireless Enhancements

• Transmit Beamforming (TxBF)
• MU-MIMO Technology (4x4 & 8x8)
• Dynamic Frequency Selection (DFS)
• Aruba AirMatch
• Spectrum Analyzer

Energy & Efficiency

• Energy-efficient Ethernet (EEE)
• Custom Deep-sleep Mode
• Target Wait Time (TWT)

Encryption & Compliance

• WPA
• WPA2
• WPA3

Compliant Standards

• IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
• IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
• IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

Antenna Specifications

• Type: Internal
• Directivity: Omni-directional

IoT Compatibility

• IoT Ready: Yes
• Communications: Bluetooth & Zigbee

Expansion & Connectivity

• 1 x HPE Smart Rate RJ-45
• 1 x 5GBase-T RJ-45
• 1 x USB 2.0 Type-A
• 1 x Console Micro-USB

HPE JZ357-61001 AP-555 Dual Radio Access point Overview

The HPE JZ357-61001 Aruba Dual Radio AP-555 with 8x8:8 and 4x4:4 802.11AX Antenna represents an enterprise-grade wireless networking solution designed to deliver exceptional Wi-Fi performance, extensive client capacity, and intelligent radio management for modern business environments. Built on advanced IEEE 802.11ax technology, this wireless access point enables organizations to meet increasing bandwidth demands while maintaining consistent connectivity across a wide variety of connected devices. As digital transformation accelerates across industries, businesses require wireless infrastructure capable of supporting cloud applications, high-definition collaboration, IoT deployments, and mobile workforces without compromising network stability or security.

The Aruba AP-555 category is engineered for organizations seeking reliable wireless performance in demanding indoor environments where hundreds of users and connected devices may access the network simultaneously. Featuring a dual-radio architecture with 8x8:8 capability in the 5 GHz band and 4x4:4 capability in the 2.4 GHz band, this enterprise access point delivers remarkable throughput while intelligently managing wireless traffic to optimize user experiences. Businesses investing in next-generation networking infrastructure often select this category because it combines performance, scalability, intelligent automation, and enterprise-class security within a single wireless platform.

Advanced 802.11AX Wireless Technology

Wi-Fi 6, officially known as IEEE 802.11ax, introduces substantial improvements over previous wireless generations by increasing network efficiency rather than simply focusing on higher throughput. The Aruba AP-555 category leverages these innovations to improve performance in environments with dense client populations, allowing multiple devices to communicate more efficiently with reduced latency and improved bandwidth utilization.

The implementation of Orthogonal Frequency Division Multiple Access enables simultaneous communication with numerous client devices, reducing congestion and improving response times across enterprise wireless networks. Multi-User Multiple Input Multiple Output technology further enhances network efficiency by allowing concurrent transmissions to multiple users instead of sequential communication, maximizing spectrum utilization and reducing transmission delays.

Enhanced Network Efficiency

The Aruba AP-555 family improves wireless communication through intelligent scheduling, optimized airtime allocation, and dynamic resource management. These capabilities help organizations maintain excellent wireless experiences even during peak business hours when employees, guests, and connected devices generate significant wireless traffic.

Improved Wireless Capacity

Modern enterprises frequently support laptops, smartphones, tablets, IP phones, IoT sensors, surveillance equipment, and collaboration devices on a single wireless infrastructure. The AP-555 category is designed to efficiently accommodate this growing ecosystem while maintaining consistent application performance.

Dual Radio Architecture for Enterprise Connectivity

8x8:8 Radio Performance

The high-performance 8x8:8 radio configuration delivers exceptional wireless capacity for high-density enterprise deployments. Multiple spatial streams improve overall throughput while enabling simultaneous communication with numerous client devices. Organizations operating conference centers, educational campuses, healthcare facilities, and corporate headquarters benefit significantly from this advanced antenna architecture.

The sophisticated antenna design enhances signal quality throughout indoor coverage areas while reducing interference and maximizing wireless efficiency. Intelligent beamforming techniques concentrate wireless energy toward connected devices, improving both coverage consistency and transmission reliability.

4x4:4 Secondary Radio Capability

The dedicated 4x4:4 radio complements the primary wireless interface by supporting additional wireless communications across enterprise environments. Together, both radios create balanced wireless coverage capable of supporting diverse client types operating across multiple frequency bands.

Enterprise Wireless Performance

Optimized High-Density Deployments

Enterprise wireless networks increasingly operate in high-density environments where hundreds of users require uninterrupted wireless connectivity. The Aruba AP-555 category addresses these challenges through intelligent radio optimization, automatic channel selection, adaptive transmit power, and advanced client steering technologies that improve overall network performance.

Organizations deploying collaborative workspaces, educational lecture halls, healthcare facilities, auditoriums, hospitality venues, retail environments, and government offices benefit from infrastructure specifically engineered for dense wireless deployments.

Reduced Network Congestion

Efficient spectrum utilization minimizes interference between wireless devices while maximizing available bandwidth for business-critical applications. Intelligent traffic management ensures that latency-sensitive workloads such as voice, video conferencing, virtual desktop infrastructure, and cloud applications receive consistent network performance.

Enterprise Security Features

Comprehensive Wireless Protection

Enterprise wireless infrastructure requires advanced security mechanisms capable of protecting sensitive organizational data while supporting flexible user access. The Aruba AP-555 category integrates multiple layers of security designed to authenticate users, encrypt communications, detect threats, and maintain regulatory compliance.

Support for modern authentication standards enables secure employee access while allowing controlled guest connectivity through configurable access policies. Encryption technologies protect wireless communications against interception, helping organizations safeguard confidential business information.

Secure Device Authentication

As enterprise environments continue expanding their connected device ecosystems, strong authentication becomes increasingly important. The Aruba AP-555 category supports secure onboarding procedures, certificate-based authentication, and policy-driven network access controls that simplify device management without sacrificing security.

Intelligent RF Management

Dynamic Channel Optimization

Radio frequency environments continuously change as neighboring wireless networks, client populations, and environmental conditions evolve throughout the day. Intelligent RF management automatically analyzes these conditions and adjusts wireless parameters to maintain optimal network performance.

Automatic channel allocation reduces co-channel interference while adaptive transmit power helps ensure consistent wireless coverage across enterprise facilities. These automated optimization capabilities significantly reduce administrative overhead while improving user experiences.

Adaptive Signal Distribution

Advanced beamforming technology dynamically directs wireless transmissions toward connected clients rather than broadcasting signals uniformly throughout the coverage area. This targeted communication enhances signal strength, improves throughput, and extends reliable wireless connectivity across challenging indoor environments.

Scalable Enterprise Wireless Infrastructure

Growing with Organizational Requirements

Organizations frequently expand their wireless infrastructure as business operations evolve. The Aruba AP-555 category supports scalable deployments ranging from individual office installations to campus-wide enterprise environments comprising hundreds or thousands of managed access points.

Centralized management simplifies deployment planning, firmware updates, policy enforcement, performance monitoring, and troubleshooting across distributed enterprise environments.

Simplified Network Expansion

Expanding wireless coverage becomes considerably easier when infrastructure supports standardized configuration templates and centralized administration. Network administrators can deploy additional access points while maintaining consistent operational policies throughout the enterprise.

Business Application Optimization

Cloud Service Connectivity

Cloud computing has become fundamental to modern enterprise operations. Organizations rely upon Software-as-a-Service platforms, unified communications, cloud storage, enterprise resource planning, customer relationship management, and virtual collaboration tools that require dependable wireless connectivity.

The Aruba AP-555 category provides the bandwidth, responsiveness, and reliability necessary to maintain productive cloud-based workflows throughout business operations.

Voice and Video Communications

Real-time communications demand low latency, minimal packet loss, and consistent bandwidth allocation. Intelligent traffic prioritization ensures voice over IP systems, video conferencing platforms, and unified communication applications receive appropriate network resources even during periods of heavy wireless utilization.

Support for Modern Workplace Environments

Hybrid Workforce Connectivity

Today's workplaces accommodate employees working from shared offices, conference rooms, collaborative spaces, and flexible workstations. Reliable wireless infrastructure enables seamless mobility throughout facilities without interrupting ongoing sessions or application connectivity.

The Aruba AP-555 category supports uninterrupted roaming experiences by maintaining strong wireless connectivity as users move between coverage zones.

Bring Your Own Device Support

Organizations increasingly allow employees to connect personal laptops, smartphones, and tablets alongside corporate-managed devices. Advanced policy enforcement mechanisms help maintain appropriate security while delivering consistent wireless performance for authorized endpoints.

IoT Device Connectivity

Smart Building Integration

Enterprise facilities increasingly deploy connected sensors, environmental monitoring systems, access control devices, surveillance equipment, lighting controls, occupancy sensors, and intelligent automation technologies. The Aruba AP-555 category supports these expanding IoT ecosystems while maintaining efficient wireless resource allocation.

Reliable connectivity allows organizations to leverage real-time analytics, predictive maintenance, energy optimization, and operational automation across connected building infrastructures.

Industrial Wireless Applications

Manufacturing facilities, logistics centers, warehouses, and distribution operations require dependable wireless networking to support scanners, mobile terminals, inventory systems, autonomous equipment, and operational monitoring platforms. Enterprise-grade reliability helps maintain continuous operational efficiency throughout demanding industrial environments.

Centralized Network Administration

Unified Configuration Management

Managing enterprise wireless infrastructure becomes significantly more efficient through centralized administrative platforms that provide visibility into network health, client activity, device status, firmware versions, and security compliance. The Aruba AP-555 category integrates seamlessly into enterprise management ecosystems that simplify routine operational tasks.

Automated configuration deployment minimizes manual administration while ensuring consistent policy enforcement across multiple geographic locations.

Performance Monitoring

Comprehensive monitoring capabilities provide administrators with valuable operational insights regarding client connectivity, application performance, bandwidth utilization, roaming behavior, interference levels, and hardware status. These analytics support proactive optimization before users experience service degradation.

Energy-Efficient Enterprise Design

Operational Efficiency

Modern enterprise networking solutions emphasize energy efficiency alongside high performance. Intelligent power management technologies optimize resource utilization while reducing unnecessary energy consumption during periods of reduced network activity.

Organizations seeking environmentally responsible IT infrastructure benefit from enterprise wireless equipment engineered to balance performance with operational efficiency.

Long-Term Infrastructure Value

Deploying advanced Wi-Fi 6 infrastructure provides long-term investment protection by supporting evolving wireless standards, increasing client densities, and expanding application requirements. Organizations can continue growing their digital capabilities without requiring frequent infrastructure replacement.

Deployment Flexibility

Corporate Offices

Professional office environments require reliable wireless connectivity for employee productivity, conference collaboration, cloud applications, and secure business communications. The Aruba AP-555 category delivers enterprise-grade wireless performance capable of supporting modern office operations across departments and collaborative workspaces.

Educational Institutions

Schools, colleges, universities, and research institutions depend upon robust wireless infrastructure to support online learning platforms, digital classrooms, interactive educational technologies, administrative operations, and campus-wide mobility. High client density support makes this category particularly suitable for educational deployments.

Healthcare Facilities

Hospitals, clinics, medical centers, and healthcare campuses require uninterrupted wireless connectivity for patient care systems, mobile clinical devices, diagnostic equipment, electronic medical records, and secure communications. Enterprise reliability contributes to operational continuity within healthcare environments.

Hospitality and Retail

Hotels, convention centers, restaurants, shopping centers, and retail stores benefit from high-capacity wireless networking that supports guest internet access, mobile payment systems, digital signage, inventory management, customer engagement platforms, and employee communications.

Reliable Wireless Experience

Consistent Coverage

The Aruba AP-555 category is engineered to deliver dependable wireless coverage throughout enterprise facilities by combining advanced antenna technology with intelligent radio optimization. Stable connectivity reduces dropped sessions while improving employee productivity and customer satisfaction.

High-Speed Data Transmission

Fast wireless communication supports demanding applications including large file transfers, multimedia streaming, cloud synchronization, virtual collaboration, business analytics, and enterprise productivity software. Optimized throughput enables organizations to maintain responsive digital operations across diverse workloads.
