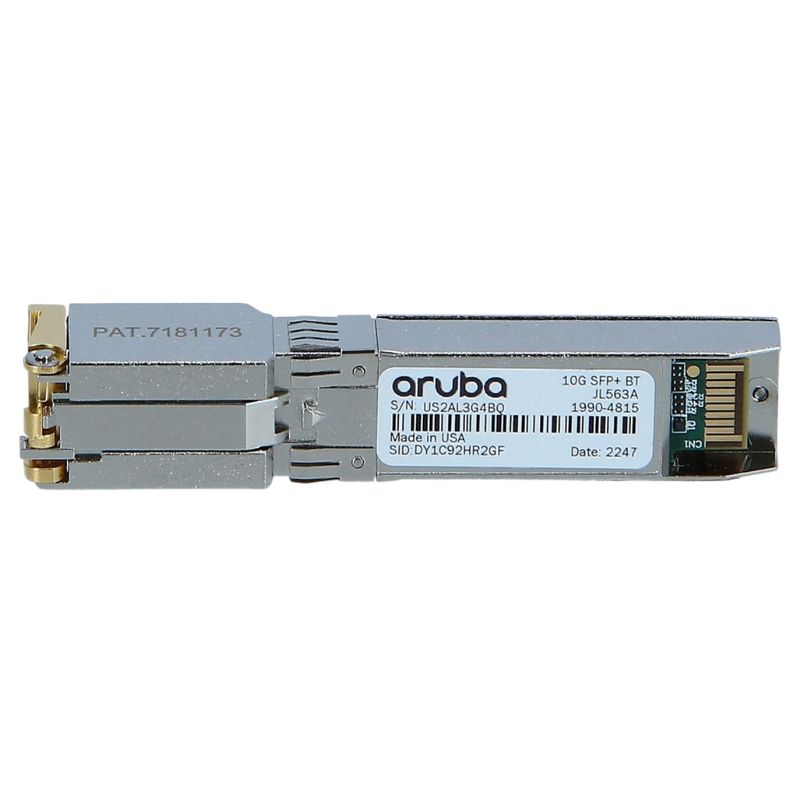

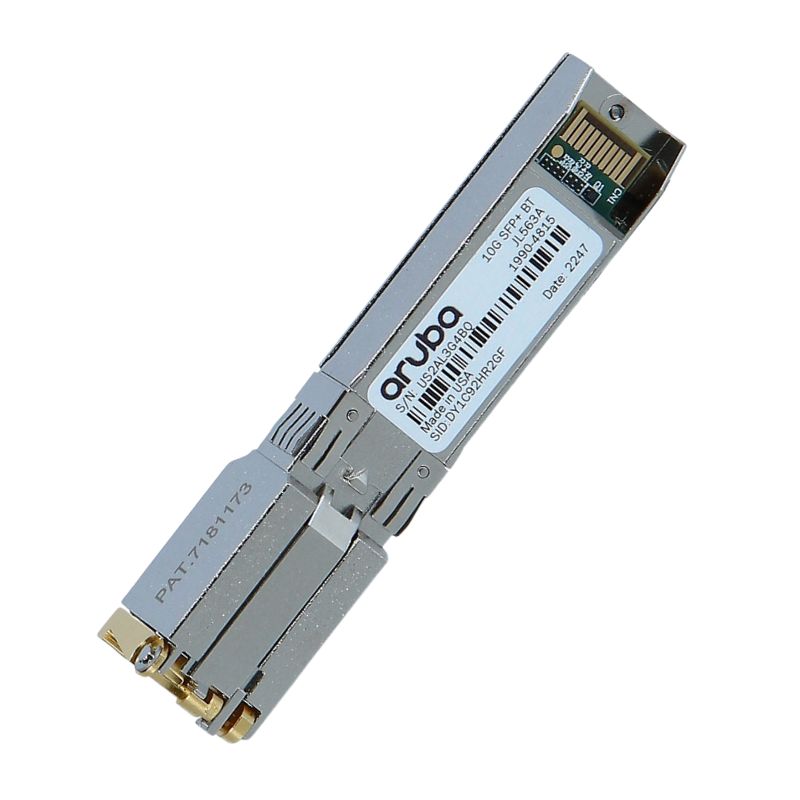

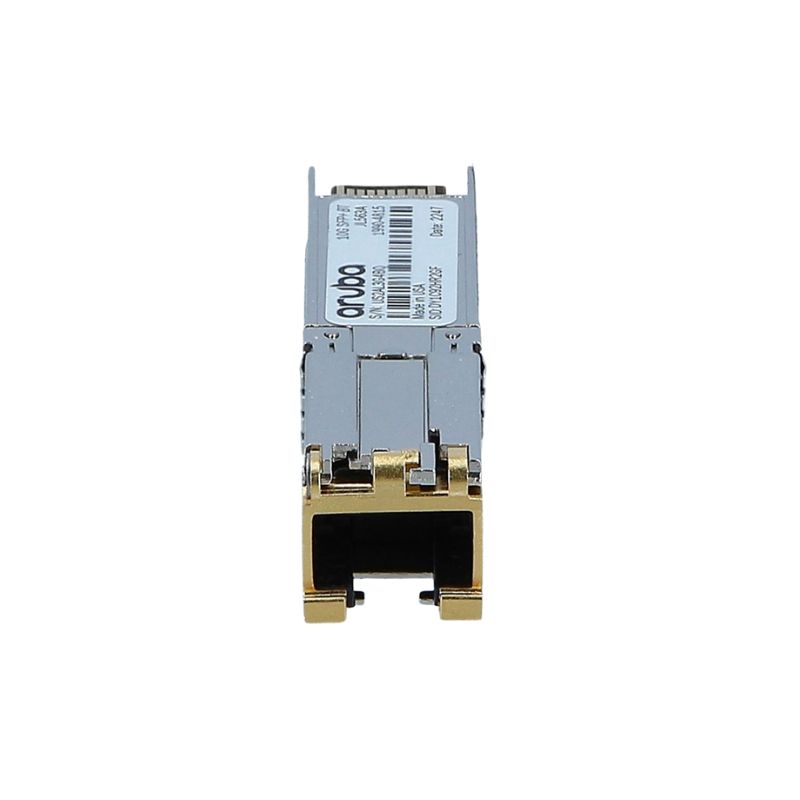

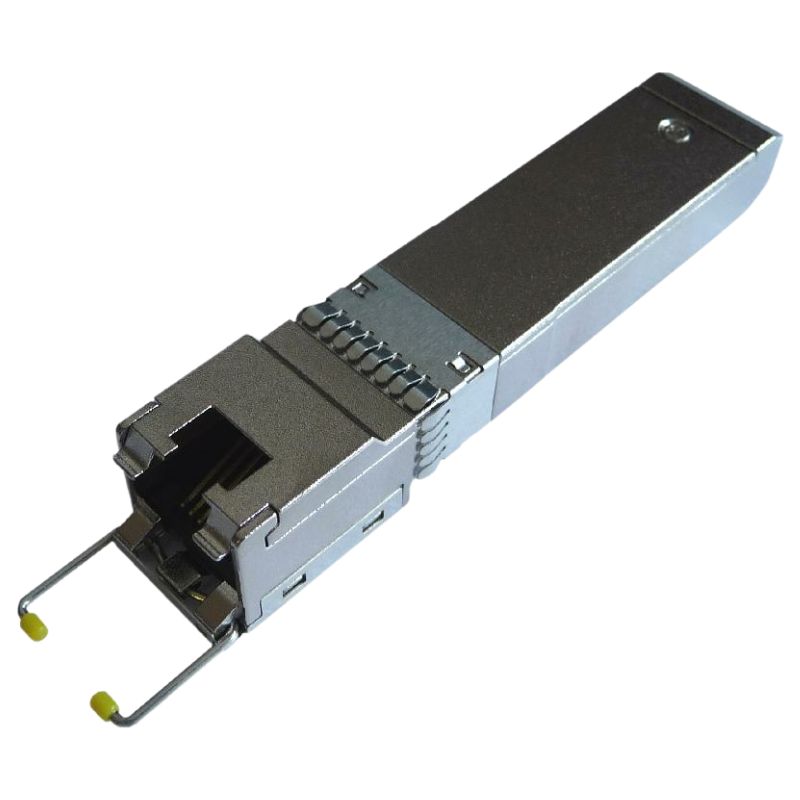

JL563-61001 HPE Aruba 10Gbase-T SFP+ RJ45 30m Cat6A Transceiver

Technical Specifications

• Maximum Data Rate: 10 Gigabits per second
• Supported Cable Type: Cat6a / Cat7 (shielded recommended)
• Maximum Reach: Up to 30 meters
• Connector Type: RJ45 copper interface
• Form Factor: SFP+ hot-pluggable module

HPE JL563-61001 Aruba 10Gbase-T SFP Transceiver

The JL563-61001 HPE Aruba 10Gbase-T SFP+ RJ45 30m Cat6A Transceiver is a specialized networking component designed to deliver high-speed connectivity across enterprise environments. This transceiver enables seamless integration of copper-based cabling with advanced SFP+ interfaces, ensuring that organizations can leverage existing infrastructure while upgrading to 10 Gigabit Ethernet performance. Its compatibility with Cat6A cabling allows reliable transmission up to 30 meters, making it ideal for data centers, campus networks, and high-demand IT environments where speed and stability are paramount.

Form Factor and Interface

The JL563-61001 transceiver adopts the SFP+ form factor, which is compact and hot-swappable. This design allows IT administrators to replace or upgrade modules without disrupting network operations. The RJ45 interface ensures compatibility with standard copper cabling, bridging the gap between fiber-based modules and traditional Ethernet infrastructures.

Performance Capabilities

Supporting 10Gbase-T Ethernet, the transceiver delivers data rates of 10 Gigabits per second. This speed is critical for modern workloads such as virtualization, cloud computing, and large-scale data transfers. The Cat6A cabling compatibility ensures minimal crosstalk and interference, maintaining consistent throughput across the supported 30-meter range.

Compatibility and Integration

The JL563-61001 module is engineered for seamless integration with HPE Aruba switches and networking equipment. Its compliance with industry standards ensures interoperability with other devices that support SFP+ transceivers. This flexibility allows enterprises to scale their networks without being locked into proprietary solutions.

Data Center Connectivity

In data centers, the JL563-61001 transceiver plays a vital role in connecting servers, storage systems, and switches. Its ability to support high-speed copper connections reduces the need for costly fiber deployments in short-range scenarios. This makes it a cost-effective solution for top-of-rack and end-of-row architectures.

Campus Network Deployment

For campus networks, the transceiver provides reliable backbone connectivity between distribution and core switches. The 30-meter range is sufficient for most wiring closets and inter-building connections, ensuring that academic institutions and corporate campuses can maintain high-speed communication across departments.

Virtualization and Cloud Integration

Virtualized environments demand high bandwidth and low latency. The JL563-61001 transceiver supports these requirements by enabling 10G connections between hypervisors, storage arrays, and cloud gateways. This ensures smooth operation of virtual machines and rapid access to cloud resources.

Advantages of Using JL563-61001

By leveraging existing Cat6A copper cabling, organizations can avoid the expense of deploying new fiber infrastructure. The transceiver provides a cost-effective path to 10G speeds without compromising on performance or reliability.

Future-Proofing Networks

As enterprises transition to higher bandwidth requirements, the JL563-61001 transceiver provides a scalable solution. Its compatibility with industry standards ensures that networks can evolve without requiring complete overhauls of cabling infrastructure.

SFP+ Transceivers

SFP+ transceivers are widely used in modern networking due to their compact size and versatility. They support a range of media types, including copper and fiber, making them adaptable to diverse networking scenarios. The JL563-61001 belongs to this subcategory, offering copper-based connectivity for environments where fiber may not be necessary.

10Gbase-T Technology

10Gbase-T is a standard for transmitting 10 Gigabit Ethernet over twisted-pair copper cabling. It provides backward compatibility with lower-speed Ethernet standards, ensuring smooth transitions during upgrades. The JL563-61001 transceiver leverages this technology to deliver high-speed performance over Cat6A cabling.

RJ45 Connectivity

RJ45 connectors are ubiquitous in networking, providing a familiar and reliable interface for Ethernet connections. By incorporating RJ45 into the SFP+ module, the JL563-61001 ensures compatibility with existing copper cabling infrastructures, reducing complexity during deployment.

Latency Considerations

Copper-based connections typically introduce slightly higher latency compared to fiber. However, within the 30-meter range, the JL563-61001 transceiver maintains latency levels that are acceptable for most enterprise applications, including real-time communication and data-intensive workloads.

Energy Efficiency

The transceiver is designed with energy efficiency in mind, reducing power consumption compared to older copper-based solutions. This contributes to lower operational costs and supports sustainability initiatives within organizations.

Reliability and Durability

Built to withstand the demands of enterprise environments, the JL563-61001 transceiver features a durable construction that ensures long-term reliability. Its design minimizes the risk of failure, providing consistent performance over extended periods.

Competitive Edge

The JL563-61001 transceiver stands out in the market due to its balance of performance, cost efficiency, and compatibility. It provides enterprises with a reliable solution for upgrading to 10G speeds without the need for extensive infrastructure changes.

Cabling Considerations

To maximize performance, it is essential to use high-quality Cat6A cabling. Proper installation practices, such as minimizing bends and avoiding interference sources, ensure that the transceiver delivers optimal throughput.

Flexibility in Network Design

With a maximum distance of 30m, the HPE Aruba JL563-61001 SFP+ RJ45 Transceiver offers flexibility in network design. This transceiver allows you to set up your network components in a way that best suits your organization's needs.

Whether you need to connect devices within a single room or across multiple rooms, the 30m maximum distance ensures that you have the freedom to design your network infrastructure accordingly. This flexibility enables efficient resource allocation and facilitates seamless communication between different departments or areas within your organization.
