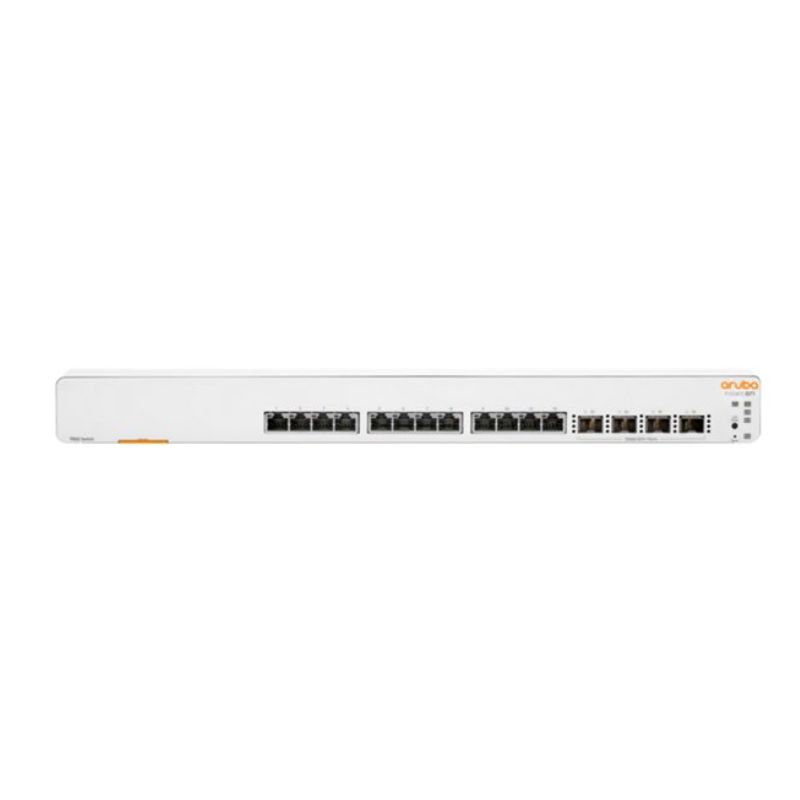

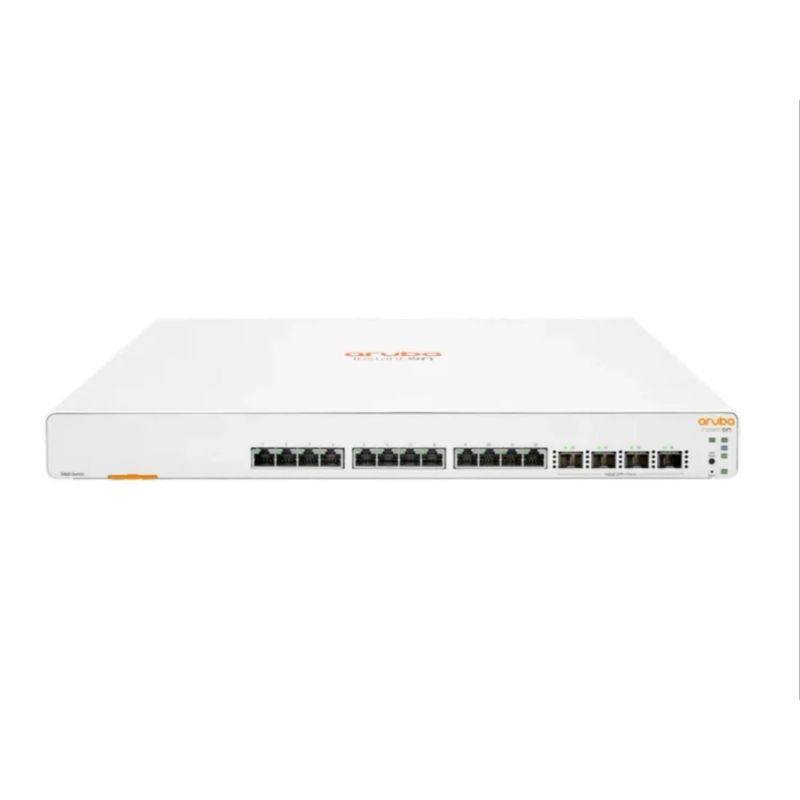

HPE Aruba JL805-61001 4SFP+ 12-Port Managed Network Switch
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
JL805-61001 | Six-Month (180 Days) | $1,200.00 | New (Box Not Sealed) | You save: $177.00 (13%) |
JL805-61001 | Six-Month (180 Days) | $1,224.00 | Factory-Sealed New in Original Box (FSB) | You save: $175.95 (13%) |
Product Specifications
Device Overview
- The HPE JL805-61001 Aruba Instant On 1960 is a cutting-edge 12-port L2+ smart stackable switch, designed to deliver robust performance for modern networking needs.
General Information
- Brand: HPE
- Part Number: JL805-61001
- Product Type: Managed Network Switch
Physical Characteristics
- Enclosure Type: Rack-mountable, 1U form factor
- Device Category: Switch with 12 ports
- Ethernet Subtype: 10 Gigabit Ethernet
Connectivity Options
- Ports: 12 x 100/1000/10000 Mbps, plus 4 x 10 Gigabit SFP+
Performance Metrics
Latency and Throughput
- Latency (100 Mbps): 7.4 µs
- Latency (1 Gbps): 4.2 µs
- Latency (10 Gbps): 1.1 µs
- Throughput: 238 Mpps
- Switching Capacity: 320 Gbps
Routing Capabilities
- IPv4 Routing Table Entries: 512
- IPv6 Routing Table Entries: 512
- MAC Address Table Size: 16,000 entries
- Jumbo Frame Support: Up to 9216 bytes
Protocols and Management
Supported Routing Protocols
- IGMPv2, IGMP, IGMPv3
- Static IPv4 Routing
- MLDv2
- Multicast Management Protocols
Remote Management Protocols
- SNMP v1, SNMP v2c, SNMP v3
- RMON, HTTP, HTTPS
- TFTP, SCP, RADIUS
Advanced Features
- Flow Control and Auto-Negotiation
- VLAN Support and Auto-Uplink (Auto MDI/MDI-X)
- IGMP Snooping and Port Mirroring
- Broadcast Storm Control
- IPv6 Support and Multicast Storm Control
- Firmware Upgradable with SNTP Support
- Multiple Spanning Tree Protocol (MSTP) Support
- Access Control List (ACL) Support
- Quality of Service (QoS)
- Energy Efficient Ethernet
Security and Control
- Port Security and DHCP Snooping
- Trusted Platform Module (TPM)
- IP Source Guard and Loop Protection
Compliance and Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i
- IEEE 802.3z, IEEE 802.1d, IEEE 802.1q
- IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
- IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s
- IEEE 802.1t, IEEE 802.1ab (LLDP)
Power Specifications
Power Supply Information
- Power Source: Internal Power Supply
- Input Voltage: AC 100-240 V (50/60 Hz)
- Operational Power Consumption: 80 Watts
Expansion and Connectivity Options
Interface Configuration
- 12 x 10Gbit LAN RJ-45 ports
- 4 x 10Gbit LAN SFP+ ports
Ports
The HPE Aruba JL805-61001 Managed Network Switch is equipped with 12 ports, making it a versatile and powerful networking solution for businesses of all sizes. These ports play a crucial role in connecting various devices and enabling seamless communication within the network. In this section, we will explore the benefits and importance of having 12 ports in the HPE Aruba JL805-61001.
Increased Connectivity
Having 12 ports on the HPE Aruba JL805-61001 allows for increased connectivity options. This means that you can connect more devices to your network, such as computers, servers, printers, and other peripherals. With more ports available, you have the flexibility to expand your network infrastructure without any limitations.
Improved Scalability
Scalability is a key consideration when choosing a managed network switch. The HPE Aruba JL805-61001's 12 ports provide ample room for future growth. As your business expands and more devices need to be connected to the network, you can easily accommodate the increased demand without having to invest in additional switches or complicated network configurations.
Efficient Network Management
The 12 ports on the HPE Aruba JL805-61001 make it easier to manage your network effectively. Each port can be assigned to specific devices or VLANs (Virtual Local Area Networks), allowing you to segregate and prioritize traffic based on your organization's needs. This level of control ensures that critical applications receive sufficient bandwidth while preventing congestion or bottlenecks on the network.
Enhanced Flexibility
With 12 ports at your disposal, you have the flexibility to create multiple network topologies tailored to your requirements. Whether you need to set up a star, ring, or mesh network configuration, the HPE Aruba JL805-61001 can accommodate your needs. This flexibility extends to the physical layout of your network as well, allowing you to position devices strategically for optimal performance and connectivity.
Improved Network Performance
The 12 ports on the HPE Aruba JL805-61001 contribute to improved network performance. With more ports available, the switch can handle higher volumes of data traffic without experiencing congestion or latency issues. This is particularly important in high-demand environments where multiple devices are simultaneously accessing and transferring data. By ensuring smooth and uninterrupted network operations, the HPE Aruba JL805-61001 helps boost productivity and user satisfaction.
Enhanced Network Security
Network security is a top priority for businesses today. The HPE Aruba JL805-61001's 12 ports allow for advanced security features such as VLANs and access control lists (ACLs). These features enable you to segment your network, restrict access to sensitive data, and enforce security policies at the port level. By implementing such measures, you can protect your network from unauthorized access, data breaches, and other security threats.
Simplified Troubleshooting
In the event of network issues or troubleshooting requirements, having 12 ports on the HPE Aruba JL805-61001 simplifies the process. Each port can be individually monitored and tested, allowing for targeted diagnostics and faster resolution times. This saves valuable time and resources for IT teams, enabling them to identify and resolve issues more efficiently.
Cost-Effective Solution
The presence of 12 ports in the HPE Aruba JL805-61001 makes it a cost-effective networking solution. Instead of investing in multiple switches or complex network configurations, you can achieve a robust and scalable network infrastructure with just one device. This not only reduces upfront costs but also lowers ongoing maintenance and management expenses.
SFP+
The HPE Aruba JL805-61001 Managed Network Switch is equipped with 4 SFP+ slots, offering high-speed connectivity options for businesses that require fast and reliable data transfer. In this section, we will delve into the benefits and importance of the SFP+ feature in the HPE Aruba JL805-61001.
High-Speed Data Transfer
The 4 SFP+ slots in the HPE Aruba JL805-61001 provide an ideal solution for businesses that depend on fast and efficient data transfer. SFP+ (Small Form-factor Pluggable Plus) transceivers support data rates of up to 10 Gigabits per second (Gbps), ensuring that your network can handle bandwidth-intensive tasks such as large file transfers, video streaming, and real-time data analysis.
Long-Distance Connectivity
One of the key benefits of SFP+ technology is its ability to support long-distance connectivity. By utilizing fiber optic cables, SFP+ modules can transmit data over extended distances without any signal degradation. This makes them suitable for connecting devices or networks located in different buildings or even across geographical locations. With the HPE Aruba JL805-61001, you can establish reliable and high-speed connections over long distances without compromising performance.
Flexible Network Design
The presence of 4 SFP+ slots in the HPE Aruba JL805-61001 allows for greater flexibility in network design. These slots can be used to connect the switch to other switches or devices using fiber optic cables, enabling you to create a hybrid network that combines copper and fiber connections. This flexibility is especially valuable in environments where specific devices or network segments require the enhanced performance and distance capabilities offered by SFP+ technology.
Future-Proof Network Infrastructure
Investing in a network switch with SFP+ slots, such as the HPE Aruba JL805-61001, helps future-proof your network infrastructure. As data demands continue to increase, having the ability to upgrade to higher data rates becomes crucial. SFP+ technology supports various data rates, including 10Gbps and beyond, allowing your network to keep up with growing bandwidth requirements. This ensures that your infrastructure remains capable of supporting emerging technologies and applications without the need for extensive upgrades or replacements.
Reliable and Secure Connections
SFP+ modules offer reliable and secure connections, thanks to their use of fiber optic cables. Fiber optic technology is immune to electromagnetic interference, making it less susceptible to data loss or disruptions caused by external factors. Additionally, the HPE Aruba JL805-61001 supports features such as link aggregation and redundancy protocols, which further enhance connection reliability and resilience. By leveraging SFP+ technology, you can ensure consistent and secure data transmission within your network.
Cost-Effective Solution
While SFP+ technology offers impressive performance capabilities, it also brings cost-effectiveness to your network infrastructure. By utilizing fiber optic cables, you can achieve longer distances compared to traditional copper-based connections without the need for additional equipment or signal boosters. This can result in cost savings in terms of cabling infrastructure and installation. Moreover, the ability to upgrade the SFP+ modules as needed allows for a scalable and cost-efficient approach to meet evolving networking requirements.
Interoperability
The SFP+ slots in the HPE Aruba JL805-61001 are compatible with a wide range of SFP+ transceivers from various manufacturers. This interoperability ensures that you have flexibility in selecting the most suitable transceivers for your specific needs, whether it's single-mode or multi-mode fiber optics or different data rates. The ability to choose from a diverse range of transceivers enables you to customize your network setup without being limited to a specific vendor or technology.
In conclusion, the HPE Aruba JL805-61001 Managed Network Switch's 12 ports and 4 SFP+ slots offer numerous benefits and play a crucial role in creating a scalable, flexible, and high-performance network infrastructure. With increased connectivity, improved scalability, efficient network management, and enhanced security, the 12 ports provide businesses with the foundation for a reliable and future-proof network. Similarly, the 4 SFP+ slots enable high-speed data transfer, long-distance connectivity, flexible network design, and reliable and secure connections. Together, these features make the HPE Aruba JL805-61001 an excellent choice for businesses seeking a powerful networking solution.
