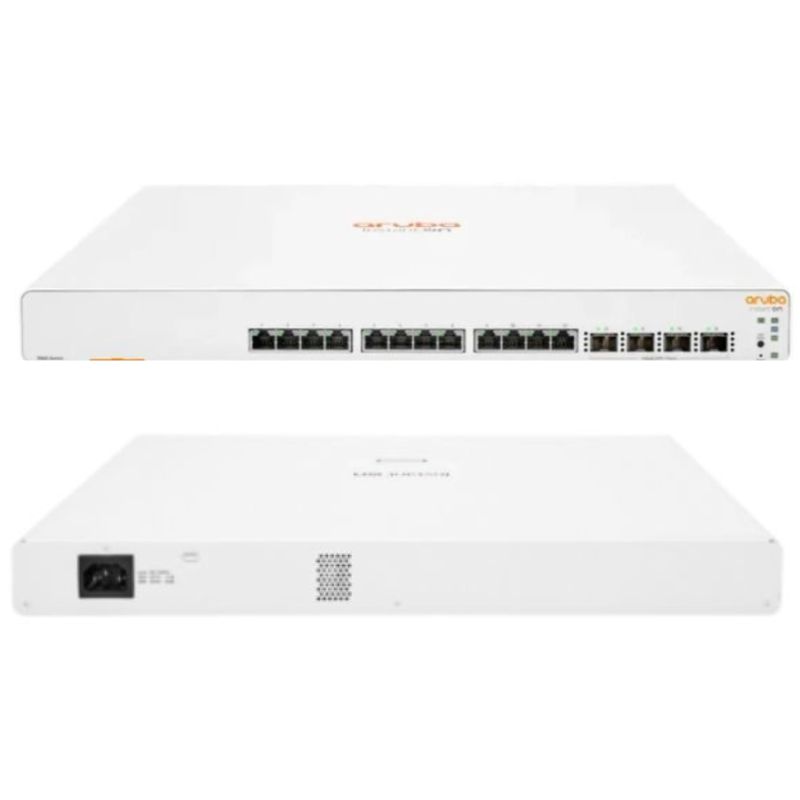

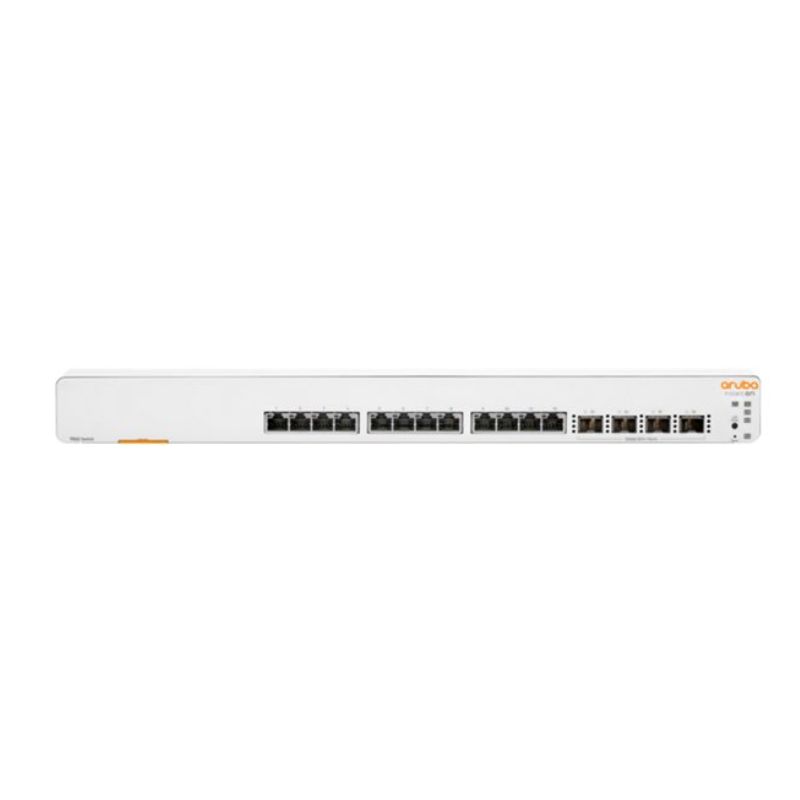

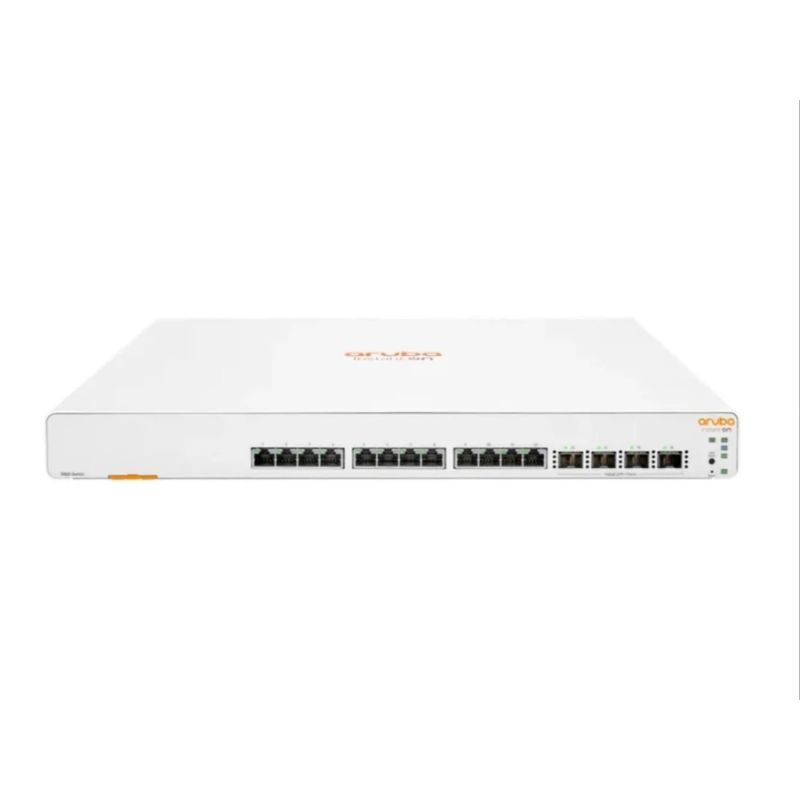

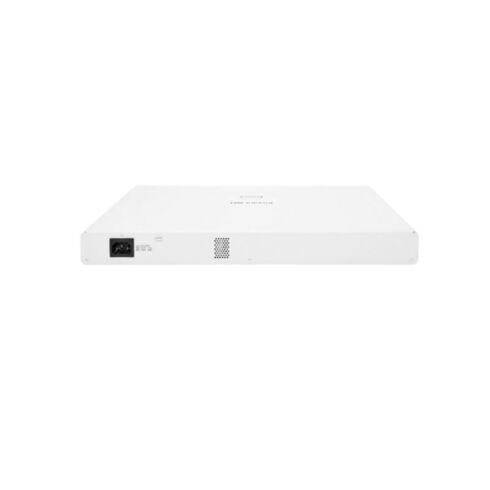

HPE Aruba JL805A 12-Port Smart Rack-Mountable Network Switch + 4 SFP+ Ports

JL805A
Hover on image to enlarge

Brief Overview of JL805A

HPE Aruba JL805A 12-Port Smart Rack-Mountable Network Switch with 4 SFP+ Ports. Factory-Sealed New in Original Box (FSB)

with 3-Year Replacement Warranty
QR Code of HPE Aruba JL805A 12-Port Smart Rack-Mountable Network Switch + 4 SFP+ Ports
$1,401.30
$1,224.00
You save: $177.30 (13%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL805AAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Device Classification of HPE JL805A Aruba Instant On 1960 12xgt 4sfp+ Switch

Product Identification

  • Brand: HPE
  • Part Number: JL805A
  • Product Type:  Network Switch

General Specifications

  • Device Type: 12-Port Layer 2+ Smart Stackable Switch
  • Enclosure Format: 1U Rack-Mountable
  • Subtype: 10 Gigabit Ethernet

Port Configuration

  • Ports: 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+

Performance Metrics

  • Latency:
    • 100 Mbps: 7.4 ms
    • 1 Gbps: 4.2 ms
    • 10 Gbps: 1.1 ms
  • Throughput: 238 Mpps
  • Switching Capacity: 320 Gbps

Routing Capabilities

  • IPv4 Routing Table Entries: 512
  • IPv6 Routing Table Entries: 512
  • MAC Address Table Size: 16,000 Entries

Jumbo Frame Support

  • Maximum Frame Size: 9216 Bytes

Supported Routing Protocols

  • IGMPv2
  • IGMP
  • IGMPv3
  • Static IPv4 Routing
  • MLDv2
  • MLD

Remote Management Protocols

  • SNMP v1
  • RMON
  • SNMP v3
  • SNMP v2c
  • HTTP/HTTPS
  • TFTP
  • SCP
  • RADIUS

Advanced Features

  • Flow Control
  • Auto-Negotiation
  • VLAN Support
  • Auto-Uplink (Auto MDI/MDI-X)
  • IGMP Snooping
  • DoS Attack Prevention
  • Port Mirroring
  • Broadcast Storm Control
  • IPv6 Support
  • Multicast Storm Control
  • Unicast Storm Control
  • Firmware Upgrade Capability
  • SNTP Support
  • Spanning Tree Protocol (STP) Support
  • Rapid Spanning Tree Protocol (RSTP) Support
  • Multiple Spanning Tree Protocol (MSTP) Support
  • DHCP Snooping
  • Access Control List (ACL) Support
  • Quality of Service (QoS)
  • DHCP Server
  • MLD Snooping
  • Trusted Platform Module (TPM)
  • Cable Diagnostics Function
  • DHCP Relay
  • Port Security
  • Port-Based Access Control
  • DHCP Client
  • Energy Efficient Ethernet
  • Class of Service (CoS)
  • Cloud Management
  • IP Source Guard
  • Internet Control Message Protocol (ICMP)
  • Dual Image Support
  • DNS Client
  • LLDP-MED
  • Ingress Rate Limiting
  • Protected Ports
  • BPDU Filter
  • Weighted Round Robin (WRR)
  • ARP Filtering
  • DSCP Prioritization
  • Auto Voice VLAN
  • Loop Protection

Compliance and Standards

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3i
  • IEEE 802.3z
  • IEEE 802.1d
  • IEEE 802.1q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3x
  • IEEE 802.3ad (LACP)
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ae
  • IEEE 802.3ac
  • IEEE 802.1s
  • IEEE 802.1t
  • IEEE 802.1ab (LLDP)

Expansion and Connectivity Options

  • Interfaces:
    • 12 x 10Gb Ethernet RJ-45
    • 4 x 10Gb Ethernet SFP+

Power Specifications

  • Power Supply Type: Internal Power Supply
  • Voltage Requirements: AC 100-240 V (50/60 Hz)
  • Operational Power Consumption: 80 Watts

Ports

The HPE Aruba JL805A Smart Rack-Mountable Network Switch comes with a total of 12 ports, making it an ideal choice for businesses and organizations of all sizes. The availability of multiple ports ensures that users have the flexibility and scalability to connect various devices and expand their network as needed.

Enhanced Connectivity

With 12 ports, this network switch provides enhanced connectivity options for users. It allows for the simultaneous connection of multiple devices such as computers, printers, servers, and other networking equipment. This feature is particularly beneficial for organizations that require a high level of network connectivity to support their day-to-day operations.

Improved Efficiency

The abundance of ports on the HPE Aruba JL805A Smart Rack-Mountable Network Switch leads to improved efficiency within the network infrastructure. Users can easily connect multiple devices without the need for additional switches or hubs. This reduces the complexity of the network setup and eliminates potential bottlenecks that can occur when using limited port switches.

Scalability

One of the key advantages of having 12 ports on this network switch is the scalability it offers. As businesses grow and expand, they often require additional devices to be connected to the network. With 12 ports, users can easily add more devices without the need to invest in additional networking equipment. This not only saves costs but also simplifies the overall network management process.

SFP+ Ports

In addition to the 12 regular ports, the HPE Aruba JL805A Smart Rack-Mountable Network Switch is equipped with 4 SFP+ (Small Form-Factor Pluggable Plus) ports. These specialized ports offer several benefits and are particularly useful for businesses that require high-speed connections or need to connect to fiber optic networks.

High-Speed Connectivity

The 4 SFP+ ports on this network switch provide high-speed connectivity options for users. These ports support data transfer rates of up to 10 Gigabits per second (Gbps), making them ideal for bandwidth-intensive applications such as video streaming, large file transfers, and data backup. With SFP+ ports, users can ensure fast and reliable connections for their critical business operations.

Flexibility and Versatility

SFP+ ports offer a high level of flexibility and versatility in network setups. These ports are compatible with a variety of transceiver modules, allowing users to connect to different types of networks, including fiber optic networks. This flexibility is particularly useful for businesses that require long-distance connections or need to connect to remote locations.

Future-Proofing

Investing in a network switch with SFP+ ports is a smart choice for future-proofing your network infrastructure. As technology continues to advance, the demand for higher speeds and greater bandwidth will only increase. By having SFP+ ports, users can easily upgrade their network connections without the need to replace the entire switch. This not only saves costs but also ensures that your network is ready to handle future demands.

In conclusion, the HPE Aruba JL805A Smart Rack-Mountable Network Switch offers valuable features in terms of its 12 regular ports and 4 SFP+ ports. The 12 ports provide enhanced connectivity, improved efficiency, and scalability options for users. On the other hand, the 4 SFP+ ports offer high-speed connectivity, flexibility, and future-proofing capabilities. Whether you need to connect multiple devices or require high-speed connections for your critical business operations, this network switch is an excellent choice that caters to your networking needs.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
